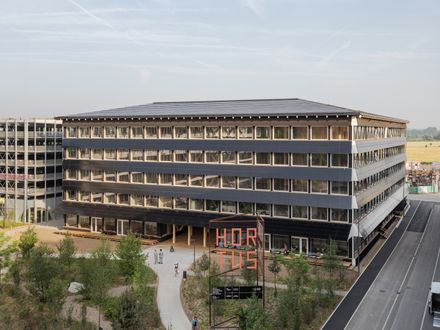

Hortus Allschwil

English description provided by the architects.

Our client, Senn, commissioned us to design a radically sustainable office building made of renewable and recyclable building materials.

After 31 years, the building, which has around 600 workplaces, will have fully offset the energy used during its construction. Our collaboration with Senn and a team of experienced specialist planners has resulted in one of the most sustainable office buildings in the German-speaking world.

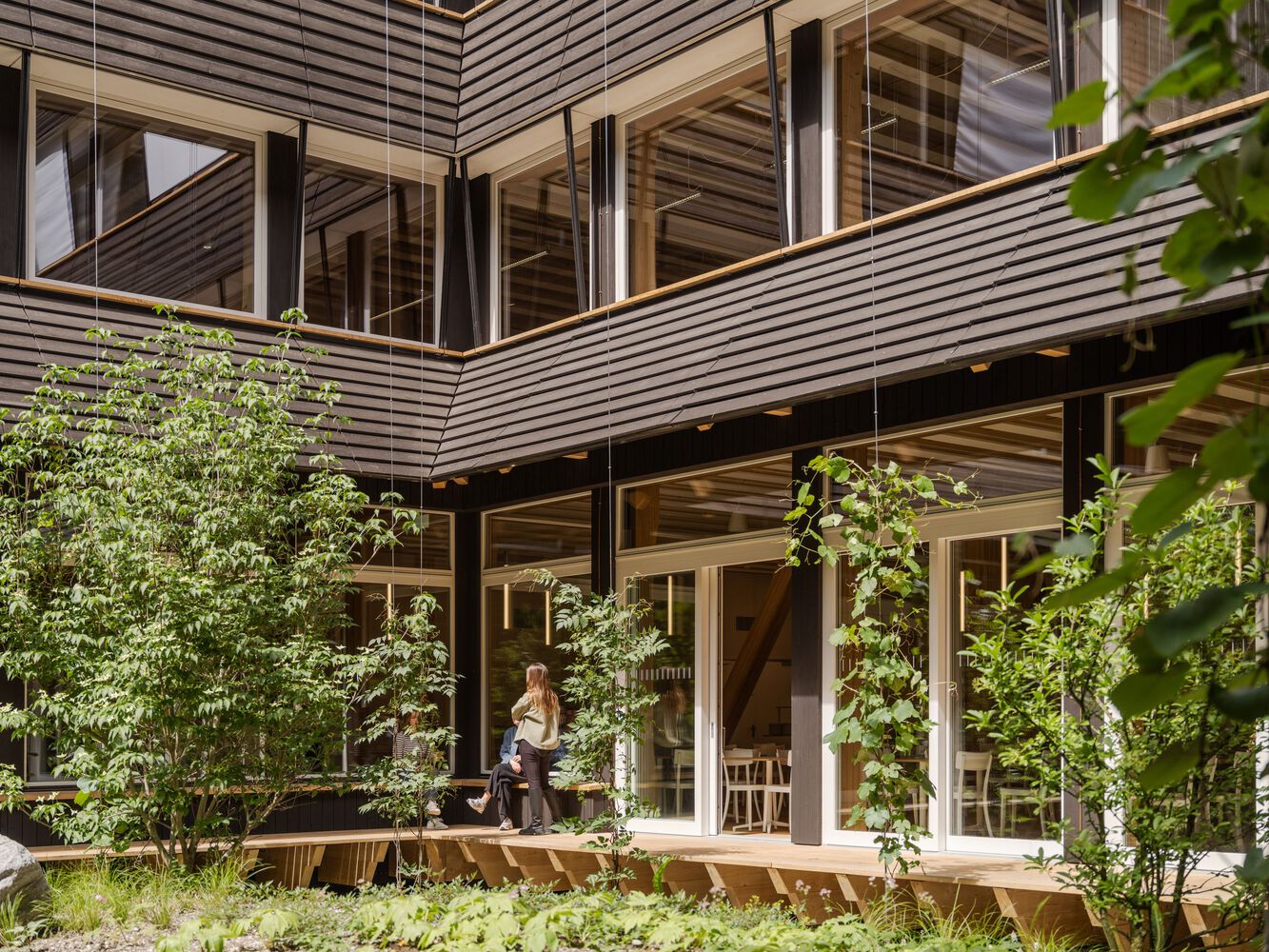

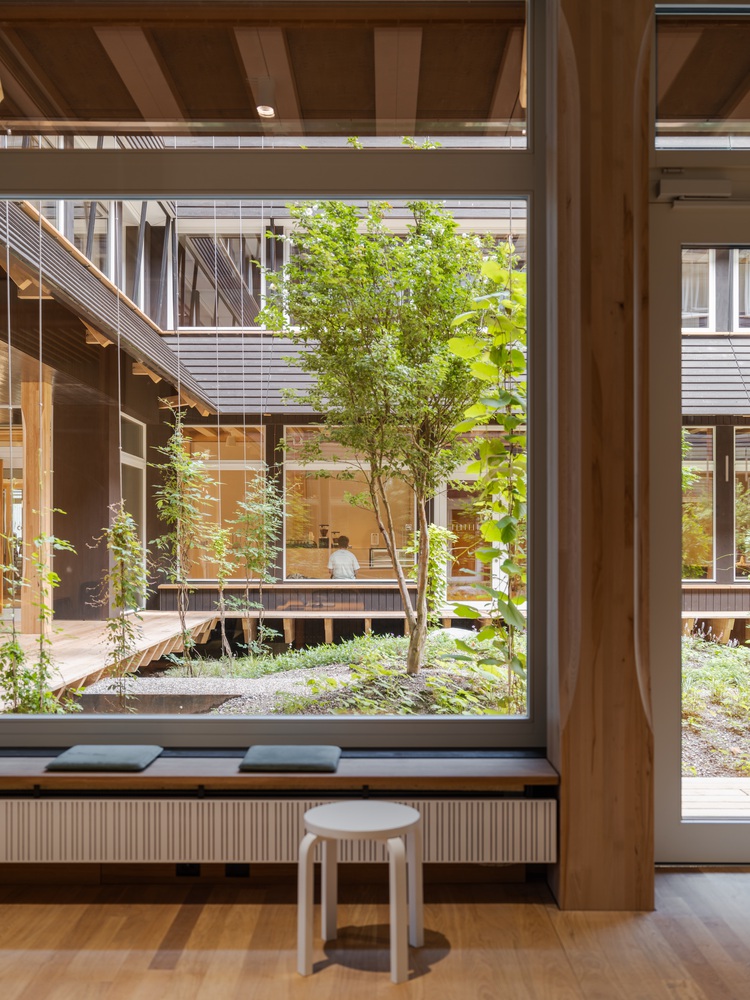

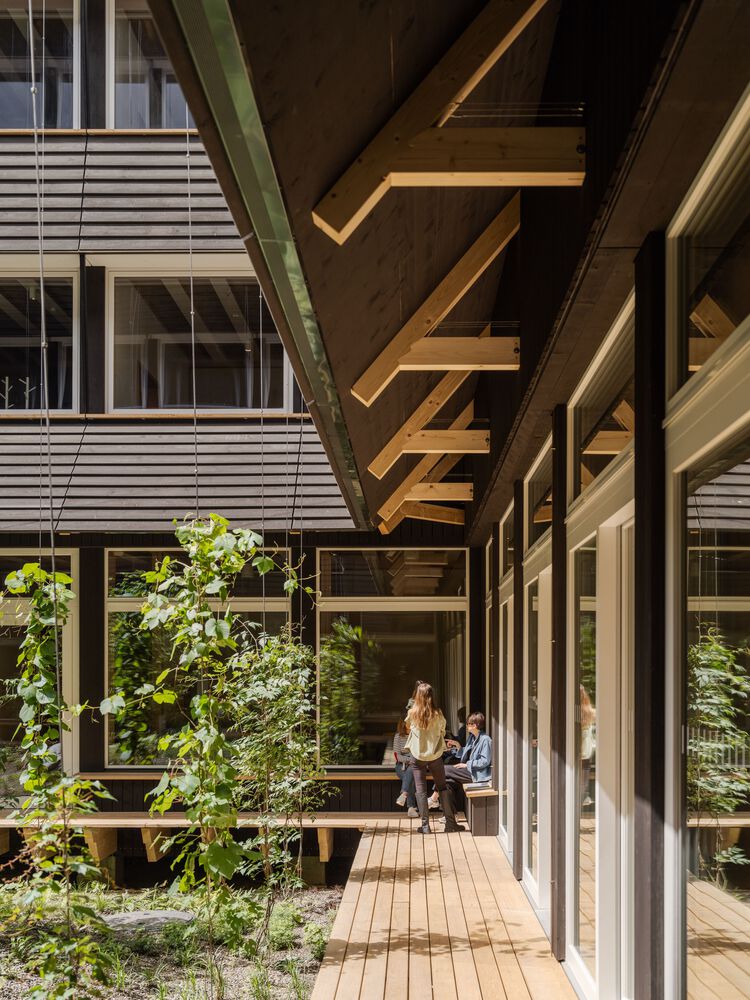

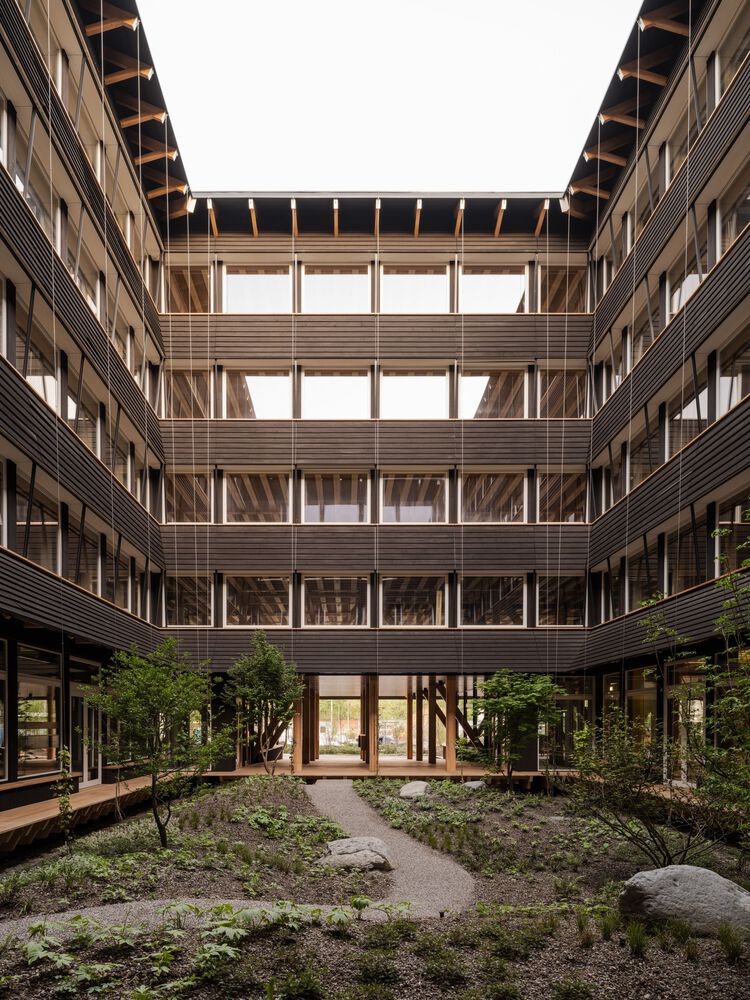

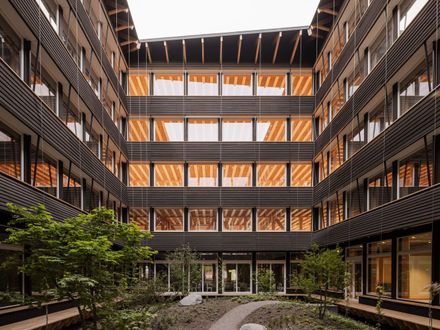

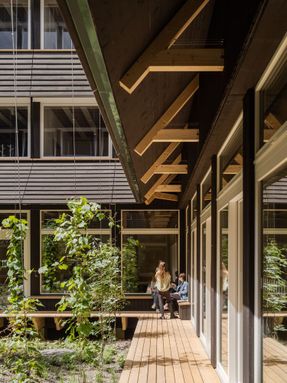

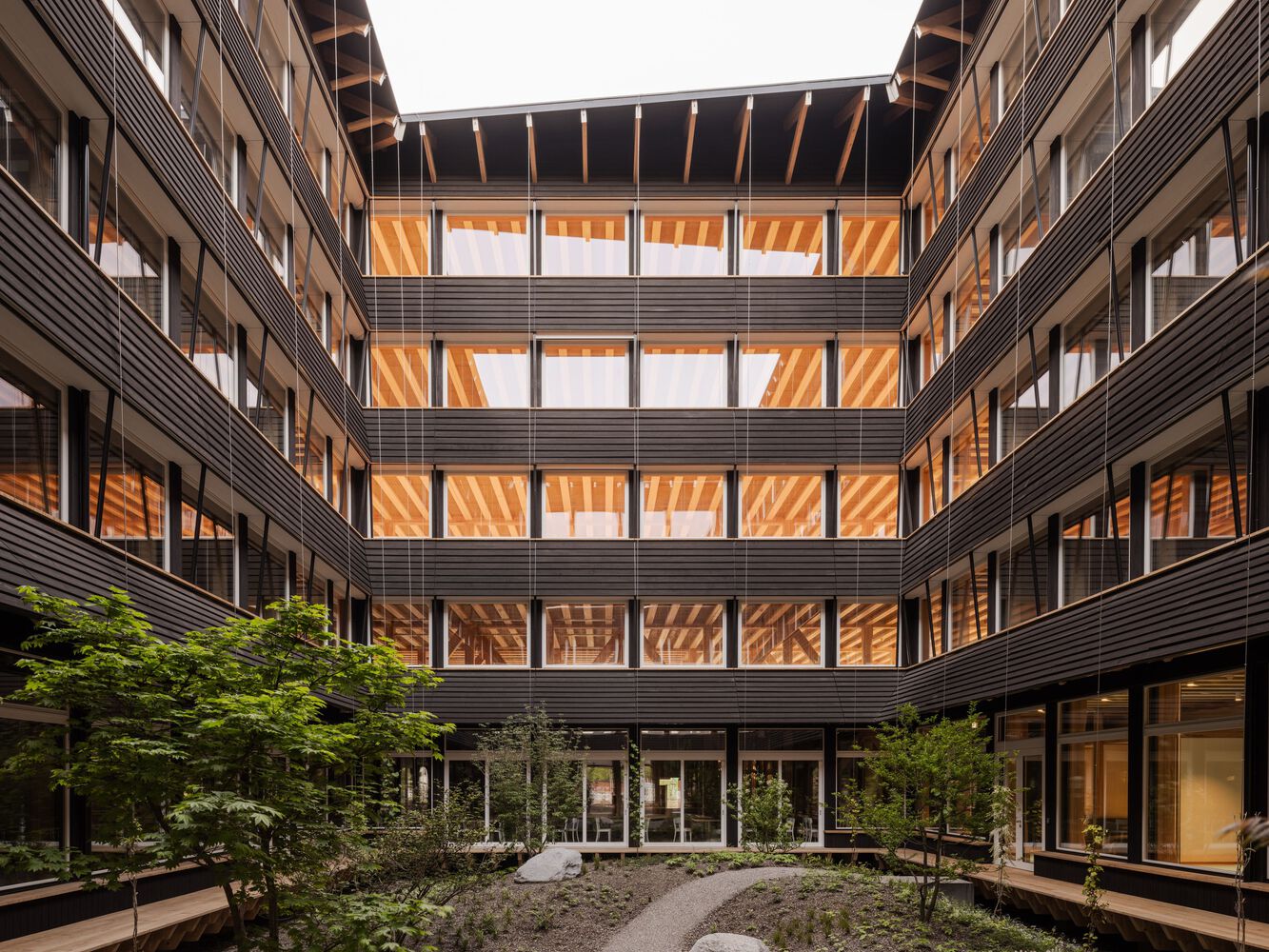

Tall shrubs, grasses, flowering perennials, and climbing plants on the courtyard façades provide dense greenery along a curved gravel path. Underneath the garden is a rainwater collection tank that is used for watering the plants and for the sanitary facilities.

COLLABORATIVE USE

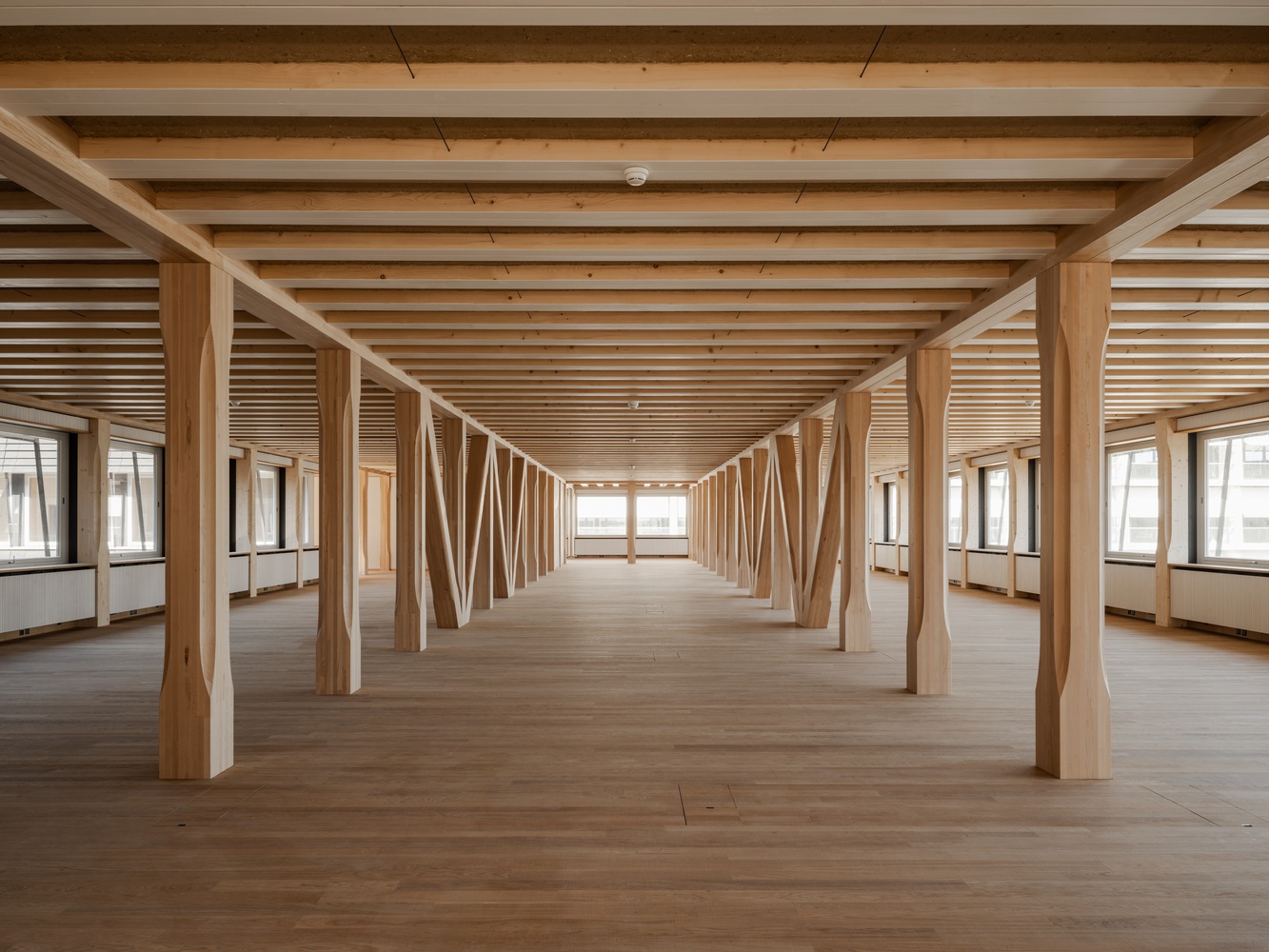

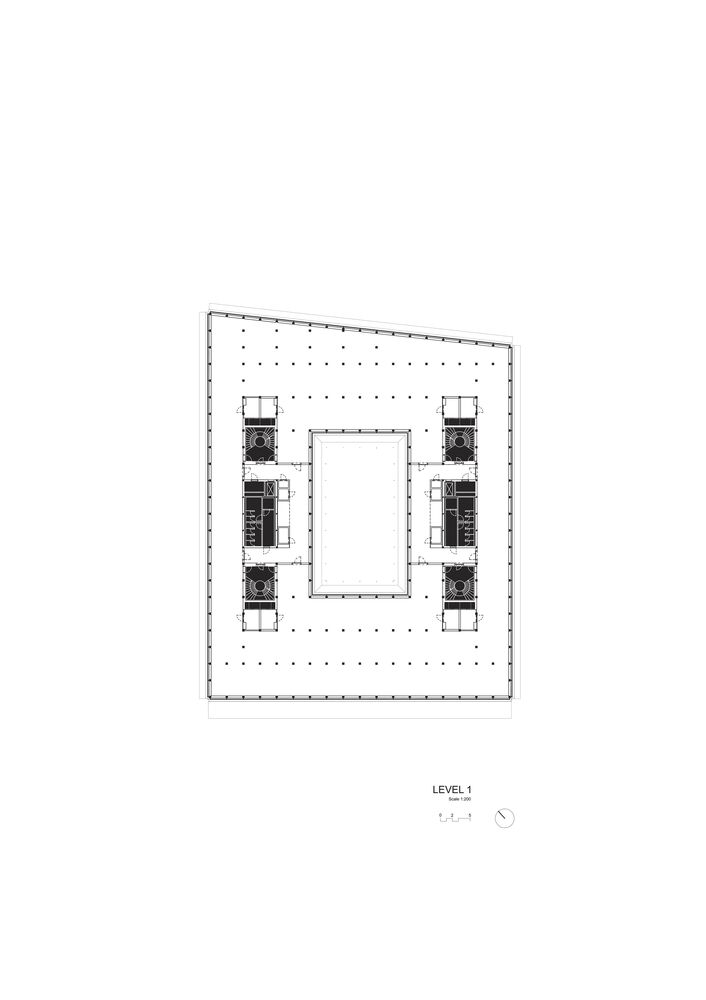

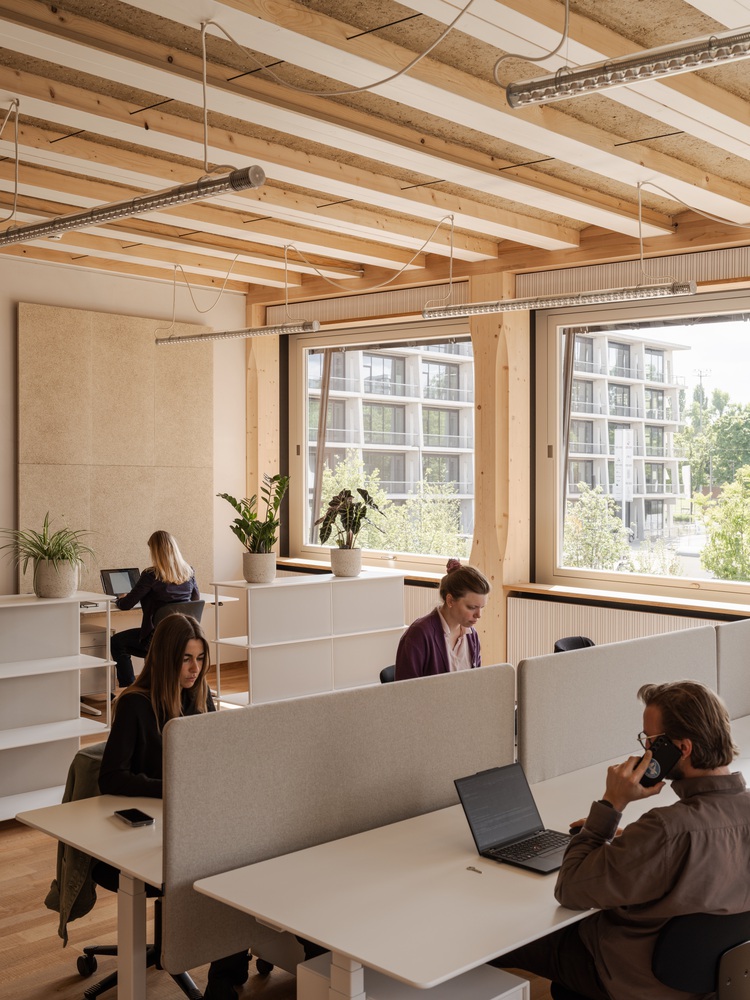

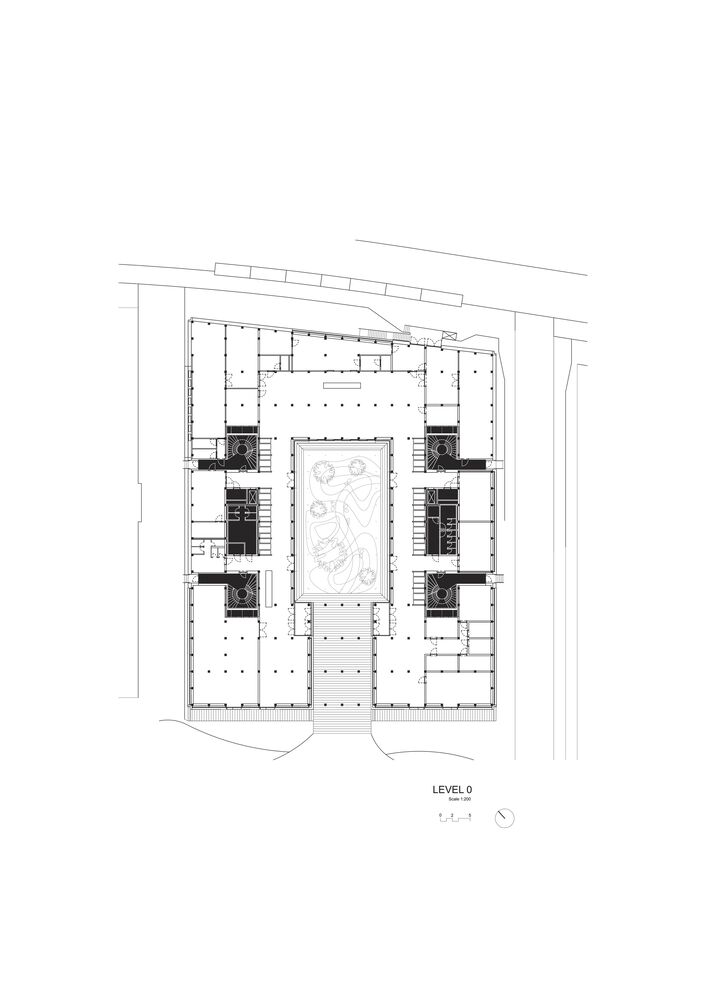

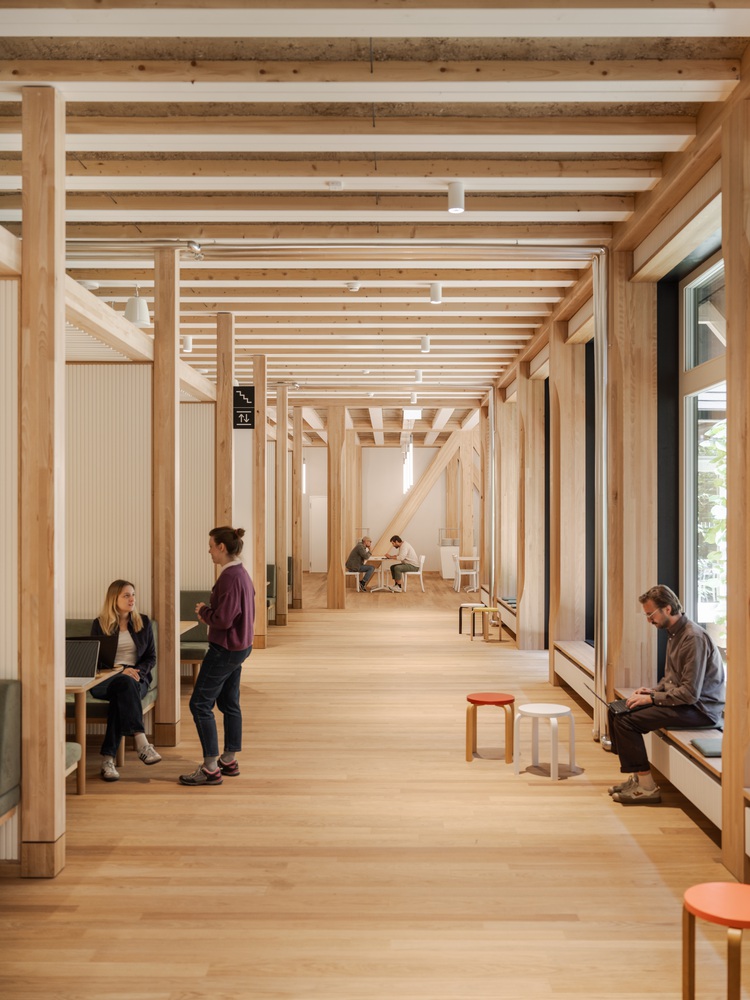

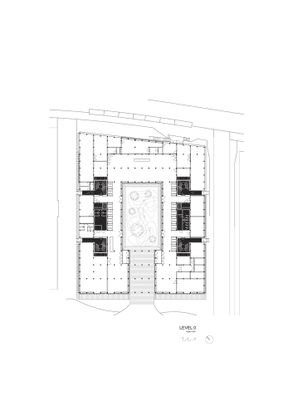

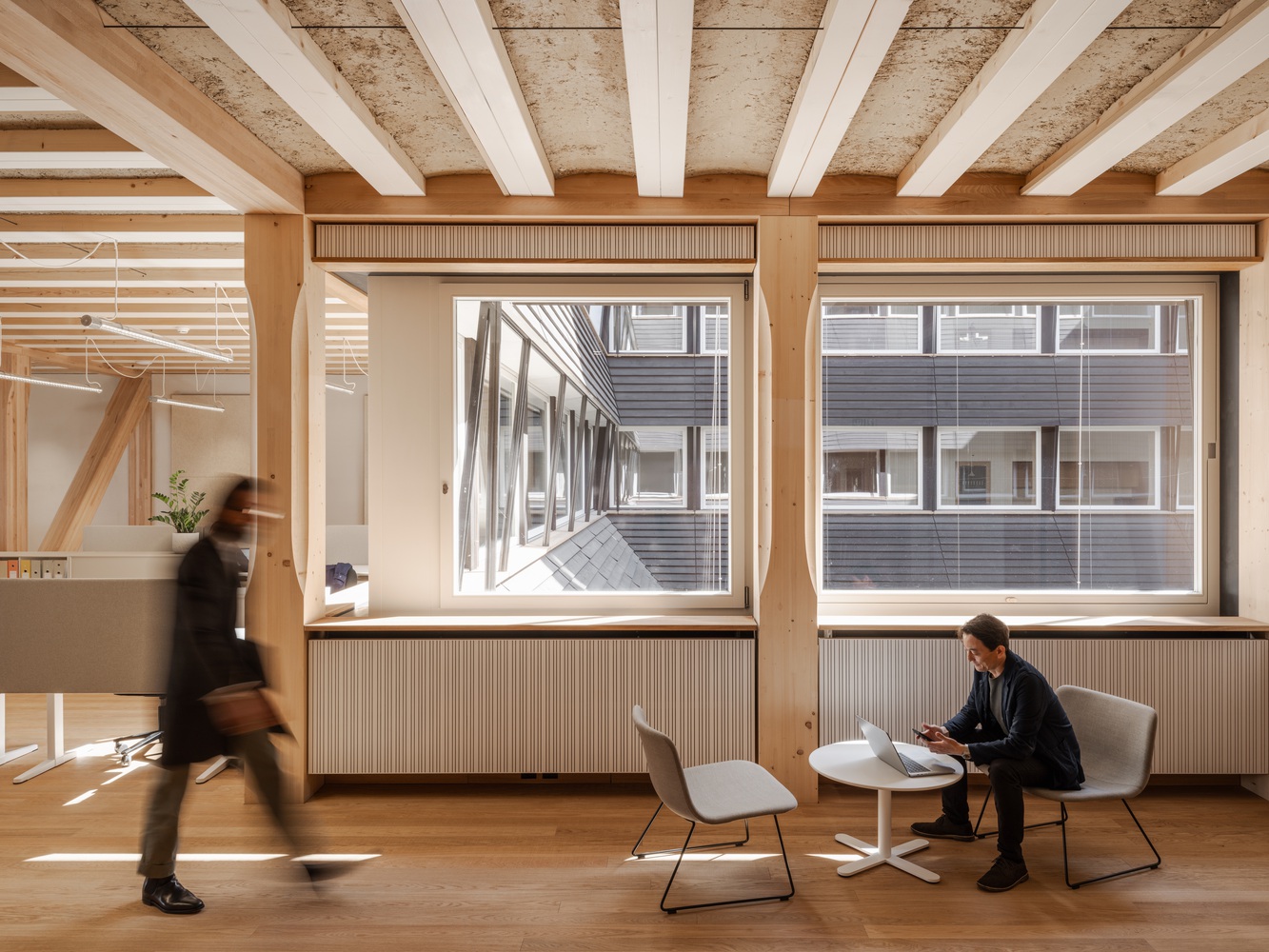

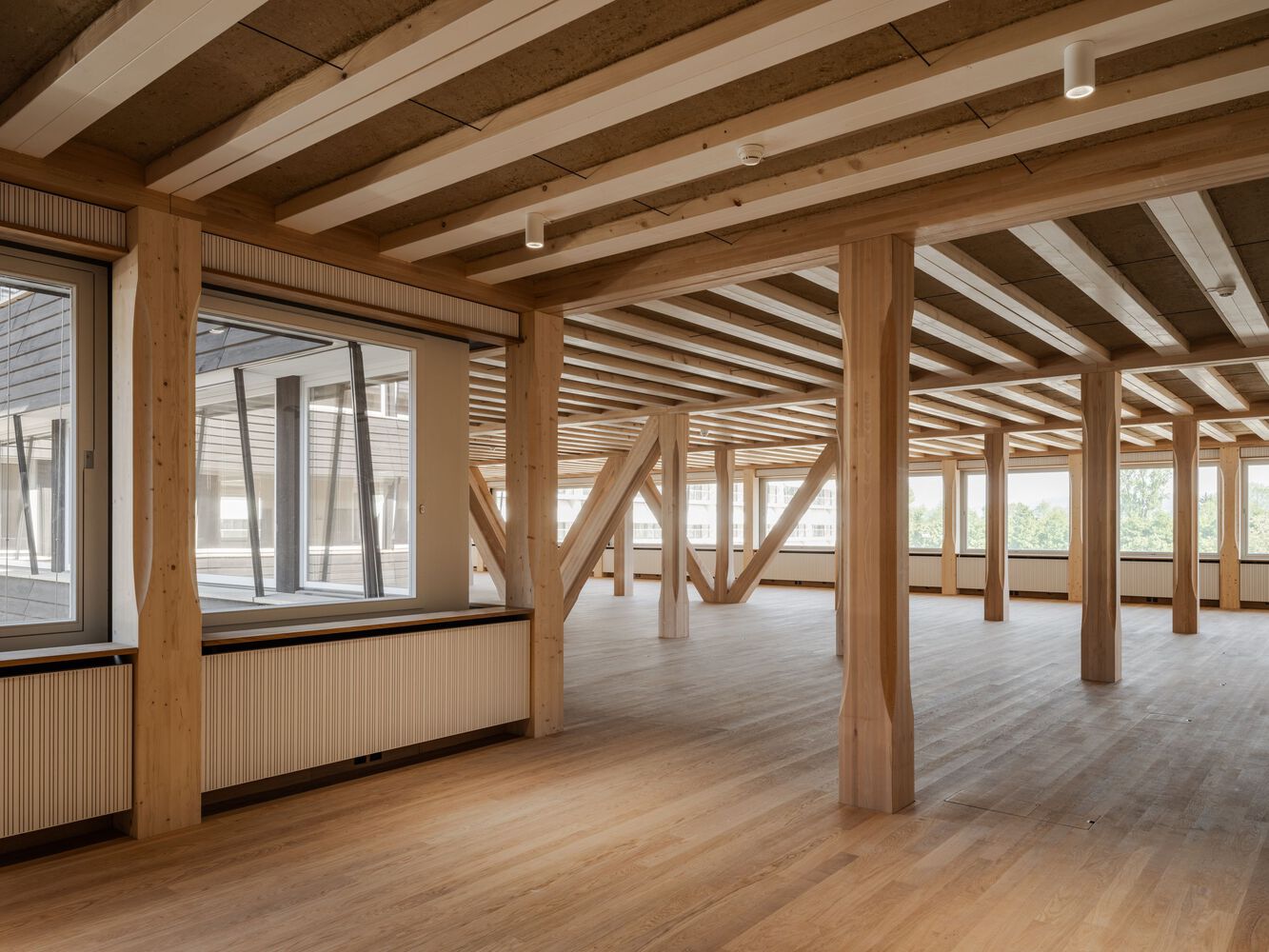

The open plans of the four upper floors, which offer approximately 10,000 m2 of office space, encourage employee engagement and exchange.

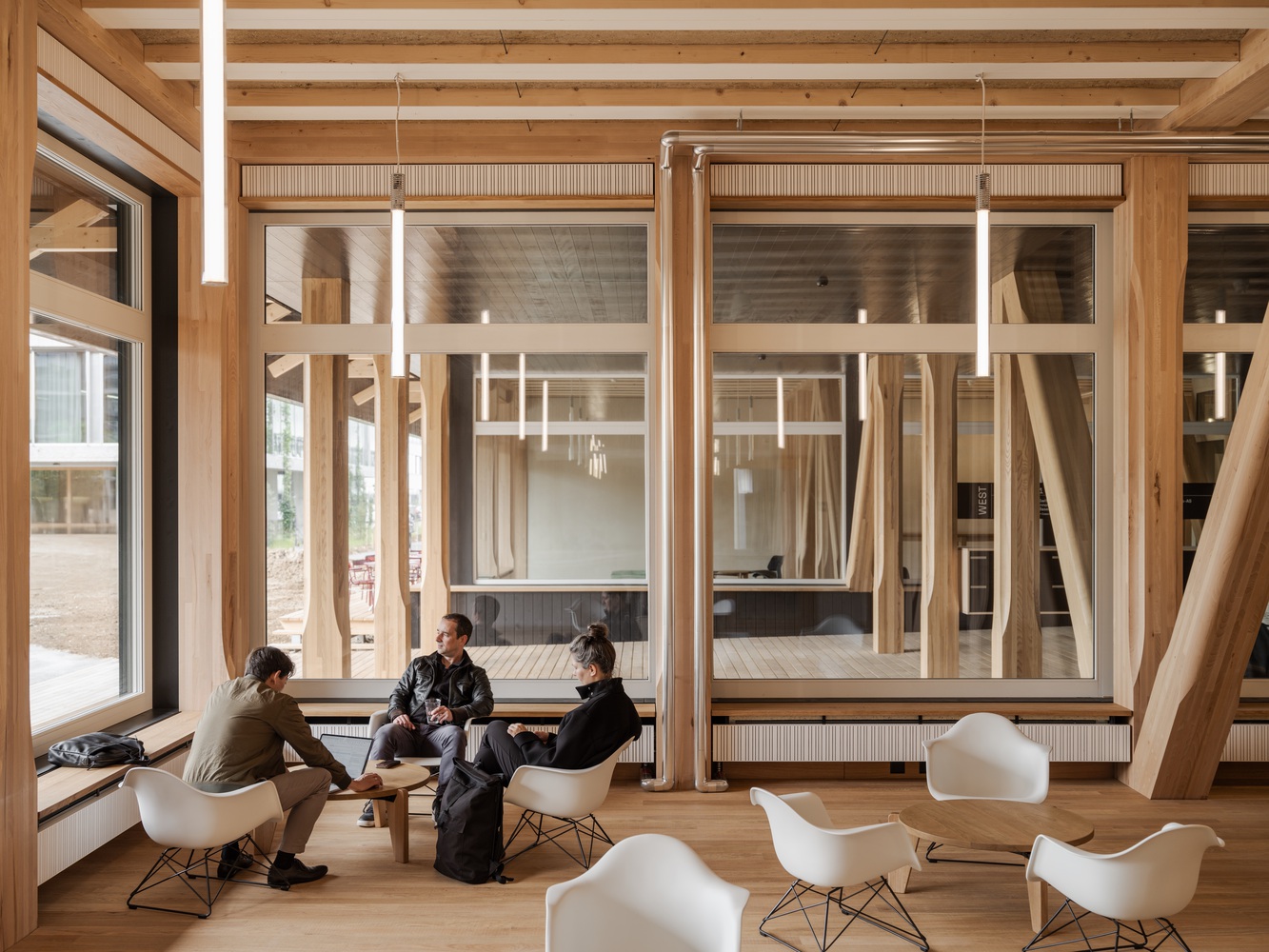

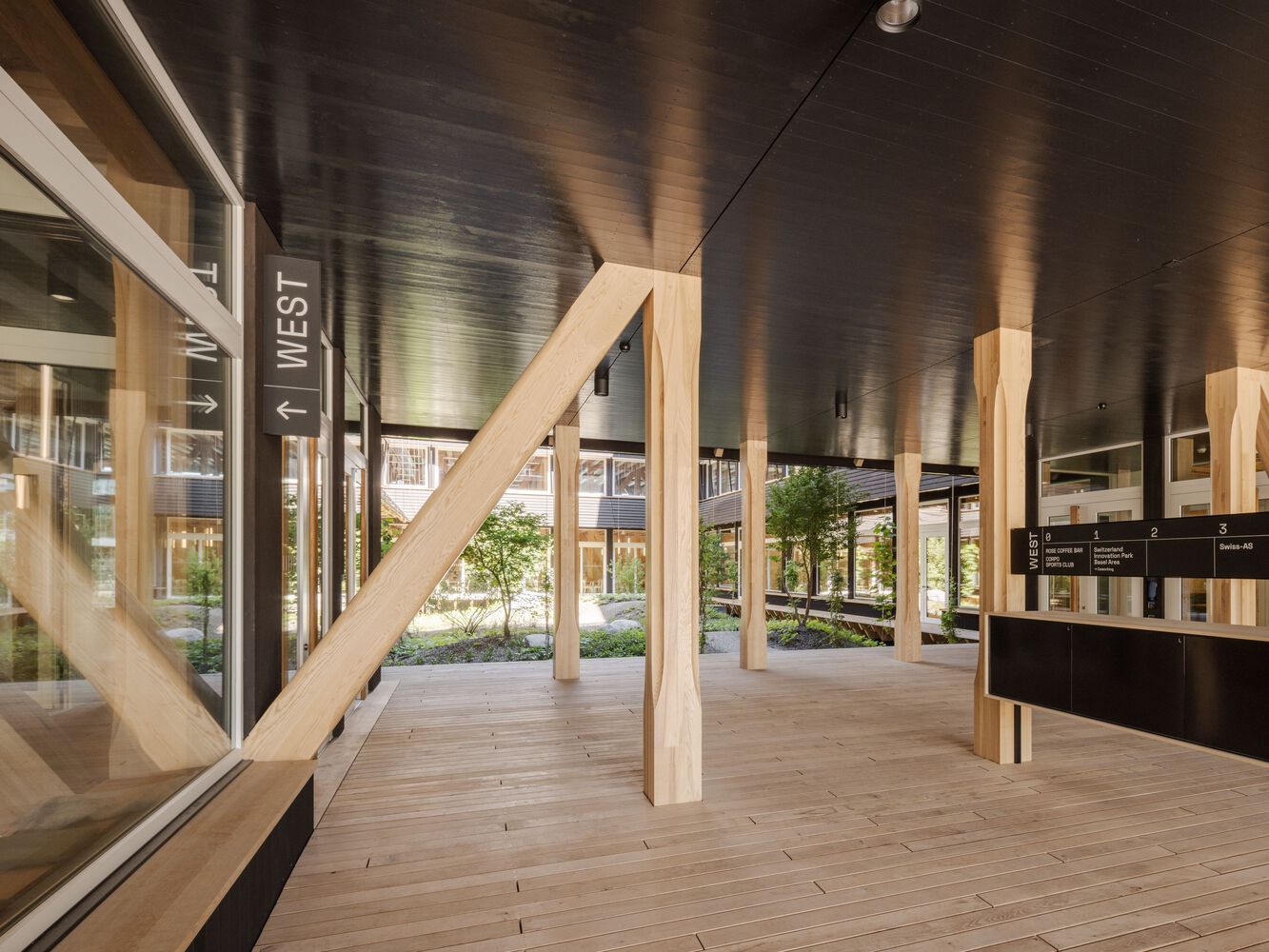

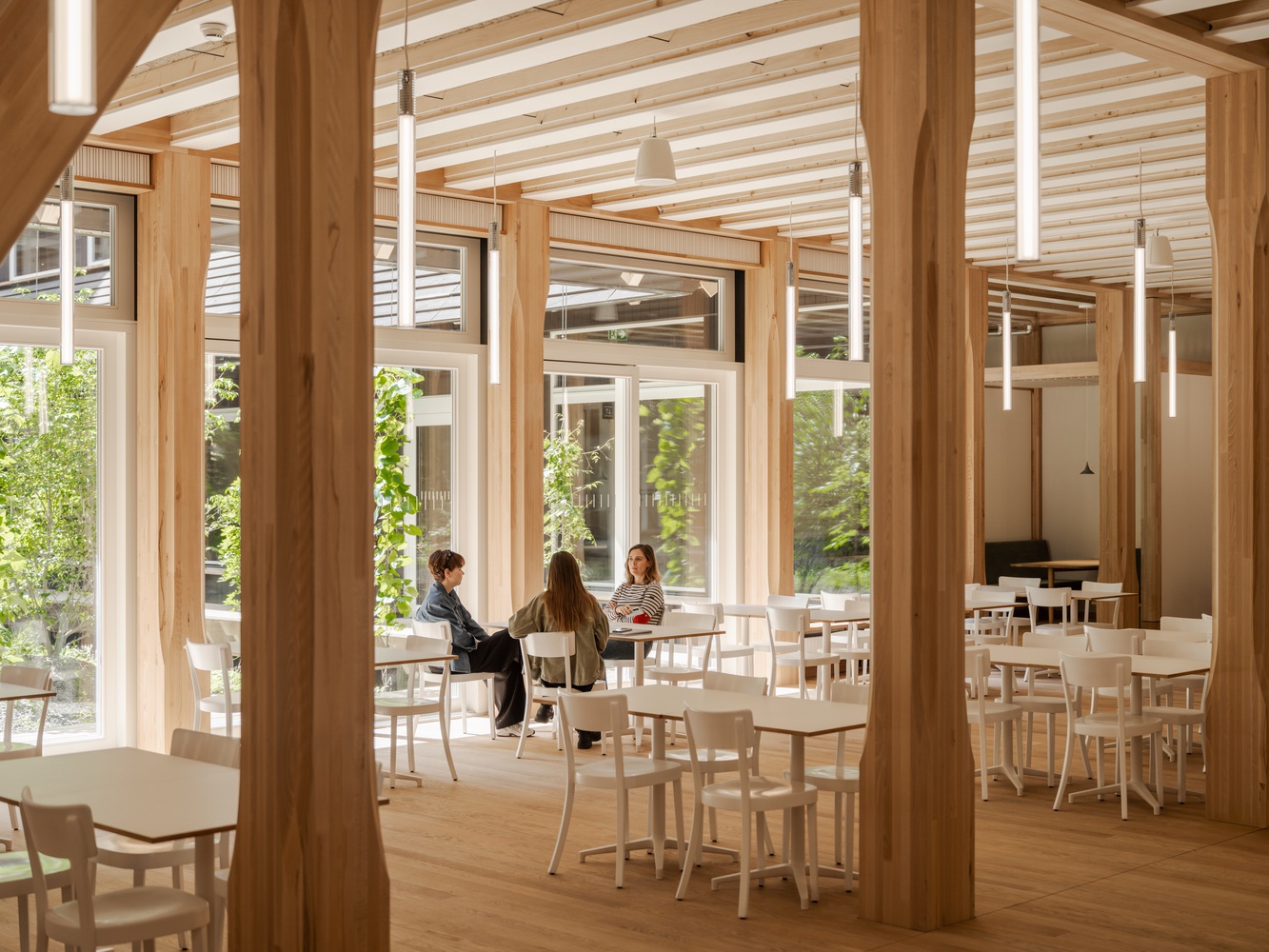

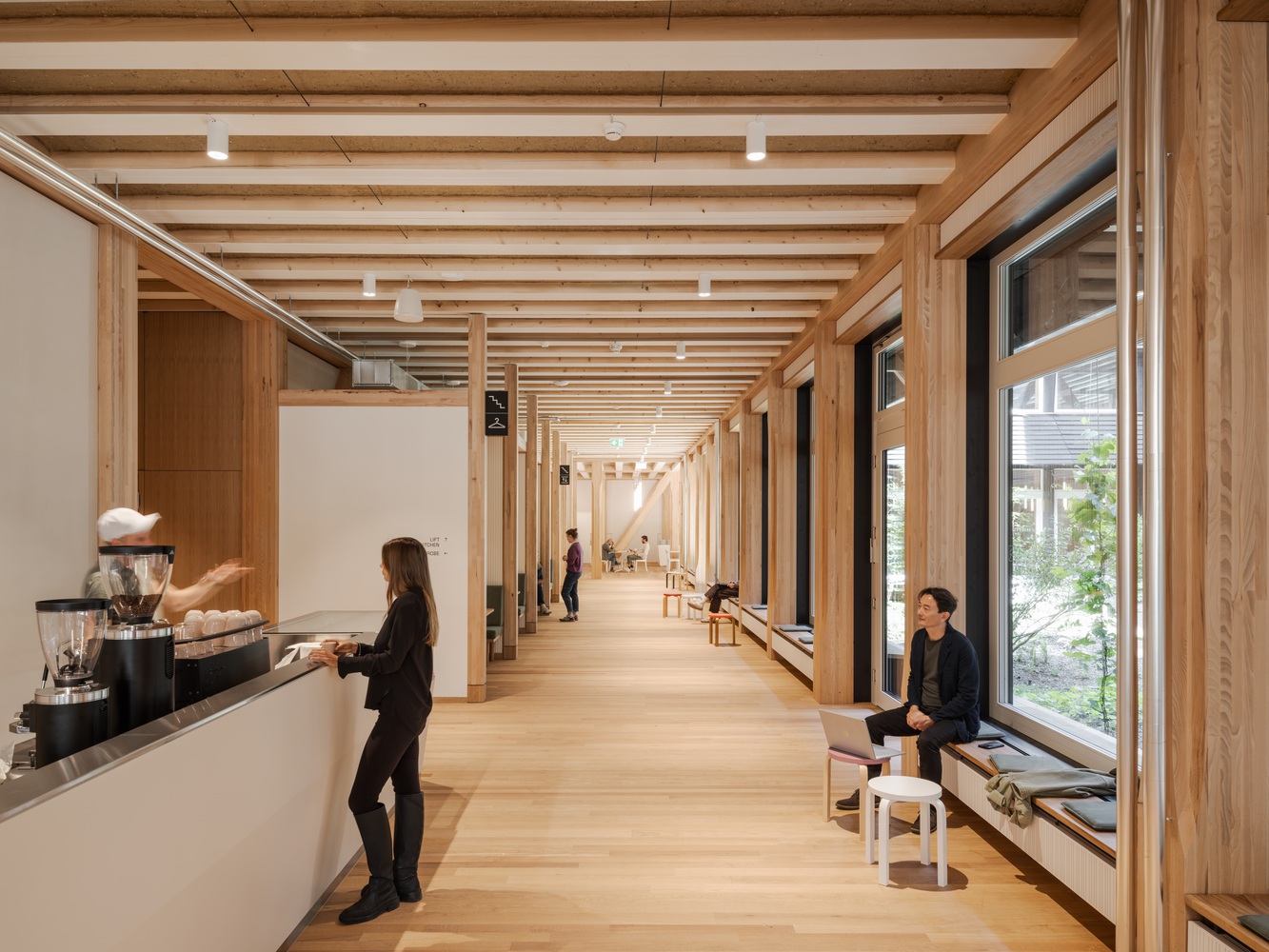

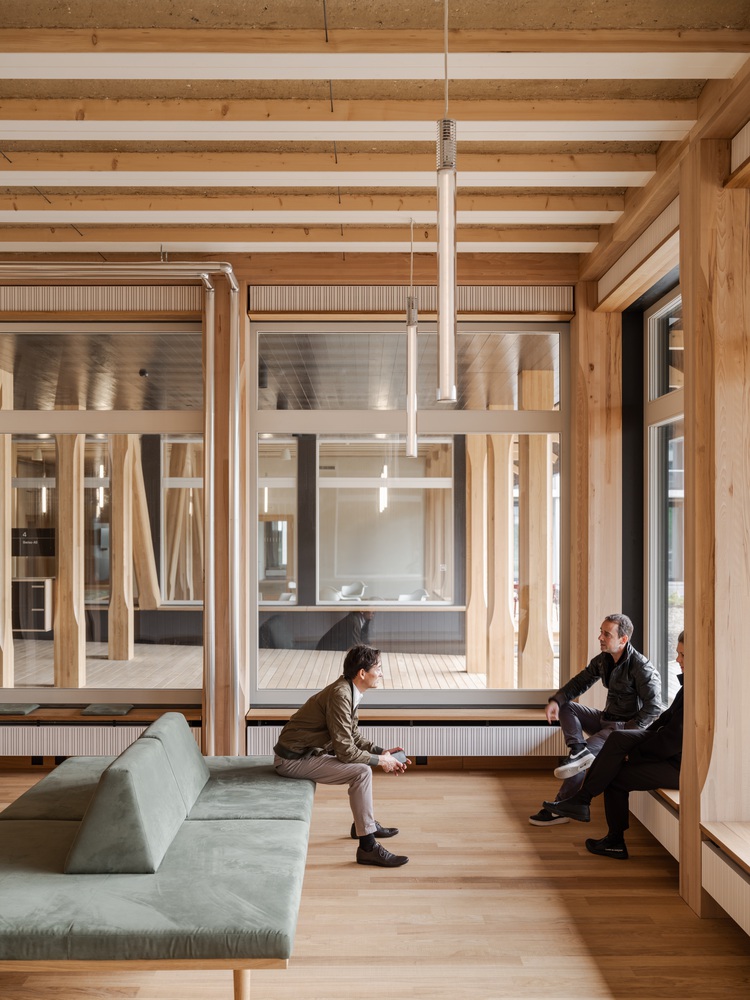

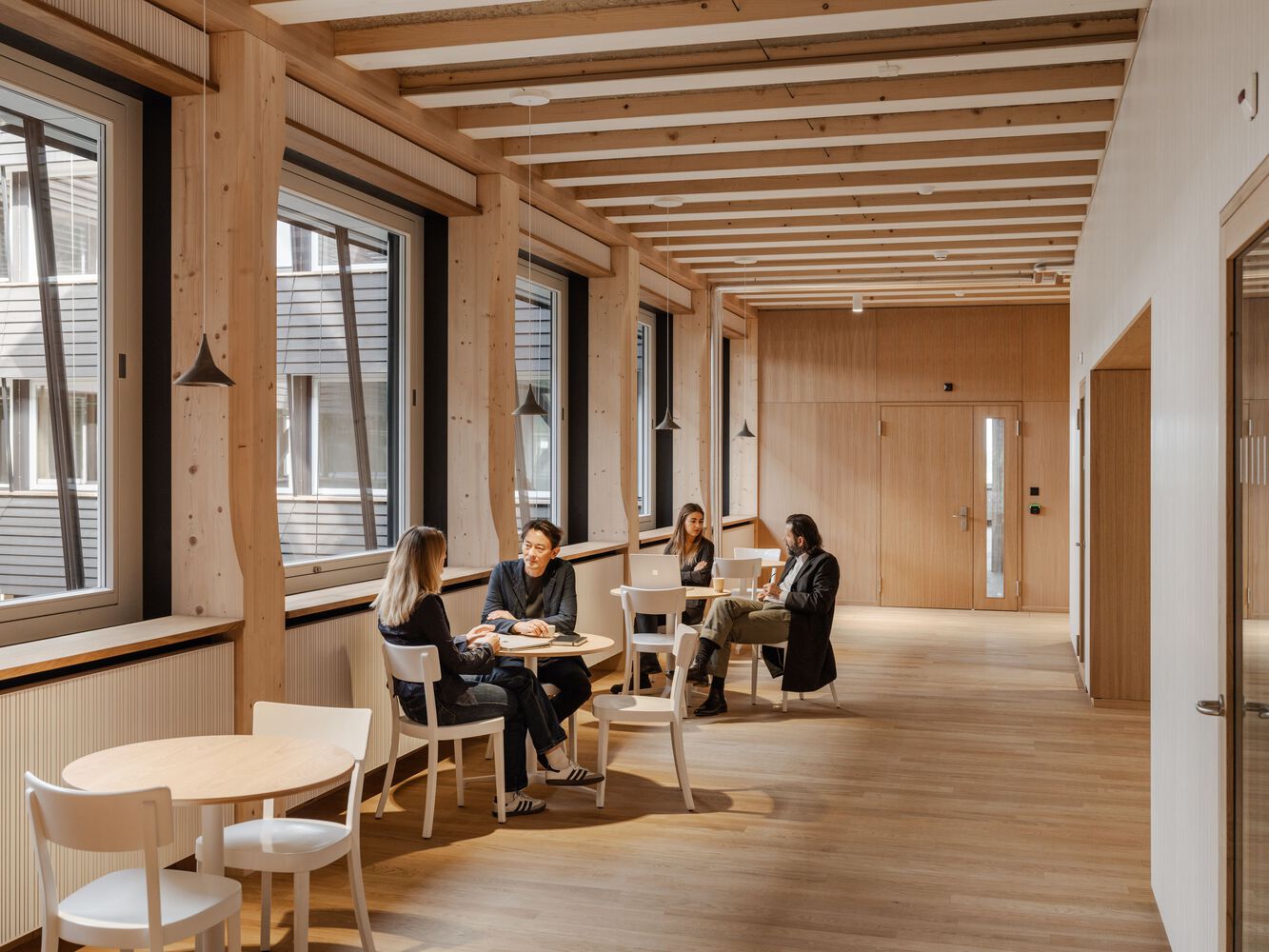

Some areas are shared with other users. Each floor has communal lounges and kitchenettes. The ground floor and the veranda facing south towards the park are accessible to all visitors.

MATERIALS IN CIRCULATION

HORTUS stands for House of Research, Technology, Utopia, and Sustainability. It focuses on innovative sustainability concepts.

Following the "cradle-to-cradle" principle, all building components were cataloged for future reuse. The clay from the ceiling modules can be returned directly to the ground.

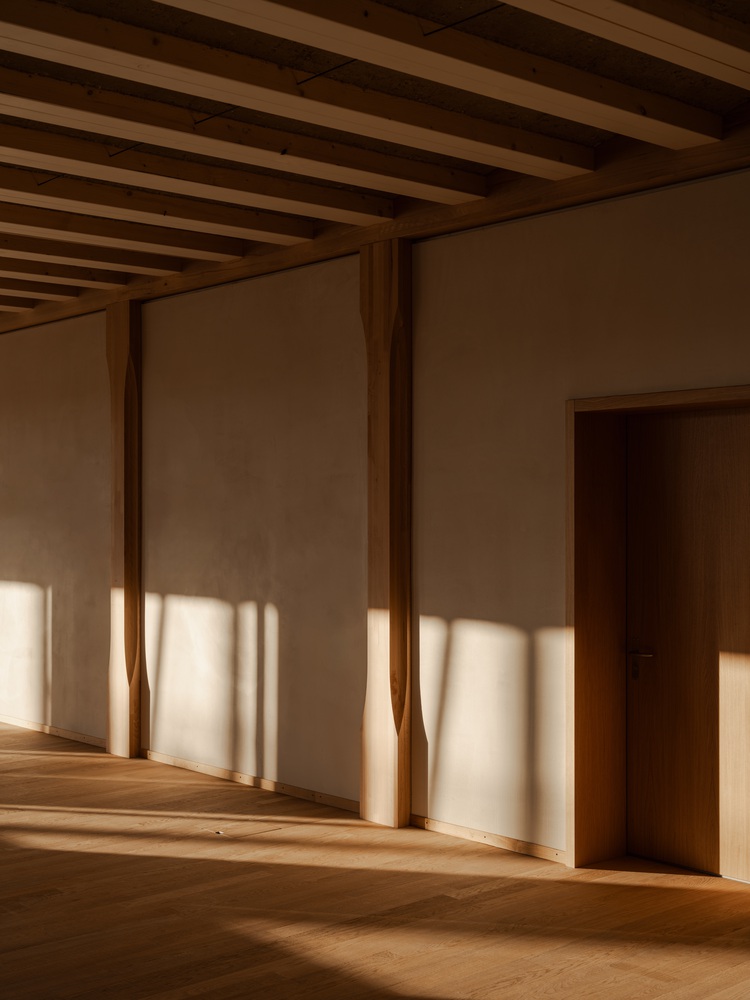

The reduced palette of renewable materials, including wood, compressed clay, and cellulose, highlights the ecological principles of Hortus's modular timber-frame construction.

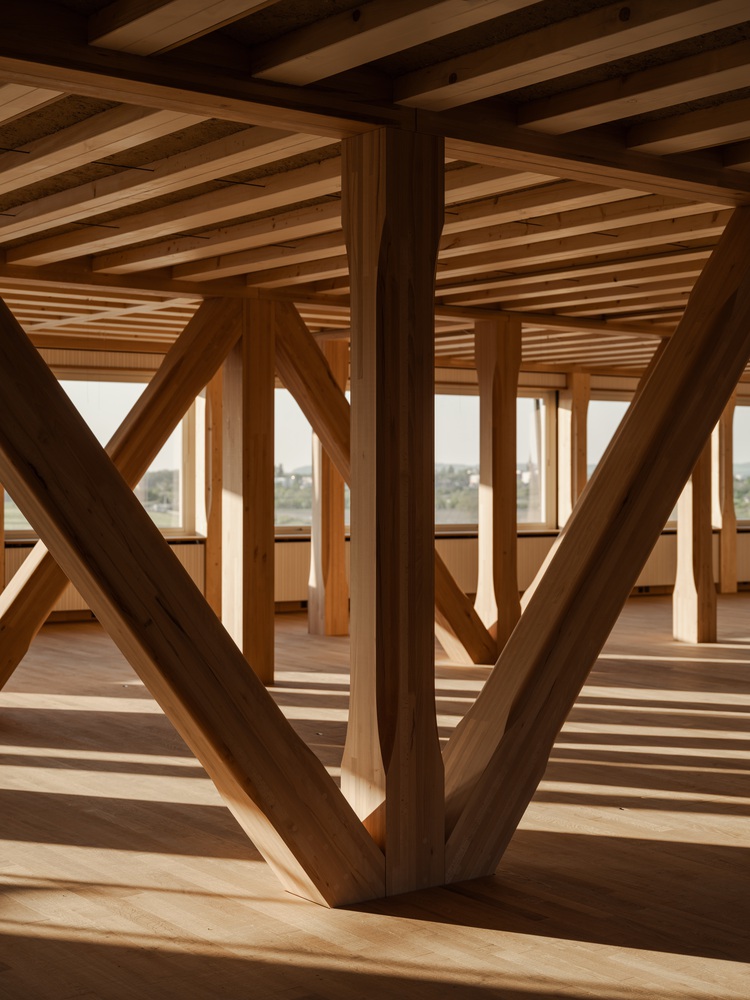

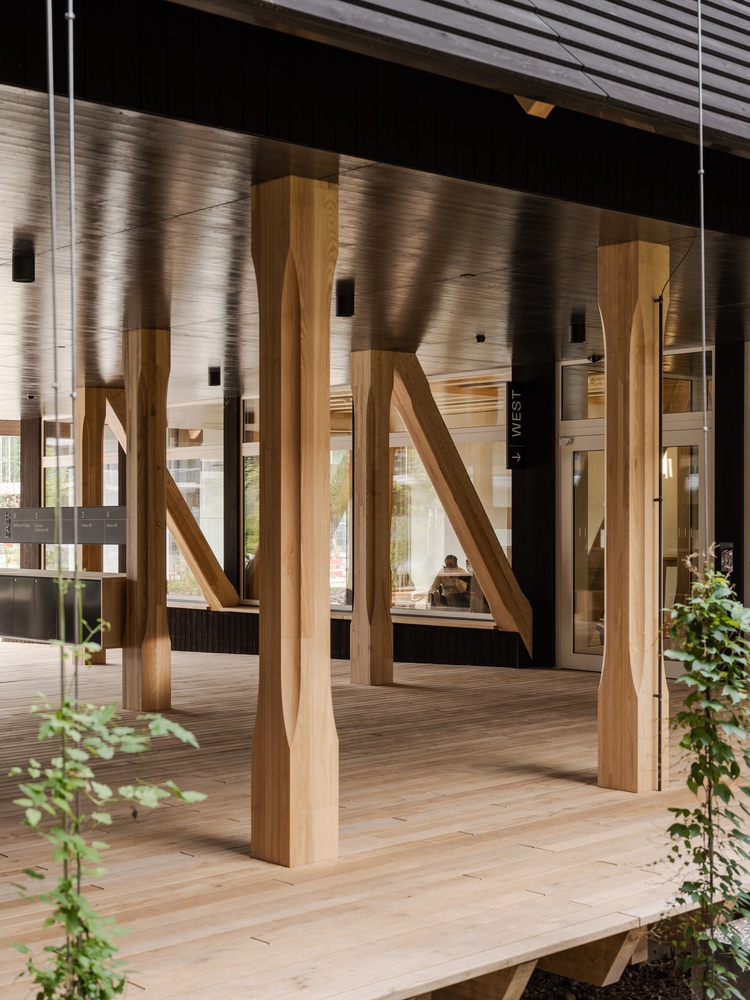

Timber joinery was employed to avoid metal connections so that, at the end of the building's lifespan, the components can be easily dismantled and reused.

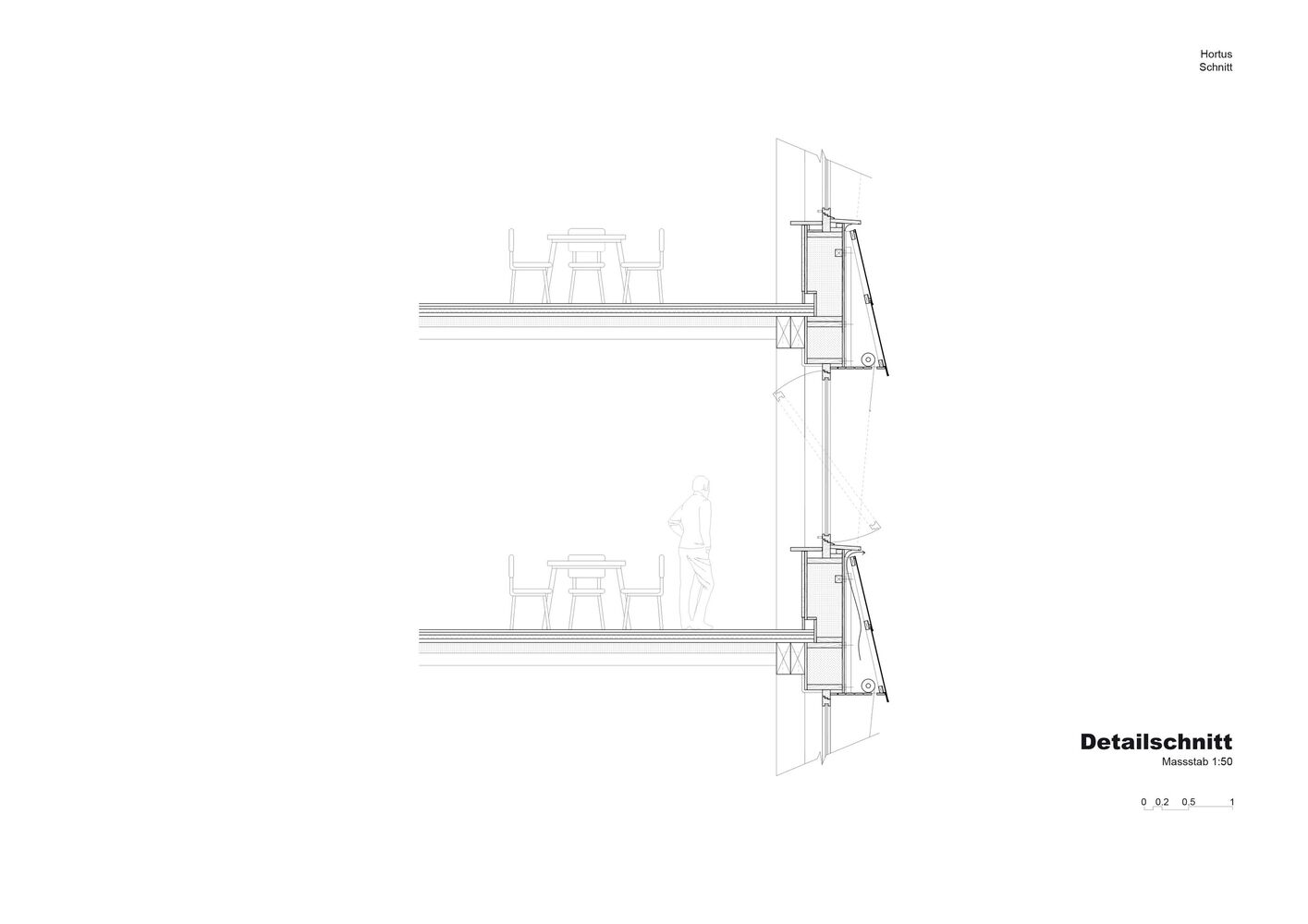

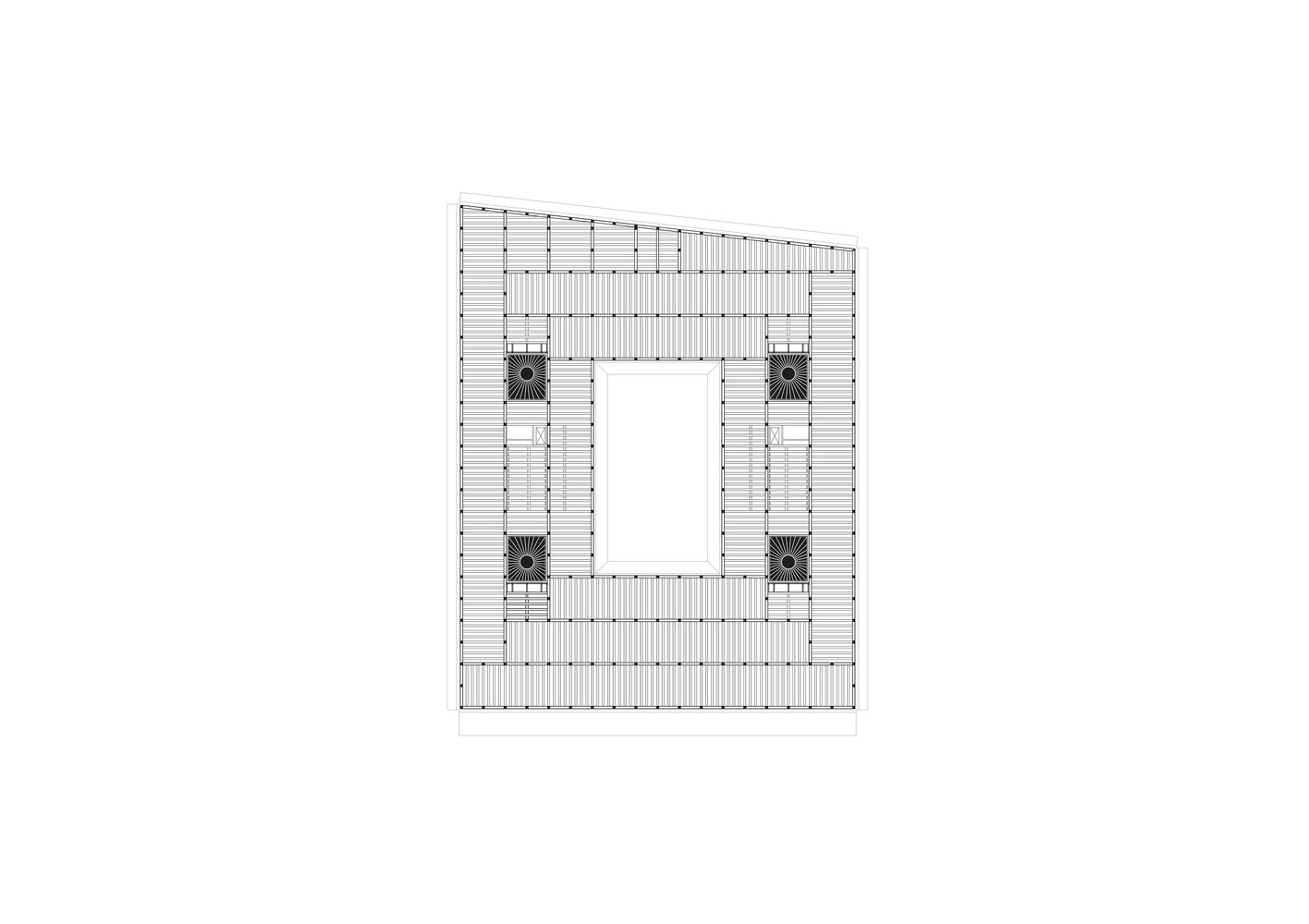

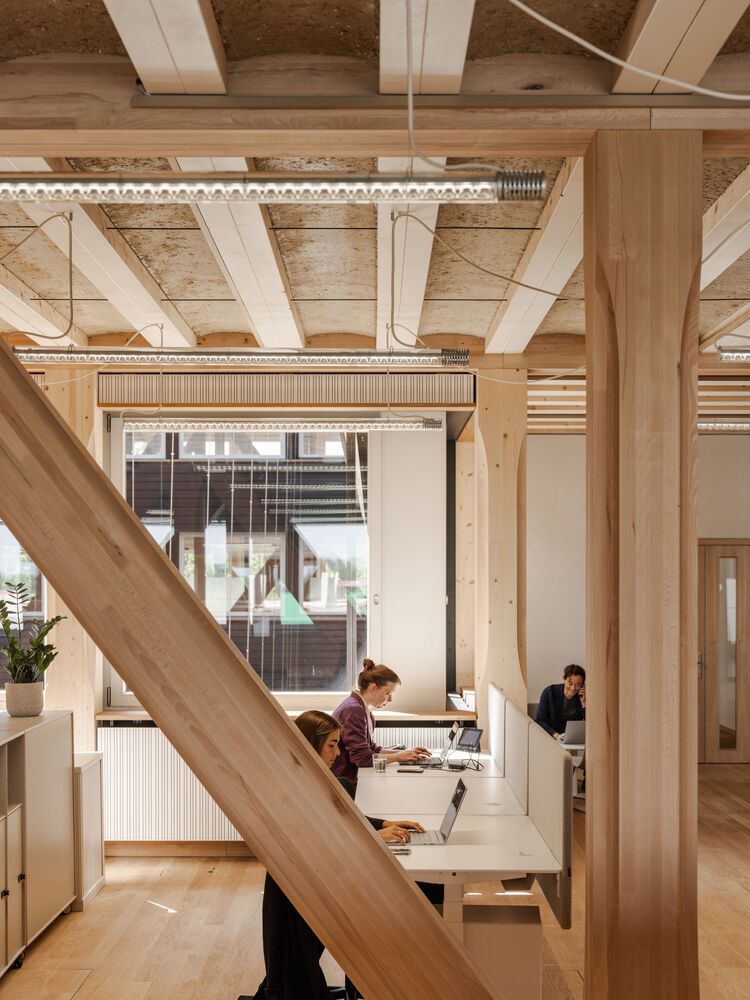

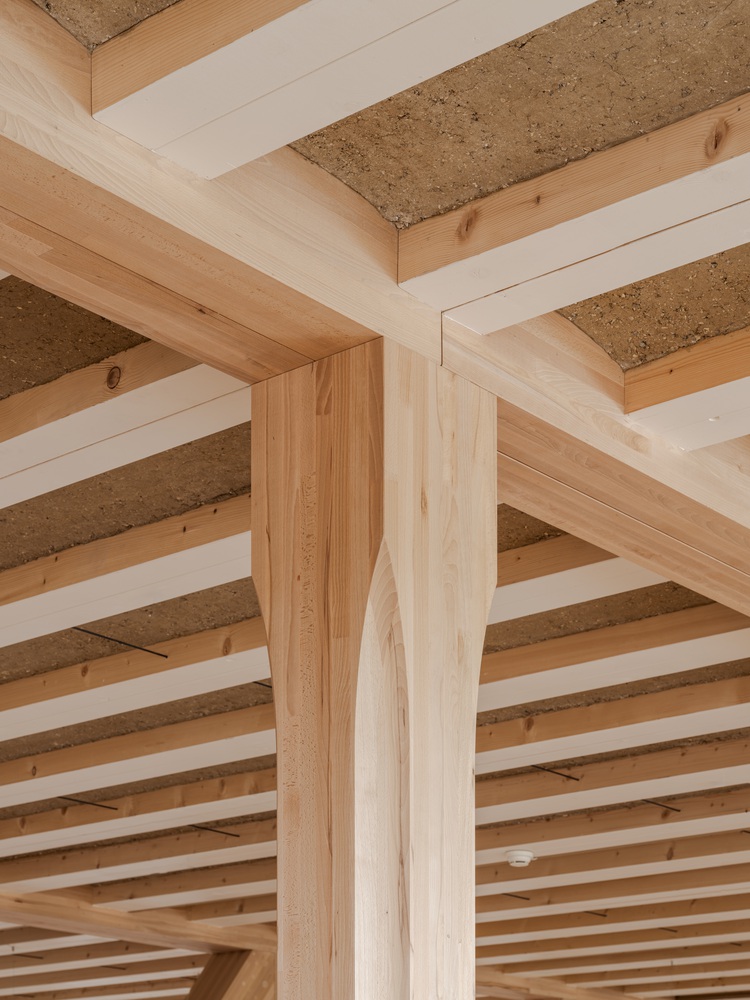

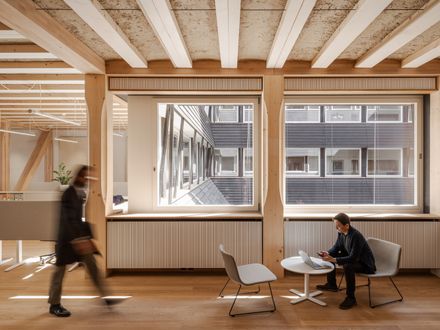

We perfected the ceiling modules with the help of Blumer Lehmann and Lehm Ton Erde. Each hybrid element consists of a prefabricated wooden frame made with timber harvested from nearby forests. Clay is compressed in the form of a vault between the inlaid wooden beams of the frame.

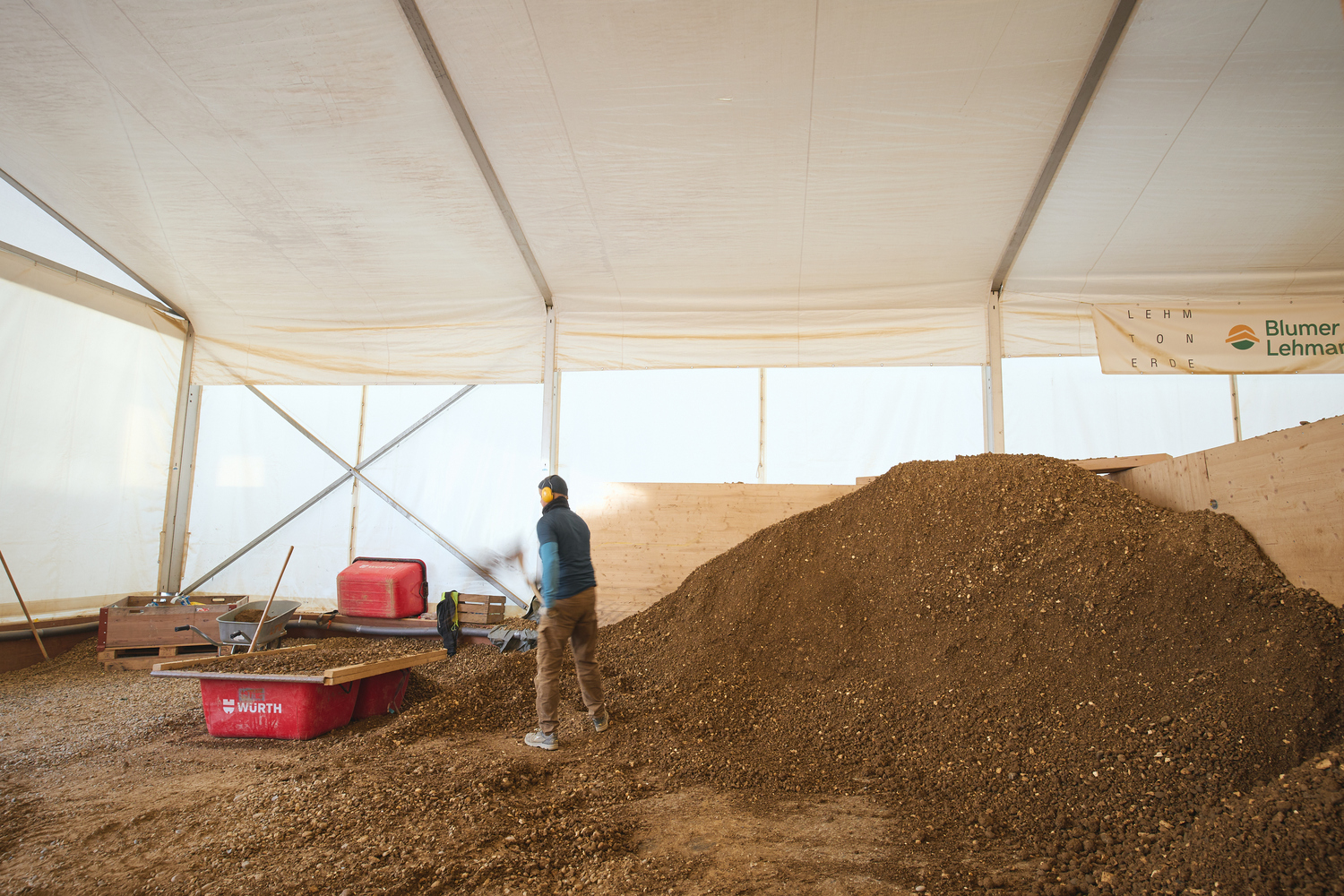

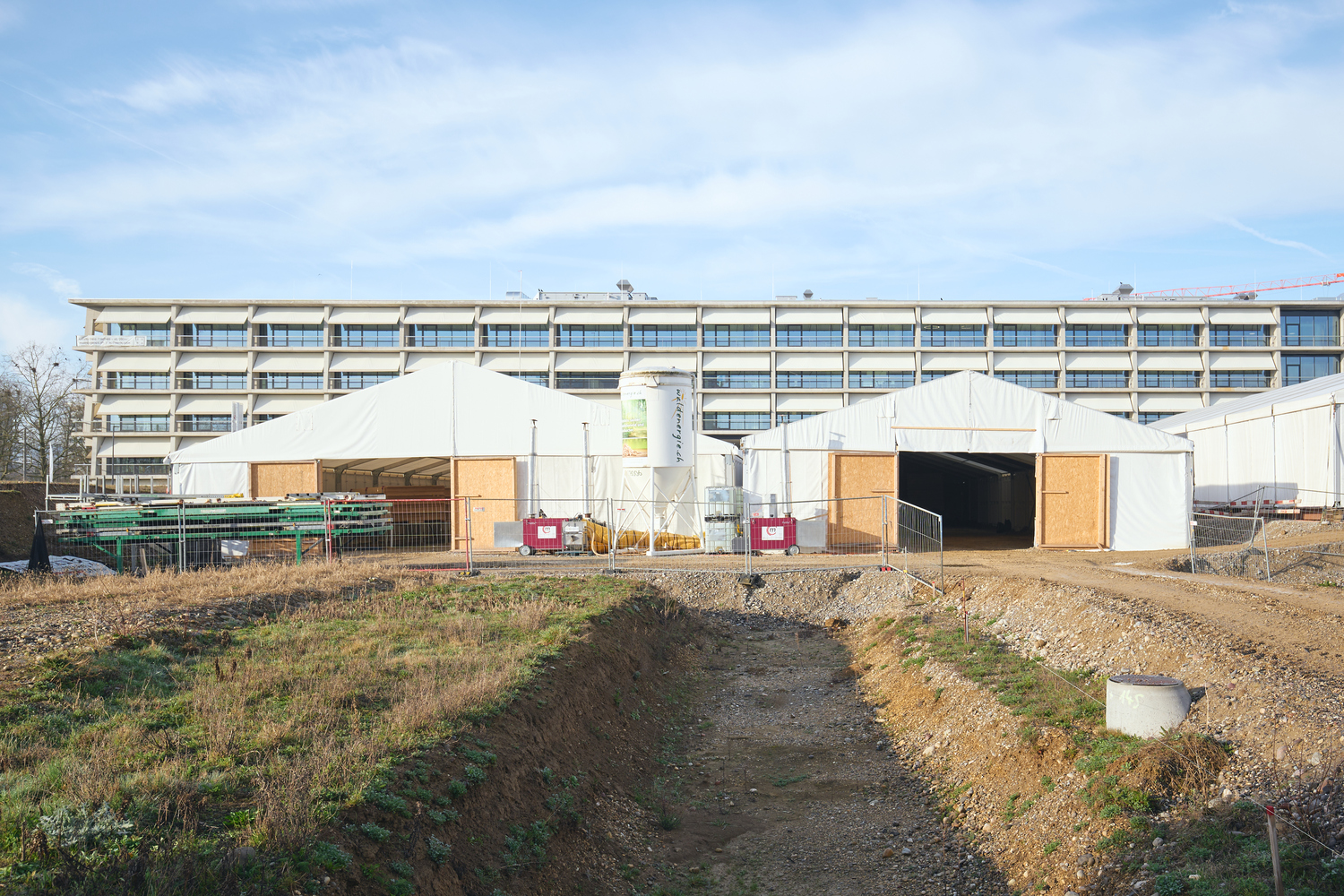

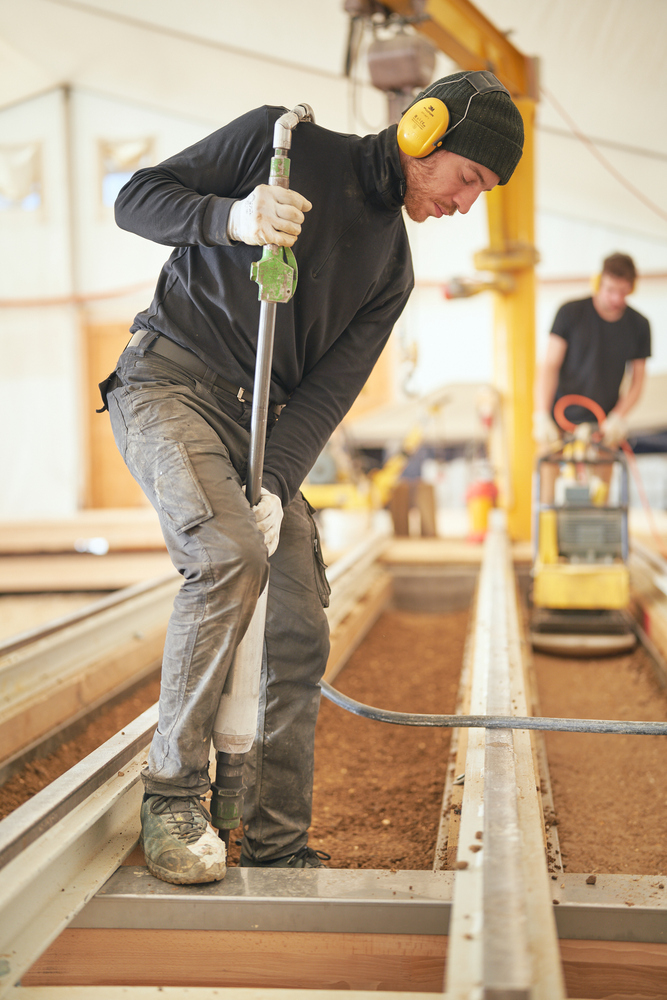

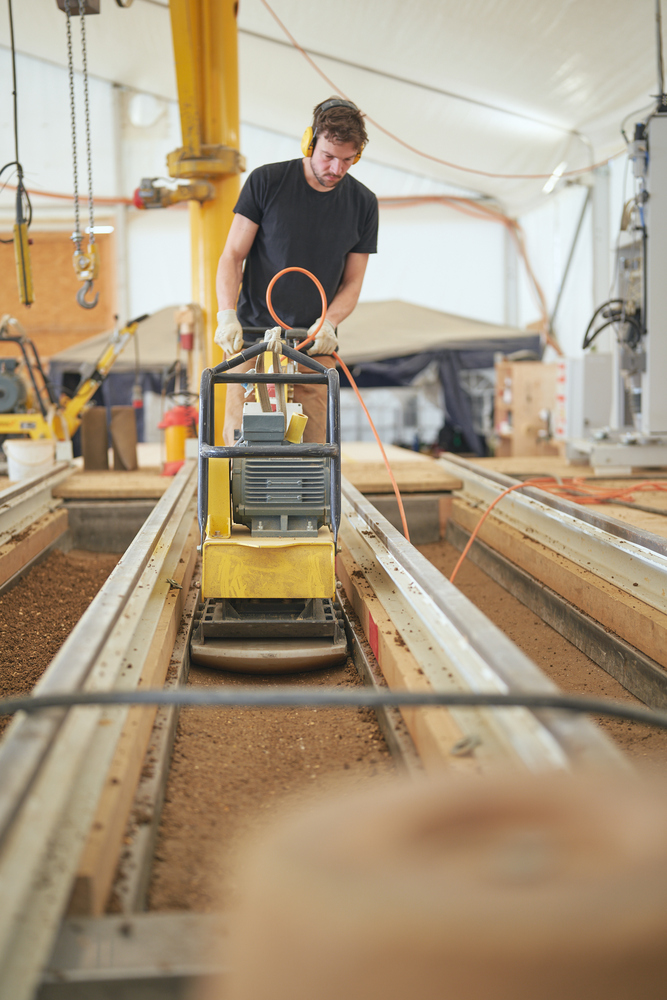

The dense clay provides fire protection and serves as a thermal mass in the summer, absorbing excess heat. The floor slabs have been produced locally. The clay is excavated from the construction site, and each floor slab is manufactured in a field factory next to the building.

ENERGY POSITIVE AND CARBON REDUCTION

The design aims to drastically minimize the building's carbon footprint and incorporates a holistic sustainability concept. It substantially exceeds guidelines for environmentally sustainable buildings, such as SIA 2040.

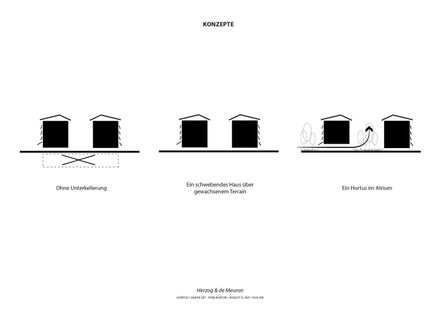

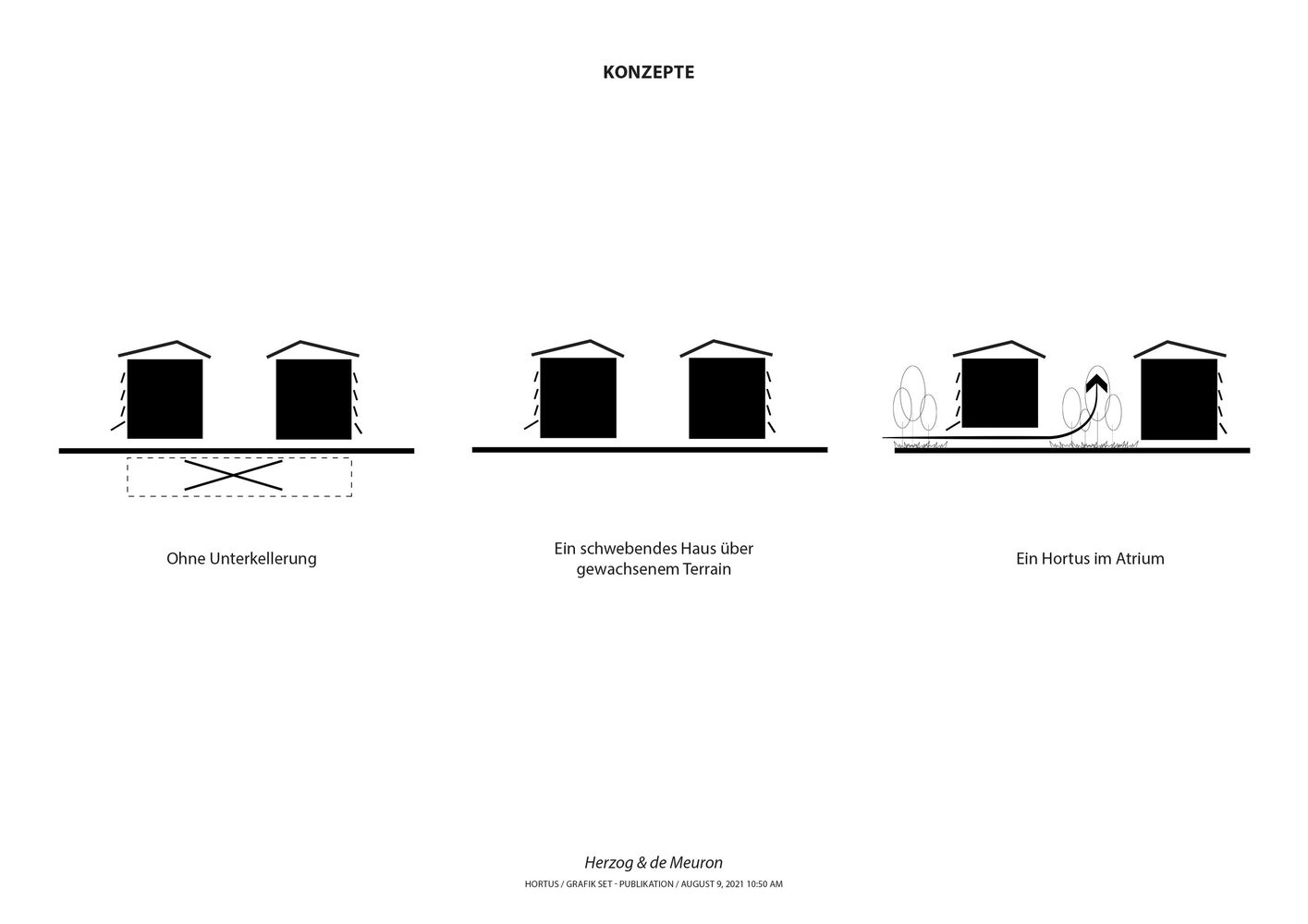

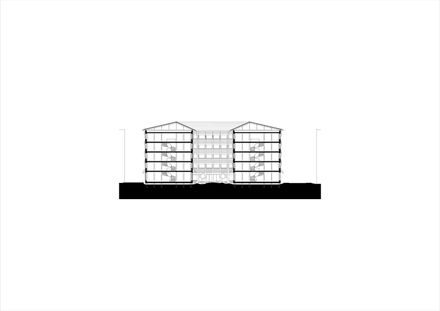

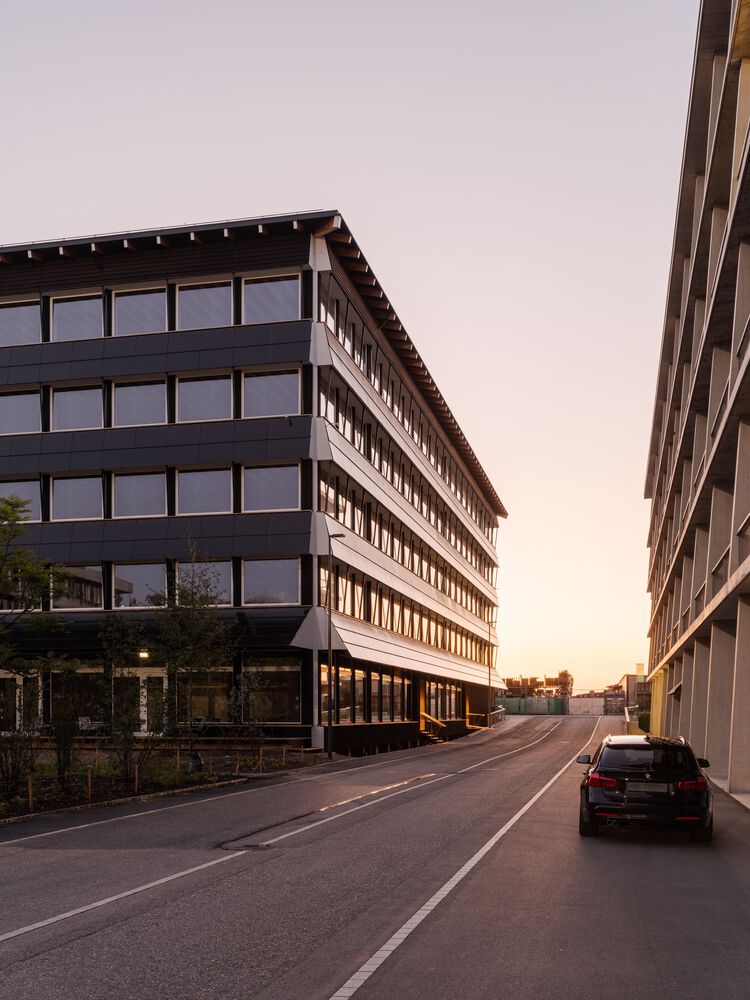

The compact building form reduces energy loss. Not having a concrete basement, the building essentially floats over the landscape. The air underneath the building is cool in the summer and warm in the winter. Together with geothermal energy for heating and cooling, it regulates the room temperature.

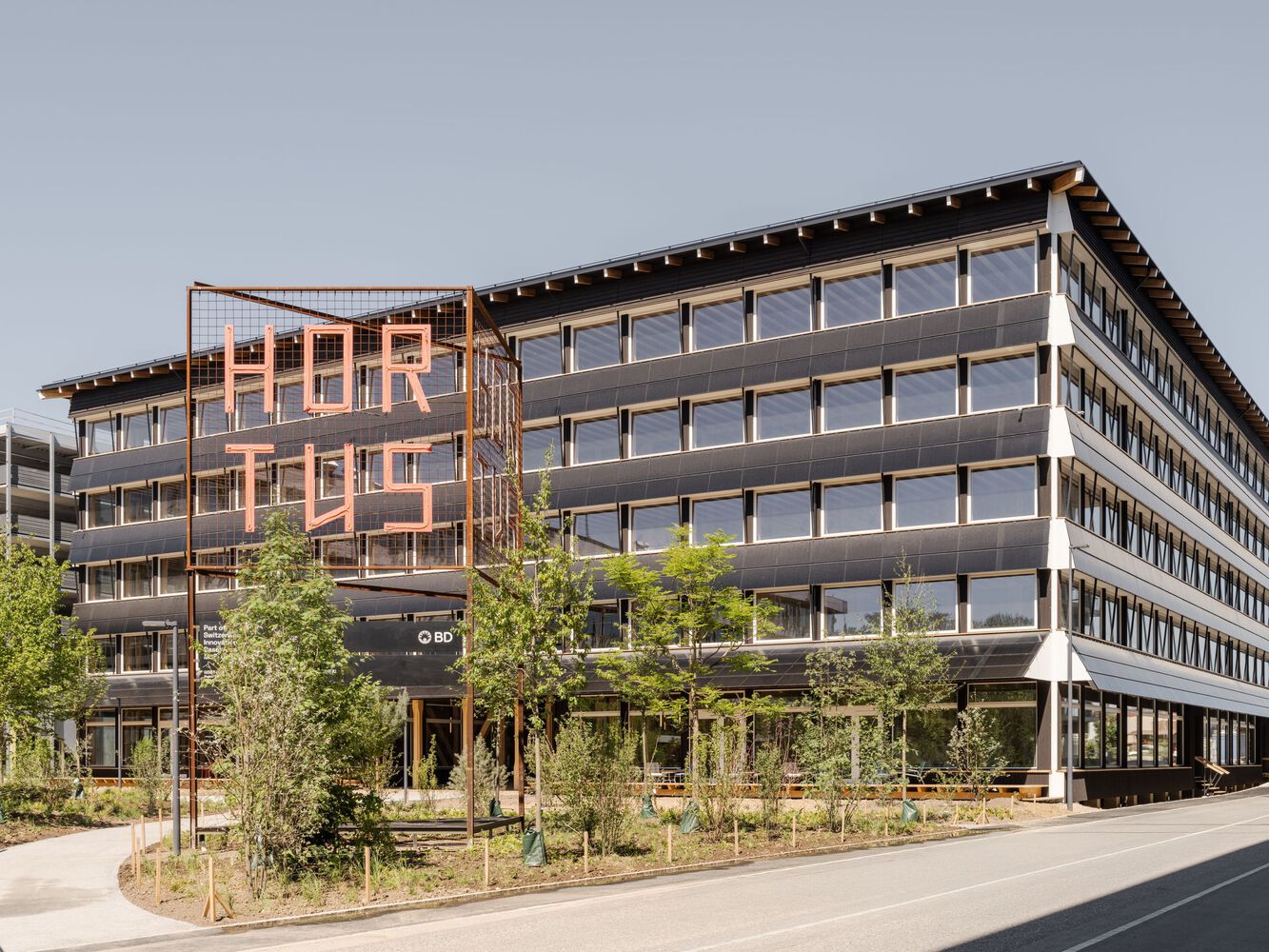

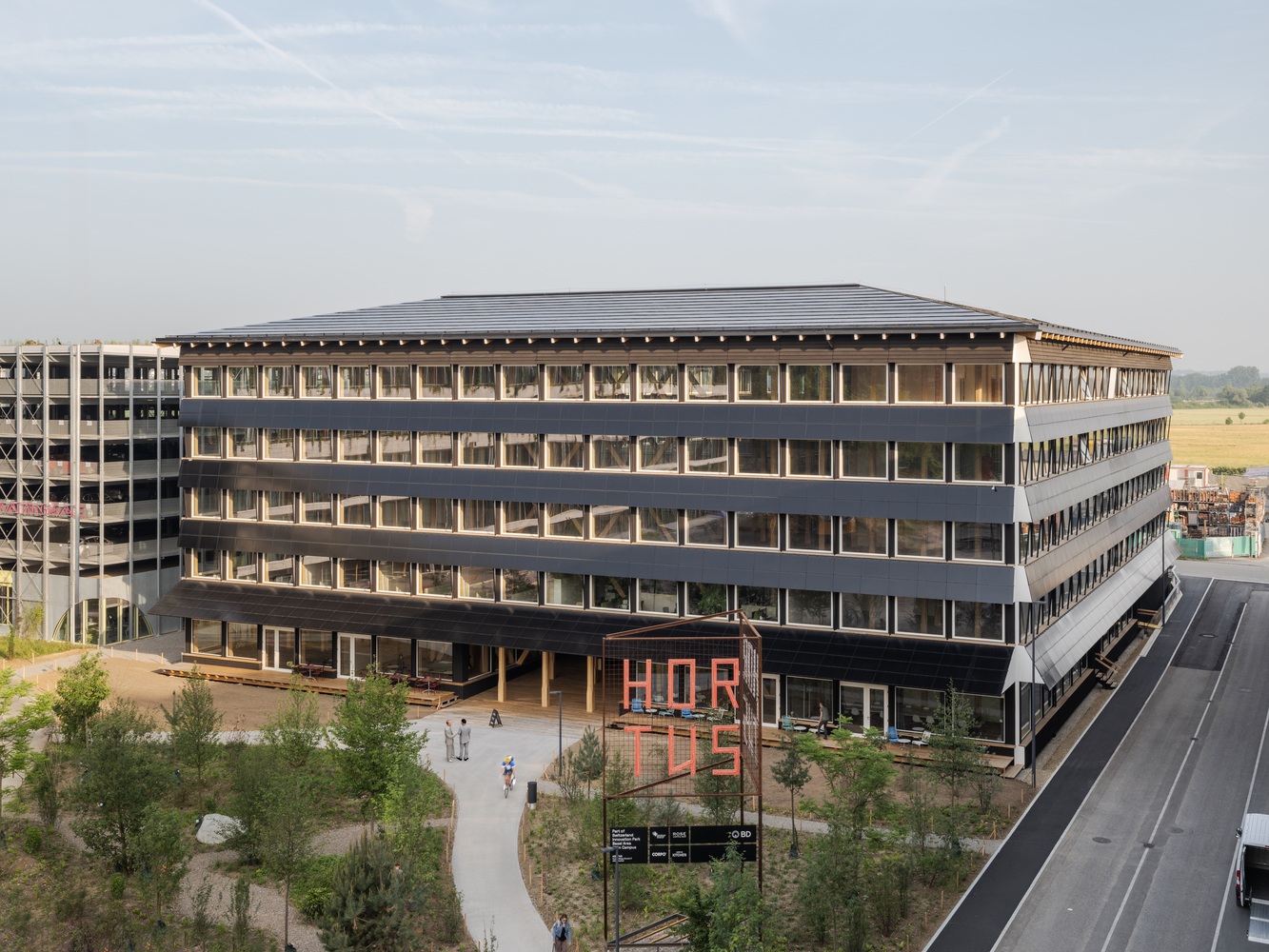

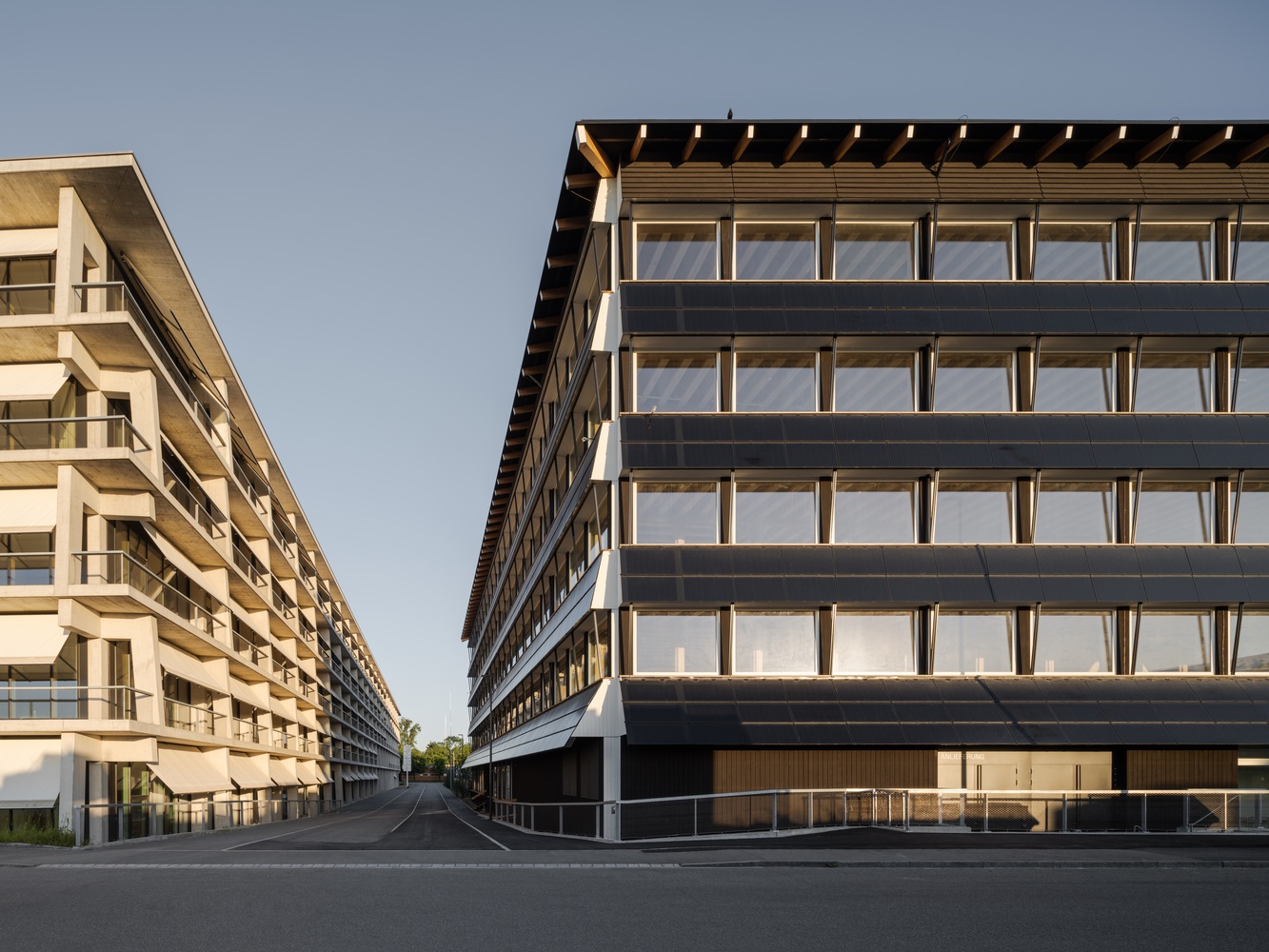

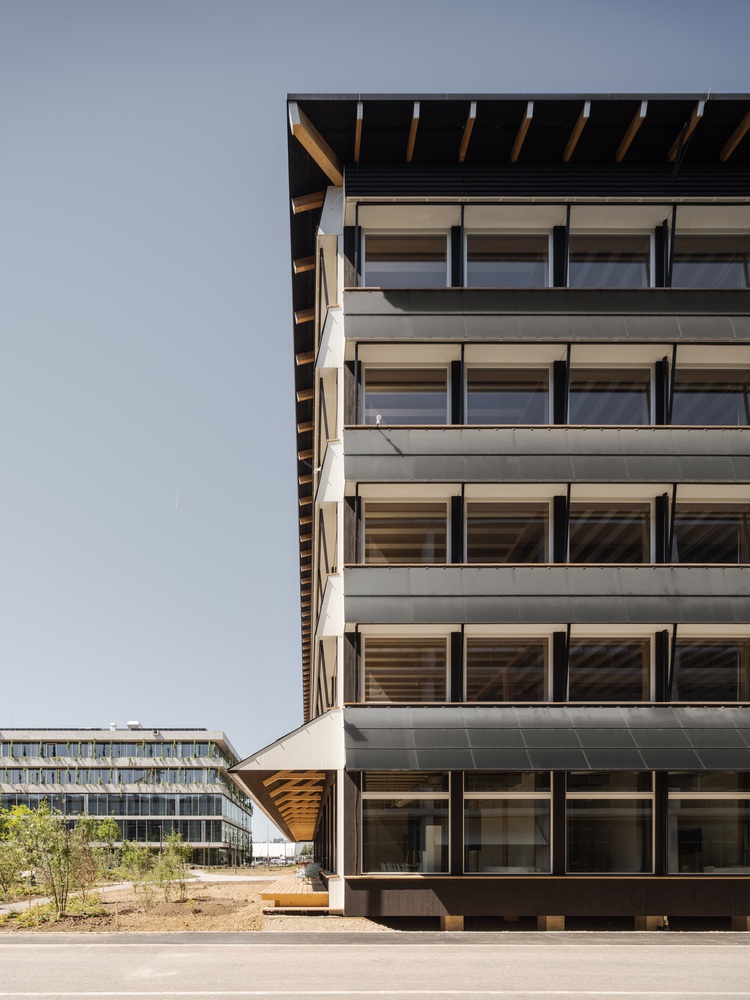

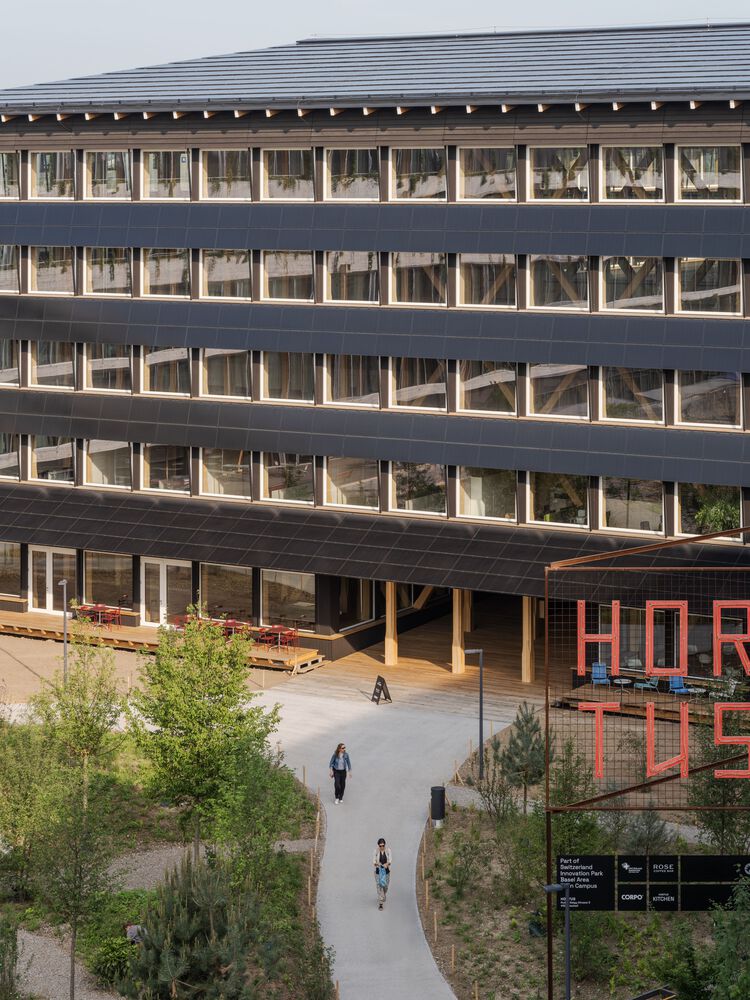

A photovoltaic surface of approximately five thousand square meters on the roof and along the parapets provides renewable solar energy. This system generates a surplus from day one; therefore, the embodied energy necessary for constructing the building will be fully amortized within 31 years.

The goal is to create a balance of environmental, economic, and socio-cultural conditions. According to studies by the IEA (International Energy Agency) and the WEF (World Economic Forum), the construction sector is responsible for the consumption of approximately 40 percent of all raw materials and energy and is simultaneously one of the main producers of carbon emissions worldwide. As architects, we see it as our task to influence this statistic.

This requires a high level of innovation and solution-oriented design, custom-tailored for each geographic, urban, and cultural context.

The example of Hortus demonstrates that sustainable architecture can act as a local source of energy and raw materials, while simultaneously being aesthetic, healthy to build and occupy, and useful for the economy, the environment, and our society.

"We need to think anew: sustainability should be at the forefront of everything we produce - indeed, everything we do. This will result in unexpected and surprising architecture with a beauty of its own.

"Hortus stands for maximum ecological sustainability - the claim can hardly be extended any further. The architecture follows the Lego principle: all elements are modular. They can be completely disassembled and either returned to nature or reused for other buildings. We transferred the principles of healing architecture to office buildings. The careful consideration of natural materials, light, air quality, the connection to nature via the green inner courtyard, and the promotion of social interaction create an environment that is healthy and inspiring." - Stefan Marbach, Senior Partner, Herzog & de Meuron.

"Hortus has shown how radical sustainability in architecture is possible in order to create an attractive place focusing on the well-being of people.

We see sustainability as an integral part of the design process at an early stage. As a team of experts, we contribute to decision-making with conceptual thinking, our experience, and the latest digital tools.
