LC House

LC HOUSE

Sau Taller d'Arquitectura

LC House
© Andrés Flajszer

ARCHITECTS
Sau Taller d'Arquitectura

LEAD ARCHITECT
Lluis Jordà + Pol Jordà

ÁREA ADMINISTRATIVA
Isabel Ortega Flores, Nuria Jordà Sala, Marta Vélez

CONSTRUCTION MANAGEMENT
Carme Bassaganya Ferres, Santi Rodríguez Fernández

MANUFACTURERS
Fusteria Vivet Vidrà, SL, Iron Banyoles, SL

LANDSCAPE ARCHITECT
Marc Fabrés Massip

DESIGN AND INTERIOR DESIGN
Mariona Coll

TECHNICAL ARCHITECTURE
Marc Busquets

CREATIVE AREA
Blai Cabrero Bosch, Octavi Fontané Juanhuix, Viktoriya Bobotsko, Anna Ribera Tor, Alex Prats Corbalan

AREA
184 m²

LOCATION
Besalú, Spain

CATEGORY
Houses

LC House
© Andrés Flajszer

English description provided by the architects.

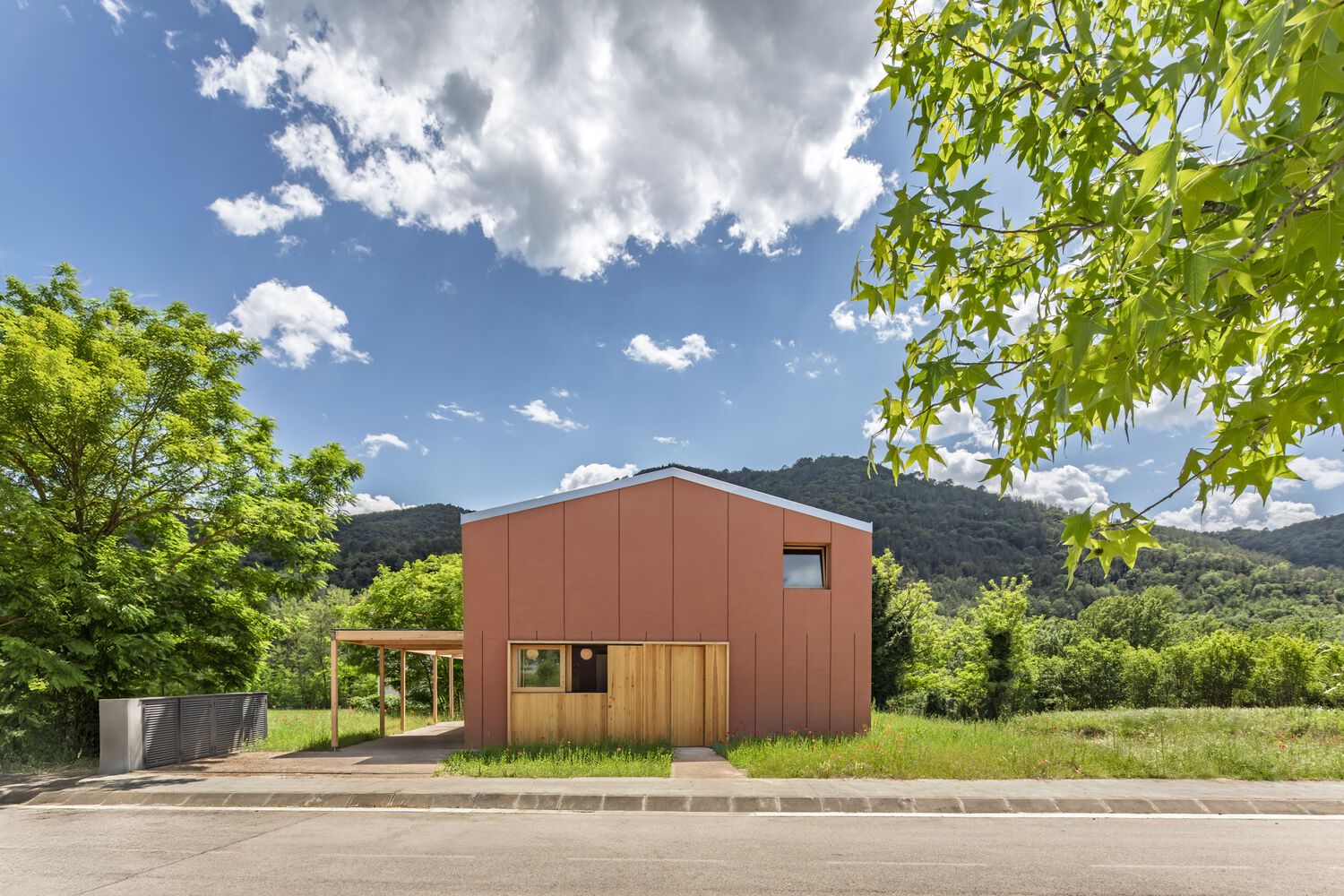

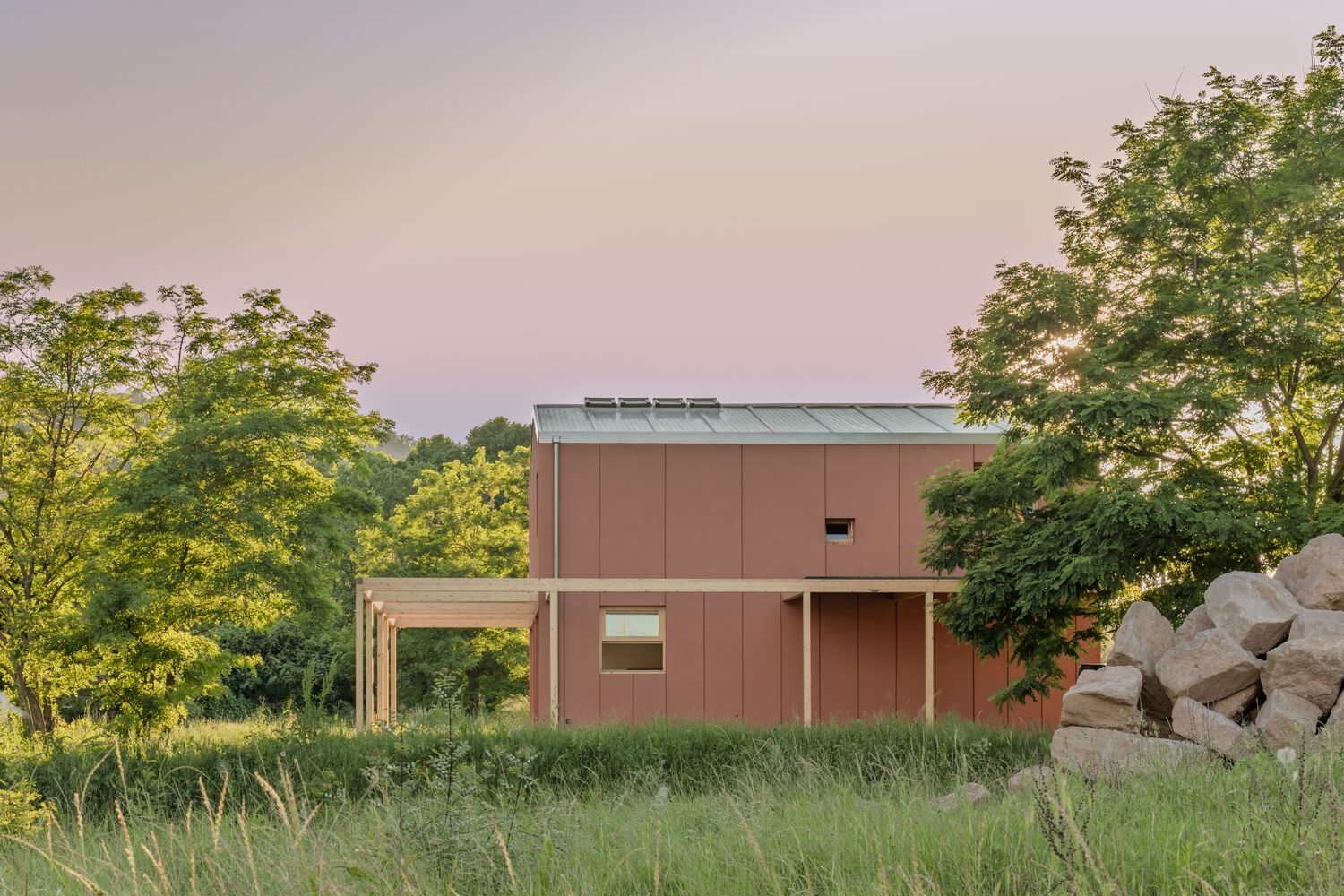

The LC house is positioned at the northern edge of the plot, adjacent to the access road, in order to free up as much garden space as possible to the south and open up the views.

LC House
© Andrés Flajszer
LC House
© Andrés Flajszer

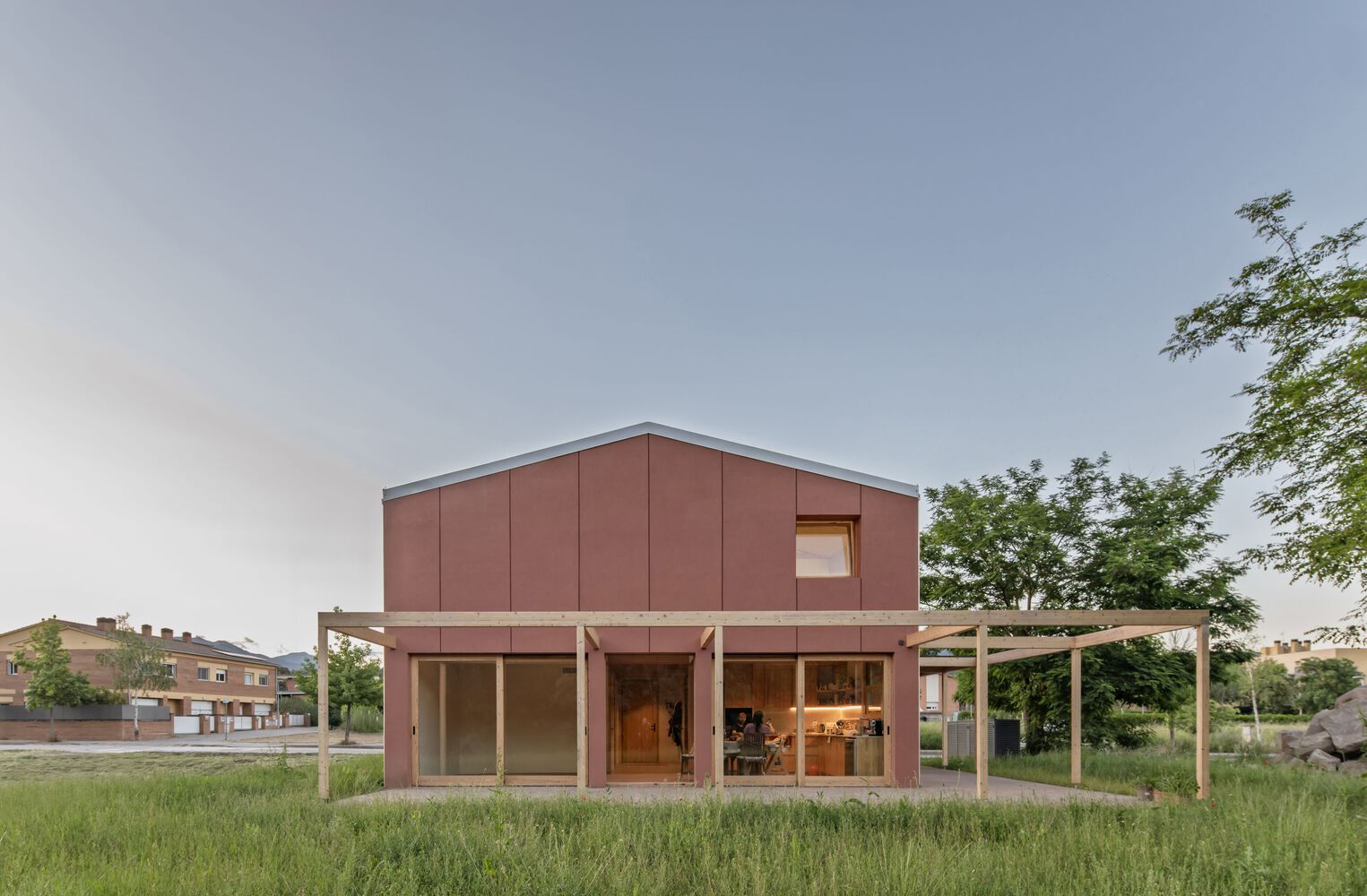

To ensure the largest possible south-facing façade and fully utilize the ground-floor footprint, a square plan is proposed (9.3 x 9.3 meters).

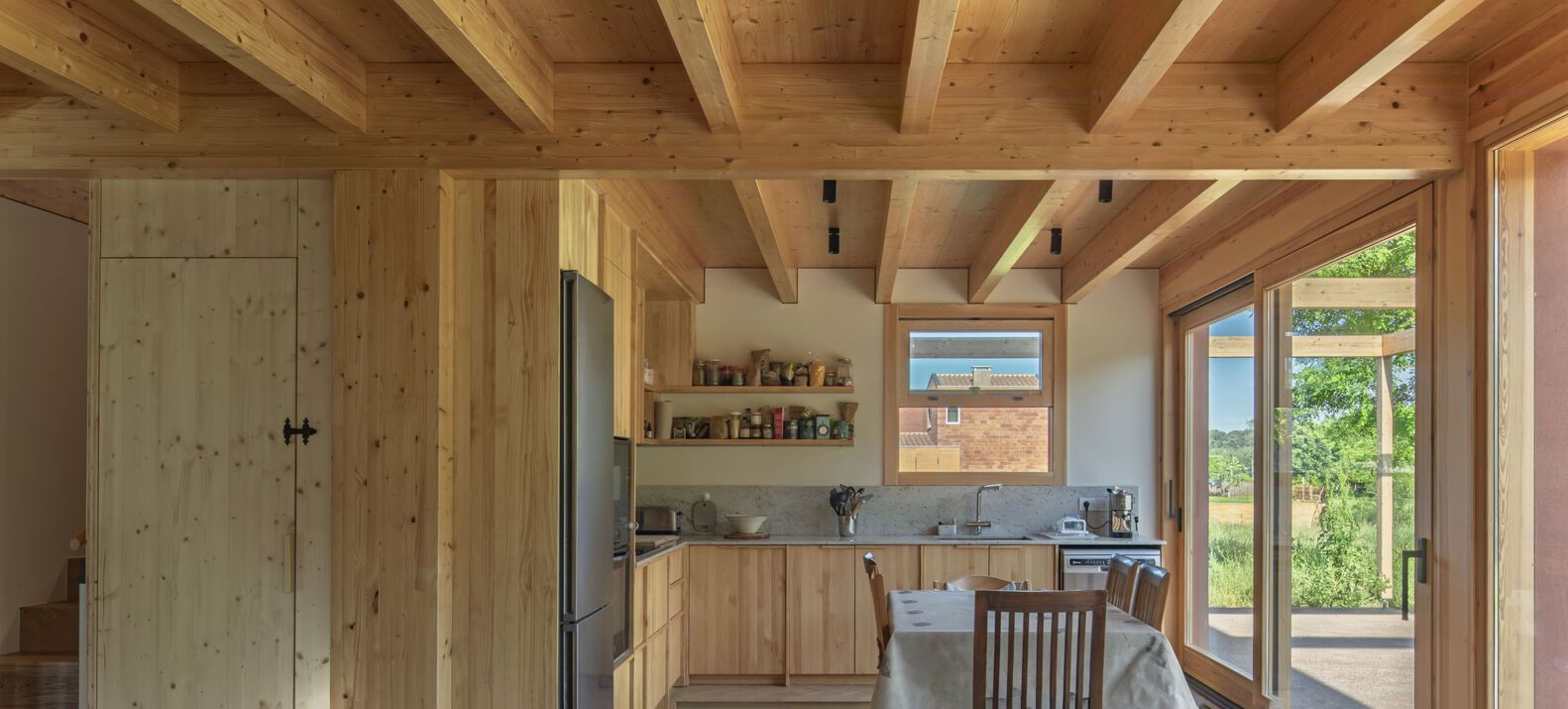

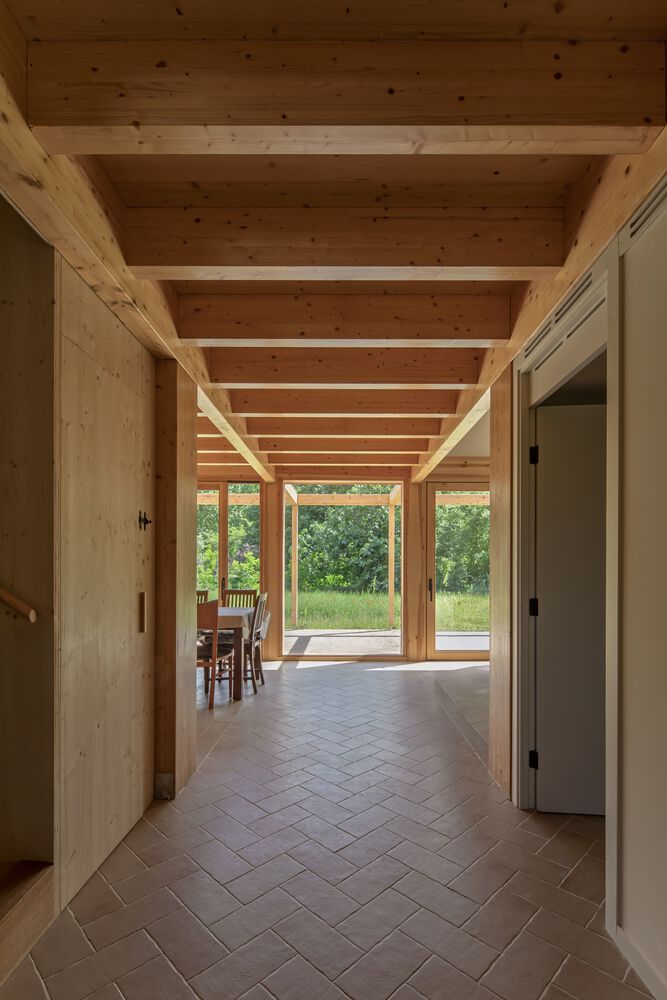

The structure consists of a perimeter balloon frame and four central columns that define four 15 m² spaces, one in each corner of the house. These spaces are separated by two service cores, resulting in a cruciform floor layout.

From a climatic perspective, the design decisions have been made with a high degree of rigor.

LC House
© Andrés Flajszer
LC House
© Andrés Flajszer
LC House
© Andrés Flajszer

The form factor has been optimized, referencing the archetypal house to achieve maximum volume with minimal envelope surface.

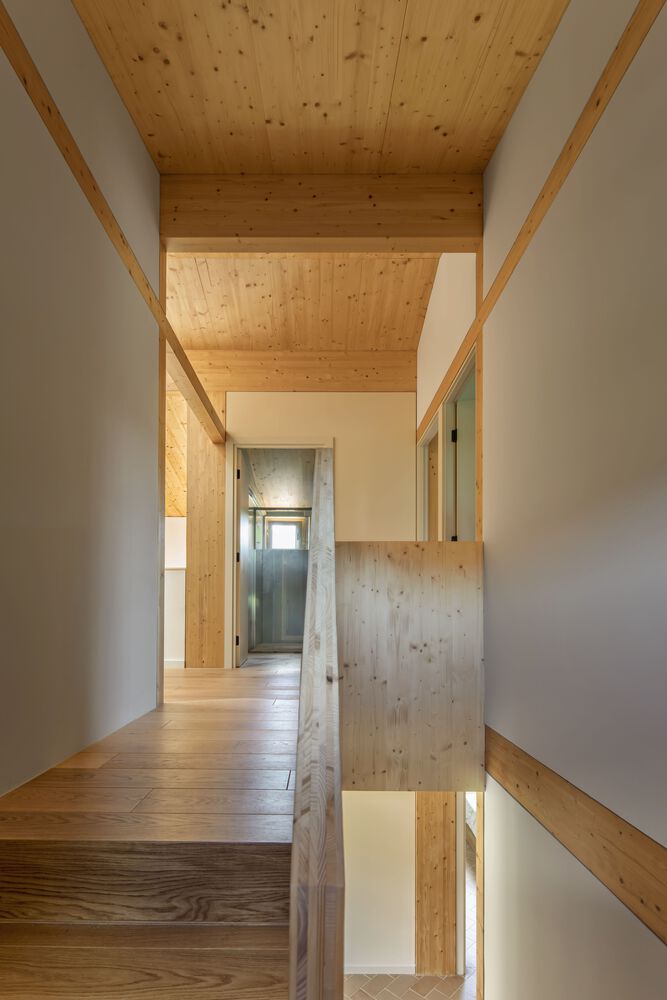

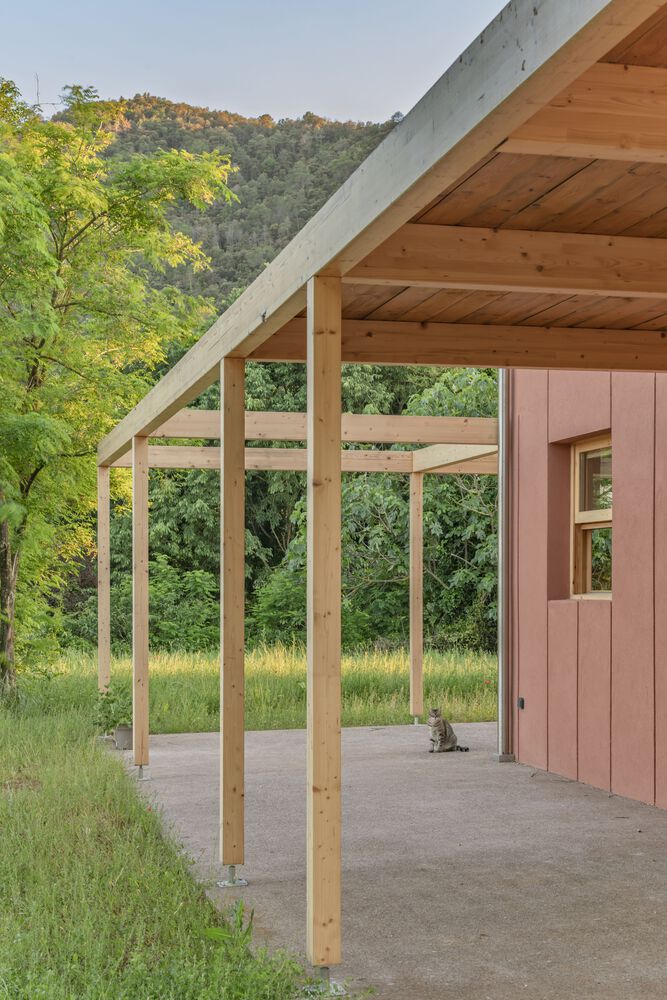

Regarding construction materials, a modular timber structure has been chosen to ensure a low environmental impact.

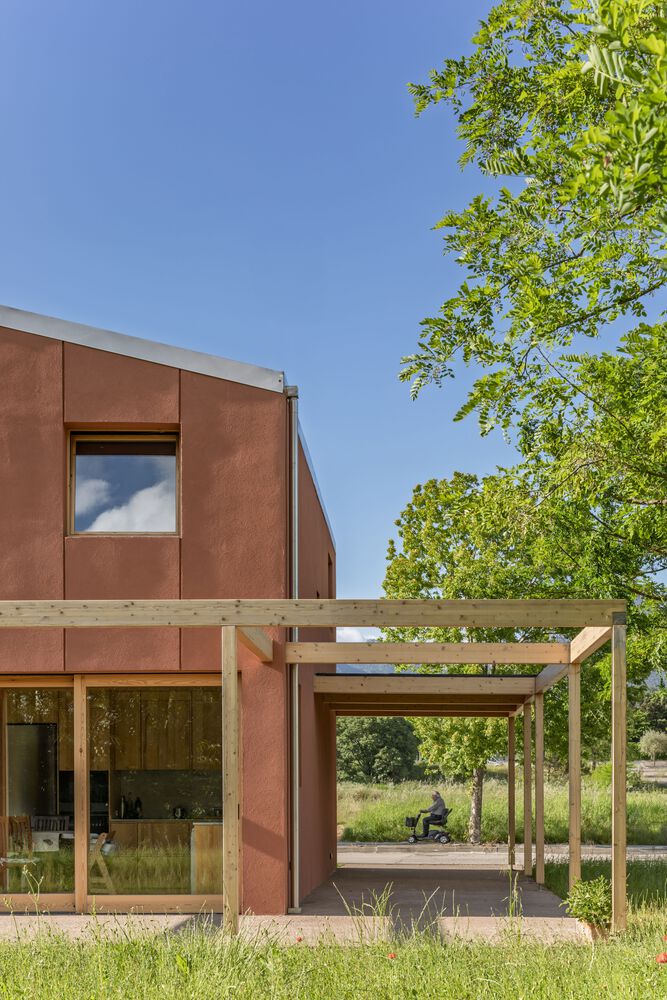

The entire project is conceived to maximize the building’s operational efficiency, primarily through passive design strategies: ventilated crawlspace, underfloor heating, cross ventilation in all rooms, enhanced southern openings, ventilated façades and roof... thus achieving healthier architecture.

LC House
© Andrés Flajszer
LC House
© Andrés Flajszer
LC House
© Andrés Flajszer

The use of timber and dry construction systems substantially reduces construction waste.

Not only is the environmental impact minimized during recycling, but most components are reusable.

In this way, the environmental footprint is minimized even at the end of the building’s life cycle.

LC House
© Andrés Flajszer
LC House
© Andrés Flajszer


LC House
© Andrés Flajszer
LC House
© Andrés Flajszer


LC House
© Andrés Flajszer


LC House

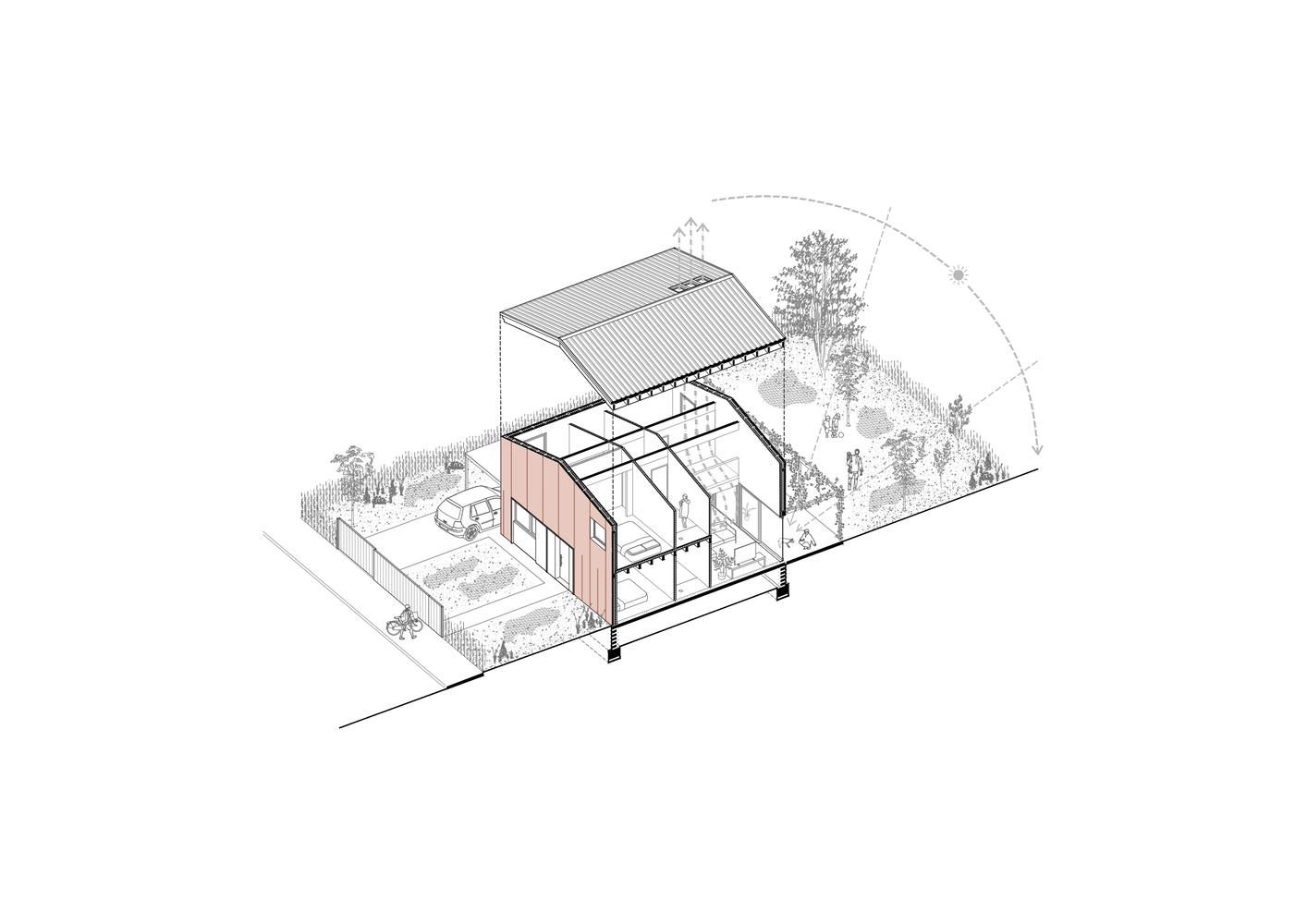

Axonometry


LC House

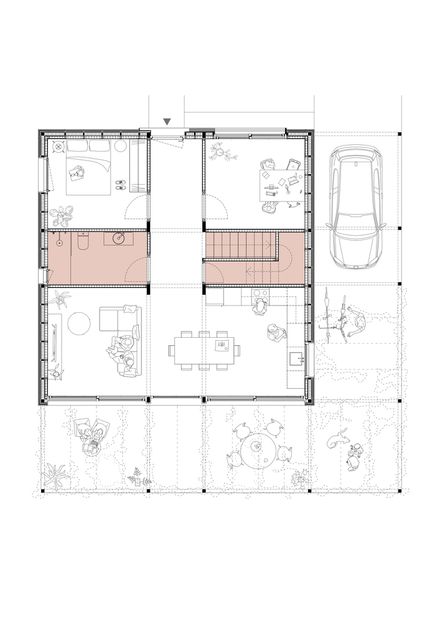

Floor Plan
LC House

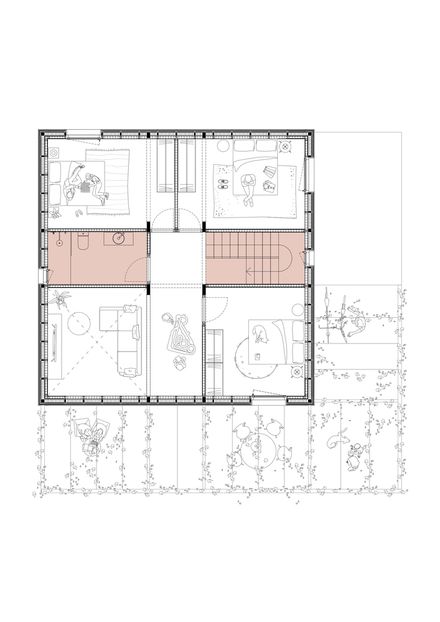

1st Floor Plan
