Taisei Corporation

TACT.T Bridge

TACT.T BRIDGE

Taisei Design Planners Architects & Engineers

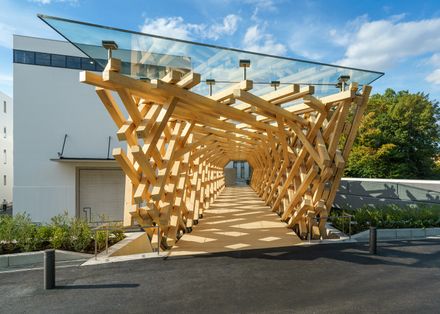

TACT.T Bridge
© Kazuhisa Adachi

ARCHITECTS
Taisei Design Planners Architects & Engineers

LEAD ARCHITECT
Masaharu Seki, Tomoyuki Wako

STRUCTURAL ENGINEER
Yuji Isshiki, Naoki Hashimoto, Haruna Mori

CONTRACTOR
Taisei Corporation

MANUFACTURERS
Taisei Corporation

CLIENT
Taisei Advanced Center of Technology

PHOTOGRAPHS
Kazuhisa Adachi

AREA
102 m²

YEAR
2023

LOCATION
Yokohama, Japan

CATEGORY
Pedestrian Bridge

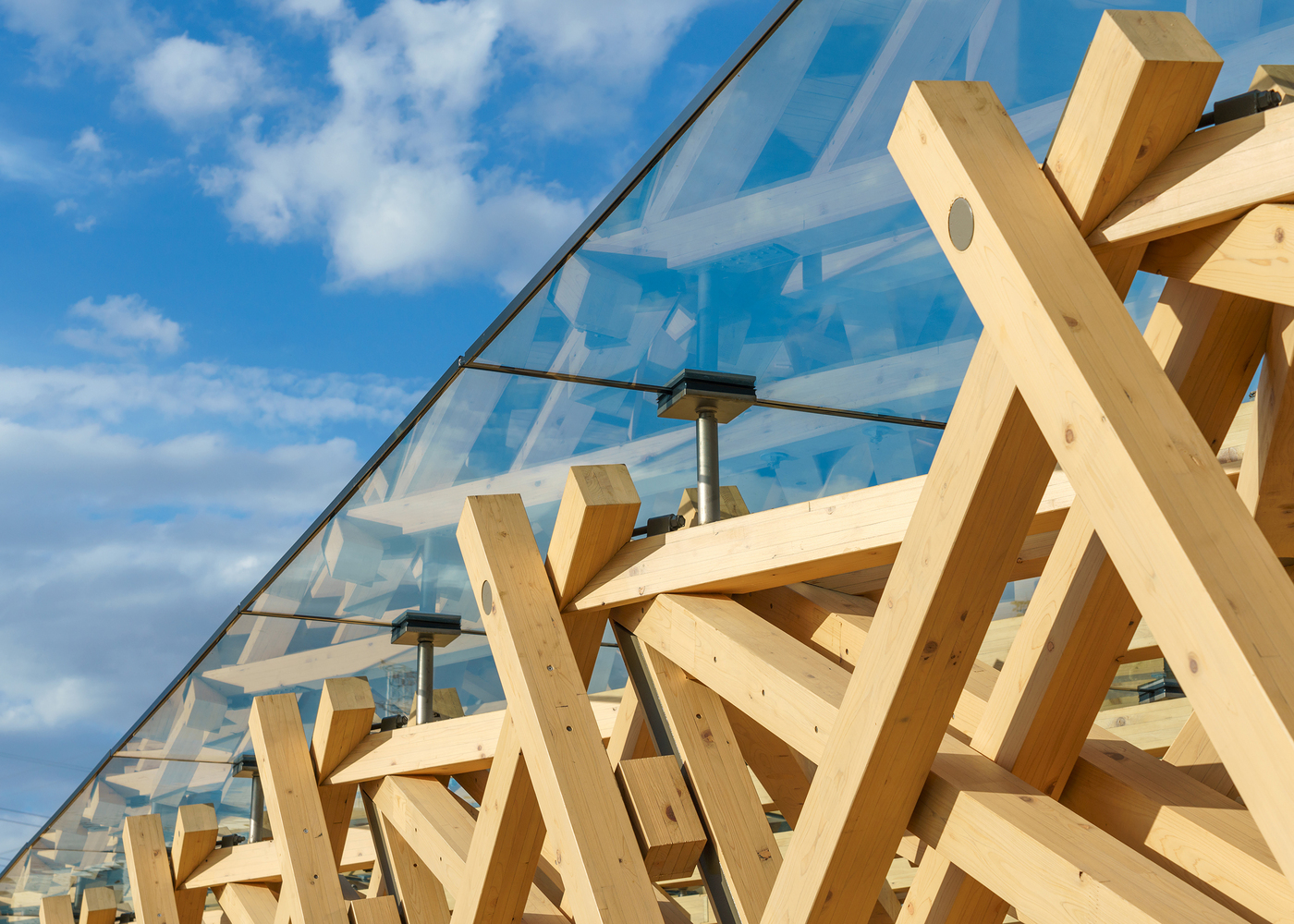

TACT.T Bridge
© Kazuhisa Adachi

English description provided by the architects.

Architecture that contributes to promoting a decarbonized society through the expanded use of commercially available small-diameter timber and eco-friendly concrete.

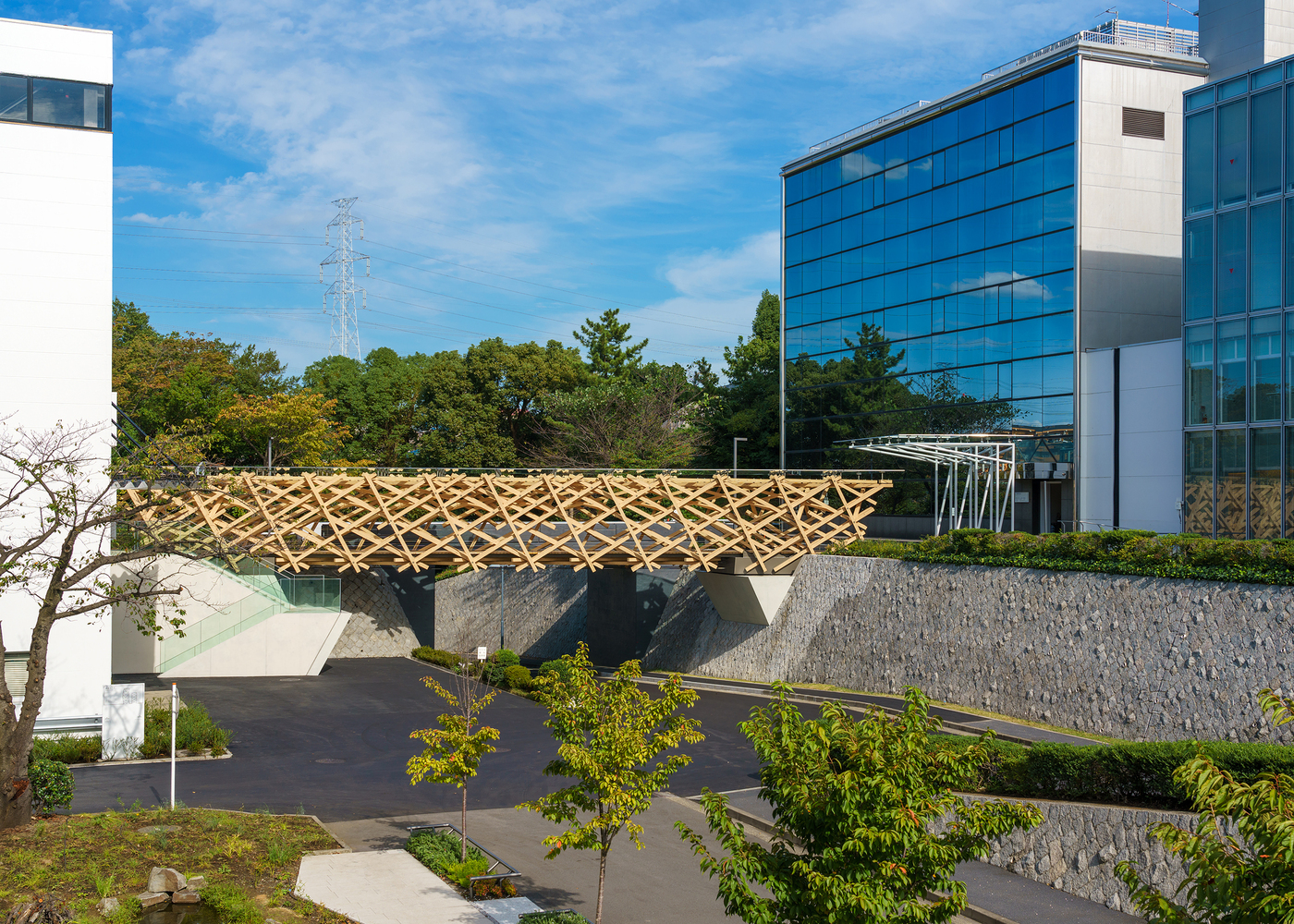

TACT.T Bridge
© Kazuhisa Adachi

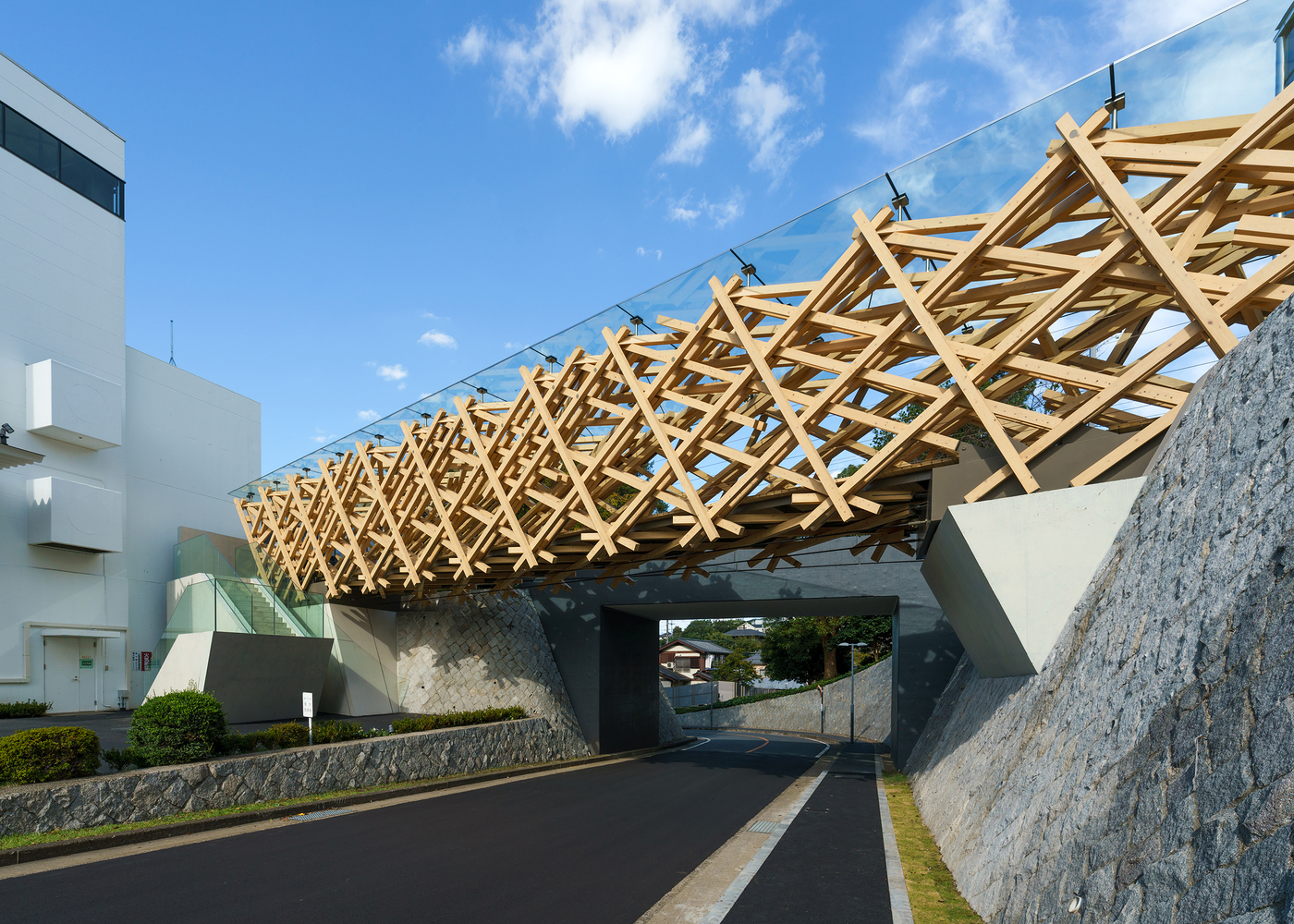

TACT.T Bridge
© Kazuhisa Adachi

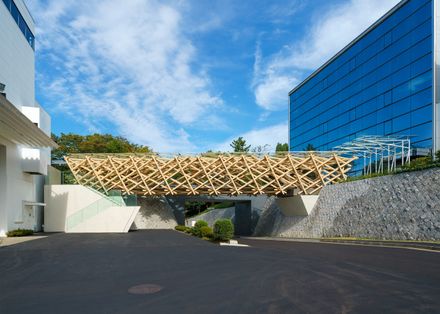

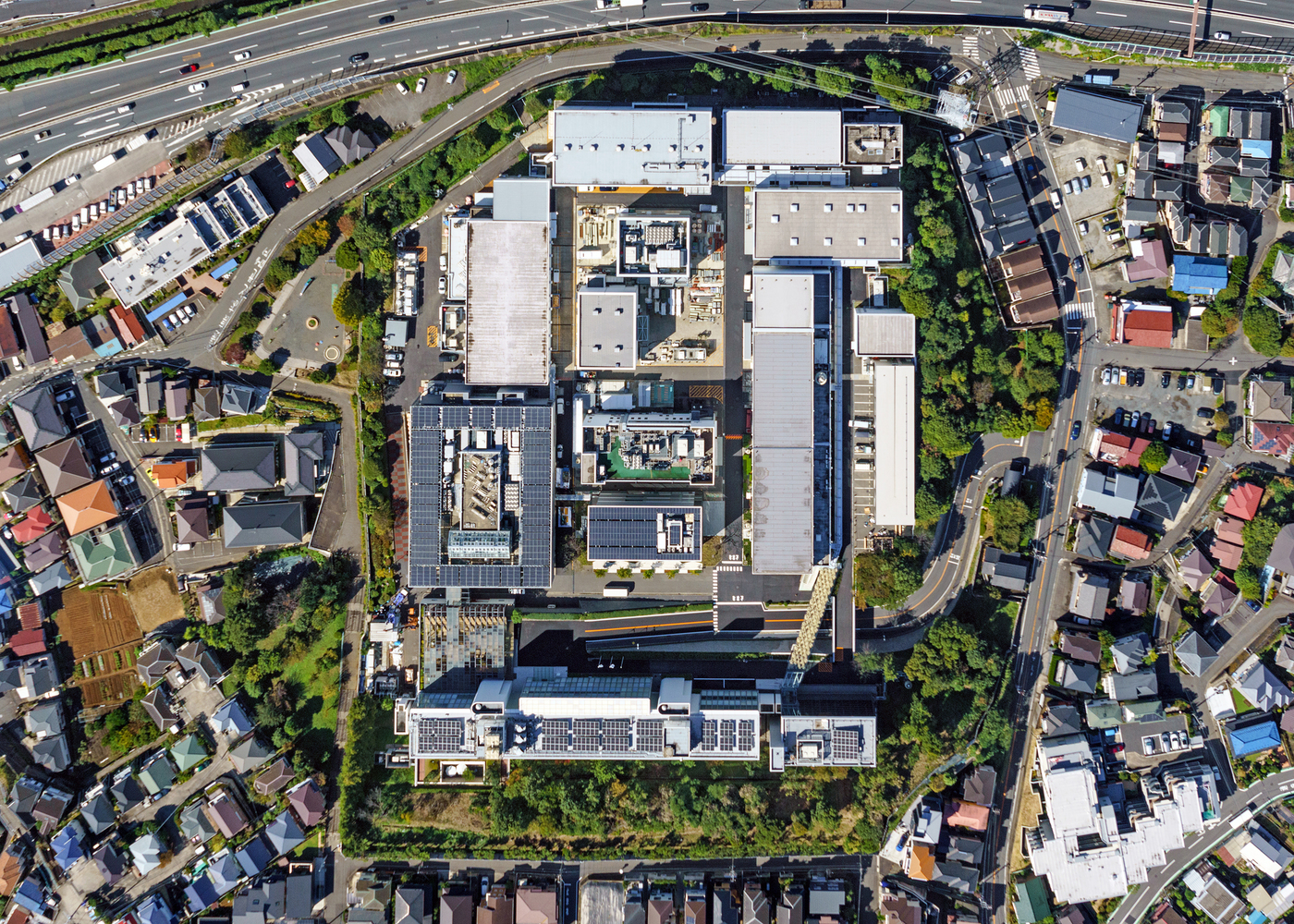

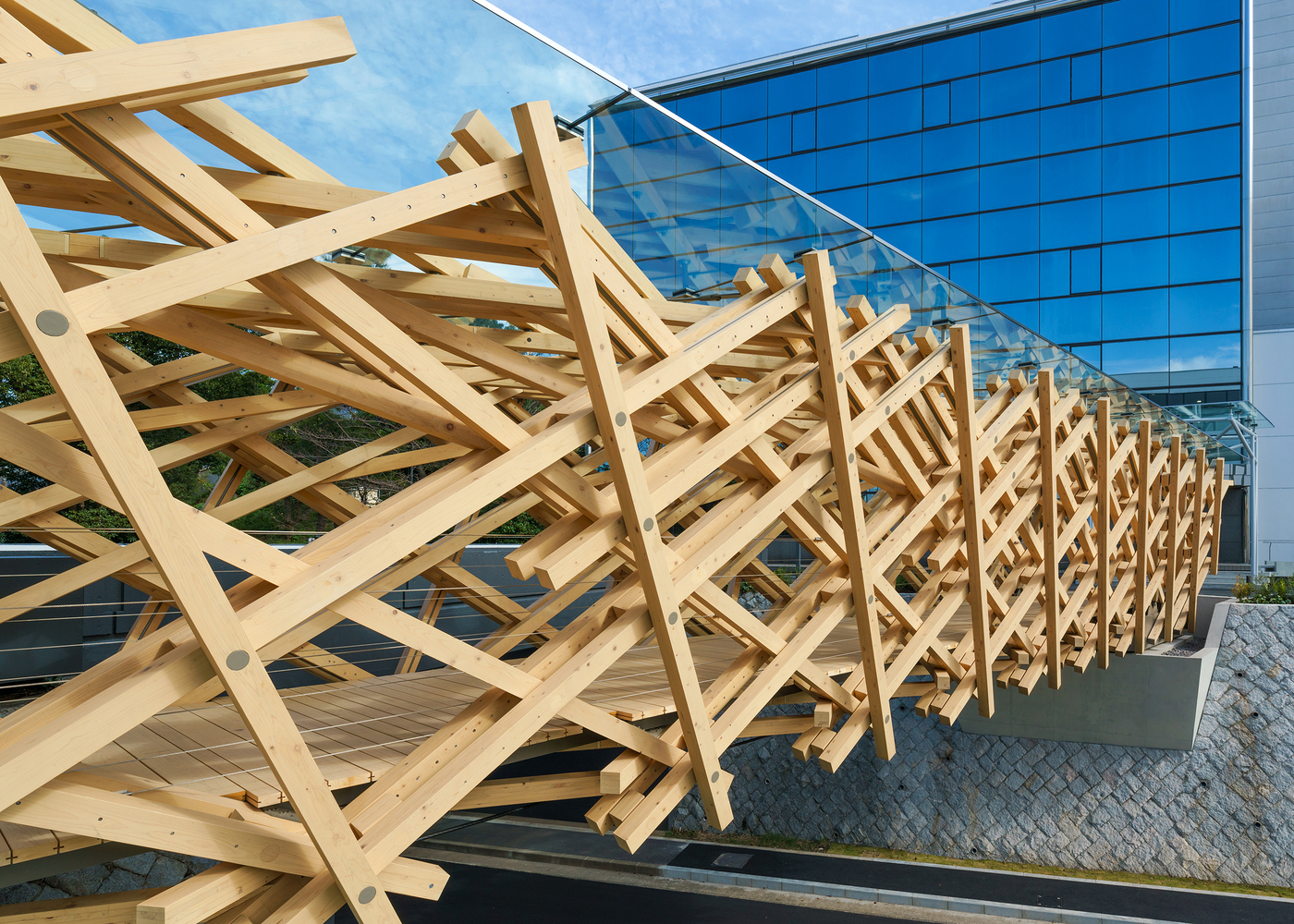

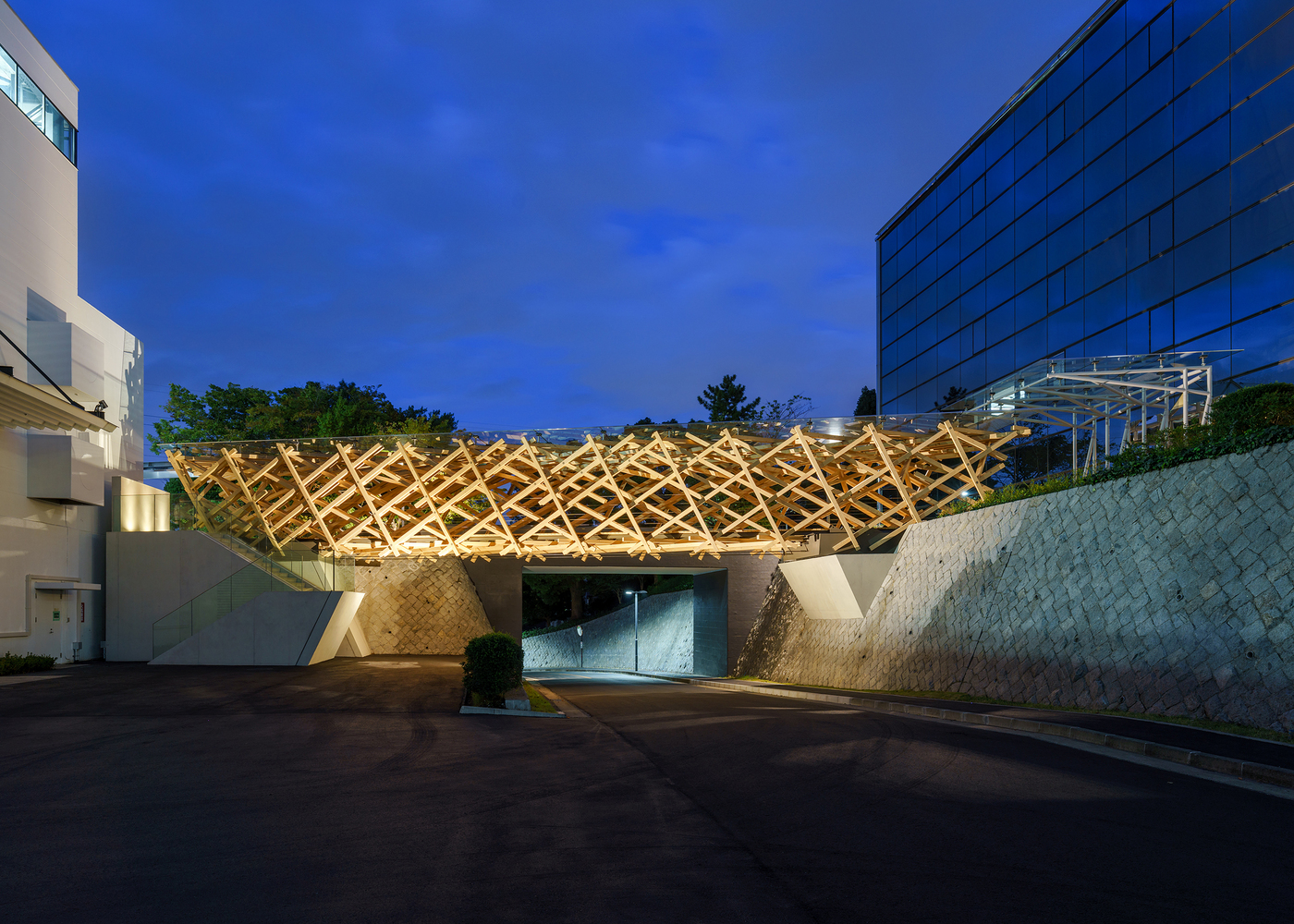

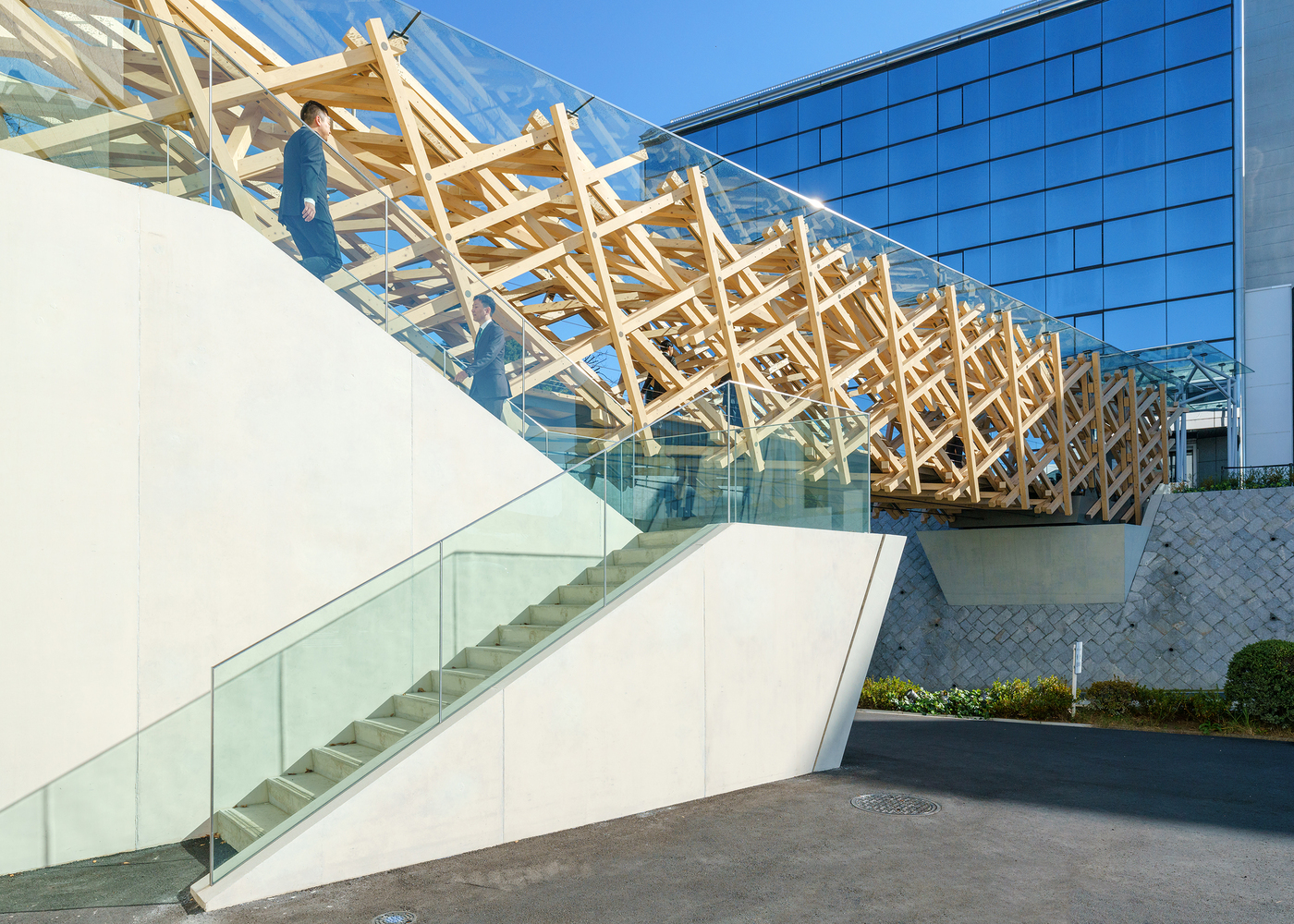

At the Taisei Advanced Center of Technology in Yokohama, Kanagawa Prefecture, an innovative long-span pedestrian bridge built with commercially available small-diameter timber has been constructed.

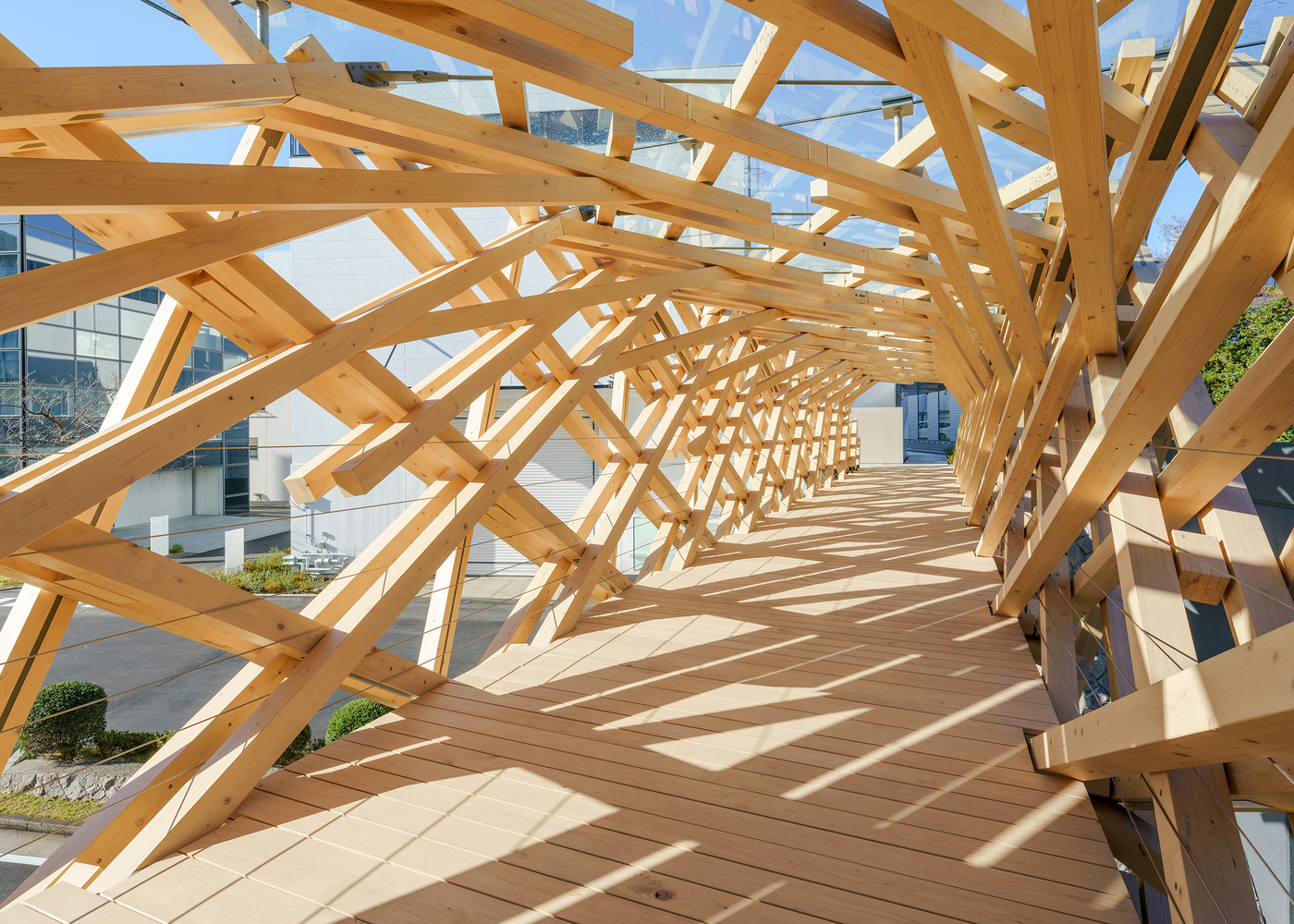

The bridge, named TAC.T BRIDGE, constitutes a part of the rounding passageway interlinking the laboratory and office buildings dotting the premises, designed to enhance convenience of in-site mobility for researchers and as a place for a change of pace where they can feel the sounds of nature and breezes as well as enjoy the feeling of being surrounded by light and fragrance.

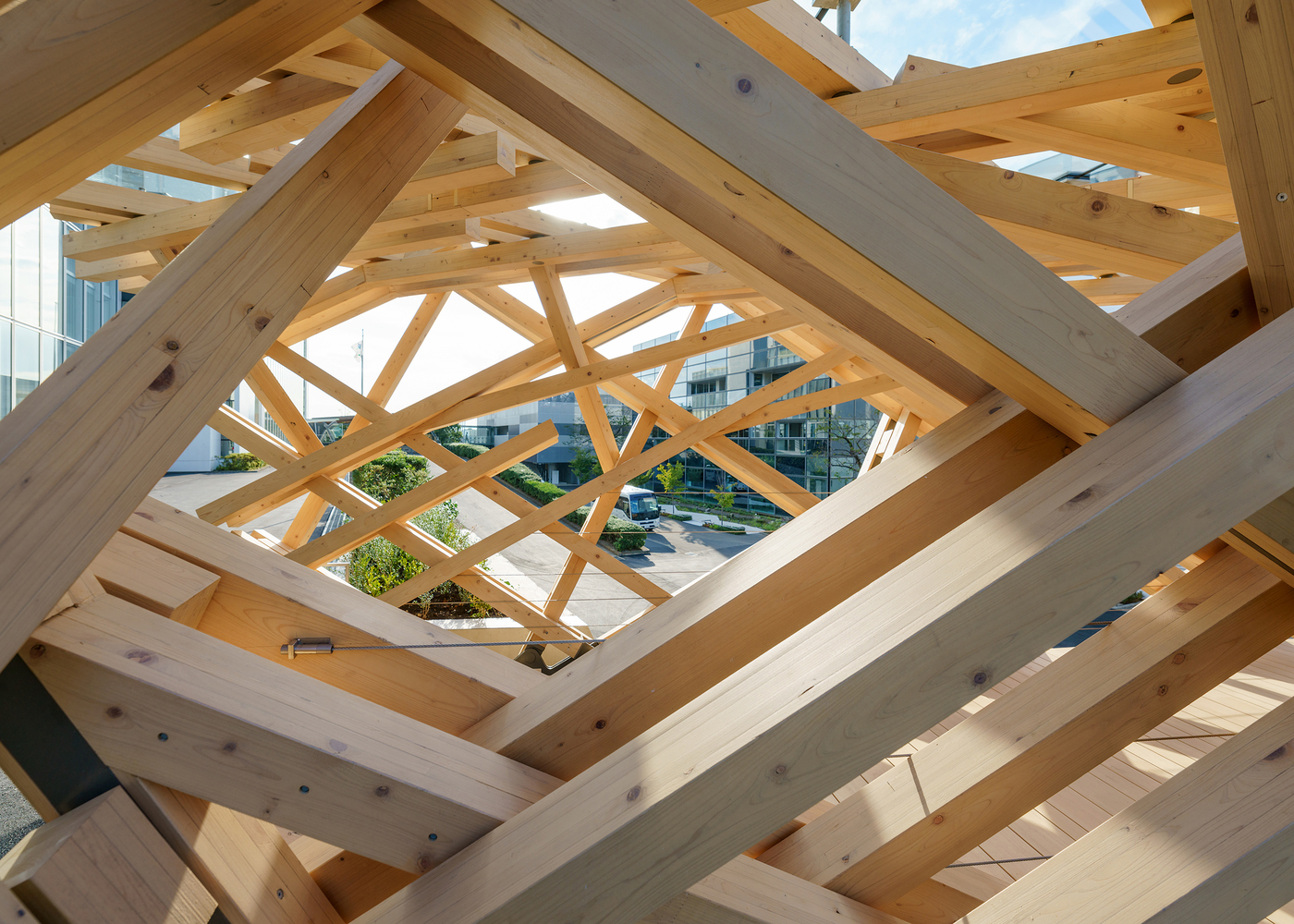

TACT.T Bridge
© Kazuhisa Adachi

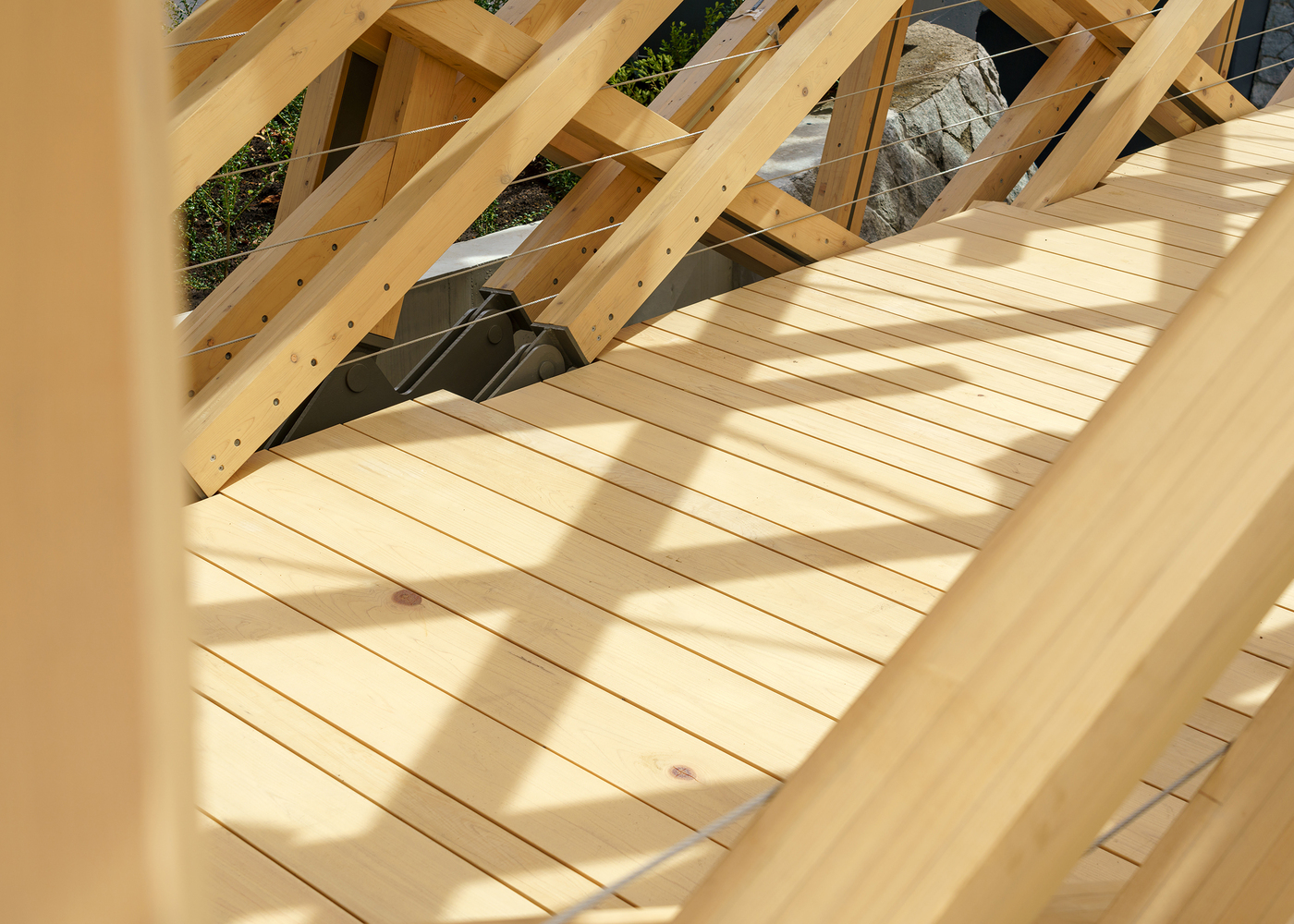

TACT.T Bridge
© Kazuhisa Adachi

In recent years, there has been a growing return to timber construction across various architectural fields to make a sustainable society possible.

In the TAC.T BRIDGE project, efforts were made to overcome the weaknesses of wooden bridges by achieving long-span frames and improving durability and weather resistance.

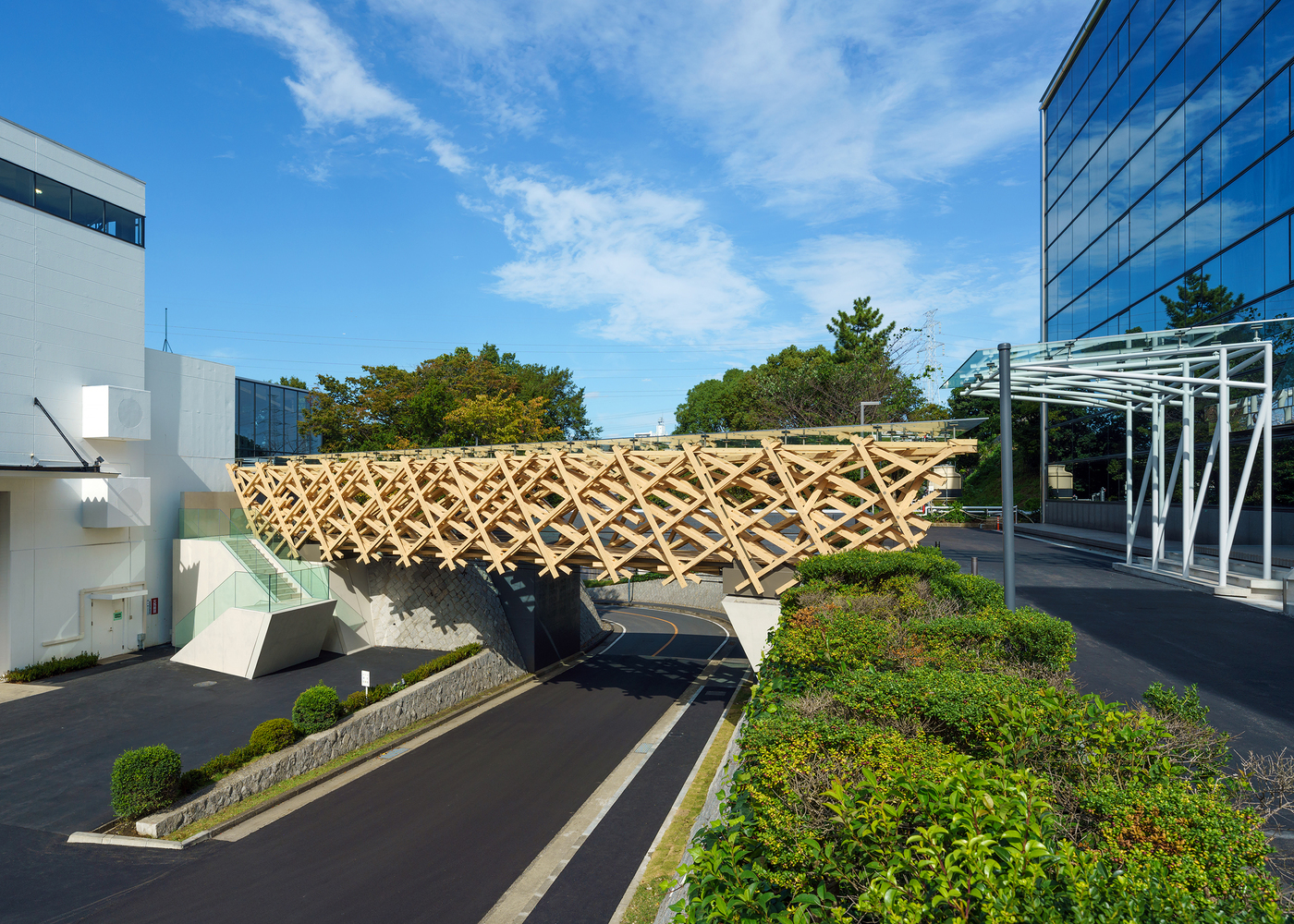

TACT.T Bridge
© Kazuhisa Adachi

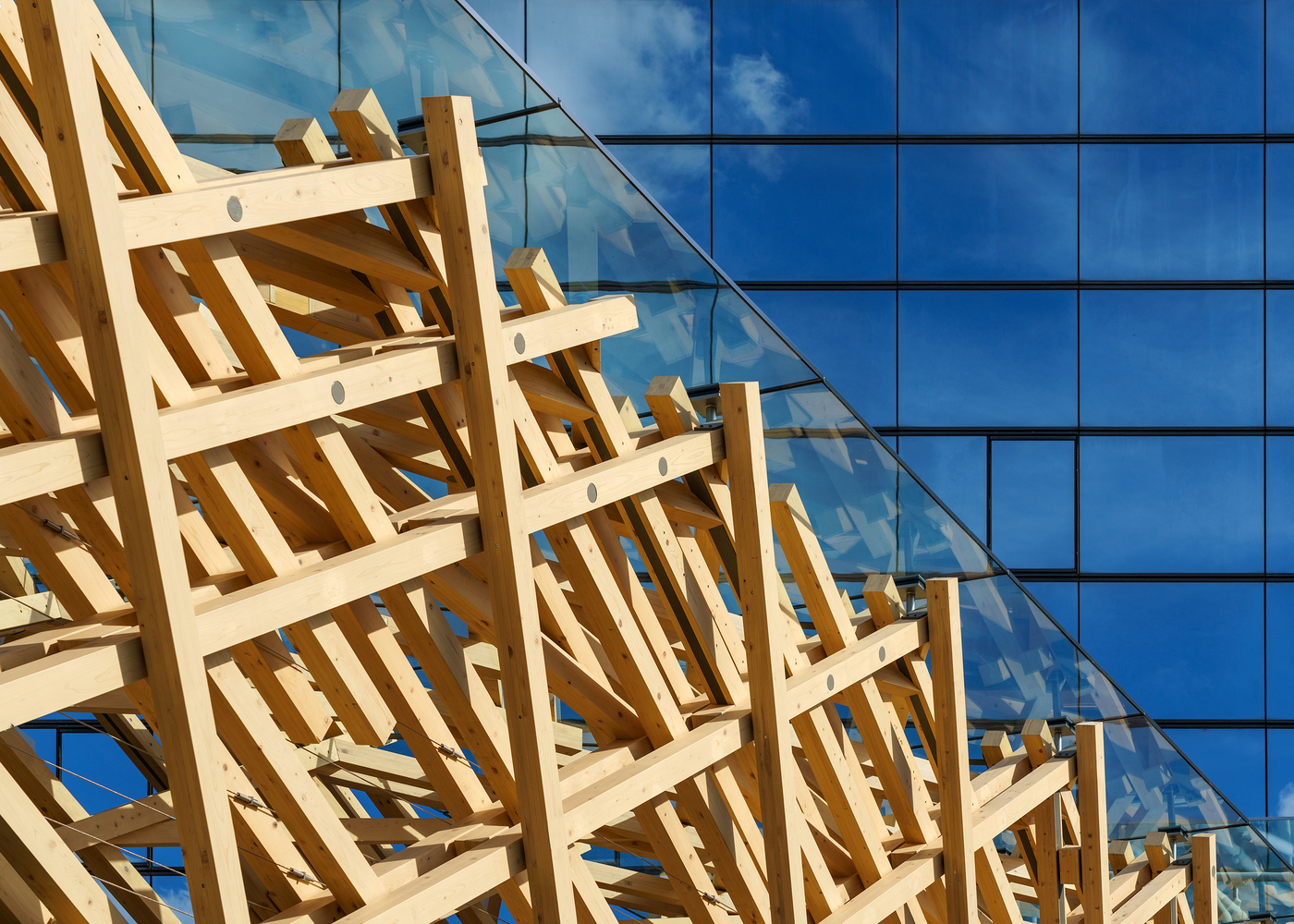

TACT.T Bridge
© Kazuhisa Adachi

By leveraging the strengths of small-diameter timber to improve constructability and replaceability, this project increases the potential for a return to timber construction even in the field of bridge construction.

Taisei's proprietary eco-friendly concrete, T-eConcreteÒ, has also been applied to bridge pier footings to reduce carbon dioxide emissions.

TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi

Commercially available small-diameter timber is primarily used in residential construction.

It has traditionally been considered that, unlike large-section glued laminated timber, commercially available small-diameter timber is not suitable for long-span construction.

Additionally, exposure to moisture and ultraviolet rays can lead to deterioration and cracking, so for outdoor use, ensuring weather resistance and durability has been a key challenge in using small-diameter timber.

TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi

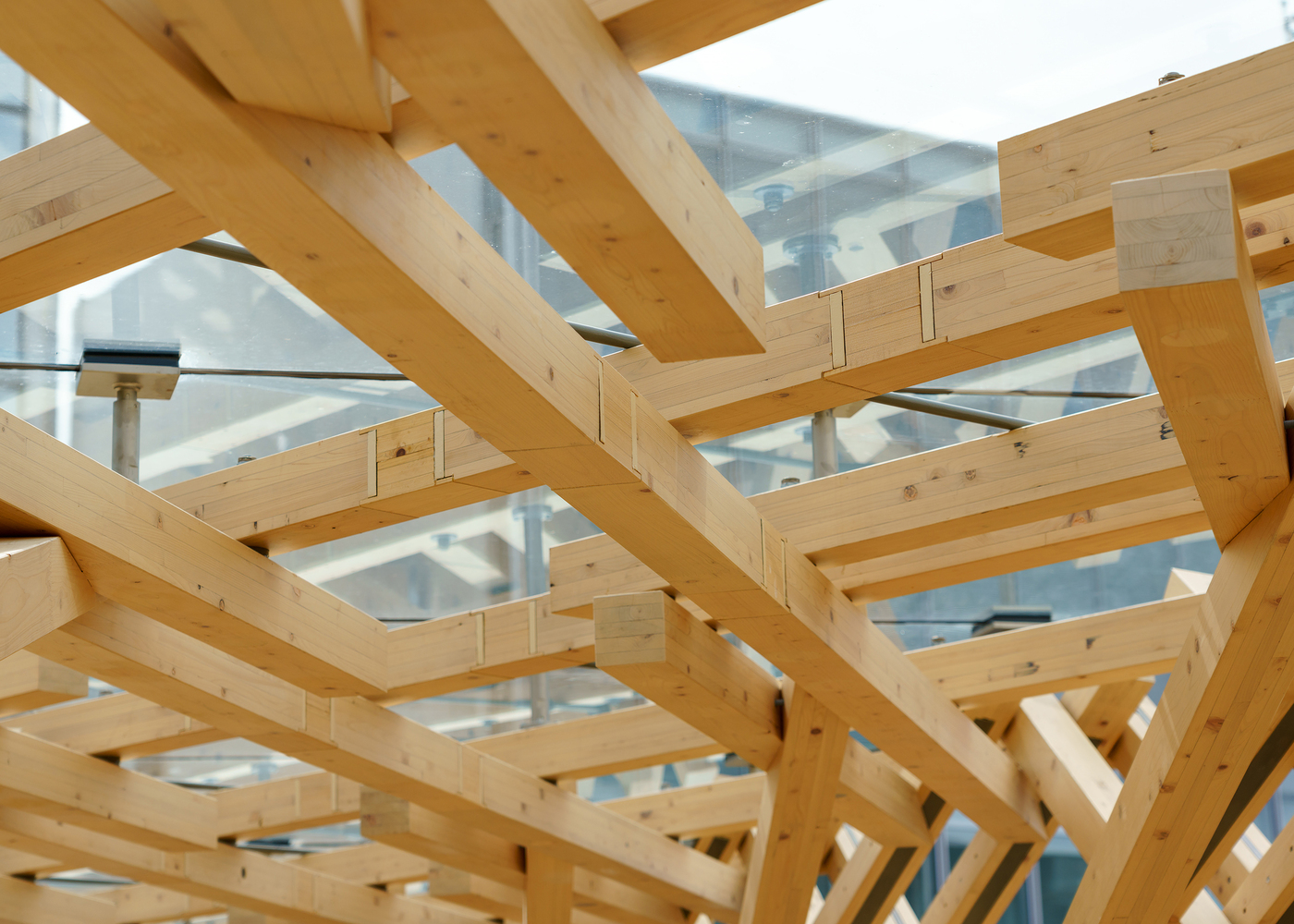

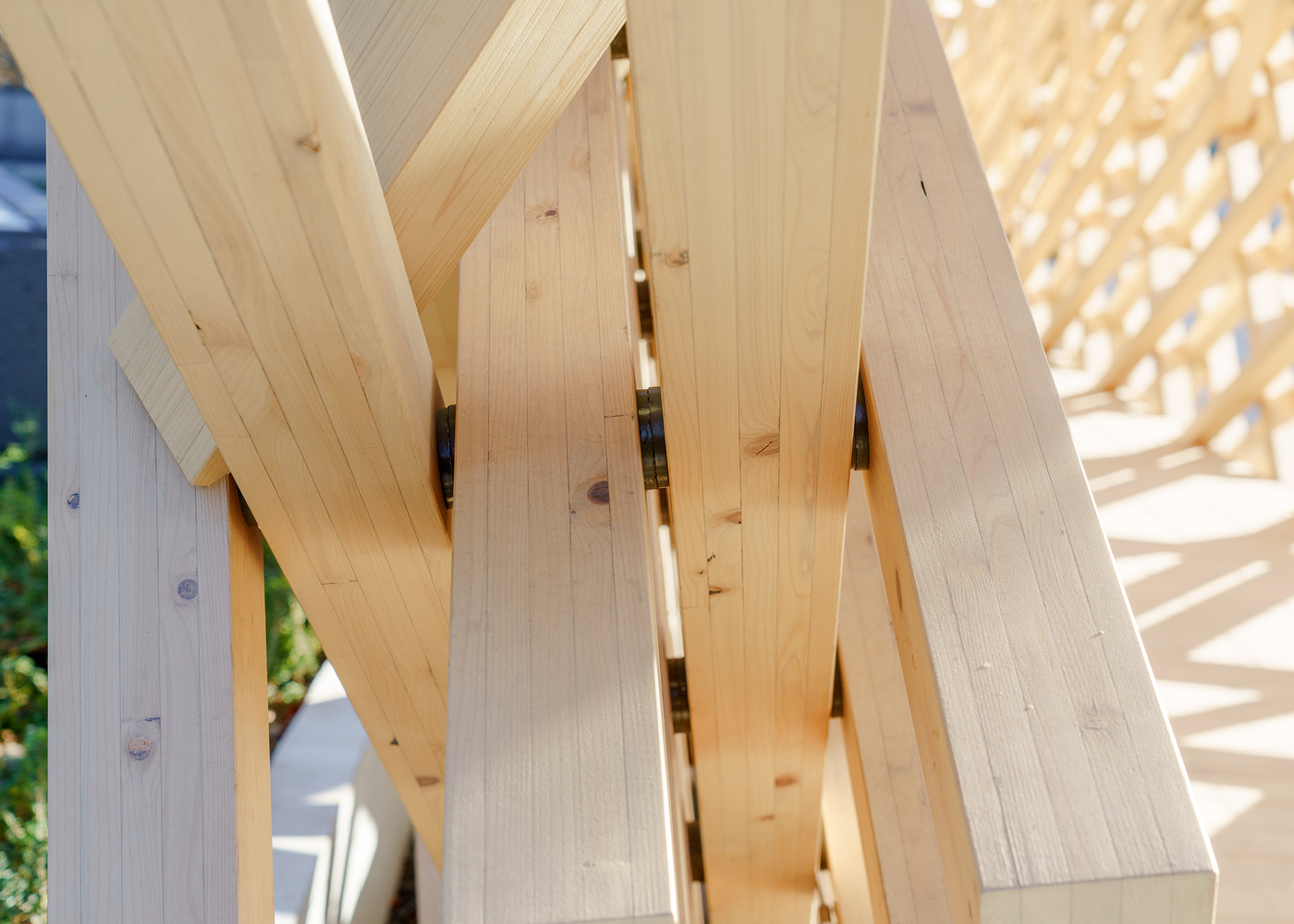

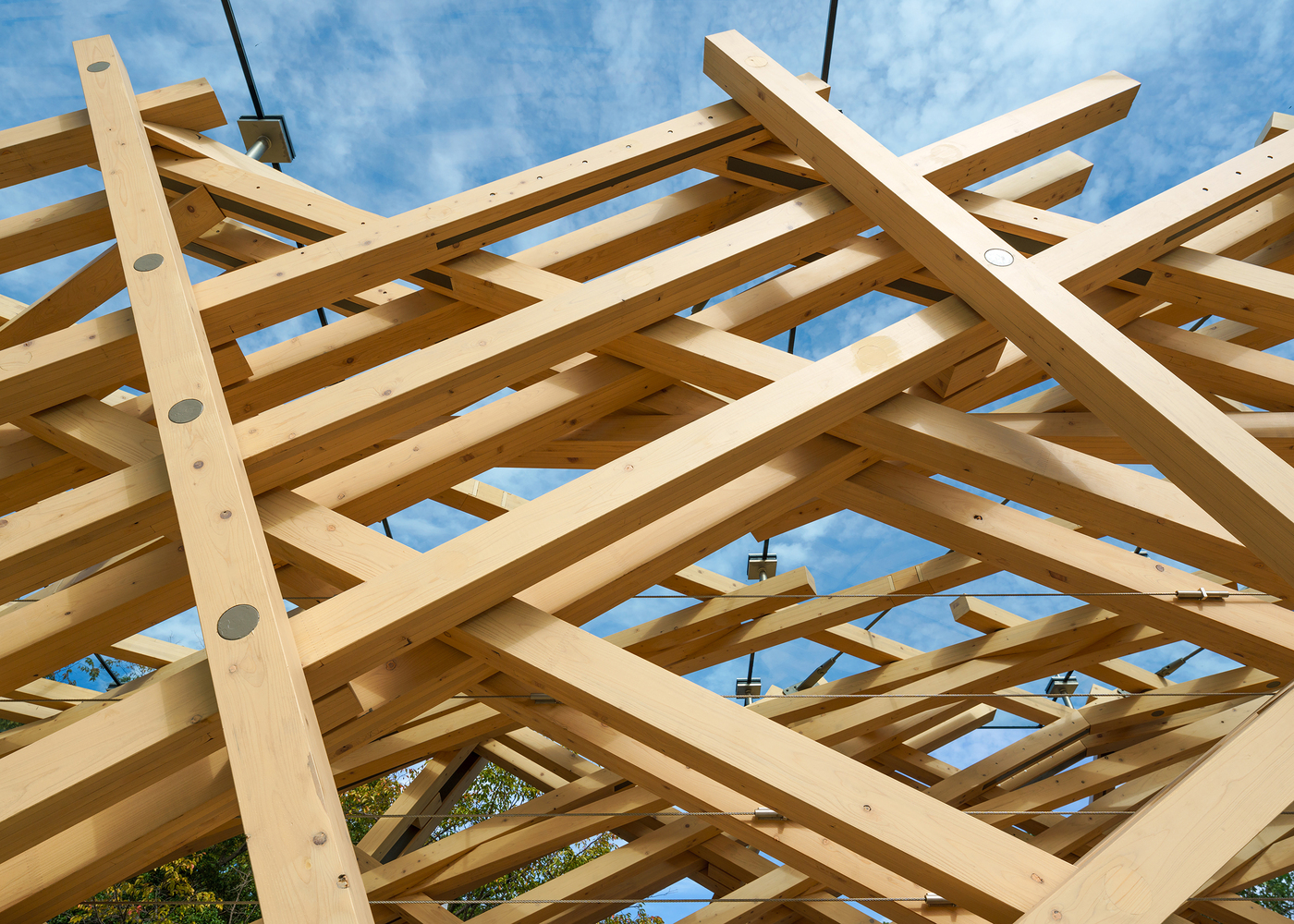

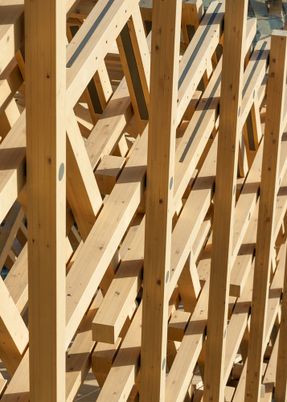

In preparation for the construction of the TAC.T BRIDGE, therefore, a new type of bolt connection with stronger, stiffer, and more durable timber was developed, and a structural frame system combining wooden frames and prestressed frames was adopted to realize long-span (26 m) construction using small-diameter (120 x 120 mm) timber.

To achieve the high weather resistance and durability required for outdoor use of timber, wood protection coating material developed by Taisei (T-WOOD COATÒ) was used.

TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi

By taking advantage of small-diameter timber, which is lightweight and easy to construct, structural framing was also designed for easy replacement of structural members to extend the service life of small-diameter timber structures in outdoor applications.

This will broaden the range of applications for small-diameter timber, promote greater use of wood by increasing the options for wood structures in buildings, and contribute to the realization of a decarbonized society through the use of eco-friendly concrete as a building material.

TACT.T Bridge
© Kazuhisa Adachi


TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi


TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi


TACT.T Bridge
© Kazuhisa Adachi
TACT.T Bridge
© Kazuhisa Adachi


TACT.T Bridge

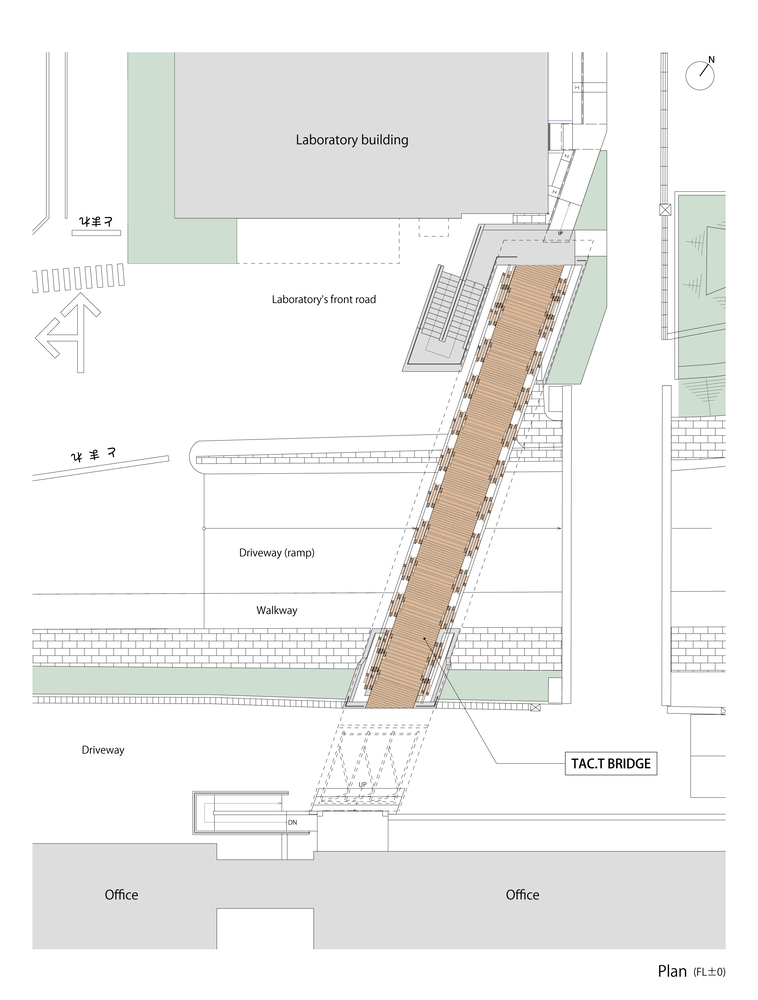

Plan +0
TACT.T Bridge

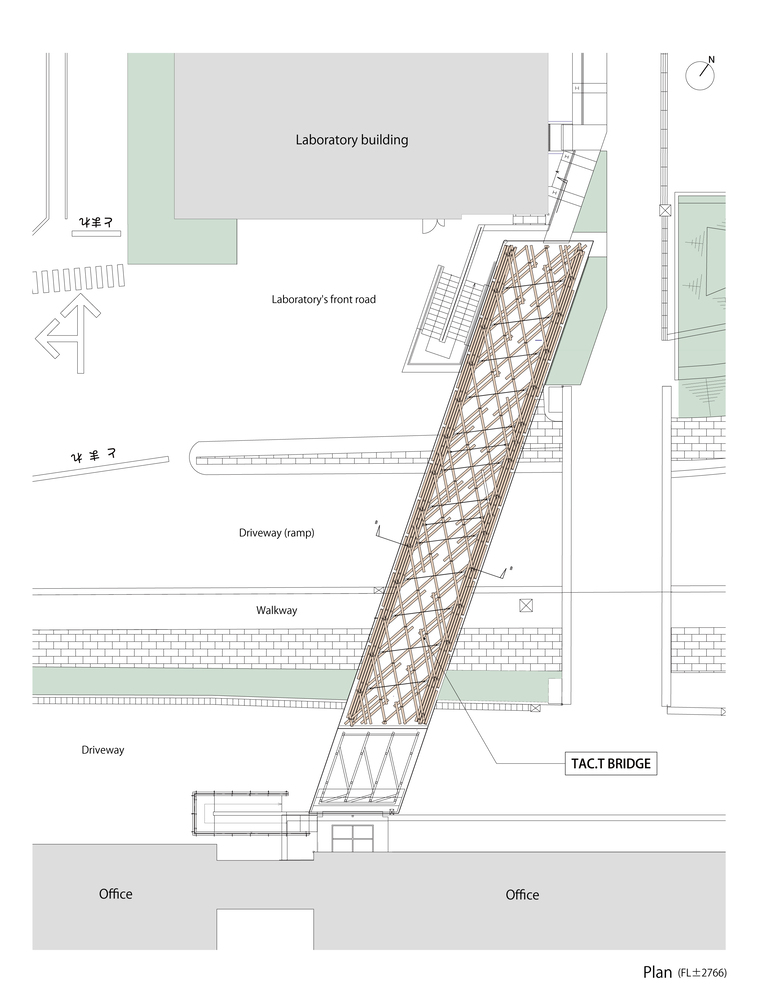

Plan +2766


TACT.T Bridge

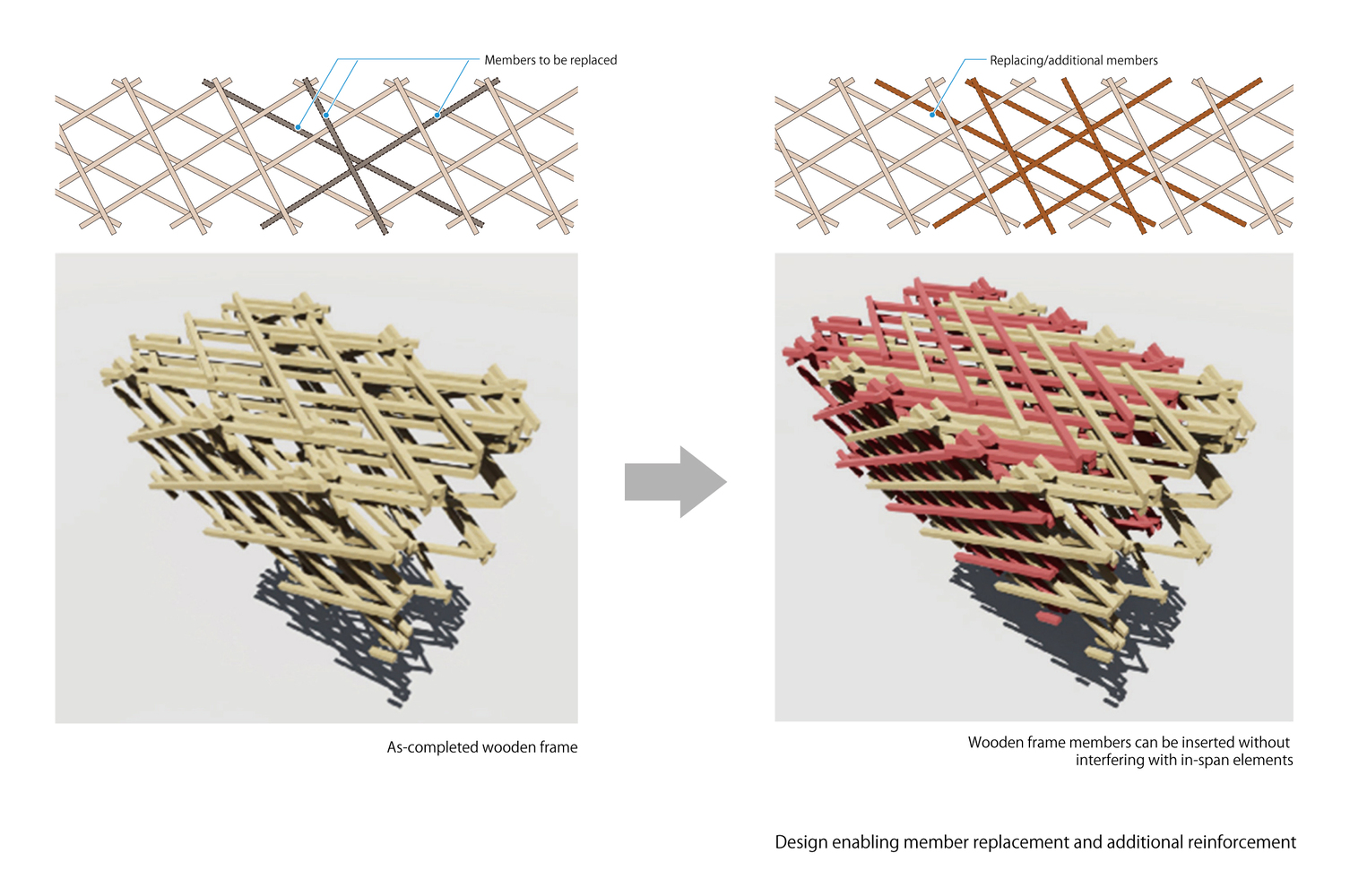

Structure - Replacement and additional reinforcement
TACT.T Bridge

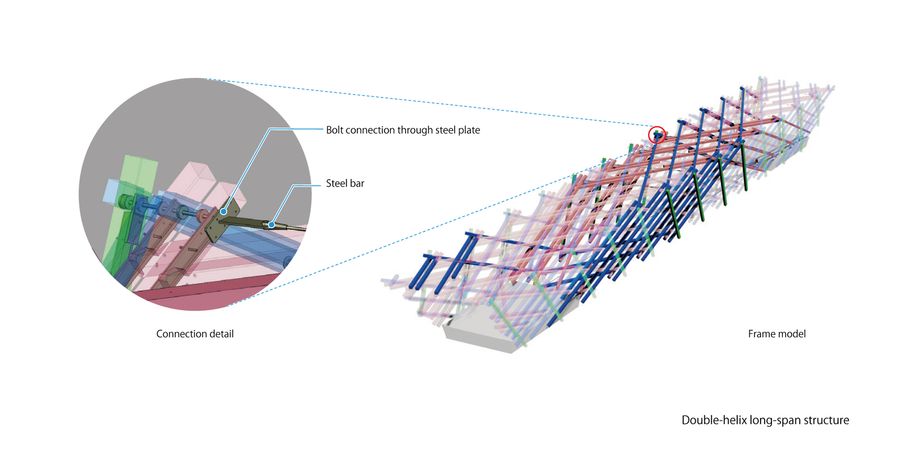

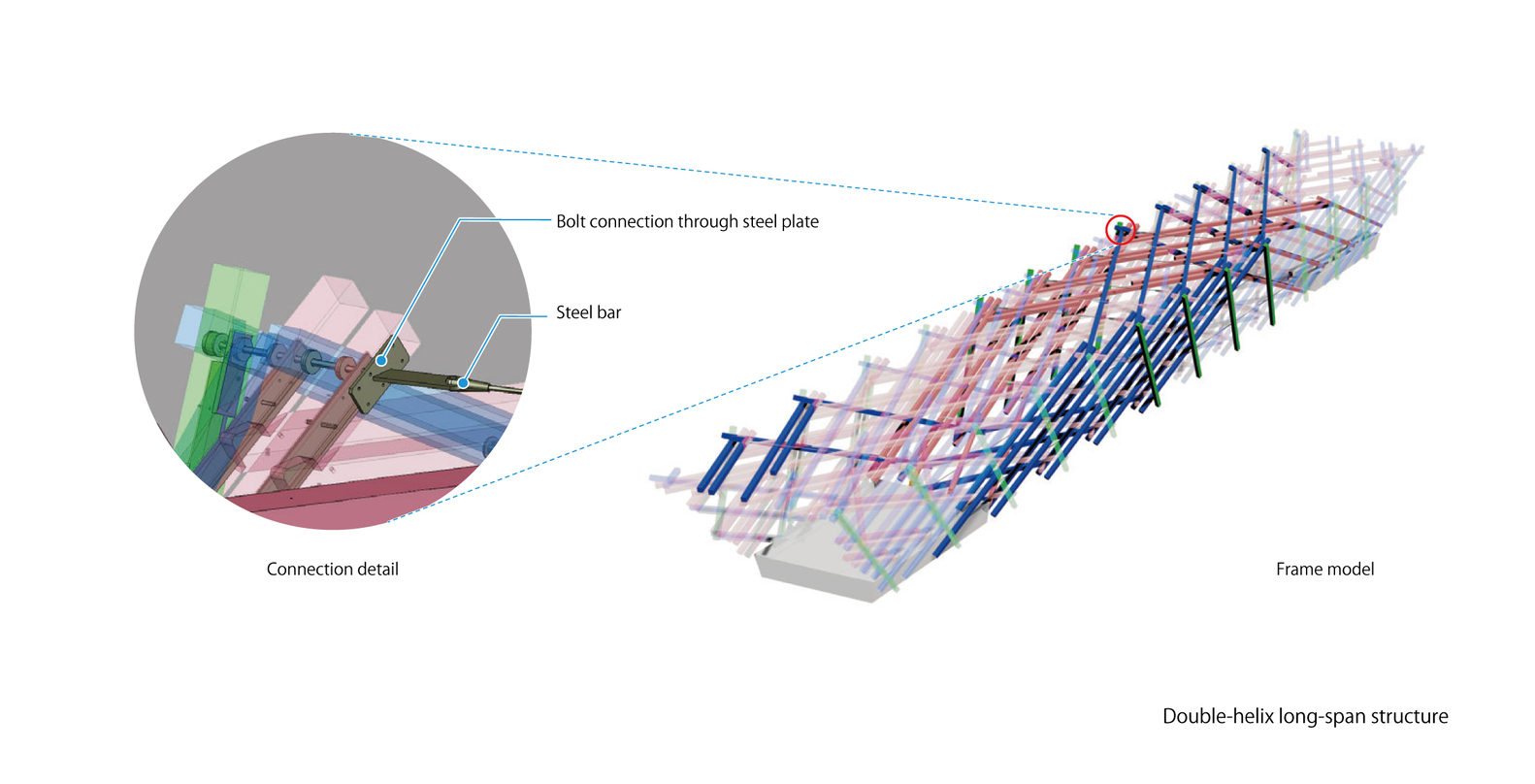

Structure - Double-helix long-span structure


TACT.T Bridge

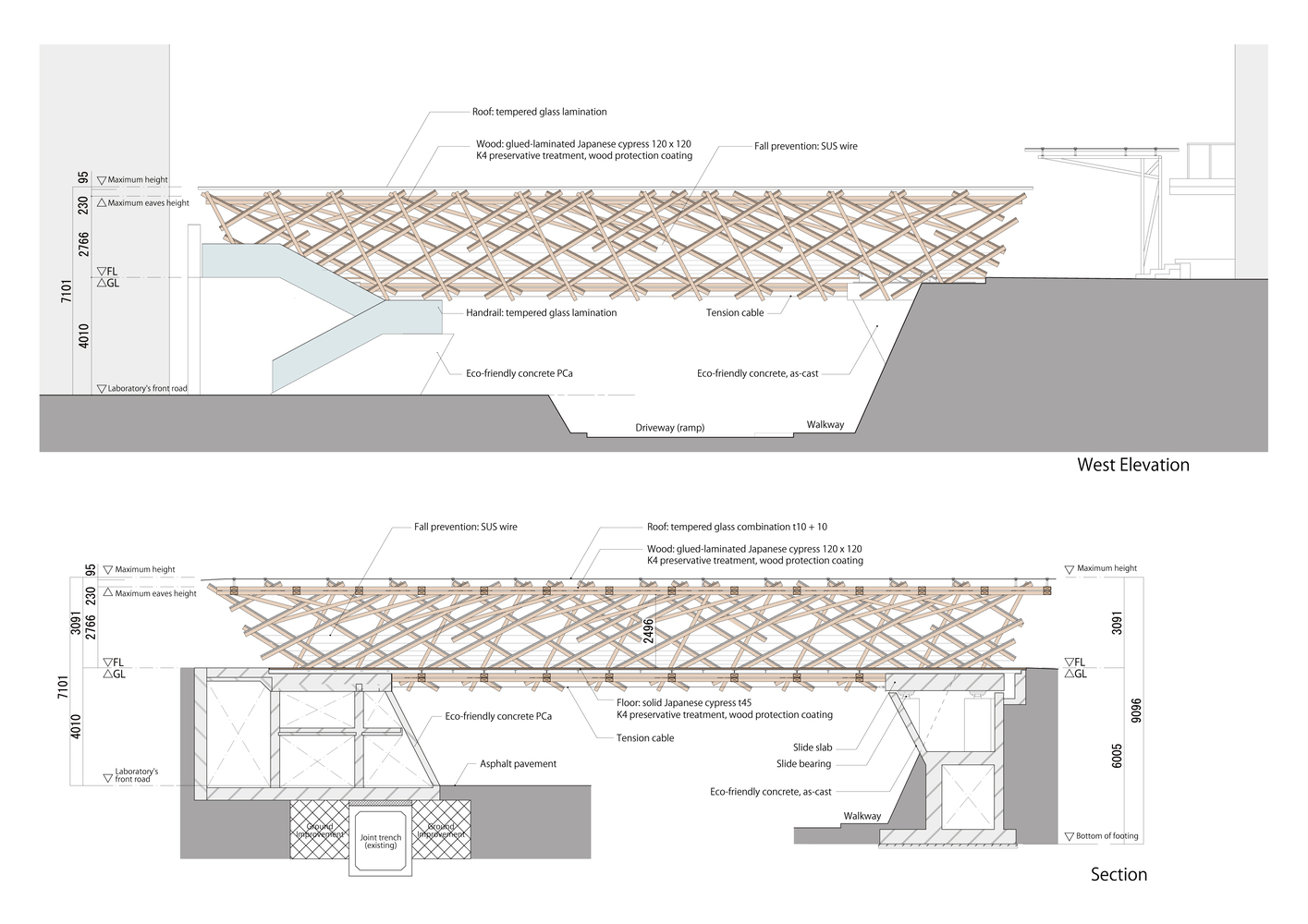

West Elevation and Section
