LEARNING CENTER AT THE CENTRAL CAMPUS OF USTC

Heimat Architects

Learning Center At The Central Campus Of USTC
© Schranimage

ARCHITECTS
Heimat Architects

LEAD ARCHITECT
Zhang Dong Guang, Liu Wenjuan

STRUCTURAL DESIGN
Beijing Shouang Structural Studio

INTERIOR DESIGN
China IPPR International Engineering Co., Ltd

LANDSCAPE DESIGN
Shanghai Landscape Architecture Design & Research Institute Co., Ltd

DESIGN TEAM
Zhou Ying, Wang Xiao, Meng Chao, Liang Rongseng, Zhang Yihan, Ma Tianyang, Zhang Wenjing, Zhao Xixi, Meng Huachao, Qin Yali, Zhang Yifan, Wang Wan, Qin Yuqiang, Huang Ruixiao, Zhang Xingqi, Gu Yongtao, Zhang Kai, Zhang Qiang, Wu Min, Du Weixuan

CONSTRUCTION
Zhong’an Zhengkai Construction Holding Group Co., Ltd

CLIENTS
University of Science and Technology of China

CONSTRUCTION DRAWINGS
China IPPR International Engineering Co., Ltd

STRUCTURAL ENGINEER
Liu Su

LANDSCAPE CONSTRUCTION
Anhui Wanlou Construction Engineering Co., Ltd.

STRUCTURAL CONSULTANT
Meng Xianchuan

PHOTOGRAPHS
Wei Wei, Schranimage

AREA
1100 m²

YEAR
2025

LOCATION
Hefei, China

CATEGORY
Visitor Center, University

Learning Center At The Central Campus Of USTC
© Wei Wei

English description provided by the architects.

Located at the Central Campus of the University of Science and Technology of China (USTC), this project addresses the challenge of providing multifunctional spaces for self-directed learning, activities, and communication.

Learning Center At The Central Campus Of USTC
© Schranimage
Learning Center At The Central Campus Of USTC
© Schranimage

The university selected a neglected corner at the easternmost edge of the campus for the site.

The site is bordered by boundary walls to the east, south, and north, with a commercial building to the south, residential blocks to the north, and an elevated expressway to the east.

Learning Center At The Central Campus Of USTC
© Schranimage
Learning Center At The Central Campus Of USTC
© Wei Wei

An underground tunnel underpass connects the East and Central Campuses beneath the site.

The design begins with an urban-scale perspective.

Learning Center At The Central Campus Of USTC
© Wei Wei
Learning Center At The Central Campus Of USTC
© Wei Wei

By inserting a functional building and reworking the circulation, this corner is redefined as a connector between the Central Campus and the eastern city road, creating a new entrance for daily use.

The campus boundary is removed, setting back the perimeter to create an open entrance area, which also serves as a pocket park for local residents.

Learning Center At The Central Campus Of USTC
© Schranimage
Learning Center At The Central Campus Of USTC
© Wei Wei

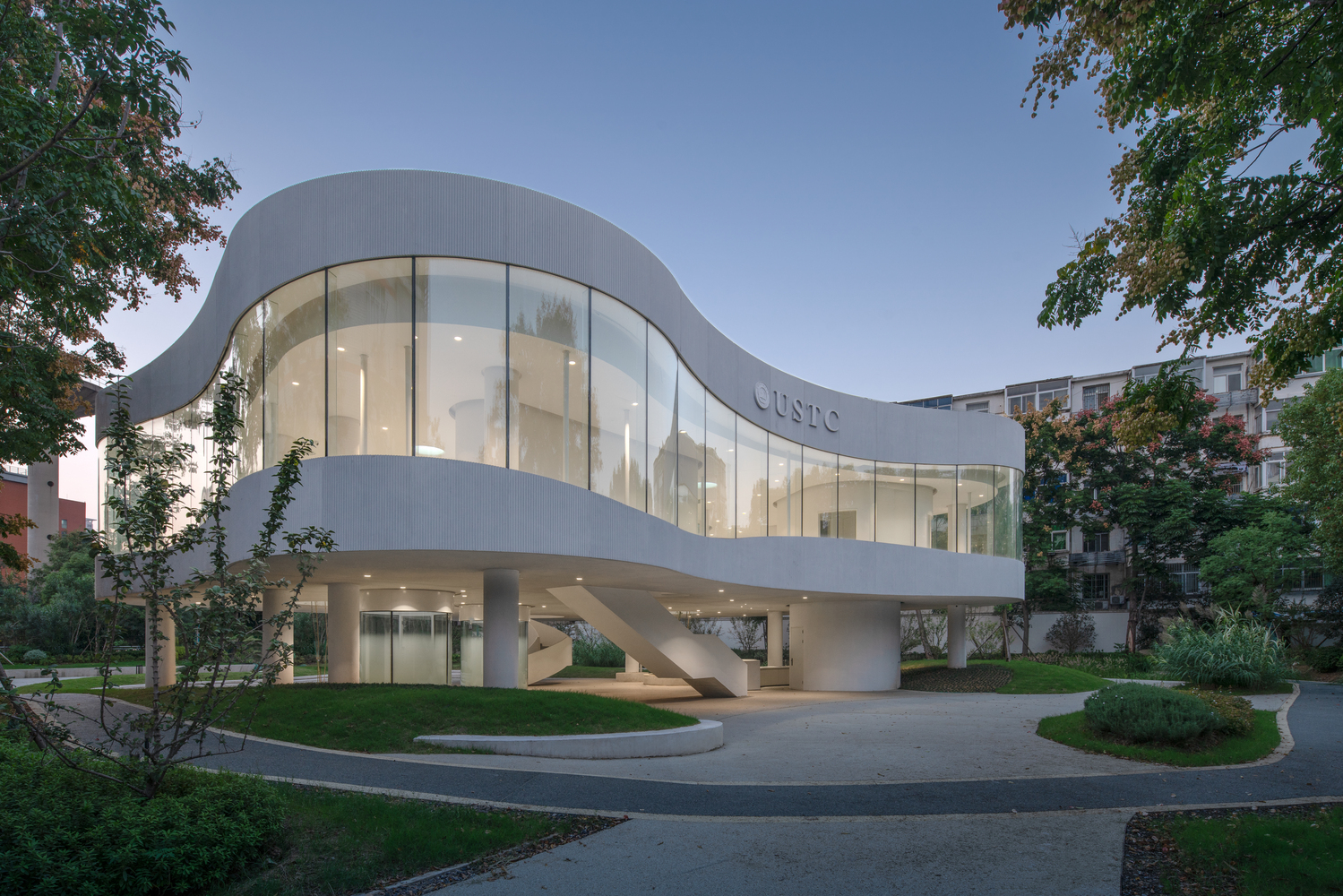

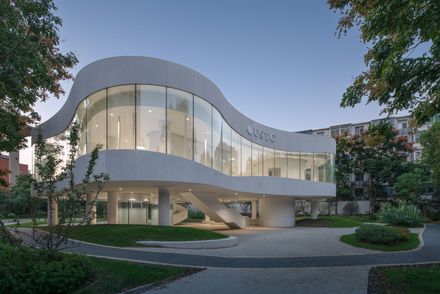

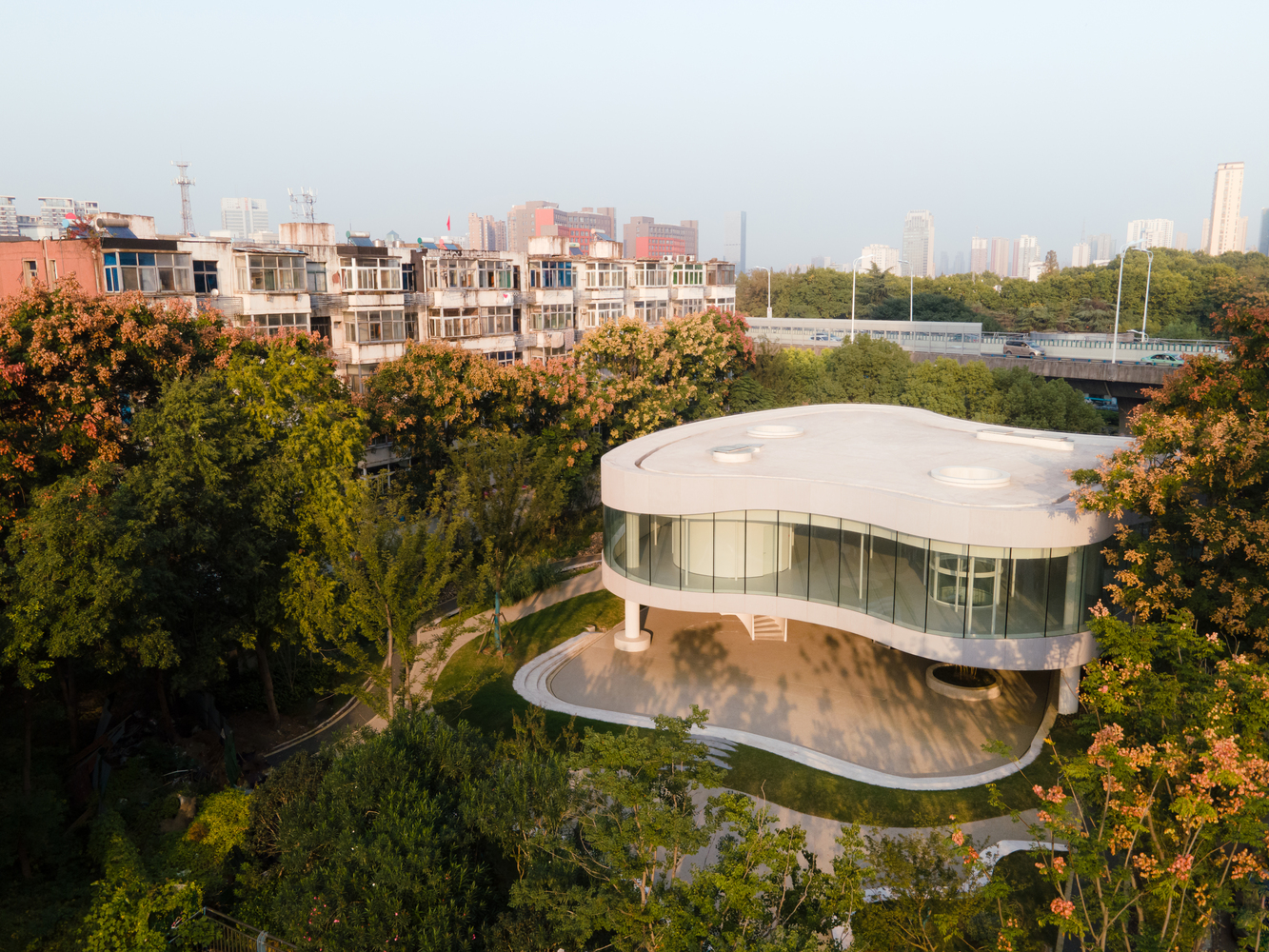

The architectural design features a curved footprint that creates dynamic spaces along the boundary, enhancing the fluidity of the surrounding area.

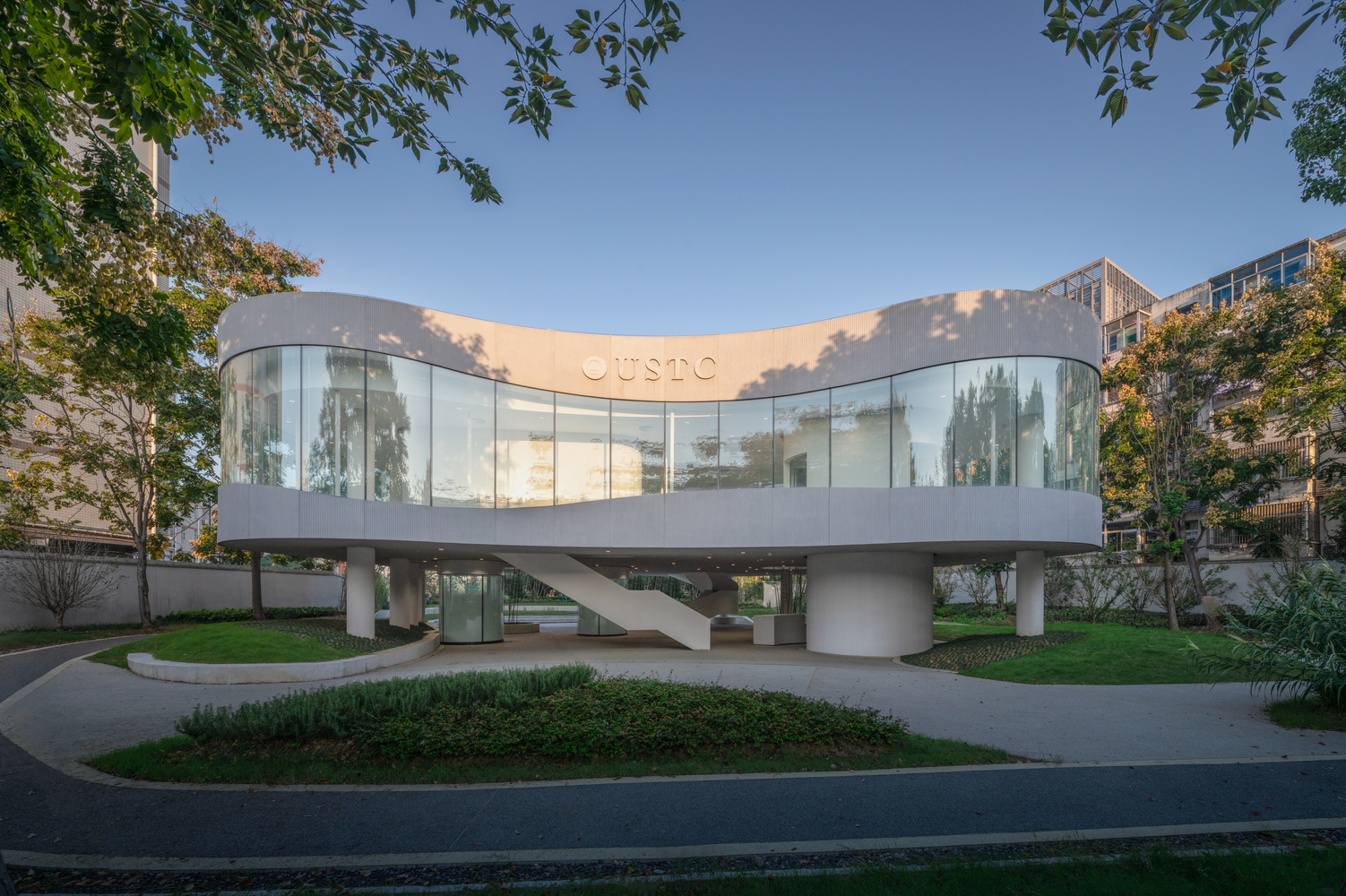

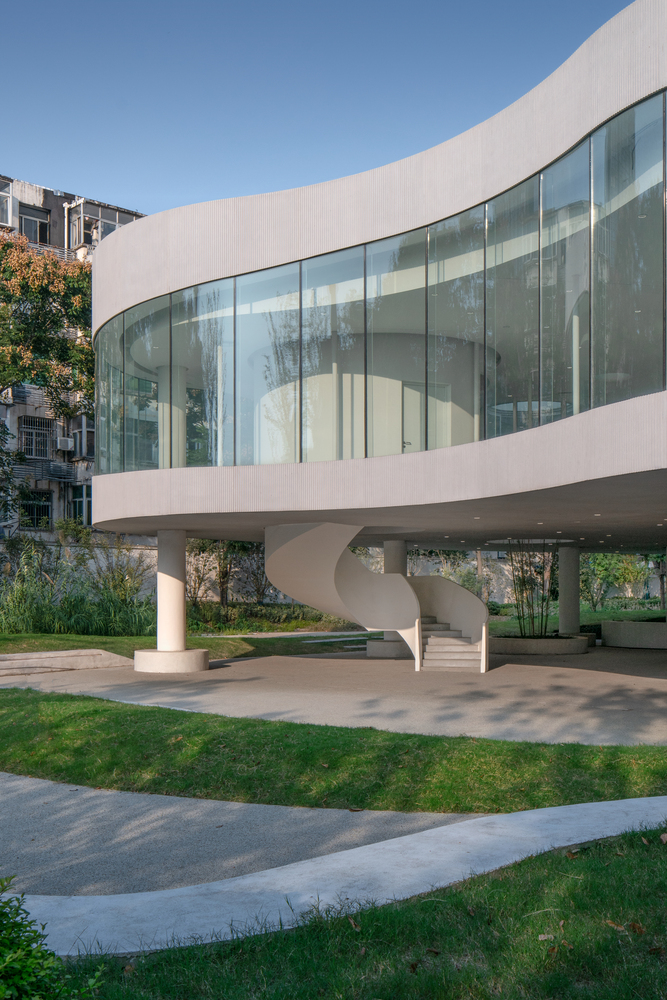

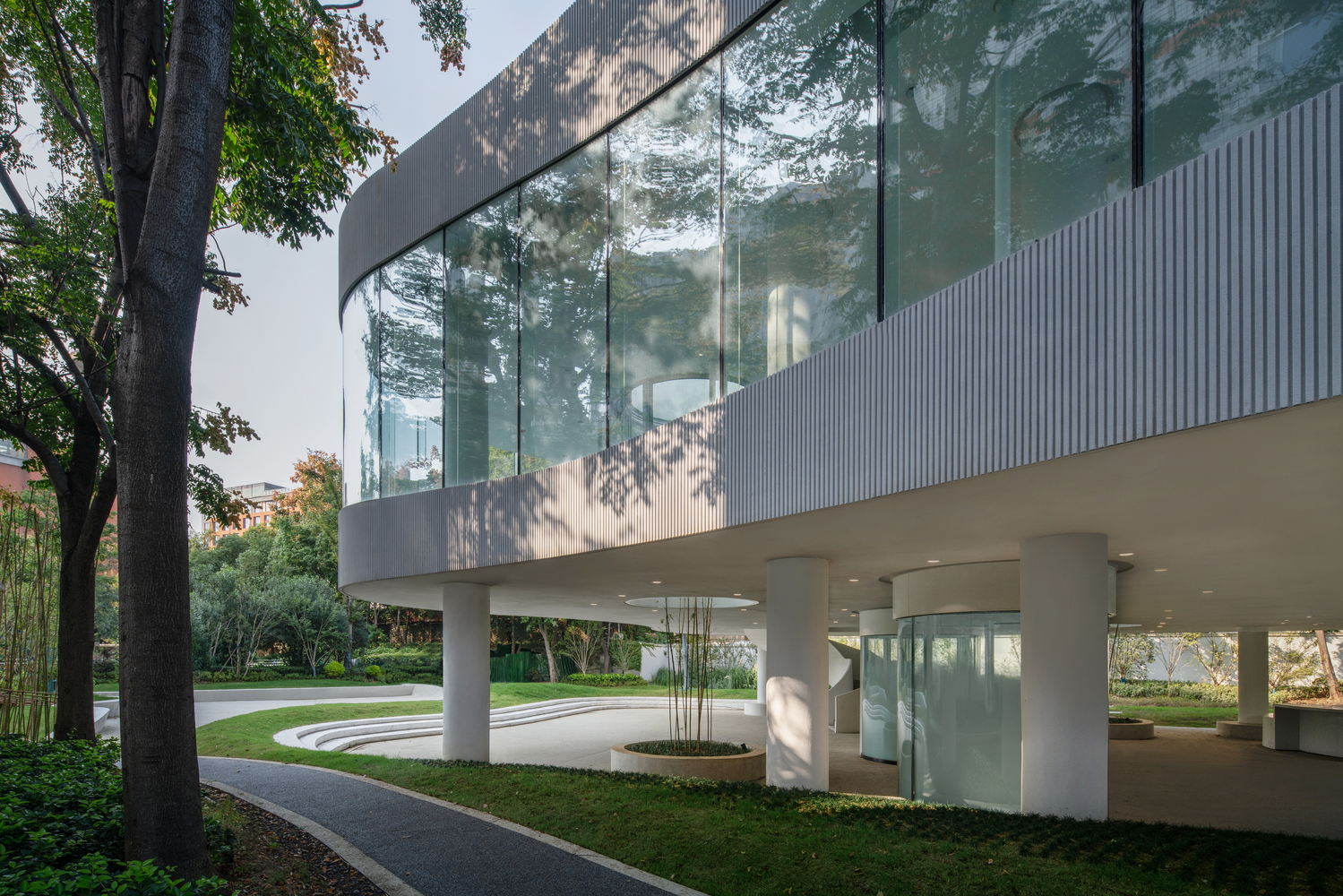

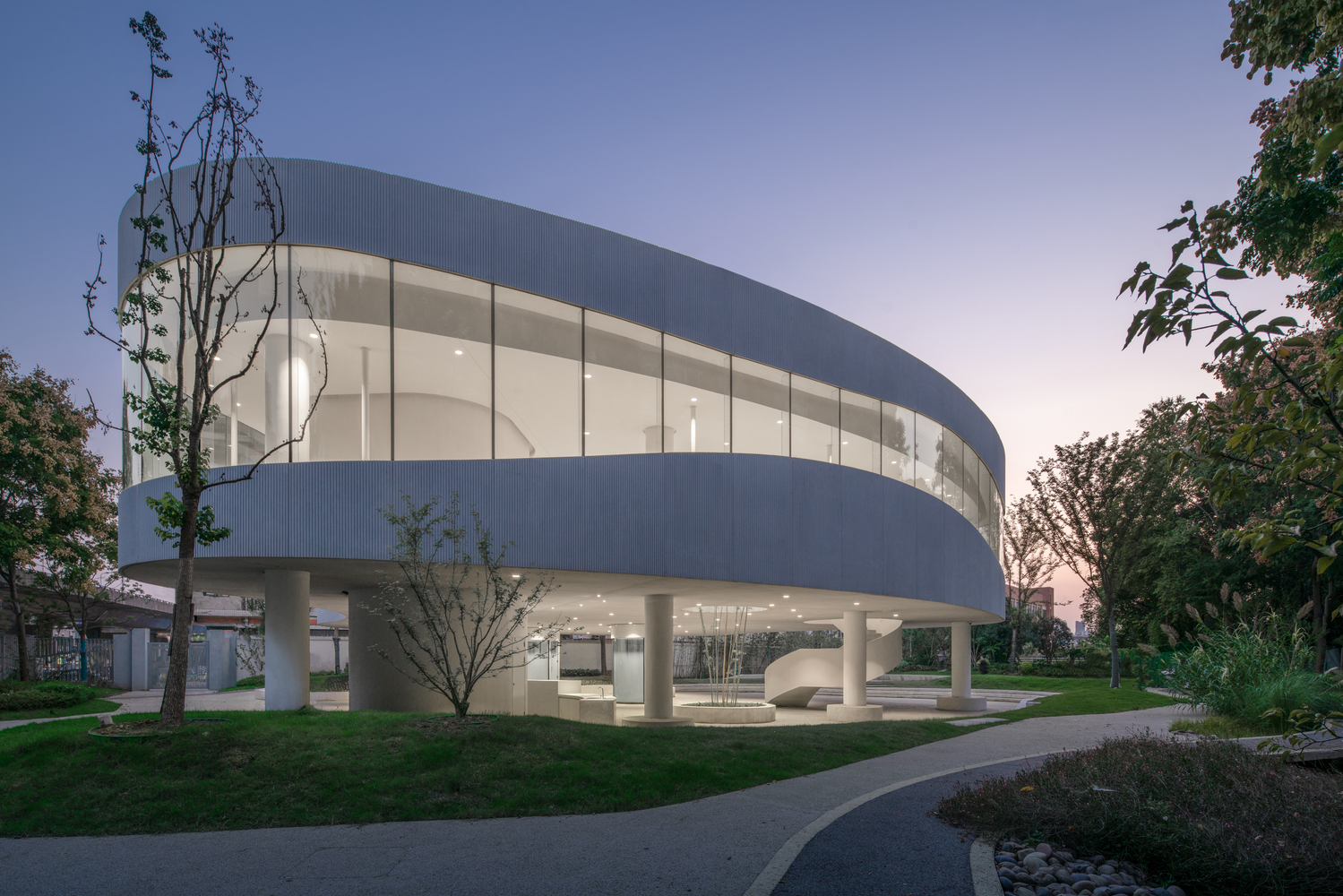

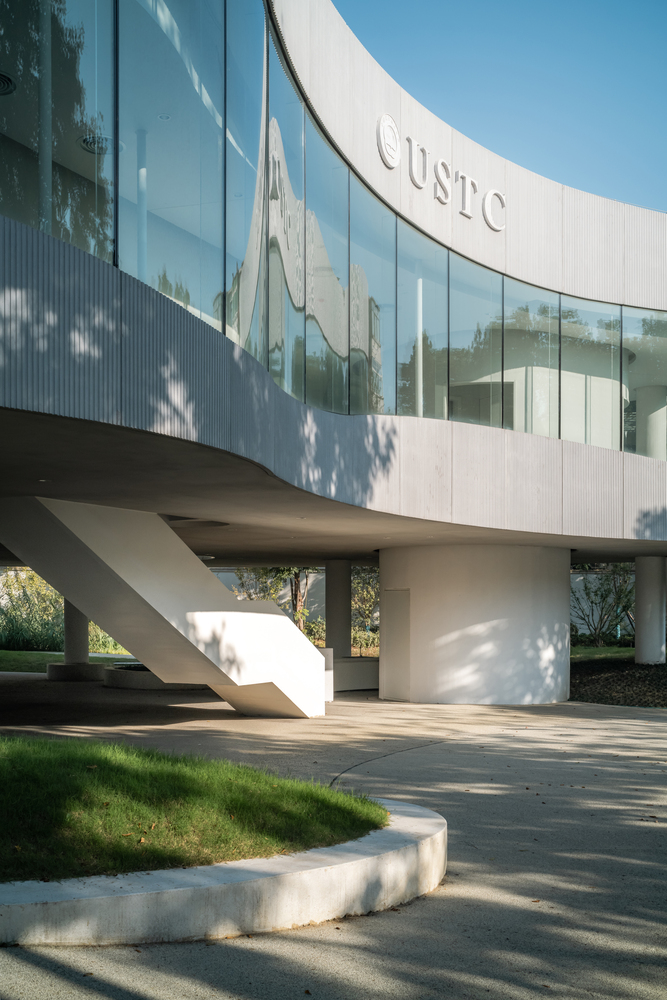

The building is elevated, with an open ground floor maintaining continuity between the urban road and the campus.

Surrounded by greenery, the building resembles a large pavilion, allowing pedestrians to pass underneath it and reach the western end of the site, offering views of the campus.

Learning Center At The Central Campus Of USTC
© Schranimage
Learning Center At The Central Campus Of USTC
© Schranimage

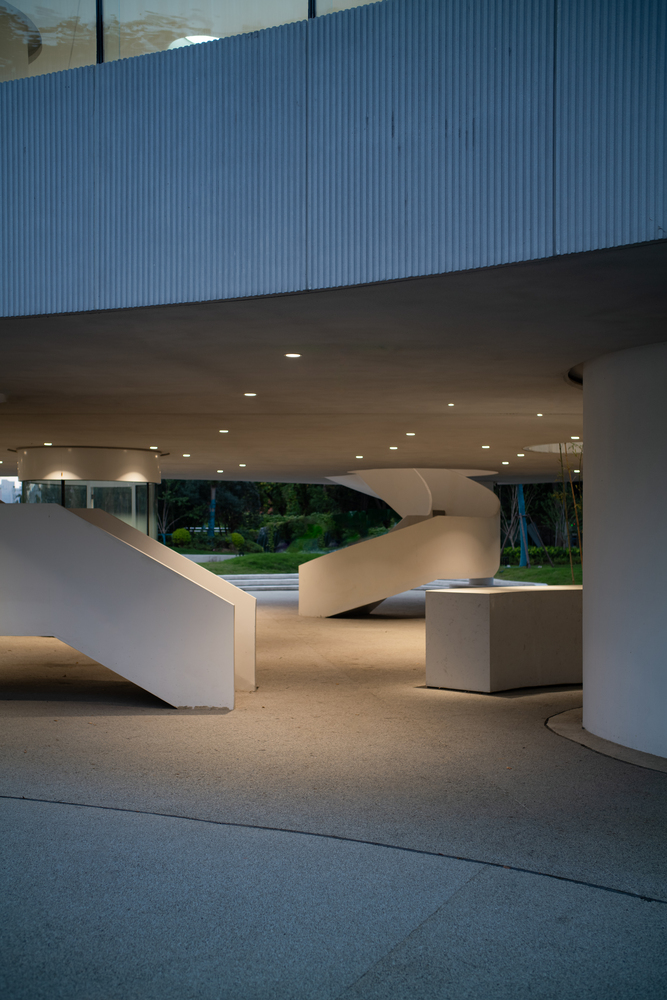

The slightly sunken ground beneath the elevated volume becomes a gathering point for informal outdoor activities.

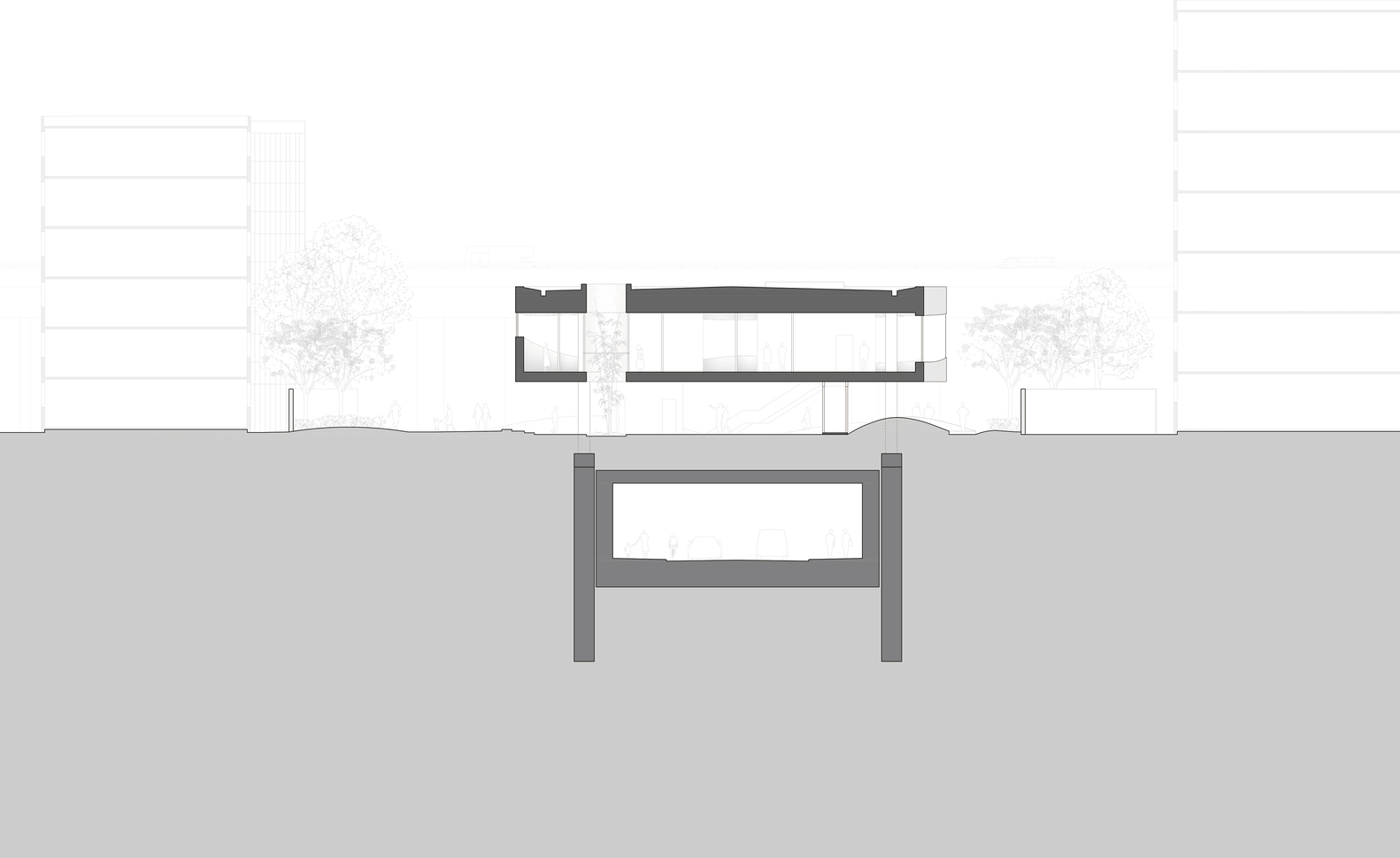

A key challenge was constructing above the existing tunnel underpass.

By utilizing the tunnel's soldier piles as the foundation, the design minimizes soil disturbance and ensures structural stability.

Learning Center At The Central Campus Of USTC
© Schranimage
Learning Center At The Central Campus Of USTC
© Wei Wei

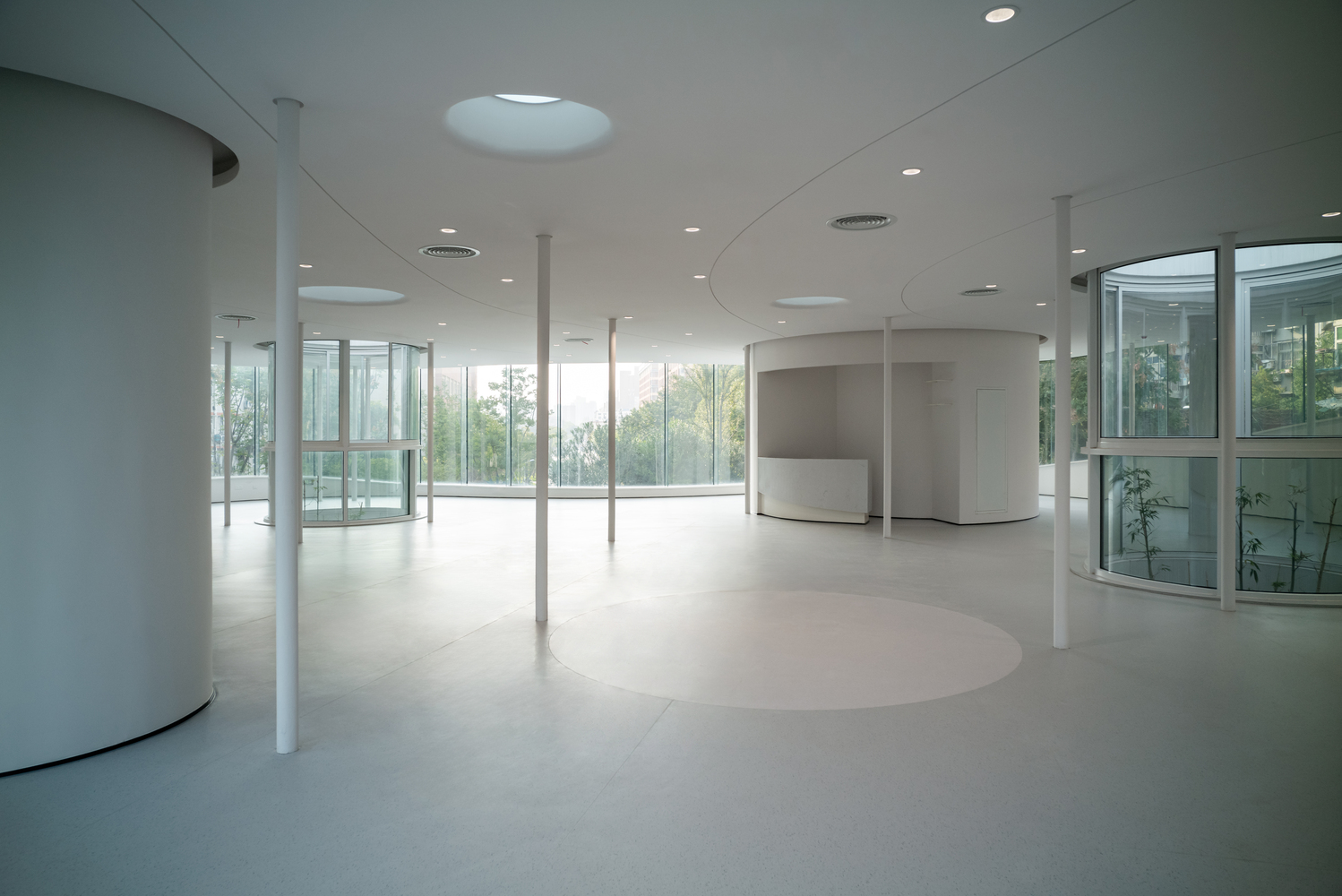

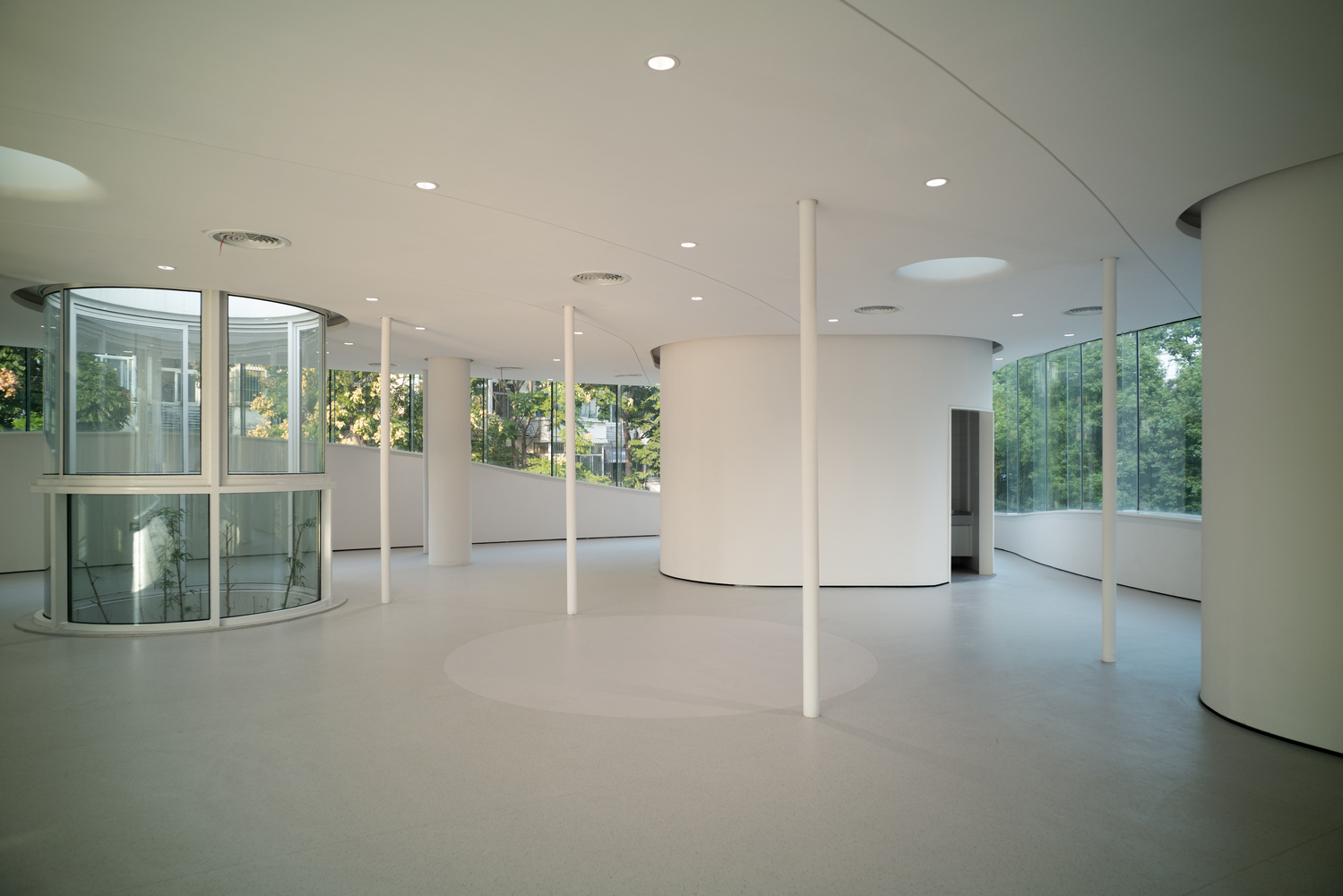

The first floor houses compact "capsule" study rooms and equipment rooms, while the second floor serves as an open learning space.

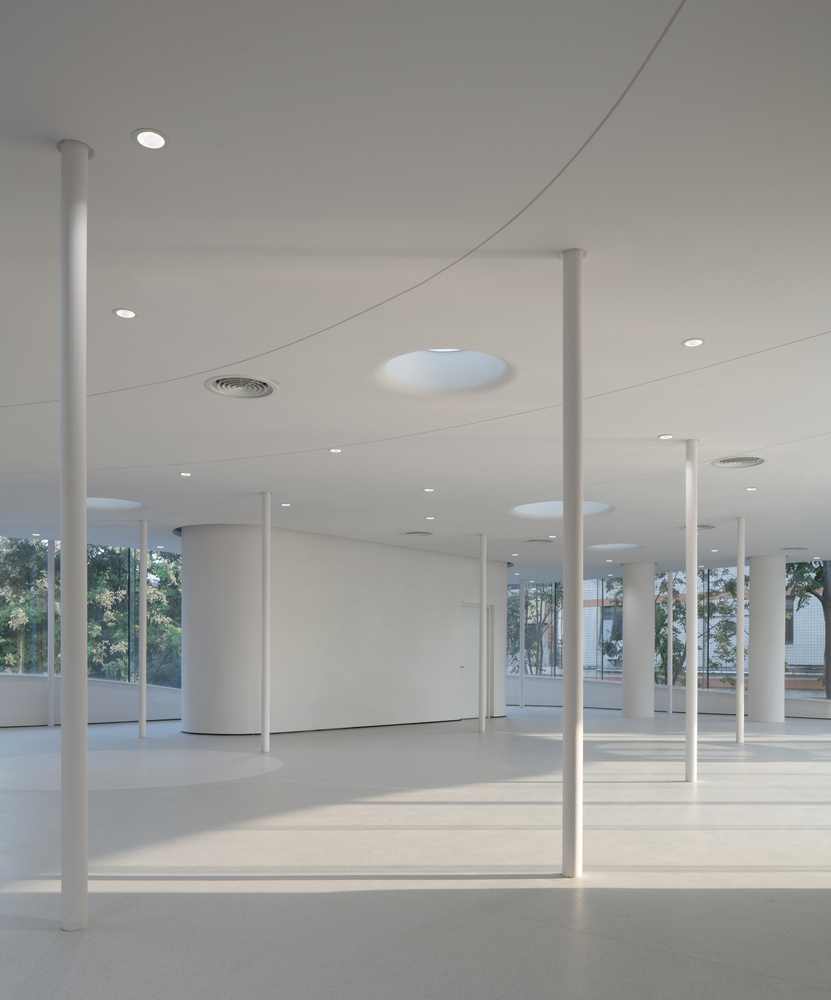

The structure is supported by four large I-beams spanning over 18 meters, and the suspended column structure maintains spatial transparency.

Learning Center At The Central Campus Of USTC
© Schranimage
Learning Center At The Central Campus Of USTC
© Wei Wei
Learning Center At The Central Campus Of USTC
© Wei Wei

The design concept integrates structural, urban, and spatial strategies seamlessly

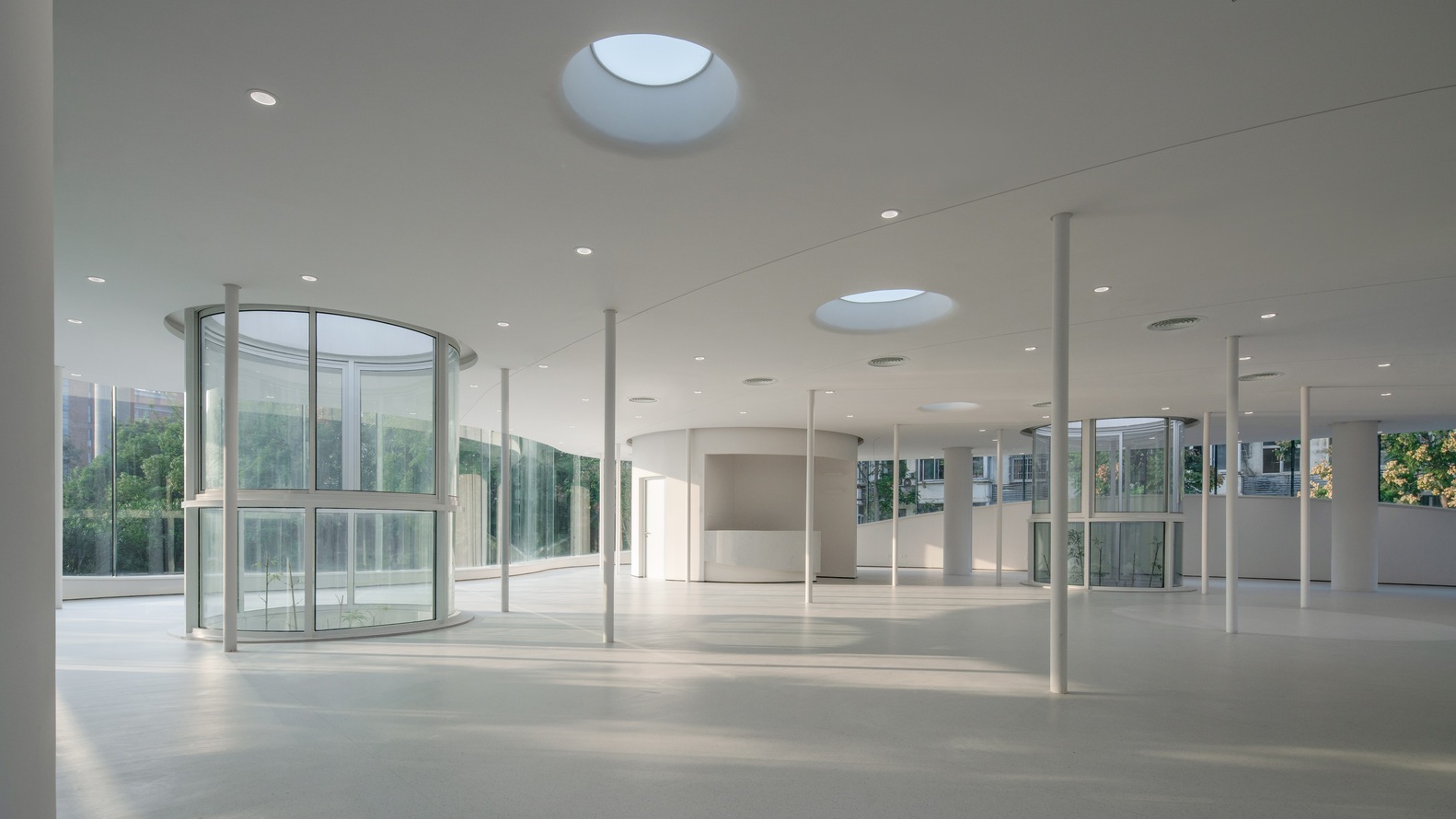

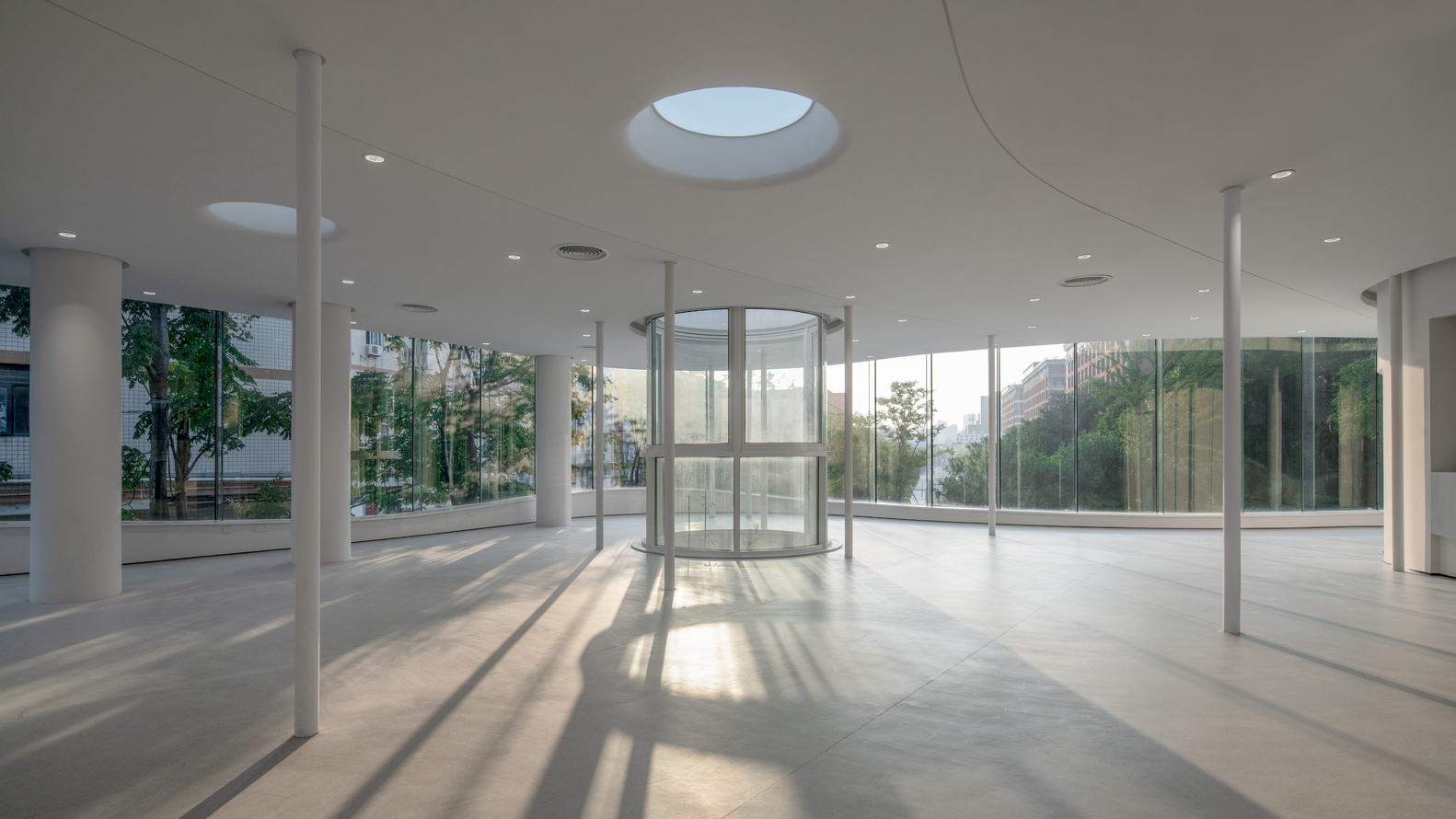

Two vertical light wells on the second floor provide daylight and natural ventilation while also meeting fire safety requirements.

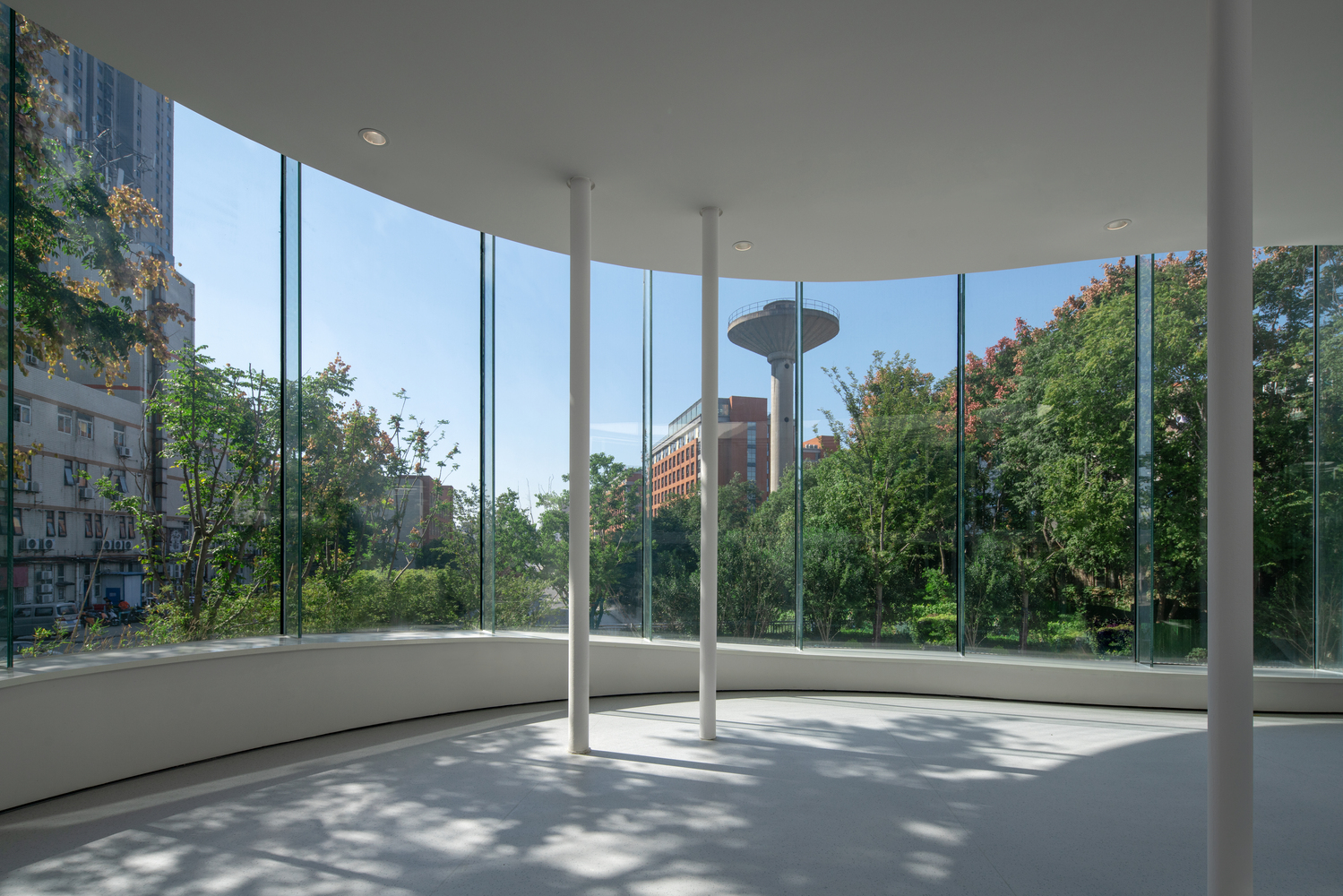

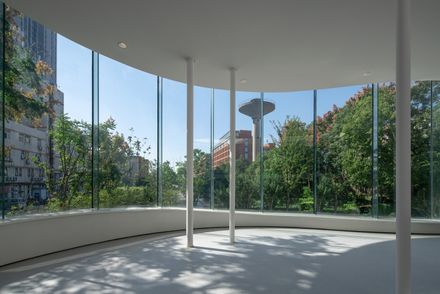

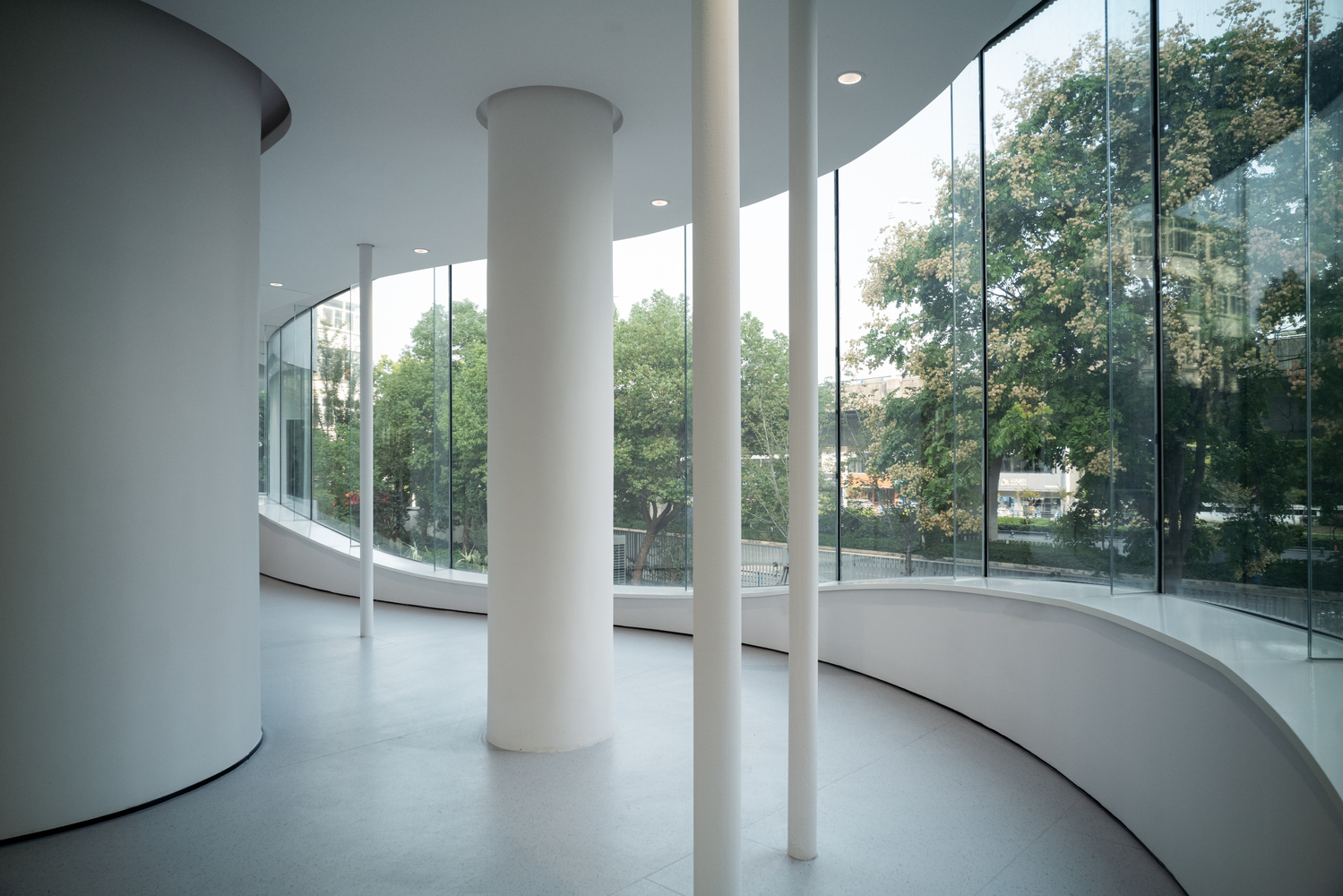

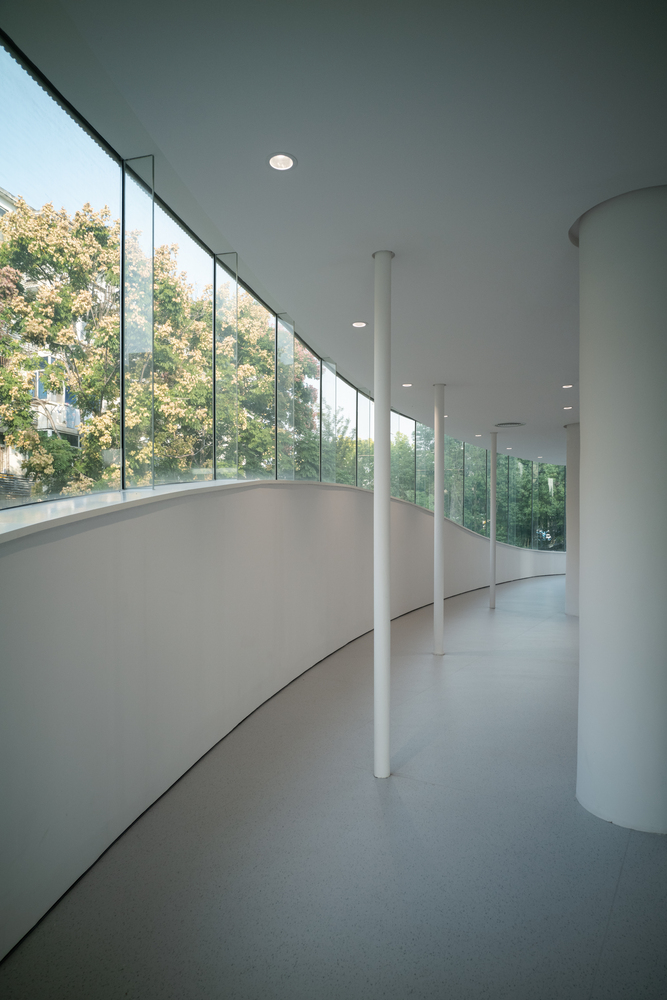

The continuous glass façade divides the second floor into two parts, offering uninterrupted views of both the city and greenery.

Learning Center At The Central Campus Of USTC
© Schranimage
Learning Center At The Central Campus Of USTC
© Schranimage

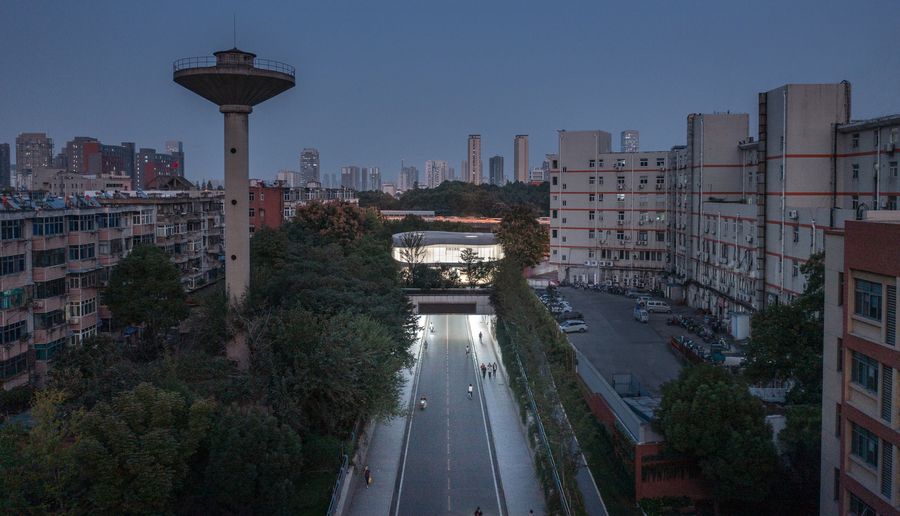

The building becomes a beacon along the campus axis at night, illuminated by light and student activity.


Learning Center At The Central Campus Of USTC
© Schranimage


Learning Center At The Central Campus Of USTC
Model
Learning Center At The Central Campus Of USTC
Model


Learning Center At The Central Campus Of USTC

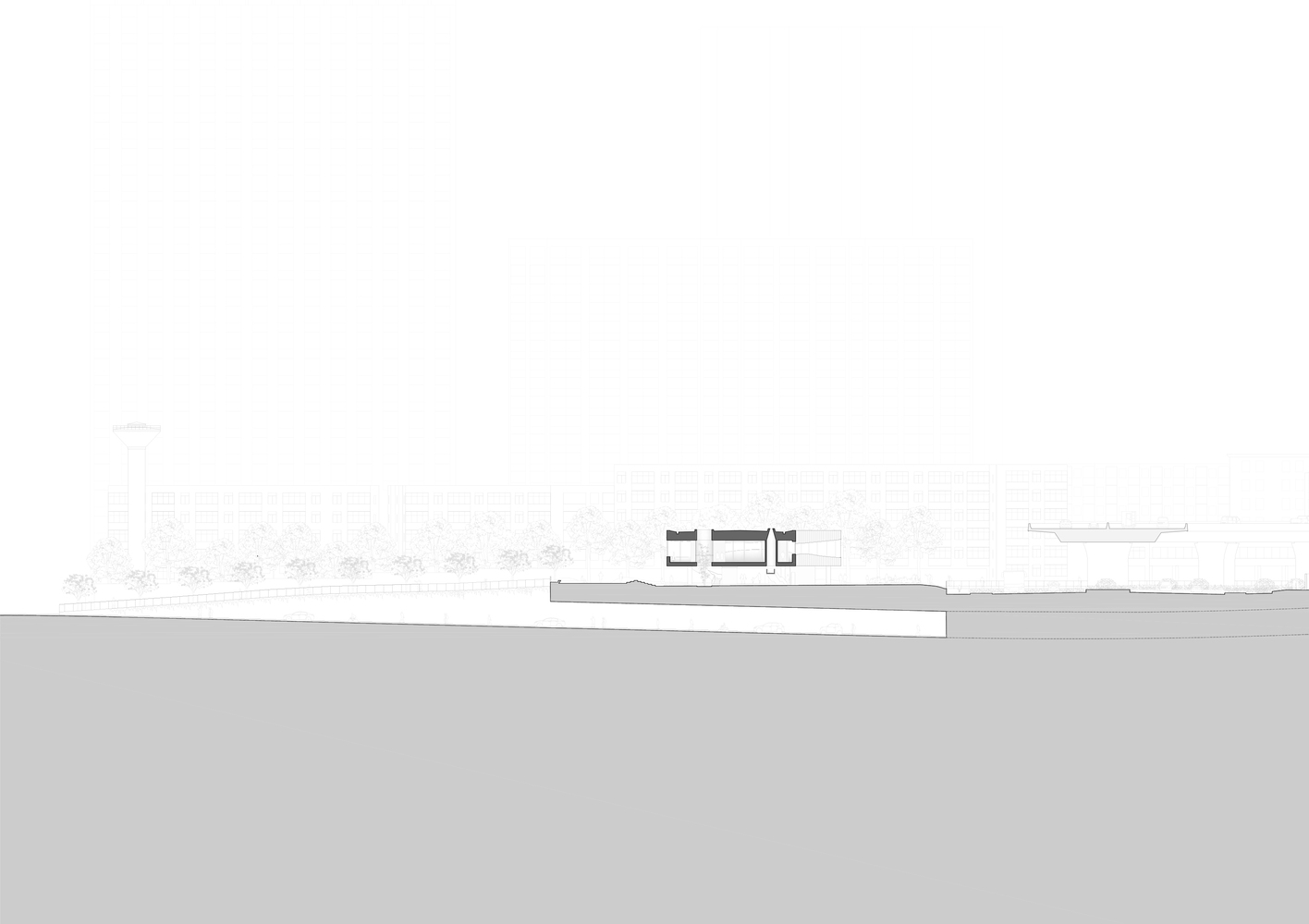

Section
Learning Center At The Central Campus Of USTC
Section


Learning Center At The Central Campus Of USTC

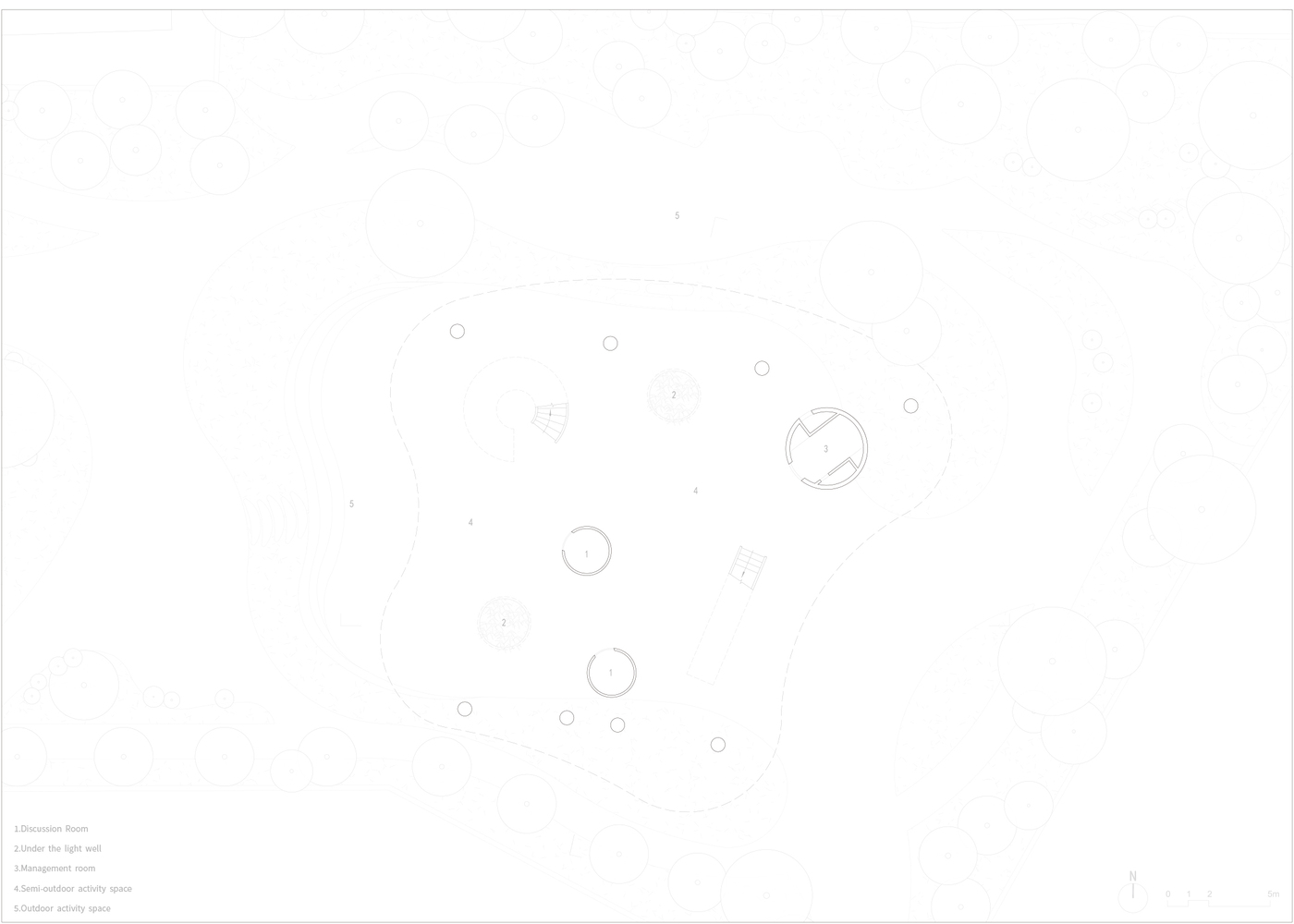

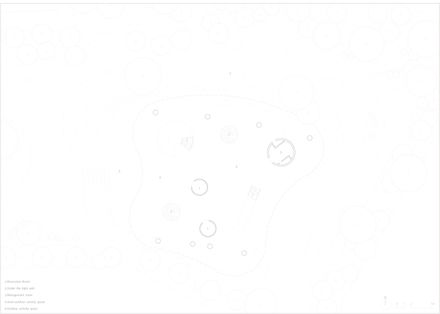

Plan - Ground floor
Learning Center At The Central Campus Of USTC

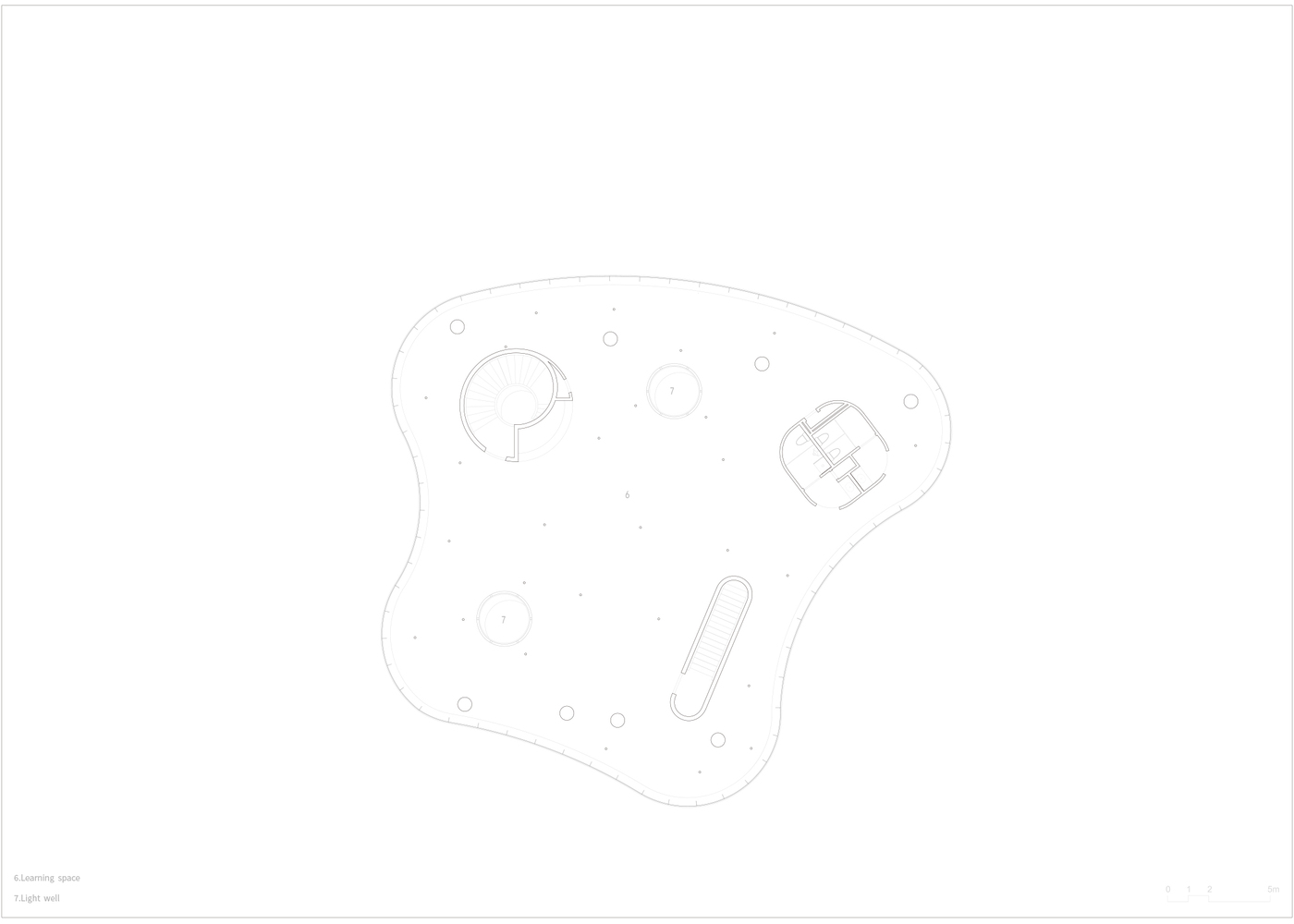

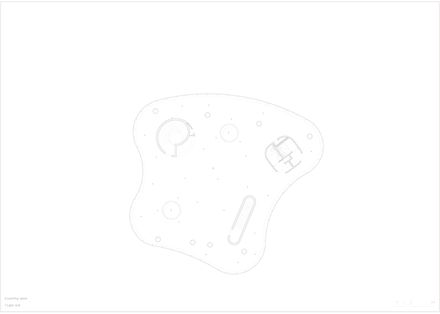

Plan - Second floor
Learning Center At The Central Campus Of USTC

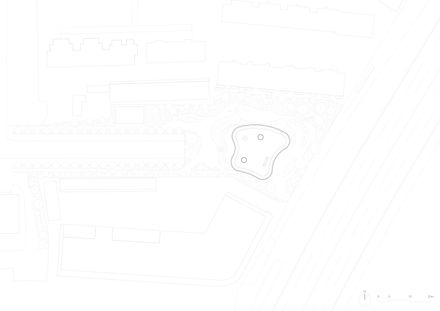

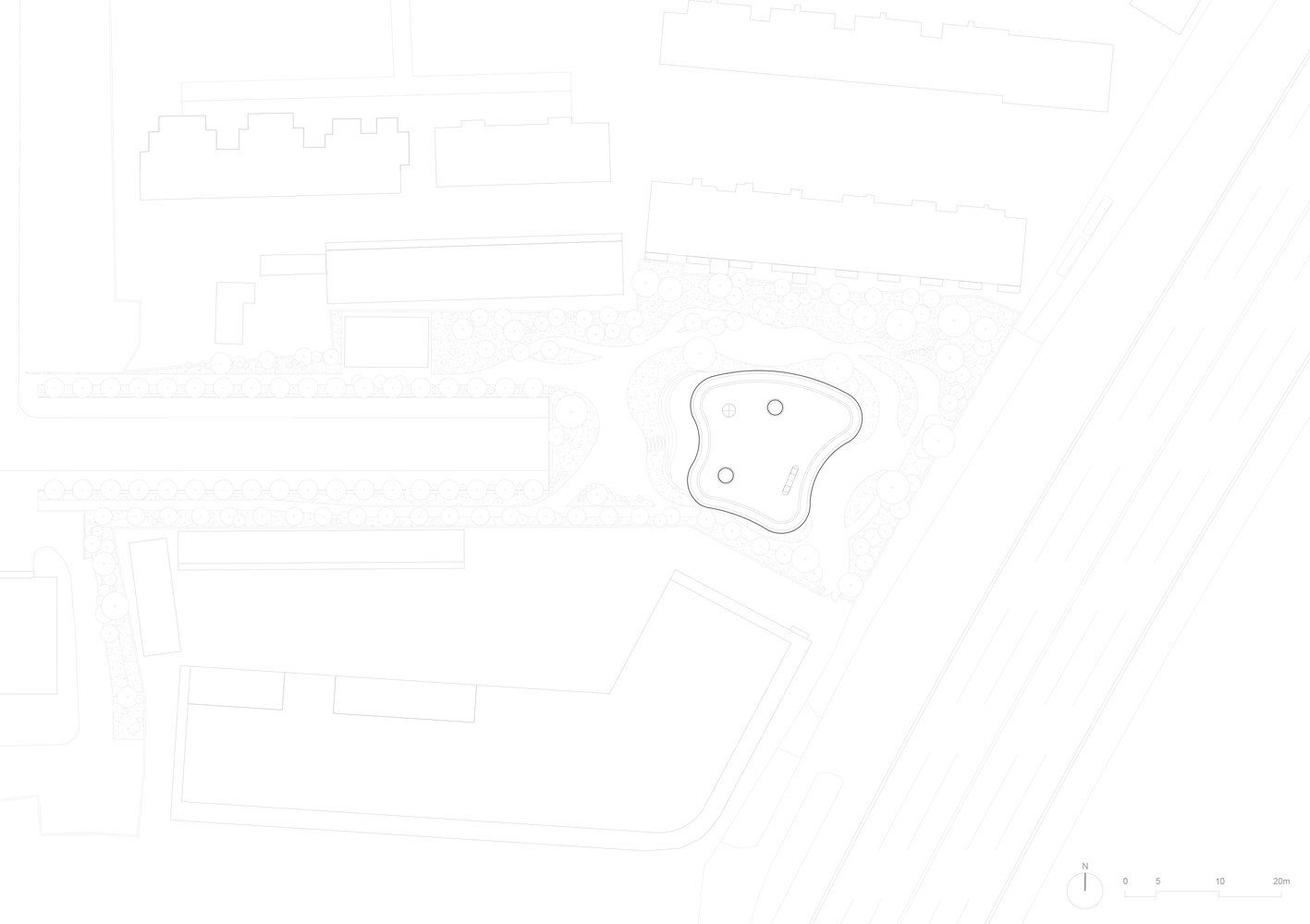

Plan - Site
