AVA Communications Building

AVA Communications Building

KRDS (Kourosh Rafiey Design Studio)

AVA Communications Building
© Mohammad Hassan Ettefagh

ARCHITECTS
KRDS (Kourosh Rafiey Design Studio)

LEAD ARCHITECT
Kourosh Rafiey

CO DESIGNER
Ashkan Rafiey

DESIGN TEAM
Mohsen Yazdian, Mahsa Elahi, Parisa allahgholi, Negin khorsandnejhad, Mohammad Soleimani, Mayam gholami

PHOTOGRAPHS
Mohammad Hassan Ettefagh

AREA
1100 m²

YEAR
2024

LOCATION
Tehran, Iran

CATEGORY
Industrial Architecture, Infrastructure

AVA Communications Building
© Mohammad Hassan Ettefagh

English description provided by the architects.

The office and Workshop Building of Ava Communications Company is located within Pardis Technology Park, approximately 20 kilometers northeast of Tehran.

AVA Communications Building
© Mohammad Hassan Ettefagh
AVA Communications Building
© Mohammad Hassan Ettefagh

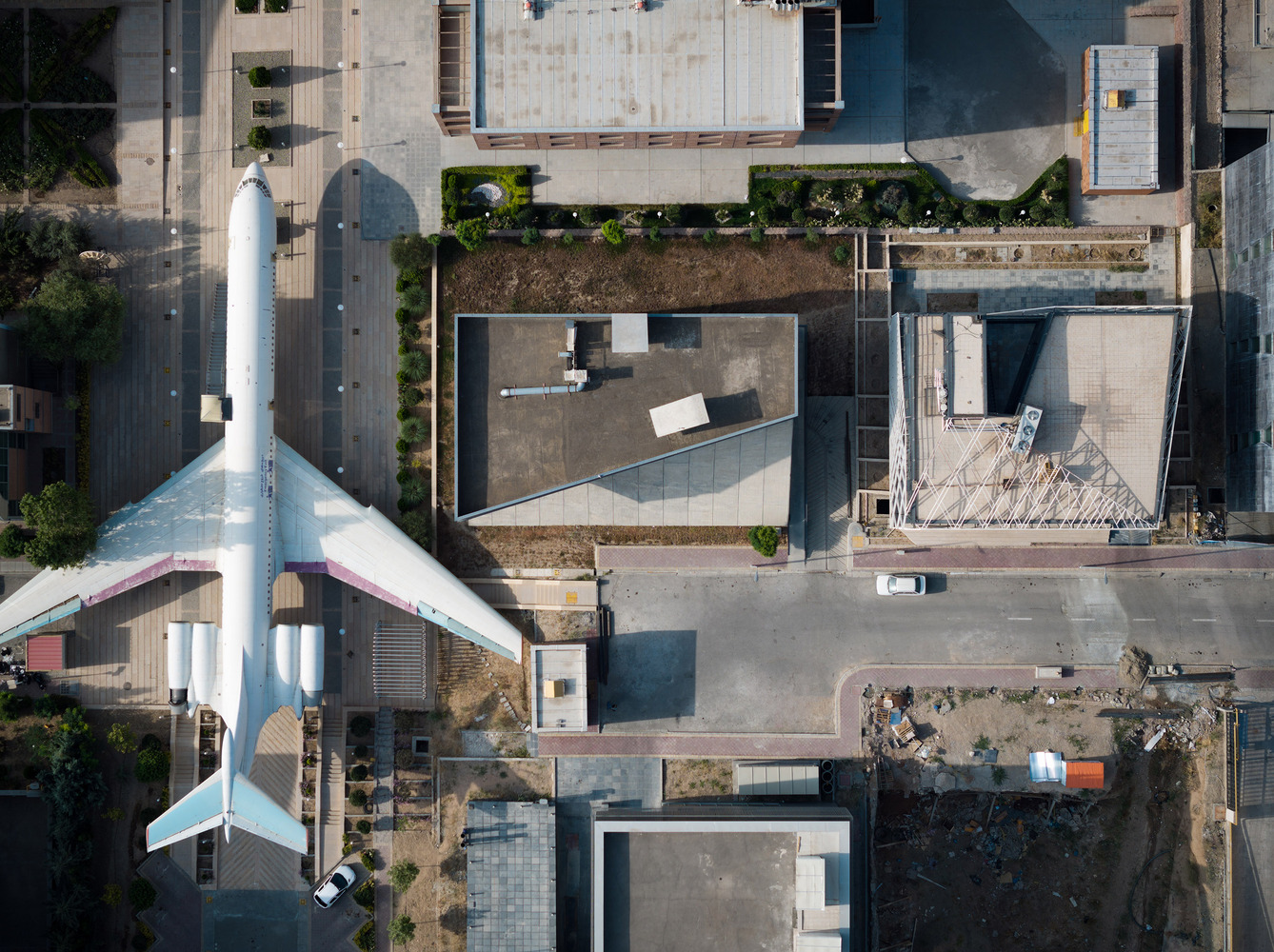

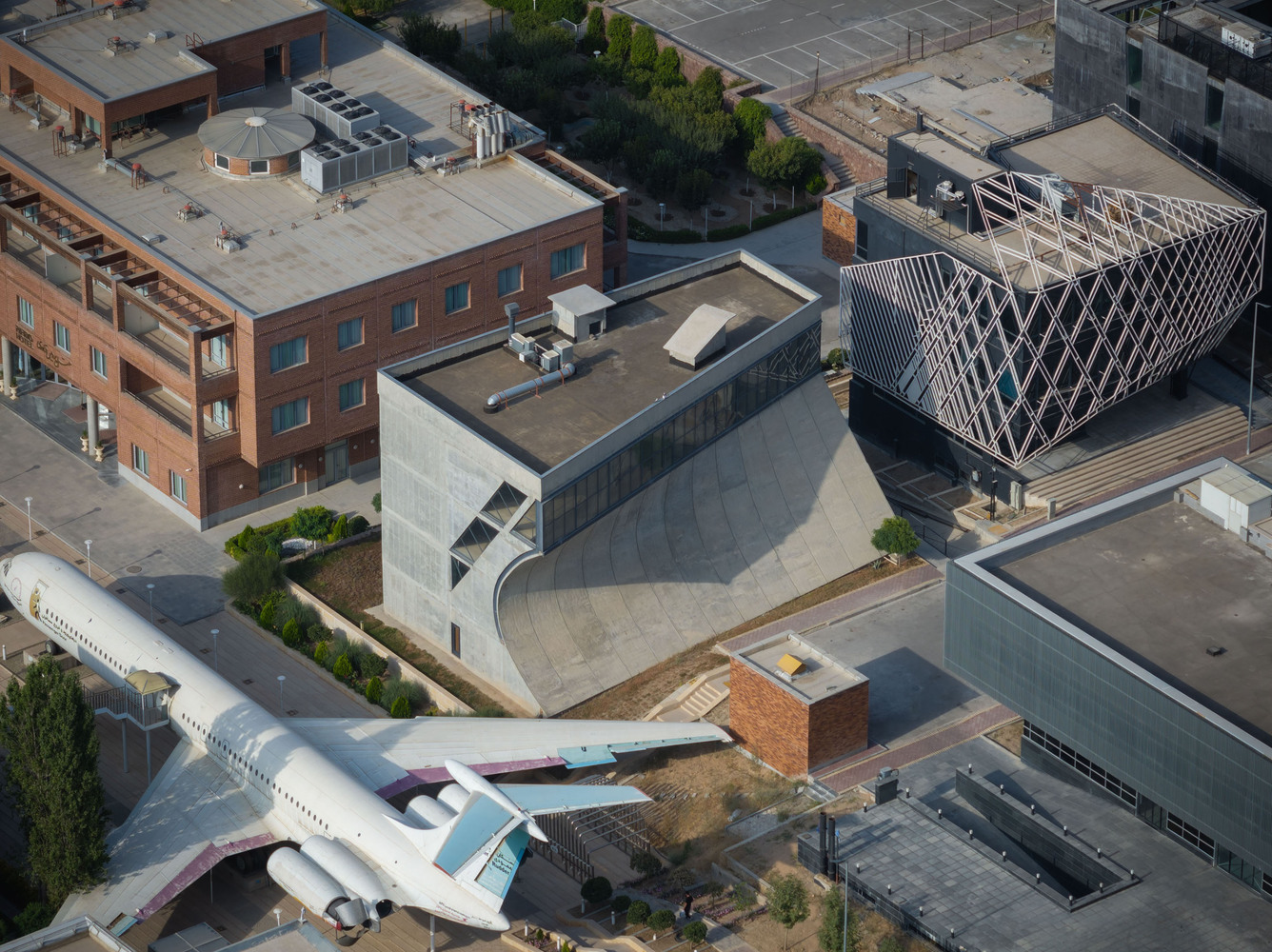

The project occupies an 800-square-meter plot at the end of a dead-end street, with a wide pedestrian path bordering the rear.

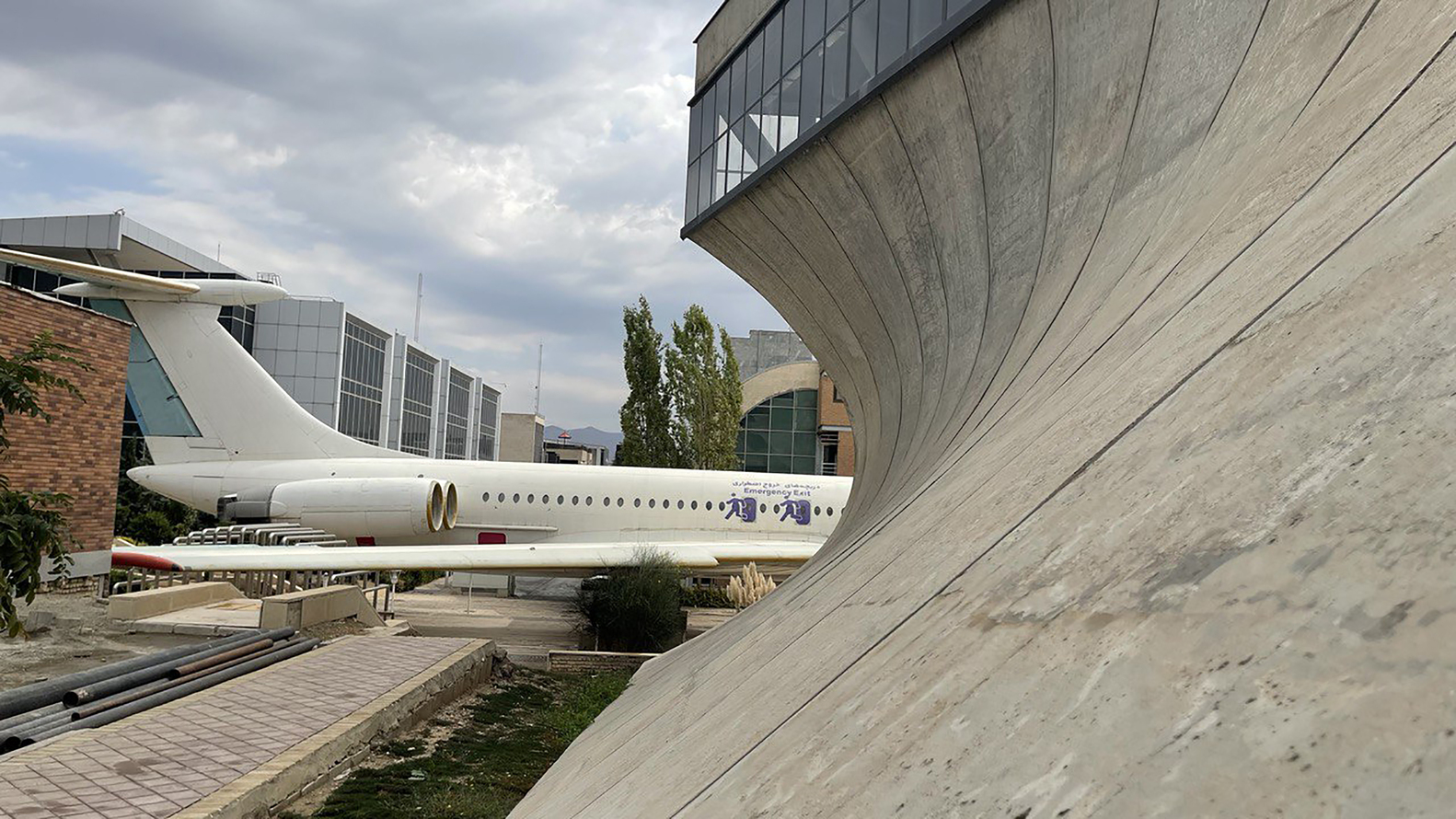

Early in the design process, a decommissioned airplane was installed on-site as a sculptural element—an unexpected gesture that significantly influenced the architectural form.

AVA Communications Building
© Mohammad Hassan Ettefagh
AVA Communications Building
© Mohammad Hassan Ettefagh

The program is organized across three floors above ground and one basement level. Administrative offices are housed on the upper levels, while the basement contains the workshop and parking.

The primary entrance is situated on the ground floor; however, due to the site's slope, an independent access point to the workshop has been incorporated at the basement level via the adjacent pedestrian path.

AVA Communications Building
© Mohammad Hassan Ettefagh
AVA Communications Building
© Mohammad Hassan Ettefagh

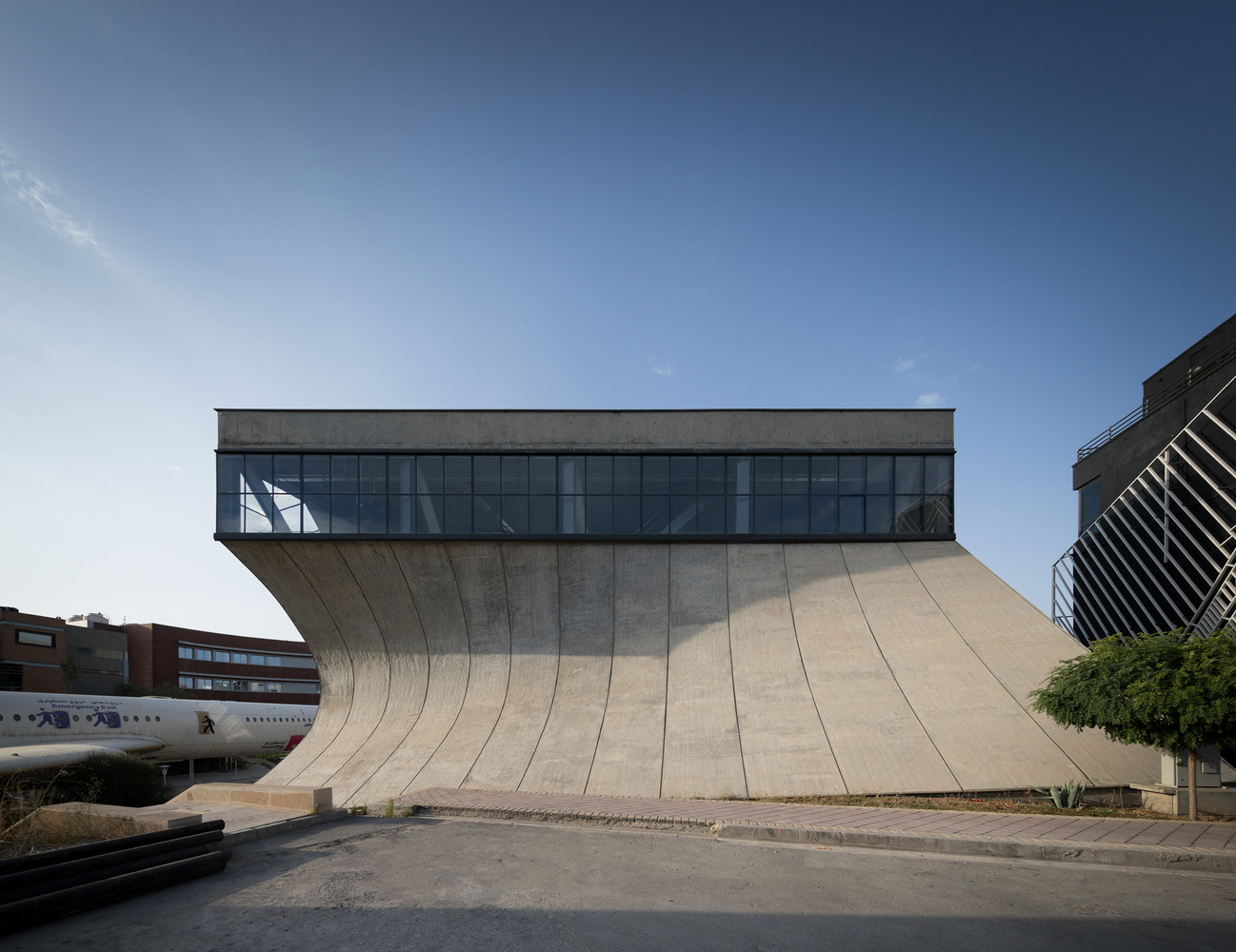

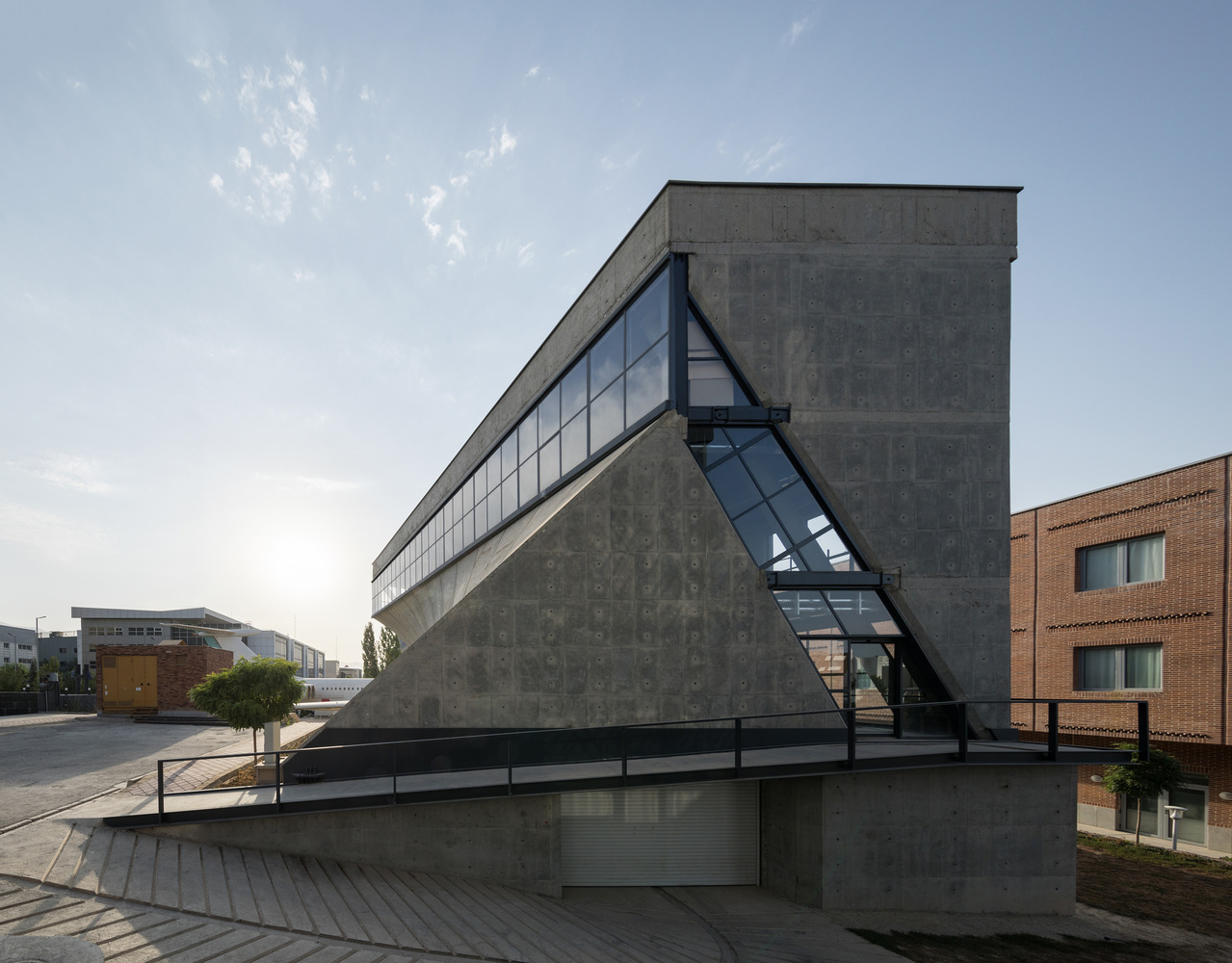

Because the building is positioned at the terminus of a cul-de-sac, it recedes slightly from the viewer's line of sight. To establish a dynamic visual connection, the top floor is tilted toward the street's end.

This rotation generates a curved volume at the building's rear, aligning with the pedestrian path to the east and creating a spatial setback relative to the airplane's wing.

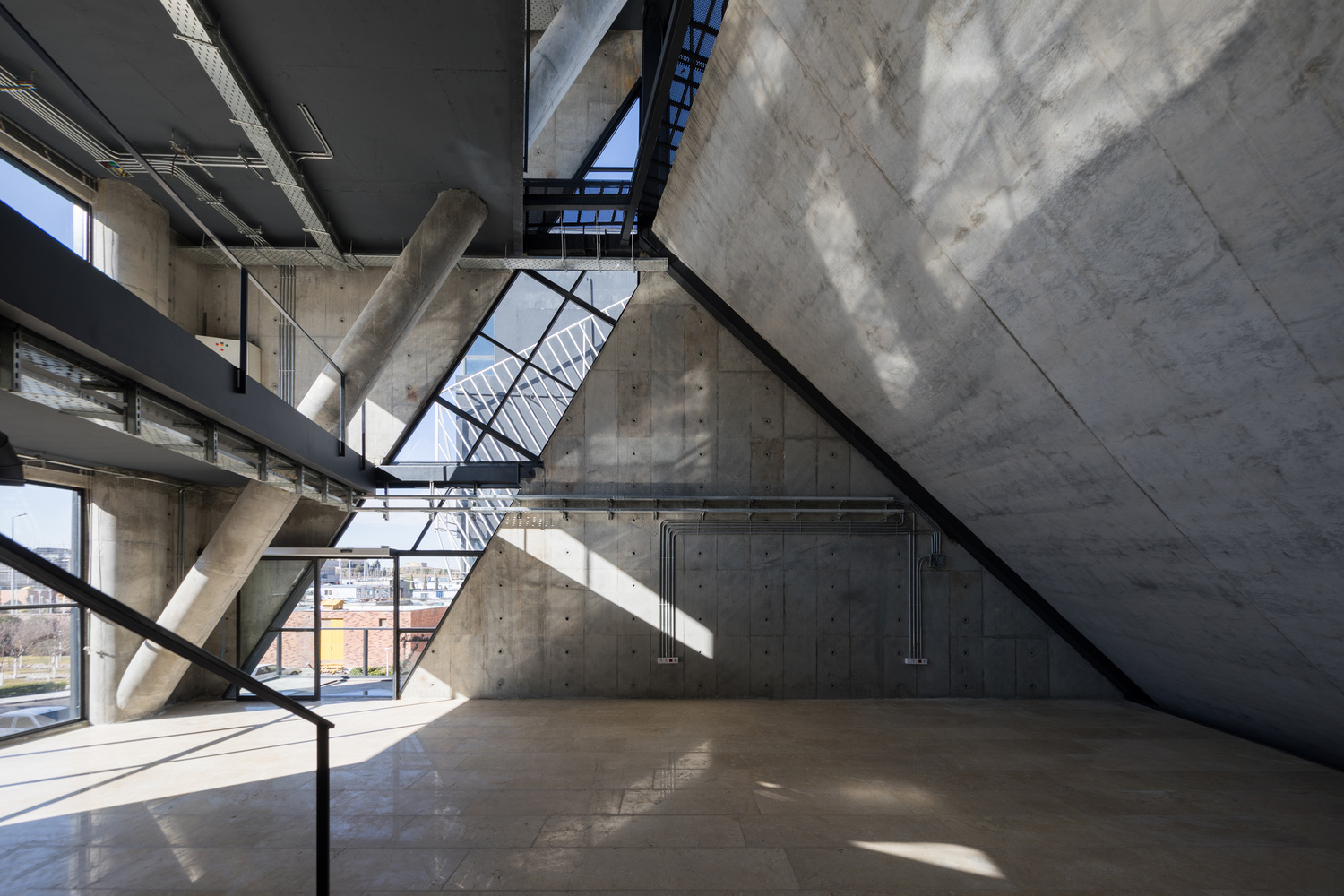

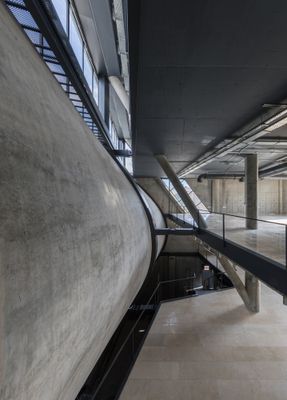

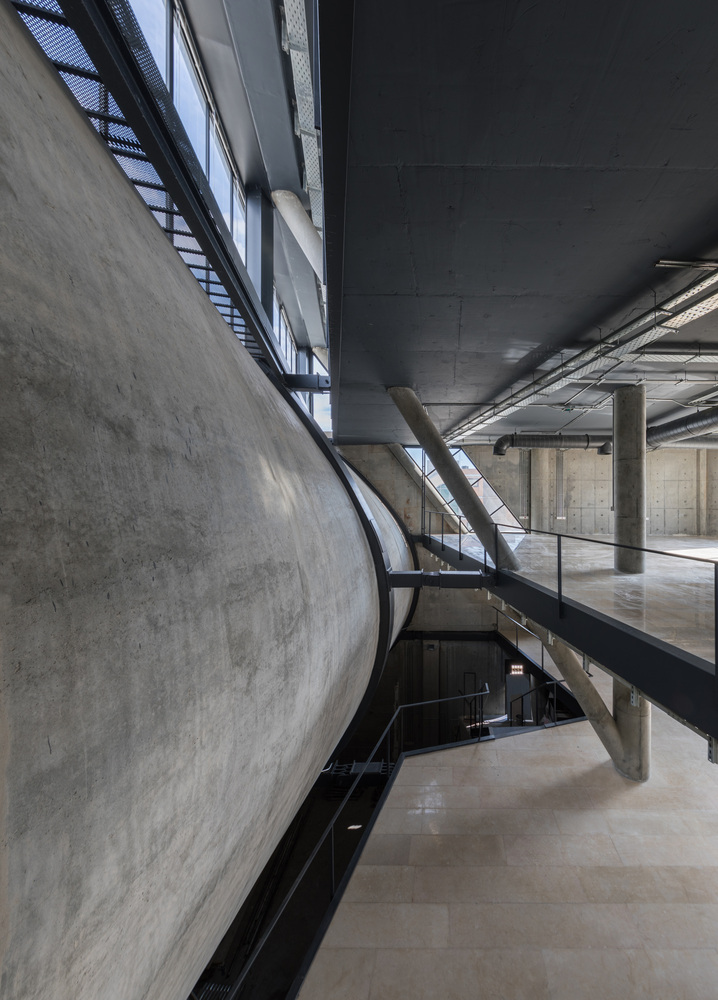

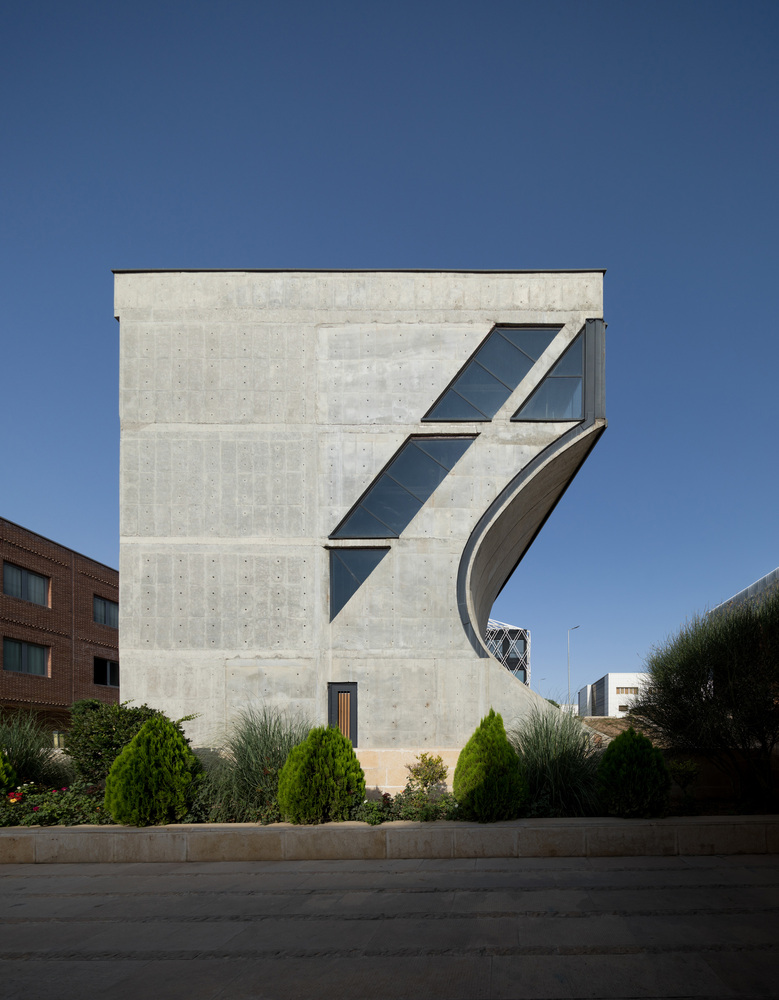

This deformation introduces a deep vertical void along the western façade, beginning at a skylight on the top floor and continuing down to the ground.

Importantly, this gesture is not confined to the exterior surface—it carves into the building's mass, forming a multi-level atrium that connects inside and out.

AVA Communications Building
© Mohammad Hassan Ettefagh
AVA Communications Building
© Mohammad Hassan Ettefagh

This void, with its subtle directional shift, extends to the basement, allowing daylight and natural ventilation to permeate all four levels.

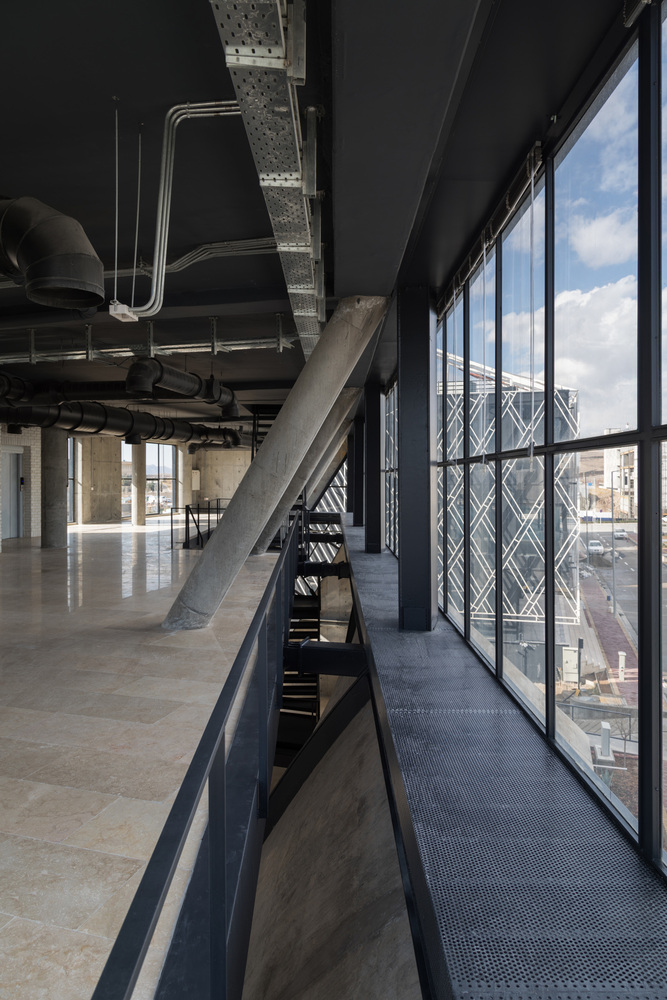

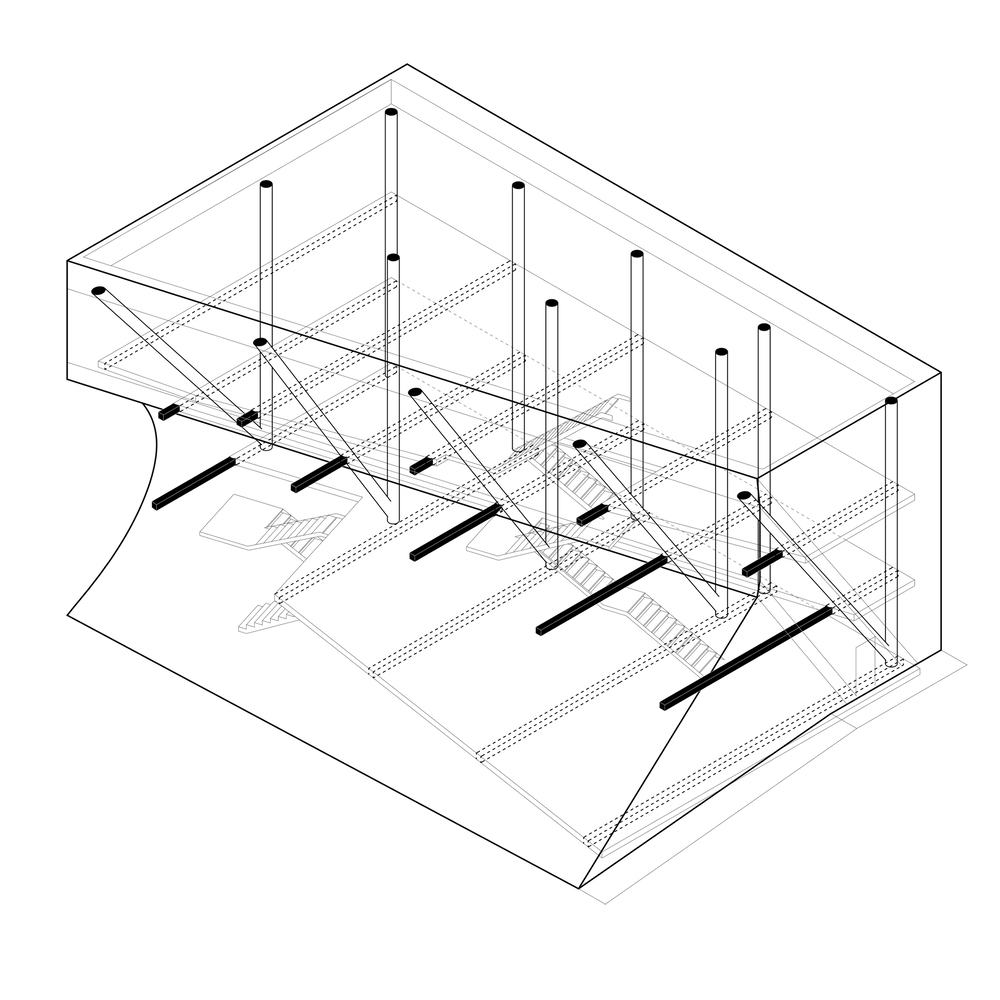

This volumetric manipulation is mirrored in the structural logic. Along the building's central axis, all columns are inclined, contrasting with the vertical supports along the southern edge.

Together, they form rhythmic bifurcations resembling tree branches, defining the internal spatial experience.

AVA Communications Building
© Mohammad Hassan Ettefagh
AVA Communications Building
© Mohammad Hassan Ettefagh

While the original plan called for a fully concrete structure, structural demands led to the incorporation of steel at the junctions between inclined columns and the curved walls. This hybrid system introduces a tactile contrast between materials, underscoring the building's dynamic geometry.

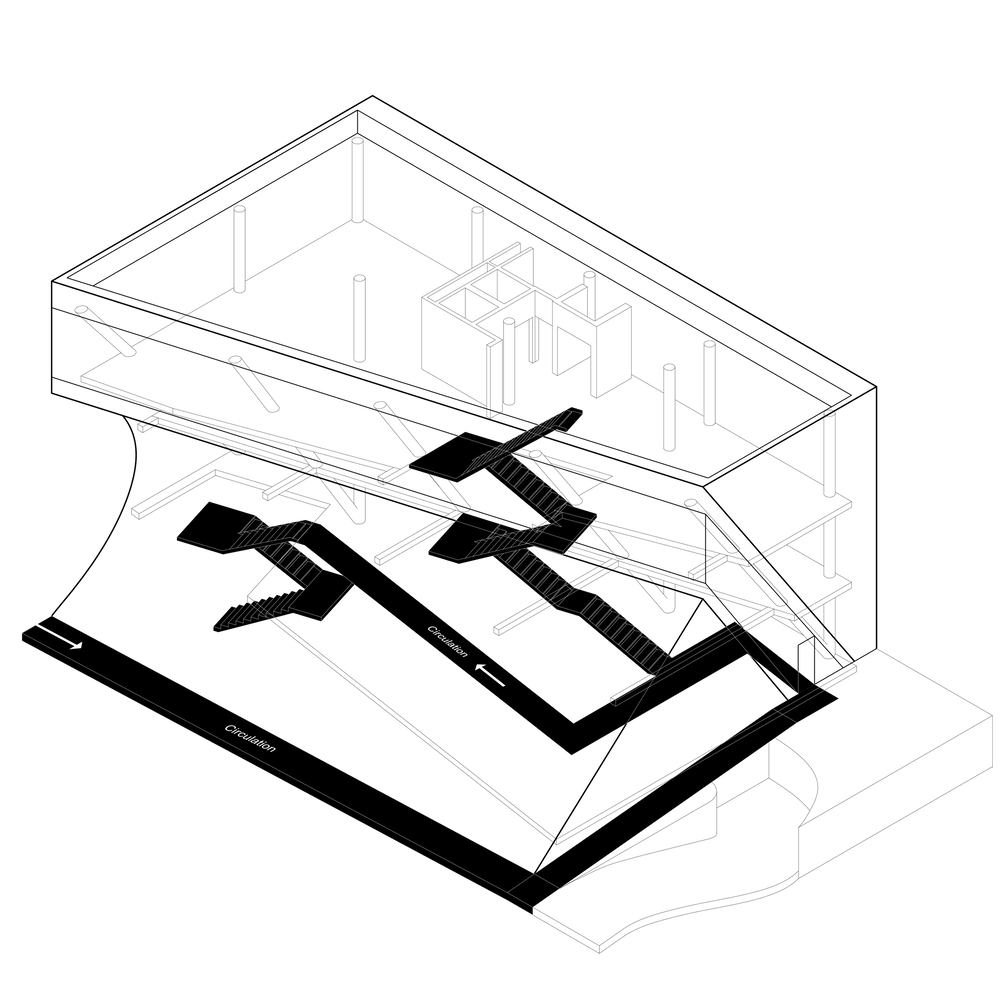

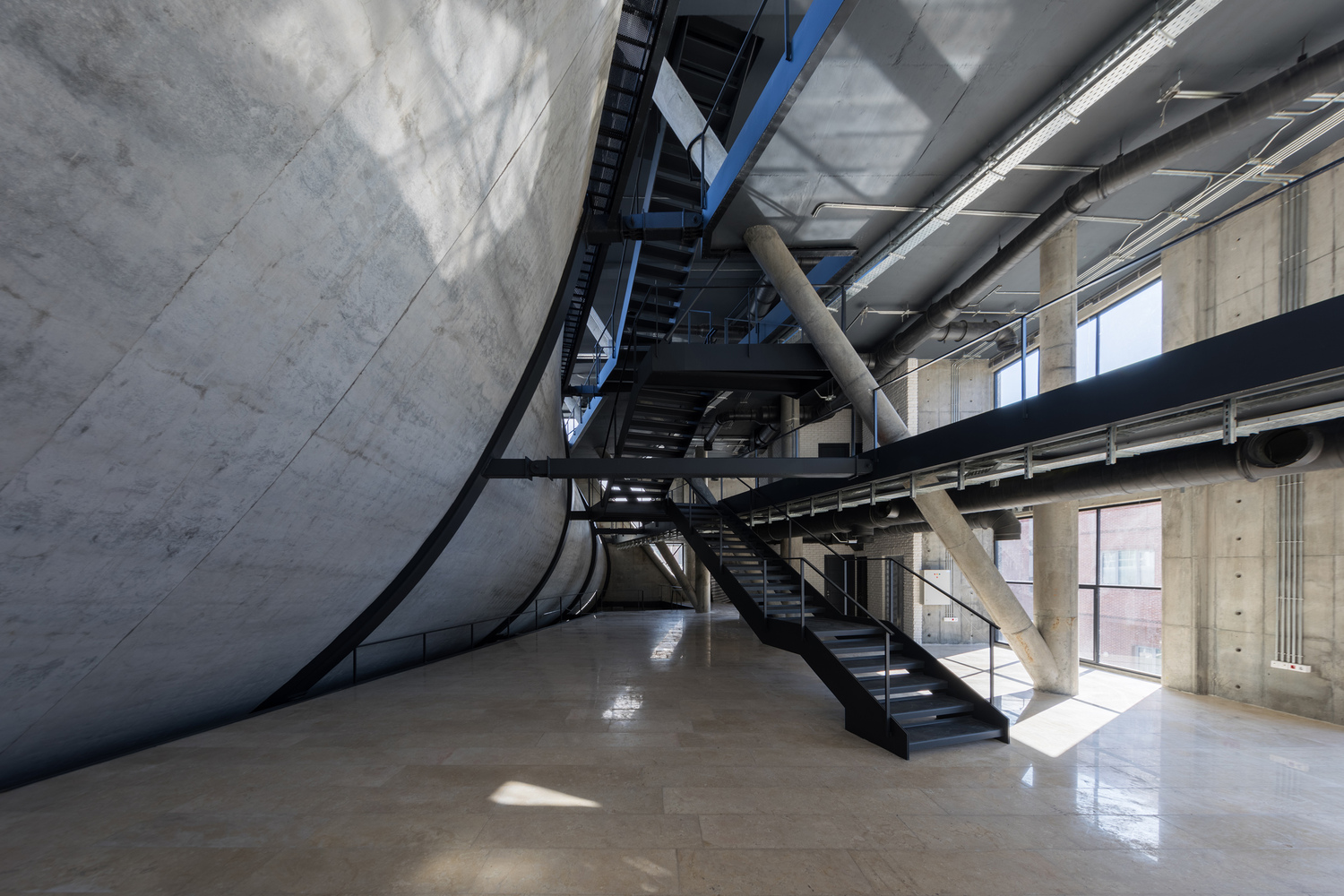

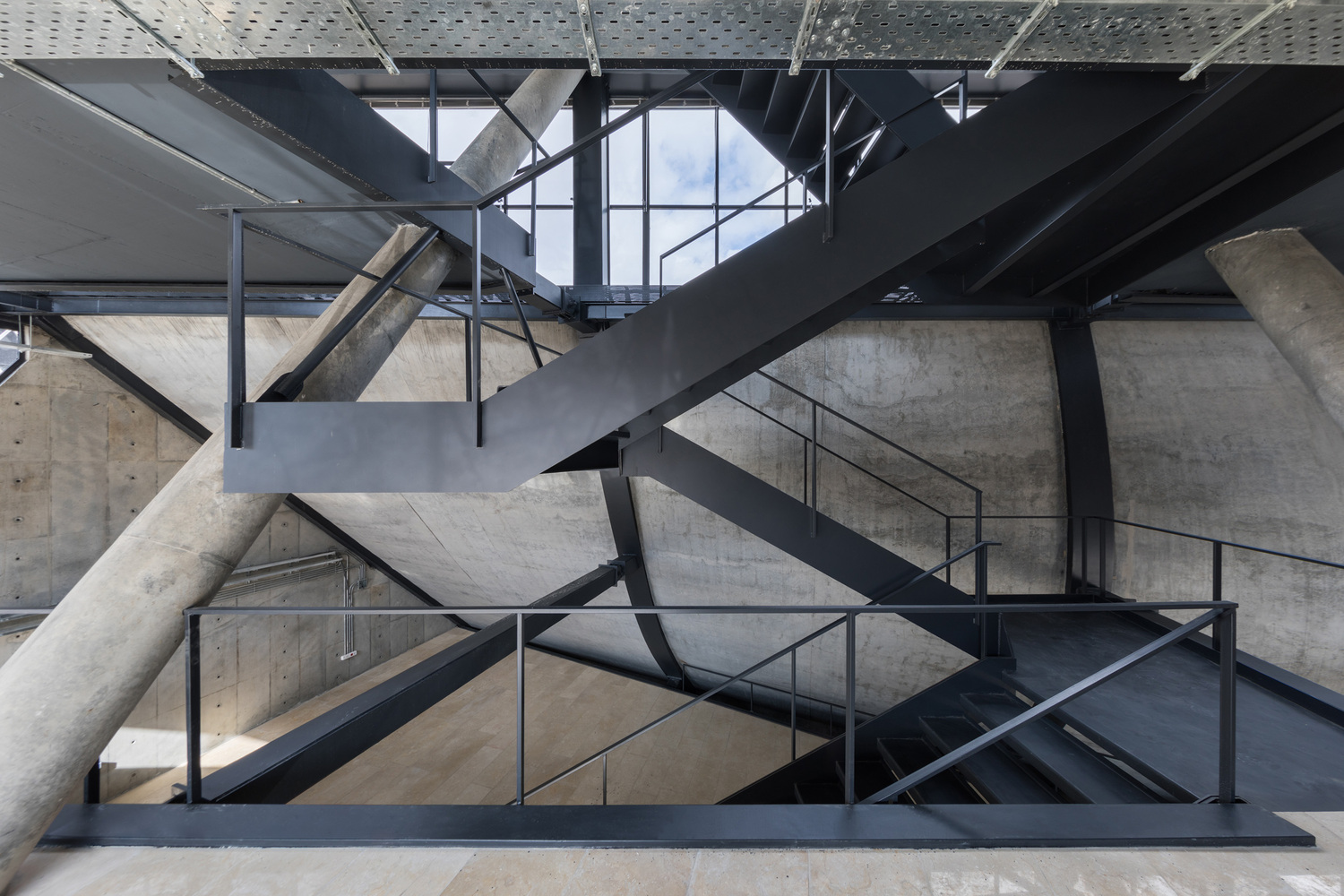

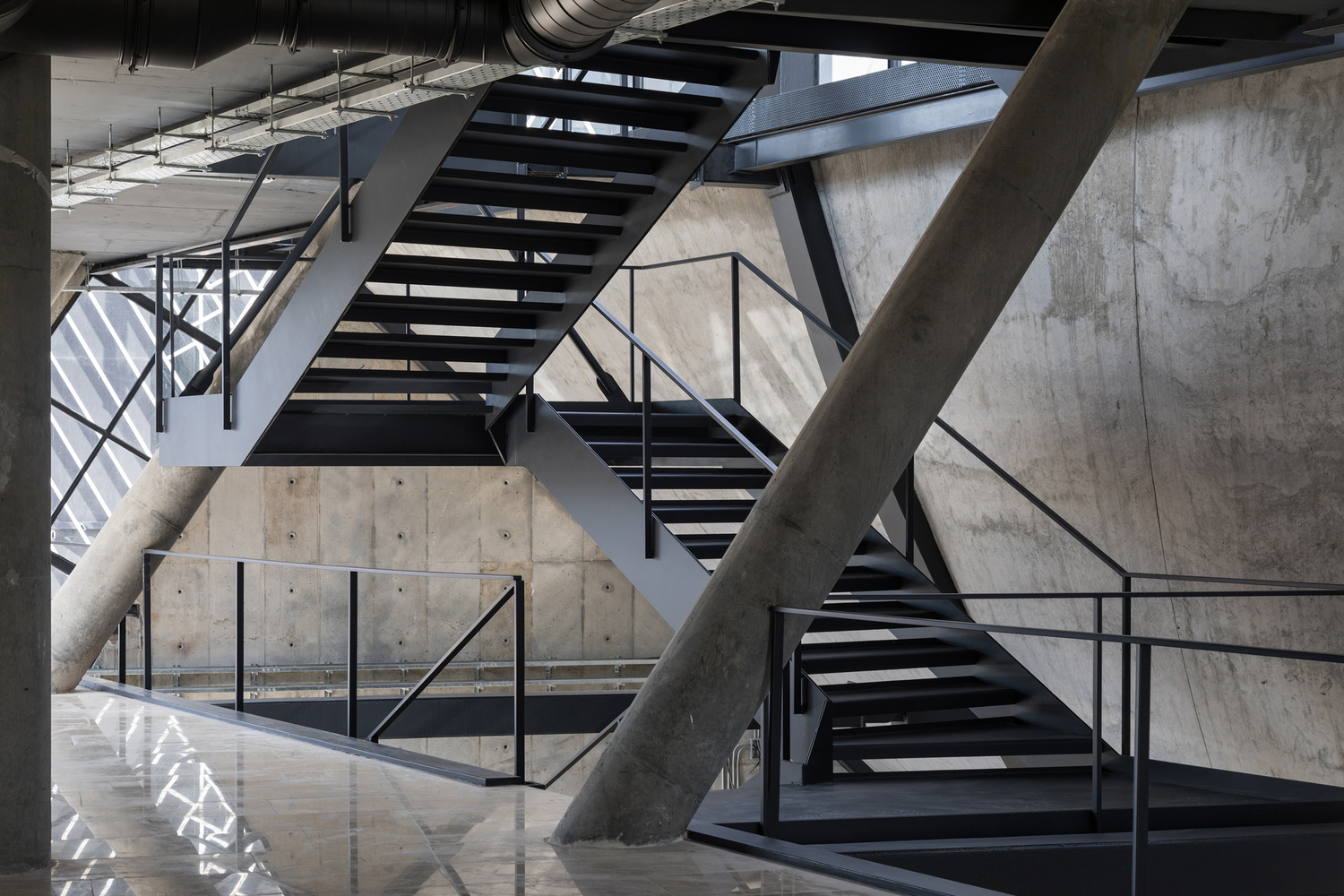

Circulation reinforces the conceptual framework of movement through space. A suspended metal staircase winds through the central void, connecting all four levels. Upon entry, the sculptural volume of the stair is immediately visible, acting as both a functional core and spatial marker.

The initial flight is linear and direct, with a mid-level landing, while the upper flights shift direction and rhythm. This layered progression reveals the diversity of spatial experiences within the building. Ascending through the staircase offers a continuous and immersive engagement with the architecture—an orchestrated journey through light, volume, and structure.

AVA Communications Building
© Mohammad Hassan Ettefagh


AVA Communications Building
Diagram
AVA Communications Building
Diagram


AVA Communications Building

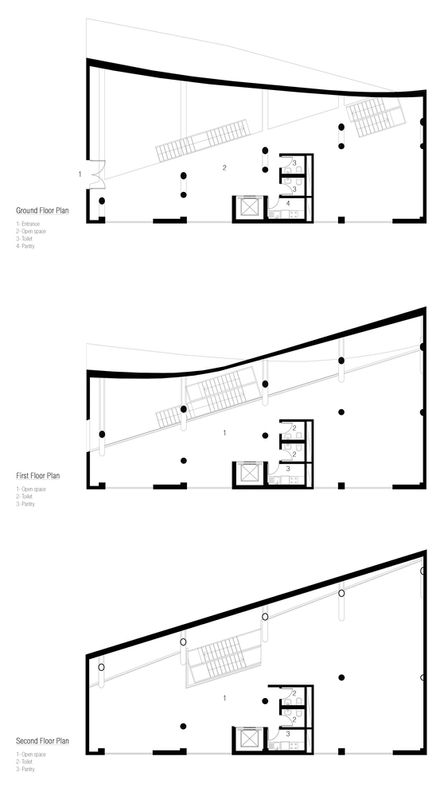

Floor Plan
AVA Communications Building

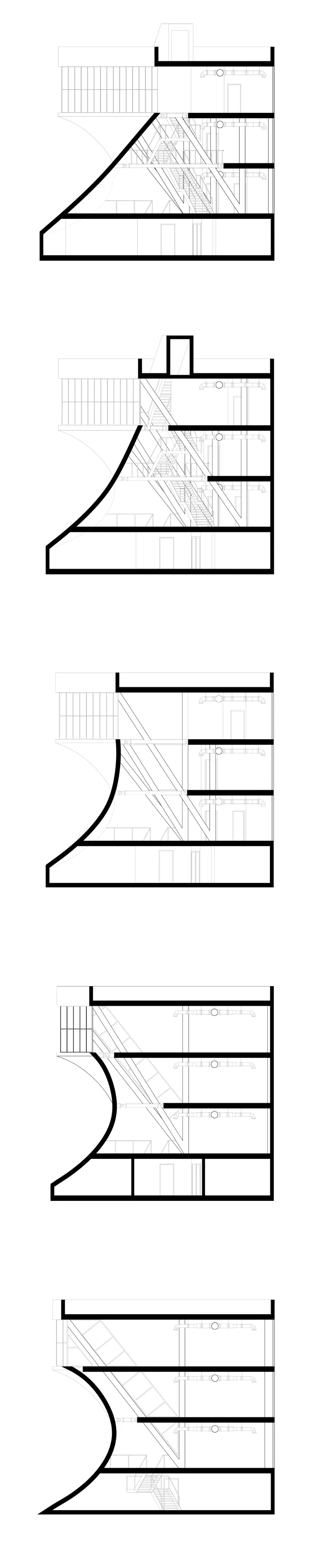

Section
