Kolman Boye Architects, AB

Ravine House

Ravine House

Kolman Boye Architects

Ravine House
© Johan Dehlin

LEAD ARCHITECTS
Erik Kolman Janouch, Victor Boye Julebäk

PHOTOGRAPHS
Johan Dehlin

AREA
150 m²

YEAR
2024

LOCATION
Skurusundet, Sweden

CATEGORY
Houses

Ravine House
© Johan Dehlin

English description provided by the architects.

Nestled just northwest of the picturesque Skurusundet strait, this small property posed several challenges for potential buyers envisioning a new house.

The site is a deep ravine bordered by cliffs to the east and west, with limited road access.

Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin

While the elevated crags of the property offer stunning views of the Stockholm port inlet, accessing these heights while adhering to planning regulations and feasible building costs seemed a daunting task.

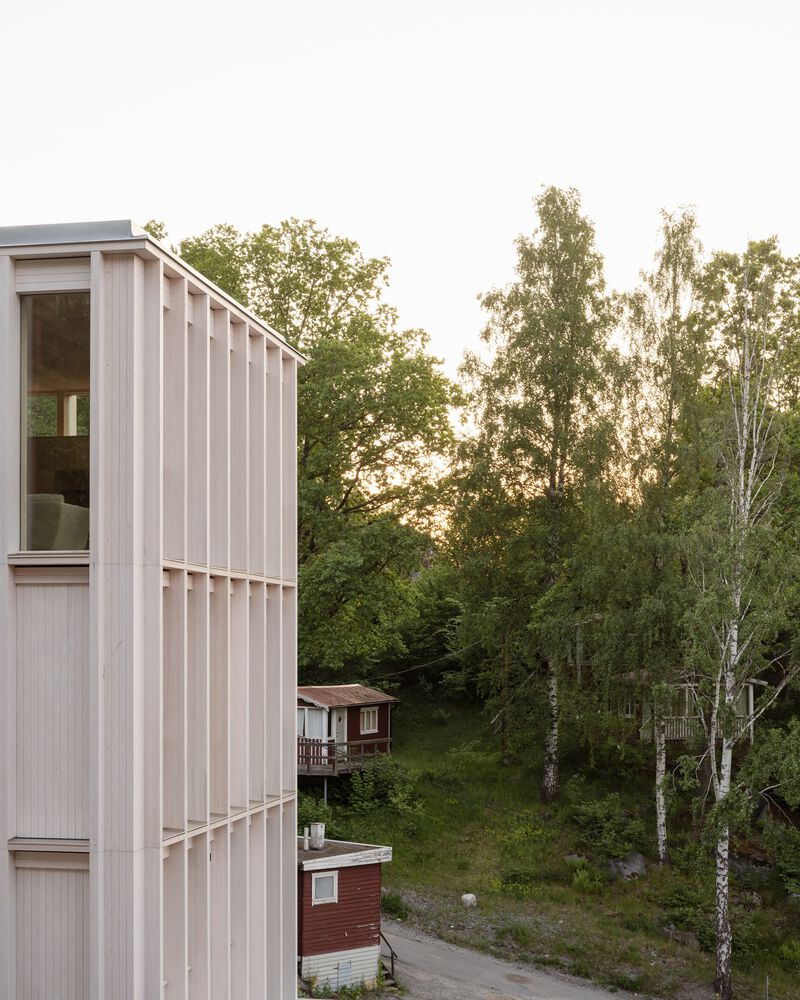

Historically, the area around the property was a summer retreat for people of modest means, characterized by small, simple red cottages available for subsidized summer stays.

Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin

Due to its proximity to Stockholm, most of these cabins have now been replaced by larger, permanent residences.

This particular site, however, formerly held a larger structure; evidence of which can be seen in the terraced landscape walls descending through the ravine, ending in a semi-circular fish pond framed by a solid granite wall.

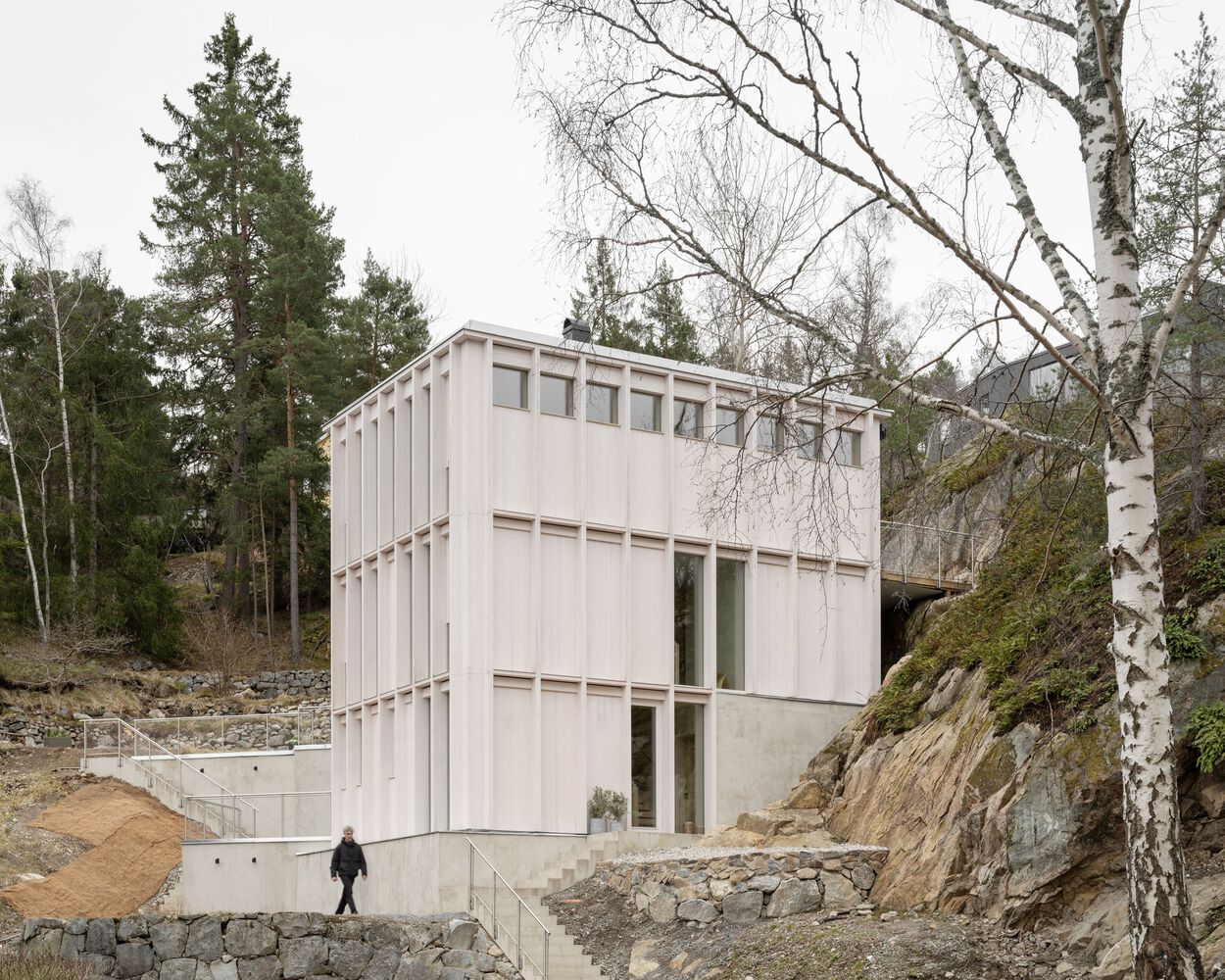

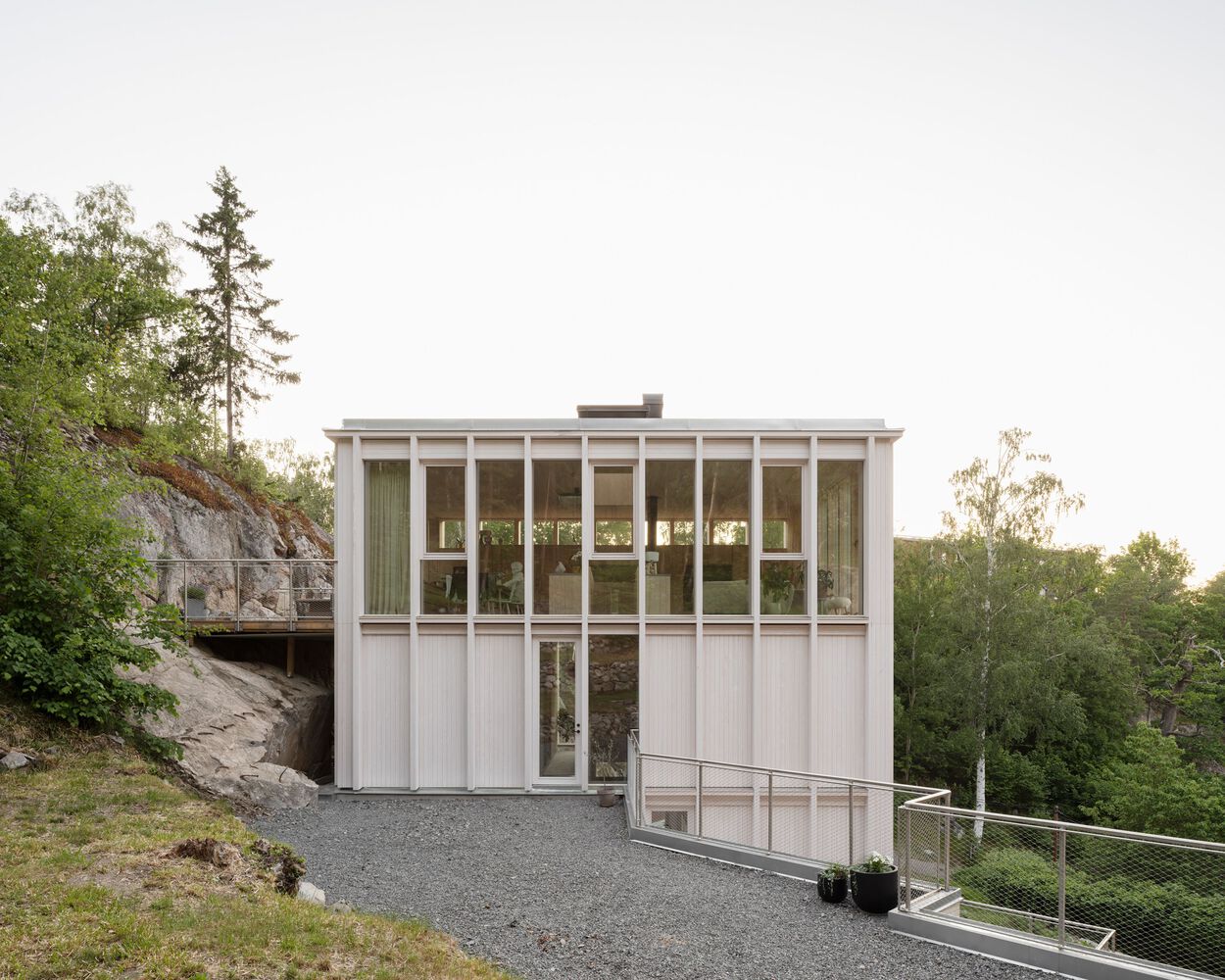

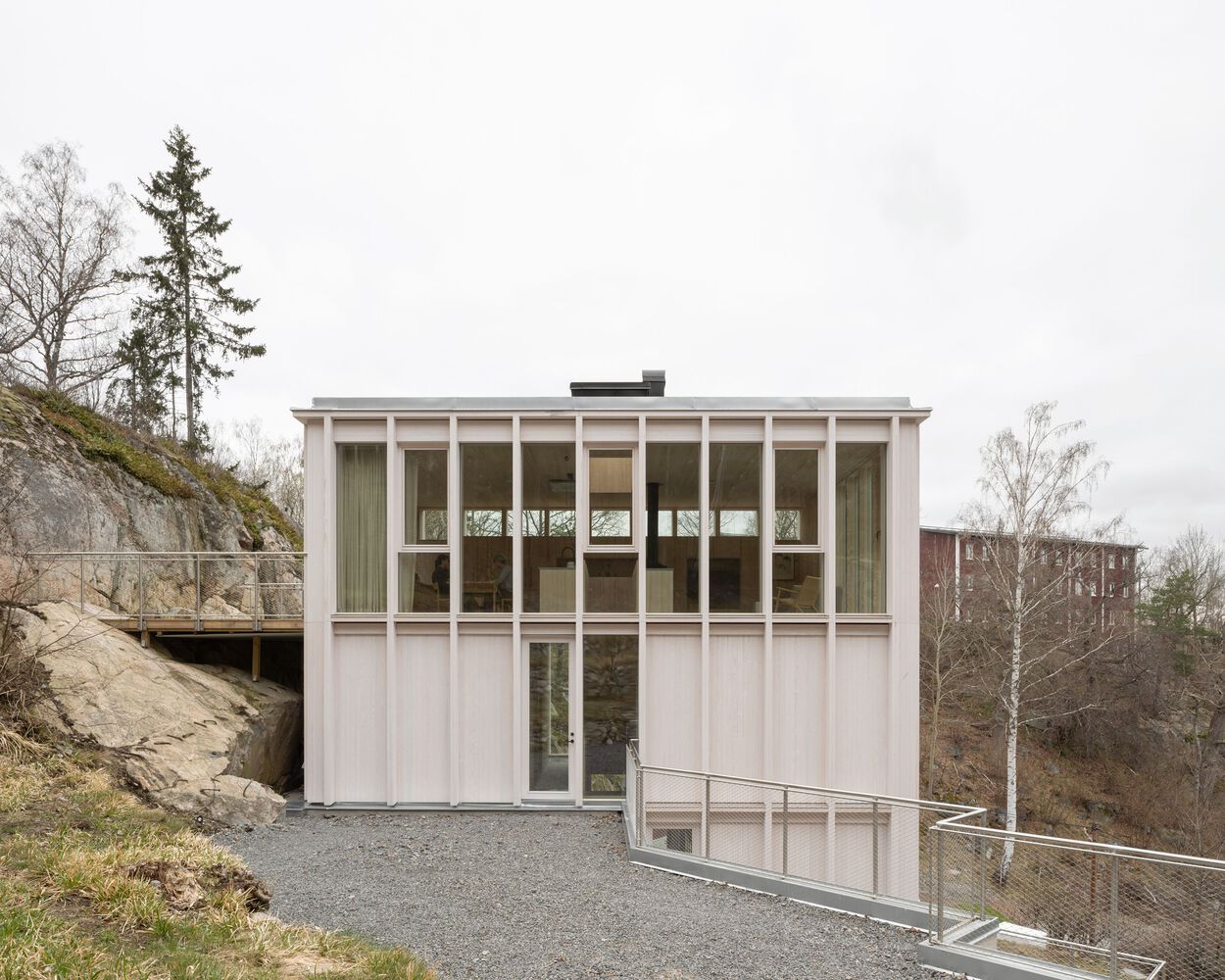

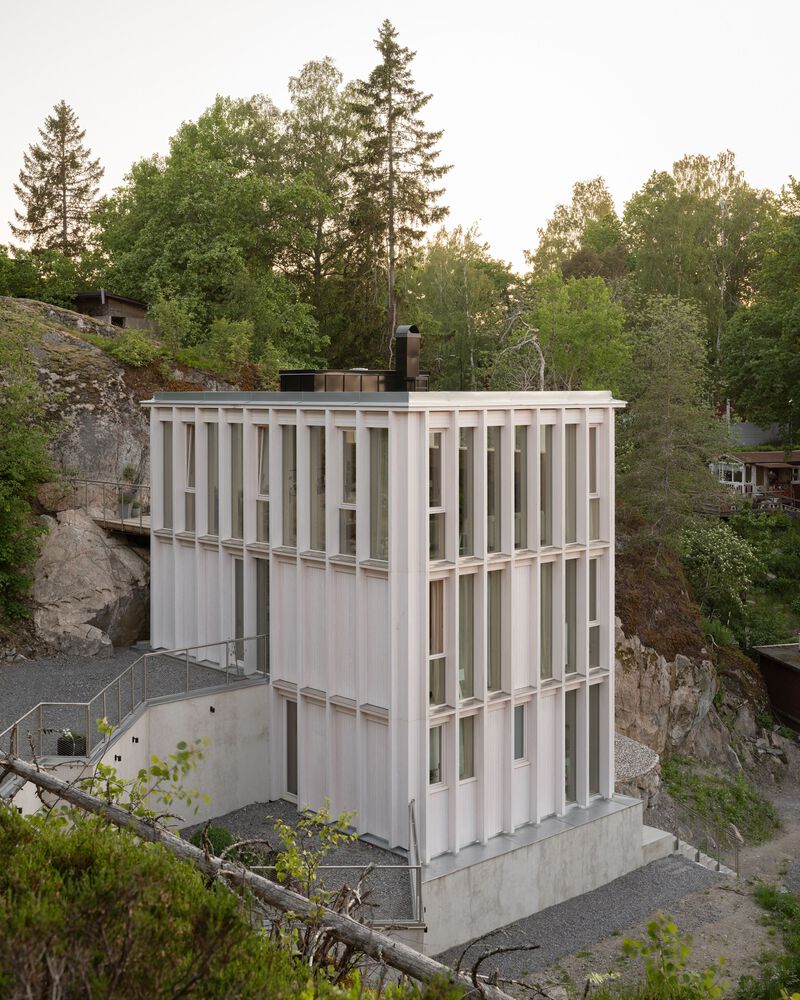

The new house is a strict three-story structure with a compact plan, that leaves a minimal footprint.

Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin

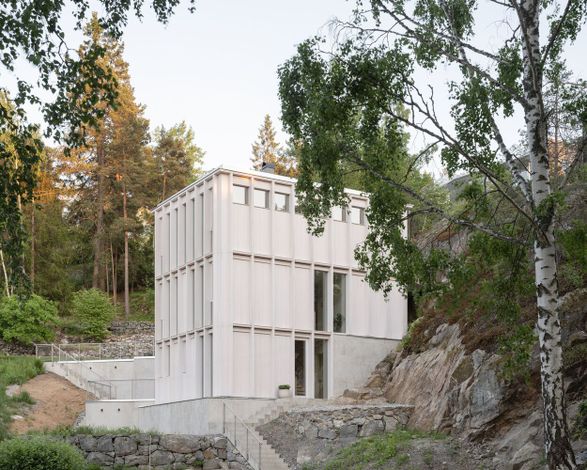

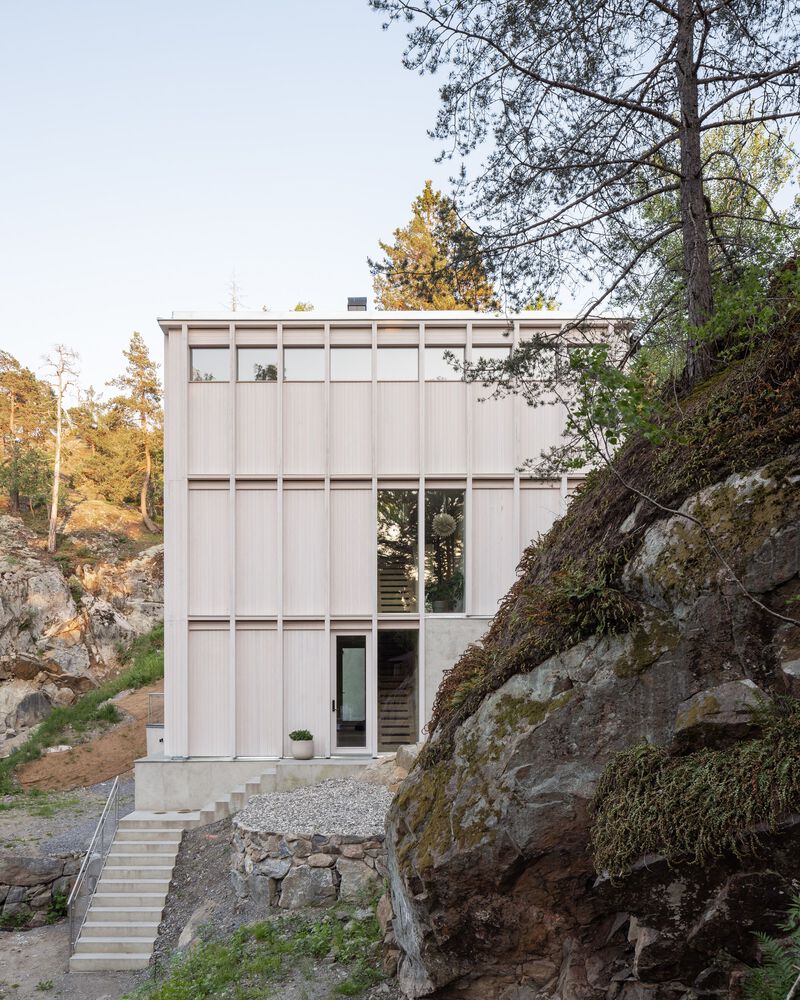

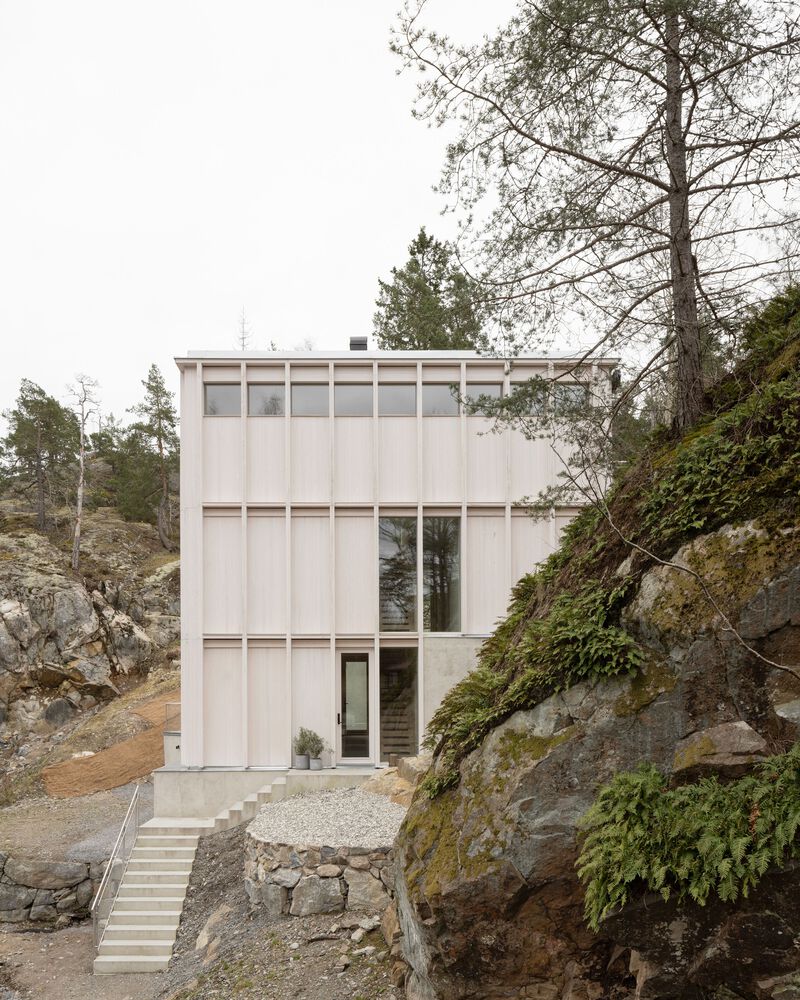

By partially embedding the building into the existing steep cliffside, the necessary height for an additional story was achieved while simultaneously reducing visual impact.

As such, the building incorporates the existing terraces with minimal further changes.

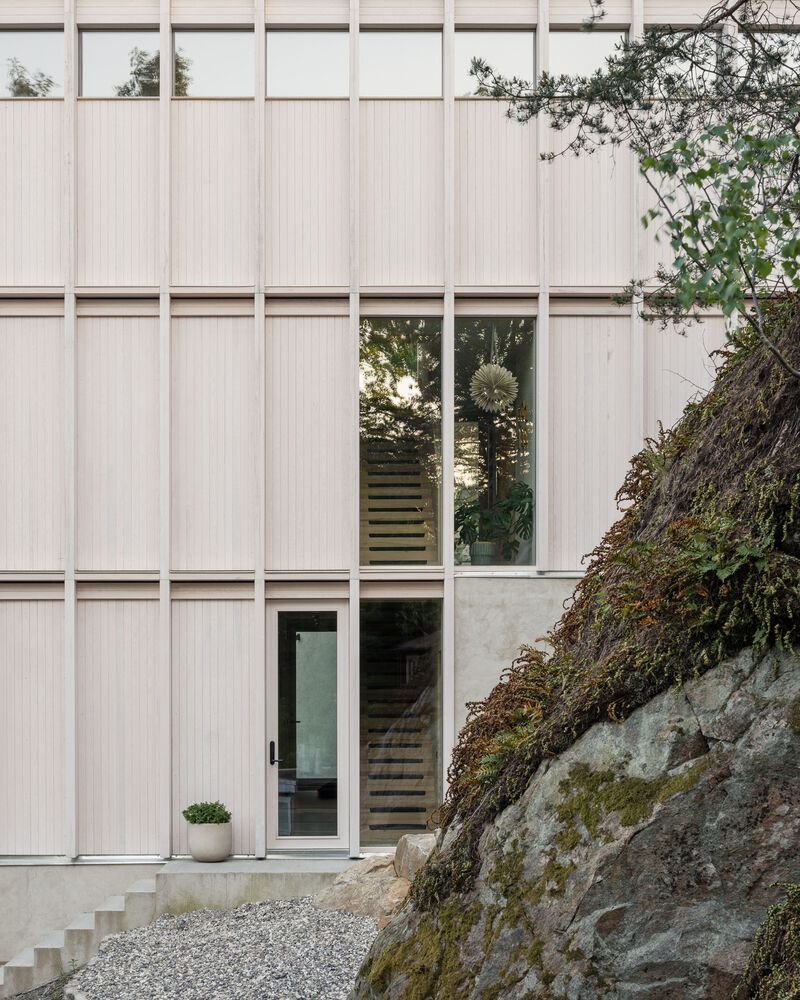

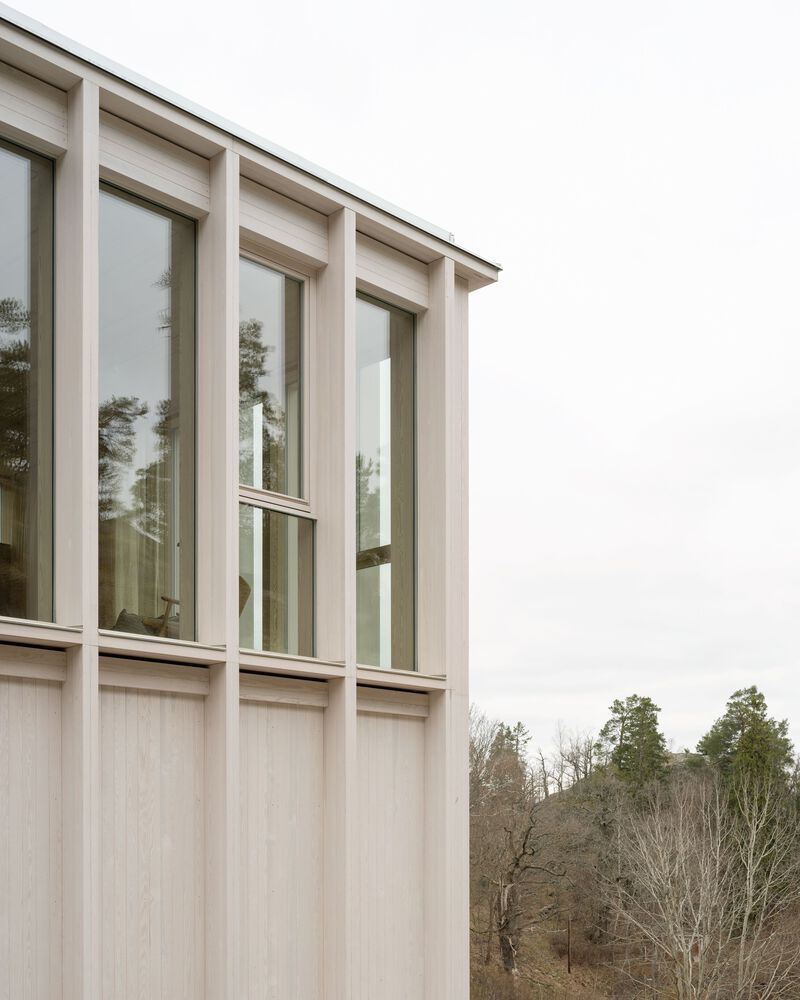

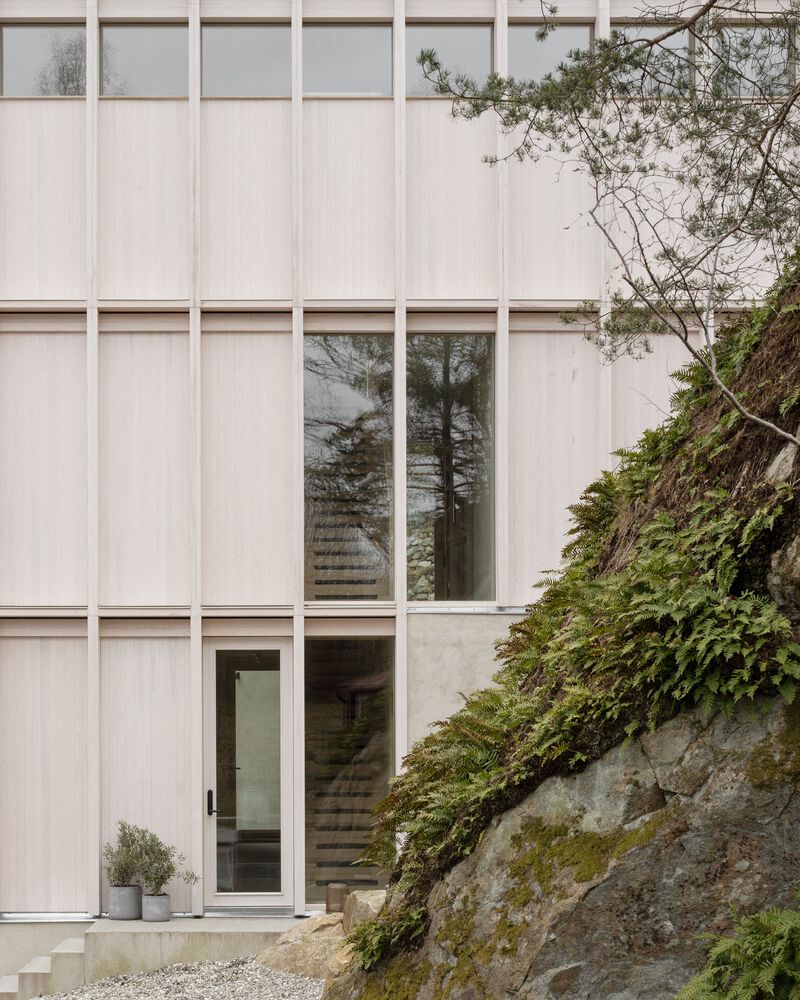

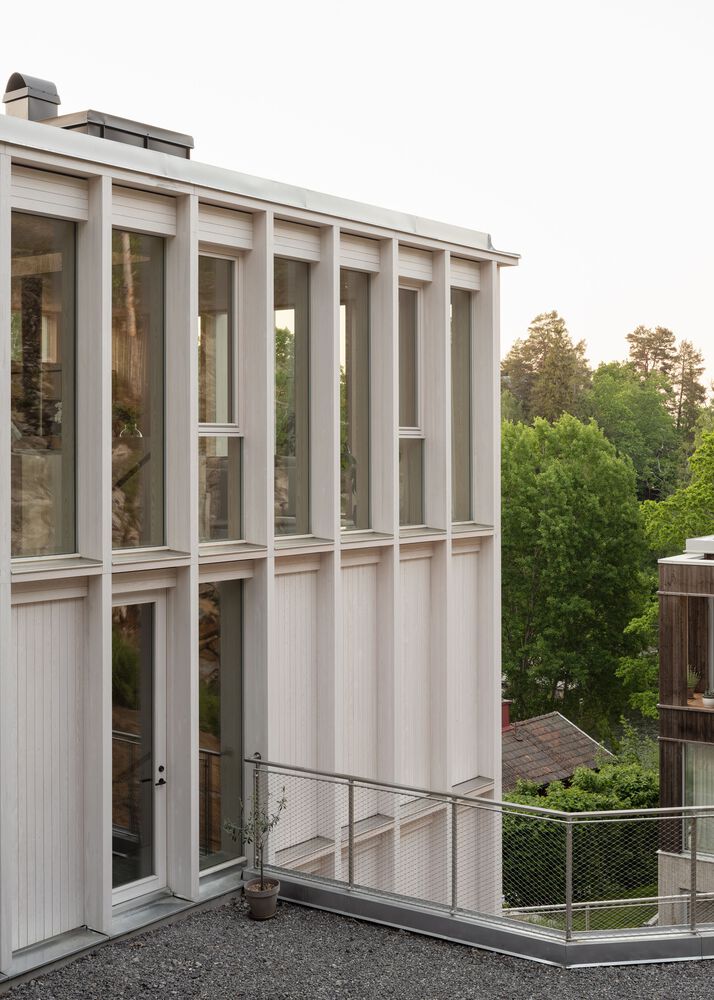

The strict division of the timber into horizontal and vertical elements opposes the terrain and lends the relation between the house and the site a strong character.

Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin

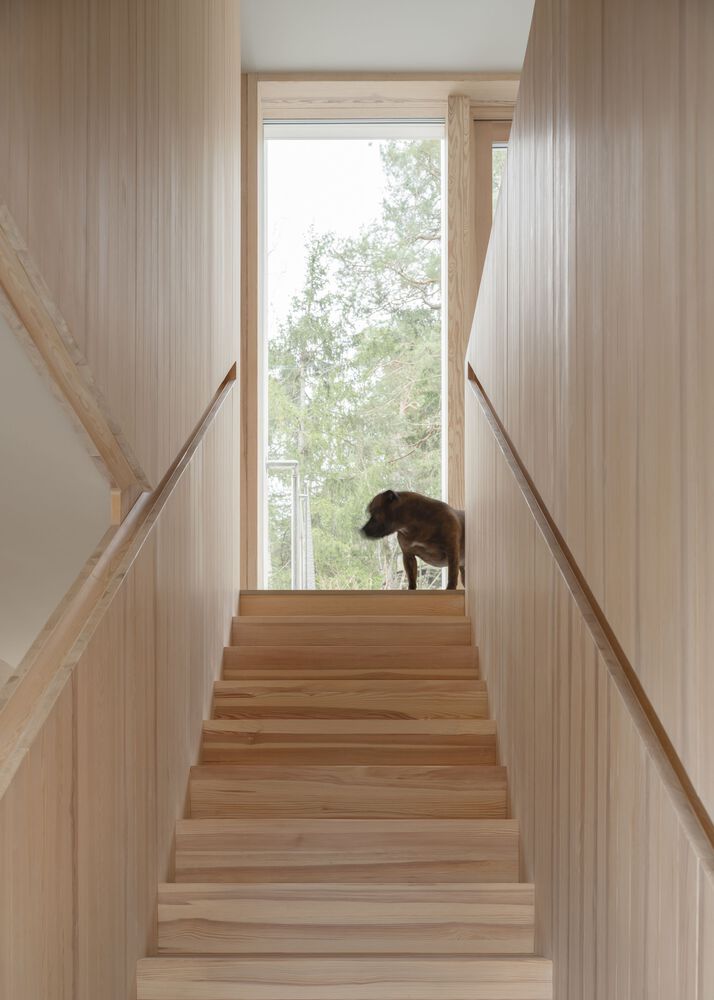

A central timber stair ties the three floors of the building together and organizes the plan. The bottom floor of the building comprises utility spaces.

The middle floor serves as the main entrance floor, holding wardrobes and bedrooms.

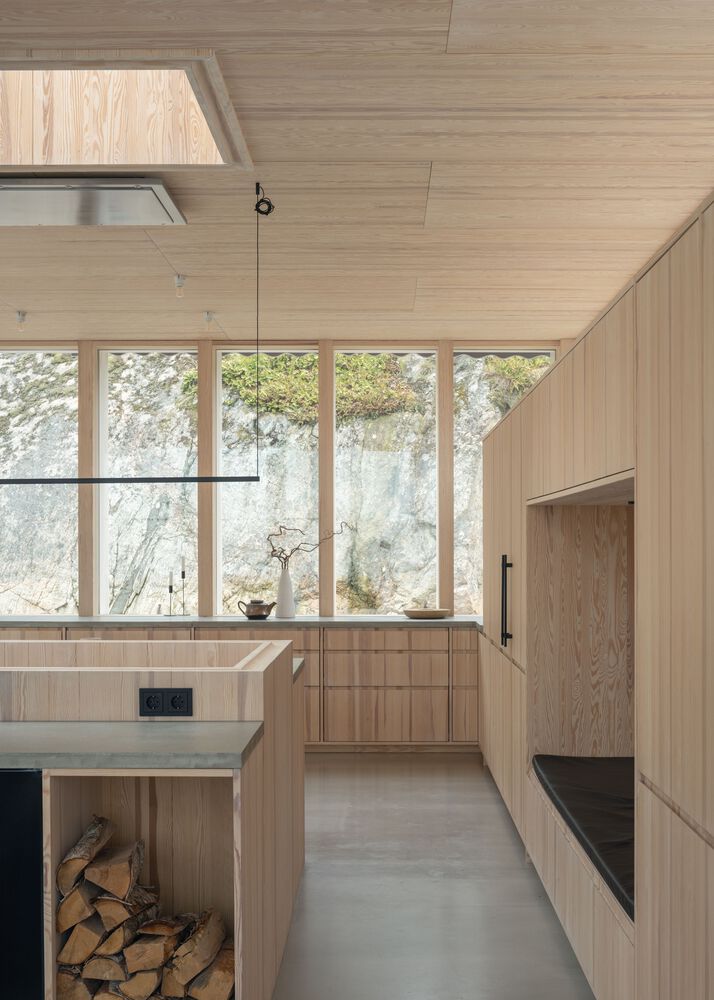

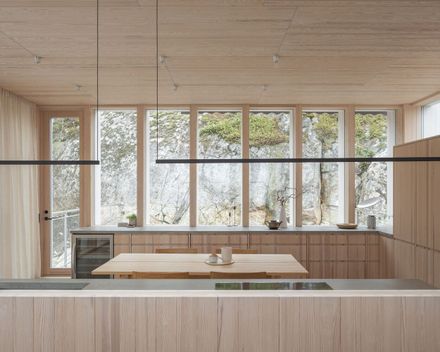

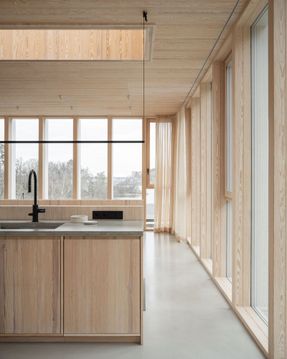

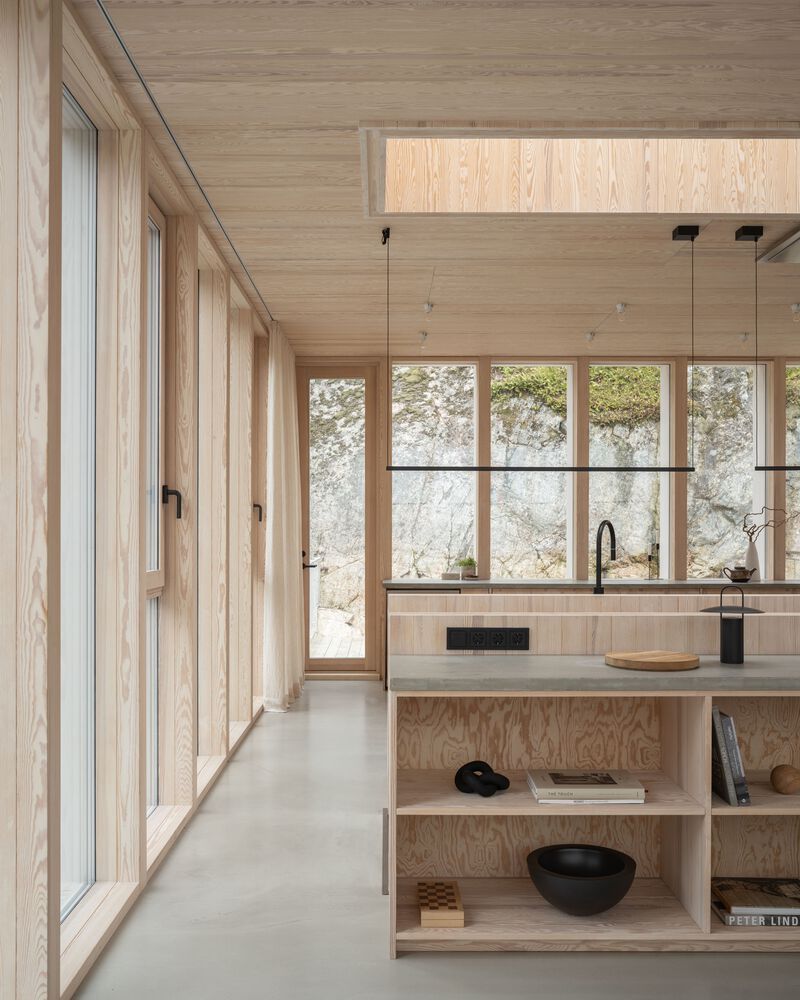

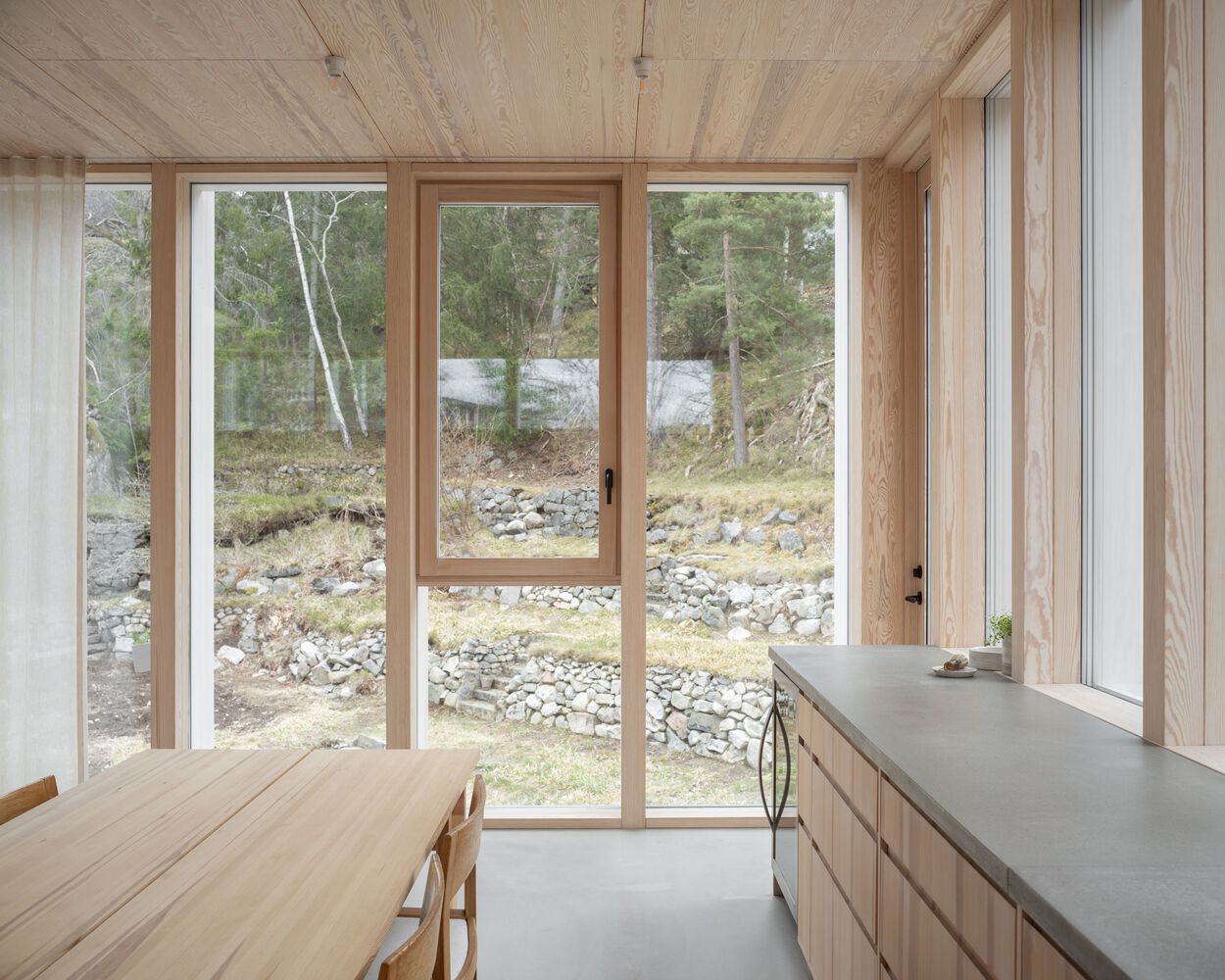

The fully glazed, open-plan top floor offers striking views of the Stockholm port inlet and is designed for a combined kitchen and living room. Each floor has direct access to different levels of the terraced rock garden outside.

Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin

The building uses renewable materials where possible, given the particular characteristics of the site.

Where the Saltviga project worked with ennobling off-cuts from floor production, in this project an idea of upgrading raw wood material was tested.

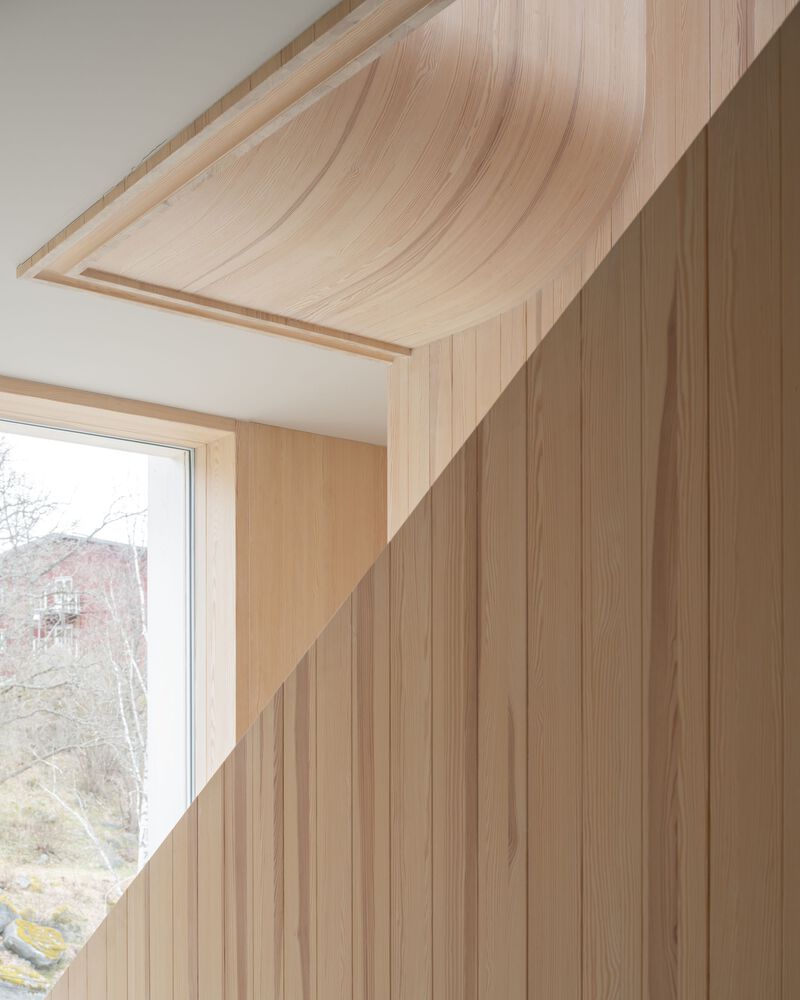

Knotty pinewood was turned into knotless pinewood through a select-saw-glue process. The knotty wood was used for invisible interior structural parts, while the carefully selected flawless parts were exposed.

Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin

As such, the pinewood was turned from an affordable and readily available material into one with more subtle and graceful textural qualities.


Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin
Ravine House
© Johan Dehlin

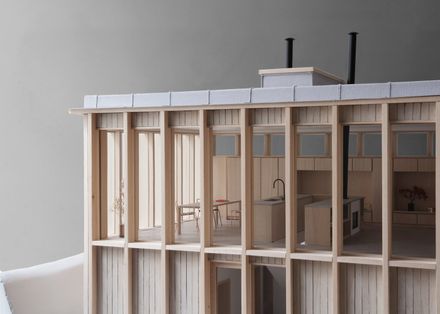

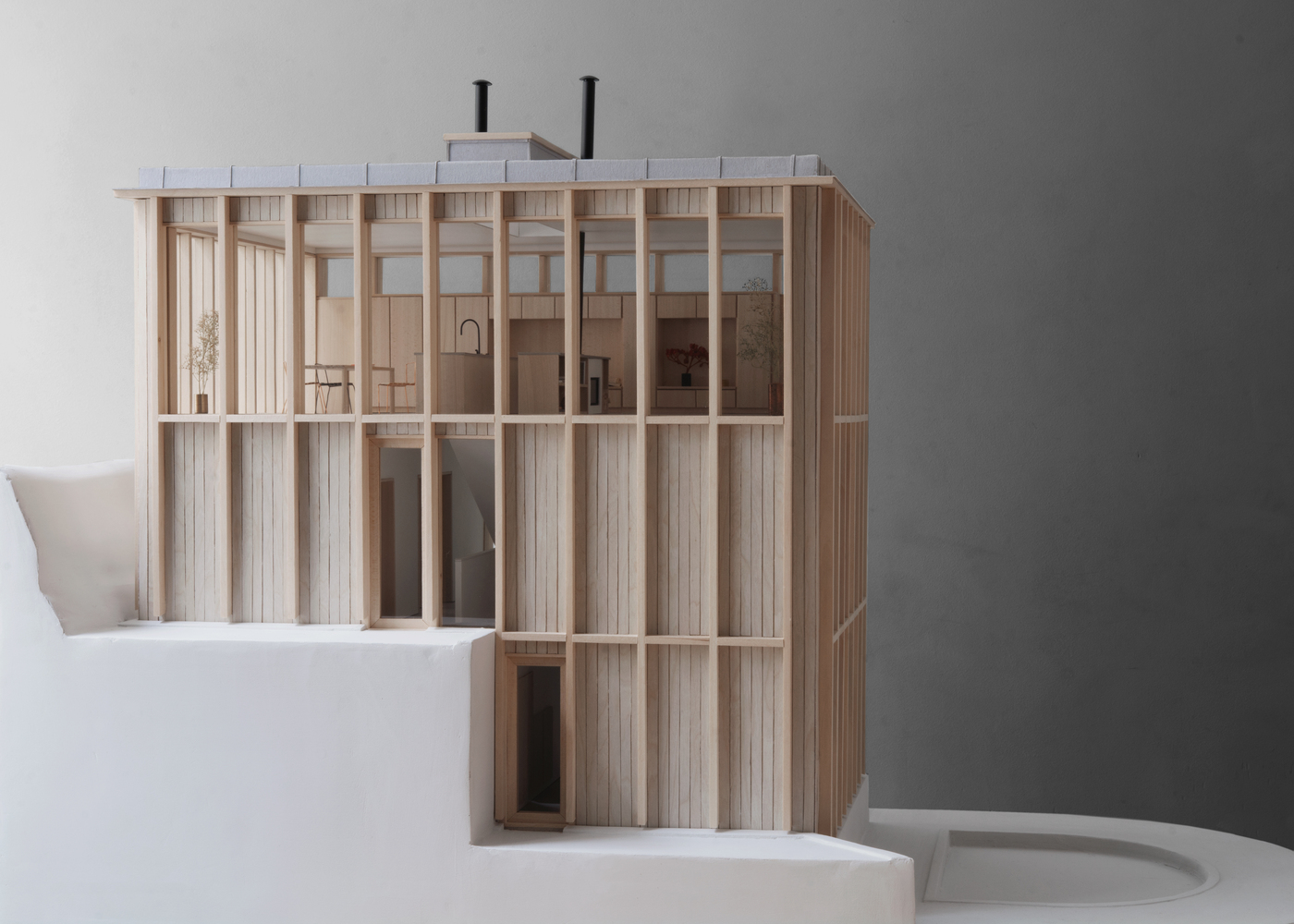

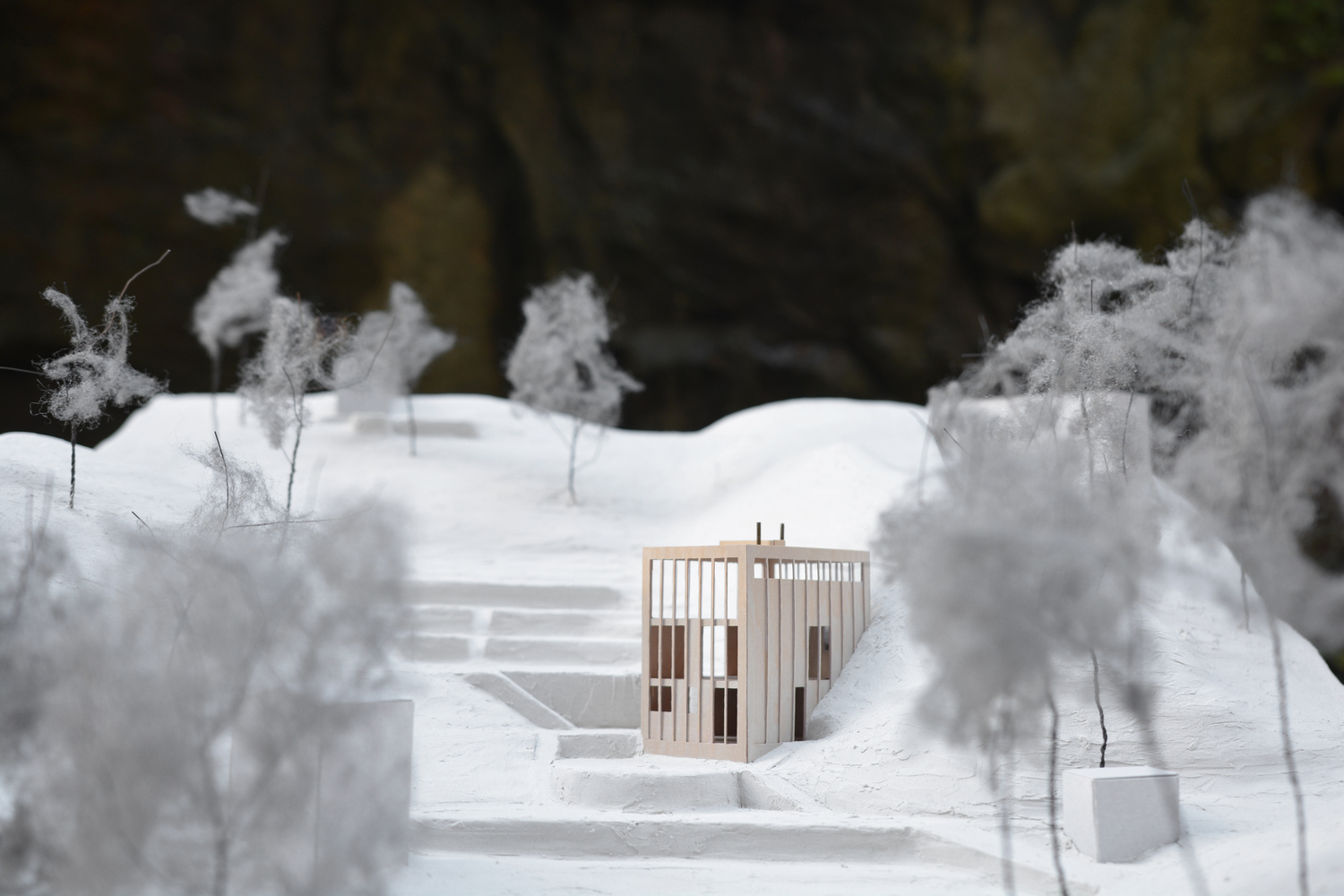

Ravine House

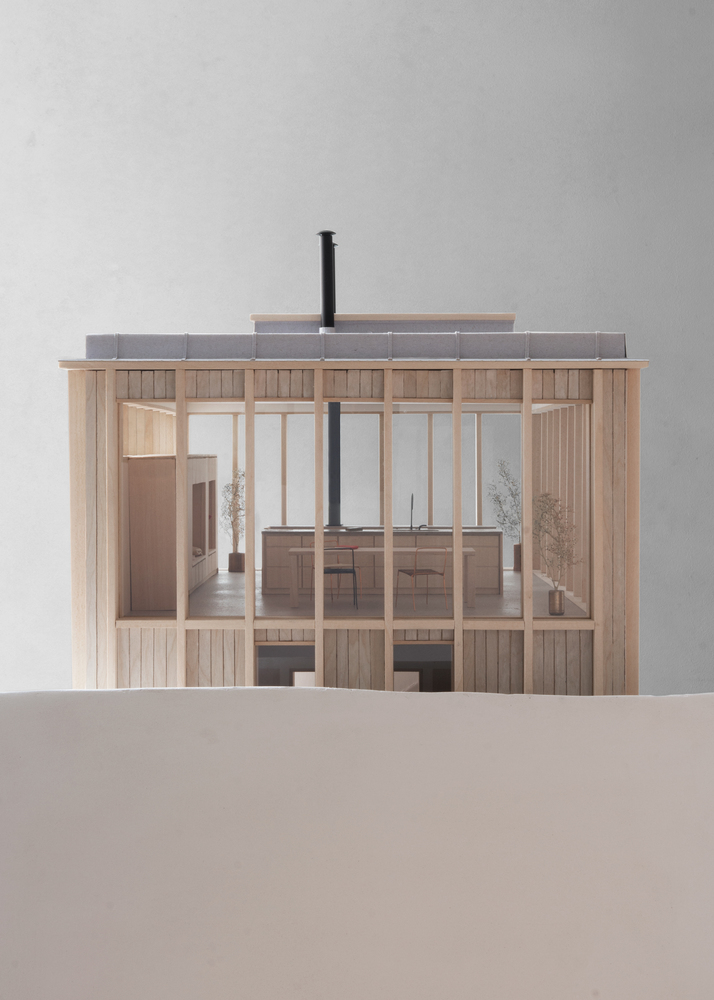

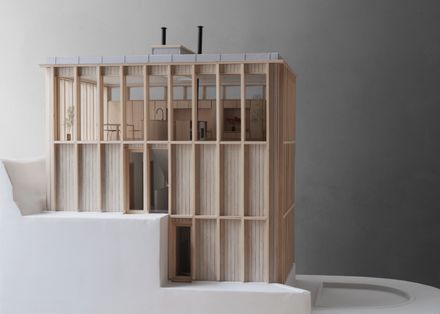

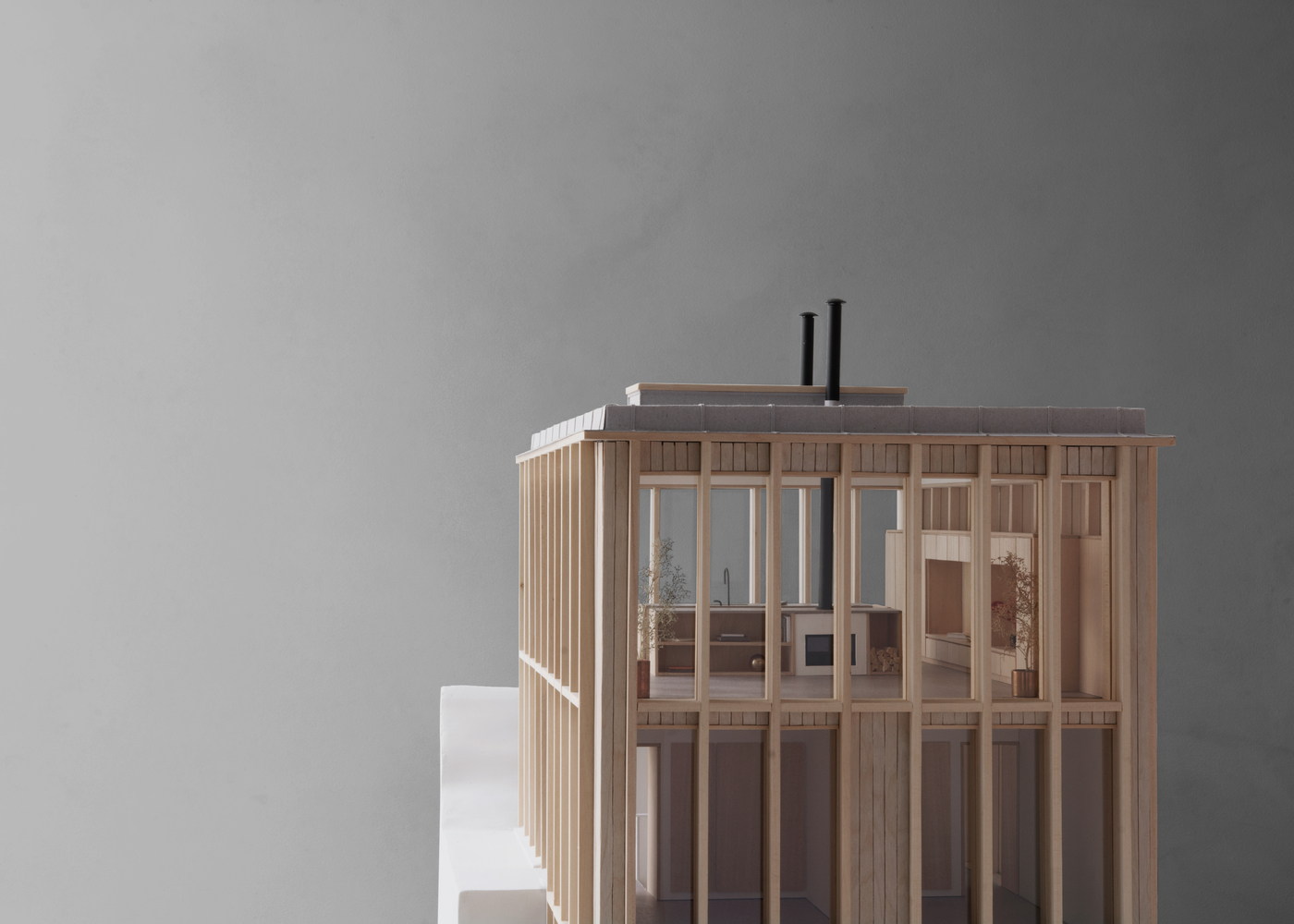

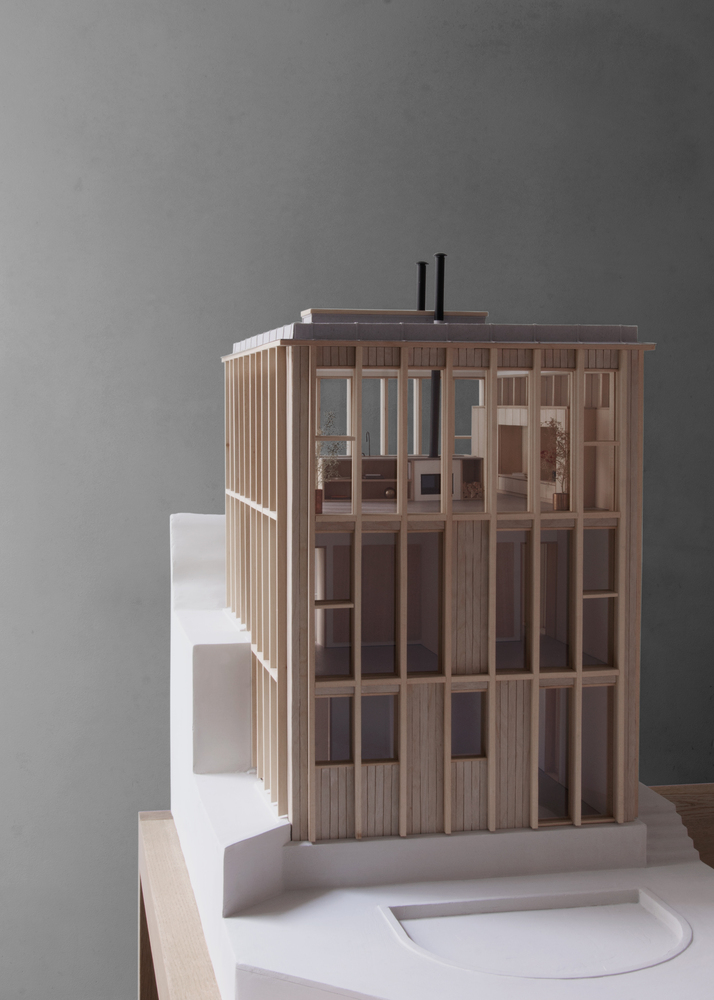

Model
Ravine House
Model
Ravine House
Model
Ravine House
Model
Ravine House
Model
Ravine House
Model
Ravine House
Model

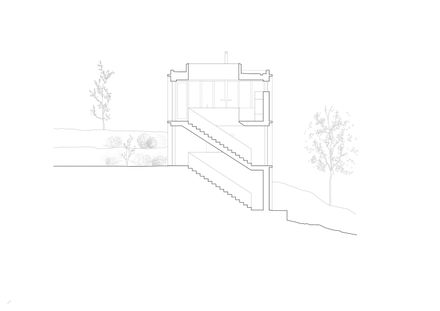

Ravine House

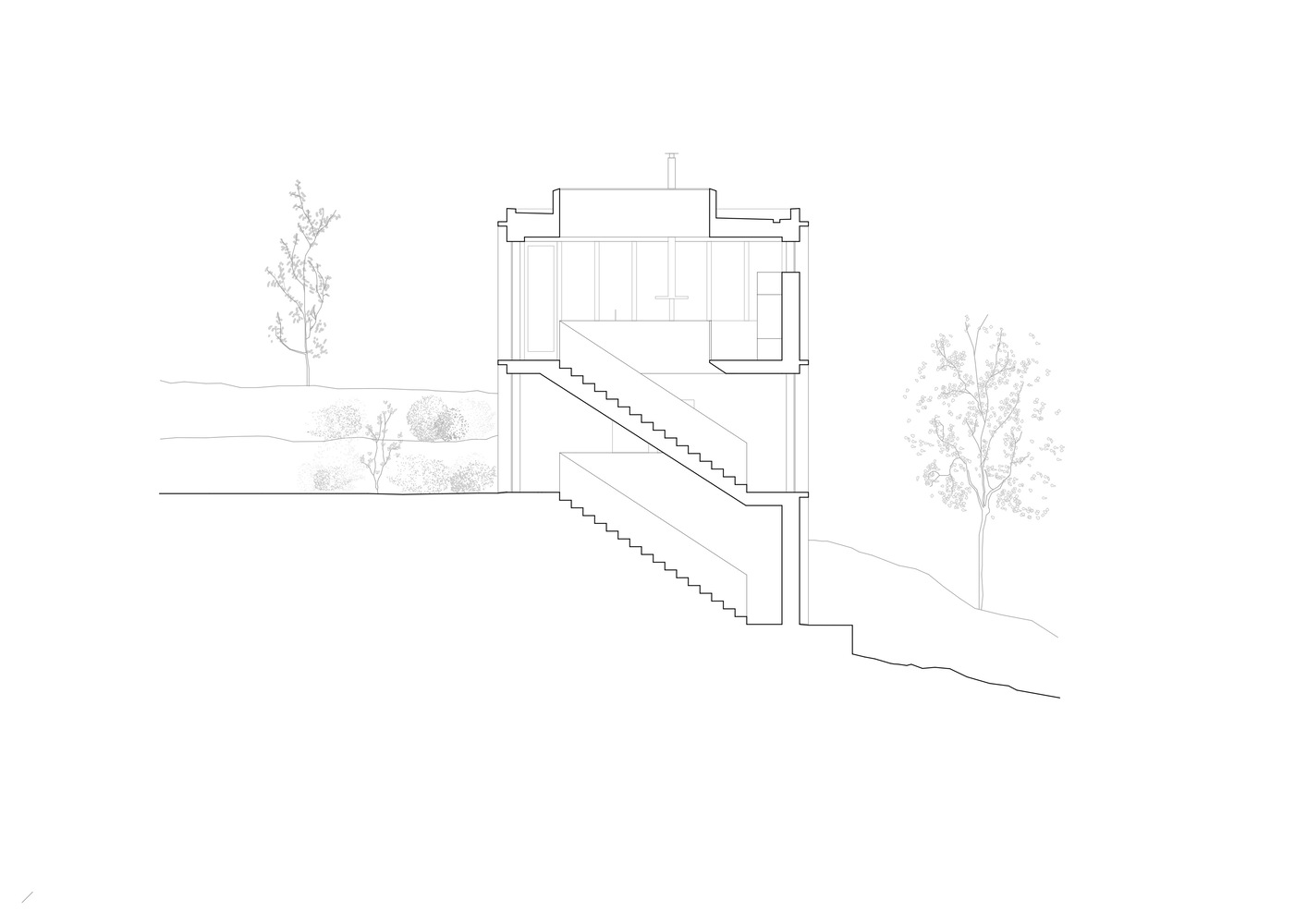

Section

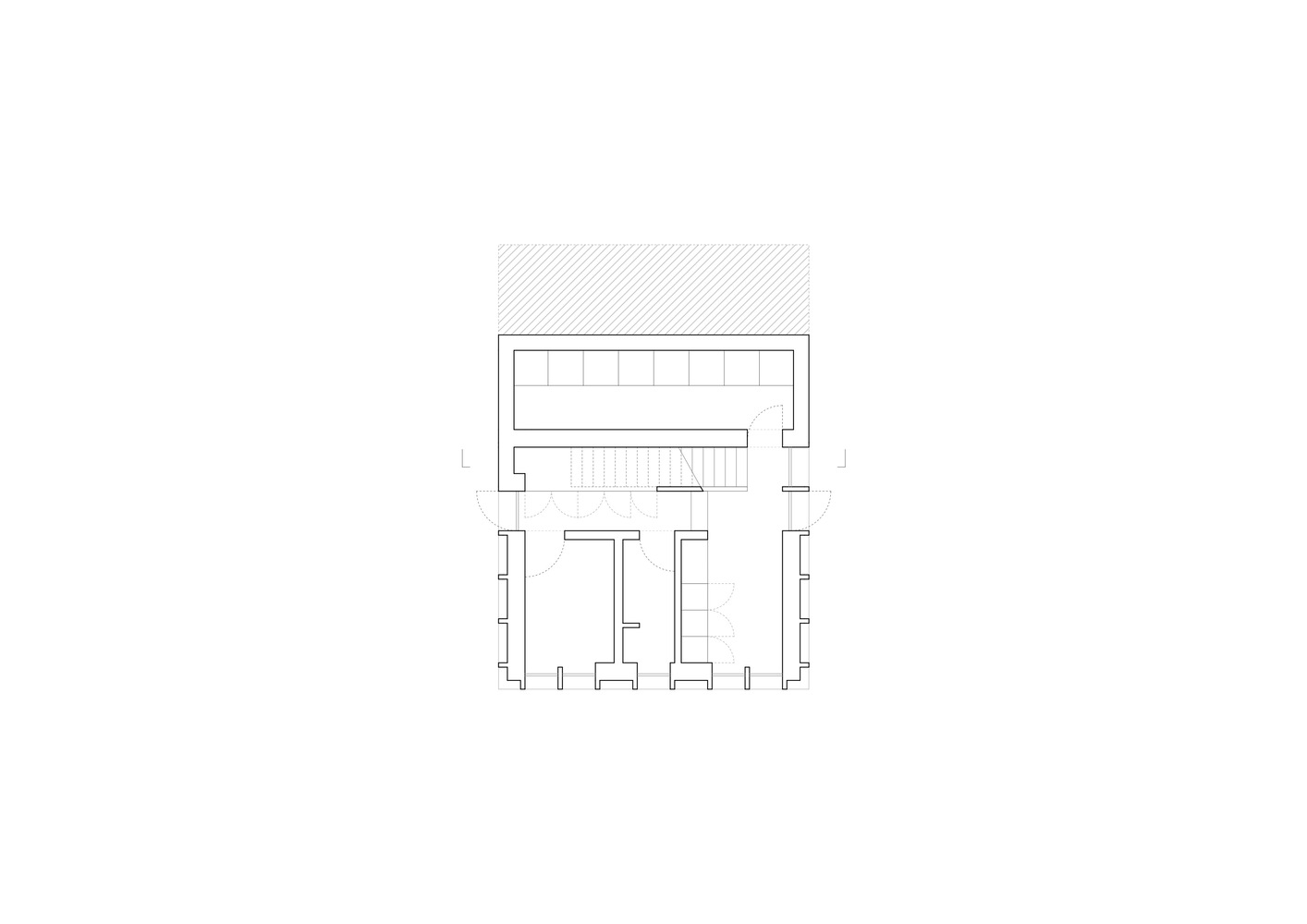

Ravine House

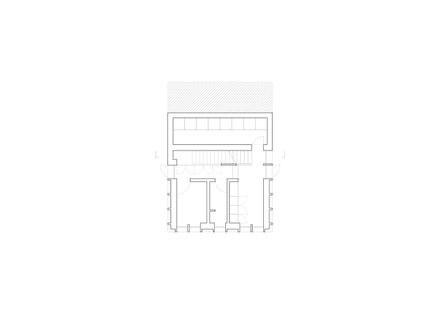

Plan - First floor

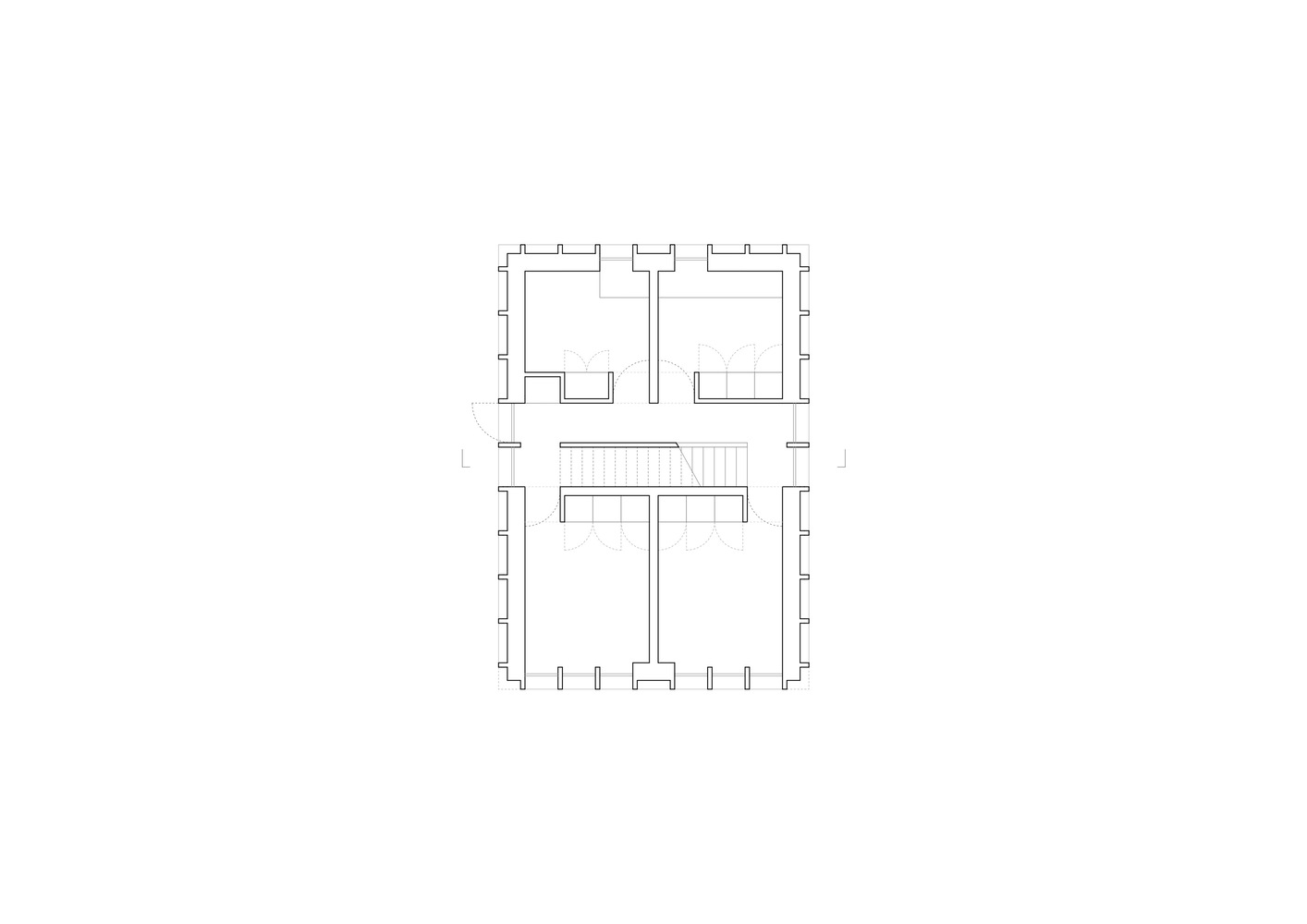

Ravine House

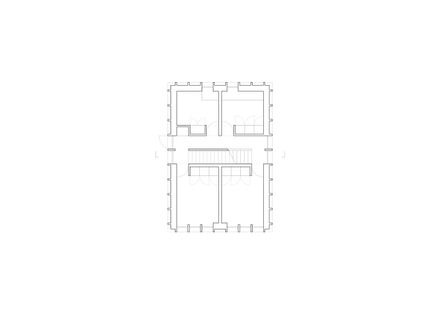

Plan - Second floor

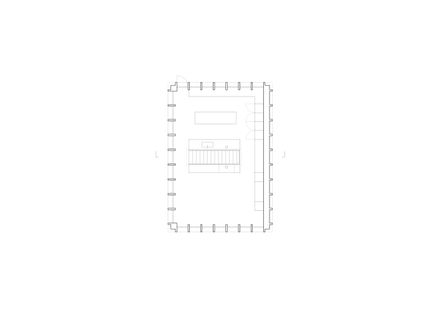

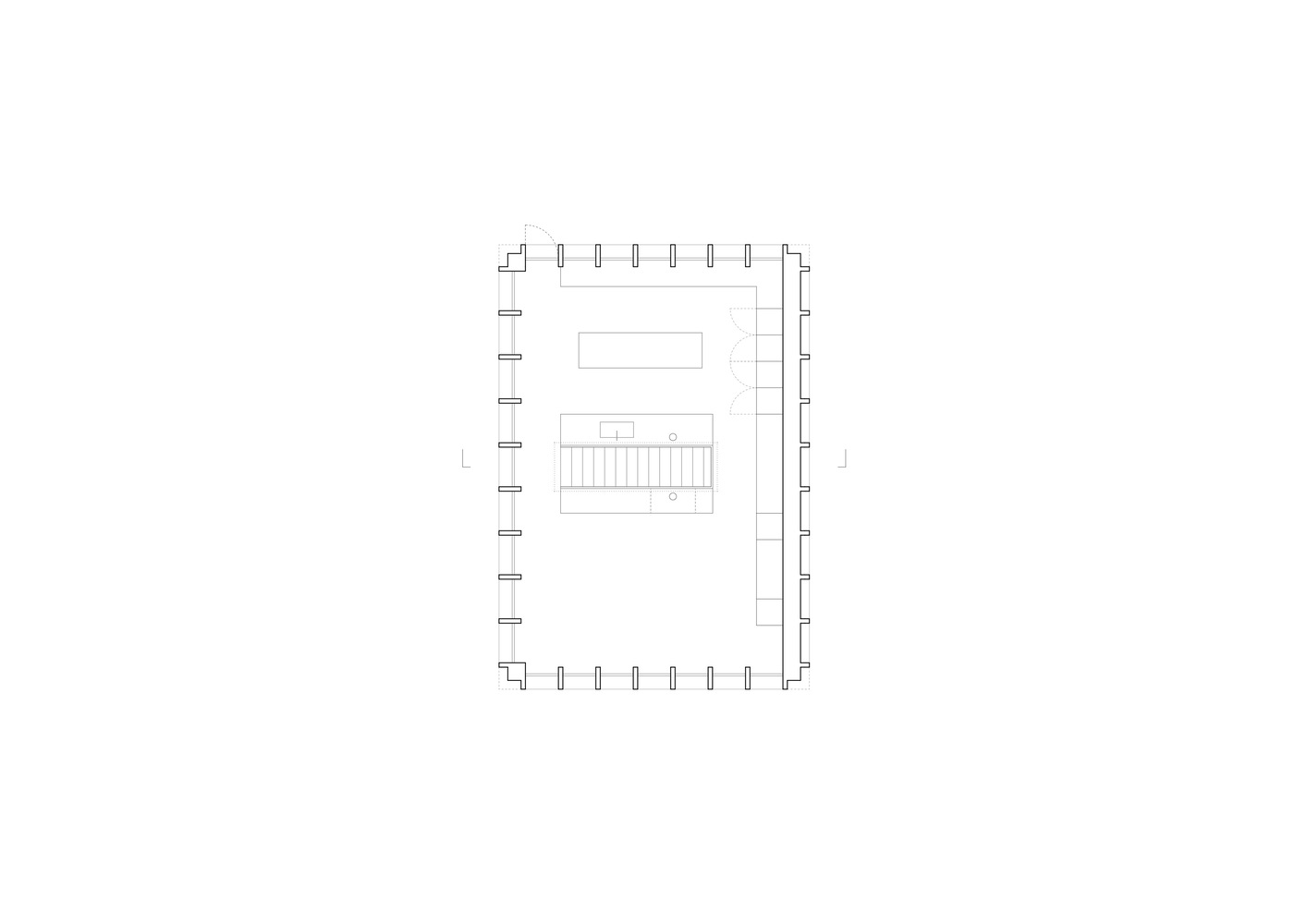

Ravine House
Plan - Third floor

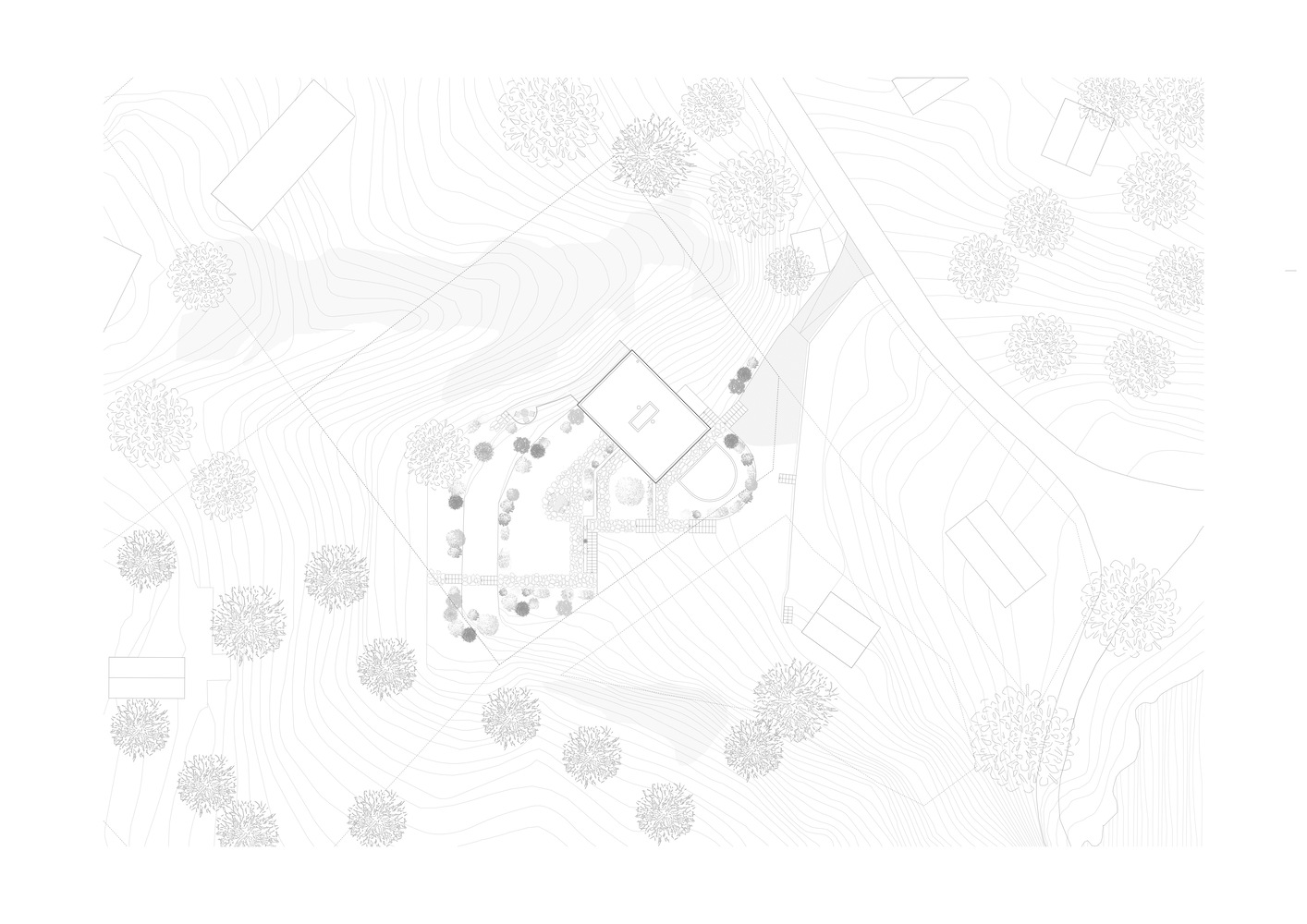

Ravine House

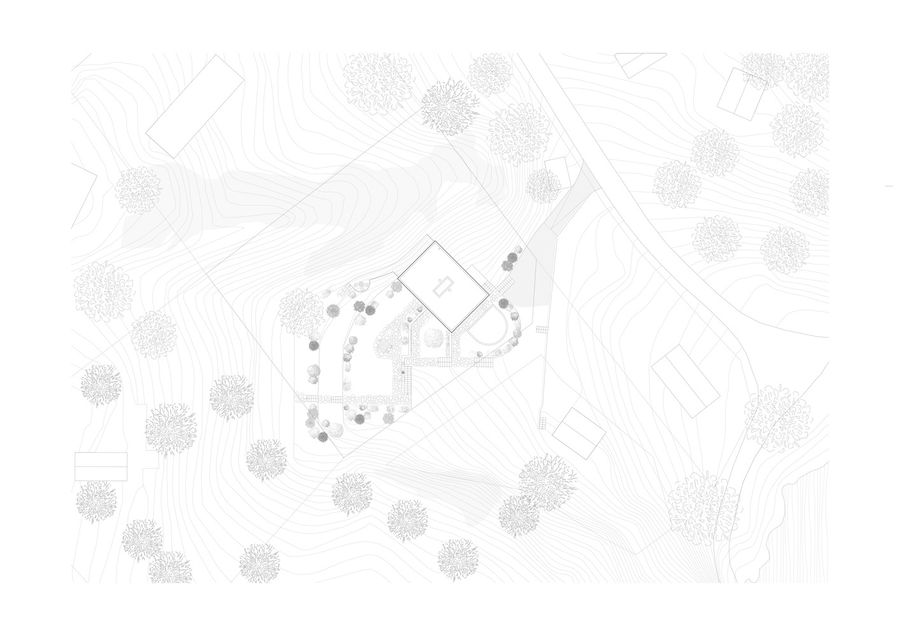

Plan - Site
