Bioclimatic House

Bioclimatic House

Utopia – Arquitectura e Engenharia

Bioclimatic House
© Ricardo Ramos

ARCHITECTS
Utopia – Arquitectura e Engenharia

LEAD ARCHITECT
Ricardo Tedim Cruz

EXTERIOR FITTINGS
Susana Barros Vilela

CONSTRUCTION AND CIVIL ENGINEERING
Eng. André Santos

STABILITY PROJECT
José Almeida

ELECTRIC PROJECT
Eng. Filipe Pinho

MANUFACTURERS
BRUMA, CIN, Capadrain, Cimentart, Cortizo, Deutsche FOAMGLAS®, Doka, Efapel, Giacomini, Hoermann, Imperalum, Indelague, Isolusa, JNF, Knauf, LUSOTUFO, Mapei, Preceram, Radcon, Robbialac, +4

PHOTOGRAPHS
Ricardo Ramos

AREA
250 m²

YEAR
2024

LOCATION
Parada, Portugal

CATEGORY
Houses

Bioclimatic House
© Ricardo Ramos

English description provided by the architects.

THE PROJECT CONCEPT

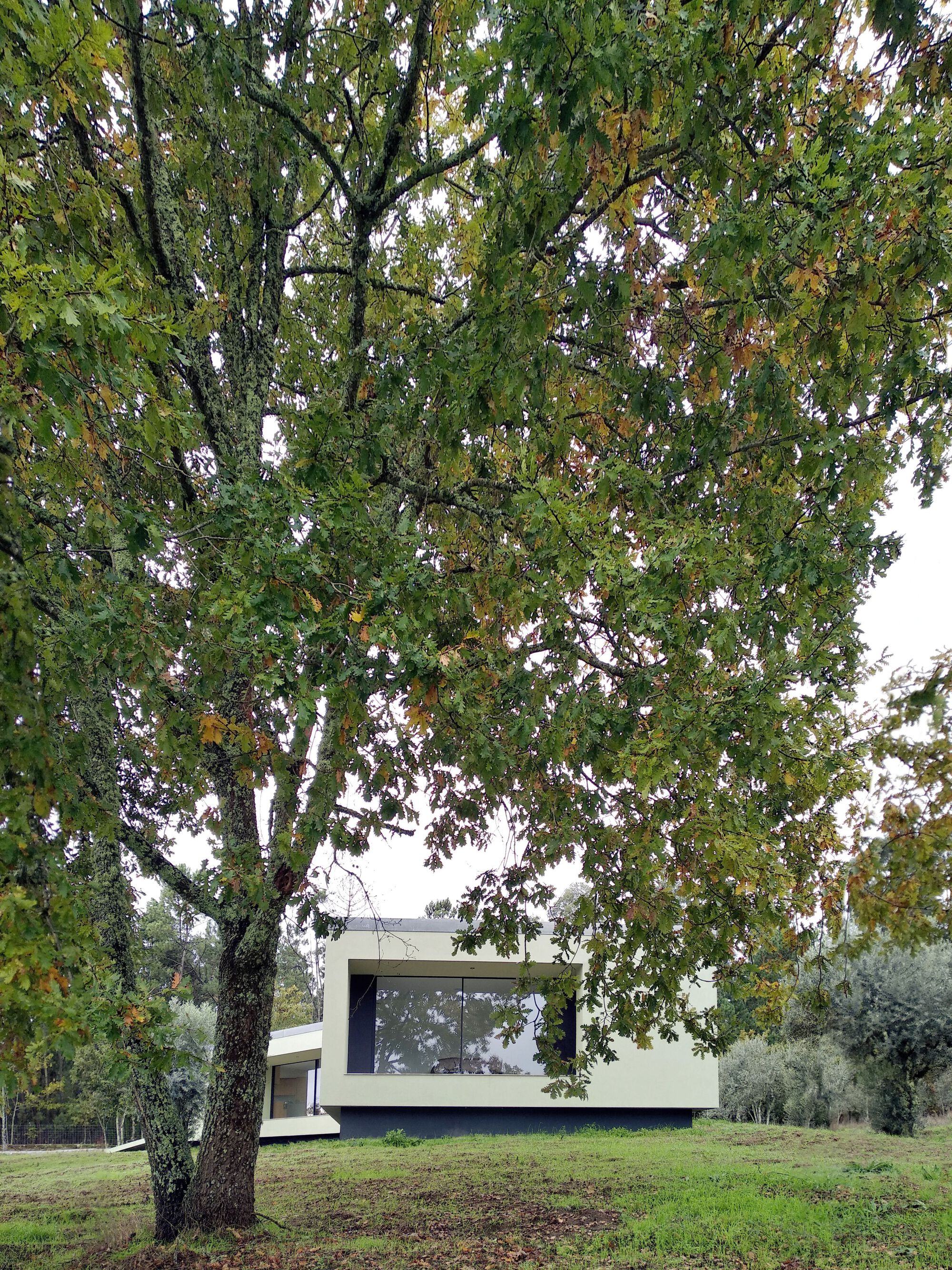

This project aimed to integrate a home among the trees, resembling a body that twists and contorts.

Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos

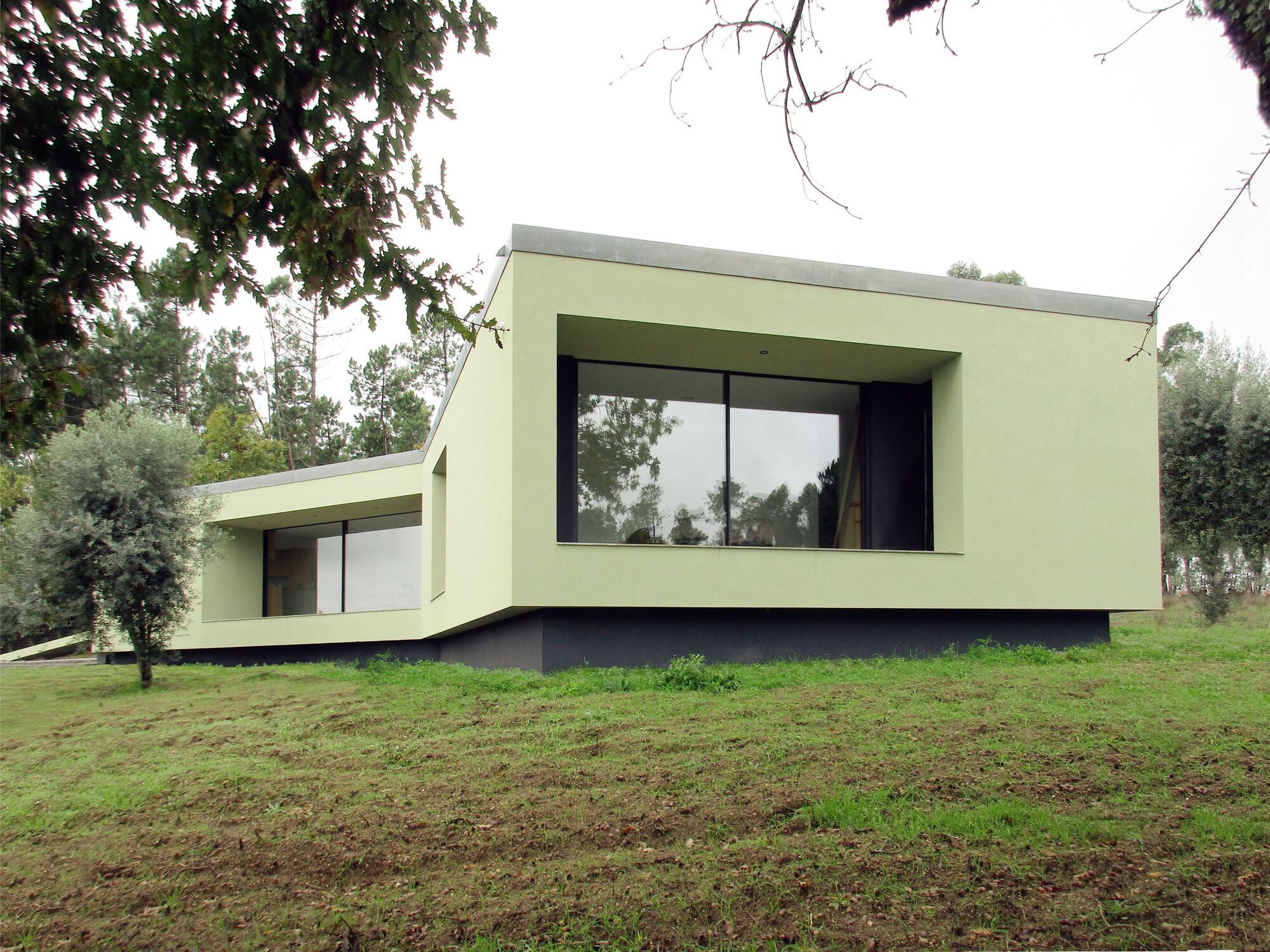

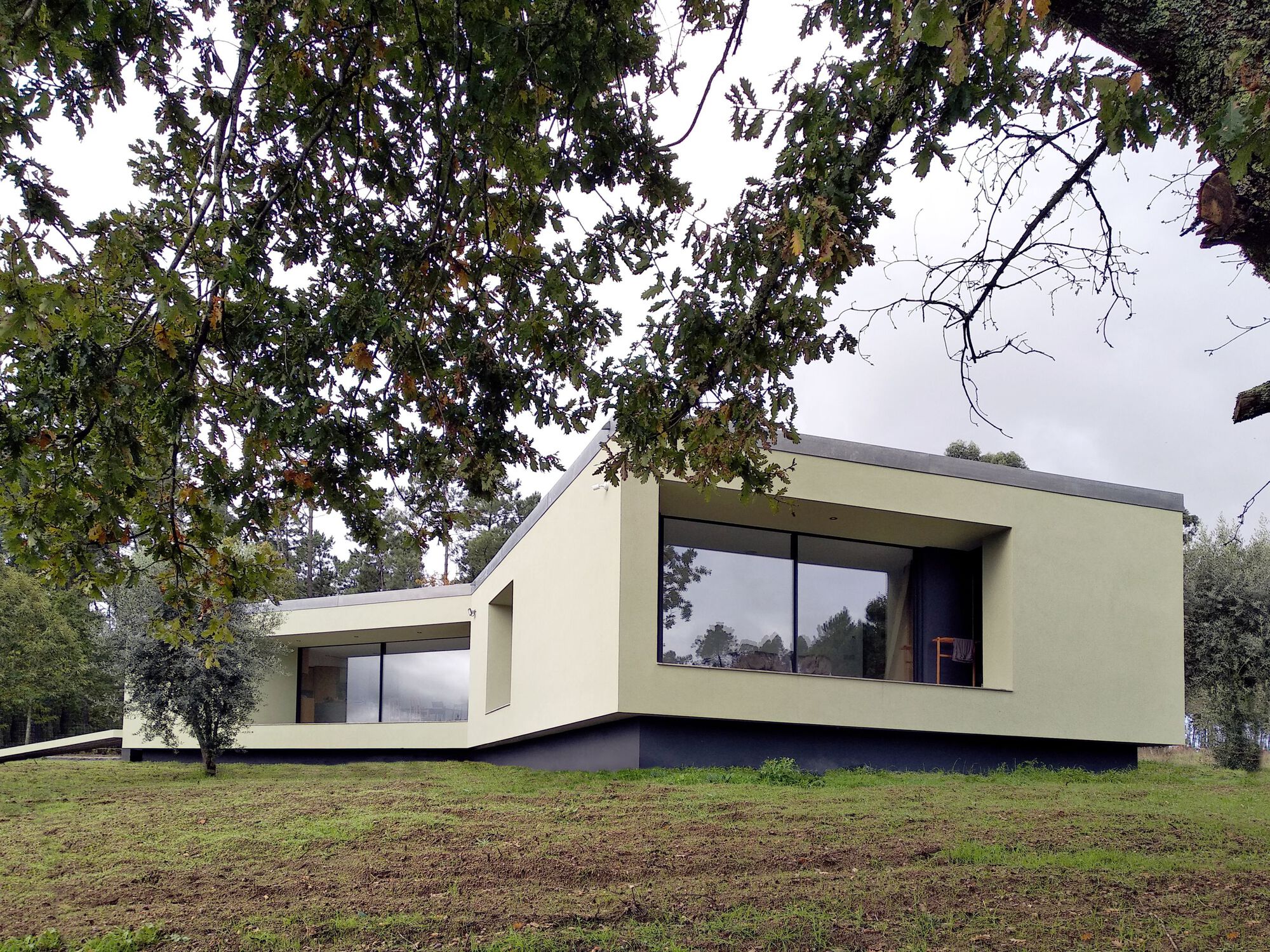

The resulting gaps from these twists accommodate windows and create shadows, facilitating natural cooling of the house.

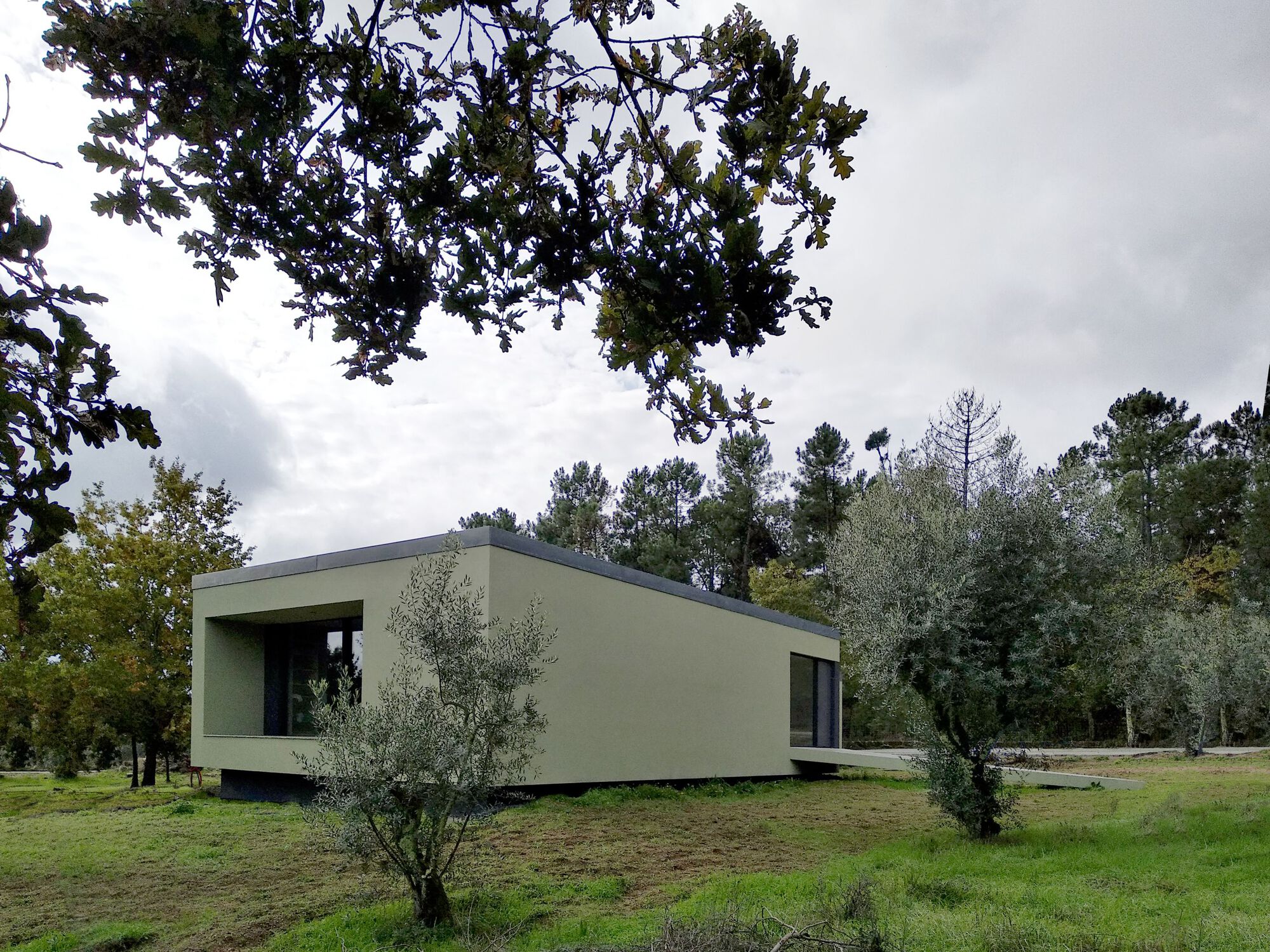

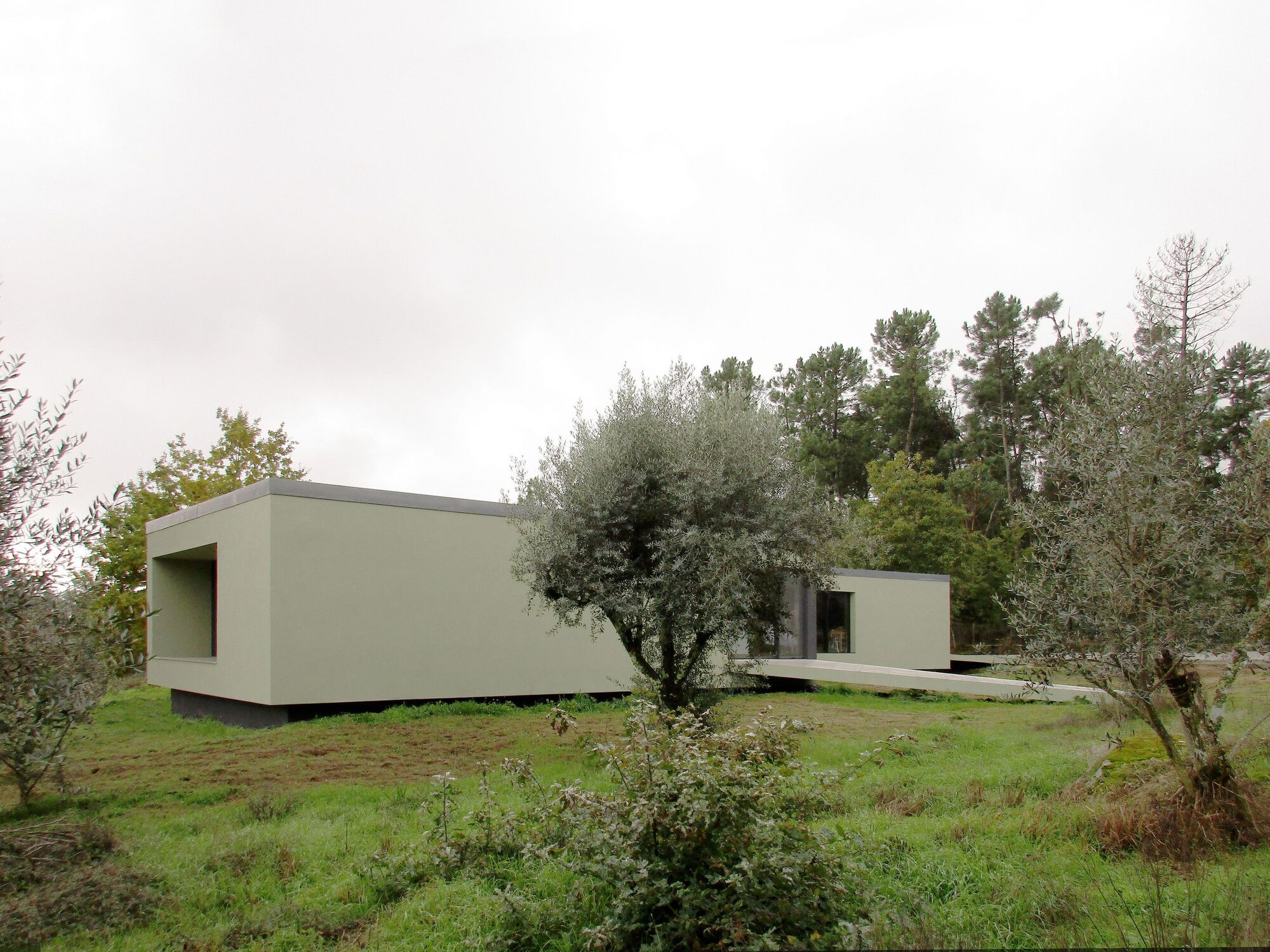

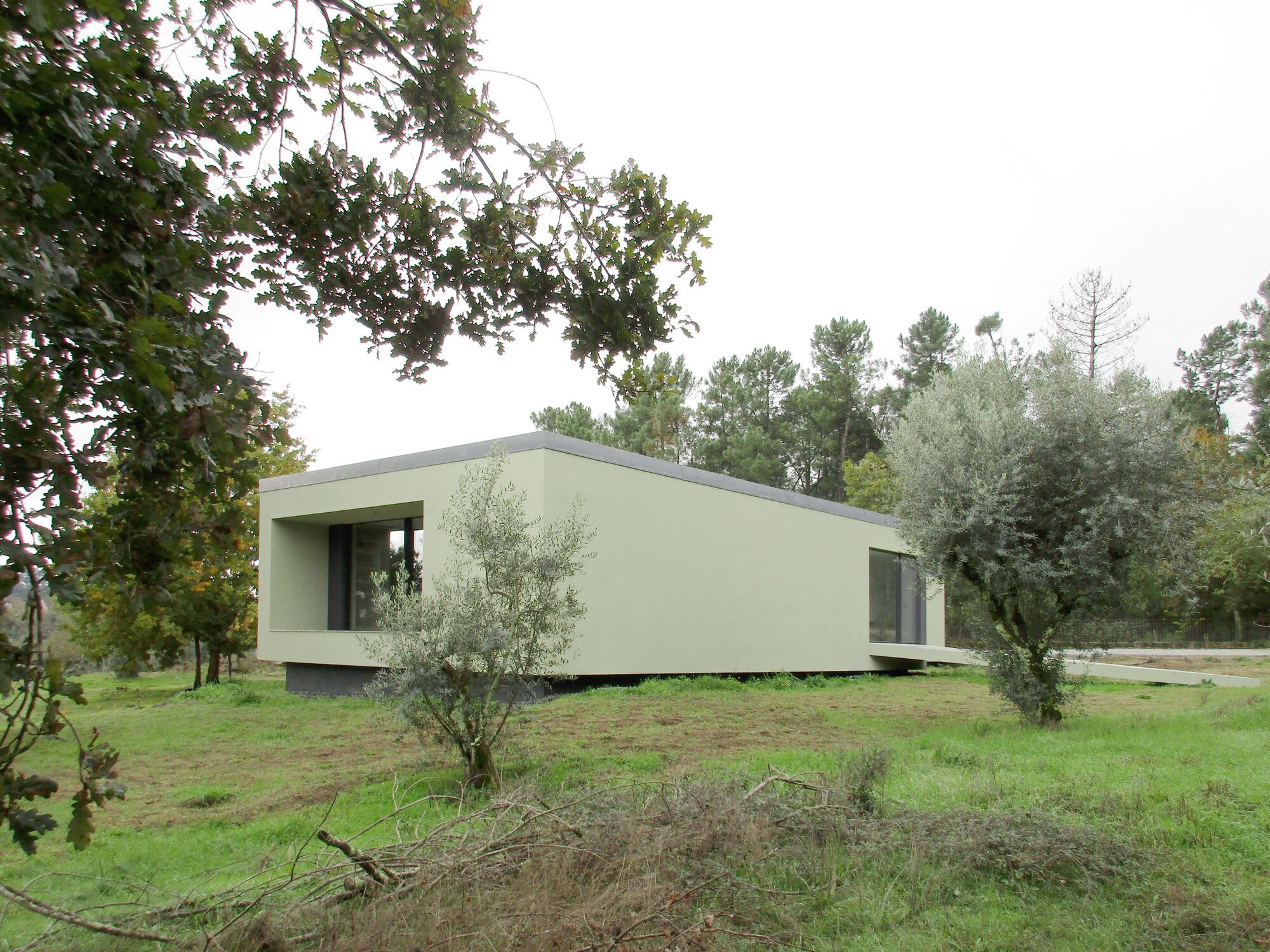

Elevated from the ground as a flat structure, the house benefits from enhanced thermal interaction with the earth and allows for full-height ventilation and beautiful views.

Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos

Engineering and architecture combine with a unified goal: living harmoniously within nature.

THE CLIENT

The client asked for a house following a NZEB (Nearly zero energy building) guidelines. He also asked for no air conditioning equipment or mechanical ventilation.

Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos

At the same time, the client also demanded that no insects or small animals could enter the house while windows were open.

In parallel he wanted the house in the middle of the natural environment. Finally, he wanted to have the minimum carbon footprint on the life of the building.

Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos

THE PROJECT

We provided a project that showcases a strategy that produces more shadows on a house and more natural ventilation.

Only passive architecture systems were used. We believe that passive energy strategies are founded on the architects' pencil. We produced a form that protects the interior from solar radiation without any kind of high tech or domotics.

Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos

THE PASSIVE HOUSE SYSTEM.

The climate in Portugal is heating. We need more shadow on the buildings.

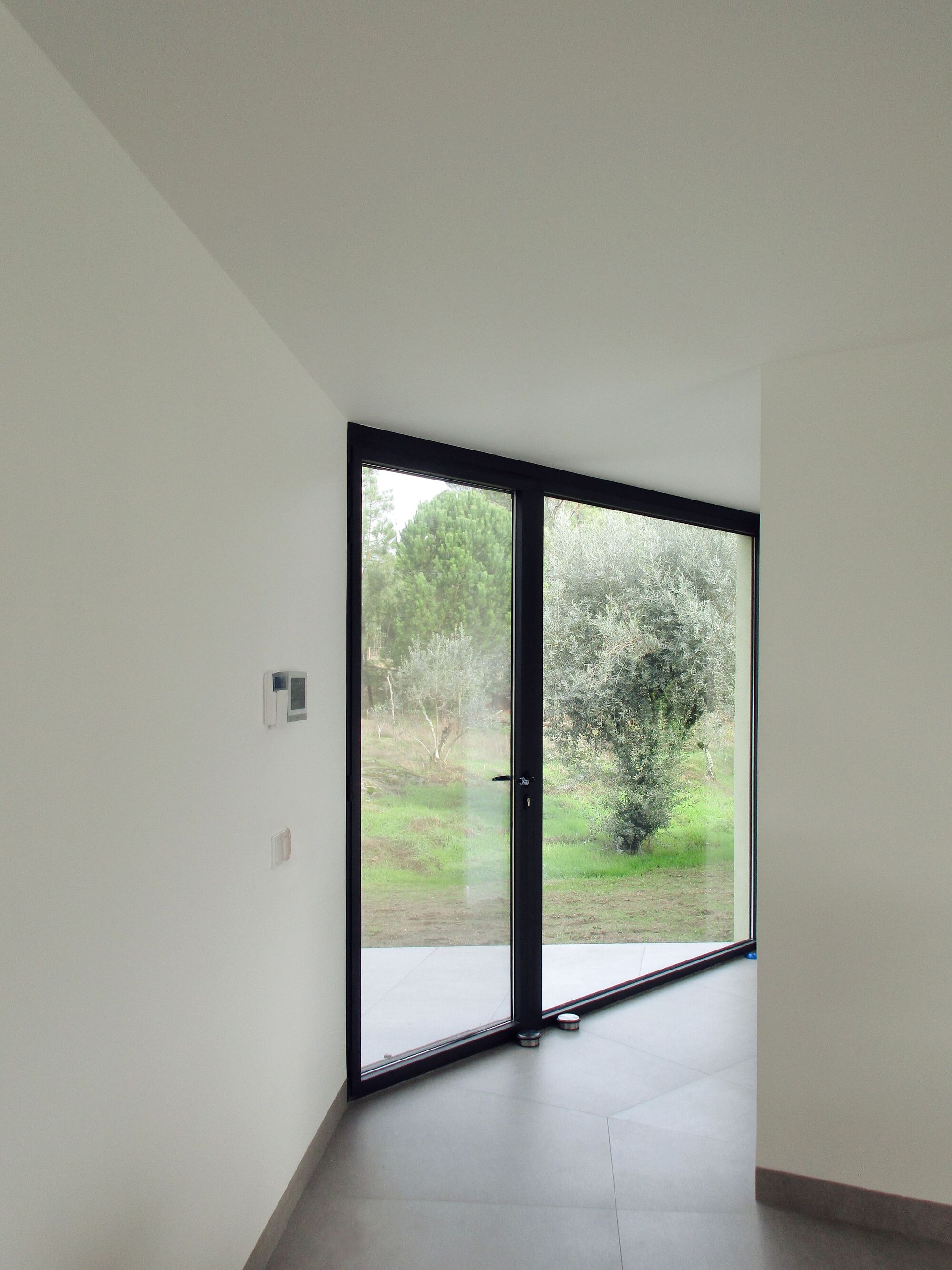

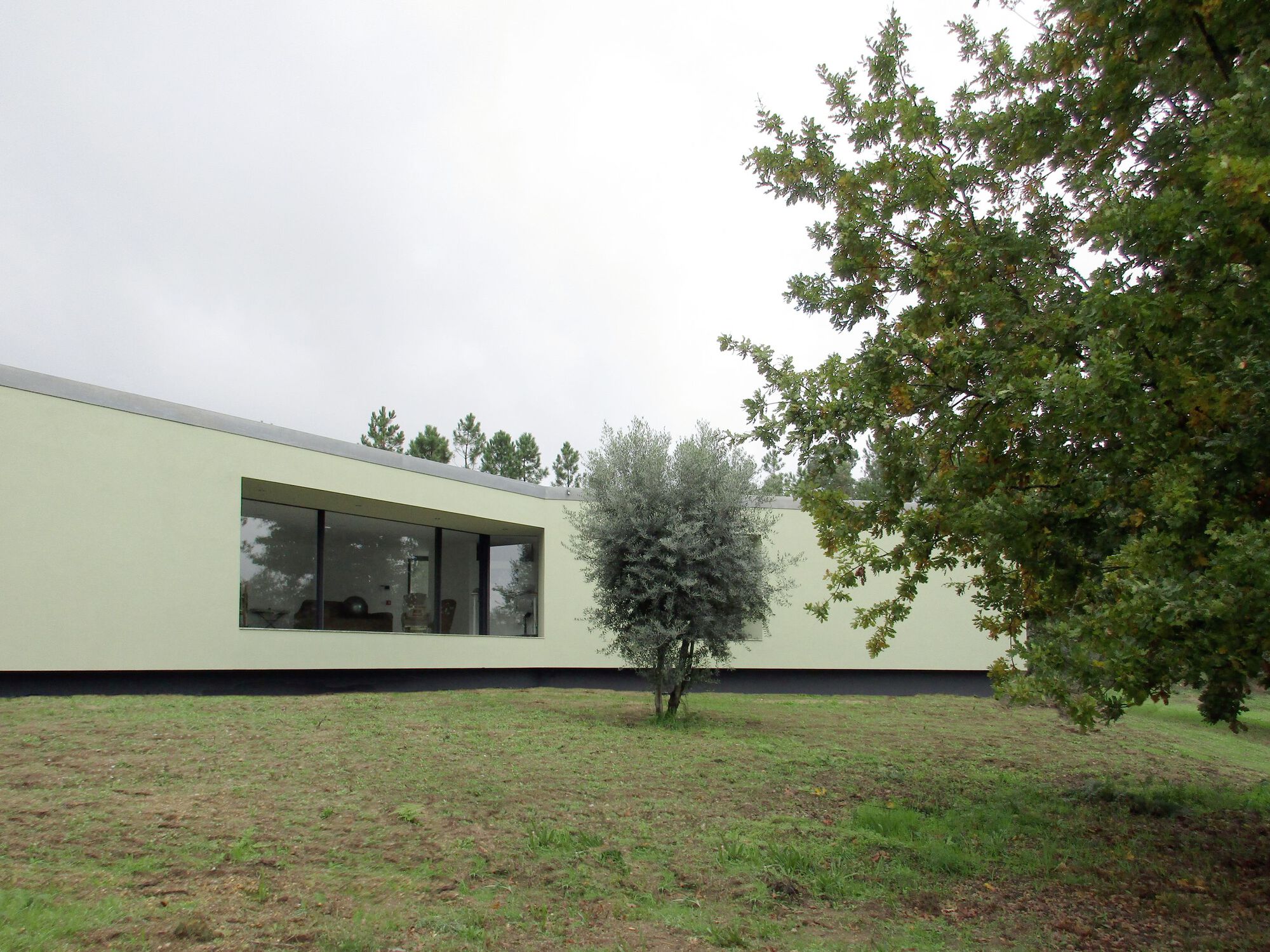

We don't need more high tech stuff that consumes more energy. We placed the windows on the right place to be shadowed.

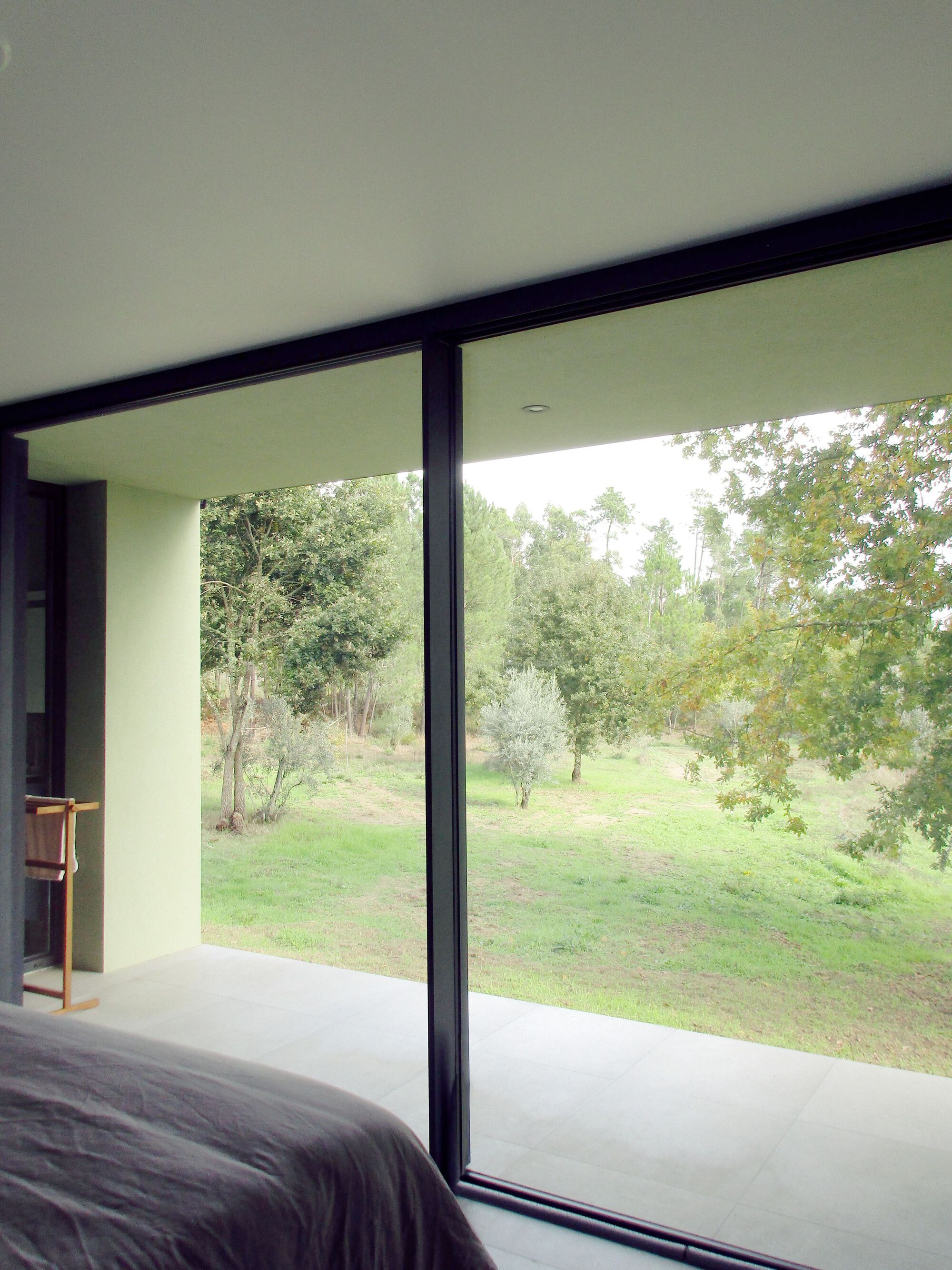

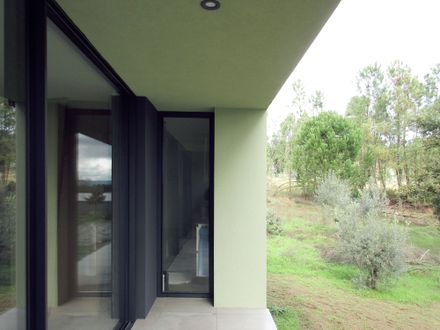

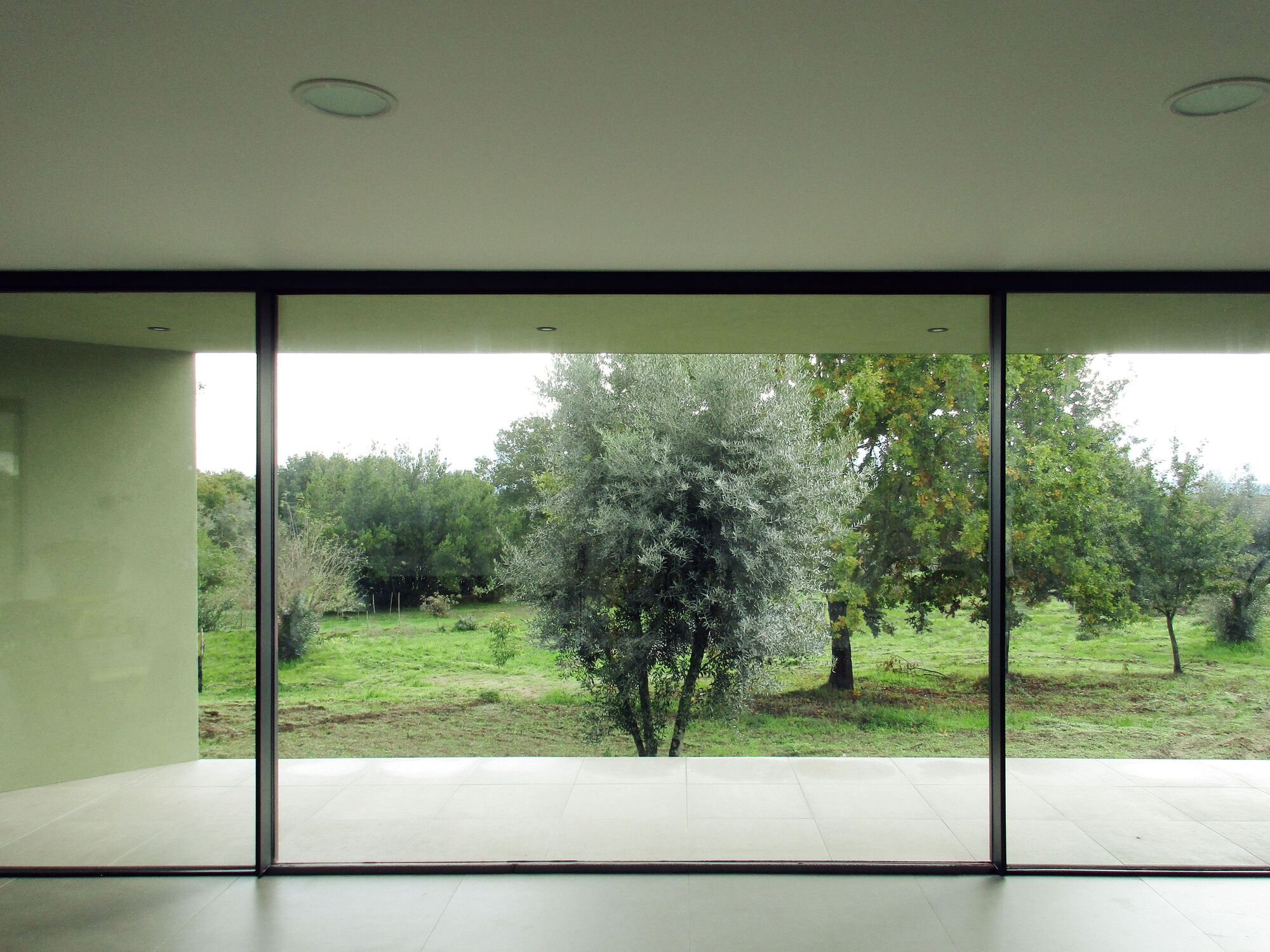

Since the windows are full height and across different facades, ventilation occurs naturally. On Summer we have free air conditioning from the air that enters on the shadowed windows.

Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos

On winter, the windows are closed, the sun beams are lower and we can heat the house naturally.

All this was made with a collaboration between engineering and architecture. Beauty must be therefore efficient and sustainable.

A NEW PATH TOWARDS SUSTAINABILITY

We have provided a new strategy to passive systems: the facade form that produces shadows and that allow for natural ventilation.

Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos

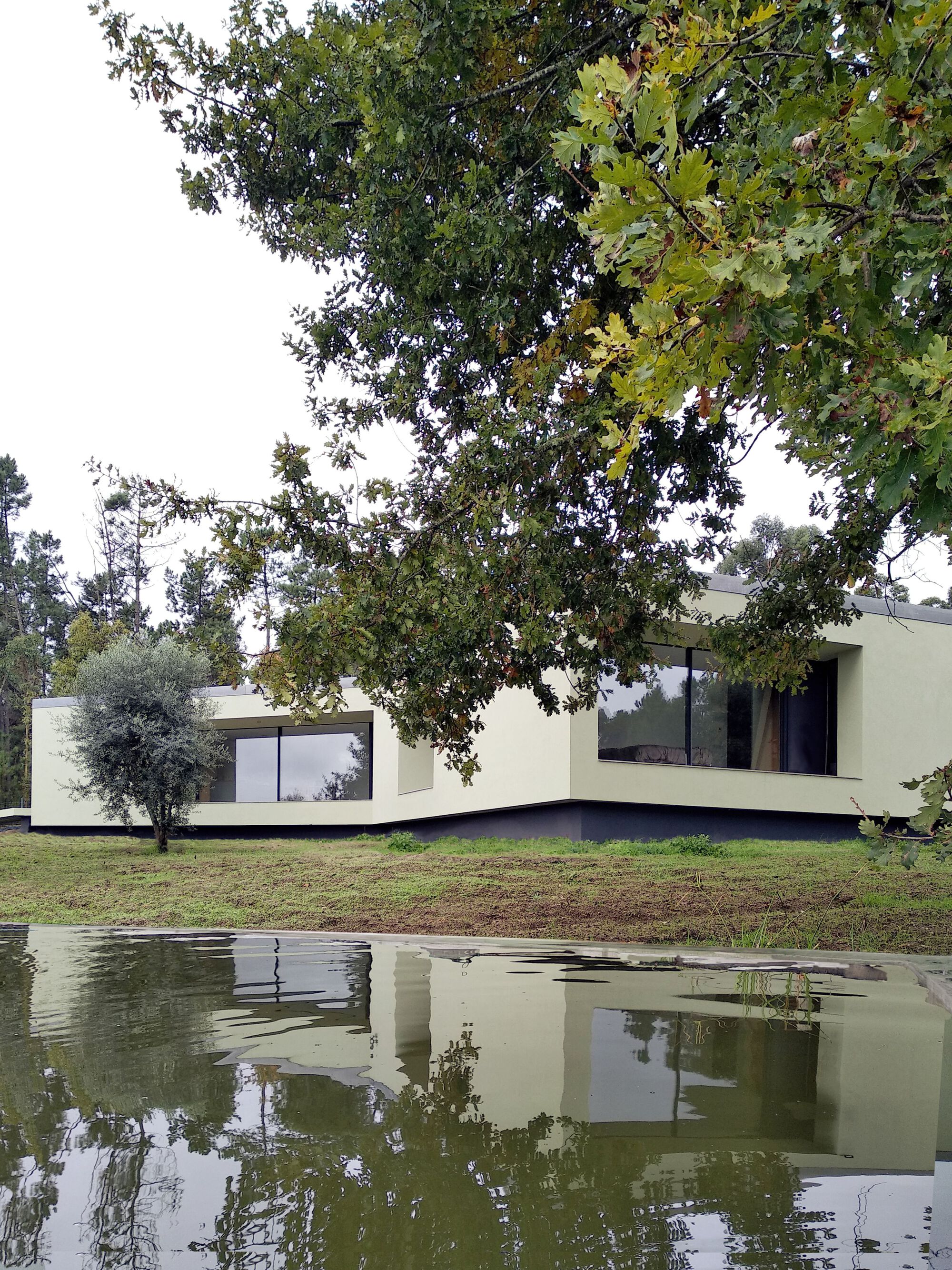

In parallel we have used strategies that are already used in other projects but made total sense here: cork insulation on the ETICS system ( because it's also perfect in case of summer forest fires so problematic in Portugal), rain water reuse ( water is becoming more scarce in Portugal and that's why you see photos of a big pool on the outside).

We also have solar panels that reduce the power use from the grid. In general, we used natural resources with extreme caution.

Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos

The power consumption of the house is 12 kWh/m2/year. The whole-life carbon assessment is 1,140 kgCO2 e/m2 . This strategy proves that this path is a great new option for a sustainable development.


Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos
Bioclimatic House
© Ricardo Ramos


Bioclimatic House

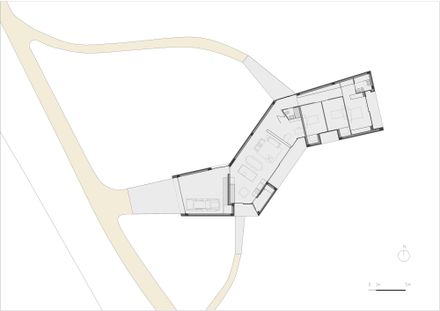

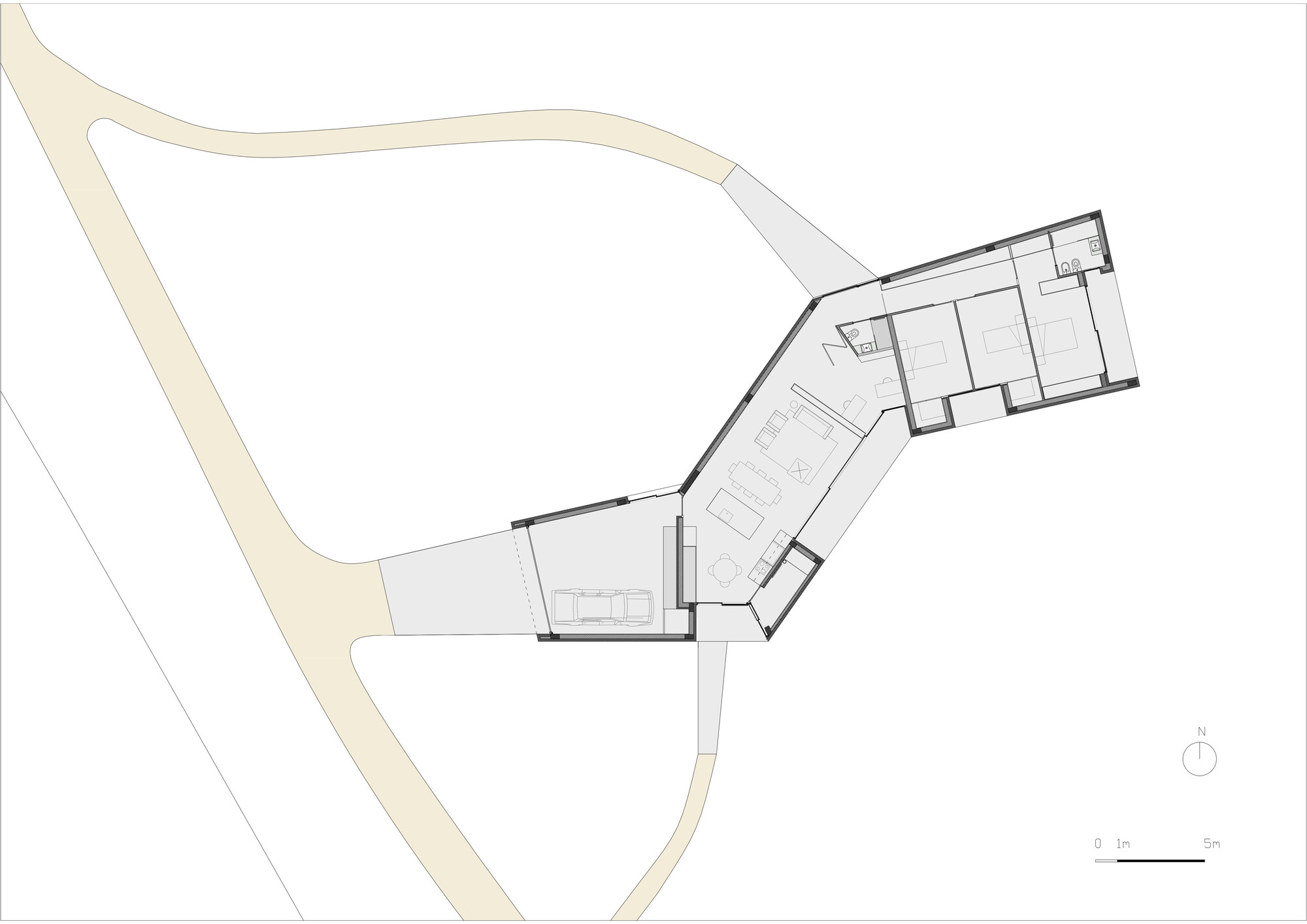

Planta - Térreo
Bioclimatic House

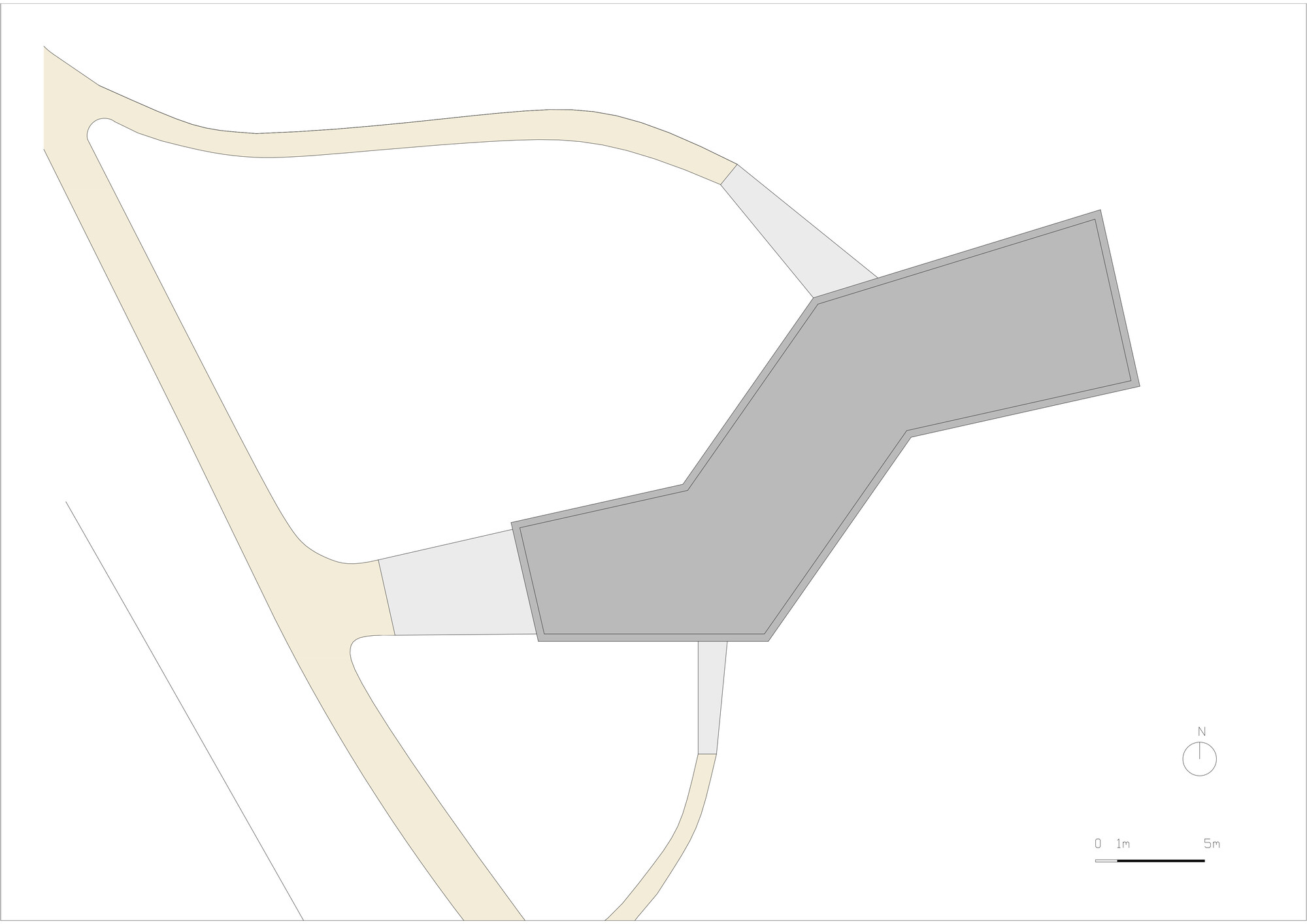

Planta - Cobertura
Bioclimatic House

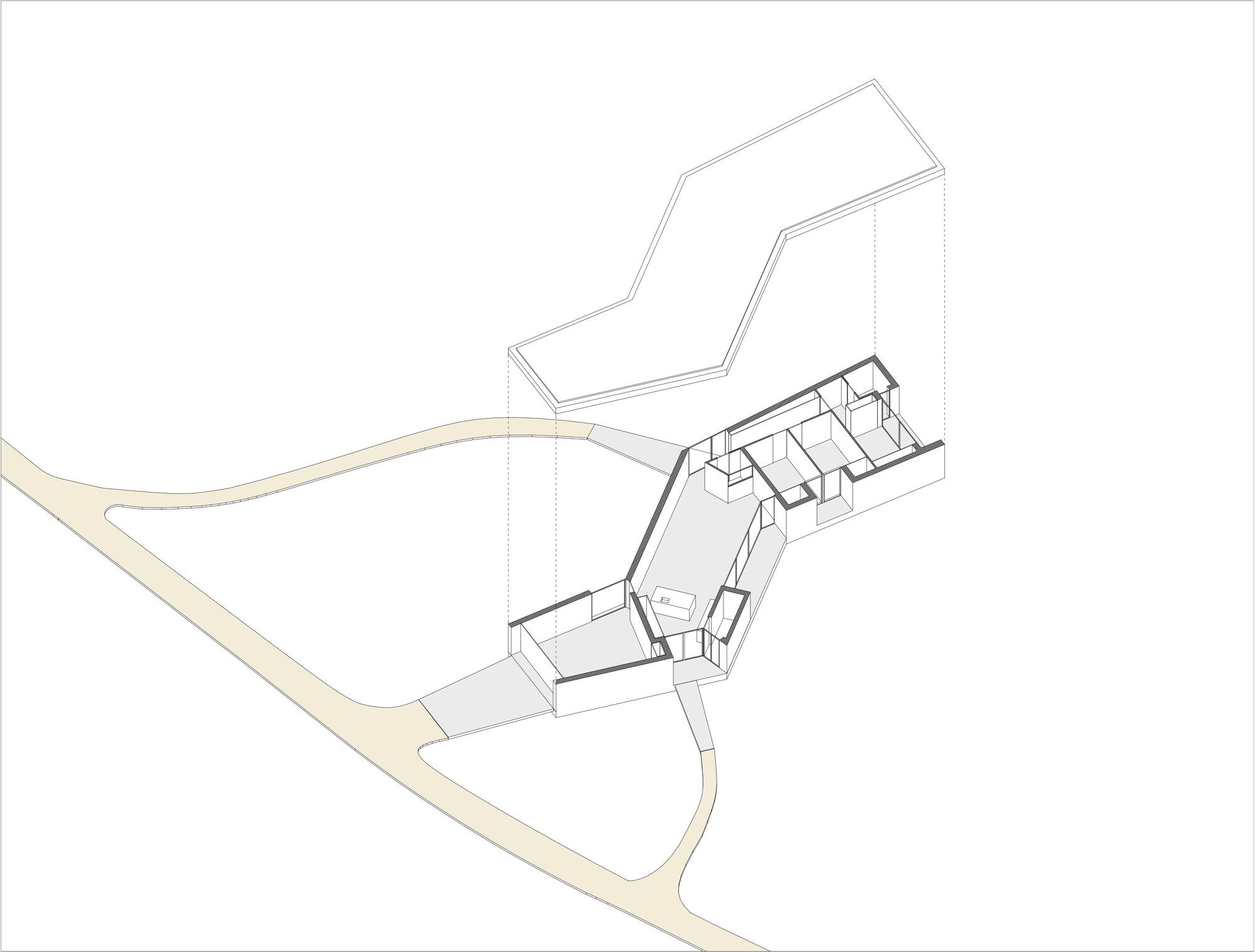

Axonometric
Bioclimatic House

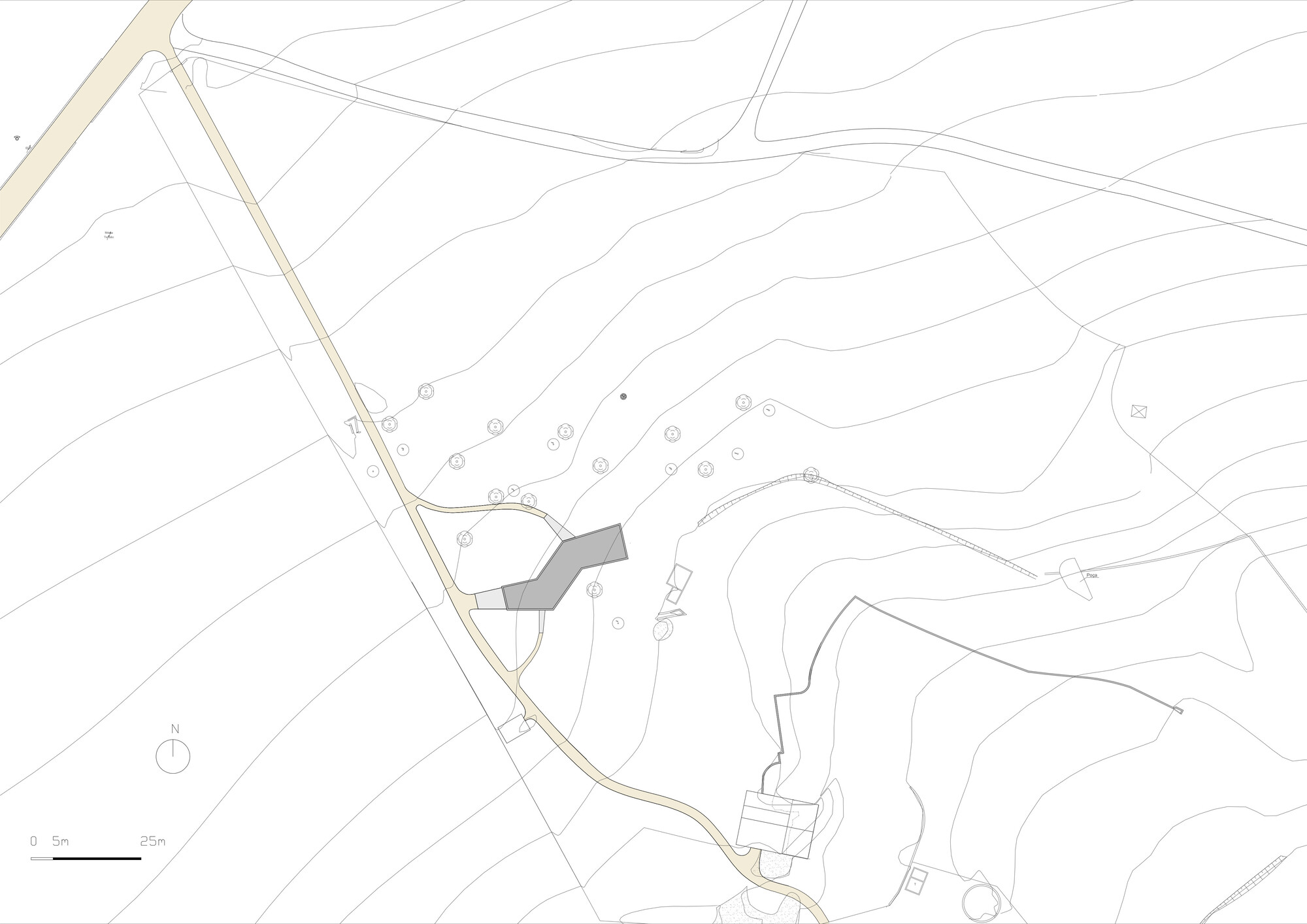

Site Plan

Bioclimatic House

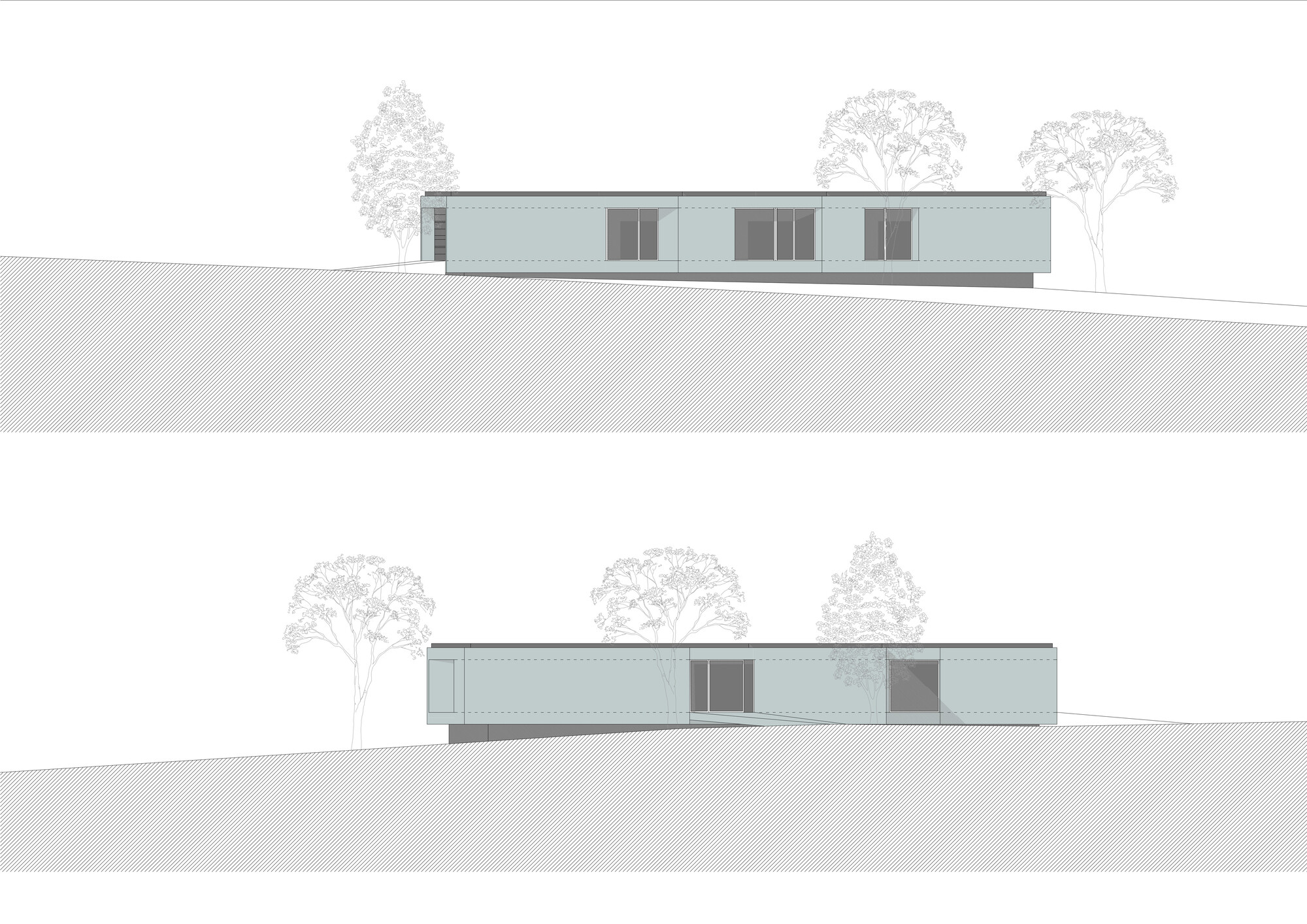

Elevation
Bioclimatic House

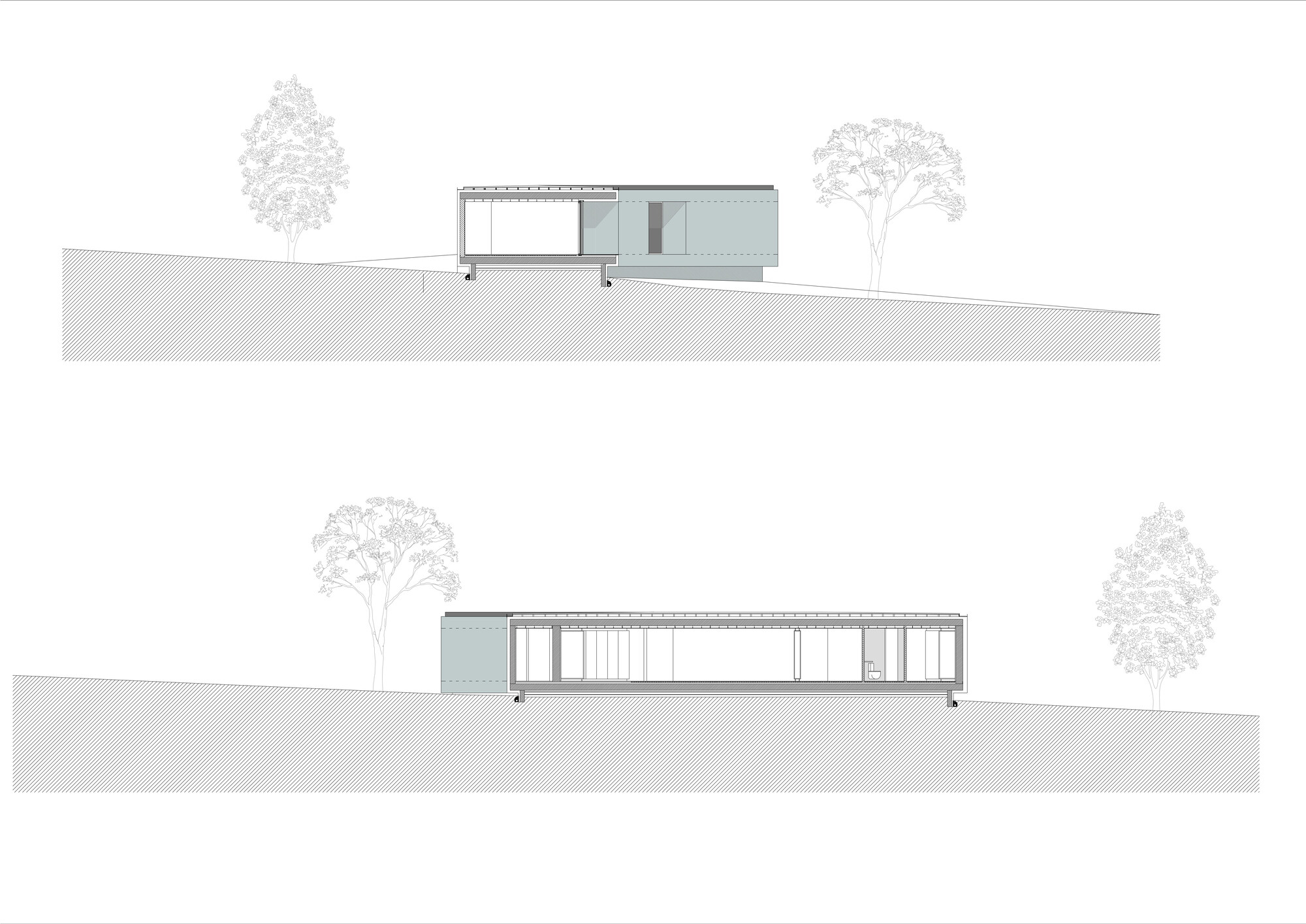

Section
Bioclimatic House

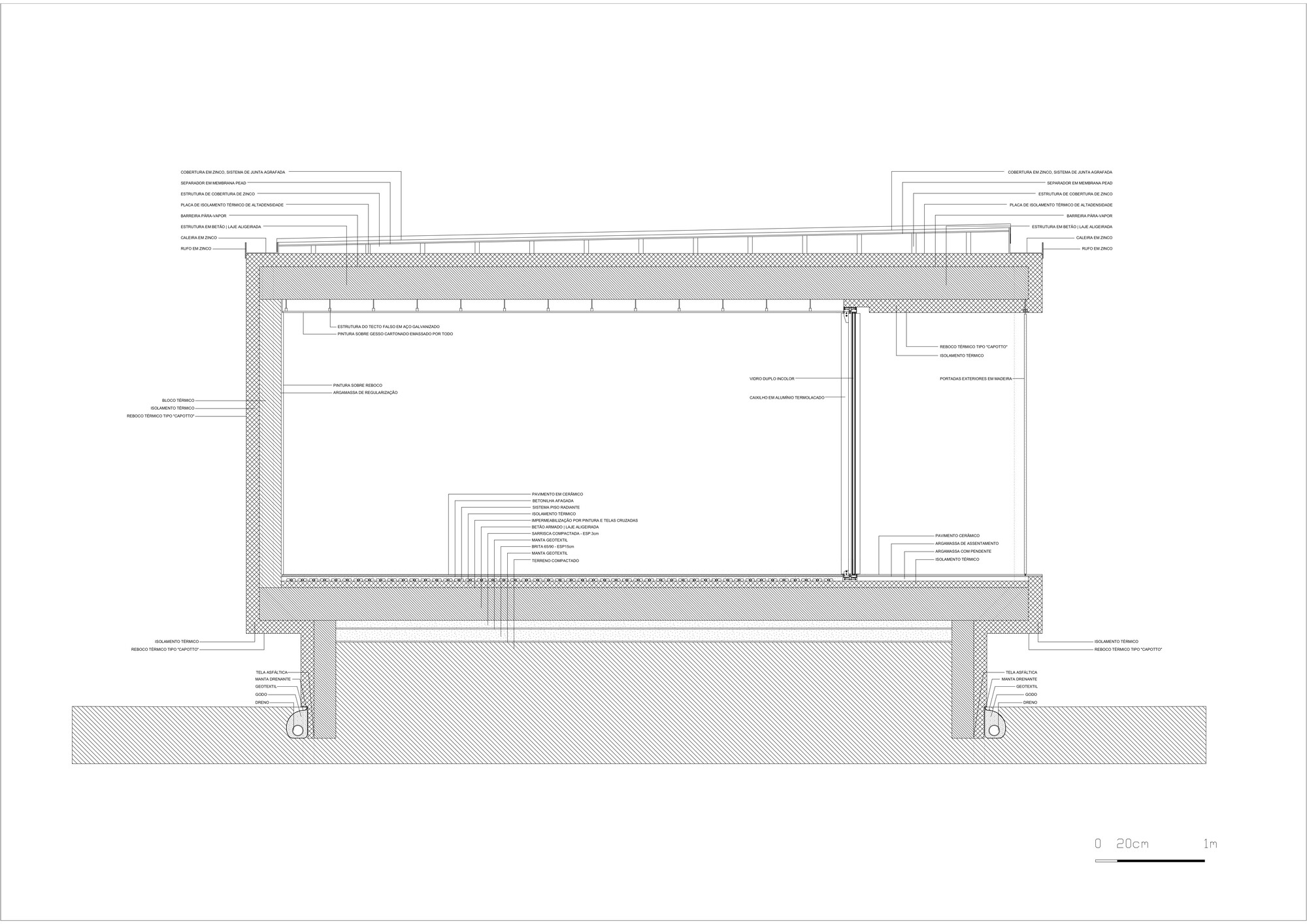

Detail
