Lets Fly Biofactory

grua

ARCHITECTS
Grua

STRUCTURAL CONSULTANT
Marcio Pompei

A LEAD ARCHITECTS
Pedro Varella, Caio Calafate, André Cavendish, Barbara Amorim, Igor Machado

AIR CONDITIONING
Edson Tito

LIGHTING CONSULTANT
Diana Joels

INSTALLATION PROJECTS
Wagner Santa Cruz, Greyce Santa Cruz

PROJECT MANAGEMENT
Uchino Arquitetura

AREA
400 M²

YEAR
2023

LOCATION
Brazil

CATEGORY
Factory

Text description provided by architect.

The architectural project for the pioneering industry in the production of protein based on black soldier flies (bsf) was guided by the strategy of producing two autonomous construction systems.

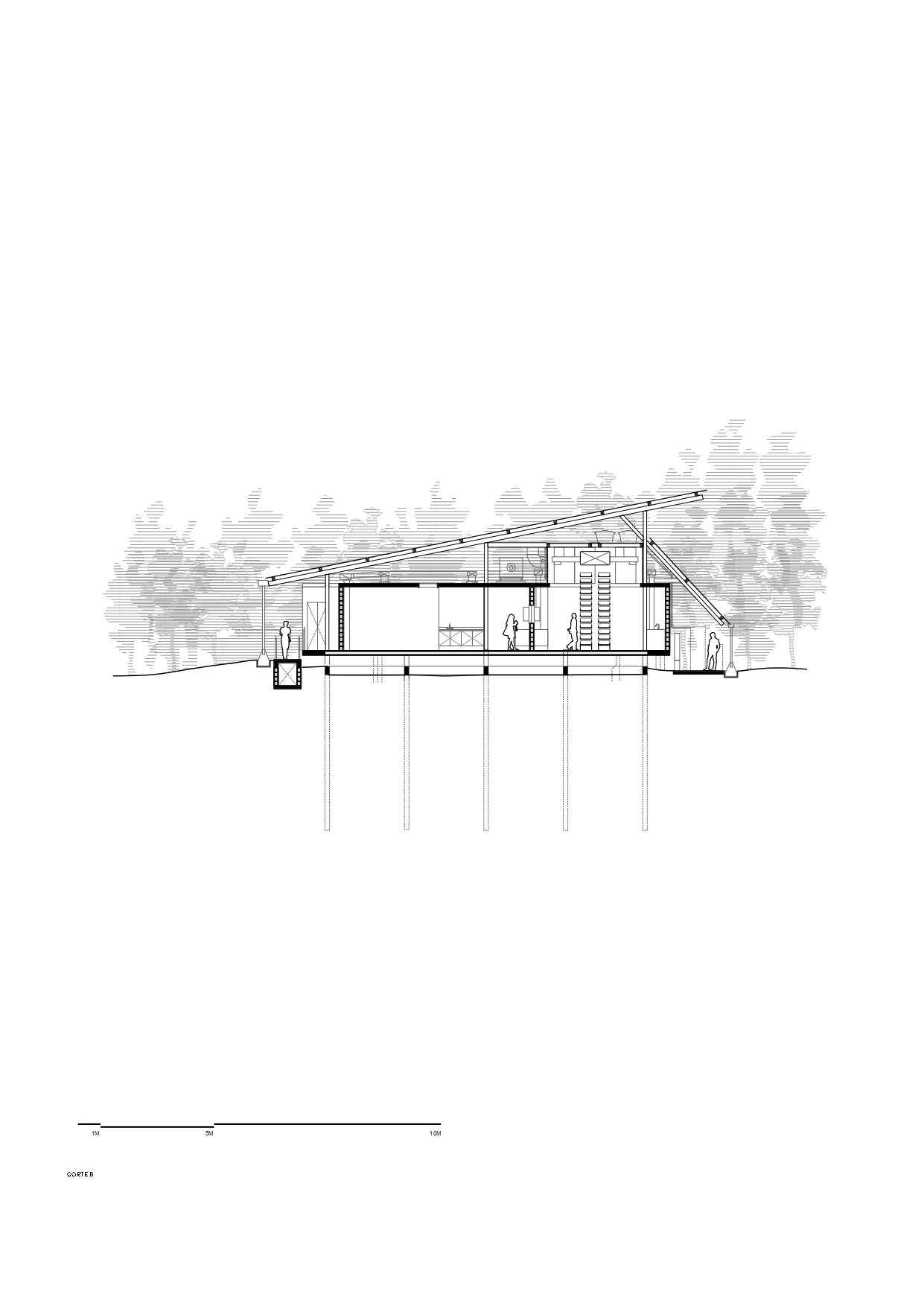

The first defines an elevated platform of 400m2, where a large roof is installed, supported by a metal structure organized into structural modules of 4x6m, forming a single slope of 23° to the north, ideal for capturing solar energy.

The elevation of the roof also allows for the creation of double-height spaces for the installation of shelves necessary for the production of the biofactory.

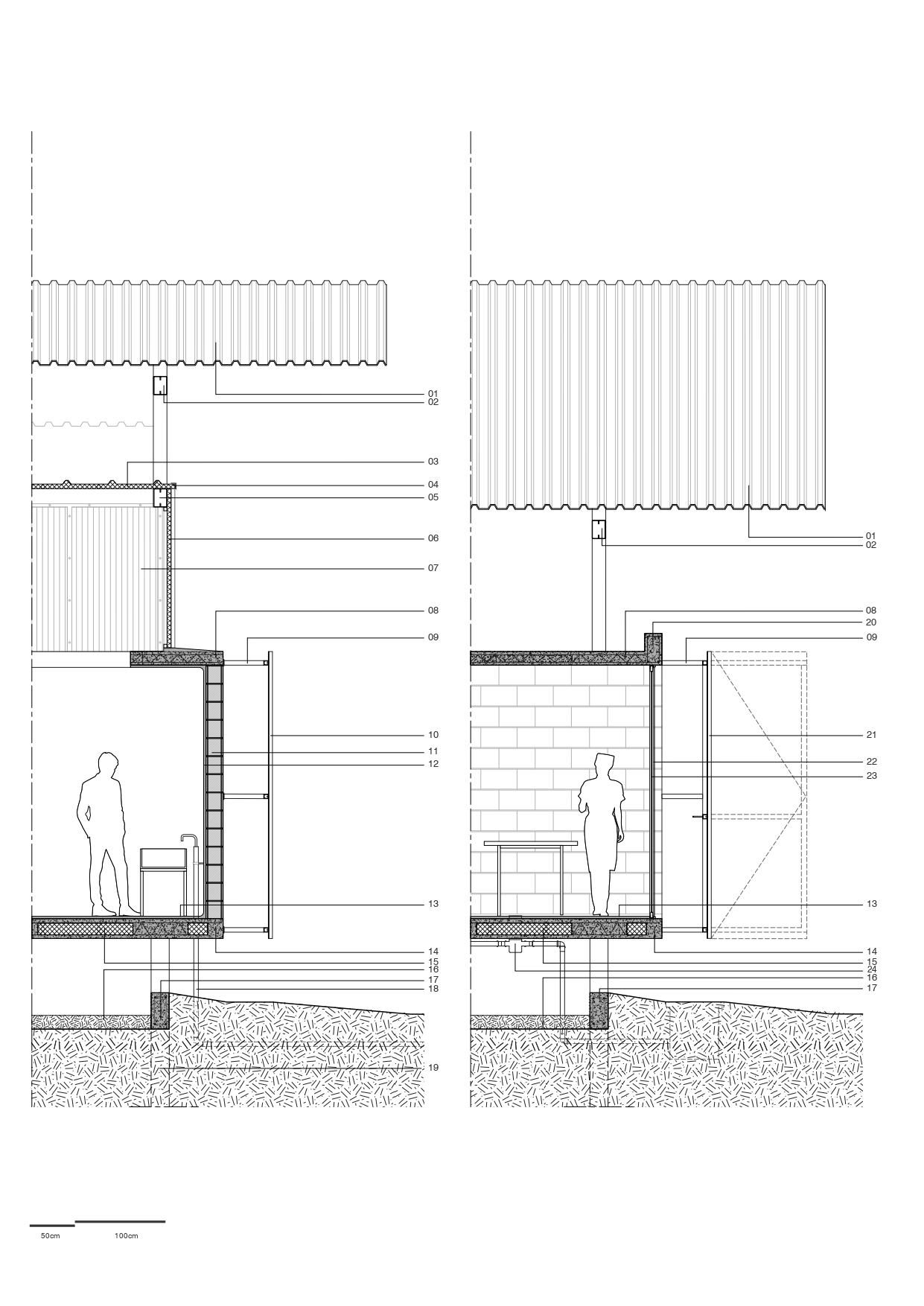

The second system consists of external and internal enclosures made of concrete blocks and self-supporting precast slabs, which allow for adaptation to the specific needs of each production area over time.
