Biome Environmental Solutions

Shruthi and Sunith's House

Shruthi and Sunith's House

Biome Environmental Solutions

Shruthi and Sunith's House
© Suryan // Dang

LEAD ARCHITECTS
Sharath Nayak, Siddharath Achaya

TECHNICAL TEAM
Mahendar.r

ENGINEERING & CONSULTING > STRUCTURAL
Studio Rkc

GENERAL CONSTRUCTING
Sia Constructions

LANDSCAPE ARCHITECTURE
Studio Confluence

INTERIOR DESIGN
Essajees Atelier

AREA
4550 Ft²

YEAR
2022

LOCATION
Hyderabad, India

CATEGORY
Houses, Renovation

Shruthi and Sunith's House
© Suryan // Dang

The site is located in a residential area of central Hyderabad, surrounded by other houses.

Two existing structures - a two-story house and a small clinic, both built in the 80s - were separated by a large garden, shaded by old mango trees.

The brief was to build a home for the client's family that would reflect their new space requirements and contemporary taste.

In addition, a small office + production space and staff quarters were to be accommodated.

Shruthi and Sunith's House
© Suryan // Dang
Shruthi and Sunith's House
© Suryan // Dang
Shruthi and Sunith's House
© Suryan // Dang

As the original buildings were frame structures in good condition, it was agreed to renovate and extend the existing house, rather than demolish it completely.

This would be both economically and ecologically beneficial, minimizing the generation of construction waste.

While the functional arrangement of the ground and first floors were largely retained, the excess circulation areas were trimmed and openings were enlarged, to add new rooms or enhance existing spaces.

Shruthi and Sunith's House
© Suryan // Dang
Shruthi and Sunith's House
© Suryan // Dang

A small hall on the first floor was demolished to create a double-height space for the dining on the lower level.

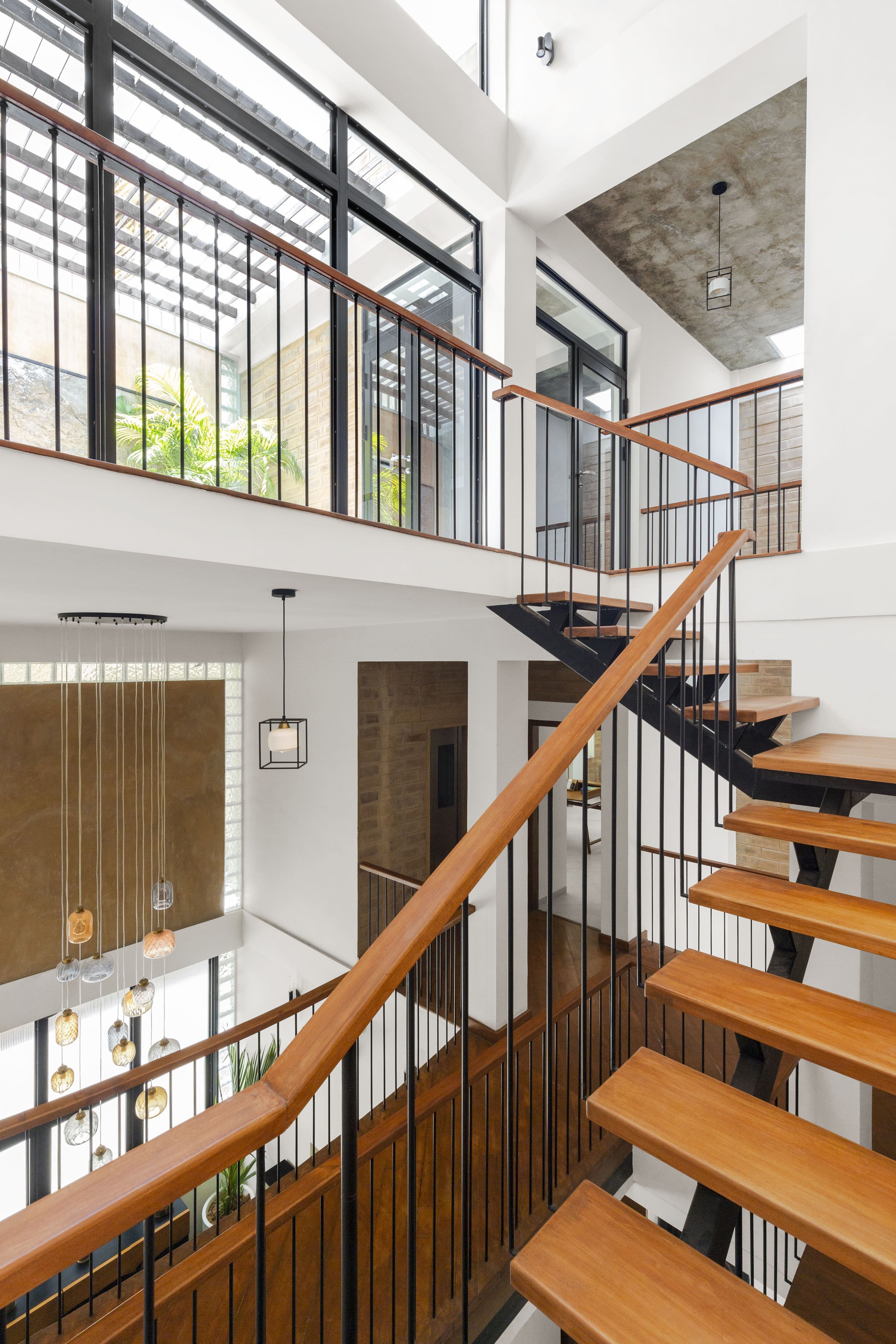

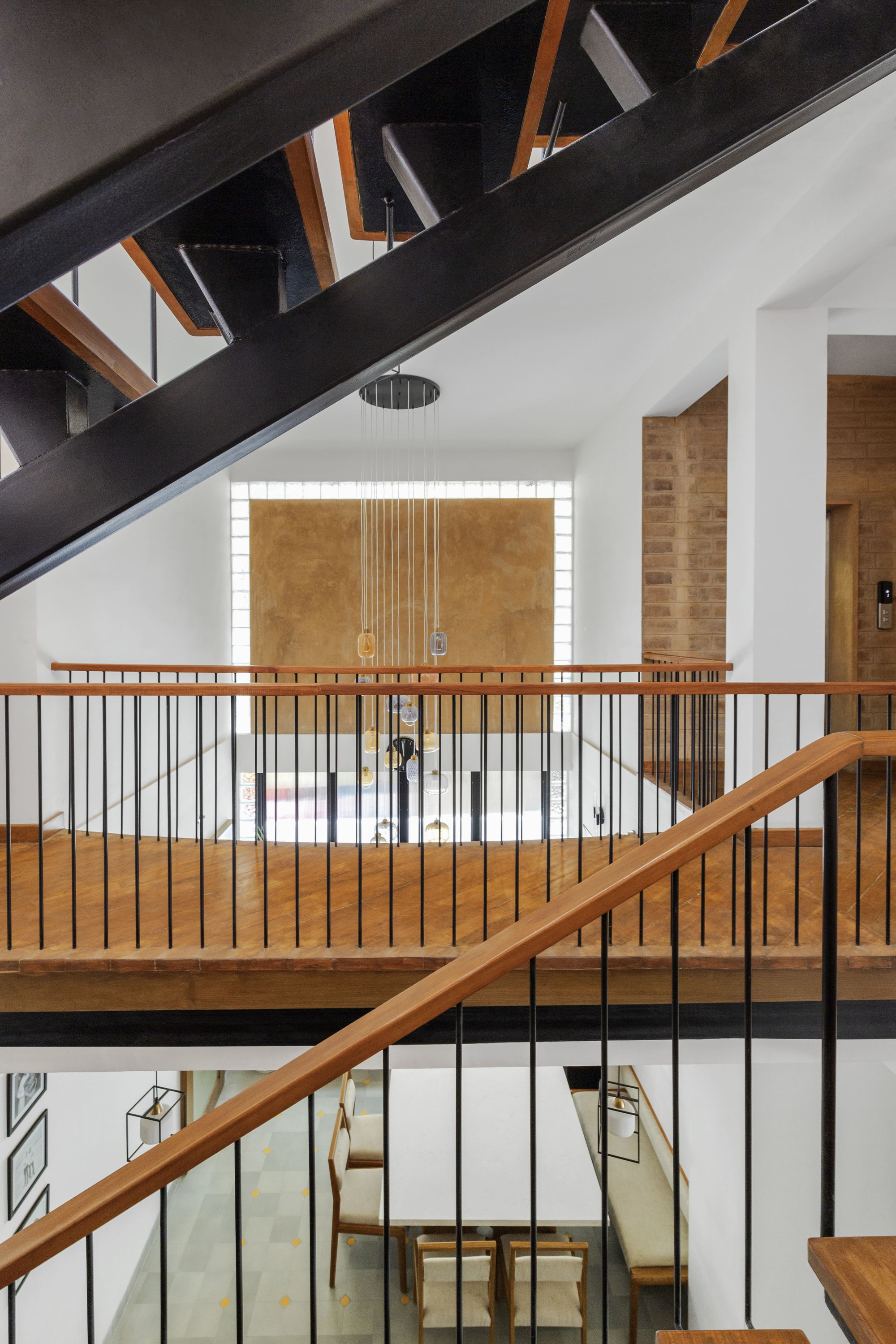

A larger semi-circular concrete staircase made way for more compact stairs in metal and wood, which connect all floors through an open triple-height volume while making space for additional toilets. An elevator shaft was carved out of the existing foyer.

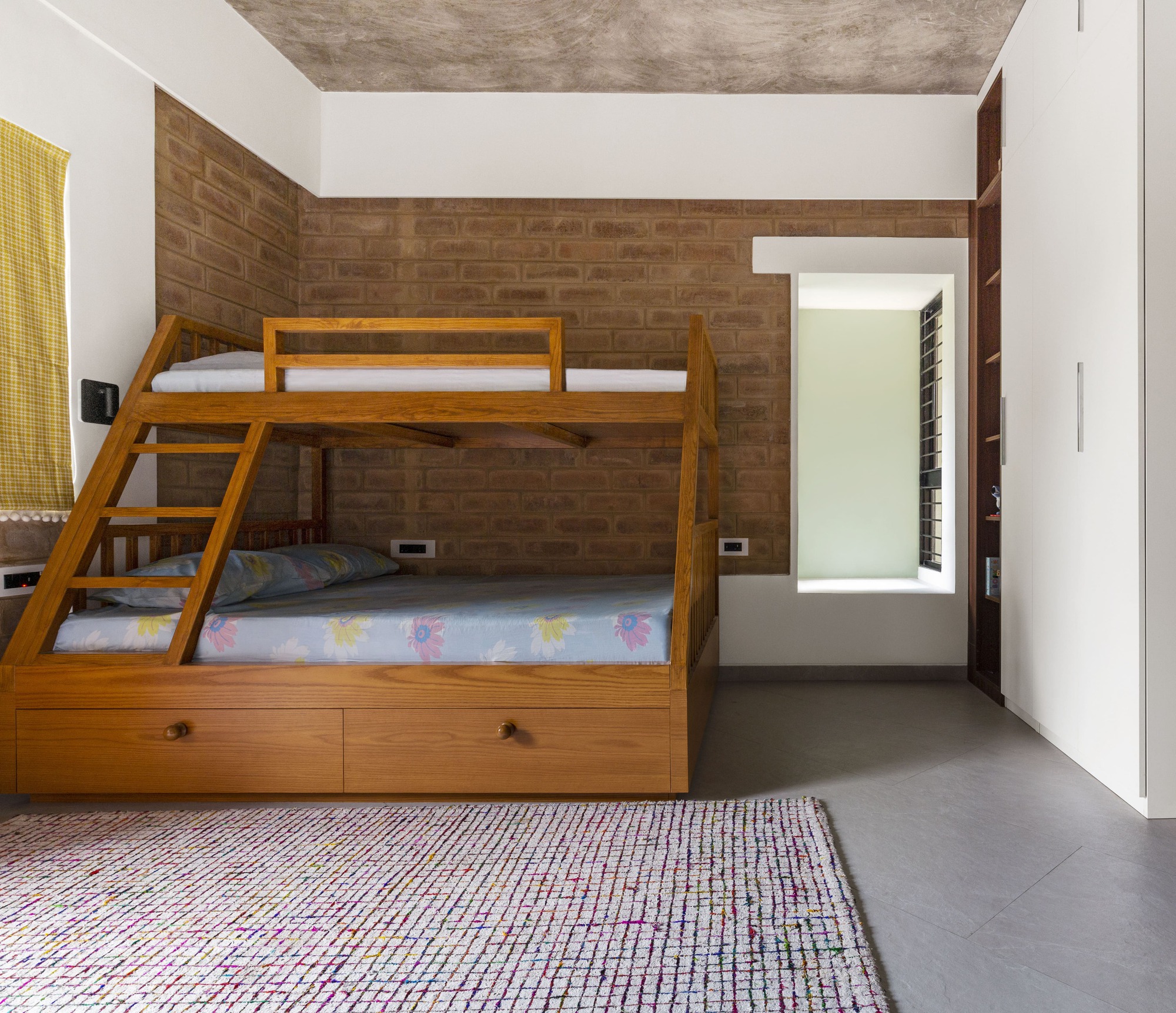

The second floor was an almost completely new addition, meeting the current needs of the clients - a children's bedroom, a home theatre-cum-den with a pantry for entertaining guests, and a yoga space - apart from the existing master bedroom, which was remodeled and expanded.

The double and triple-height spaces, as well as the open-to-sky yoga space, are screened from neighboring buildings, using fluted glass windows or glass bricks for the sides, and a pergola salvaged from the original house for the top.

Shruthi and Sunith's House
© Suryan // Dang
Shruthi and Sunith's House
© Suryan // Dang

The building primarily opens outward on the east towards the garden, where the only additions to the lower floors were made in the form of cantilevered balconies and terraces.

New walls were built in compressed stabilized earth blocks, with external walls constructed in alternating courses of 9" and 6" masonry - a creative resolution of material shortages encountered during the COVID-19 pandemic.

The resulting striated pattern is both aesthetically novel and thermally beneficial, self-shading the facade from solar radiation.

Shruthi and Sunith's House
© Suryan // Dang
Shruthi and Sunith's House
© Suryan // Dang

The junction between old and new was emphasized, with the white plastered walls on the first floor separated from the exposed earth block walls above by a jigsaw pattern strip of ribbon windows.

This strip was also continued in the louvered screen concealing the toilet windows and plumbing lines on the south, with the angle of louvers modified to allow more light where windows were present behind.

Shruthi and Sunith's House
© Suryan // Dang
Shruthi and Sunith's House
© Suryan // Dang

The clinic building was renovated to house the production space and staff quarters, with the addition of a parking space covered by a weatherproof clay tile paneled roof.

The old-style moldings were removed, to continue the natural clean aesthetic of the main house, and internal divisions were made with drywall, to minimize changes to the existing marble flooring.

Shruthi and Sunith's House
© Suryan // Dang
Shruthi and Sunith's House
© Suryan // Dang

Beyond material choices and improvement of natural light and ventilation, it was ensured that the new buildings were more water-secure.

All rainwater falling on the terraces is harvested, and greywater from the bath and wash areas is recycled through a reed bed system on the terrace, for reuse in flushing and gardening.

The old structure thus serves as the base for accommodating new requirements, without sacrificing the ecological concerns that are a critical part of urban modernity.

Shruthi and Sunith's House
© Suryan // Dang


Shruthi and Sunith's House
Site Plan
Shruthi and Sunith's House
Ground Floor Plan
Shruthi and Sunith's House

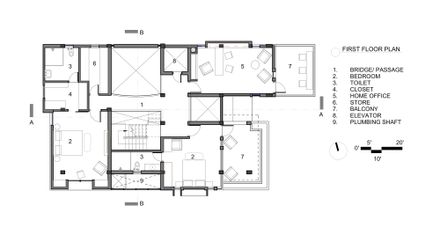

First Floor Plan
Shruthi and Sunith's House
Second Floor Plan
Shruthi and Sunith's House
Terrace Floor Plan
Shruthi and Sunith's House
Axonometric View


Shruthi and Sunith's House
South Elevation
Shruthi and Sunith's House
East Elevation

Shruthi and Sunith's House
Section
Shruthi and Sunith's House
Section
