King Abdullah Financial District Metro Station
King Abdullah Financial District Metro Station
Zaha Hadid Architects
DESIGN TEAM
Zaha Hadid, Patrik Schumacher
BUILDING SERVICES ENGINEER
Burohappold Engineering
ACOUSTIC CONSULTANT
Burohappold Engineering
SUSTAINABILITY CONSULTANT
Burohappold Engineering
PROJECT DIRECTOR
Filippo Innocenti
PROJECT PRINCIPAL
Gianluca Racana
PROJECT ARCHITECT
Gian Luca Barone
PROJECT ASSOCIATE
Fulvio Wirz
AUTOMATIC FARE COLLECTION
Indra
CONSTRUCTION SUPPORT LEADS
Marco Amoroso, Domenico Di Francesco
CONSTRUCTION SUPPORT SERVICES
Vincenzo Caputo, Abdel Halim Chehab, Marko Gligorov, Stefano Iacopini
PROJECT TEAM
Marco Amoroso, Vincenzo Caputo, Abdel Halim Chehab, Lee Cubeddu, Rawan Al-derjem, Domenico Di Francesco, David Fogliano, Manuele Gaioni, Marko Gligorov, Subharthi Guha, Alexandros Kallegias, Lisa Kinnerud, Alexandre Kuroda, Stefano Iacopini, Carolina López-blanco, Jamie Mann, Mohammadali Mirzaei, Arian Hakimi Nejad, David Wolthers, Nicola Mcconnell, Mario Mattia, Massimo Napoleoni, Niki Okala, Carlos Parraga- Botero, Sohith Perera, Izis Salvador Pinto, Carine Posner, Neil Rigden, Paola Salcedo, Nim
COMPETITION TEAM
Alexandre Kuroda, Fei Wang, Lisa Kinnerud, Jorge Mendez-caceres
PEOPLE FLOW
Burohappold Engineering
MEP CONTRACTOR
Zamil
SAFETY ASSESSMENT
Bh With Transsol
DEVELOPMENT ENGINEER
Riyadh Metro Transit Consultants (Rmtc)
VIADUCTS
Aecom & Tripod-ssd (Line1), Atkins (Line 4&6)
INDEPENDENT CHECKING ENGINEER
Buro Veritas
INDEPENDENT SAFETY ASSESSOR
Tüv Rheinland / Isarail Group
TRANSIT SYSTEMS
Line 1 Siemens (Bacs), Line 4&6 Alstom (Fast)
FAÇADE ENGINEERING
Newtecnic
STRUCTURE CONTRACTOR
Saudi Lebanese Tarouk Contracting
INTERIORS AND LANDSCAPE CONTRACTOR
Depa
FACADE CONTRACTOR
Permasteelisa Gartner Saudi Arabia
LIGHTING CONSULTANT
Burohappold Engineering
TRANSPORT AND CIVIL ENGINEERING
Burohappold Engineering
FIRE PROTECTION AND LIFE SAFETY
Burohappold Engineering
SPECIFICATION CONSULTANT
Aecom
DESIGN MANAGEMENT
Aecom
COST CONSULTANT
Aecom
SIGNAGE AND WAY FINDING
Transport Design Consultancy
MAIN CONTRACTOR
Bacs Consortium
PHOTOGRAPHS
Hufton + Crow
YEAR
2024
LOCATION
Riyadh, Saudi Arabia
CATEGORY
Infrastructure, Metro Station
Text description provided by architect.
The world's longest driverless transit system, the Riyadh Metro network spans over 176 kilometers across 6 lines and 85 stations.
With a capacity of 3.6 million daily passengers, Riyadh Metro will reduce the number of car journeys throughout the city and encourage the use of sustainable modes of transport.
Designed by Zaha Hadid Architects, the King Abdullah Financial District Metro Station serves as the key interchange on the network.
The Riyadh Metro network, set to commence passenger operations on Sunday, December 1st, 2024 with the opening of its Blue, Yellow, and Purple lines (Lines 1, 4 and 6), will alleviate traffic congestion, shorten travel times, and improve the quality of life for Riyadh's growing population.
As the world's longest driverless transit system, the transformative network spans over 176 kilometers across 6 lines and 85 stations, connecting key districts, business centers, and cultural landmarks in Saudi Arabia's capital city.
An automated rapid transport system planned by the Royal Commission for Riyadh City (RCRC), Riyadh Metro will meet the needs of residents and visitors alike.
With a capacity of 3.6 million daily passengers, the network will reduce the number of car journeys throughout the city and encourage the use of sustainable modes of transport.

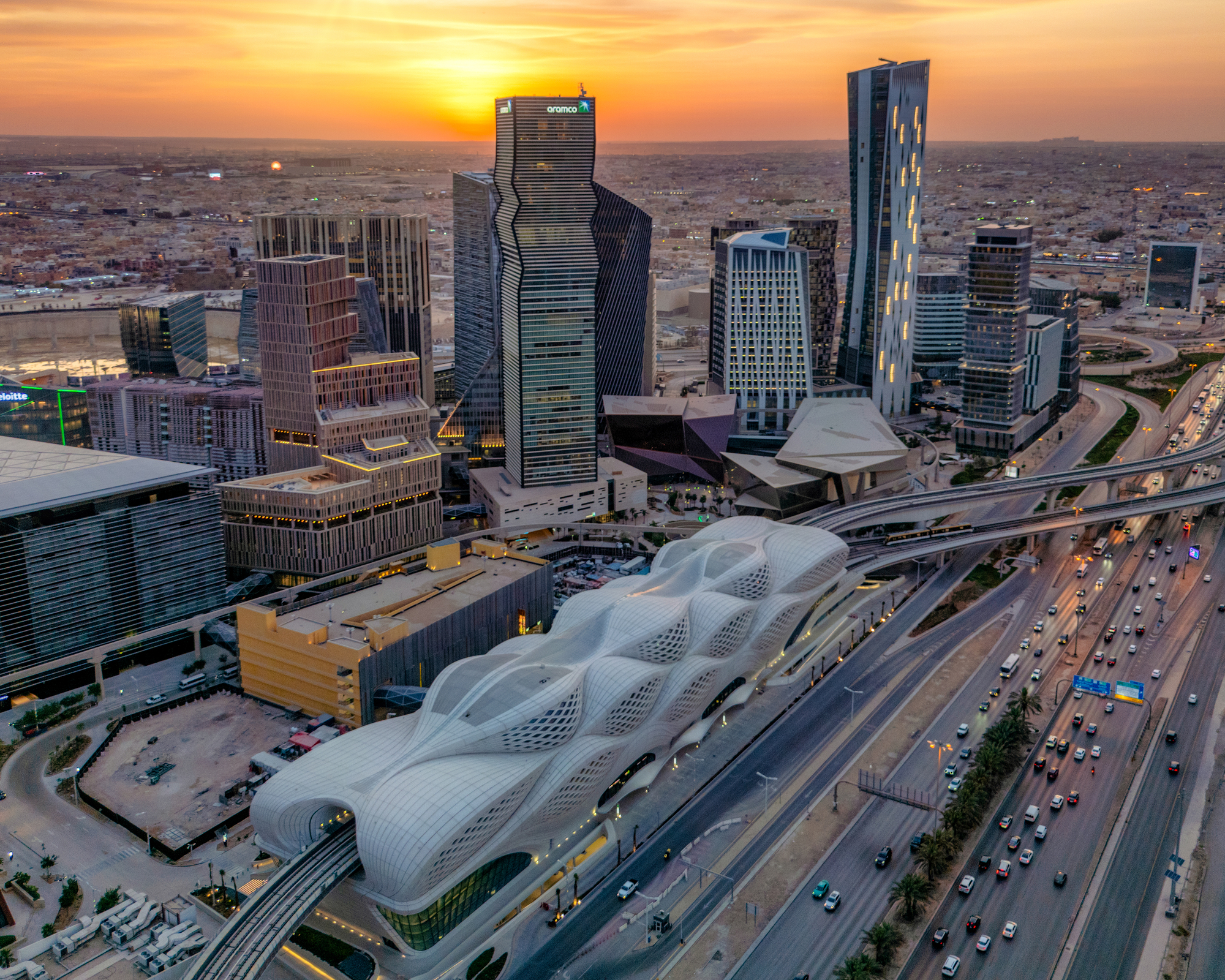

The King Abdullah Financial District (KAFD) Metro Station, designed by Zaha Hadid Architects (ZHA), serves as the key interchange on the new network, connecting the KAFD terminus, King Khalid International Airport, and providing access to the sky bridge for the local KAFD monorail.
The station's six rail platforms over four levels connect with bus and park-and-ride services to create an important multi-modal transport hub for the city, as well as new indoor and outdoor public plazas for the financial district.
Contributing to the identity of Riyadh's new metro system, the KAFD Metro Station's design prioritizes connectivity. The station's predicted rail, car, and pedestrian traffic has been modeled, mapped, and structured to optimize internal circulation and avoid congestion.

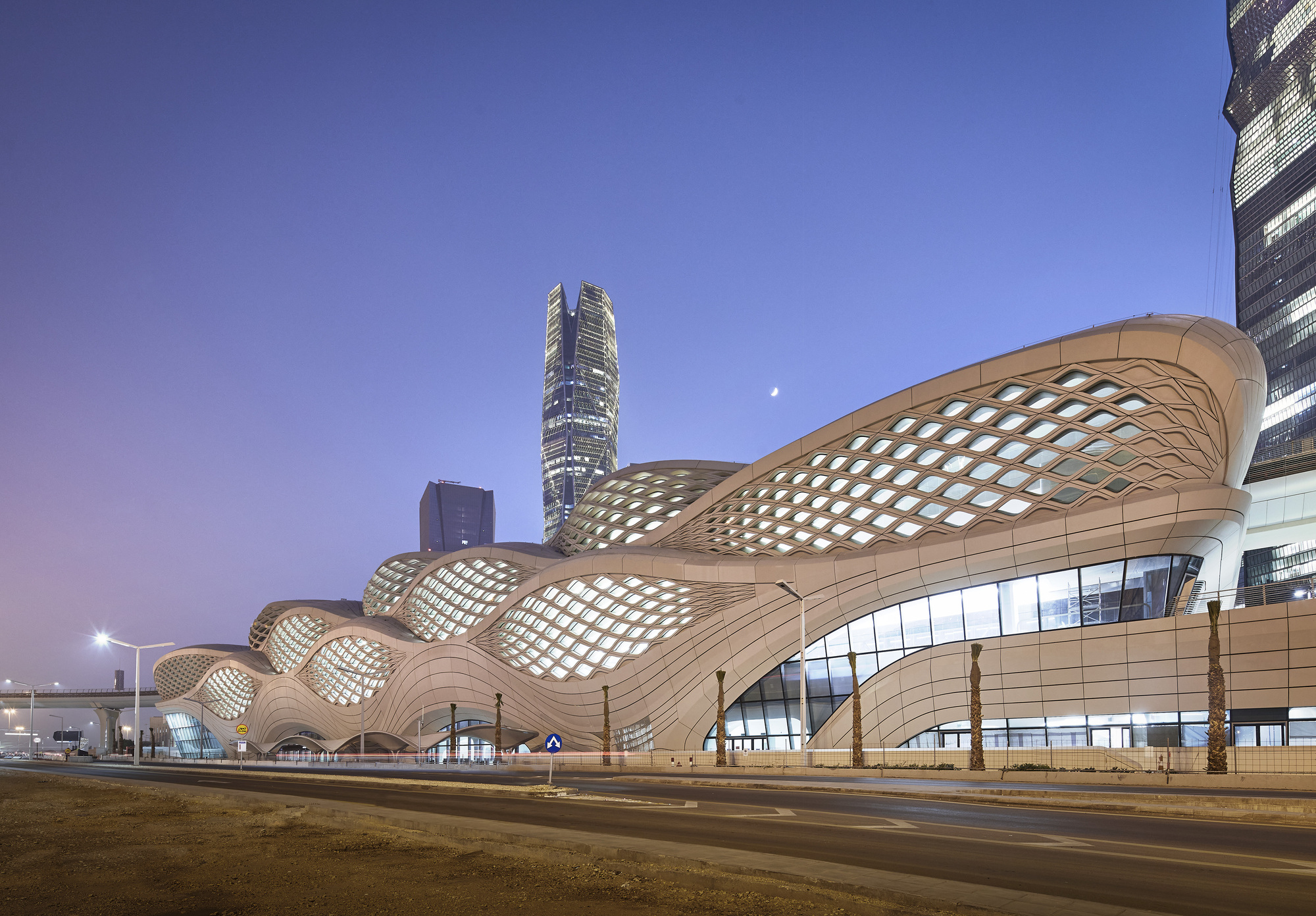

The resulting configuration is a three-dimensional lattice defined by a sequence of opposing sinewaves (generated from the repetition and frequency variation of the station's daily traffic flows), which act as the spine for the building's circulation. These sinewaves extend to the station's exterior clad in ultra-high-performance concrete panels.

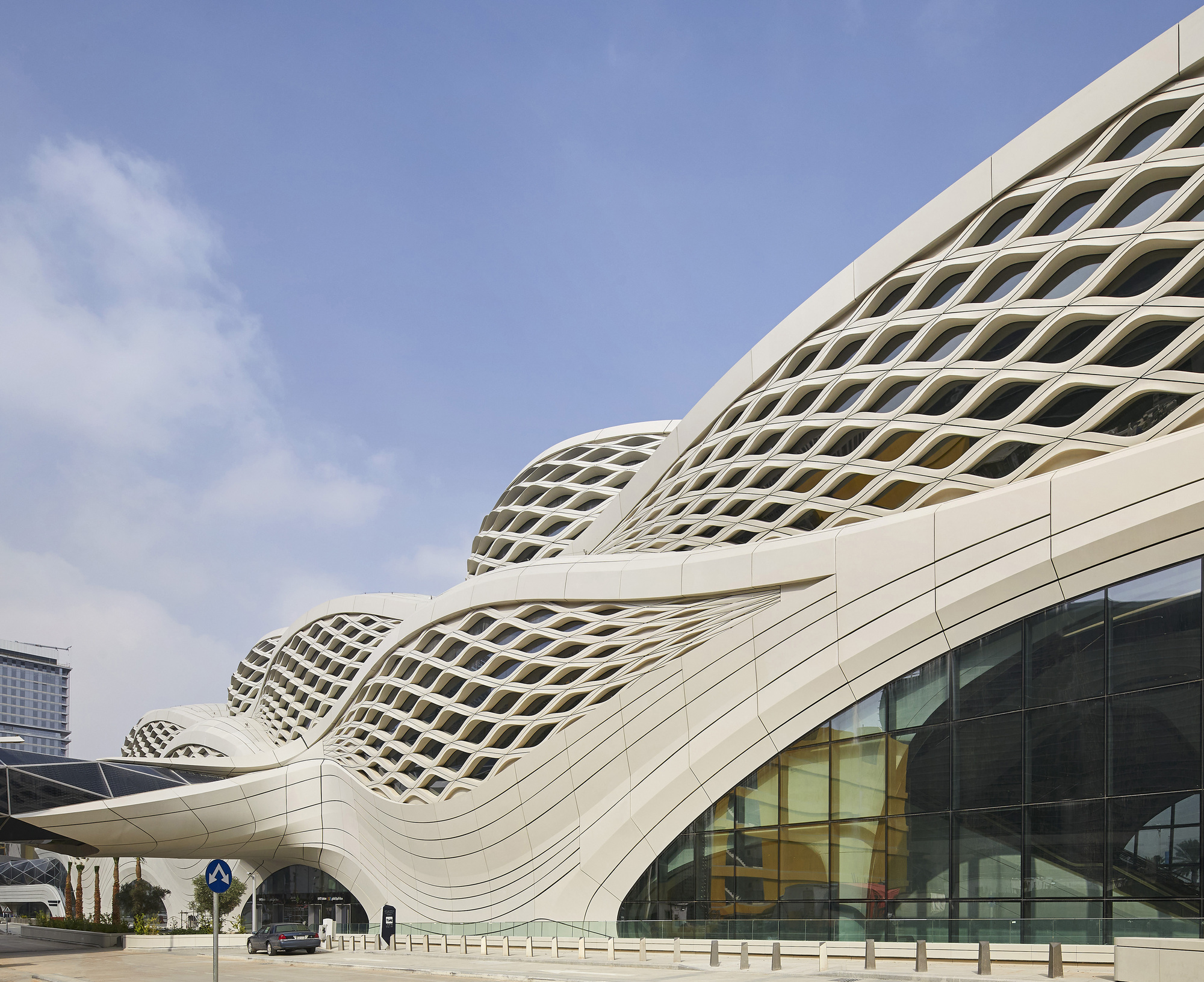

The façade's geometric perforations reduce the solar gain as a contemporary reinterpretation of traditional environmental sheltering within the region's vernacular architecture.
The composition of the station's façade echoes the patterns generated by desert winds in the sand, where multiple frequencies and reverberation generate the complex repetition of patterns evident in the natural world.
The KAFD Metro Station is composed of a set of elements that are highly correlated through repetition, symmetry, and scale.
The design was continually optimized by ZHA throughout its development to increase structural efficiencies and environmental performance while also simplifying the construction process without compromising spatial quality; seamlessly integrating the self-supporting structure of its external envelope with the station's internal structure which supports the train platforms and viaducts.
Providing optimal comfort at minimum energy demand, the station combines effective passive design features with a high-efficiency cooling system that is powered by renewables and automatically adjusts to differing passenger levels throughout the day, while sliding door panels on each platform retain cool air within the station.
The KAFD Metro Station has achieved Leadership in Energy and Environmental Design (LEED) Gold certification by the US Green Building Council.
