Lingang Youth Activity Center

Lingang Youth Activity Center

Arcplus Institute of Shanghai Architectural Design & Research

Lingang Youth Activity Center
© 3000images

ENGINEERING
Arcplus Institute Of Shanghai Architectural Design & Research(Co.,ltd.)

LANDSCAPE
Arcplus Institute Of Shanghai Architectural Design & Research(Co.,ltd.)

CLIENTS
Shanghai Harbor City Development (Group) Co., Ltd

LEAD ARCHITECTS
Su Chang, Tan Chunhui, Chen Di

PHOTOGRAPHS
3000images

AREA
59875 M²

YEAR
2024

LOCATION
Pudong, China

CATEGORY
Cultural Architecture

Text description provided by architect.

The Lingang Children's Palace aims to create a joyful place for teenagers. architects introspect the limitations of the traditional Children's Palace, hoping to create a comfortable and interesting exploration space through architectural design, not only a place for weekend lessons.

Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images

The main functions of the ground floor are the experience area of science and technology, children's theatre and exhibition hall.

The second to fifth floors arrange the extracurricular education space for children around the museum and the theater, and the sixth floor is the administrative office area.

Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images

The main functions of the two basement floors of the building are a parking garage, a theater backstage, an exhibition hall and a small restaurant.

In terms of space design, by flipping the traffic space from inside to outside, people inside can take good advantage of the urban landscape; classrooms and other functions are set inside so that teenagers can concentrate on studying in such a quiet environment.

Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images

By setting up a floor height difference of 2.6m on the west and east sides of the building, ramps and stairs spaces are created for the north and south sides of the building, which can be used as places of public activities and open classes.

The entire building from the ground floor is surrounded by ramps and stairs, connecting educational spaces of different subjects.

Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images

The architectural space integrates with circling ramps, extending from the ground to the top, breaking the boundary between each floor.

The interior space presents a rich and changeable flow state. Connecting the ramps and steps in different layers increases the richness and interest of the space and satisfies the lively and active nature of children.

The architectural facade abandons complex decoration and shapes the space and facade through horizontal and vertical transportation systems.

Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images

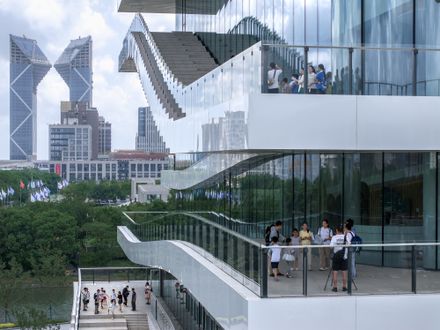

The verandahs and ramps on the facade encourage children to walk under sunshine and breathe fresh air, enjoy the landscape of Dishui Lake and the surrounding park, and feel nature.

The children who participate in various activities on the verandahs and ramps form a dynamic architectural facade with the building. The designs of landscape, interior and floodlight are all using pixelated processing which is childlike innocence.

Through the ingenious design and hiding building of mechanical and electrical facilities, the whole building becomes an exploration paradise with rich space and unique details.

Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images

The free-form floor design makes the interior space highly flexible and free, and the space can flow in the vertical direction, creating an open, interactive and free activity space without blind spot, so that children in it can experience the freedom and fun of being in there.

Through the optimization of the pipeline arrangement, making the mechanical and electrical pipeline through the beams, etc., We eliminated the electromechanical space between the ceiling and the main beam. so that the height of the indoor and outdoor ceiling is consistent, showing a smooth extension from the outdoor to the indoor ceiling.

Lingang Youth Activity Center
© 3000images


Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images


Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images


Lingang Youth Activity Center
© 3000images
Lingang Youth Activity Center
© 3000images

Lingang Youth Activity Center
© 3000images


Lingang Youth Activity Center
Plan - 1st floor
Lingang Youth Activity Center
Plan - 2nd floor
Lingang Youth Activity Center
Plan - 3rd floor
Lingang Youth Activity Center
Plan - 4th floor
Lingang Youth Activity Center
Plan - 5th floor
Lingang Youth Activity Center
Plan - 6th floor
Lingang Youth Activity Center
Plan - General
Lingang Youth Activity Center
Hanging curtain wall system node


Lingang Youth Activity Center
Electromechanical section renderings
Lingang Youth Activity Center
Analysis
Lingang Youth Activity Center
Analysis - System
Lingang Youth Activity Center

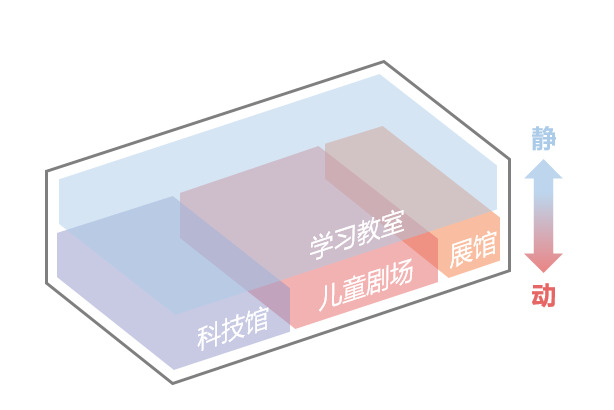

Analysis - Dynamic and static space


Lingang Youth Activity Center

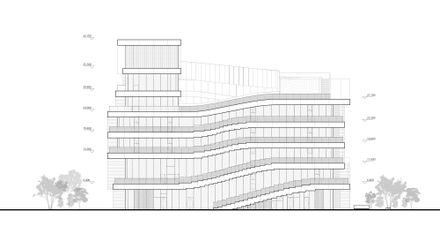

East facade
Lingang Youth Activity Center
West facade
Lingang Youth Activity Center
South facade
Lingang Youth Activity Center
North facade


Lingang Youth Activity Center
Section perspective 01
Lingang Youth Activity Center
Section perspective 02
