Tchoban Voss Architekten GmbH

Berliner Sparkasse Office Campus

Berliner Sparkasse Office Campus

Tchoban Voss Architekten

Berliner Sparkasse Office Campus
© HG Esch

PHOTOGRAPHS
Hg Esch

ARCHITECT
Sergei Tchoban

LANDSCAPING
Topotek 1 Gesellschaft Von Landschaftsarchitekten Mbh, Holzwarth Landschaftsarchitektur

ACOUSTICS + SOUND INSULATION
Drees & Sommer Advanced Building Technologies Gmbh

STRUCTURAL ENGINEERING
Ingenieurbuero, Ing. Stefan Ritzer - Ingenieurbuero

EXECUTION PLANNING
Braeunlin – Kolb – Schaelicke Architekten Ingenieure Gmbh, Berlin

PROJECT LEADER
Martin Krebes, Frederik-sebastian Scholz

ASSOCIATED PARTNER
Frederik-sebastian Scholz

TEAM
René Hoch, Anastasia Kapustina, Charlotte Lennertz, Virginie Mommens, Mareike Pagenstecher, Fabiana Pedretti, Fotios Zaranis

GENERAL CONTRACTOR
Adolf Lupp Gmbh + Co Kg, Nidda

SUN PROTECTION
Warema Renkhoff Se

BUILDING TECHNOLOGY
Russ Ingenieurgesellschaft

GLASS / METAL BALUSTRADES
Glassline

FAÇADE PLANNING
Medicke

FAÇADE
Hueck System Gmbh & Co.

WINDOW
Hueck System Gmbh & Co.

PHOTOGRAPHS
Hg Esch

AREA
30100 M²

YEAR
2024

LOCATION
Berlin, Germany

CATEGORY
Office Buildings, Sustainability & Green Design

Text description provided by architect.

The project Square 1, a pioneering office campus, is being built in Berlin-Johannisthal, not far from Germany's largest technology park and media centre Adlershof.

Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch

TCHOBAN VOSS Architekten GmbH gave the go-ahead for the campus development with component B of the project.

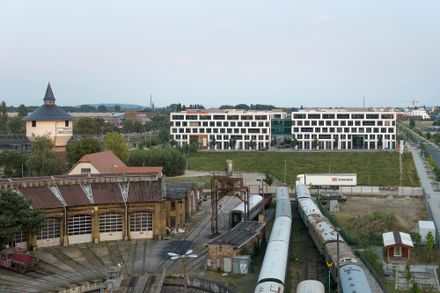

The two-part building complex with five full storeys, connected by glass bridges, is used by Berliner Sparklasse as its headquarters and is located in the immediate vicinity of the listed Schoeneweide railway depot (Bahnbetriebswerk (Bw)).

CONCEPT

Square 1 B is based on a maximally flexible space concept. Depending on requirements, the independent building sections can also be combined for use by a single tenant.

Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch

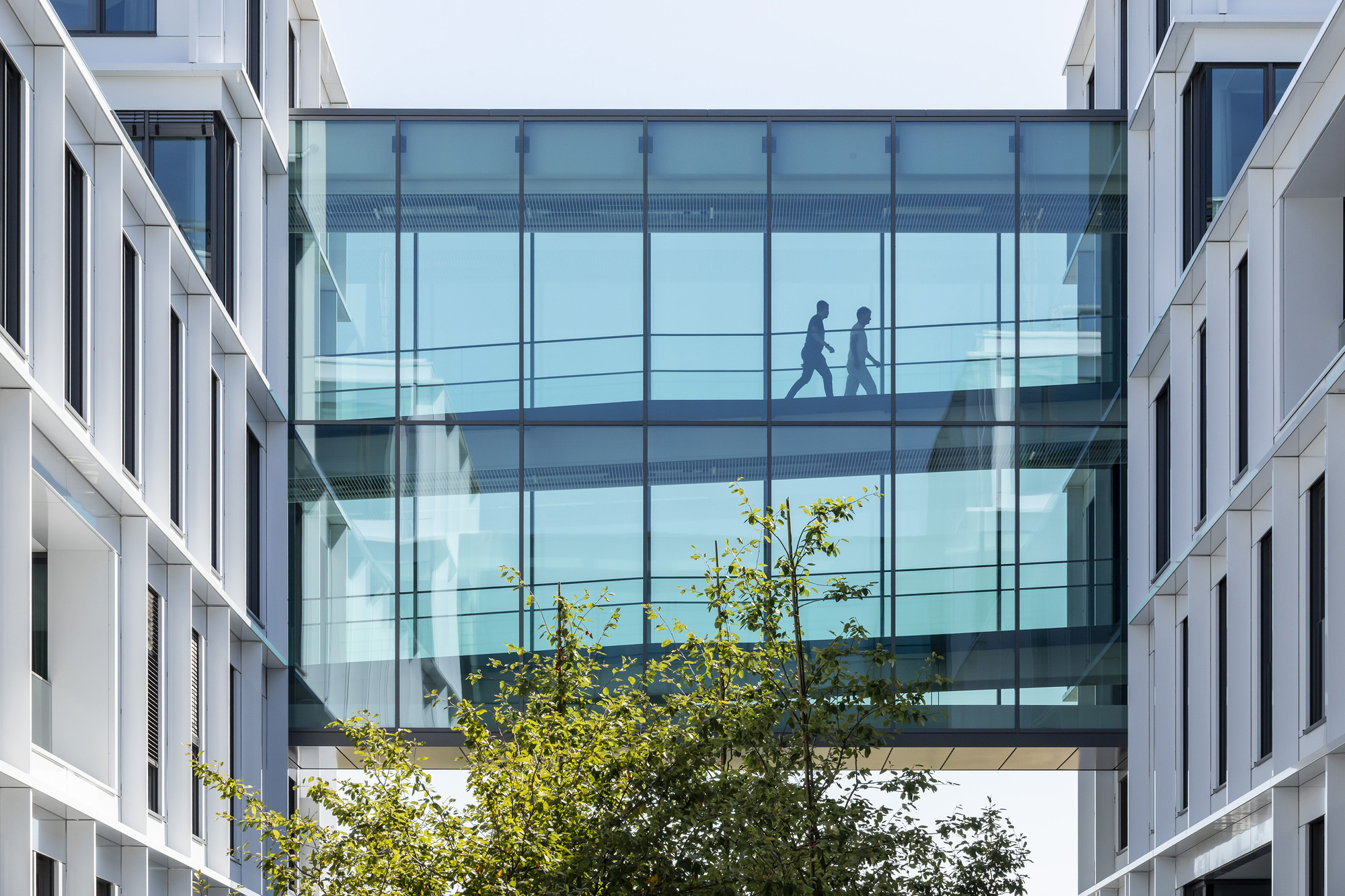

Building B1 in the north-east and B2 in the south-west are connected by glazed, two-storey bridges on the second and third floors.

Both buildings have spacious roof terraces on the third floor, each measuring 265 sqm and with intensive greenery.

They serve as versatile open-air recreation, communication and work areas. The two Carré buildings also enclose striking, green inner courtyards with a large number of seating areas.

Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch

20 loggias are regularly distributed across the upper floors one to four and, in addition to a varied façade grid, create additional openness and further outdoor working and lounging opportunities.

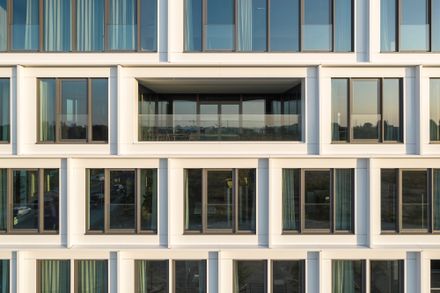

The façade consists of white, custom-made aluminium elements. A storey-high mullion and transom façade was installed on the ground floor. The façade grid alternates from the first to the third floor.

Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch

Optical horizontal and vertical contours give the façades a clear structure. Large, six-part panoramic windows on the fourth floor and glass balustrades on windows, terraces and loggias let the building complex appear open and modern and optimise the natural light entering the rooms behind.

The colour scheme of the façade, its window elements with glass balustrades and glass corners as well as its loggias and the sequence of columns, which becomes ever wider towards the top, convey a deliberately light impression.

Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch

On the ground floor of B2 there are two passageways to the inner courtyard, one of which has two storeys. The spacious two-storey entrance area in B1 is both inviting and prestigious.

It leads to conference and training rooms as well as to an internal canteen. All areas of the building complex were designed to be barrier-free.

Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch

OUTDOOR FACILITIES

The outdoor areas of the campus create a variety of opportunities for work and recreation.

The extensive green spaces act as a connecting element between the buildings and ensure harmony between nature and architecture. The inner courtyards are landscaped and can be used in a variety of ways.

Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch

SUSTAINABILITY

The buildings are supplied with district heating and are equipped with concrete core activation as well as heating and cooling sails to keep energy consumption as efficient as possible and to create a pleasant indoor climate.

The choice of building materials, the technical equipment and the energy concept fulfil the highest ecological and economic standards. The project was awarded gold certification by the German Sustainable Building Council (DGNB).

Berliner Sparkasse Office Campus
© HG Esch


Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch


Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch
Berliner Sparkasse Office Campus
© HG Esch


Berliner Sparkasse Office Campus
Elevation North East B1
Berliner Sparkasse Office Campus
Elevation North West B1 & B2
Berliner Sparkasse Office Campus
Elevation South West B1 & B2
Berliner Sparkasse Office Campus
Elevation South West B1


Berliner Sparkasse Office Campus
Cross section B1 & B2
Berliner Sparkasse Office Campus

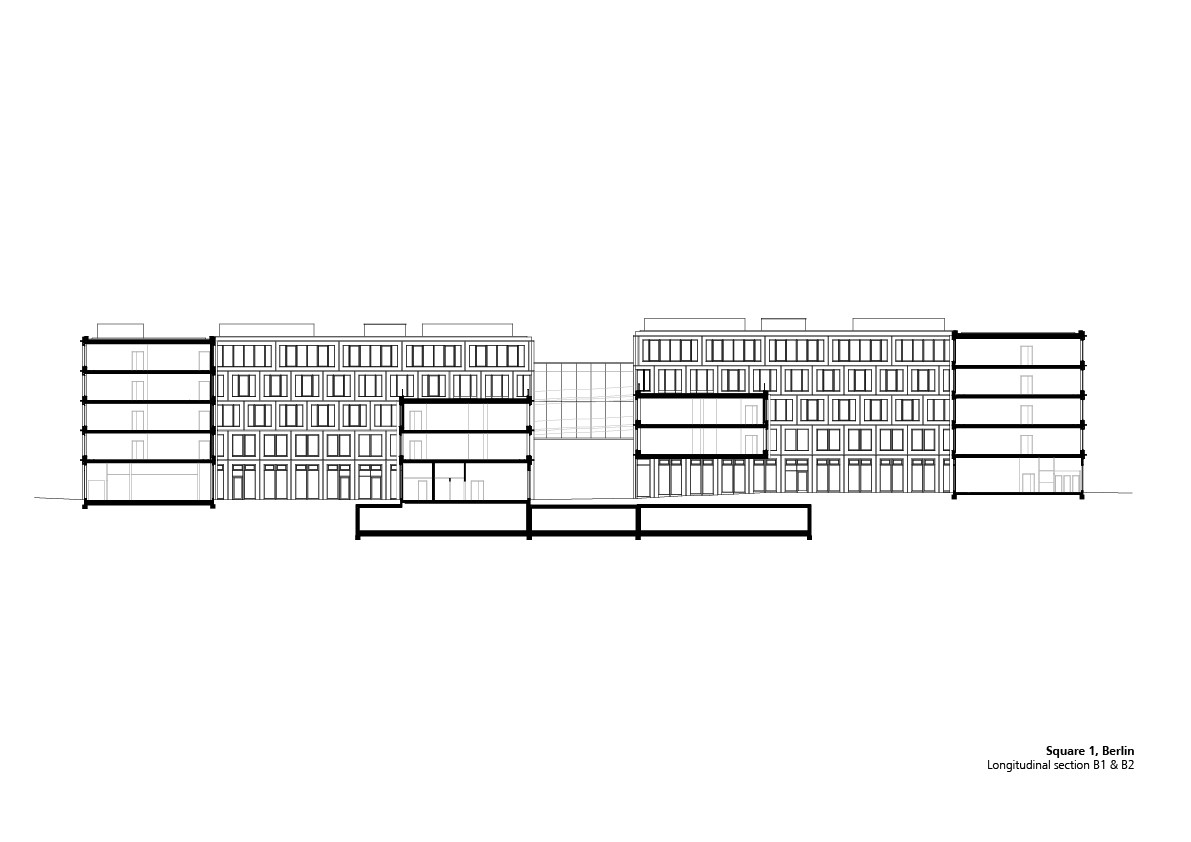

Longitudinal section B1 & B2
Berliner Sparkasse Office Campus
Plan - Ground floor B1 & B2
Berliner Sparkasse Office Campus
Plan - 2nd floor B1 & B2
Berliner Sparkasse Office Campus
Plan - 3rd floor B1 & B2
Berliner Sparkasse Office Campus
Plan - Site
