3x30 Introverted House

3X30 INTROVERTED HOUSE

dmarchitects

3x30 Introverted House
© Paul Phan

ARCHITECTS
Dmarchitects

LEAD ARCHITECT
Phạm Đức Minh

MANUFACTURERS
Inax, Nippon, Philips, Xingfa

ARCHITECT
Mai Trọng Hiếu

PHOTOGRAPHS
Paul Phan

AREA
277 M²

YEAR
2023

LOCATION
Vũng Tàu, Vietnam

CATEGORY
Houses

Text description provided by architect.

The 3x30 introverted house is a private house based on a long and narrow lot, located in a high-density residential area in Vung Tau City, Vietnam. The house faces the southwest on the traffic road.

With the need of the homeowner to create a simple form of the building, playing the role of a private area in contrast to the stormy urban life. Ensuring quiet, comfort, and privacy in the dense urban fabric. On the other hand, adapting to the humid tropical climate of the area.

3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan

To solve the problem of a long and narrow plot of land, the architect came up with the idea of dividing the space along the house and using the common spaces as a circulation path to connect to all the private areas, avoiding making long corridors like conventional townhouse designs.

After analysis of the family's living habits, the common living space and kitchen are the most used places, so they are designed to be located in the center of the house, close to the main traffic and the main skylight.

3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan

From the family's common living space, through the skylight, people can connect to all other spaces and create a close connection between family members.

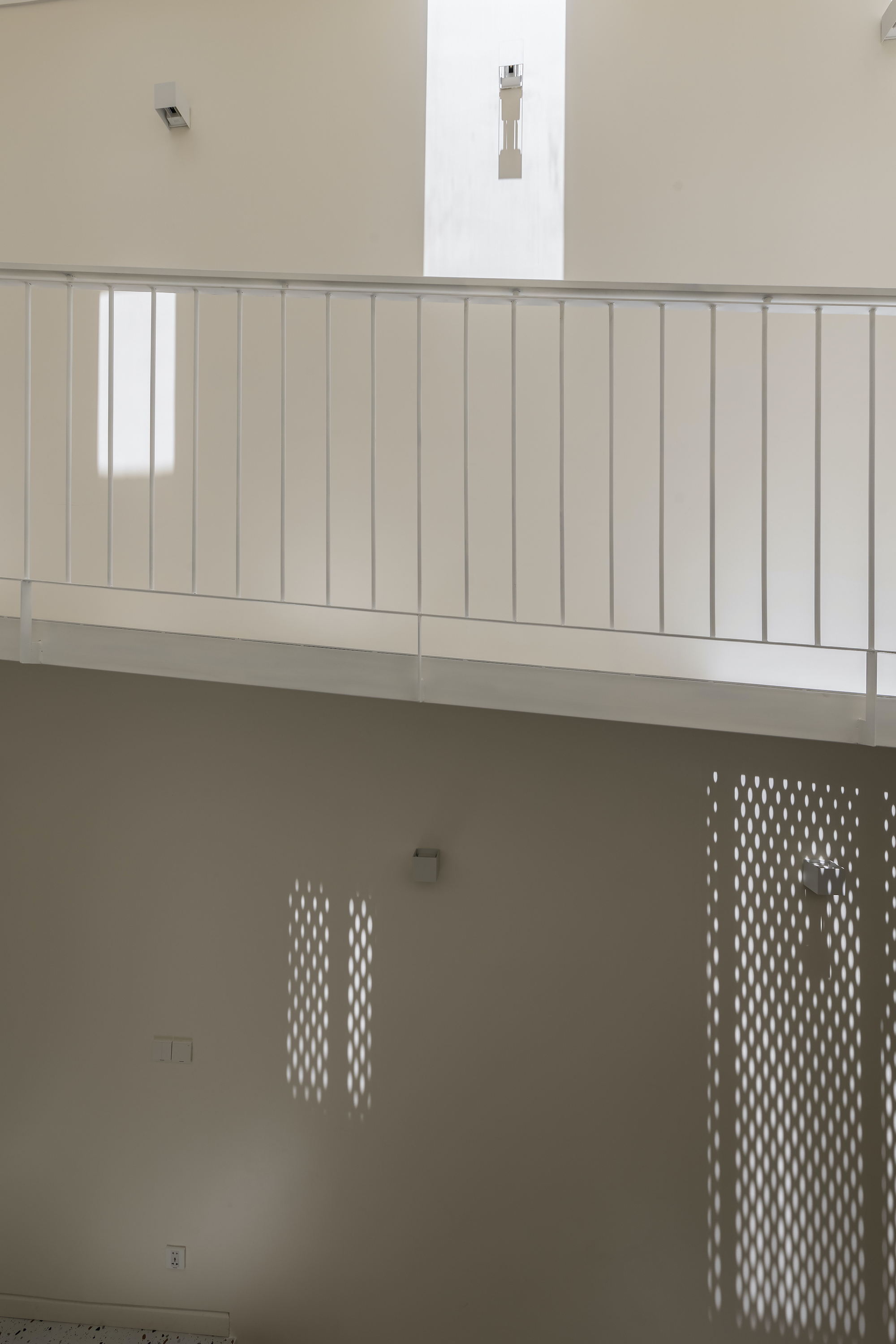

The architect recommended a split-level house design and cut-down floor area on the upper floors to increase vertical connectivity while creating pathways for daylight to penetrate deeper into the building. From the top floor, people can still communicate with each other.

3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan

In addition, the height of the living room, dining room, and kitchen are 1.3 times higher than the private rooms for convenient living and better ventilation.

The skylights in the center of the house are divided into small sections to ensure lighting and ventilation while minimizing the heat absorption of the glass.

3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan

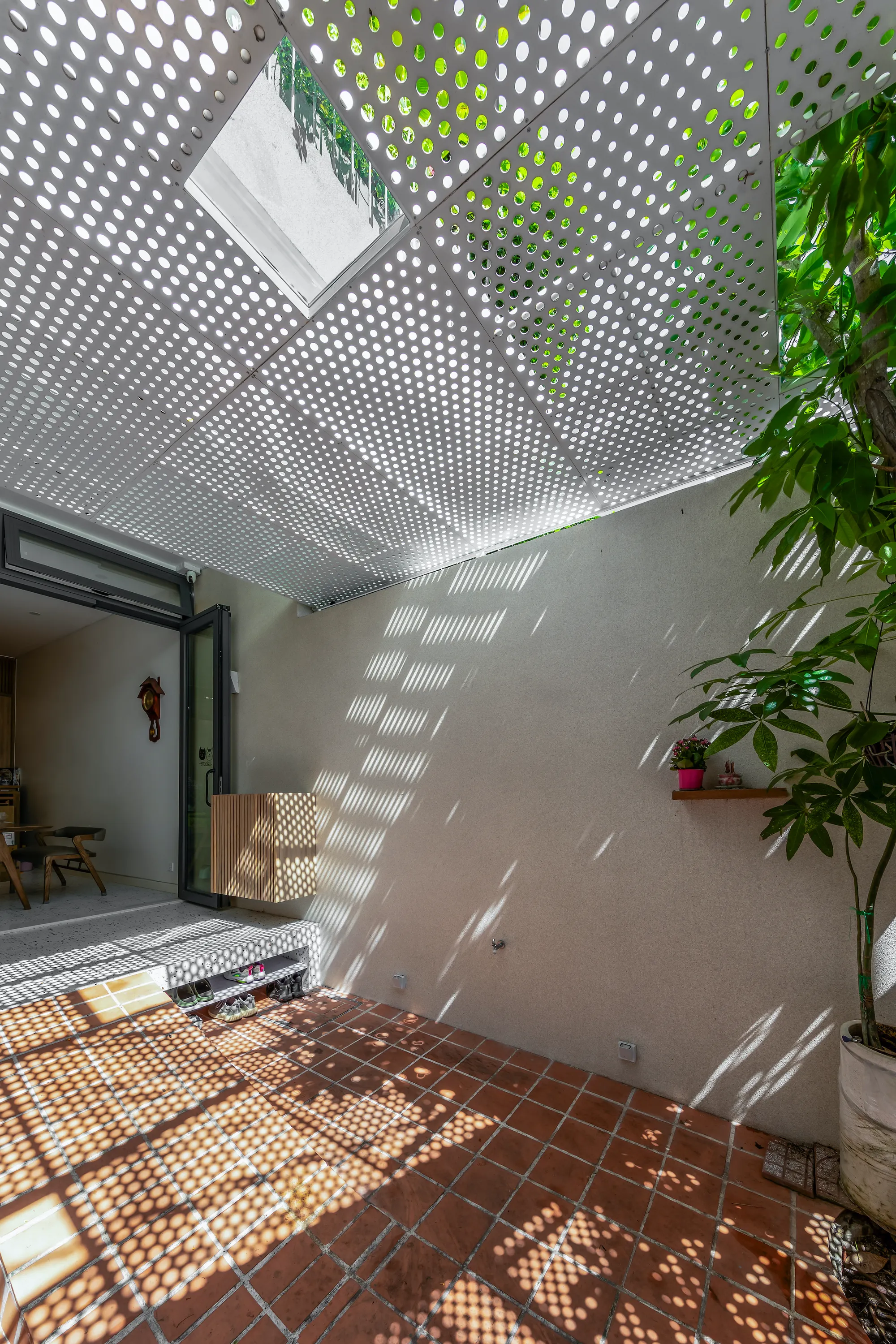

The architect uses perforated steel panels to design the circulation element to increase the ability to bring light into the building.

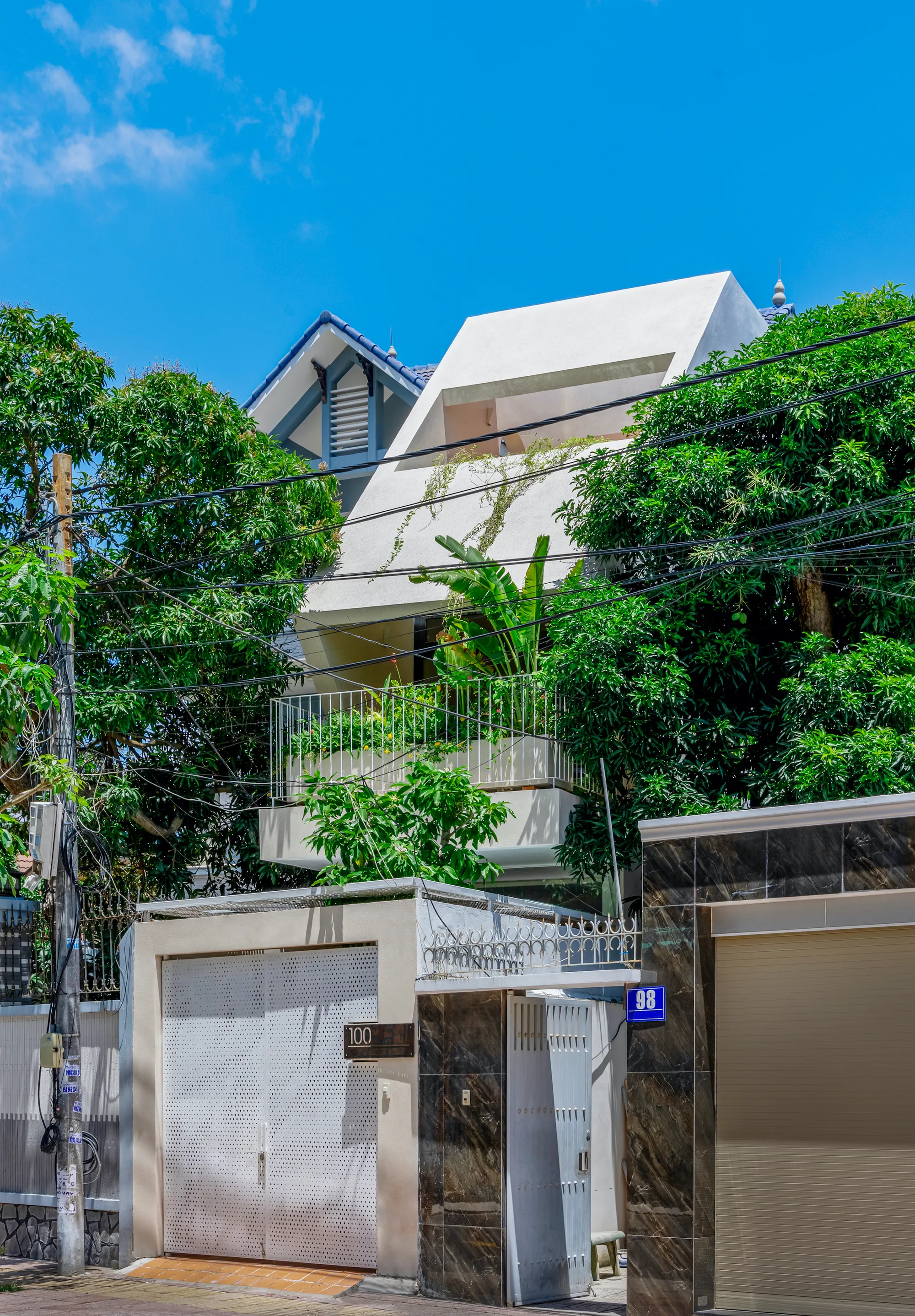

Developed from the sloping roof form of the traditional house, the facade of the building is a sloping concrete roof from the roof down to the 2nd floor with some cut-outs for ventilation.

It makes the facade of the house simple but unique, combined with green trees to create a buffer layer to prevent heat radiation from the west and increase privacy for the homeowner.

3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan

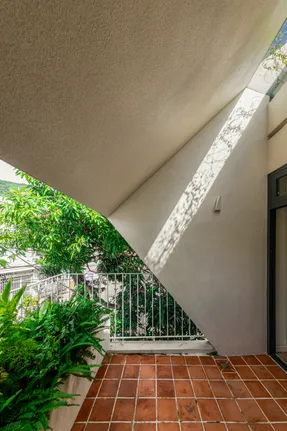

The terrace space on the third floor is designed to be semi-enclosed, which helps reduce heat, traffic noise, and unpleasant views of the surroundings, but open to the private sky, which can be a gathering place for all family members and friends or become a space for yoga or meditation.

Nowadays, a person's home is not only a place to meet basic needs but also a reflection of the homeowner's inner world, a place where they can connect with themselves and find peace amidst the chaos of urban life.


3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan


3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan
3x30 Introverted House
© Paul Phan


3x30 Introverted House
First and Second Floor Plan
3x30 Introverted House
Third and Roof Floor Plan


3x30 Introverted House
Section
3x30 Introverted House
Section


3x30 Introverted House
Elevation
3x30 Introverted House
Axonometric drawing


3x30 Introverted House

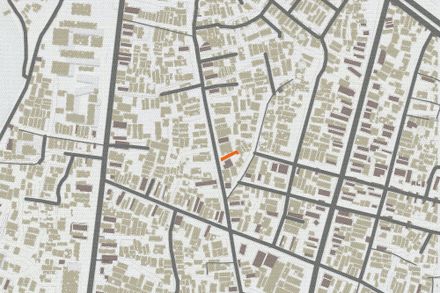

Site Plan
