Paddy – Coffee Space

Paddy – Coffee Space
© Ramiro Sosa

Paddy – Coffee Space

ODB Arquitectos

ARCHITECTS
ODB Arquitectos

LIGHTING DESIGN
La Lucería

ENGINEERING
José Luis Mancuso

COLLABORATORS
Mauricio Ortiz, Alvaro Di Bernardo

PHOTOGRAPHS
Ramiro Sosa

AREA
396 m²

YEAR
2018

LOCATION
Corrientes, Argentina

CATEGORY
CShop

Text description provided by architect.

An ambitious commercial project was developed on a narrow plot of land measuring 5.65 metres wide by 34.20 metres long, with an east-west orientation, located in a central but neglected urban area.

The challenge included the need to create a building without architectural barriers, but with the risk of flooding in the street during the intense rains characteristic of the coastal climate.

Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa

The building was required to be economical in its construction, use and maintenance, while maintaining high standards of habitability in terms of thermal comfort, luminosity and acoustic insulation.

These fundamental conditions guided the conception of the project.

In functional terms, a linear and vertical design was chosen. On the ground floor, a restobar was located with two distinct areas: one open to the street and a more private one at the back, ideal for meetings or teamwork.

Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa

On the first floor, above the restobar and the entrance, an administrative office was arranged to oversee the general operation, along with an event hall for 50 people at the back.

The second floor repeated the layout with another event room and an open-air terrace facing the city.

The vertical circulations divided the building into two parts, connecting the premises while differentiating the busiest areas (facing the street) from the quieter ones (at the back of the site).

Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa

Accessibility for all people was ensured by access ramps, a hydraulic elevator and the leveling of the terrace with the top floor.

As for the spatial layout, the width of the site was used to the maximum without interposing divisions to ensure the spaciousness of the premises.

Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa

The entrance to the building was highlighted with a double height that provides a feeling of grandeur and broadens the visitor's perception.

The sought-after spatiality defined at the same time the structure of the building, a system of beams and reinforced concrete slabs that rest on each of the dividing walls.

In relation to the climatic design, double-wall vertical envelopes with central thermal insulation and sunshades on the west façade for solar protection were implemented.

Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa

On the roof, a wooden deck was installed to create shade over the flat roof of the restobar on the ground floor.

To maximize natural lighting, a zenith opening was designed in the south dividing wall that includes a solar chimney for continuous ventilation.

Finally, seeking to meet the premises of economy, low maintenance and aesthetics of the building, it was decided to highlight the expressiveness of the raw materials, without unnecessary coatings or decorations.

Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa

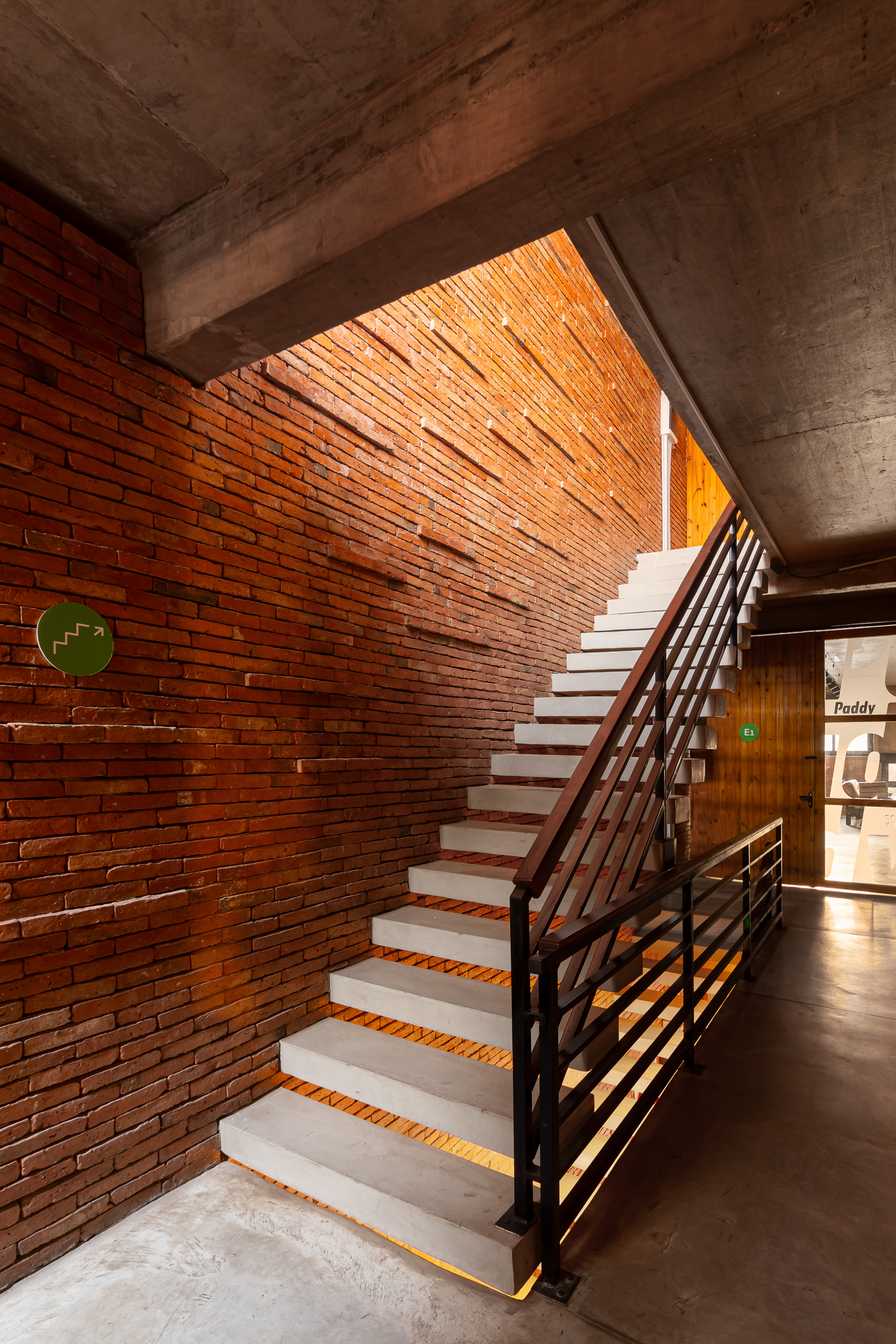

Thus, through tectonic explorations, various formwork techniques were used for reinforced concrete in beams, slabs and partitions, as well as various common brickwork in the walls, and rustic wood in doors, ceilings and furniture.


Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa


Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa
Paddy – Coffee Space
© Ramiro Sosa


Paddy – Coffee Space
Details
Paddy – Coffee Space
Section - AA


Paddy – Coffee Space
Section - BB
Paddy – Coffee Space

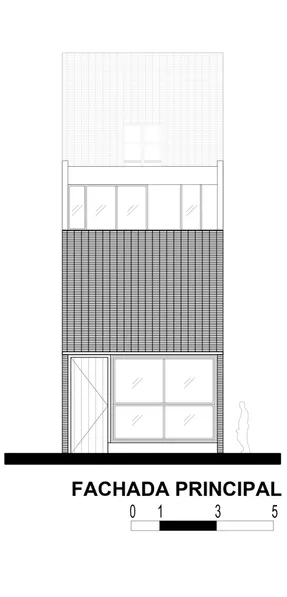

Elevation - Front
Paddy – Coffee Space
Elevation - Rear


Paddy – Coffee Space
Plan - Ground floor
Paddy – Coffee Space
Plan - First floor
Paddy – Coffee Space

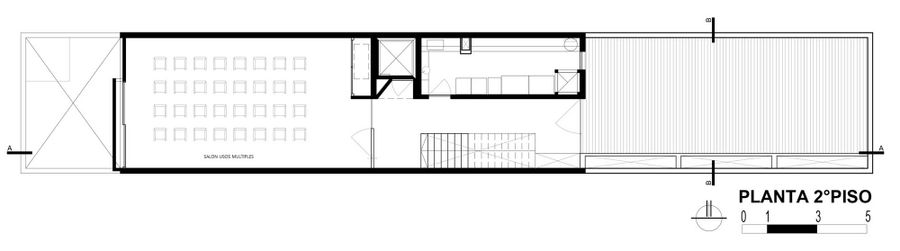

Plan - Second floor


Paddy – Coffee Space
Axo


Paddy – Coffee Space
Plan - Site
Paddy – Coffee Space
Diagram
