Text description provided by architect.

The Yinxing Station and the Daqiao Station are located on the south bank of the Qiantang River.

It's a part of the 12-kilometer waterfront public space renovation project in Binjiang District of Hangzhou, undertaken by the Original Design Studio of TJAD.

Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang

The site is triangular in shape and located between the residential area and the Qiantang River. There were many ginkgo trees on the site, and every late autumn, scattered ginkgo leaves covered the ground.

From a distance, the ground appears golden, but up close, one can notice the rational beauty of the layered and interlocking leaves.

Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang

We preserved the ginkgo trees in the site and extracted the design prototype from the overlapping relationship of ginkgo leaves - "one convex arc and two concave arcs".

Based on this, we rotated and replicated them, nested with each other, and the overall shape of the square was derived from it.

Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang

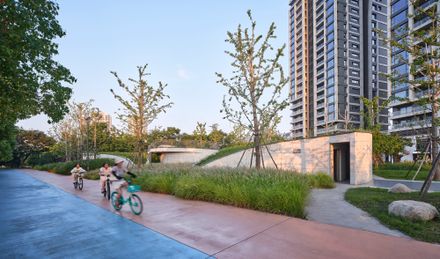

The ground slopes slightly, with three adjacent "ginkgo leaves" flipping up to form a landscape green space, creating a multi-level activity space for the surrounding community.

This also conforms to the psychological trend of the public to climb high and overlook the Qiantang River. The lower indoor space also provides space for community service facilities.

Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
Courtesy of Original Design Studio of TJAD
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang

The Linqiaoxiang Sports Park is adjacent to the Yinxing Station. Inspired by the waves of the Qiantang River, the landscape of the sports park also fluctuates up and down.

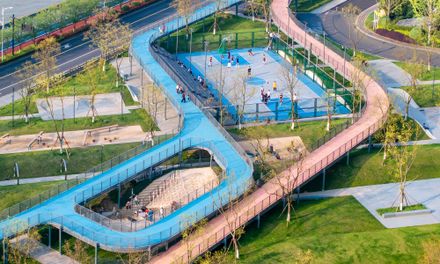

The blue running track and orange cycling track diverge in the air, surrounding the park up and down, providing a vertical dimension of public space.

Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang

This not only enhances the accessibility of the park and the willingness of passersby to explore, exercise, and rest inside, but also enriches the roaming experience of the park.

The park is equipped with badminton courts, basketball courts, slides, balance beams, and fitness equipment areas to meet the outdoor activities needs of the public. The basketball court is located between the Orange and Blue Trail.

Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Guowei Liu
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang

The steps of the court are connected to the sky blue lane, which not only meets the functional requirements of the basketball court stands, but also improves the flow line connecting the elevated walkway and the ground.

At the same time, the lower space of the grandstand forms a shaded and sheltered resting place in the park.

Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang

The Daqiao station is located at the intersection of Liuhe Road and Wentao Road. Inspired by the structural form of the Qiantang River Bridge, we have rotated the main steel truss structure of the bridge by 45 degrees.

The roof of the upper part is triangular in shape, echoing the triangular spire of the Liuhe Pagoda across the river; The lower part exposes structural components as architectural expression elements, arranged in a regular and orderly manner.

Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang

The facade is made of polyester board material, utilizing its unrestricted single-sided size to reduce facade joints.

The buckle cover adopts a concave shape, and the matching steel keel is T-shaped steel, which is simple and exquisite.

Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang

Daqiao Station provides a place for the public to rest, stop and gaze. The first floor is equipped with a caf é, which also serves as a temporary exhibition for the surrounding community.

The second floor is a viewing platform space, where the public can overlook the surrounding scenery and see the Liuhe Pagoda on the other side of the Qiantang River, creating an opportunity for dialogue between ancient and modern times.

Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
© Yong Zhang


Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station


Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station

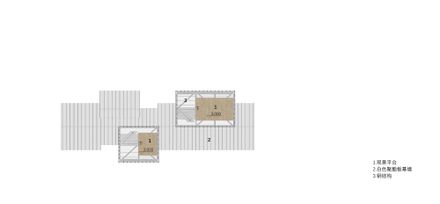

Plan
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
Plan
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
Plan


Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
Elevation Drawing
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
Elevation Drawing
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station

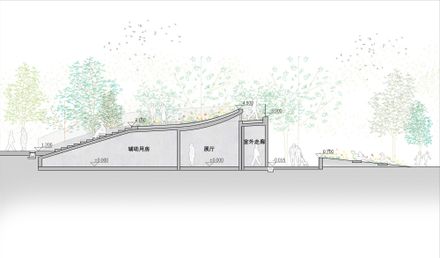

Section Drawing
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
Section Drawing


Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
Axonometric Drawing
Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station
Axonometric Drawing
