Superhelix

Triple House

Triple House

Superhelix Pracownia Projektowa

Triple House
© Bartłomiej Drabik

LEAD ARCHITECTS
Bartłomiej Drabik

MANUFACTURERS
Autodesk, Rheinzink, Wienerberger, Hormann, Schüco

STRUCTURAL ENGINEER
Mm-konstrukcje Budowlane

PHOTOGRAPHS
Bartłomiej Drabik

AREA
220 M²

YEAR
2024

LOCATION
Gaj, Poland

CATEGORY
Houses

Triple House
© Bartłomiej Drabik

Text description provided by architect.

The house is located close to the southern border of Krakow. It is a hilly area, a foretaste of the Beskid Wyspowy and the even higher Tatra Mountains.

The house's name and its tri-partite layout result from the conditions of the area, local law, its function and the expectations of its residents.

Because of the existing and potential neighboring buildings, the cardinal directions and the view openings, it was best to locate the house in the northern part of the property, keeping the alignment parallel to the site boundary.

Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik

This ensured that the building did not intrude too deeply into the central part of the site. However, such an arrangement was not possible. The local zoning plan required the ridge of the building to be parallel to the neighboring road.

The plot is very irregularly shaped and its northern boundary is not parallel to the municipal road. To meet the requirements of the plan and at the same time use the most suitable part of the plot for construction, it was necessary to divide the longitudinal block into smaller parts and move them apart.

As a result, the ridge is parallel to the road and the building is laid out along the northern boundary, leaving the best part for the outdoors free of development.

Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik

The number of parts is a direct result of the three basic functions of the house. The first, closest to the road is the garage.

The middle one is the living, kitchen and dining area, which connects through large glazing to the terrace and garden. The final, third section is more private, containing bedrooms and bathrooms.

Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik

The residents' sense of intimacy is guaranteed by the building's appropriate location on the plot and is additionally supported by a shed for a third car.

Thanks to a pitched roof, the shed is high enough where desired and forms a sheltering part at the entrance, while where it should be low to reveal the view, it blends smoothly with the existing terrain.

Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik

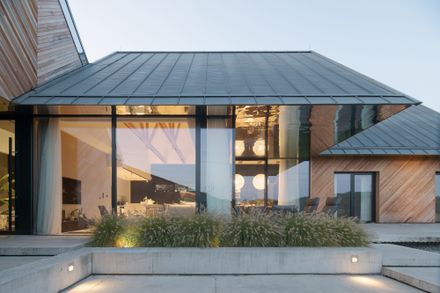

The heart of the house is the central element, containing the kitchen, dining room and living area. Here, three-meter high, corner and mullion-free windows provide a connection to the garden in the summer months.

The boundary between inside and outside disappears and the building increases in floor area. Directly behind the windows, part of the terrace is covered by a roof overhang reaching more than four meters, providing shelter from the sun, rain and snow.

Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik

The terrace is also well protected from the wind, thanks to a west-facing garage and a south-facing carport. The building was constructed with bricks and reinforced concrete with a wooden roof truss.

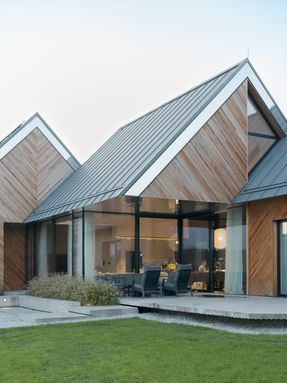

The materials used for the finishing are titanium-zinc sheets and western red cedar wood, both do not require special care, aging well over time and covering themselves with a protective patina.

Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik

The underneath of the eaves and parts of the gable walls are clad in polished stainless steel, in the evening the metal sheets reflect light and illuminate the terrace.


Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik
Triple House
© Bartłomiej Drabik


Triple House
First Floor Plan
Triple House
Second Floor Plan


Triple House
Section
Triple House
Site Plan
