Bao Huynh Watercolor Atelier

Bao Huynh Watercolor Atelier

Chong Chóng Architecture

Bao Huynh Watercolor Atelier

MANUFACTURERS
Sika, Anfaco, Inax, Rolan, Zento

DESIGN TEAM LEADER
Nguyen Van Chuong

INTERIOR DESIGNER
Banh Ai Tran

DESIGN TEAM
Nguyen Van Trong, Bui Ngoc Cuong, Dinh Viet Hoang, Duong Chieu Anh, Nguyen Truong Thanh, Le Hong Quan

SUPERVISOR
Phan Van Long

WATERPROOFING
Ncc Company

AREA
161 M²

YEAR
2023

LOCATION
Thành Phố Hội An, Vietnam

CATEGORY
Houses, Offices

Bao Huynh Watercolor Atelier

The project, occupying a 161-square-meter plot within an alley of Cua Dai fishing village in Hoi An, is in a populated area predominantly featuring tin rooves and minimal greenery.

The design cleverly integrates dynamic and static spaces, optimizing the limited 16-meter west-facing frontage in an area characterized by a tin roof and minimal greenery.

Bao Huynh Watercolor Atelier
Bao Huynh Watercolor Atelier

The owner envisioned a serene and peaceful environment for his elderly parents while providing a tranquil setting to practice his passion for painting. Operating within a modest budget required meticulous planning, ensuring each space was versatile and functional.

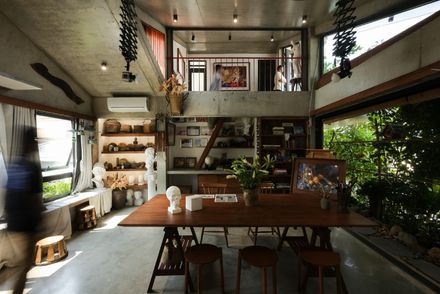

The highlight of the design is the painting room, a multifunctional space for drawing, teaching, exhibitions, reading, and relaxing. Furniture in this space is designed for quick and flexible alternations.

Bao Huynh Watercolor Atelier
Bao Huynh Watercolor Atelier

This studio connects to a hidden storage room via a staircase and to the bedroom through a concealed door in a bookshelf. The lush green garden acts as a natural air purifier, reducing noise and providing fresh air.

The family space combines the living room and kitchen with flexible furniture, encouraging interaction between family members, friends, and students.

Bao Huynh Watercolor Atelier
Bao Huynh Watercolor Atelier

A special highlight is the studio and family living areas, two spaces separated by a separate staircase. From there, we ensure privacy for two spaces with two different properties.

This project is to adapt the hash climate in the central area of Viet Nam by providing ultimate ventilation of the setback and a large glass sliding door.

Bao Huynh Watercolor Atelier
Bao Huynh Watercolor Atelier

The design incorporates several solutions to adapt to extreme weather. Air ventilation is enhanced during summer through setbacks that create wind-catching and releasing points.

Integrated green spaces reduce thermal radiation, lower internal temperatures, and function as air filters and noise barriers.

Bao Huynh Watercolor Atelier
Bao Huynh Watercolor Atelier

The combined concrete tile roofs can withstand a tropical storm, and a high-capacity rainwater drainage system supplies water for the ground gardens. Materials were chosen for cost-effectiveness and minimal finishing needs.

Polished concrete is used structurally to avoid additional loads and for ease of cleaning. Terrazzo and pebble stone offer durability, anti-slip properties, and easy maintenance.

Bao Huynh Watercolor Atelier
Bao Huynh Watercolor Atelier

Local natural wood, which is grown in the area, is economically beneficial. Using local materials and craftsmen ensures quality and cultural relevance.

This project is a green highlight in the fishing village, strengthening community connections and bringing a new perspective to the people. It reflects the homeowner's desire for a warm, prosperous, and safe home for all members, connecting generations and the community.

Bao Huynh Watercolor Atelier


Bao Huynh Watercolor Atelier
Plan - Ground Floor
Bao Huynh Watercolor Atelier
Plan - 2nd Floor
Bao Huynh Watercolor Atelier
Plan - 3rd Floor
Bao Huynh Watercolor Atelier
Plan - Roof Floor


Bao Huynh Watercolor Atelier
gif
Bao Huynh Watercolor Atelier
Section
Bao Huynh Watercolor Atelier
Section
Bao Huynh Watercolor Atelier
Elevation


Bao Huynh Watercolor Atelier
Exploded Axo
