G Clef Bridge

G Clef Bridge
© Arch-Exist

G Clef Bridge

ZZHK Architects

ARCHITECTS
ZZHK Architects

CLIENT
Sichuan Longmenshan Cultural Tourism Development Co., Ltd.

STRUCTURAL DESIGN
Sichuan Provincial Architectural Design and Research Institute Co., Ltd.

MANUFACTURERS
ANLT, Kaichuan, Kinlong, Laisi

LANDSCAPE DESIGN
Chengdu ZZHK Architects Co., Ltd., Sichuan Guangde Architectural Design Co., Ltd., Sichuan Architectural Design and Research Institute Co., Ltd.

CONSTRUCTION CONTRACTOR
Southwest Branch of CSCEC Xinjiang Construction Engineering Group Co., Ltd.

LIGHTING DESIGN
Sichuan Bohe Tiansheng Cultural Technology Co., Ltd.

INCIPAL DESIGNER
Ke Zhang

PRINCIPAL ARCHITECT
Ke Zhang

DESIGN TEAM
Haochuan Ye, Keji Xian, Zhengrong Zhang

PROGRAM
Pedestrian bridge

PHOTOGRAPHS
Arch-Exist

AREA
2290 m²

YEAR
2023

LOCATION
Chengdu, China

CATEGORY
Pedestrian Bridge

G Clef Bridge is located in the core area of the Bailu Music Tourist Area in Bailu Town, within the Longmen Mountains of Chengdu, Sichuan, China.

G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist

The Bailu Music Tourist Area spans 2.9 square kilometers and is 60 kilometers from downtown Chengdu. It is a national 4A-level tourist attraction known for its rich historical and cultural resources.

The area includes renowned sites such as the Annunciation Seminary, the Sino-French Friendship Bridge, the Old Street of Bailu Town, the “most impressive teaching building” at the 5.12 earthquake site, and the geological wonder of Flying Peak.

G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist

G Clef Bridge spans the Bailu River, connecting the French-style Bailu Music Town on the east bank with the modern, metallic Diamond Music Hall on the west bank. The bridge is located 550 meters downstream from the historic Sino-French Bridge site.

The design employs fluid curves to establish a connection between the two banks and to harmonize the contrasting architectural styles.

The main bridge deck extends from the "ridge path" of the Diamond Music Hall, winding across the river.

G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist

It then utilizes a spiral ramp to rise over the riverside road, reaching the small open-air stage of the music town.

The spiral ramp further extends upwards to form an aerial viewing platform, which also serves as a high stand for outdoor performances at the Diamond Music Hall, and downwards to integrate with the riverside landscape, forming a waterfront platform.

Inspired by the treble clef of the musical staff and the swirling of water, G Clef Bridge embodies the core elements of the music-themed tourist area, revolving around the "Melody of Water" theme to create a unique bridge design.

G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist

The structure integrates two winding bridge decks and double spiral viewing platforms.

The pedestrian pathways connect at multiple points, providing a smooth, continuous experience.

The spiral ramp and waterfront platform offer multi-level, 360-degree panoramic views.

G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist

Additional features include a floating stage for live performances, partial glass bridge decks inspired by the local historical "Broken Bridge," and an integrated riverside waterfall landscape.

The bridge provides a novel, stimulating, and immersive walking experience that strongly attracts visitors.

G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist

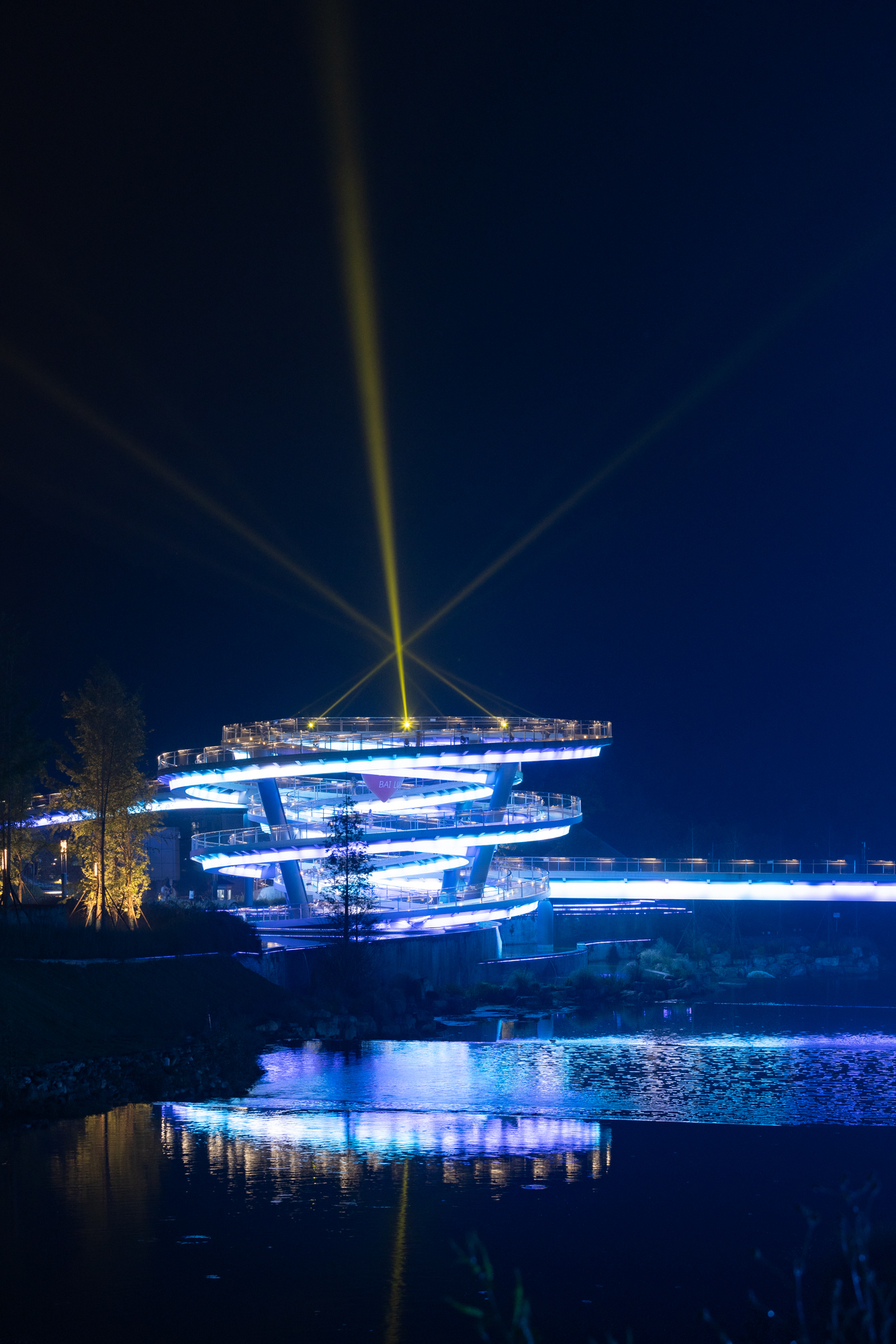

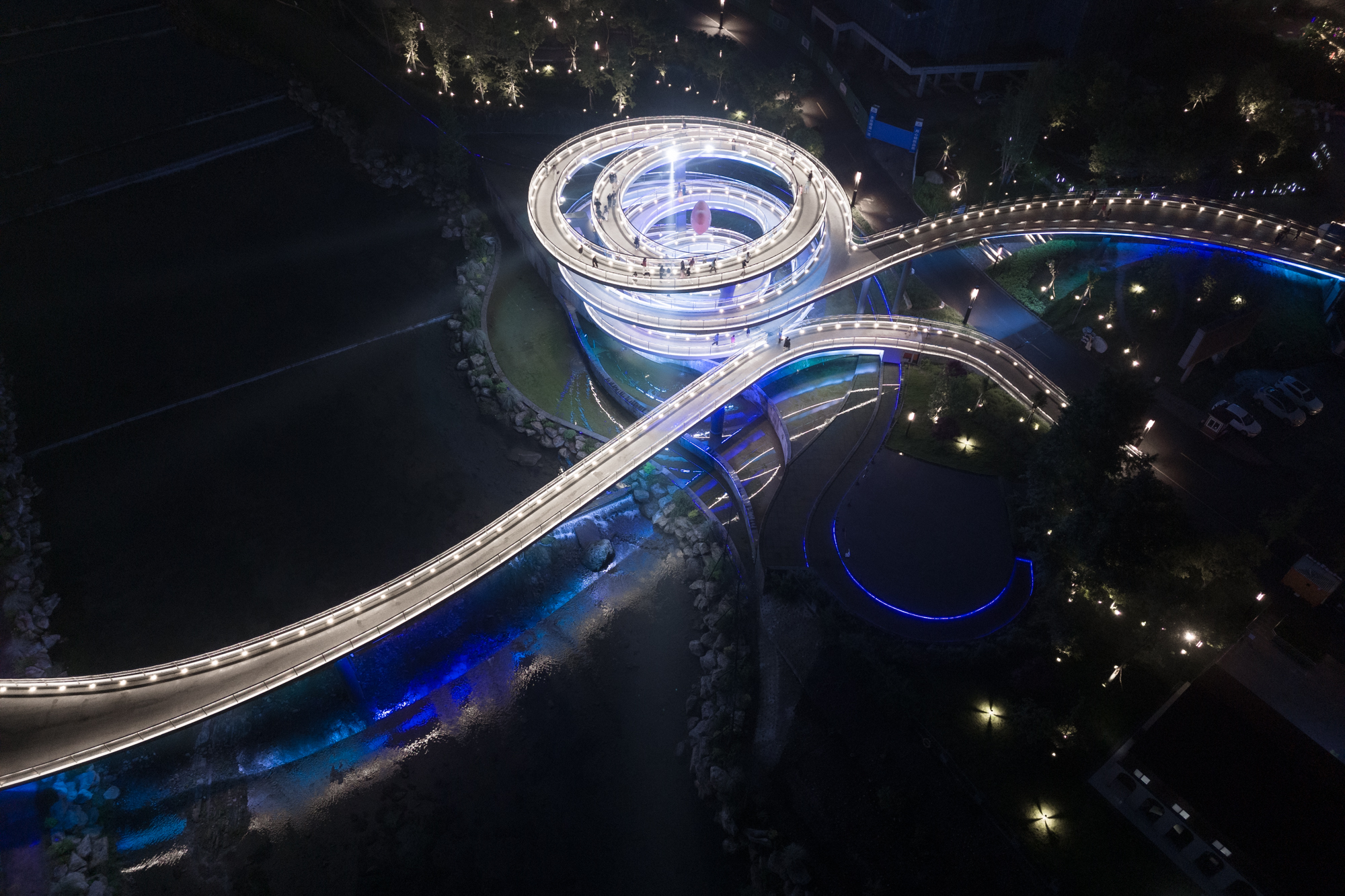

The night lighting design further enhances the visual impact of the bridge, adding movement and rhythm, making it a focal point of the area's nightscape.

From its inception, G Clef Bridge was envisioned as more than just a pedestrian bridge connecting the music town and the Diamond Music Hall.

G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist

Through its ingenious and unique structural design, it has become an iconic architectural landmark, continually drawing visitors and serving as a key attraction in the Bailu Music Tourist Area.


G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist


G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist


G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist
G Clef Bridge
© Arch-Exist


G Clef Bridge
Section schematic 01
G Clef Bridge
Section schematic 02
G Clef Bridge
Spiral rings
G Clef Bridge
Plan - Mini stage


G Clef Bridge
Section 01
G Clef Bridge
Section 02
G Clef Bridge
Section 03
