Realengo Park Market Square
Realengo Park Market Square
Ayako Arquitetura + Helena Meirelles arquitetura + Larissa Monteiro + messina | rivas + Zebulun Arquitetura
ARCHITECTS
Ayako Arquitetura, Helena Meirelles arquitetura, Larissa Monteiro, Zebulun Arquitetura, messina | rivas
LEAD ARCHITECTS
Carlos Zebulun, Francisco Rivas, Helena Meirelles, Juliana Ayako, Larissa Monteiro e Rodrigo Messina
STRUCTURE
Kleber Ribeiro
WATER TREATMENT
Ana Kling
LIGHTING
Carlos Florido
GEOMETRIC PAVEMENT
Leandro Vaz e Jorge Luiza da Silva
URBAN LANDSCAPE
Ecomimesis Soluções Ecológicas LTDA
EXECUTION
Ecomimesis Soluções Ecológicas LTDA e Cone Engenharia
AREA
790 m²
YEAR
2023
LOCATION
Realengo, Brazil
CATEGORY
Public Space
The Market Square is part of the architectural complex of Parque Realengo, still under construction. The Park has been the subject of long-standing questioning by various social movements that debate the periphery, green areas and environmental racism.
Like several construction processes in the city of Rio de Janeiro, its dynamics also involve expropriations and relocation processes. The Market Square is born from a pre-existing condition. Before its design, residents surrounding the park occupied the corner with small commercial buildings.
The proposed architectural project provided for the full relocation of these buildings, however, the complex dynamics of a bidding process and execution of a public work meant that only part of the proposal was carried out.
The project consists of two linear and horizontal buildings, with different heights, which intersect and form, on the one hand, a large entrance roof and, on the other, a shopping arcade. Before, the stores that made up the occupation filled the contour of the corner, leaving only a narrow sidewalk and a road for cars in front.
Now, they open onto a square space that communicates with the Ideal community entrance hall and the motorcycle taxi stop. Located in an L shape, they make up a large public square that invites residents to experience the space, using it in different ways.
The formal character that differentiates the two constructions also translates into a programmatic character. The linear roof's main function is to provide shade and mark a kind of portico, which functions as one of the park's entrances.
As it is a large gap with little programmatic direction, this space can be read as indeterminate, opening up the possibility for occupation with diverse and ephemeral programs. The second blade, in counterpoint, is built with a scale closer to the body. It housed 11 stores that served to relocate pre-existing stores.
Local commerce, in addition to being extremely important for the dynamic existence of several residents, here also drives the use of this public space and, even more so, with a program that already existed before its reorganization.
Below the larger blade, there is also a public bathroom that supports both the stores and the use of the space. And, finally, organizing all these programs, a public square was designed outside the boundaries of the park, enabling full-time use and appropriation of the space.

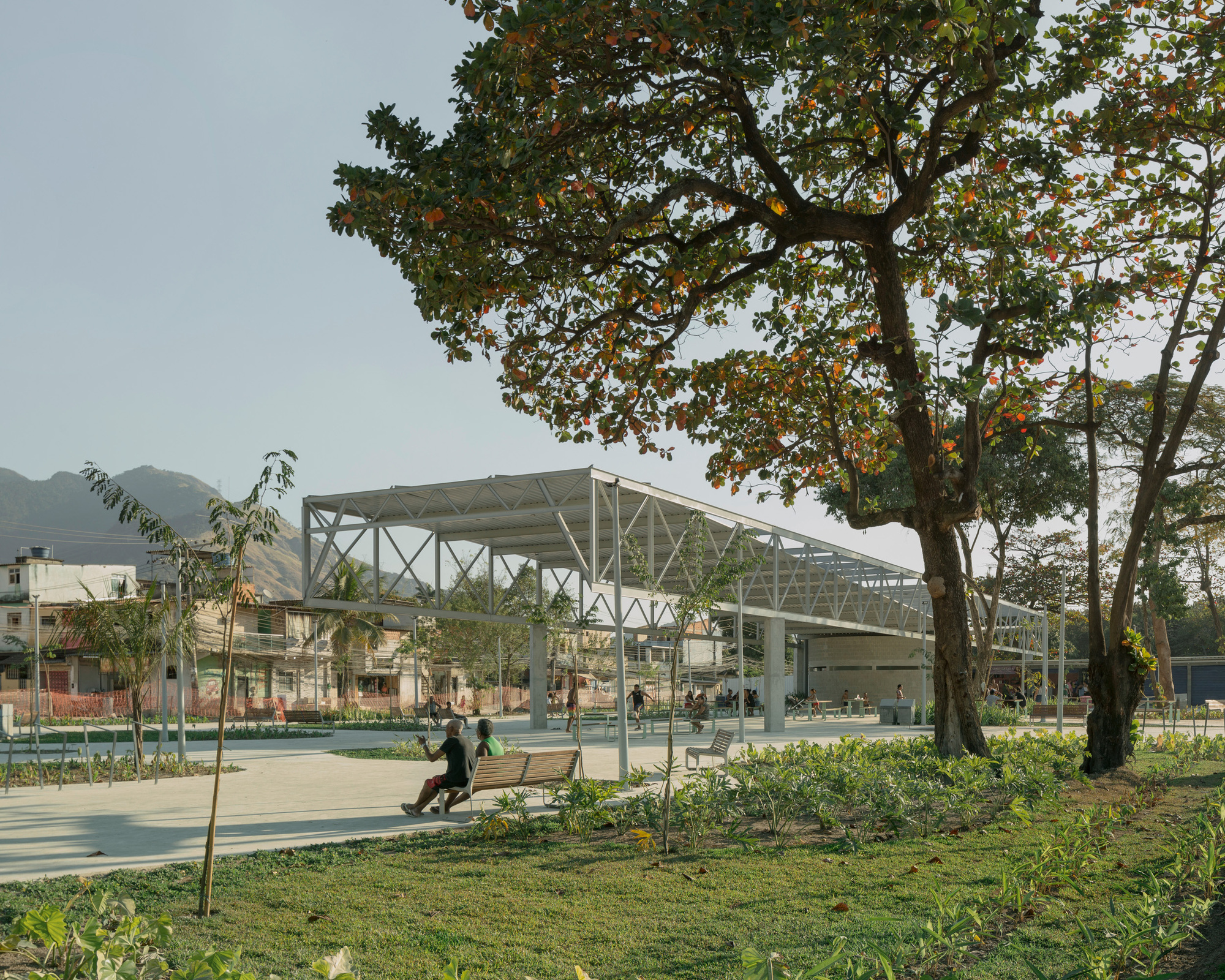

The structure of the access roof follows a construction system with 3 meter long metal profiles, which, when articulated, form two trusses 66 meters long and 3 meters high. These trusses are connected by 9 meter long metal profiles, thus forming a structural box.
This height and beam system are justified by better structural efficiency, ensuring the maturity of larger spans with less support, in addition to enabling the use of slimmer profiles.
At the ends, this structural box is supported on square-section, rotated concrete pillars, in order to encourage continuity of flow. The shopping gallery is constructed of structural concrete block walls that support a steel frame slab.
It can be considered that the early opening of the External Market was intended to respond to demands against a process of removal that would occur of existing stores, a process that counts on the participation of the project team to provide, within the design, areas capable of relocation.
And, in addition, it is primarily a territorial monitoring and advocacy process, mobilized by the Realengo 2030 Agenda, directed by Roberta Freire.
Thinking about the construction of public equipment is also thinking about the decline of a posture of architectural production as necessarily a success.
Even though the construction of this park meets the wishes of social movements, it is necessary to understand the process of implementing urban architecture as a social process that goes beyond design.
To achieve this, we understand that there is a need to consider the dynamics of city construction collectively, not as posthumous occupations to the delivery of the built product in indeterminate spaces, but as constitutive and participants in the design process. The Market Square thus becomes an important object for thinking about this debate.
