Tchoban Voss Architekten GmbH

Pears Jewish Campus

Pears Jewish Campus

Tchoban Voss Architekten

Pears Jewish Campus
© Carsten Schneider

STRUCTURAL ENGINEERING
Ingenieurbuero Bendel Bradke Lang Bauwesen Gmbh

LEAD ARCHITECT
Sergei Tchoban

ACOUSTICS
Abh Akustikbuero Hoffmeier

LANDSCAPE DESIGN
Nolte / Gehrke Partnerschaft Von Landschaftsarchitekten Mbb

LIGHTING DESIGN
Lichtvision Design Gmbh

ASSOCIATED PARTNER
Frederik-sebastian Scholz

FIRE PROTECTION
Roessel Brandschutz

PROJECT MANAGEMENT
Frederik-sebastian Scholz, Nancy Wendland

PROJECT TEAM
Lev Chestakov, Eimear O'gorman, Valeria Kashirina, Birgit Koeder, Anja Koch, Charlotte Lennertz, Ingo Schwarzweller, Ramona Schwarzweller, Waldemar Strese, Niina Trunova

SHELL CONSTRUCTION
Koegel Bau Gmbh & Co. Kg, Bad Oeyenhausen; Bauunternehmen Mueller Gmbh, Schwielowsee

PLANNING OF SCHOOL / DAY CARE CENTRE EQUIPMENT, WORK STAGE 2
Architekturbuero Heidrun Klein

PLANNING OF EQUIPMENT FOR SCHOOL / DAY CARE CENTRE, WORK STAGES 3 8
Design Alchemists

PLANNING OF EQUIPMENT FOR SPECIALIST ROOMS AT SCHOOL, WORK STAGE 5
Kreische Boehme Beyer Gbr

CLINKER FAÇADE
Keramik Für Bau Und Denkmalspflege Gmbh, Grossraeschen; Jahnsen Bau Gmbh, Herford

CARPENTRY WORK
Weisse Gmbh & Co. Kg

PLANNING CAFETERIA/LIBRARY
Ka+ Gmbh, Studio Kejo Gbr

WOOD CLADDING FOR SPORTS HALL
Vereinigte Holzbaubetriebe Wilhelm Pfalzer & Hans Vogt Gmbh & Co. Kg, Woringen

DESIGN OF ‘TREES OF LIFE
Anna Nezhnaya

GRAFFITI ART
Tobo Aka Tobias Friesike

BUILDING EQUIPMENT
Ingenieurbüro Für Haustechnik Kem Gmbh

PHOTOGRAPHS
Carsten Schneider, Roland Halbe

AREA
8000 M²

YEAR
2023

LOCATION
Berlin, Germany

CATEGORY
Elementary & Middle School, High School, Community Center

Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe

Adjacent to the site of the Chabad Lubavitch Family and Cultural Centre in Berlin's Charlottenburg- Wilmersdorf district, the community center Pears Jewish Campus Berlin is a facility for children and young people consisting of a school, a crèche, and a kindergarten.

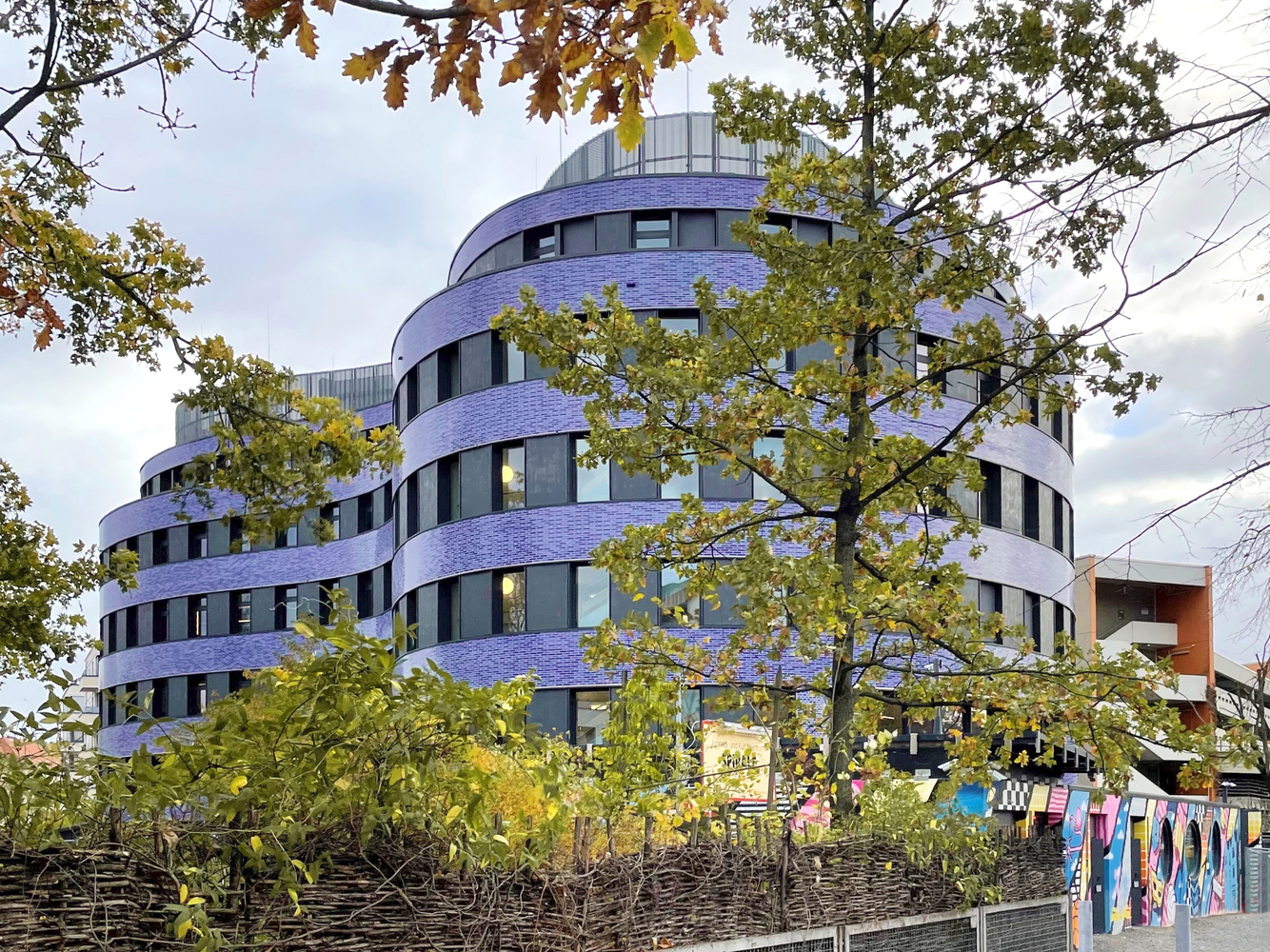

Surrounded by heterogeneous architecture, the new school building with its organically curved form is a free-standing structure embedded in a green school garden with diverse open spaces for different uses, such as playgrounds and sports fields.

The two-story multi-purpose hall on the third floor can be used flexibly for sports activities but also for cultural events, such as religious celebrations, or for seminars and conferences.

Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe

On the fifth floor, there is an auditorium with ascending tiers for film screenings or lectures. The building also has a dining room and a kosher kitchen. The rooms of the basement on the concave side of the building have access to the outside area. Here green cascades with steps lead up to normal ground level.

The building’s amorphous curved shape was chosen in reference to the interior of the Chabad-Lubavitch Centre, where the contemporary additions to the rectangular, Neoclassical existing building were deliberately executed in the same organic formal language with rhythmic horizontal banding that appears in the structural form and façade of the new building.

Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe

The vertical slits of light within the horizontal bands on the school's façade are also a motif found in the interior paneling of the neighboring synagogue.

Constructed in masonry and concrete, the building immediately catches the eye with its colorfulness and materiality.

This is where its name, “The Blue House’, comes from. In terms of form and style, the design of the school building again refers to the neighboring family and cultural center.

Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe

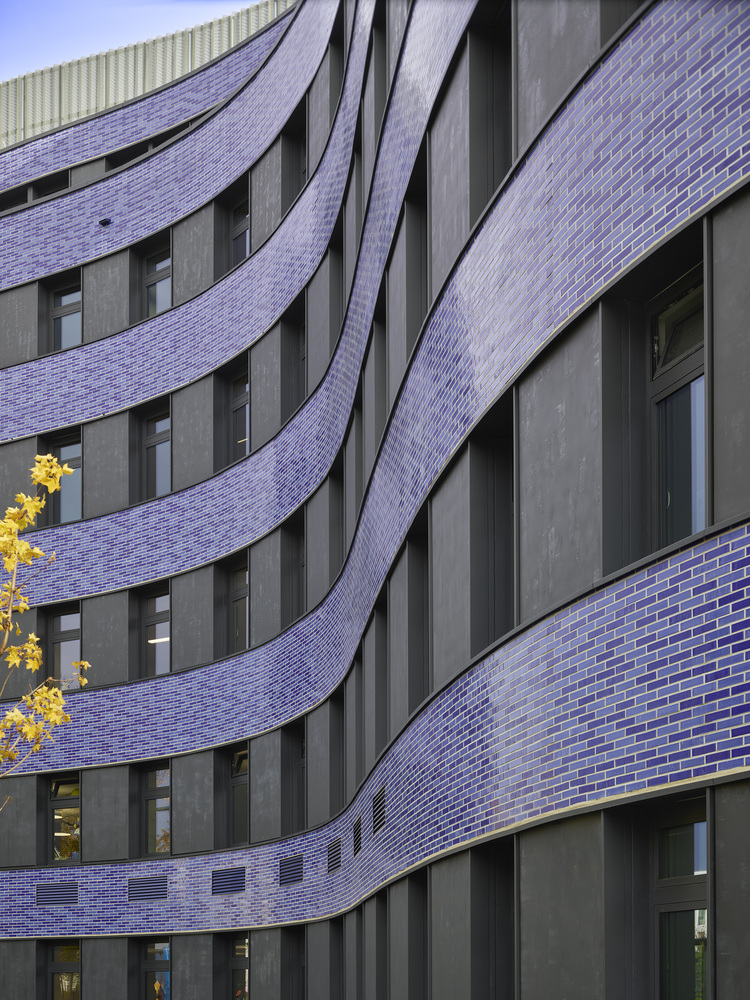

There is a color connection between the iridescent, sky-blue / midnight-blue-violet glazed, rear-ventilated clinker-brick façade of the new school building and the blue-white glazed entrance portal of the Jewish cultural center in the front part of the site.

The color blue has had a special significance throughout the history of Judaism right up to the present day: reminiscent of the blue of the sky, this shade is the color of divine revelation.

Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe

The roof slab is a slope-free inverted roof with a two-layer waterproofing in accordance with the flat roof directive. The roof surface will be extensively greened.

The school’s main entrance is accessible from street level. Its walls are adorned with two kabbalistic trees of life – light installations by the Berlin artist Anna Nezhnaya.

Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe

The two brightly colored trees that greet people at the entrance to the campus are more poetically picturesque than schematic. An oak and an olive tree, symbolize the two countries - Germany and Israel.

The two-story entrance hall has a mirrored ceiling as a special design element. From the adjacent staircase, all floors are wheelchair-accessible via at least one lift.

Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe

The facility is intended for use by 450 children and adolescents, ranging from children of crèche or kindergarten age up to grade 12, i.e. between the ages of approximately one and 18.

The school rooms (classrooms, subject classrooms, assembly rooms, workshops) are used exclusively by the school; the group rooms, are exclusively by the daycare center.

Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe

The concrete wall on the street side shows graffiti by the Berlin street artist TOBO, aka Tobias Friesike.

Pears Jewish Campus
© Roland Halbe
Pears Jewish Campus
© Roland Halbe


Pears Jewish Campus
East elevation
Pears Jewish Campus
West elevation
Pears Jewish Campus
Facade
Pears Jewish Campus
Section


Pears Jewish Campus
Ground floor plan
Pears Jewish Campus
Second floor plan
Pears Jewish Campus
Third floor plan
Pears Jewish Campus
Site plan
