THE PROJECT

The project consists of two houses that are part of the Bandido Bali complex. "We wanted to create a unique experience of design, communication, culture, and architecture."

I believe that today, we live, work, and even have fun in squared, dull, rigid boxes with little connection to nature. The main mission of the architectural project was to create an alternative and break away from the conventional box of our daily life.

Bandido Bali - La Lourdes & La Matilde Villas
© Dani Monetti
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz

To explore a different way of living, break paradigms, and make architecture the means that inspires and evokes that way of living.

I wanted to create a place where tradition and contemporary had no boundaries, where both the interior and exterior could merge, where humans and nature could integrate, and where bamboo and cement could dance in unison. The houses ended up being transformed into a sensory, emotional, and visual showcase inspired by Bali.

Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris

THE LOCATION

"Bali, its people, and its culture welcomed us with open arms from day one." That's precisely what we wanted to convey to the user: spaces that would make them feel at home despite being far from their homeland.

The Tri Hita Karana (traditional island life philosophy), the organic geometries, the materials used, the richness of circulation and spaces, and the direct contact with nature are basic pillars of this architecture for the soul.

Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz

THE FLOOR PLAN

Located on the Pecatu Peninsula in the south of Bali, the spatial organization of these houses is inspired by traditional Balinese housing. A more public central space allocates the daytime areas, around which the more private modules (nighttime areas) are distributed.

Ensuring that every space has multiple circulations and entrances/exits and facilitating various interactions between them, connecting, overlapping, and even superimposing, thereby enhancing the richness of spaces and the flow of paths.

Bandido Bali - La Lourdes & La Matilde Villas
© Dani Monetti
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz

This richness is an essential tool that allows the user to experience the house in different ways at different times of the day. Simultaneously, we placed significant emphasis on landscaping, conceptualizing it as an integral part of both the architecture and interior design present in all spaces. It gradually takes over the structures over time, ensuring privacy and fostering immersion in the experience and place.

THE DESIGN

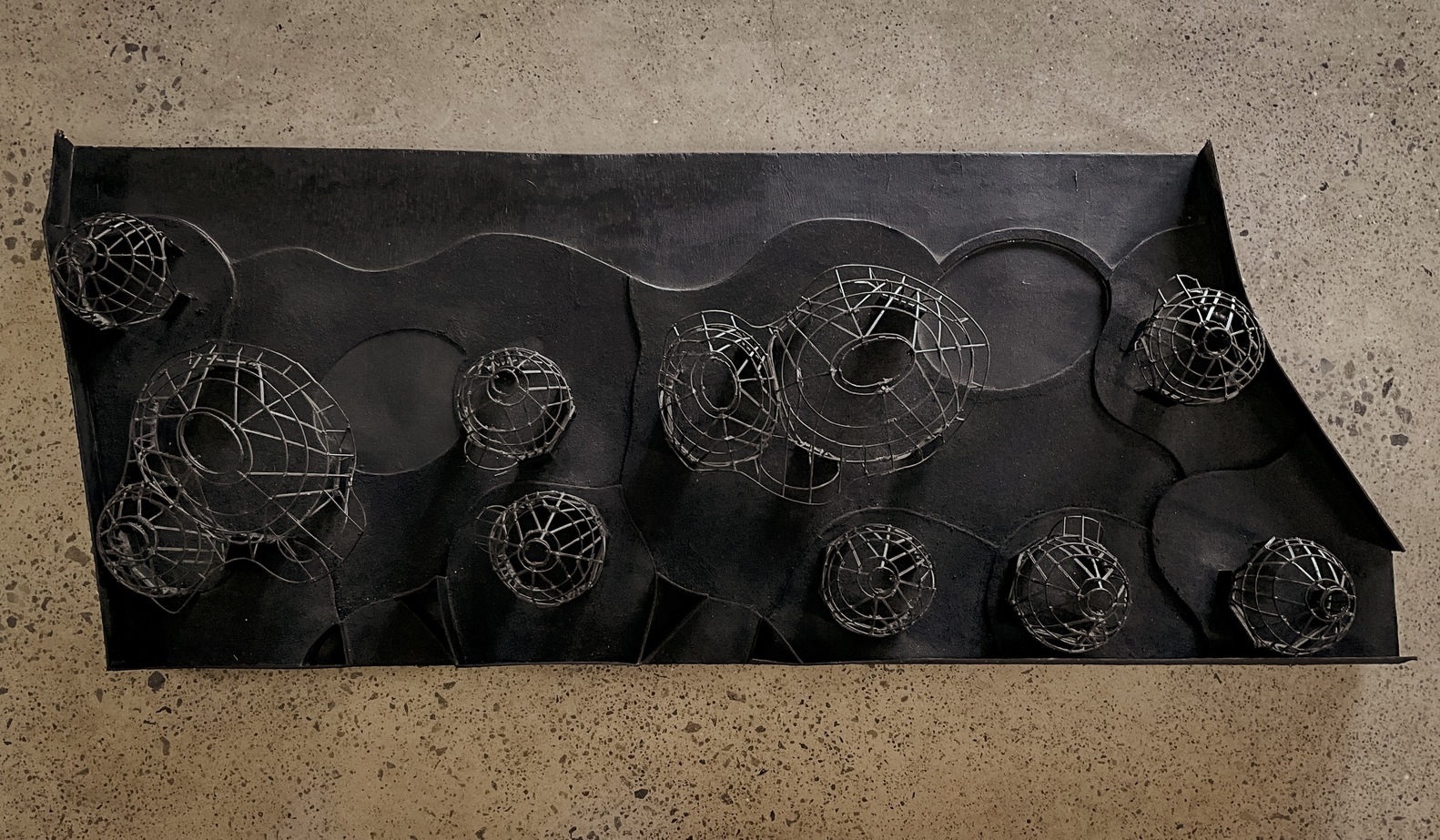

In order to create a more human and natural space, I understood that the creation, design, and construction process should be based on models, sketches, and many hours of on-site dialogue with local artisans rather than relying solely on computer software for design.

Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz

Throughout the process, the elements of creation, learning, and enjoyment have always been present. Without a doubt, models and sketches served as the most effective means of communication with local artisans and laborers.

By infusing certain elements with a local identity inspired by our Mediterranean heritage, we conceived and designed the homes to be in harmony with their specific location, taking into consideration the sun, wind, and rain of the area, especially in the context of southern Bali.

Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz

The orientation of the modules, their openings, and their eaves are all designed to enhance the flow of air, taking into account the prevailing winds in the region, thus promoting outdoor climate comfort without the need for air conditioning.

A skylight positioned at the top of the main spaces allows natural light to enter and facilitates the circulation of hot air, all while allowing the continued presence of the sky, cloud movement, stars, and the beauty of Bali’s moon.

Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz

THE STRUCTURE

By decontextualizing elements and blurring the conventional rules of the main materials that constitute the structure, bamboo, and cement, we successfully achieved their coexistence in the same environment.

Bamboo serves as an exceptional ambassador of sustainability, tradition, craftsmanship, and the spirit of Bali.

Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz

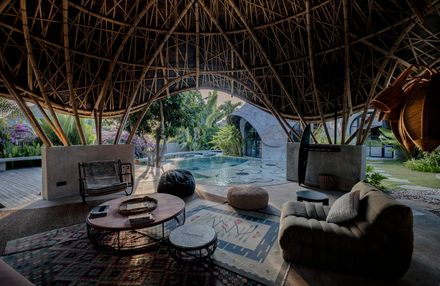

We designed a highly geometric circular floor plan structure comprising 24 pillars grouped into four columns and five upper rings gradually decreasing in diameter as the height ascends.

Based on this framework, and by making alterations only to the dimensions in the plan and height, all the primary spaces were designed.

Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris

The roof, characterized by a chaotic network of flat elements (splits) and black bamboo (pelupuh), also adjusts to the requirements of each space, creating openings and eaves where necessary.

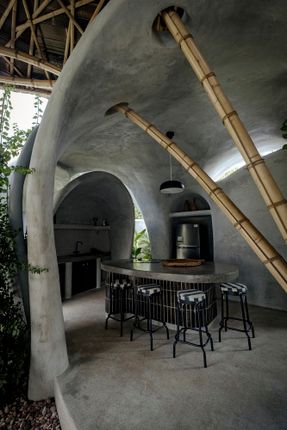

In wet areas, cement, which typically represents rigidity and industry, transforms into an organic, malleable, lightweight, and unpredictable element through the use of "ferrocement".

This adaptation allows to take control of natural lighting, airflow, and privacy.

Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz

THE INTERIOR

I intended the breaking of conventional rules and the use of a wide range of materials to serve as the central premise of interior design.

Plastics retrieved from Bali's rivers were repurposed into furniture, waste from a marble factory was utilized for crafting a table, 100% recycled PET bottle fabrics were employed for sofas, and a Gae Aulenti chair was reimagined with a Pahikung Sarong (a traditional handmade fabric from the island of Sumba).

Additionally, hand-glazed terracotta by a local ceramist and pools painted by a local artist were incorporated, exemplifying how we seamlessly incorporated different materials and elements into the space.

Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz

In conclusion, understanding architecture as an ongoing process of unlimited creativity and experimentation.


Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Dani Monetti
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz
Bandido Bali - La Lourdes & La Matilde Villas
© Dani Monetti
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz


Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Javi Diaz
Bandido Bali - La Lourdes & La Matilde Villas
© Ruben Beeris
Bandido Bali - La Lourdes & La Matilde Villas
© Dani Monetti
Bandido Bali - La Lourdes & La Matilde Villas
© Dani Monetti
Bandido Bali - La Lourdes & La Matilde Villas
© Dani Monetti
Bandido Bali - La Lourdes & La Matilde Villas
© Dani Monetti


Bandido Bali - La Lourdes & La Matilde Villas
Model View 01
Bandido Bali - La Lourdes & La Matilde Villas
Model View 02
Bandido Bali - La Lourdes & La Matilde Villas
Model View 03
Bandido Bali - La Lourdes & La Matilde Villas
Model View 04


Bandido Bali - La Lourdes & La Matilde Villas

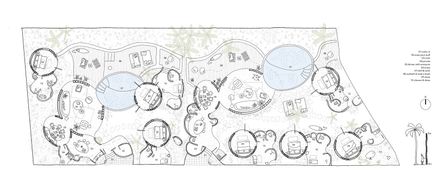

Floor Plan
Bandido Bali - La Lourdes & La Matilde Villas
Roof Plan
Bandido Bali - La Lourdes & La Matilde Villas
Circulation Floor Plan


Bandido Bali - La Lourdes & La Matilde Villas

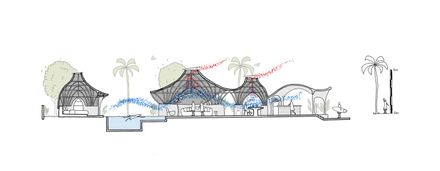

Section 01 - Climate
