ASWA

Craft Estate Restaurant and Offices

 Craft Estate Restaurant and Offices

ASWA (Architectural Studio of Work - Aholic)

Craft Estate Restaurant and Offices
© Phuttipan Aswakool

ARCHITECTS
Aswa

LEAD ARCHITECTS
Aswa (Architectural Studio Of Work - Aholic)

DESIGN TEAM
Phuttipan Aswakool, Chotiros Techamongklapiwat, Ananya Rakaphai, Nantagan Watcharakaweesin

MANUFACTURERS
Lanko, Minigold, Toa

PHOTOGRAPHS
Phuttipan Aswakool

AREA
1400 M²

YEAR
2023

LOCATION
Nonthaburi, Thailand

CATEGORY
Restaurants & Bars, Mixed Use Architecture, Cowork Interiors

Craft Estate Restaurant and Offices
© Phuttipan Aswakool

In Nonthaburi, Thailand, the Craft Estate, located next to the across-river bridge, stands a new triangular architecture for a river-view co-leisure area with a craft beer, coffee, bar, and restaurant community.

Approximately 1,270 square meters, the site is between the across-river bridge and the public park.

Craft Estate Restaurant and Offices
© Phuttipan Aswakool
Craft Estate Restaurant and Offices
© Phuttipan Aswakool

The new triangular restaurant tends to emphasize the uniqueness of the triangle site and translate it into an architectural language.

The trapezoid plan shape comes from the maximum volume of the allowed built area.

Craft Estate Restaurant and Offices
© Phuttipan Aswakool
Craft Estate Restaurant and Offices
© Phuttipan Aswakool

The inclined volume is 12 to the highest point of 17 meters, where the quirk of the building points towards the Chaophraya River—the functional space of 1,400 sq.m., which is mainly separated, and the facade of the building was perceptually cut into two parts followed two main functions: restaurant space and office space.

The restaurant space is on the quirk of the building with a four-story height and fits for the coffee stand, craft beer bar, semi-outdoor, indoor dining, and stepped rooftop for hang-out space.

Craft Estate Restaurant and Offices
© Phuttipan Aswakool
Craft Estate Restaurant and Offices
© Phuttipan Aswakool

The office space took a three-story on the opposite side, offering space for a working area, meeting room, and the managing director's rooms.

The architect selected two primary exterior materials of white translucent fiberglass and precast concrete in the conceptual cutting part of the building.

Craft Estate Restaurant and Offices
© Phuttipan Aswakool
Craft Estate Restaurant and Offices
© Phuttipan Aswakool

In contrast, the white translucent fiberglass roof tiles were applied to the facade of the building, which allows diffused natural sunlight and the blurriness effect for the interior space.

In contrast, the exterior facade will glow at night from the lighting effect, which aims to light up its context with its glowing facade.


Craft Estate Restaurant and Offices
© Phuttipan Aswakool
Craft Estate Restaurant and Offices
© Phuttipan Aswakool
Craft Estate Restaurant and Offices
© Phuttipan Aswakool
Craft Estate Restaurant and Offices
© Phuttipan Aswakool
Craft Estate Restaurant and Offices
© Phuttipan Aswakool


Craft Estate Restaurant and Offices
Elevation 01
Craft Estate Restaurant and Offices
Elevation 02
Craft Estate Restaurant and Offices

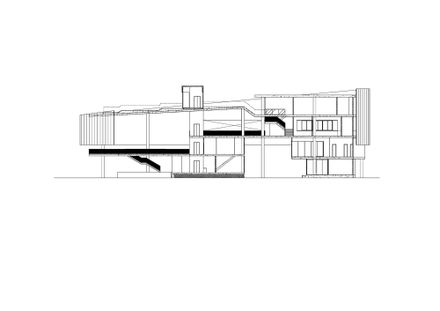

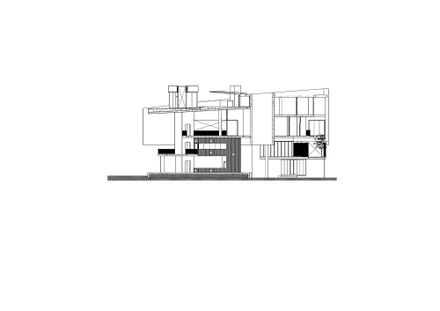

Section 01
Craft Estate Restaurant and Offices
Section 02


Craft Estate Restaurant and Offices

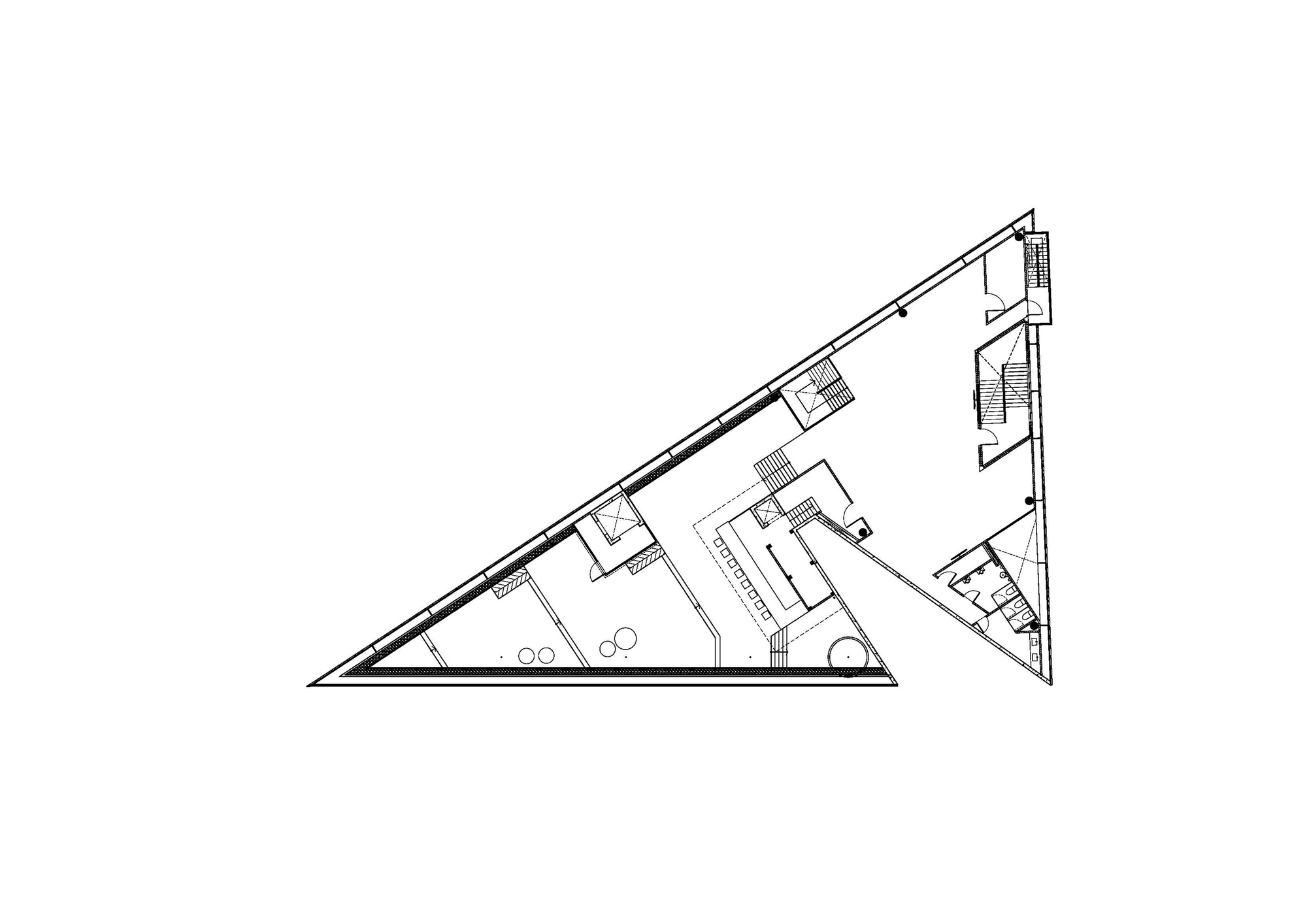

Plan - 1st Floor
Craft Estate Restaurant and Offices
Plan - 2nd Floor
Craft Estate Restaurant and Offices
Plan - 3rd Floor
Craft Estate Restaurant and Offices
Plan - 4th Floor
Craft Estate Restaurant and Offices
Plan - 5th Floor
