Bez + Kock Architekten Generalplaner GmbH

Green Experience Center in Luisenpark

Green Experience Center in Luisenpark

Bez+Kock Architekten

Green Experience Center in Luisenpark
© Brigida González

STRUCTURAL ENGINEERING
Wh-p Gmbh Beratende Ingenieure

PROJECT TEAM
 Erik Bossog, Anna-katharina Piontek, Thorsten Hannig, Jana Lang, Almut Reuter, Katharina Rindtorff

MANUFACTURERS
Agrob Buchtal, Jakob, Domoferm, Franz Nüsing, Geze Gmbh, Hörmman, Knauf, Köhnlein , Nbk North America, Paul Bauder, Remmers, Schäfer

LEAD ARCHITECTS
Martin Bez, Thorsten Kock

CONSTRUCTION MANAGEMENT
Planungsgruppe Wörmann Gmbh

LANDSCAPE DESIGN
Koeber Landschaftsarchitektur

COMPETITION TEAM
Anna Piontek, Iris Schulenberg

FIRE PROTECTION
Müller Bbm Gmbh

ELECTRICAL PLANNING
Raible + Partner Gmbh

BUILDING PHYSICS
Müller Bbm Gmbh

CLIMATE AND ENERGY CONSULTANT
Transsolar Klima Engineering

LIGHTING CONSULTANTS
Bartenbach Gmbh

HVAC
Henne & Walter Gbr

AREA
4125 M²

YEAR
2023

LOCATION
Mannheim, Germany

CATEGORY
Installations & Structures, Park, Pavilion

Green Experience Center in Luisenpark
© Brigida González

One of the special qualities of Luisenpark is that the landscape elements allow the structural elements to recede into the background.

Therefore, in our design, the new buildings were not developed as buildings in the classical sense, but as organically shaped, single-story pavilions that are surrounded by the surrounding park.

Green Experience Center in Luisenpark
© Brigida González
Green Experience Center in Luisenpark
© Brigida González

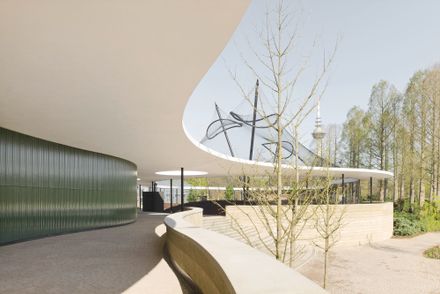

An elegantly curved roof structure resting on filigree supports covers the floor-to-ceiling glazed interiors, creating a flowing transition between interior and exterior space.

Finely shining, dark green glazed ceramic elements enclose the adjoining room zones. The flat silhouette of the slender roof edge slides under the overhanging branches of the trees. Circumferential canopies offer park visitors protection from sun and rain.

Green Experience Center in Luisenpark
© Brigida González
Green Experience Center in Luisenpark
© Brigida González

The curved roof structure, which is about 120 meters long and up to 30 meters wide, connects the many functional areas of the building. At its south end, the new park restaurant formulates an inviting gesture for arriving visitors.

The dining area is framed by a curved glass façade and looks out over the adjacent Kutzerweiher pond. Large sliding doors allow the restaurant to be extended under the cantilevered canopy during the summer months.

Green Experience Center in Luisenpark
© Brigida González
Green Experience Center in Luisenpark
© Brigida González

Adjacent to the north of the restaurant is a walk-in free-flight aviary, for which a 1,300 m2 opening was cut into the roof pane. The aviary is covered by an 18-meter high cable net construction supported by 3 pylons.

The visitors' path through the aviary leads through a modeled landscape with a watercourse and two ponds. The stable and care building occupies the northern end of the roof.

Green Experience Center in Luisenpark
© Brigida González
Green Experience Center in Luisenpark
© Brigida González

Slightly set off from the main roof, a 580 m2 penguin installation was realized, whose contour also follows a dynamically curved design language. The landscape here was modeled by a mixture of real granite and artificial rock. A pool with a capacity of 250 m3 was created for the penguins so that they can be observed above and below water.

The drop in elevation to the Kutzerweiher, four meters below, was intercepted by a rammed concrete wall that follows the shore of the pond with a soft curve.

Green Experience Center in Luisenpark
© Brigida González
Green Experience Center in Luisenpark
© Brigida González

Due to its porosity and the clearly visible layers of the stamped concrete placed in layers, it is reminiscent of the sediment layers of a quarry. The wall thus transforms from a structural to a landscape element.

Through a deep cut in the stamped concrete wall, visitors enter the polygonal underwater world from the shore of the pond. The sand-colored screed here was deliberately only sanded, the walls were given a slightly glimmering scratch coat, and the ceiling was painted in a midnight blue color.

This creates a mineral-influenced, contemplative place, where fish from all continents are displayed in 21 aquarium tanks.

Green Experience Center in Luisenpark
© Brigida González
Green Experience Center in Luisenpark
© Brigida González

The implementation of the amoeba-like family of buildings has given the Luisenpark a new and unmistakable face with an identity-creating ensemble effect for the Federal Horticultural Show BUGA 2023. In the 2nd construction phase, the Green School and the Leisure House are to extend this family of buildings.


Green Experience Center in Luisenpark
Ground floor plan
Green Experience Center in Luisenpark
Floor plan


Green Experience Center in Luisenpark
Section
Green Experience Center in Luisenpark
Site plan
