‘t Bosbad

GAAGA

ARCHITECTS
GAAGA

LANDSCAPE DESIGN
Maak Space

CONTRACTOR
Dura Vermeer Bv

MANUFACTURERS
Vbi, Van Hameren Houthandel

ARCHITECTURAL DESIGN
Esther Stevelink

STRUCTURAL DESIGN
Van Rossum Raadgevende Ingenieurs

PROGRAM / USE / BUILDING FUNCTION
Residential

ARCHITECTURAL DESIGN AND ENGINEERING
Arie Bergsma, Maaike Van Der Veer, Rozemarijn Nederend

PHOTOGRAPHS
Melchior Overdevest, Max Hart Nibbrig

AREA
2800 m²

YEAR
2022

LOCATION
Eindhoven, The Netherlands

CATEGORY
Sustainability, Residential

'Het Bosbad' is located in park Bosrijk, a residential location where housing is designed as 'sculptures in a sculpture garden'. The building stands completely free in a clearing among the trees and is the latest in a series of special residential ensembles.

‘ T Bosbad
© Max Hart Nibbrig
‘ T Bosbad
© Melchior Overdevest

The building has a simple, rational design consisting of two rectangular volumes with a public, landscaped passageway between them with bridges and galleries giving access to the apartments.

The passage connects to paths in the park and its design with plants and water elements makes it a continuation of the park.

‘ T Bosbad
© Max Hart Nibbrig
‘ T Bosbad
© Melchior Overdevest
‘ T Bosbad
© Melchior Overdevest

It is the central entrance and meeting place in the building. The apartments face this passage as well as the surrounding park.

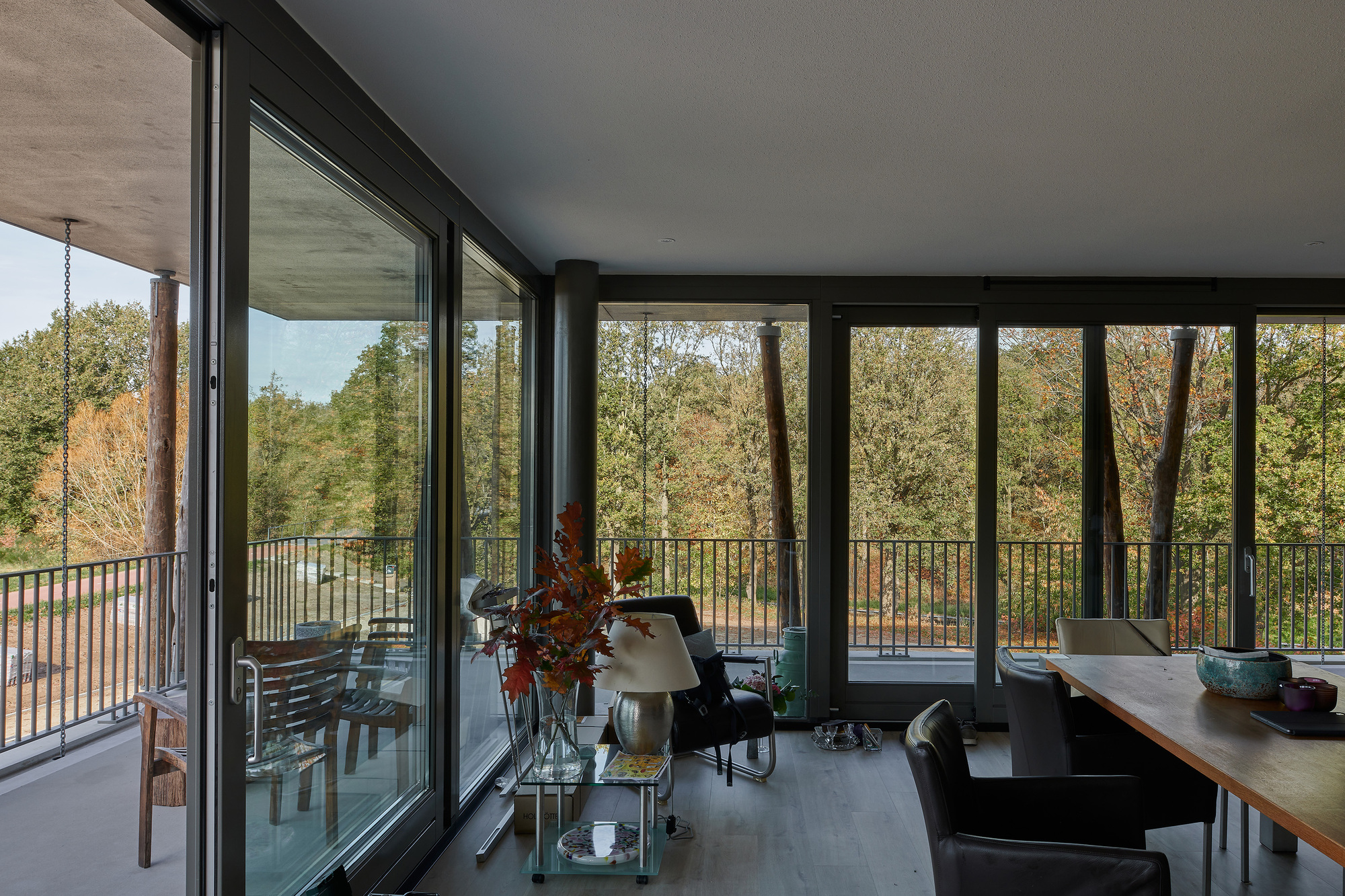

Most of the apartments have corner windows with expansive views of the park and large balconies offering the opportunity to enter the landscape.

The balconies are continuous and supported by a colonnade of real tree trunks.

‘ T Bosbad
© Melchior Overdevest
‘ T Bosbad
© Max Hart Nibbrig
‘ T Bosbad
© Melchior Overdevest

The whole forms a kind of collar that provides a comfortable distance between resident and park visitor.

In terms of materials, the building is "aus einem Guss" with wood as the main material.

The reused wood in the façade and the whimsical tree trunk columns give the building a natural look, interweaving it with the forest landscape and softening the building's rational layout.

‘ T Bosbad
‘ T Bosbad
© Melchior Overdevest
‘ T Bosbad

The public green passage through the building not only provides a visual and physical connection to the park, it also has an important water management function.

Rainwater coming from the galleries and the partly green roof, runs into the passage via water chains and is collected in small ponds connected to each other.

Excess water drains from the passage on the north side of the building and is collected in a wadi in the park.

‘ T Bosbad
© Melchior Overdevest
‘ T Bosbad
© Melchior Overdevest
‘ T Bosbad
© Melchior Overdevest

Excess water drains from the passage on the north side of the building and is collected in a wadi in the park.

The presence of water coxmbined with greenery also provides cooling in summer.

With circular construction in mind, the building has a demountable concrete support structure made of 'green' hollow-core slabs.

‘ T Bosbad
© Melchior Overdevest
‘ T Bosbad
© Melchior Overdevest

The façade is also designed to be relatively easy to dismantle in the future. More than 85% of material weight can thus be reused or recycled in the future.

In addition to reusability in the future, already used and renewable materials have been applied. The hardwood façade cladding was previously used as riverbank protection and the supporting columns are Eucalyptus tree trunks.

‘ T Bosbad
© Melchior Overdevest
‘ T Bosbad
© Max Hart Nibbrig

The building is designed to adapt to changes over its lifetime. Because installations are not cast in and large column-free spaces have been created, floor plans can be arranged flexibly and the building can be adapted to the future without major structural changes.

Great efforts were made to use materials more efficiently, including the use of lightweight hollow-core slabs, something not common in current housing construction.

‘ T Bosbad
© Max Hart Nibbrig
‘ T Bosbad
© Melchior Overdevest

Thus, up to 40-45% in material and weight could be saved compared to conventional constructions. In addition, the building is energy-neutral.


‘ T Bosbad
Plan - Site
‘ T Bosbad
Plan - -1 floor


‘ T Bosbad
Plan - Ground floor
‘ T Bosbad
Plan - 1st floor


‘ T Bosbad
Section
‘ T Bosbad
East elevation
‘ T Bosbad
West elevation
‘ T Bosbad
South elevation


‘ T Bosbad
Technical fragment
‘ T Bosbad
Scheme sustainability


‘ T Bosbad

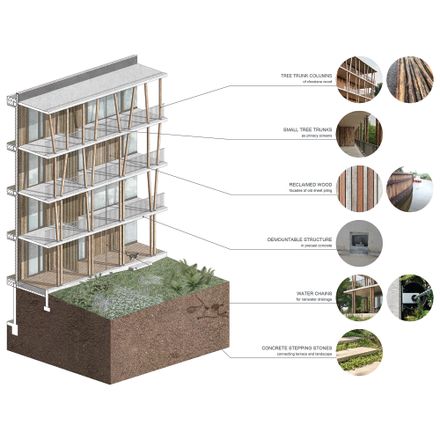

Axo facade with materials 01
‘ T Bosbad
Axo facade with materials 02
