House in Konstancin

House in Konstancin

BDR Architekci

House in Konstancin
© Konrad Basan

ARCHITECTS
Bdr Architekci

MANUFACTURERS
Rheinzink, Swisspearl, Tubadzin

LEAD ARCHITECTS
Konrad Basan, Paweł Dadok, Maria Roj

STRUCTURE ENGINEERS
Jakon Jacek Grzelak

PROGRAM / USE / BUILDING FUNCTION
Single-family House

MEP & HVAC CONSULTANTS
Mj Projekt

PHOTOGRAPHS
Konrad Basan

AREA
240 M²

YEAR
2023

LOCATION
Konstancin-jeziorna, Poland

CATEGORY
Houses, Sustainability

House in Konstancin
© Konrad Basan
House in Konstancin
© Konrad Basan
House in Konstancin
© Konrad Basan

The house is located in Konstancin-Jeziorna, a spa resort near Warsaw famous for its beautiful, green and wooded landscape.

When designing the house we wanted to take advantage of the qualities and natural conditions of the plot, so the design embodies the idea of living close to nature.

House in Konstancin
© Konrad Basan
House in Konstancin
© Konrad Basan

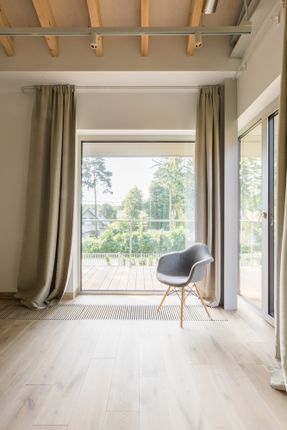

The living room, located on the first floor, opens up to the surroundings as much as possible. Through the use of full glazing and sliding windows, the common area merges with the outside, emphasizing a strong relation between nature and the building.

The surrounding covered terrace constitutes a buffer that provides shade to the interior and expands the living space. A bedroom, children's room, study and bathrooms are located on the first floor.

House in Konstancin
© Konrad Basan
House in Konstancin
© Konrad Basan

All usable spaces (including bathrooms) on both floors have access to terraces and views of the surrounding nature.

The building's compact shape maximizes the green area on the plot. The efficient plan offers the greatest possible functionality considering the limitations imposed by the plot size and legal provisions.

House in Konstancin
© Konrad Basan
House in Konstancin
© Konrad Basan

The building is made in hybrid construction: above-ground structure is based on a steel frame supplemented with glulam elements, whereas the basement and the staircase are made of reinforced concrete. The facades are comprised of milled cement-fiber panels.

The interiors have muted colors and simple forms, directing attention to the outside greenery. The open living room with kitchen was designed in neutral tones using white and natural materials: wood and quartzite.

House in Konstancin
© Konrad Basan
House in Konstancin
© Konrad Basan

Thus, the outside panorama becomes the main, most important element affecting the interior. Furniture cladding and large-format ceramic tiles in uniform pastel colors were used in the bathrooms and hallway.

The building's structural elements are exposed in many places: steel I-beams in the living room, wooden roof structure in the upstairs rooms, or reinforced concrete shaft in the stairwell.

House in Konstancin
© Konrad Basan
House in Konstancin
© Konrad Basan

The building is designed to be environmentally friendly. The use of steel-frame structure allowed for efficient use of building materials and a shorter construction process.

The eaves and arcades protect the interiors from overheating in summer.

PV panels were placed on the southern slope of the roof and the generated energy can be used to charge, for instance, an electric vehicle.

House in Konstancin
© Konrad Basan
House in Konstancin
© Konrad Basan
House in Konstancin
© Konrad Basan

All installations have been integrated using a smart home system. The building is also equipped with a heat pump and a rainwater tank


House in Konstancin
Plan - Basement
House in Konstancin
Plan - Ground floor
House in Konstancin
Plan - First floor
House in Konstancin
Plan - Site


House in Konstancin
Section 01
House in Konstancin
Section 02


House in Konstancin

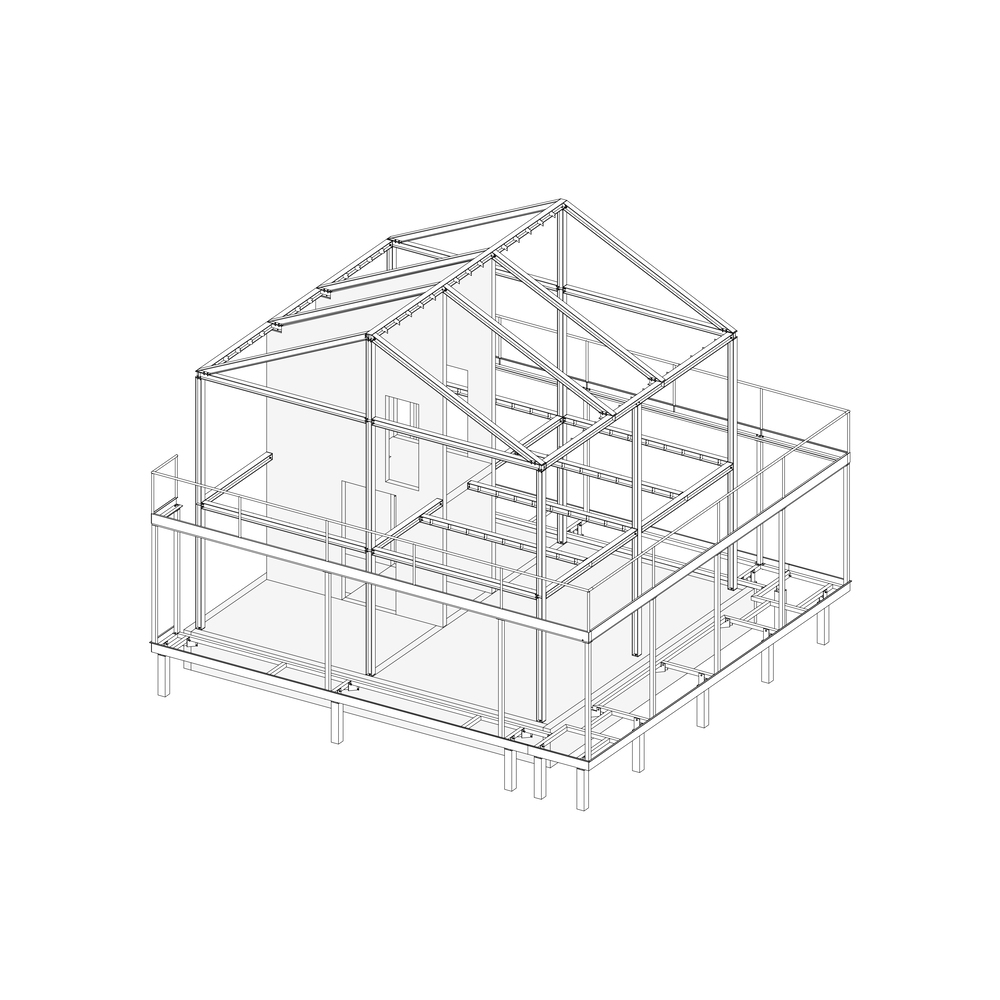

Axo
House in Konstancin
Concept diagram
