Dafeng Timber Structure Research and Design Center

Dafeng Timber Structure Research and Design Center

CATS

Dafeng Timber Structure Research and Design Center
© Amigo Zhen Xu

ARCHITECTS
Cats

DESIGN TEAM
Xueli Chen, Cong Zhou, Suyang Yao, Xuecong Li, Cheng Luo, Aiwei Shi

CLIENTS
Crownhomes

LEAD ARCHITECTS
Shengze Chen, Wenxin Huang

PHOTOGRAPHS
Amigo Zhen Xu, Runzi Zhu

AREA
2400 M²

YEAR
2022

LOCATION
Yancheng,China

CATEGORY
Research Center

Dafeng Timber Structure Research and Design Center
© Runzi Zhu

House of Woodwork was a mental odyssey about how to use wood to create contemporary buildings. We've gone a long way, but we've come back to three basic anchors.

(1) A strong and fragile material. Wood is an old material. The history of using wood as a building material is probably not much younger than that of hand tools.

Dafeng Timber Structure Research and Design Center
© Runzi Zhu
Dafeng Timber Structure Research and Design Center
© Runzi Zhu

Among all kinds of construction workers, carpenters may be the ones who use their brains the most. People have used wood to build palaces, make tables and chairs, and contain food since ancient times.

Compared to other materials, wood is light, easy to sand, and not difficult to obtain, as long as it is where the tree grows.

Dafeng Timber Structure Research and Design Center
© Runzi Zhu
Dafeng Timber Structure Research and Design Center
© Runzi Zhu

Wood is warm to the touch, rustic in color, and very resilient. Wood is so advantageous that we naturally want to be friends with it. However, wood has not been part of the mainstream of contemporary building activities.

Cities are icy forests only made out of concrete and steel. Reinforced concrete is so simple to use, just waiting for the fluid to solidify.

Dafeng Timber Structure Research and Design Center
© Amigo Zhen Xu
Dafeng Timber Structure Research and Design Center
© Runzi Zhu

In contrast, wood requires us to do a demanding job in the connections and surface maintenance of various forms of components.

CATS embraces the fragility of wood and cherishes the joy of thinking brought by wood. We have more than 10 years of experience in designing timber structures. The "House of Woodwork" project is located in Dafeng, Yancheng City.

Dafeng Timber Structure Research and Design Center
© Runzi Zhu
Dafeng Timber Structure Research and Design Center
© Runzi Zhu

It is built to be a research and development center for timber structure buildings, and it is adjacent to its wood component manufacturing factories. In this project, we used glulam timber and CLT for structure and finishes.

Structural components are completely enclosed from outdoor weathering, while a variety of wood veneer is used boldly on the façade and soffit.

The wind and rain will further cause surface changes, so the building seems to have a sense of life and pass of time.

Dafeng Timber Structure Research and Design Center
© Runzi Zhu
Dafeng Timber Structure Research and Design Center
Courtesy of CATS

(2) Precise structure, house geometry. The ideation of the structure starts with three numbers: 13m, 6m, and 2m.

Buildings in northern Jiangsu generally welcome sunlight, which determines the depth of an office building is appropriate at 13m, so that there is enough sunlight from both the north and south directions.

The project is composed of two 13m deep blocks, based on a typical structural span of 6m. The technical process of the glulam structure is based on the stacking and gluing of lumber of the same size, and 6m is a friendly beam-column size that fits the specification of the lumber.

Dafeng Timber Structure Research and Design Center
© Amigo Zhen Xu
Dafeng Timber Structure Research and Design Center
© Amigo Zhen Xu
Dafeng Timber Structure Research and Design Center
© Amigo Zhen Xu

Finally, 2m is the basic unit of vertical height, which stipulates the height of the continuous horizontal views close to the floors of the building, and the same height goes as the CLT cladding.

Spaces such as research labs require five times as high a space as 2m, and the highest roof ridge is seven times as high as 2m.

In addition to the precision of the structure, we also thought a lot about giving the pitched roof form.

Dafeng Timber Structure Research and Design Center
Courtesy of CATS
Dafeng Timber Structure Research and Design Center
© Amigo Zhen Xu

Many houses have sloping roofs. Seeing the small-scale pitch roofs is an easy trigger to remind people of their memories of the house. It gives people a good sense of intimacy and makes the building detach from the boringness of the surrounding factories.

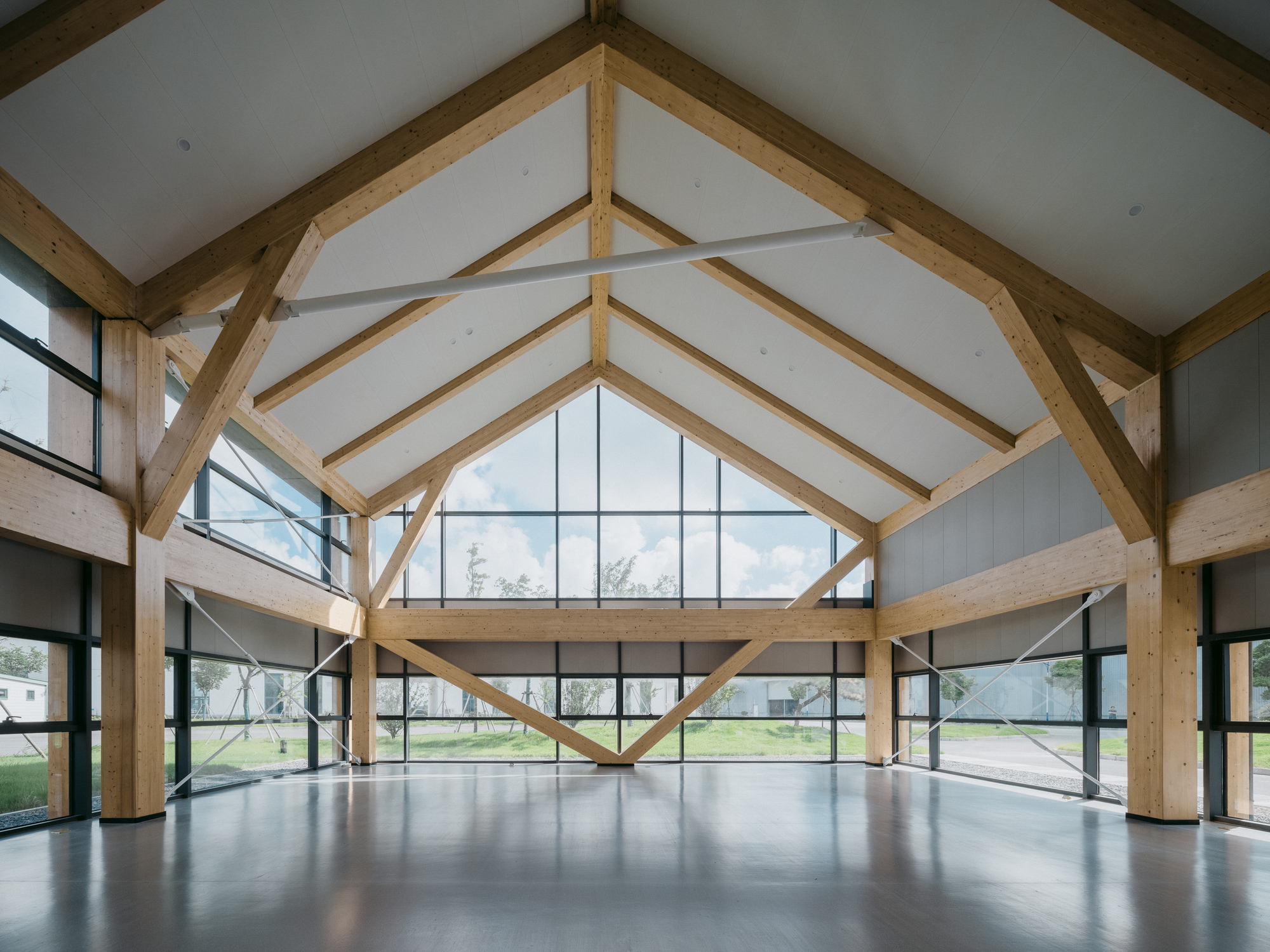

The space enclosed by the roof increases the usable internal height and directly exposes the rhythm of the wooden structure, which is different from the traditional construction where the pitched roof is merely used as a kind of form and waterproofing.

Dafeng Timber Structure Research and Design Center
© Runzi Zhu
Dafeng Timber Structure Research and Design Center
© Amigo Zhen Xu

A sense of home is precious, and the workers of the factories in the outskirts deserve this kind of home-warm association.

(3) An energy perspective. In this project, all debates about architectural form finally fall on the evaluation from the energy dimension.

Dafeng Timber Structure Research and Design Center
© Amigo Zhen Xu
Dafeng Timber Structure Research and Design Center
© Runzi Zhu

Under the general set-up of north high and south low, the relatively tall block in the north is set to block the strong wind and create three-story warm terraces, while the low block in the south allows more sunlight to enter the rooms; Continuous glass windows make ventilation easily available everywhere, but the overall proportion of glass is not out of control; horizontal protrusions assist the necessary south-facing sunshade work, and so on.

At present, no one doubts the correctness of using less energy to build and operate a building, but real efforts to force it into practice have barely started. Quite actively, we expand our understanding of what makes a good architecture, create from an energy perspective, and enjoy thinking brought by materials.

Dafeng Timber Structure Research and Design Center
© Runzi Zhu


Dafeng Timber Structure Research and Design Center
© Runzi Zhu
Dafeng Timber Structure Research and Design Center
Courtesy of CATS
Dafeng Timber Structure Research and Design Center
© Amigo Zhen Xu
Dafeng Timber Structure Research and Design Center
© Runzi Zhu


Dafeng Timber Structure Research and Design Center

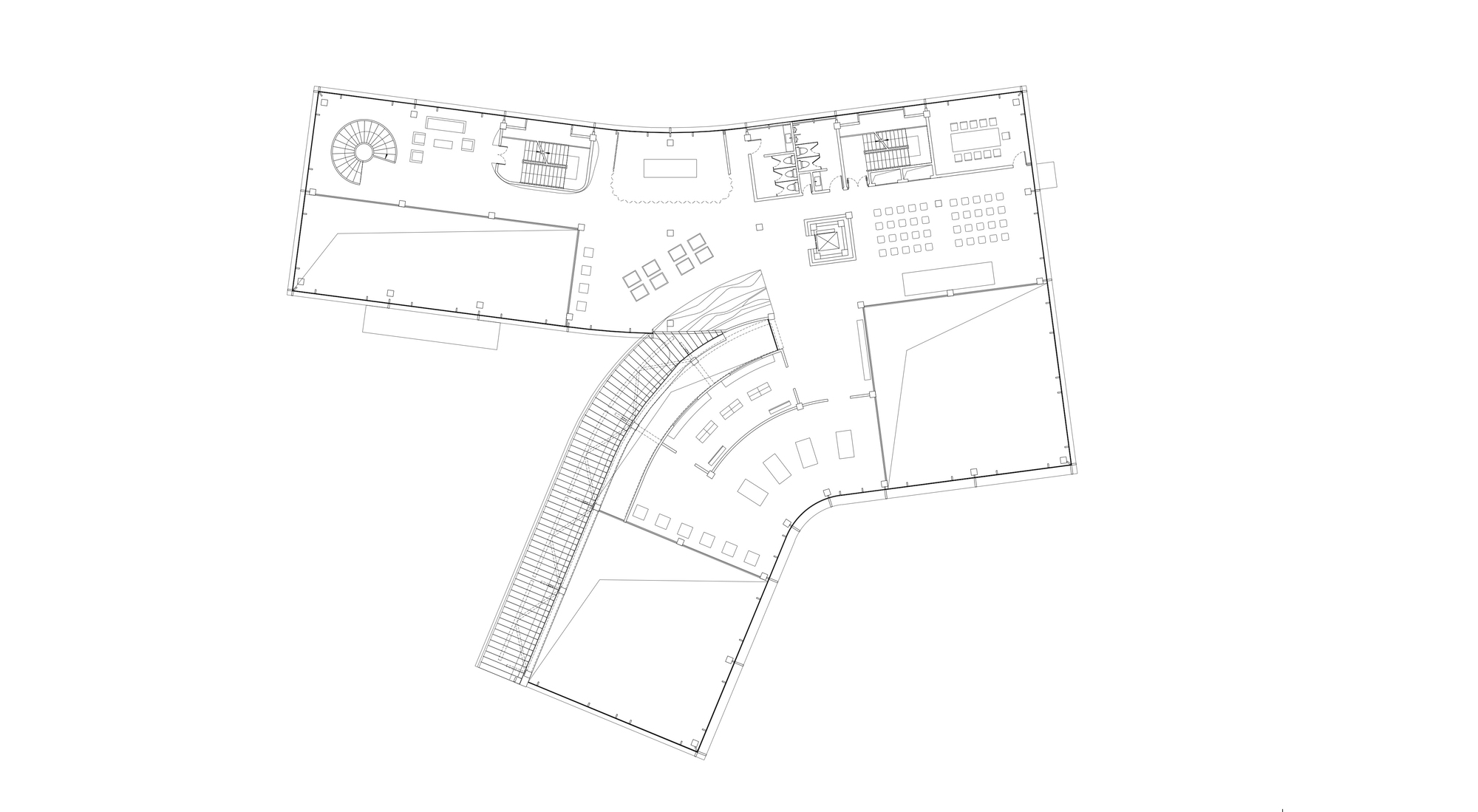

Plan
Dafeng Timber Structure Research and Design Center
Plan
Dafeng Timber Structure Research and Design Center
Plan - Site
Dafeng Timber Structure Research and Design Center
Axo


Dafeng Timber Structure Research and Design Center
Section
Dafeng Timber Structure Research and Design Center
Detail


Dafeng Timber Structure Research and Design Center
Model
Dafeng Timber Structure Research and Design Center
Model
Dafeng Timber Structure Research and Design Center
Model
