RENOVATION OF HUANGPU RIVER YANGPU BRIDGE WATER QUALITY AUTOMATIC MONITORING STATION

TJAD Atelier L+

ARCHITECTS
TJAD Atelier L+

CLIENTS
Shanghai Yangpu District Ecological Environment Bureau

LEAD ARCHITECTS
Linxue Li

ARCHITECTURAL DESIGN
Linxue Li, Kaifeng Zhou, Mingshu Kong, Yang Liu, Run He

STRUCTURE DESIGN
Hua Pan, Hualei Dong

ZERO CARBON DESIGN
Linxue Li, Yiqun Pan, Xihui Ding, Peng Yang, Haojun Guo

GREEN BUILDING
Guohui Ren, Yujie Zheng, Haikui Jin, Yifan Lu

SOLAR& HYDROGEN ENERGY SYSTEM
Xiang Wang, Pei Dong

ENGINEERING
Tongji Architectural Design (Group) Co., Ltd.

LANDSCAPE
Tongji Architectural Design (Group) Co., Ltd.

CONSTRUCTION
Shanghai Tongji Construction Co.

COLLABORATORS
Shanghai Imsey Energy Saving Engineering Technology Co.

AREA
445 m²

UNDERGROUND
380m2

YEAR
2023

LOCATION
Yang Pu Qu, China

CATEGORY
Industrial Architecture, Sustainability

Text description provided by the architects.

Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station is located in Yangpu Riverside of Huangpu River.

Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography

The base is surrounded by several historical buildings, including the historical protection building Sanxin Cotton Mill on the north side, the historical protection building Shanghai Power Station Auxiliary Equipment Factory on the east side, and the newly renovated Party and Mass Service Station on the west side.

The project is a small building in the rich industrial heritage complex.

Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography

The original monitoring station house has been abandoned for many years. The station house on the ground is 5m long and 12m wide, surrounded by a crumbling courtyard and a landscape tree pool. Underground is an abandoned sewage treatment pond.

Its original structure is intact, including a collection pond, a sludge pond, and a two-foot pond. The 380m2 underground building forms an underground concrete box structure.

Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography

The design preserves the site and the building's historical footprint while giving it new functions and innovative green technology, aiming to build a "net zero carbon water quality monitoring station" that achieves its design goals through integrated active and passive technology and whole-process calculation.

One of the biggest challenges is to achieve the net zero carbon goal of energy self-sufficiency through "Thermodynamic Technology" and "Solar and hydrogen Energy Storage Micro-grid Systems".

Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography

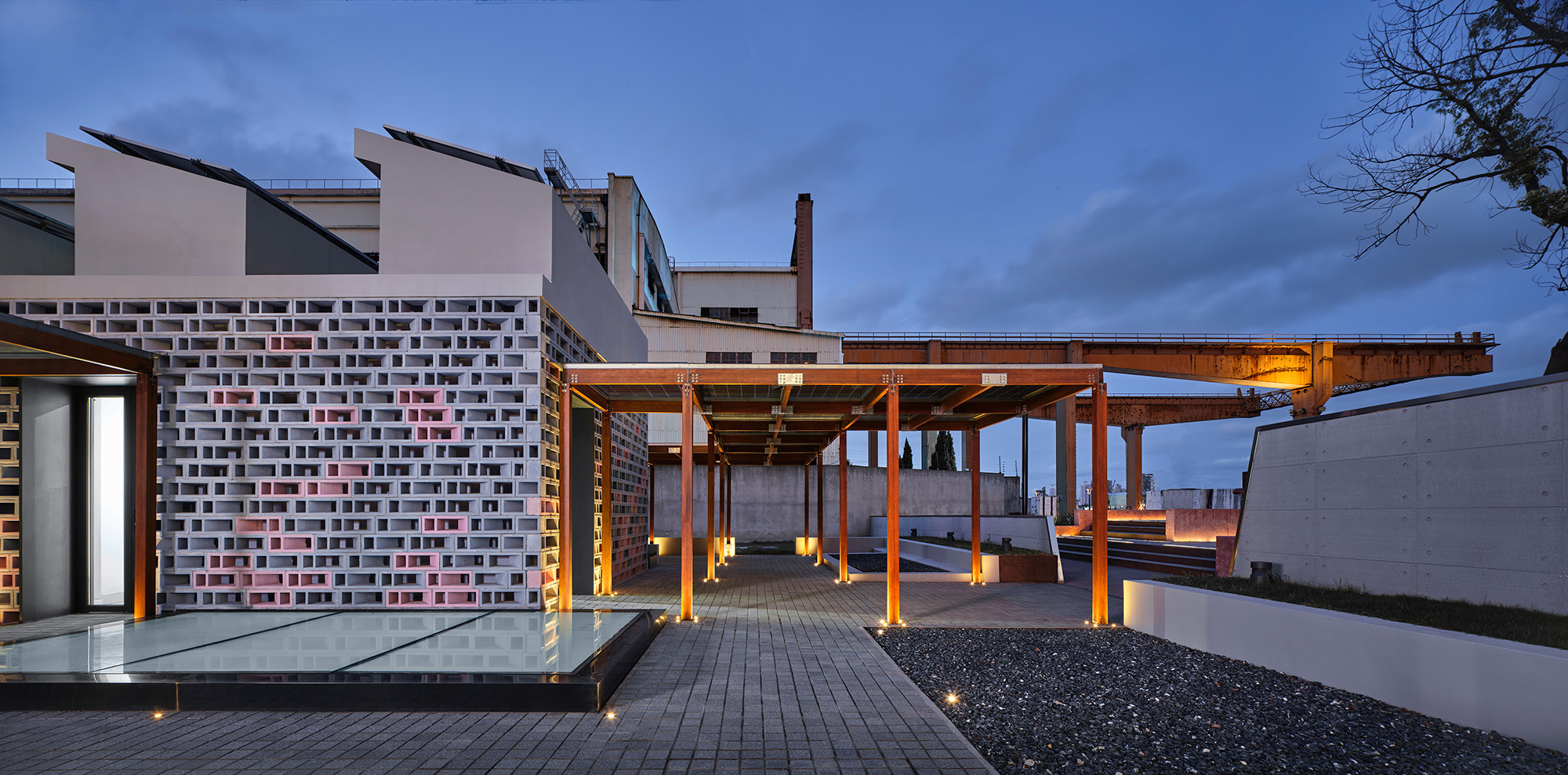

The basic strategy of the renovation is "maximum preservation and lightweight intervention". The above and underground parts of the building are maximum preserved, including the texture of the main station and underground space with concrete as the main material. A bamboo steel structure corridor is added around the station.

Design adapts to structural constraints and creatively intervenes in space transformation. An important design strategy is the vertical connection between the above-ground and underground space.

Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography

Water intake pipes are set up at the edge of the Huangpu River from the above-ground station, which is directly connected to the water of the Huangpu River through the outside of the flood control wall.

The realization of the goal of the project "net zero carbon water quality monitoring station" depends on the integration of comprehensive environmental analysis and regulation technologies. Maximizing the use of renewable energy is the key to ensuring net zero carbon throughout the life cycle.

Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography

The design adopts an innovative optical hydrogen storage micro-grid system, which is composed of a photovoltaic power generation subsystem, lithium energy storage subsystem, hydrogen electrolysis power storage subsystem, and energy management system.

Combined with the partial waterproofing and renovation of the wall of the underground space of the building, the capillary tunnel is buried together with the structure, and the capillary air conditioning system is used to create a comfortable indoor heat and humidity environment.

Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography

The design combines the architectural function and environmental characteristics and sets up an outdoor exhibition area with the theme of "water" open to the public.

Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography


Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
© ZY Architectural photography


Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
Photos of current situation before renovation


Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
Plan - After renovation
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
Plan - Before renovation
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
Elevation
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
Historical drawings before renovation
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
Section - Thermodynamic transformation analysis
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
Plan - General layout
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
Emergy System Analysis
Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
Sectional view


Renovation Of Huangpu River Yangpu Bridge Water Quality Automatic Monitoring Station
Axo - Structural transformation and low-carbon strategy
