Mata Modular House

Mata Modular House
© Oka fotografia

MATA MODULAR HOUSE

Kikacamasmie+Arq

LEAD ARCHITECT
Kika Camasmie

INTERIOR DESIGN
Kika Camasmie + Arq e Studio Sall

LANDSCAPE DESIGN
Viveiro Beija-flor

PROJECT TEAM
Kika Camasmie, Felipe Souza e Renata Cunha

CONTRACTOR
Parajú

WOOD WORKS
MAN Marcenaria

PHOTOGRAPHS
Oka fotografia

AREA
378 m²

YEAR
2023

LOCATION
Porto Seguro, Brazil

CATEGORY
Houses

Mata Modular House
© Oka fotografia
Mata Modular House
© Oka fotografia

Text description provided by the architects.

Sustainable from head to toe. The project was born from the desire to create wooden modules that were executed with local craftsmanship experience and techniques, optimizing time and cost.

Mata Modular House
© Oka fotografia
Mata Modular House
© Oka fotografia

The simplicity of using only one material, wood, makes the construction dry and the assembly quick. The pieces arrive pre-executed, which facilitates assembly on-site.

There are 03 distinct modules: a suite module, a kitchen module, and a free module, which can be the living room, terrace, or extension of the others.

Mata Modular House
© Oka fotografia
Mata Modular House
© Oka fotografia
Mata Modular House
© Oka fotografia

Designed with 32 m2 (4x8), the modules are composed of eucalyptus pillars that receive beams, rafters, and sawn autoclaved pine slats.

Its lateral closure of double walls of 20 cm wide autoclaved pine boards allows the passage of plumbing and electrical installations and provides thermal and acoustic insulation.

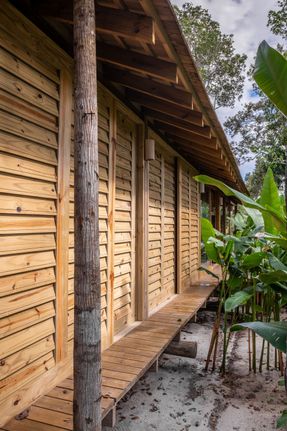

The front facade is entirely made of wooden frames and glass, while the back facades are made of articulated shutters, allowing for cross ventilation.

Mata Modular House
© Oka fotografia
Mata Modular House
© Oka fotografia
Mata Modular House
© Oka fotografia

The taubilhas roof, also made of autoclaved pine, was designed with large eaves that protect the modules from the sun.

The floor is elevated from the ground, allowing for permeability of the terrain and creating a free area (technical area) for the installation of all equipment.

All the kitchen furniture, cabinets, and side tables were made from the leftover wood used in the execution of the modules.

Mata Modular House
© Oka fotografia
Mata Modular House
© Oka fotografia
Mata Modular House
© Oka fotografia
Mata Modular House
© Oka fotografia


Mata Modular House
Site plan
Mata Modular House
Floor plan - social area
Mata Modular House
Floor plan - bedroom


Mata Modular House
Section AA
Mata Modular House
Section BB
Mata Modular House

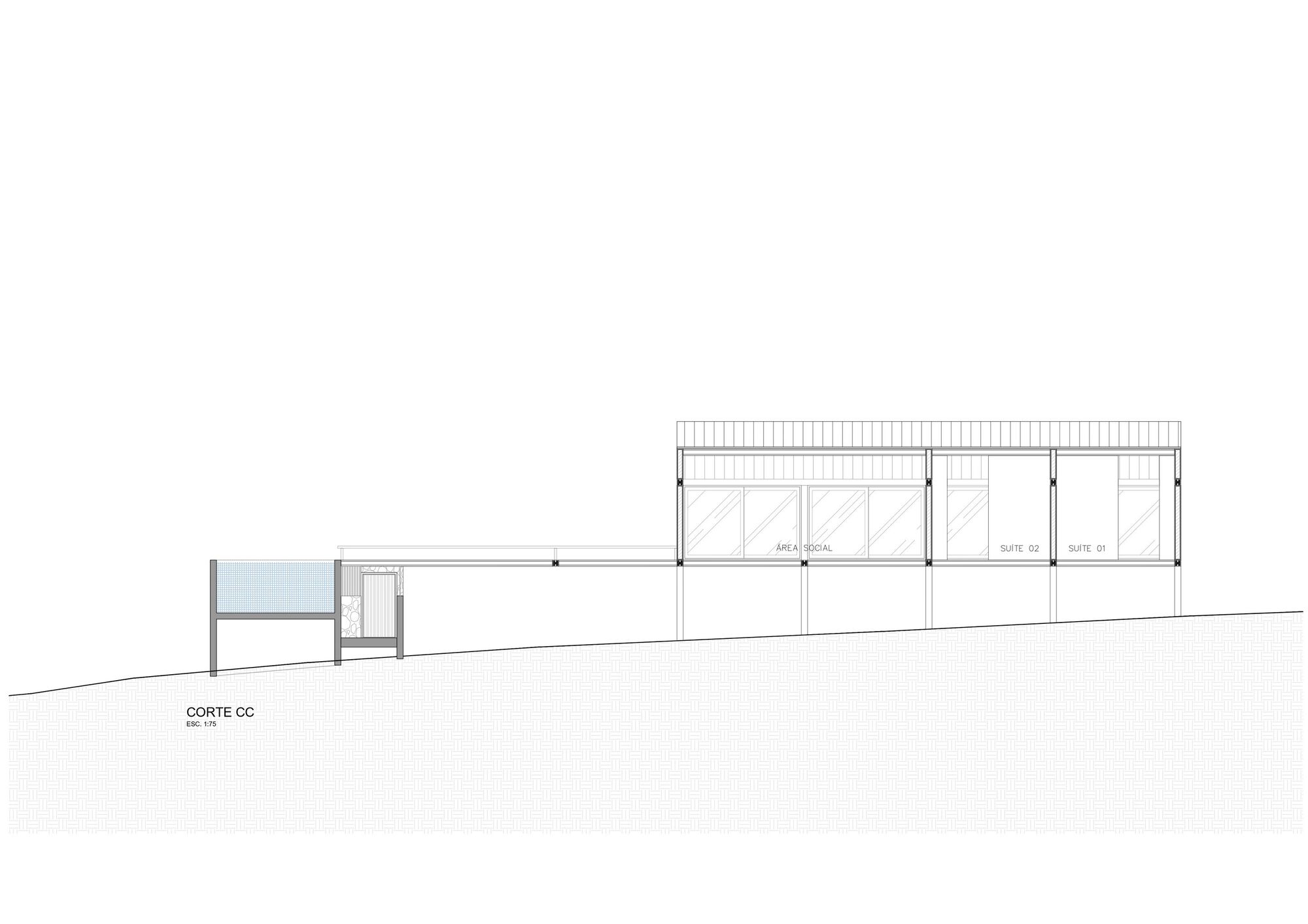

Section CC


Mata Modular House
Elevation
Mata Modular House
Elevation


Mata Modular House
Diagram
Mata Modular House
Diagram
