Atelier Kempe Thill BV

Ten Kerselaere Residential Care Center

Ten Kerselaere Residential Care Center
© Ulrich Schwarz

Ten Kerselaere Residential Care Center

Atelier Kempe Thill

ENGINEERING
Util Struktuurstudies

GLASS FACADE
Bruynzeels-vochten

STEEL BALUSTRADES
Wim Vandevoordt

COLLABORATING ARCHITECT
Daniel Van Doorslaer Bvba

GENERAL CONTRACTOR
Hooyberghs Nv

GLASS WINTER GARDEN FAÇAD
Metaglas

BUILDING SERVICES ENGINEER
Studiebureau Boydens

PREFAB CONCRETE STRUCTURE
De Jong Beton

MANUFACTURERS
Jansen, Reynaers Aluminium, Sto, Agc, Alpha, Asona, Genex, Imola Tiles, Larob , Lombardo, Rls, Reynaers, Tormax, Zorgplus

DESIGN TEAM
Atelier Kempe Thill Architects And Planners, Rotterdam Nl André Kempe, Oliver Thill, David Van Eck With: Marc Van Bemmel, Martins Duselis, Kento Tanabe

PLASTERWORK FAÇADE
T. De Neef

PHOTOGRAPHS
Ulrich Schwarz

AREA
3363 M²

YEAR
2020

LOCATION
Heist-op-den-berg, Belgium

CATEGORY
Retirement

AMIDST THE FIELDS

In 2013 Atelier Kempe Thill won together with Daniel van Doorslaer an invited competition for the construction of a new retirement home in the small rural town of Heist-op-den-Berg in Flanders, Belgium.

Ten Kerselaere Residential Care Center
© Ulrich Schwarz
Ten Kerselaere Residential Care Center
© Ulrich Schwarz

The task requested the substantial extension (c. 120 new residential units) of an existing senior housing center from the 1970s. The proposed concept was a master plan with four elongated urban villas in an open and car-free park.

This idea plays on the one hand with the small-scale and rural context of the surrounding area, while emphasizing the horizontal character of the Flemish landscape with its two to three-story buildings.

Ten Kerselaere Residential Care Center
© Ulrich Schwarz
Ten Kerselaere Residential Care Center
© Ulrich Schwarz

On the other hand, the master plan allows a step-by-step implementation with a reasonable degree of architectural freedom for each building.

Each urban villa intends its design to serve the specific needs of its target group and implements the possibilities of the available budget and the design funding guidelines.

Ten Kerselaere Residential Care Center
© Ulrich Schwarz
Ten Kerselaere Residential Care Center
© Ulrich Schwarz

The resulting master plan reflects and reveals with its differentiated "care landscape for the elderly" the social complexity of senior care in the twenty-first century.

A HOME WITH AN ATRIUM AND WINTER GARDENS

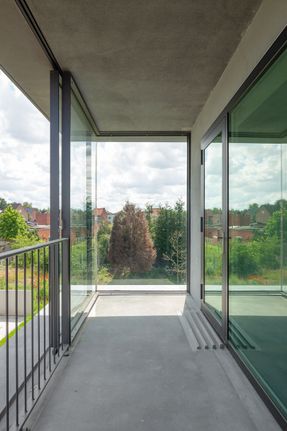

The first realized building project is a residential complex of 36 assistance flats all accessible with wheelchairs. All apartments are designed as two-room flats of c. 62 m2 with open kitchens and an axial dimension of 7,20 m.

Larger three-room flats are situated at all corners of the building. All flats have 7 m wide winter gardens, allowing the inhabitants to use their balconies all year round.

Ten Kerselaere Residential Care Center
© Ulrich Schwarz
Ten Kerselaere Residential Care Center
© Ulrich Schwarz

The building itself is very compact, and all levels can be accessed through two staircases and one elevator. All apartments are connected by galleries in the atrium, which generously provide daylight to the whole building.

The brightness of the space enhances the social interaction between the residents. An open kitchen in it will transform the atrium in the center of the "care villa", and it will then become the emblem of the resident's community.

The obtained building typology is remarkably compact, with more than 28 m depth on the short side. These are ideal conditions for a price-efficient construction, providing the highest quality to the residents with a thrifty use of means.

HARD AND SOFT.

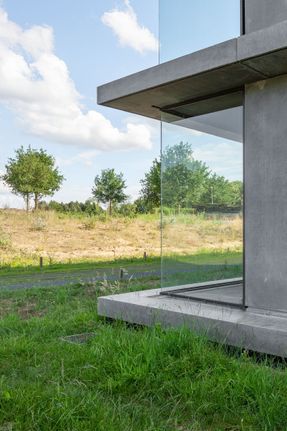

High-quality prefabricated concrete elements characterize the appearance of the new home. The large anthracite-colored façade components are made of white concrete mixed with black pigment aggregate, additionally polished and hydrophobized.

Ten Kerselaere Residential Care Center
© Ulrich Schwarz
Ten Kerselaere Residential Care Center
© Ulrich Schwarz

The winter gardens façade consists of 1,80 m wide story-high sliding glass elements in slim dark grey anodized aluminum frames. The winter gardens façade consists of 1,80 m wide story-high sliding glass elements in slim dark grey anodized aluminum frames. The façade on the inside of the winter garden has a grey plaster finish and dark grey anodized aluminum windows. Large sliding windows are placed on the pinion of the building.

As a result, the façade is robust and low-maintenance that perfectly matches the humid maritime climate of Flanders. The dark color of the whole is a subtle reference to the context and makes the fresh green of the surroundings stand out stronger.

The façade forms a neutral backdrop, revealing the residents’ activities on their balconies and thus taking part in the whole architectural experience. A strong contrast with the outside characterizes the inside of the building.

Ten Kerselaere Residential Care Center
© Ulrich Schwarz
Ten Kerselaere Residential Care Center
© Ulrich Schwarz

The atrium is bright and flooded with sunlight. All floors are set with sand-colored tiles, and all railings are made of solid glass. On the second floor, a glass firewall goes around the atrium and makes the interior appear as airy and open as possible.

The entrance doors of the apartments were specially designed with great love in solid oak for this project. The result is a very homely atmosphere.

Ten Kerselaere Residential Care Center
© Ulrich Schwarz
Ten Kerselaere Residential Care Center
© Ulrich Schwarz

IDEAL PROTOTYPE.

The project was realized with the standard budget for retirement homes in Flanders. The very compact and industrially produced typology has a minimal façade surface and development.

On top of that, the building services were designed in order to omit as much as possible suspended ceilings, and long piping runs. This way, the architects could add qualities such as extensive winter gardens and a communal atrium to the building, enabling a very high-quality materialization.

Ten Kerselaere Residential Care Center
© Ulrich Schwarz
Ten Kerselaere Residential Care Center
© Ulrich Schwarz

From the point of view of Atelier Kempe Thill, these qualities match very well the needs of the residents, making this home the perfect prototype for this building assignment.
