Mayora Head Office Canteen

Mayora Head Office Canteen
© Arti Pictures

Mayora Head Office Canteen

Lex and Architects

INTERIOR DESIGN
Elaine Josephine Sethiono

MAIN CONTRACTOR
Cipta Dimensi

DRAFTING
Julia Rahma, Antonius Wikandhito

LEAD ARCHITECTS
Alexander Hudianto, Rifal Hikmatullah

MANUFACTURERS
Byo Living, Evergreen Trees, Kaspia Lantai Batu, Lysaght, Niro Granite, Omahbata , Seven

INTERIOR CONTRACTOR
Bmkk

PHOTOGRAPHS
Arti Pictures

AREA
4000 M²

YEAR
2023

LOCATION
Jakarta, Indonesia

CATEGORY
Restaurants & Bars, Office Buildings

The brief of this project is to create a building that serves as a canteen/cafeteria facility to an existing head office. It needs to accommodate over 800 staff members and board of executives separately.

Mayora Head Office Canteen
© Arti Pictures
Mayora Head Office Canteen
© Arti Pictures

The main concept for this project is to create an oasis-like structure for the employees to really enjoy their breaks, relax and enjoy the fresh atmosphere within and around the building.

We came up with a rather organic design to blend in with the vast landscape garden it sits on and to mimic and compliment the curvy main head office.

Mayora Head Office Canteen
© Arti Pictures
Mayora Head Office Canteen
© Arti Pictures

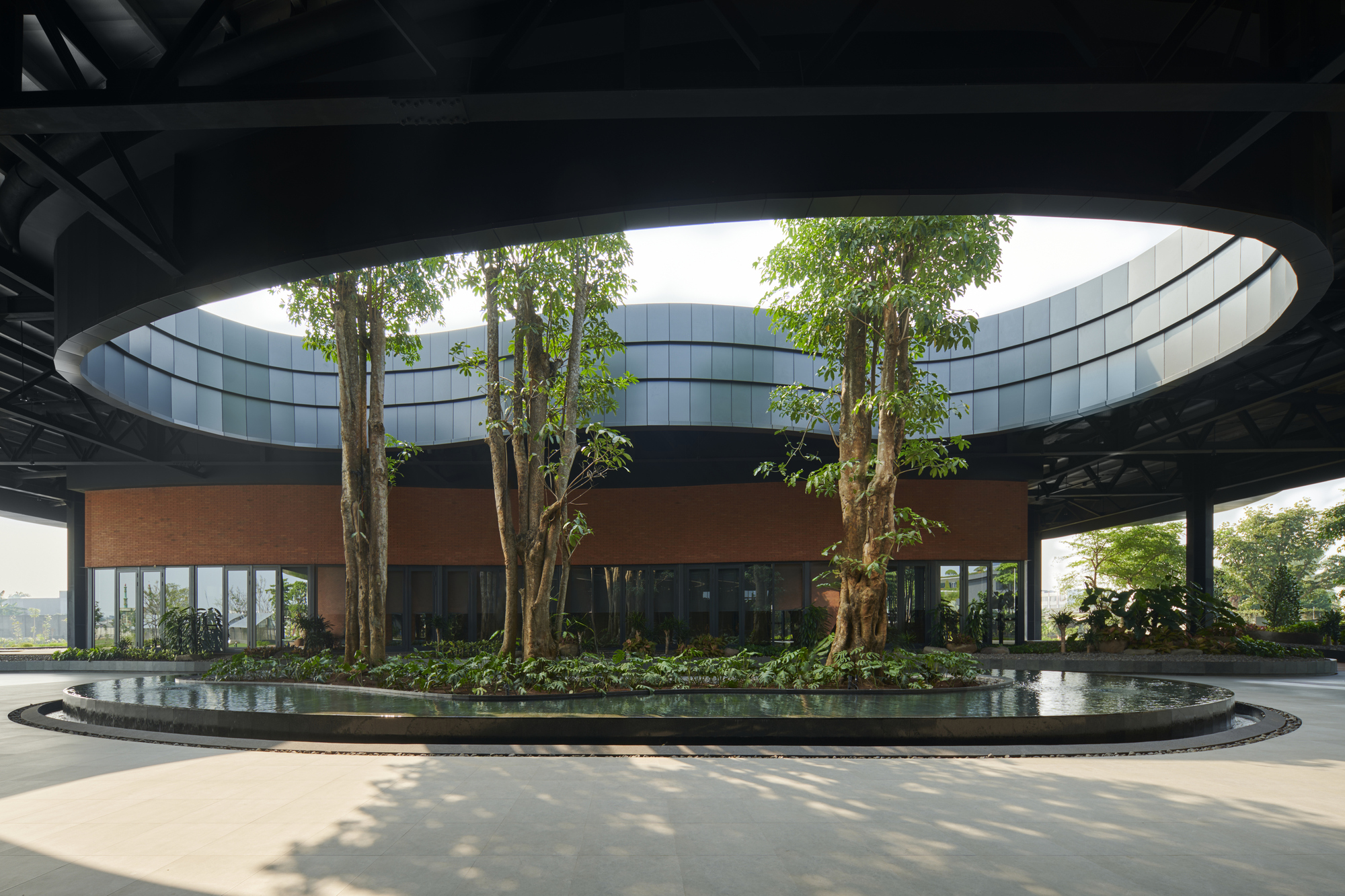

This building consists of two wings, a larger canteen for the staff and a smaller one on the other side to accommodate the executives. In between there is a plaza with an island in the middle which features a reflecting pool as well as tall trees towering up to the roof’s skylight.

The staff canteen is larger and features an almost-circular plan of about 40m in diameter. The radial plan is to allow not only a large space for eating, but also to accommodate all the 1,000 employees simultaneously for events and office functions.

Mayora Head Office Canteen
© Arti Pictures
Mayora Head Office Canteen
© Arti Pictures

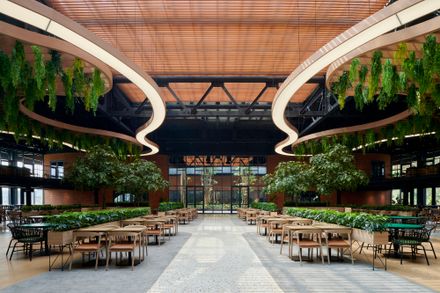

A small stage is positioned in the front middle section, viewable from every part of this hall. The double height ceiling allows a mezzanine floor for extra dining space.

The whole structure of this hall is covered with stretch of window walls and in the middle, there is a huge skylight, thus creating a light and airy atmosphere within.

Mayora Head Office Canteen
© Arti Pictures
Mayora Head Office Canteen
© Arti Pictures

To establish a fresh and relaxing feel to the interior, we opt to use artificial plants and trees spreading from the ground floor, mezzanine floor up to the hanging gardens from the ceiling.

Although the exterior wall treatments for the whole structure are similar (terracotta clad brick facade), the smaller canteen for the executives presents a more formal and elegant interior design.

Mayora Head Office Canteen
© Arti Pictures
Mayora Head Office Canteen
© Arti Pictures

The interior features more sophisticated materials such as marble and porcelain slabs, artistic wallpapers and synthetic weavings.

There are three big rooms, each can accommodate up to 12 executives and two rooms can be combined into a bigger hall.

Mayora Head Office Canteen
© Arti Pictures
Mayora Head Office Canteen
© Arti Pictures

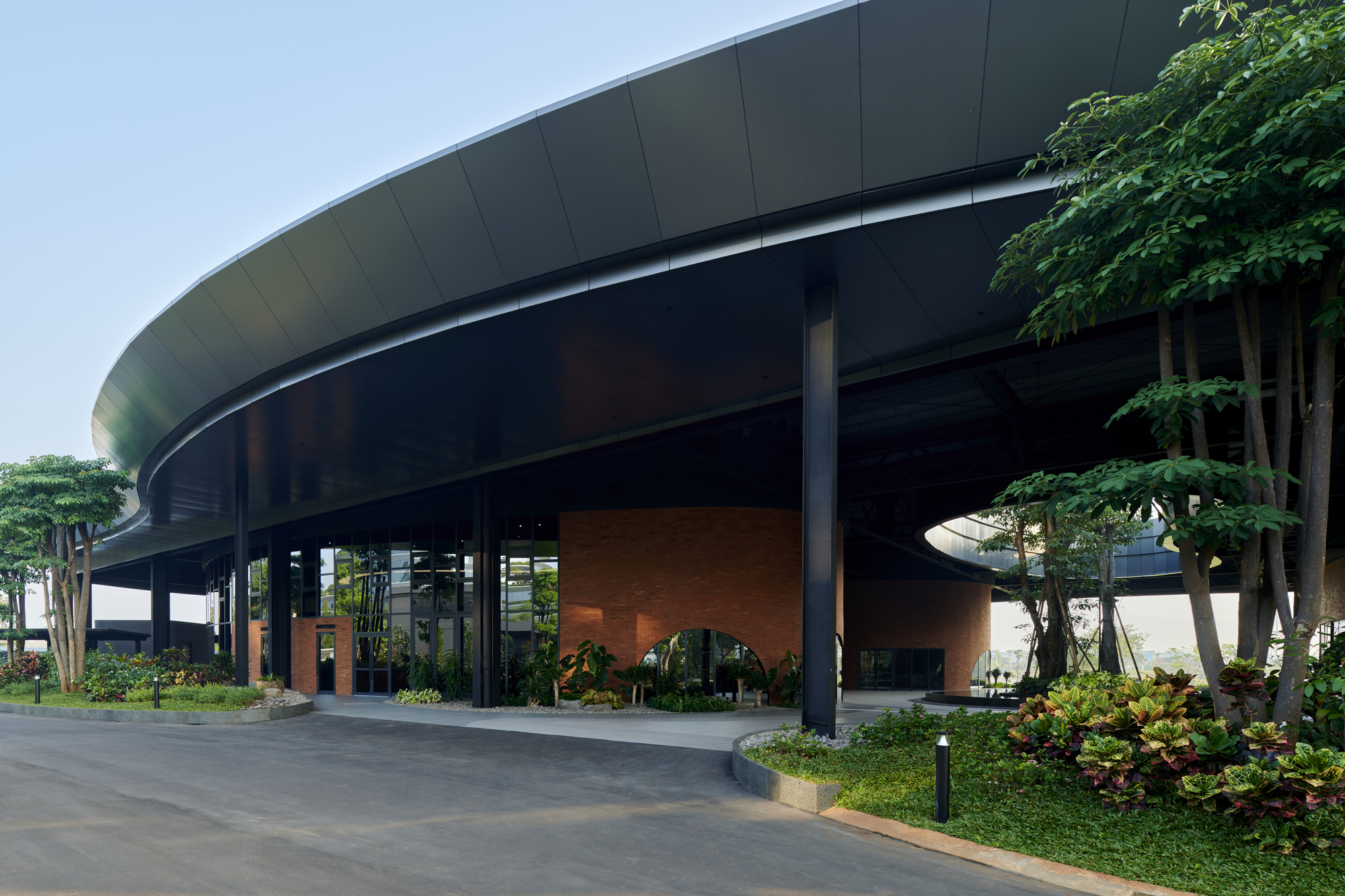

Steel framing and lightweight steel roof sheets were selected for the roofing system because it was possible to taper and curve them according to the design like the shape of turtle shell.

Aluminum composite panels were used to finish them off. Steel structure system is also selected to allow larger column-free spaces for the staff canteen.

Mayora Head Office Canteen
© Arti Pictures
Mayora Head Office Canteen
© Arti Pictures

The window walls covering the perimeter of the building were applied in short straight sections to allow overall curvature shape, and parts of them are openable when needed for extra access or ventilation.



Mayora Head Office Canteen
Section
Mayora Head Office Canteen
Section
Mayora Head Office Canteen
Section
Mayora Head Office Canteen
Section
Mayora Head Office Canteen
Section


Mayora Head Office Canteen
Mezzanine Floor Plan
Mayora Head Office Canteen
Ground Floor Plan
Mayora Head Office Canteen
Roof Plan
