Shift Architecture Urbanism

Oude Dijk Housing

Oude Dijk Housing
© René de Wit

Oude Dijk Housing

Shift Architecture Urbanism

CLIENT
Van Der Weegen Bouwontwikkeling

MANUFACTURERS
Wienerberger, Mosa

LEAD ARCHITECTS
Harm Timmermans

ADVISOR INSTALLATIONS
Visietech

STRUCTURAL ENGINEER
Goudstikker De Vries

CONSTRUCTION
Van Gisbergen

LANDSCAPE
Mtd Landscape Architects

ADVISOR MASONRY
Harrie Vekemans

CONTRACTOR
J.a. Van Gisbergen

TEAM
Harm Timmermans, Pieter Heymans, Thijs Van Bijsterveldt, Oana Rades, Zoé Renaud, Hans Hoogenboom, Raymond Van Den Broek

PROGRAM / USE / BUILDING FUNCTION
Elderly Housing

AREA
5075 M²

YEAR
2020

LOCATION
Tilburg, The Netherlands

CATEGORY
Apartments

The first housing project for the monastery complex Oude Dijk in Tilburg, home to the congregation of the Sisters of Charity, has been completed.

Oude Dijk Housing
© René de Wit
Oude Dijk Housing
© René de Wit

It is part of the first step in the transformation of the monumental complex in the city center of Tilburg, currently still populated by 120 Sisters.

The master plan by Shift aims at realizing elderly and care homes for the aging Sisters and safeguarding the monasterial qualities of the site while at the same time opening the introverted complex towards the city, both physically and in terms of (new) residents.

Oude Dijk Housing
© René de Wit
Oude Dijk Housing
© René de Wit

The first apartment building for 36 Sisters connects to the city, the monumental motherhouse and chapel, the monastery garden, and the adjacent nursing home.

Its sober and subtly differentiated architecture in brick is informed by the rich historical context without becoming pastiche or retro.

Oude Dijk Housing
© René de Wit
Oude Dijk Housing
© René de Wit

The urban scheme for the site is based on the typology of the courtyard found in the historic development of the monastery since 1843.

New and old buildings together form a collection of new courts around the monastery garden, each with its own character, function, level of enclosure, and mix of inhabitants.

Oude Dijk Housing
© René de Wit
Oude Dijk Housing
© René de Wit

The new volumes conform to the size and height of the existing buildings. Their shape prioritizes the pure form of the courts and gardens over the primary form of the buildings.

As a consequence, the buildings are not to be recognized as solitary volumes, but rather as walls that define a variety of distinctive outside spaces.

Oude Dijk Housing
© René de Wit
Oude Dijk Housing
© René de Wit

The program of first phase of the re-development of the site consists of a nursing home with 24 units for Sisters within the existing monument and a new apartment building with 36 elderly homes and 4 communal spaces for sisters with limited care needs.

The closed court serves as a safe outside space for Sisters with a psychogeriatric disorder in the nursing home. The open court serves as an entrance area for the nursing home and the apartment building.

Oude Dijk Housing
© René de Wit
Oude Dijk Housing
© René de Wit

The closed court serves as a safe outside space for Sisters with a psychogeriatric disorder in the nursing home. The open court serves as an entrance area for the nursing home and the apartment building.

Both the communal circulation space and the apartments open up generously toward the outside. This enables residents to experience the outside spaces the building defines and the historic ensemble it is part of.

Oude Dijk Housing
© René de Wit
Oude Dijk Housing
© René de Wit
Oude Dijk Housing
© René de Wit

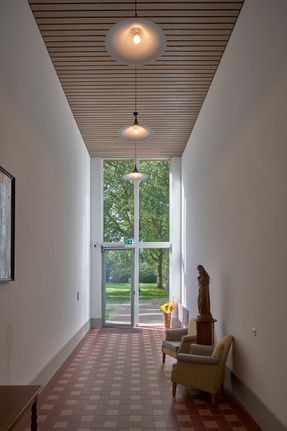

One feels like being part of the bigger whole and the larger community from within the building. The double-sided and double-high entrance links the building to both the city and the garden.

From the single-loaded part of the corridor, one looks back towards the existing monument and into the enclosed courtyard. The connective nature of the

building is further enhanced by the prolongation of this corridor on the ground floor, linking the apartment building to the monumental chapel and motherhouse of the congregation.

Oude Dijk Housing
© Riccardo De Vecchi
Oude Dijk Housing
© Riccardo De Vecchi

The sober and subtly differentiated architecture in brick is informed by the rich historical context without becoming pastiche or retro. Each facade reacts in its own way to the outside space it defines and the part of the monument it relates to.

What all facades have in common is the use of traditional masonry in water-struck bricks with light-grey pointing that enforces the effects of the diverse masonry bonds.

Oude Dijk Housing
© Riccardo De Vecchi
Oude Dijk Housing
© René de Wit

The vertically oriented city façade relates to the classical façade of the adjacent monument. The garden façade has been designed as an inhabited garden wall that combines transparency with materiality and solidity.

Recessed windows and loggias make the building not claim the garden, while the apartments still open up generously towards the green.

The closed courtyard façade adopts the rhythm of the brickwork pilaster of the monument.

Oude Dijk Housing
© Riccardo De Vecchi
Oude Dijk Housing
© Riccardo De Vecchi

On the ground floor, these pilasters are filled in with large recessed windows, creating the effect of an arcade.

On the upper levels, the windows are flush with the brick, creating deep window sills in the interior corridors that function as benches.

The interior corridor widens up at the front doors of the apartments. The niches it creates break the monotony of the corridor and provide all apartments with an entrance area.

The walls of the corridor are made of standard concrete blocks masonry. Their porous texture contrasts with the abstract niches in stucco and solves the acoustics of the space.

Oude Dijk Housing
© Riccardo De Vecchi
Oude Dijk Housing
© René de Wit

The demand for a completely mobile-bed-accessible building has resulted in an apartment typology without corridors.

The standard three-room apartment consists of three bays in which the middle bay functions as a central living- and dining room from which all the other spaces are reached.


Oude Dijk Housing
Phase 1_B09_Fragment-Facade-Courtyard
Oude Dijk Housing
Phase 1_B10_Fragment-Facade-Garden
Oude Dijk Housing
Phase 1_B08_Fragment-Facade-City-02
Oude Dijk Housing
Phase 1_B07_Fragment-Facade-City-01
Oude Dijk Housing
Phase 1_B11_Fragment-Facade-North
Oude Dijk Housing
Phase 1_B05_Plan-apartment
Oude Dijk Housing
Phase 1_B06_Facades


Oude Dijk Housing

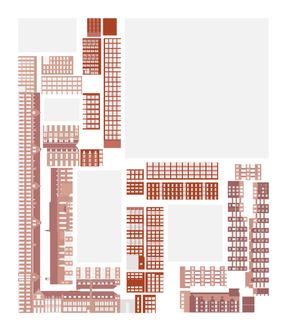

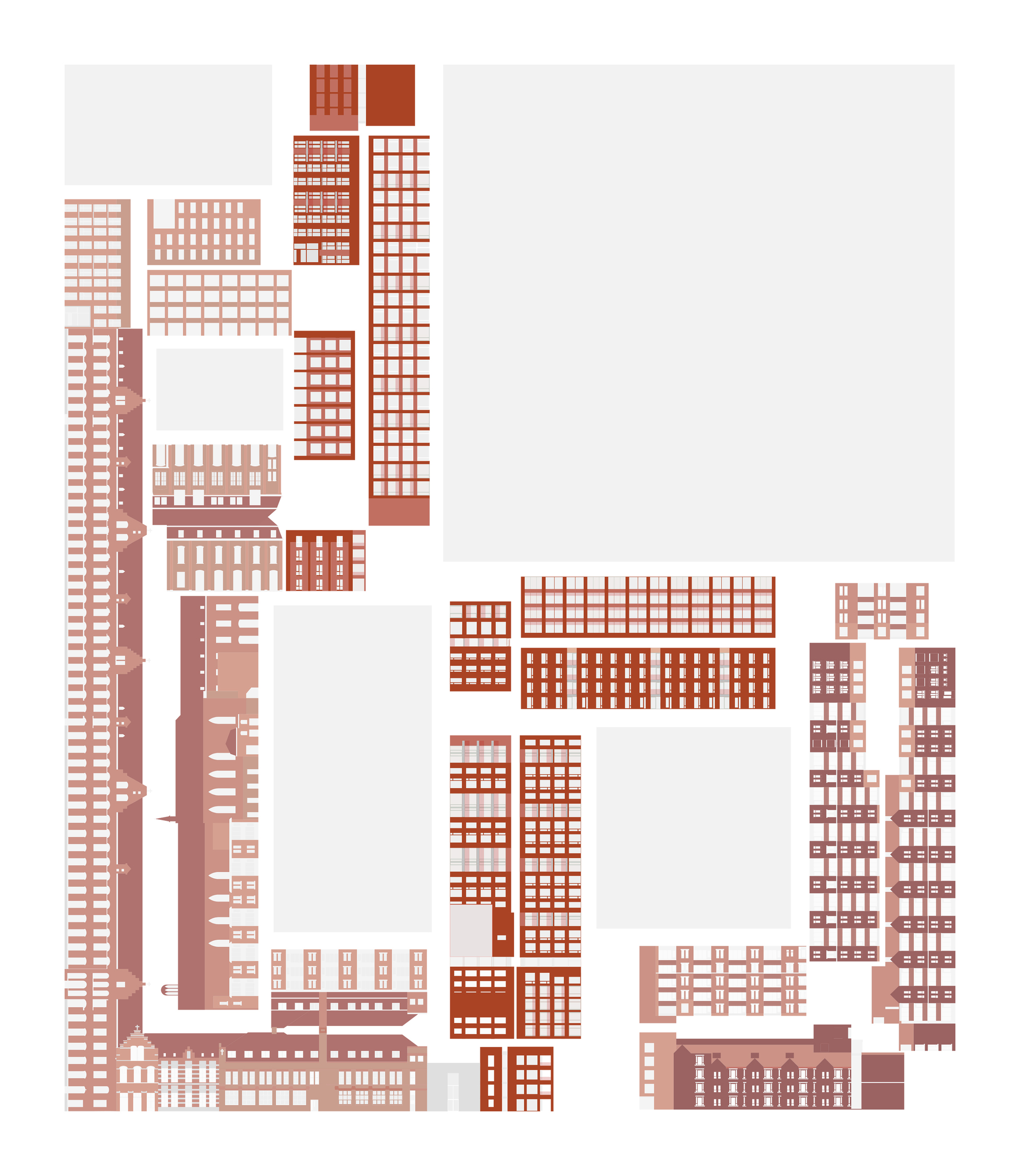

Masterplan Facades
Oude Dijk Housing
Masterplan Facades
Oude Dijk Housing
Axo Masterplan


Oude Dijk Housing
Axo City
Oude Dijk Housing
Phasing Masterplan
