Filtered Frame Dock

Filtered Frame Dock
© Leonid Furmansky

Filtered Frame Dock

Matt Fajkus Architecture

ARCHITECTURAL DESIGN TEAM
Matt Fajkus, David Birt, Ian Ellis

MANUFACTURERS
Big Ass Fans, C.r. Laurence, Delta Millworks, True

STRUCTURAL ENGINEER
Smith Structural

PHOTOGRAPHS
Leonid Furmansky, Mf Architecture, Charles Davis Smith

GENERAL CONTRACTOR
Risinger Build

AREA
550 FT²

YEAR
2019

LOCATION
Austin, United States

CATEGORY
Transportation Hub, Boathouse, Small Scale

Filtered Frame Dock
© MF Architecture
Filtered Frame Dock
© Charles Davis Smith

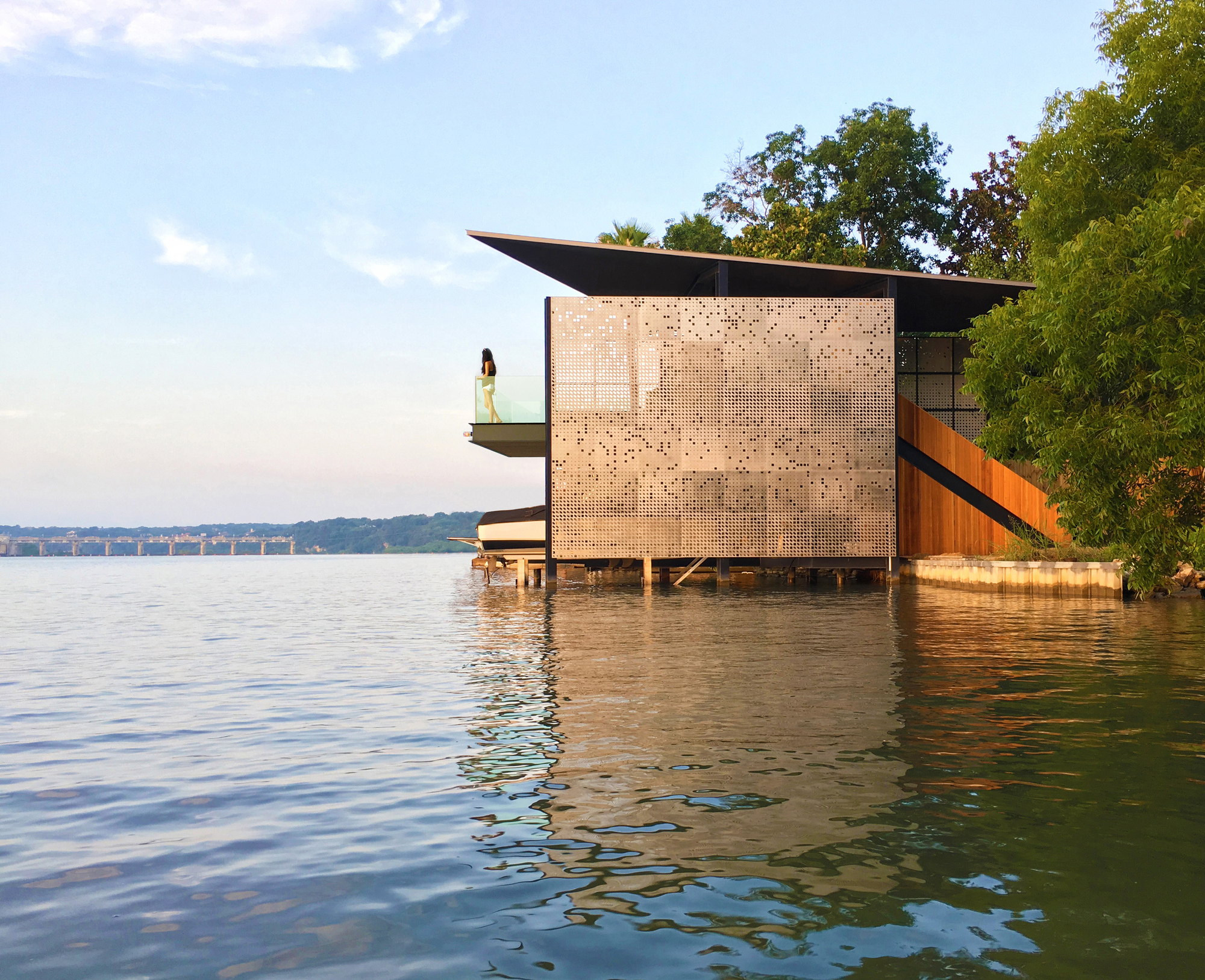

This dock is a structure that negotiates between the realms of land, water, and sky by framing one’s experience and understanding of the natural environment, above, along, and in the water.

Filtered Frame Dock
© Leonid Furmansky
Filtered Frame Dock
© Leonid Furmansky

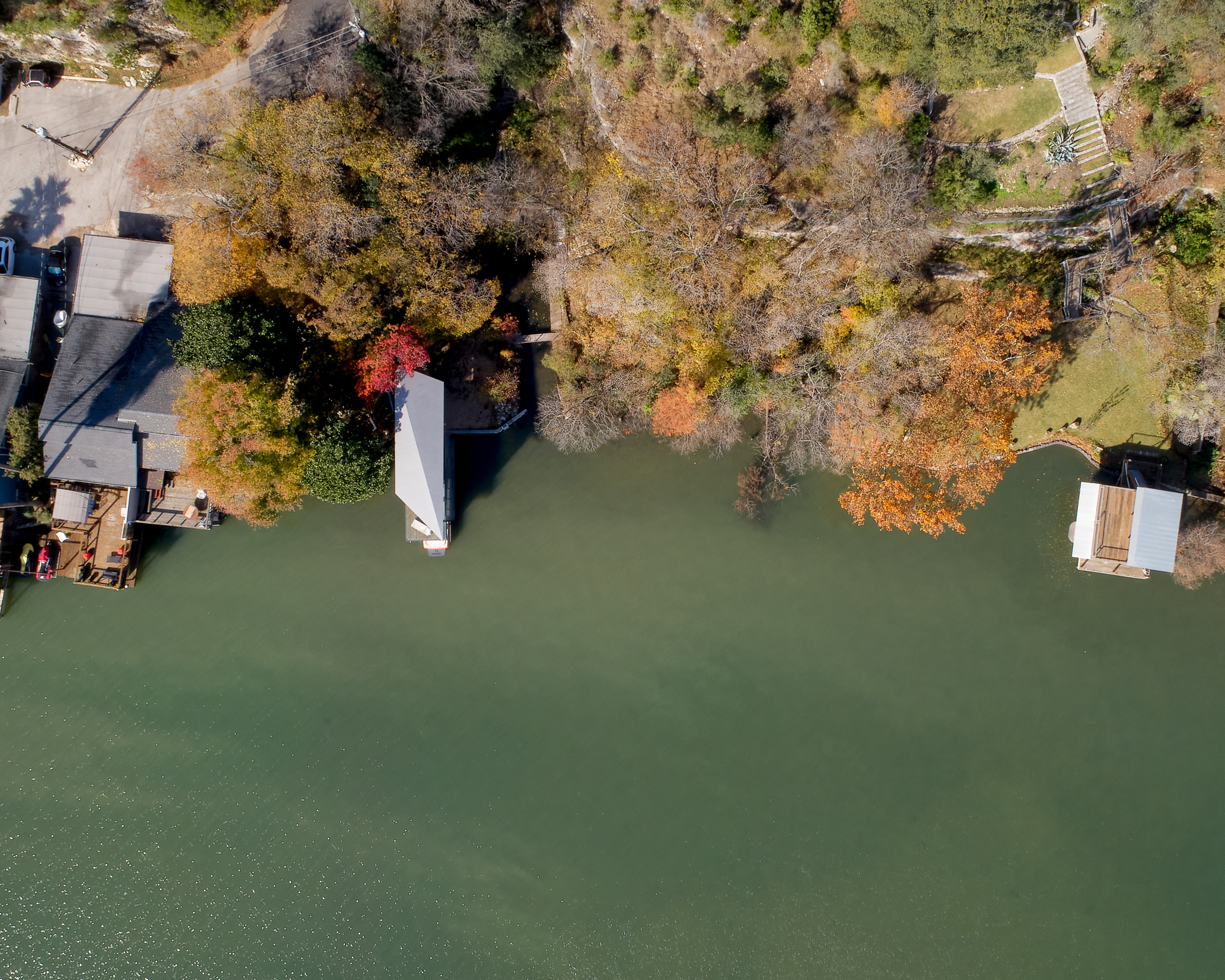

Located at the base of a steeply sloping ravine with leads to a residence elevated above the water, the dock is intentionally crafted as an integrated component of the overall site conditions.

An instrument for light and ventilation, the structure is calibrated to provide a comfortable balance of sun and shade, shelter, and breezes throughout the year.

Filtered Frame Dock
© Leonid Furmansky
Filtered Frame Dock
© Leonid Furmansky

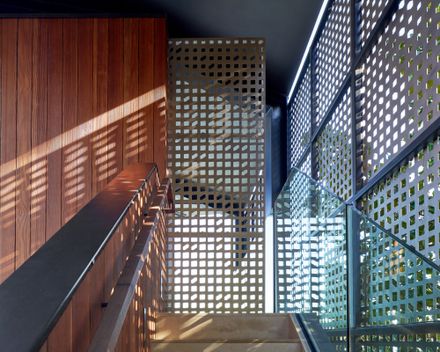

The perforated screen and roof geometry were calibrated to attain the client’s desire to have fifty percent sun and fifty percent shade throughout the year.

On the equinox, light, and shadow are perfectly balanced. As the seasons shift, the dock provides greater shade during the heat of the summer and welcomes more sun during the cooler winter months.

Filtered Frame Dock
© Leonid Furmansky
Filtered Frame Dock
© Leonid Furmansky

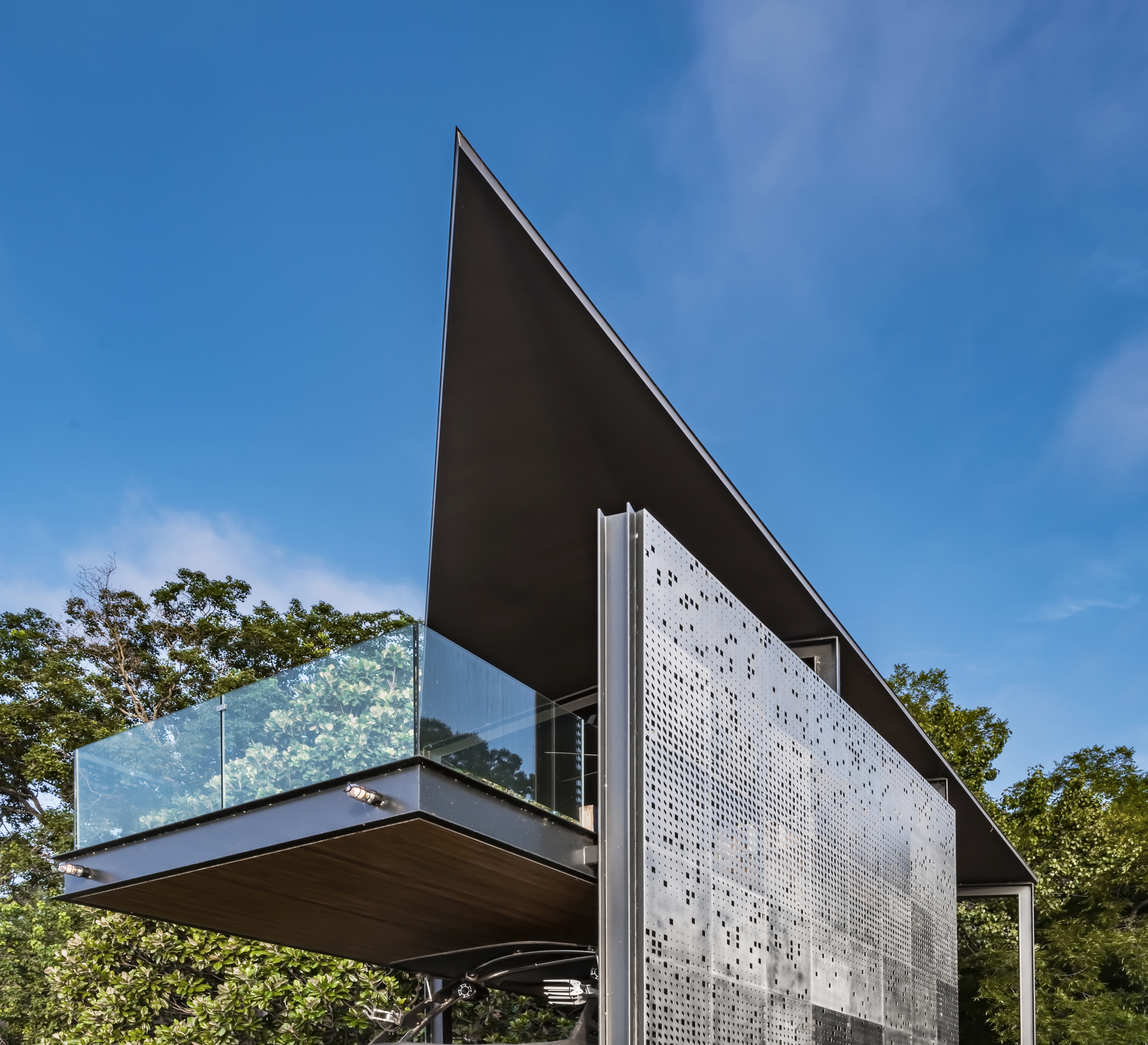

The mild steel roof of two triangular planes is optimized for articulating views to and from the site and modulating direct sunlight exposure.

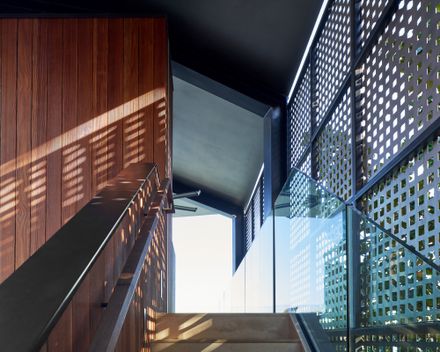

The perforated stainless steel screens on the north and south facades provide structural reinforcement for the frame while filtering sun breezes, and views.

Filtered Frame Dock
© Charles Davis Smith
Filtered Frame Dock
© Charles Davis Smith

Sensory experiences are articulated by and inherent in the relationship between the dock and its natural context.

Familiar and comfortable materials such as hardwood and natural stone are used in combination with the dock’s steel frame which is designed and treated to last in the marine environment, enduring its fluctuating environmental conditions.

Filtered Frame Dock
© Leonid Furmansky
Filtered Frame Dock
© Leonid Furmansky
Filtered Frame Dock
© Leonid Furmansky

The steel structure and screens are deliberately accentuated and refined to provide dappled light and shade while reflecting ambient light and the warm tones of the surrounding wood, stone, water, and natural vegetation.


Filtered Frame Dock
© Leonid Furmansky
Filtered Frame Dock
© Leonid Furmansky
Filtered Frame Dock
© Leonid Furmansky
Filtered Frame Dock
© Leonid Furmansky


Filtered Frame Dock
© MF Architecture
Filtered Frame Dock
© Charles Davis Smith
Filtered Frame Dock
© Leonid Furmansky
Filtered Frame Dock
© Leonid Furmansky


Filtered Frame Dock

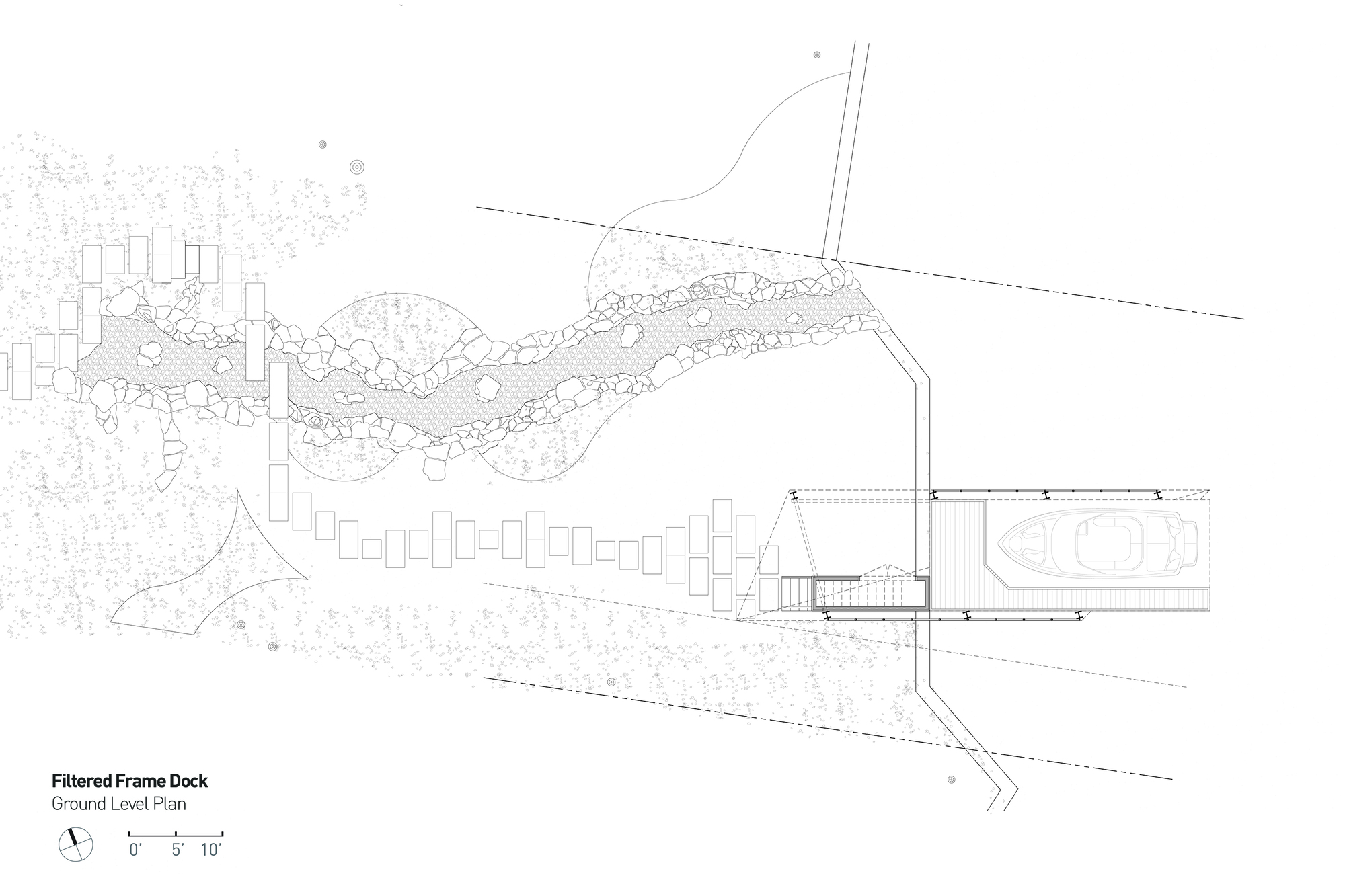

Ground Floor Plan
Filtered Frame Dock
Upper Deck Plan


Filtered Frame Dock
Sketches - Illustration
Filtered Frame Dock
Sun Studies - Illustration
