Four-Roof Pavilion

Four-Roof Pavilion
© Schran Image

Four-Roof Pavilion

Found Projects + Schneider & Luescher

EXECUTIVE ARCHITECT
Kmcm

LANDSCAPE
Wei Studio

SIGNAGE SYSTEM DESIGN
Wei Studio, Shenzhen Direction Ecological Development Co.

ARCHITECTS
Team Member Name(S) Miaojie Ted Zhang, Anton Schneider, Andri Luescher, Ryan Nguyen

CONSTRUCTION ADMINISTRATION
China Resources Land (Shenzhen) Ltd.

PROGRAM / USE / BUILDING FUNCTION
Cultural, Public, Retail

CONSTRUCTION TEAM
Shenzhen Sincere Environmental Art Engineering Co. Ltd.

PHOTOGRAPHS
Schran Image

SUPERVISION
Shenzhen Qijun Construction Engineering Consultant Co. Ltd.

AREA
1200 M²

YEAR
2022

LOCATION
Shen Zhen Shi, China

CATEGORY
Cultural Architecture, Public Architecture

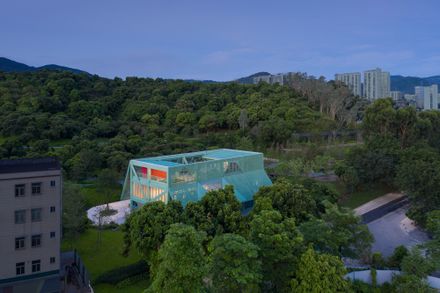

Inspired by the landscape design concept of “Forest School”, the Four-Roof Pavilion is intended to be embedded and merged into the park.

Four-Roof Pavilion
© Schran Image
Four-Roof Pavilion
© Schran Image

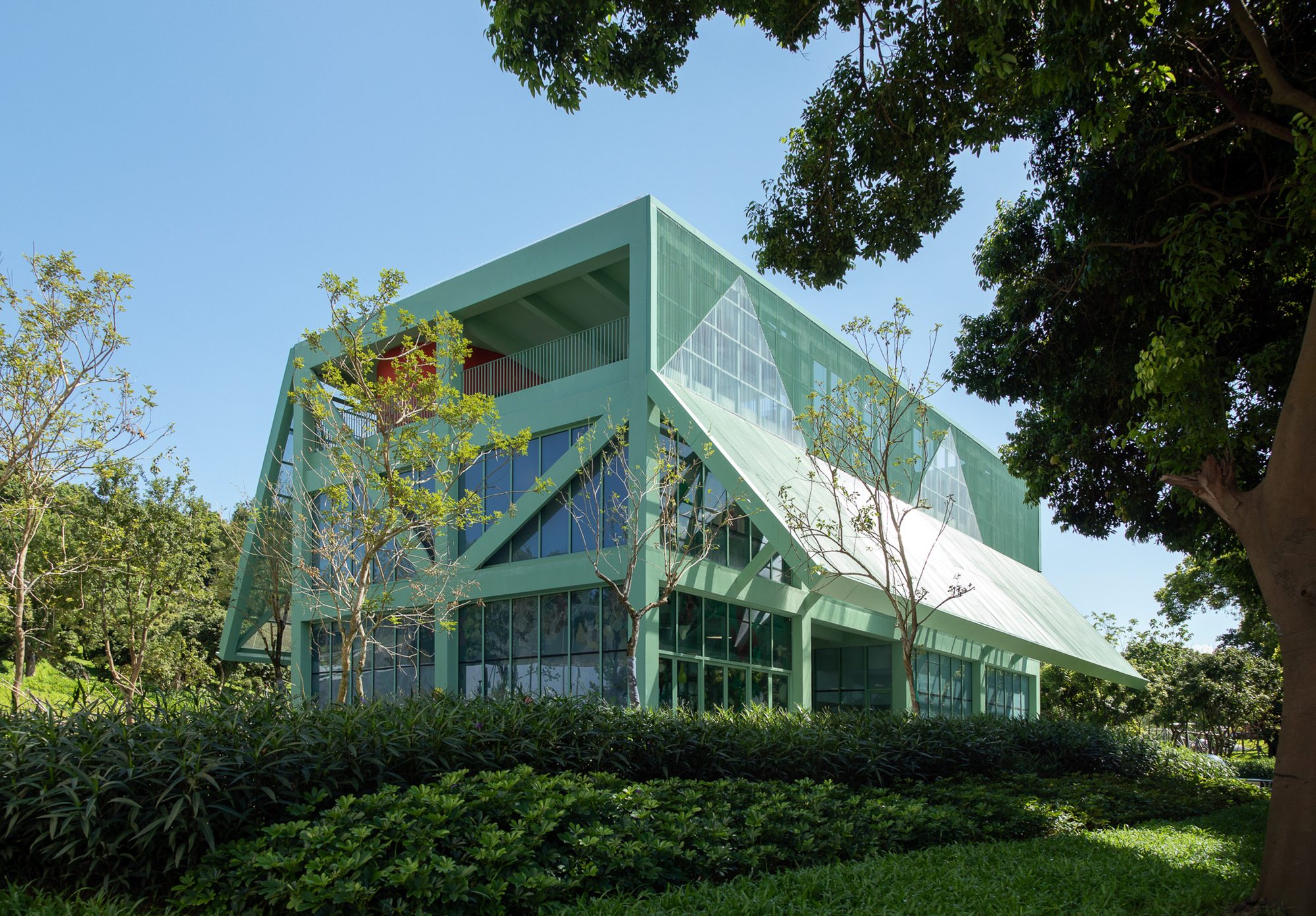

Much like the greenhouse typology, the Four-Roof Pavilion is a building of the park.

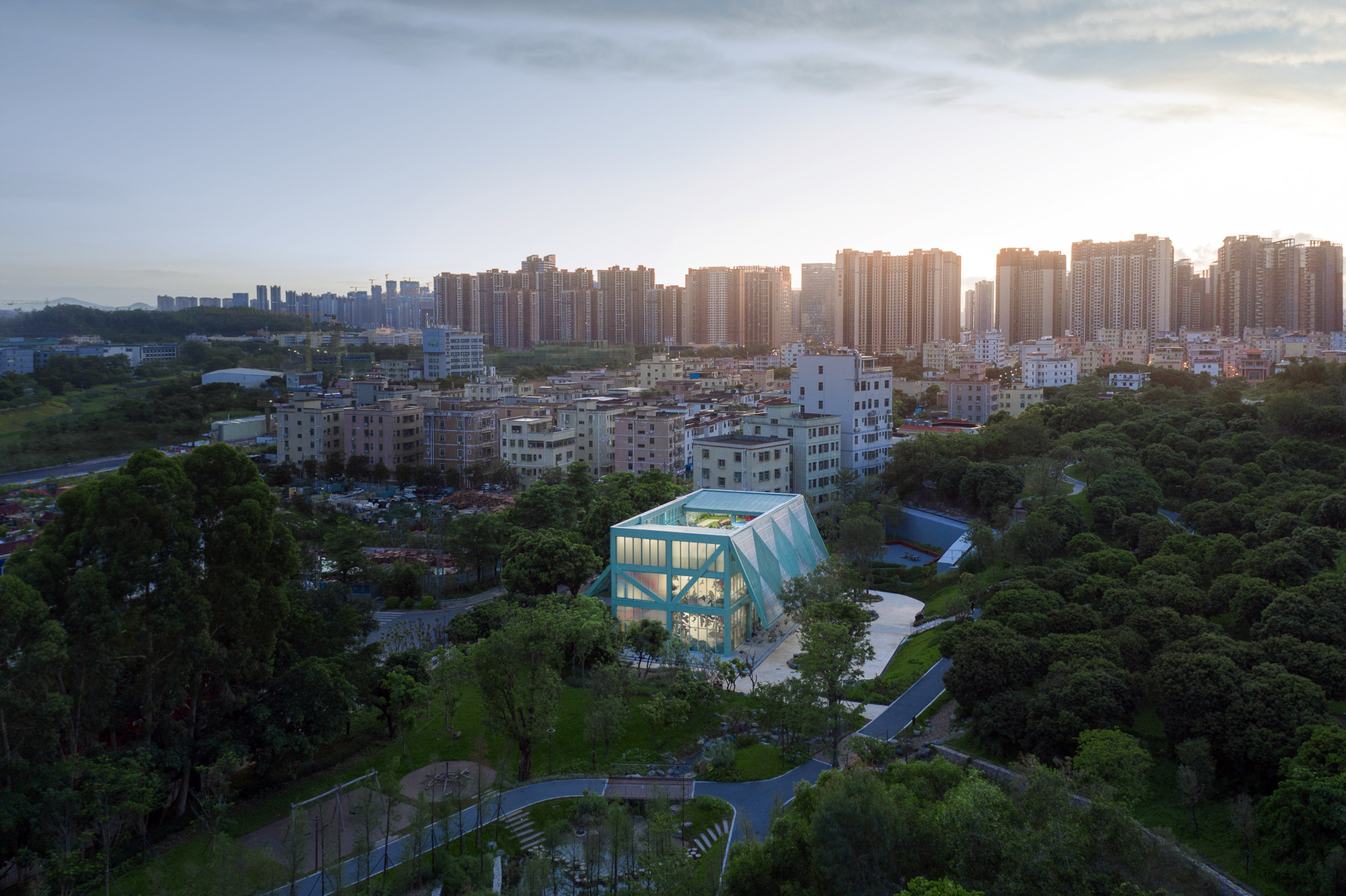

Located at the north corner of Pingshan Children’s Park in Shenzhen, the Pavilion serves as a secondary gateway to the Children’s Park.

Four-Roof Pavilion
© Schran Image
Four-Roof Pavilion
© Schran Image
Four-Roof Pavilion
© Schran Image

The 3-story, 1,200 m² structure provides a pedestrian passageway, multi-purpose rooms, a bookstore, a cafe, & roof garden.

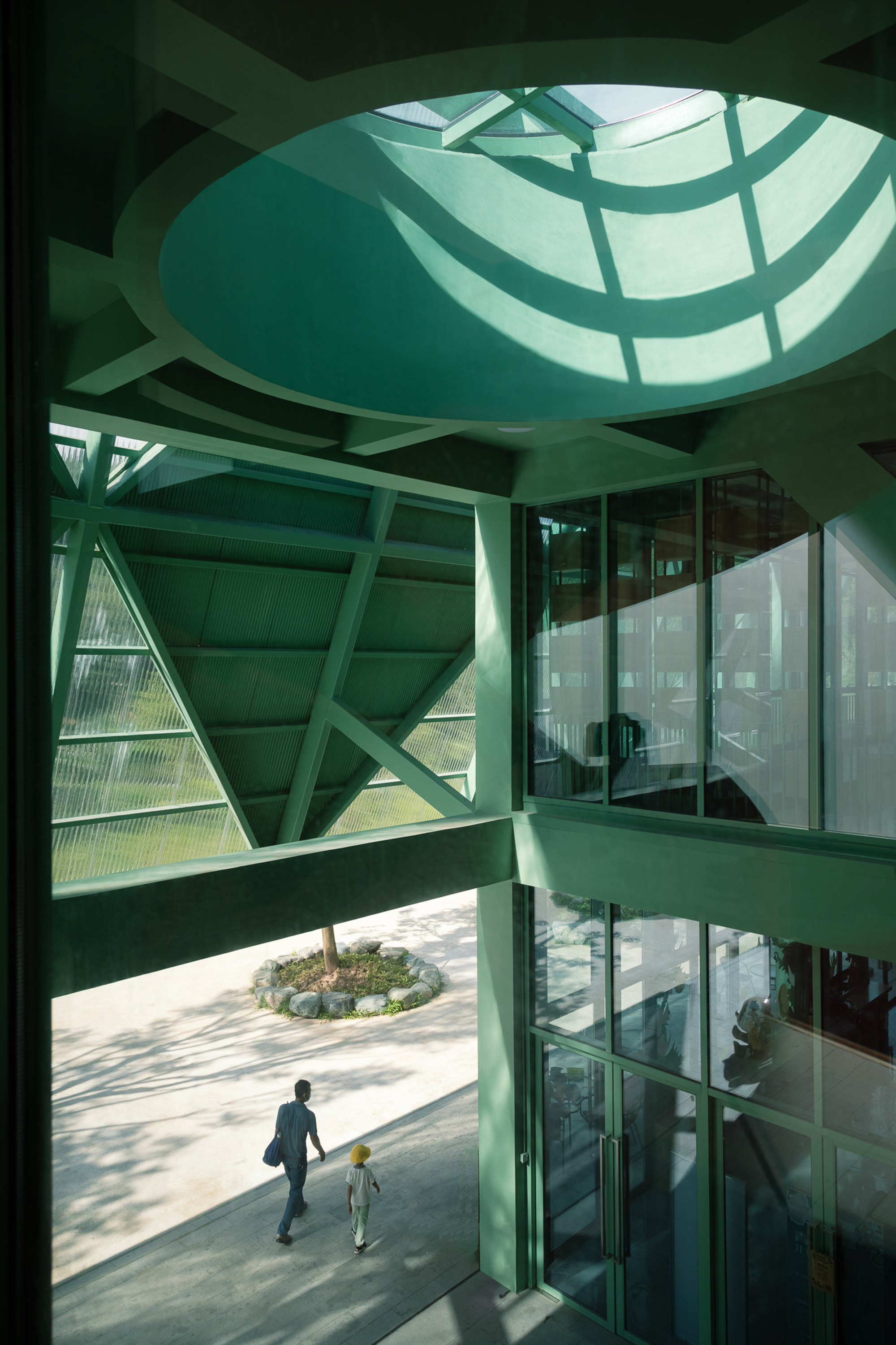

A passageway on the ground floor allows visitors to enter via a single-story space leading them to a double-height space with an oculus skylight above. The “press and release” sequence serves as a gateway to the park.

Four-Roof Pavilion
© Schran Image
Four-Roof Pavilion
© Schran Image

The void not only lets visitors pass through the building but also seconds as a social corridor for seating & conversation.

A simple cast-in-place concrete structural grid is designed with two steel roofs on the south and north facades and two concrete roofs on the outdoor garden.

The color palette loosely references 11th-century Chinese landscape painting, unifying the columns, beams, & diagonal bracing.

Four-Roof Pavilion
© Schran Image
Four-Roof Pavilion
© Schran Image

The two sculptural red stairs are embedded within the structural grid, visibly highlighting the vertical circulation.

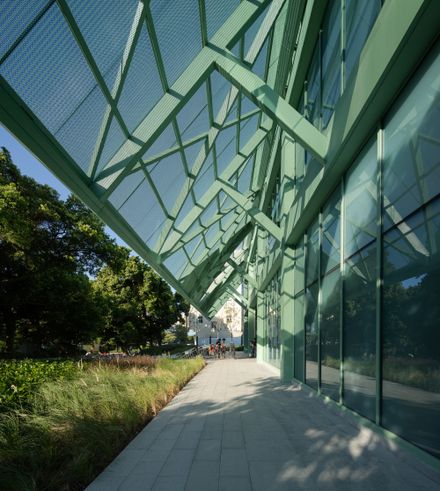

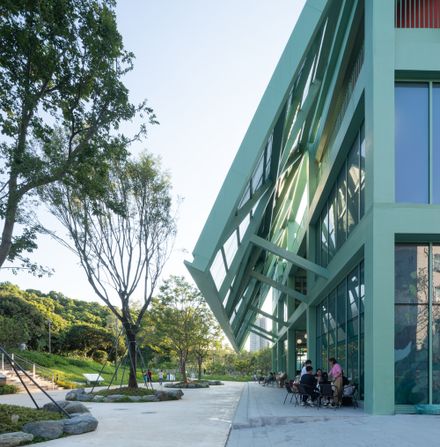

The massive roofs define the architectural identity while providing generous shading and covered space for the local community.

The diamond and triangle pattern filters the natural light while introducing ambient light into the interior space.

Four-Roof Pavilion
© Schran Image
Four-Roof Pavilion
© Schran Image
Four-Roof Pavilion
© Schran Image

Levels of transparency are created by the strategic placement of clear polycarbonate panels, perforated metal panels, & solid metal panels.

The architectural elements blur the building boundary and extend the architectural impact on both the exterior and interior, merging the relationship between architecture, landscape, and people.

Four-Roof Pavilion
© Schran Image


Four-Roof Pavilion
© Schran Image
Four-Roof Pavilion
© Schran Image
Four-Roof Pavilion
© Schran Image
Four-Roof Pavilion
© Schran Image


Four-Roof Pavilion
Plan - 1st floor
Four-Roof Pavilion
Plan - 2nd floor
Four-Roof Pavilion

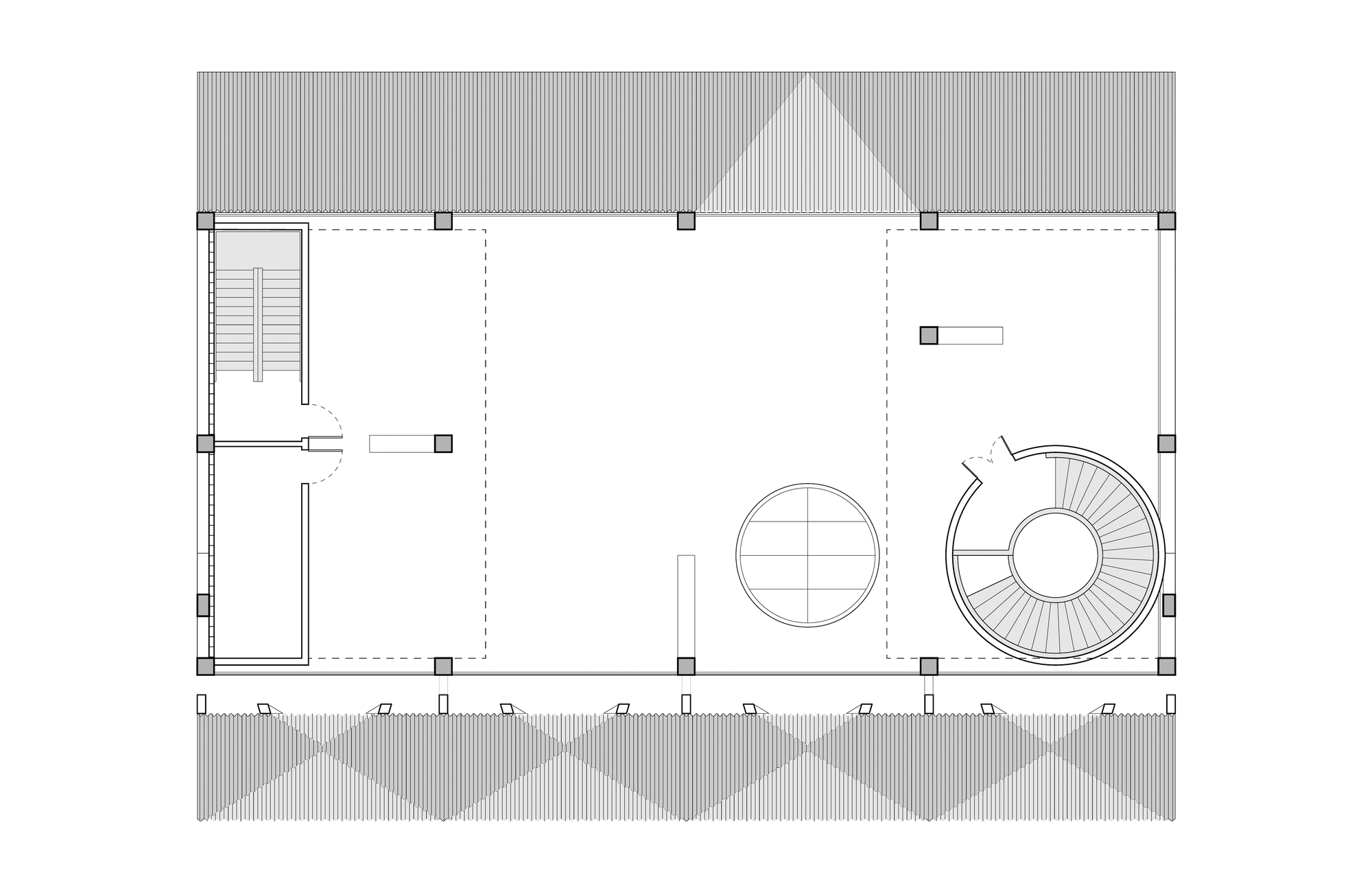

Plan - 3rd floor
Four-Roof Pavilion

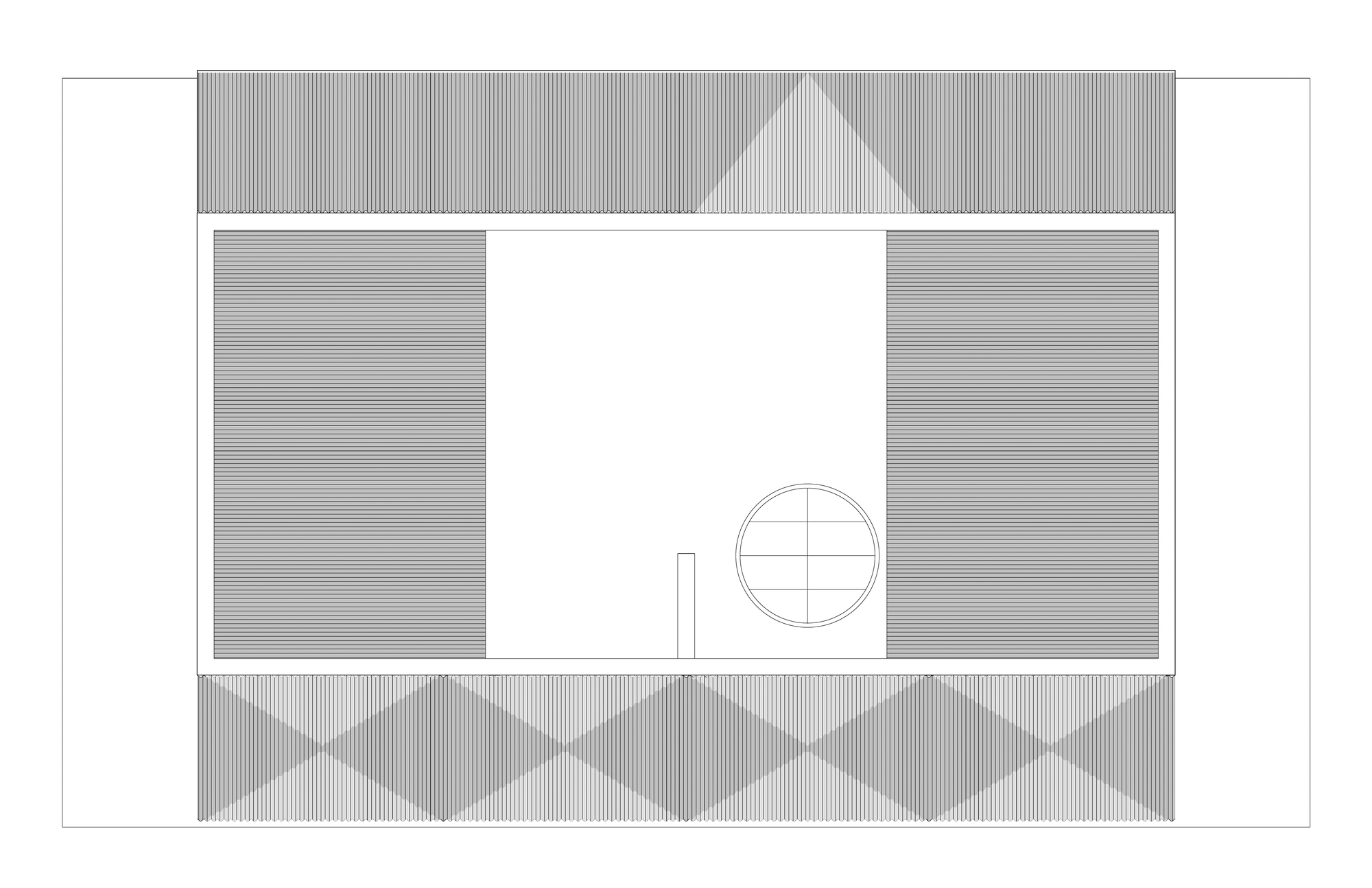

Plan - Roof floor


Four-Roof Pavilion
South Elevation
Four-Roof Pavilion
North Elevation
Four-Roof Pavilion
West Elevation
Four-Roof Pavilion
East Elevation


Four-Roof Pavilion
Diagram 1
Four-Roof Pavilion
Diagram 2


Four-Roof Pavilion
Longitudinal Section
Four-Roof Pavilion
Transverse Section


Four-Roof Pavilion
Plan - Site
Four-Roof Pavilion
Physical Model
