Waterline Park

Waterline Park
© DiD Studio

Waterline Park

Lab D+H

ARCHITECTS
Lab D+h

ARCHITECTS
Zhouyu Design Group Co., Ltd

LIGHTING CONSULTAN
Zhongwei Li, Nan Lin

STRUCTURAL DESIGN
Sichuan Yinhe Construction Engineering Co., Ltd.

DESIGN TEAM
Jiajun Wang, Wenzhe Jiang, Yijia Zhu, Jie Xu, Xiujuan Li, Yufei Fan, Jingyu Wu, Xiaowen Pan, Qiran Zhang, Yiting Hu

LEAD ARCHITECTS
Zhongwei Li, Nan Lin

BIM DESIGN
Chengdu Yingjie Engineering Technology Co. Ltd

SIGNAGE & WAYFINDING CONSULTANT
Chengdu Yuanxin Huatong Environmental Engineering Co., Ltd.

SOFT OUTFIT DESIGN
Chongqing Kaji Culture & Art Co., Ltd.

INSTALLATION ART DESIGN
Chongqing Kaji Culture & Art Co., Ltd.

WATERSCAPE CONSTRUCTION
Sichuan Bolier Light And Shadow Water Show Technology Co., Ltd.

CONSTRUCTION COMPANY
Chengdu Shuren Landscape Engineering Co., Ltd

CURTAIN WALL DESIGN
China Construction Shenzhen Decoration Co., Ltd

WATERSCAPE CONSULTANT
Sushui Design

FLOWER BORDER CONSTRUCTION
Chengdu Huimei Flower Gardening Engineering Co., Ltd.

SIGN DESIGN ENGINEERING
Chengdu Yuanxin Huatong Environmental Engineering Co., Ltd.

CLIENTS
Wide Horizons

PHOTOGRAPHS
Bing Lu, Did Studio, Holi

AREA
48400 M²

YEAR
2022

LOCATION
Chengdu, China

CATEGORY
Public Space, Park

The challenge facing Waterline Park is its unappealing nature: a long narrow gutter surrounded by residential housing blocks.

Waterline Park
© Bing Lu
Waterline Park
© Bing Lu

Despite its lack of visual appeal, it is still a precious public space available to residents. The landscape seeks to transform this uninviting space into an engaging public area for community use and gathering.

The design approach focuses on activating the site by introducing water, creating a myriad of water features that change this site into an enjoyable public space for residents to engage in community activities.

Waterline Park
© Bing Lu
Waterline Park
© Bing Lu

The goal is to bring new life and vitality to the area, strengthen social cohesion, and create an inclusive community space that fosters a sense of belonging for all residents.

Design Challenge. The design project faced a daunting task: transforming a forgotten and neglected strip of land into a space that could bring joy to the community.

Waterline Park
© Bing Lu
Waterline Park
© Bing Lu

Although located among residential buildings, the site is not a conventionally planned green space reserved for residential areas but rather resembles an abandoned piece of land.

The site is a 1.5km long gutter, with a narrowest width of only 40m, and a height difference of 5-7m with surrounding roads.

Waterline Park
© Bing Lu
Waterline Park
© Bing Lu

Its narrow width, steep slopes, and harsh terrain made it seem almost impossible to use. However, apart from the buildings, the whole residential area contains a huge water body, and the green space on the ground remained highly valuable as public spaces for residents.

Diverse Waterscape. The highlight of the design is the extensive use of water. By introducing water on site, the landscape connects the previously fragmented four parcels of land through a series of water features that converse.

Waterline Park
© DiD Studio
Waterline Park
© DiD Studio

All pathways, plazas, and spaces unfold along this water system, forming a city-level linear park system with water as the main protagonist.

Drawing inspiration from natural rivers such as valleys, waterfalls, canals, shorelines, and islands, the landscape is expressed with abstract design language to achieve the multi-use of the water.

Waterline Park
© Bing Lu
Waterline Park
© Holi

The different water terrains skillfully digest the height difference and smoothly connect with the surrounding areas. The different water features and installations offer diverse landscapes and dozens of interactive features, resulting in a rich and interactive space.

Activity Space. Extending along the main water system within the site, various stopping points are created to offer more than just water, but also opportunities for people to rest and linger.

Waterline Park
© DiD Studio
Waterline Park
© Bing Lu

In the different topographies, the space is transformed to create an ever-changing environment, adding layers of interest and surprise to the site.

These stopping points, each with its unique features, provide spaces for people to sit, relax, and enjoy the surrounding scenery, allowing them to connect with nature and the community.

Waterline Park
© Bing Lu
Waterline Park
© Bing Lu

In this way, the site is transformed into a lively and dynamic public space, encouraging social interactions and fostering a sense of belonging among residents.

Ecology Benefits. Ecological consideration is extensively integrated into the park, creating a green urban canyon. With the advantage of the water resources from Lu Lake, the water level of the water feature can be adjusted according to seasonal changes.

Waterline Park
© DiD Studio
Waterline Park
Gif - Strategy

The design of the water channel creates different depths and speeds of water flow, and the interaction of the entire water feature can be controlled at different times and in different areas.

Although the waterline park serves as a space for residents' activities, it can also serve as a rain garden during flood season to assist in dredging the lake.

Waterline Park
Chinese Painting Luxel

TO BE CONTINUED.

The park’s focus on water-based landscapes has created a unique urban oasis that provides residents with an escape from the bustling city. An increasing amount of people choose to live in the surrounding community after the completion of the waterline park.

Plans for the completion of Sections 3 and 4 are already underway, with construction set to take place over the next three years.

Overall, Waterline Park is a shining example of how thoughtful urban planning and innovative design can create not only a functional space but also a beautiful and welcoming community hub.


Waterline Park
Texture Analaysis


Waterline Park
Strategic analysis drawings
Waterline Park

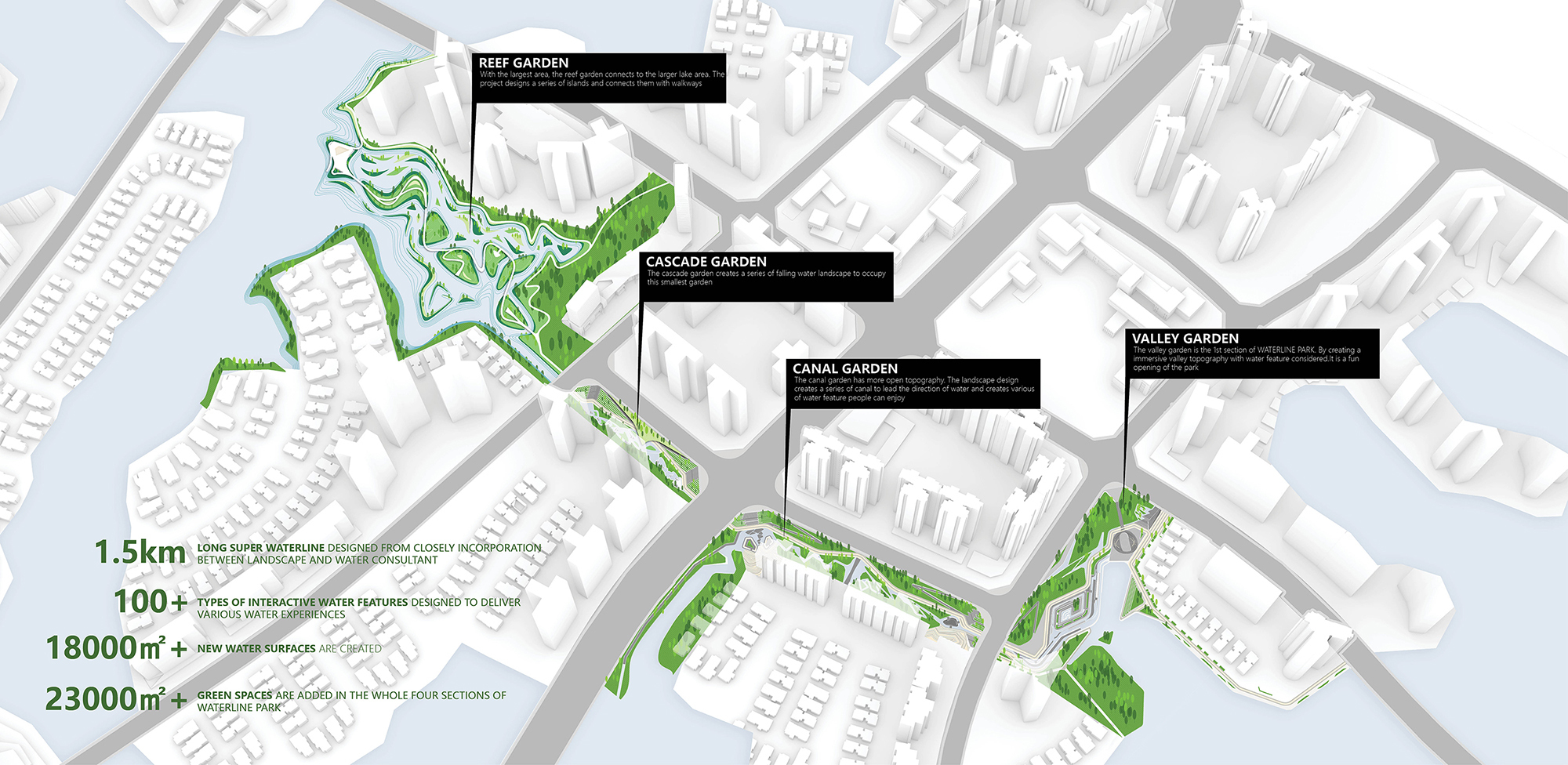

Master plan


Waterline Park

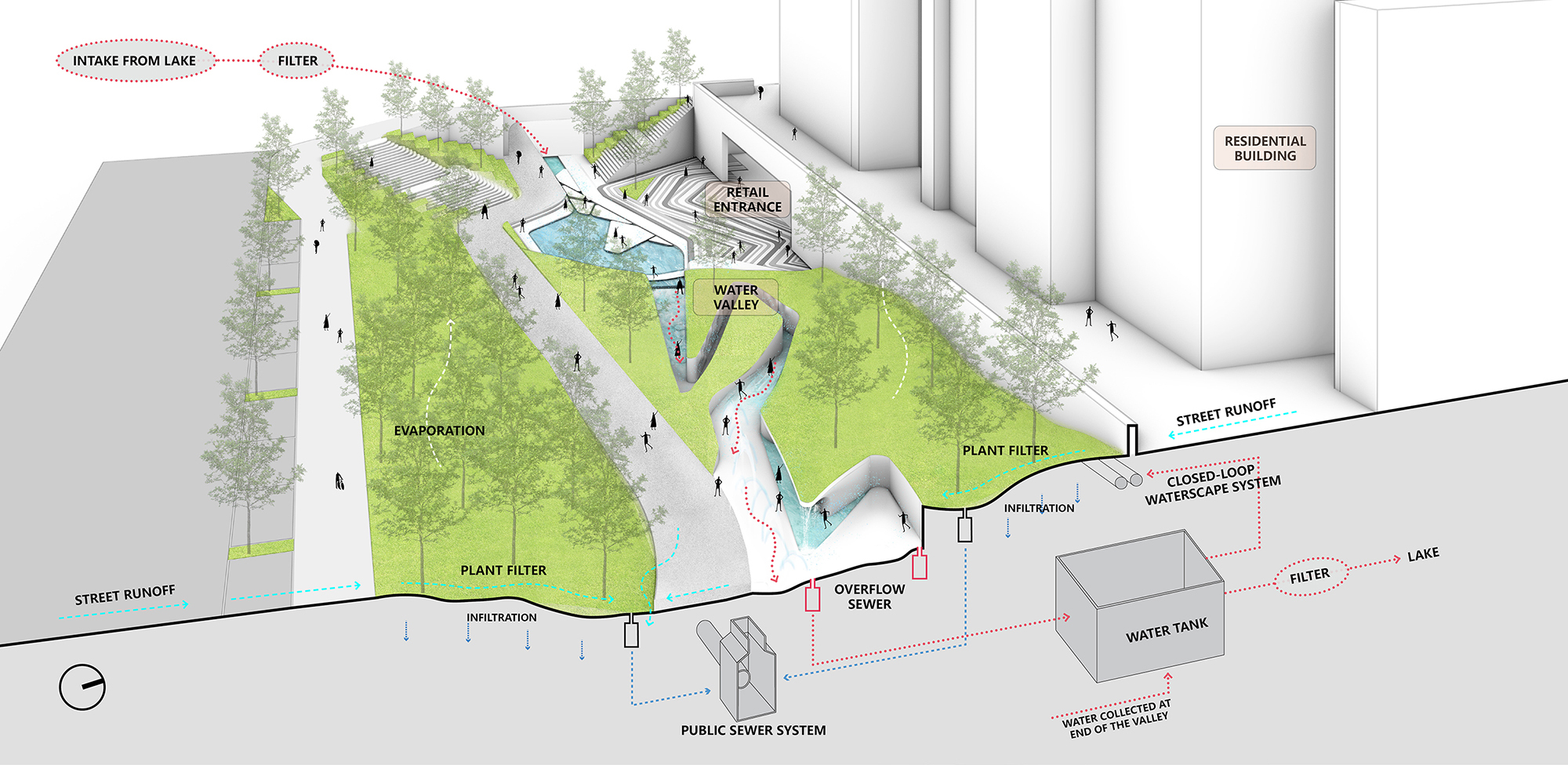

Eco-Water Cycle Analysis
Waterline Park

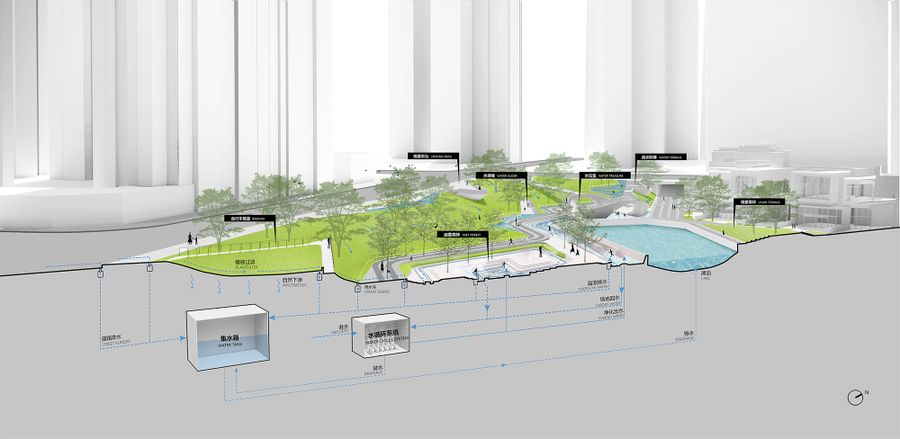

Eco-Water Cycle Analysis


Waterline Park
Water Facility Analysis


Waterline Park
Activity Spaces Analysis
Waterline Park
Landscape Analysis
