HOUSE HAVANA TOBACCO FACTORY LINZ

Kaltenbacher Architektur + Steinbauer Architektur+design

ELECTRICAL ENGINEERS
Etech Schmid And Pachler Elektrotechnik

EXECUTION
Andrea Crnjak - Kaltenbacher Architektur

MANUFACTURERS
Jansen, Allplan, D-line, Forster, Fuchs Design, Fural, Herzbach, Proox, Schmitt+sohn, Silent Gliss, Xal

CONCEPT AND DESIGN
Oliver Steinbauer - Steinbauer Architektur

AREA
8000 M²

CONSTRUCTION SUPERVISION
Wolfgang Spies - Kaltenbacher Architektur

TECHNICAL MANAGEMENT
Peter Salem - Kaltenbacher Architektur

PROGRAM / USE / BUILDING FUNCTION
School For Digital Humanism (Ground Floor), Different Office Use (Upper Floors)

YEAR
2022

LOCATION
Linz, Austria

CATEGORY
Office Buildings

Text description provided by architect.

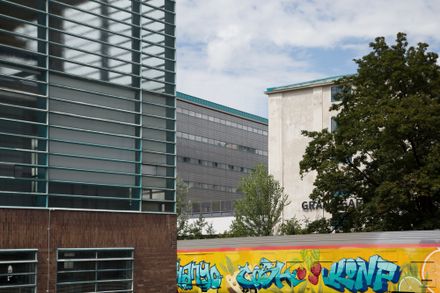

The "House Havana" – listed as a monument - is located near the Danube promenade in the industrial ensemble of the tobacco factory in Linz. It was built as a tobacco warehouse in the 1930s according to plans by Peter Behrens and Alexander Popp.

House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design

In the mid-1960s, the storage building was increased and the area in the south and in the north in front of the building was built over.

After the demolition of all non-historical-listed components in 2017, there started an EU-wide architecture competition to find ideas for new use.

The credo of the revitalization is not to disturb the balance of the industrial monument by Peter Behrens in its strong presence despite a new facade statement but to supplement it with a coherent concept for the preservation of monuments.

House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design

The main actor plays the glass block - originating from the beginning of the 20th century and also considered an element in functional architecture.

This choice of the material enables maximum light yield inside the formerly dark tobacco store. The glass facade consists of 70,000 glass blocks and extends over six floors with an area of ​​over 1,800 m².

House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design

In order to correspond to Behren's prevailing structure, all supporting steel constructions disappear inside the glass block joints and are only visible horizontally in the form of a supporting window.

The steel windows, in turn, are divided into the specified grid of the listed concrete skeleton structure and allow natural ventilation through a pivoting sash opening, also a reference to the historical building.

As a clear contour between the existing and the newly created, the entire glass brick facade is surrounded by a black steel band.

House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design

A new canopy forms the lower end of the facade, which was also irrevocably lost when it was demolished in the 1960s.

The newly built stair tower inside creates an introverted environment before entering the individually designed office space.

Two oppositely arranged, single-flight, concrete staircases each overcome the height of an entire story.

House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design

The stepped bottom view of the flights of stairs creates an impression that is reminiscent of a lithograph by M.C. Escher.

The railing construction is reduced to massive round steel rods, which were anchored directly into the stairways by means of hundreds of core drillings.

The identity-creating round glazing, as a reminiscence of a large number of porthole windows in the factory, was positioned exactly at the level of the crossing points of the stairs and thus enables insights and views from special angles of the magazine.

House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design

The standard floors are also based on the axis grid of the historical design.

The floor plan is reduced to the infrastructural supply in the center and four new sanitary zones were created in the unexposed outer corners.

The space in between is used and designed by the respective users of the floors individually according to their needs.

House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design


House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design
House Havana Tobacco Factory Linz
Courtesy Of Steinbauer Architektur+design


House Havana Tobacco Factory Linz
Facade - Detail
House Havana Tobacco Factory Linz
Facade - Section
House Havana Tobacco Factory Linz
Facade - Inside
House Havana Tobacco Factory Linz
Facade - Outside


House Havana Tobacco Factory Linz
West Elevation
House Havana Tobacco Factory Linz
North Elevation


House Havana Tobacco Factory Linz
Plan - Ground floor
House Havana Tobacco Factory Linz

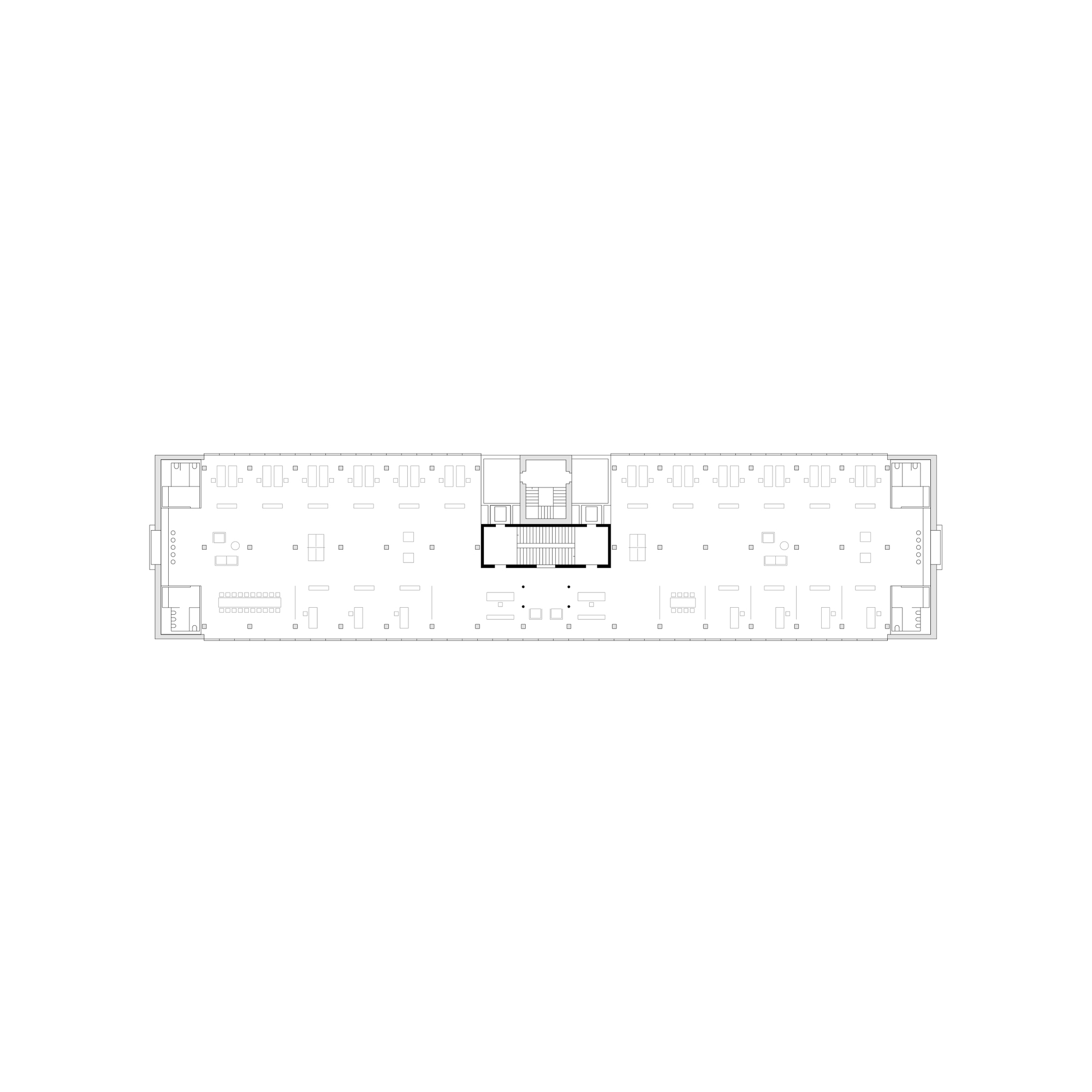

Plan - Standard floor


House Havana Tobacco Factory Linz
Plan - Situation
House Havana Tobacco Factory Linz
Section
