LINTEL HOUSE

Palafito Arquitectura

STRUCTURAL ENGINEERING
Jorge Segura Franco, German Hermida, LM Ingenieros, Fira S.A.S.

MANUFACTURERS
Cemex

LEAD ARCHITECTS
Santiago Pradilla Hosie, Laura Vispe

S ITE SUPERVISION
Jose Lopez

MODEL
Juan David Daza Galindo

DESIGN TEAM
Juan José Bacca

PHOTOGRAPHS
Santiago Beaume

AREA
540

YEAR
2020

LOCATION
Chía, Colombia

CATEGORY
 Houses

Lintel House
© Santiago Beaume
Lintel House
© Santiago Beaume

Winner of the national architecture biennial in Colombia, this house is located on a flat suburban lot, without much interest and without distant views.

Lintel House
© Santiago Beaume
Lintel House
© Santiago Beaume

Casa Dintel is a proposal for the formation of a "landscape" that disguises an extensive program of six bedrooms with bathrooms + studies.

The challenge: how to disguise such an extensive program and integrate it into the landscape?

Lintel House
© Santiago Beaume
Lintel House
© Santiago Beaume

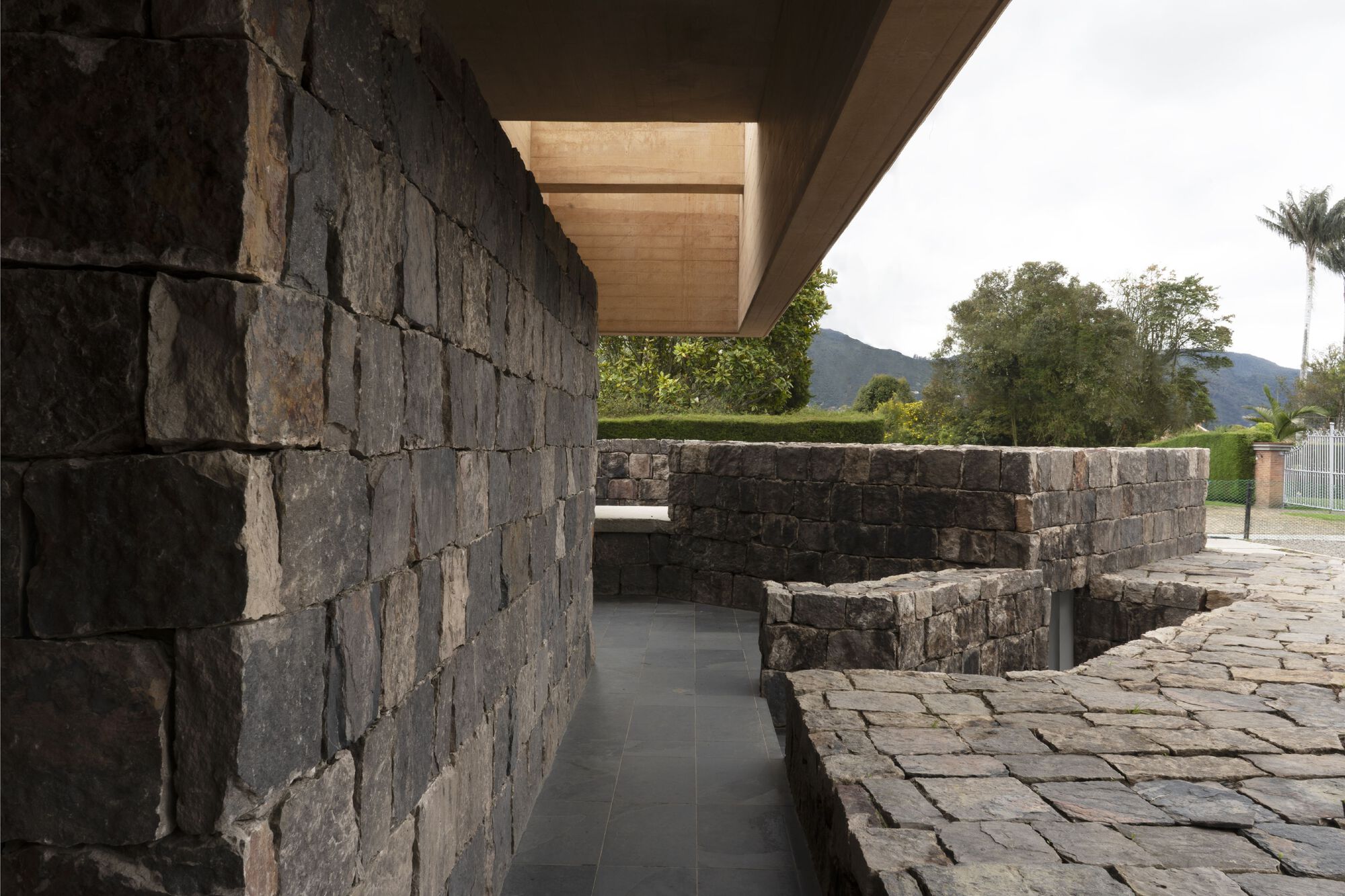

Casa Dintel is designed from the nearby garden. An enriched landscape is configured from dunes formed with soil from the same lot that is linked and integrated with some first volumes of rustic stone, like ruins on which the house is built.

The client, an expert concrete engineer, contributes an important technical component. The house is a monolithic cover; a single casting without construction joints. The large rectangle full of voids.

Lintel House
© Santiago Beaume
Lintel House
© Santiago Beaume
Lintel House
© Santiago Beaume

A single mass that lands only on 8 pillars. It functions as an out-of-scale lightened slab; gigantic lightning casings are now those that make up each habitable space.

And using the structure, the main beams hang down and form the lintel.

The search for color was carried out in the central concrete laboratory, testing more than 3 types of sand and 16 pigment combinations whose proportions were varied in the second decimal, until the desired tonality was achieved.

Lintel House
© Santiago Beaume
Lintel House
© Santiago Beaume
Lintel House
© Santiago Beaume

The concrete used corresponded to a self-compacting concrete with shrinkage control, including a macro synthetic fiber to minimize material cracking (4 kg/m3).

Likewise, the concrete in its composition carried an anti-foaming additive to minimize the generation of bubbles on the surface.

Lintel House
© Santiago Beaume
Lintel House
© Santiago Beaume

The pouring of the cover plate and the hanging beams was carried out in a single day. This was done with the idea of eliminating construction joints.


Lintel House
Site Plan
Lintel House
Plan
Lintel House
Plan
Lintel House
Plan


Lintel House

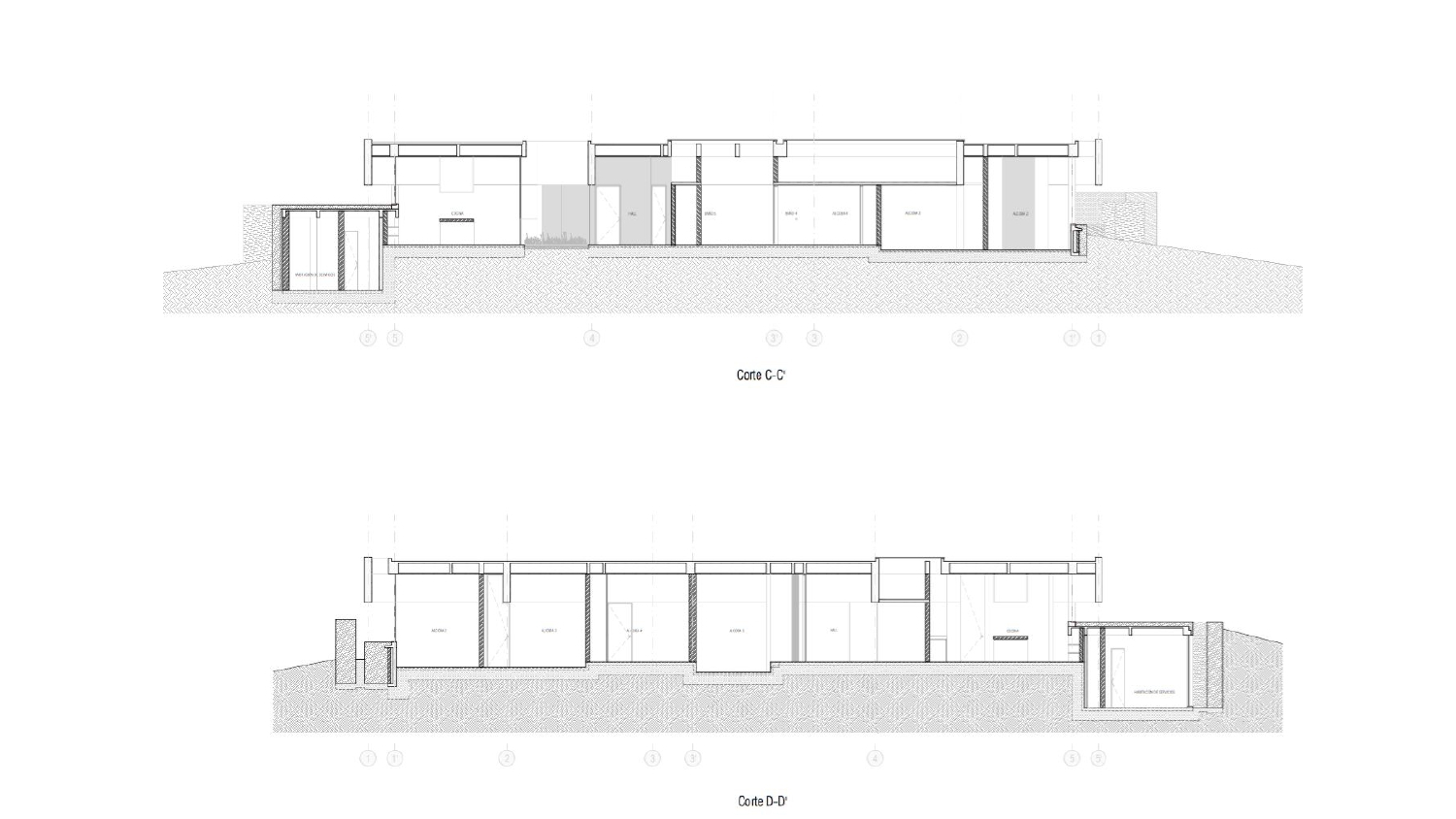

Sections
Lintel House
Sections
Lintel House
Sections


Lintel House
Sections
Lintel House
Plan
