QUEBRADA HONDA HOUSE

Abarca Palma Arquitectos

ARCHITECTS
Abarca Palma Arquitectos, Cristóbal Noguera

COLLABORATOR
Nicolás Acosta

LEAD ARCHITECTS
Cristóbal Noguera, Francisco Abarca, Camilo Palma, Sebastián Ochoa

AREA
180 M²

YEAR
2021

LOCATION
Frutillar, Chile

CATEGORY
Houses

Quebrada Honda House
© Pablo Casals-aguirre

A single-family home, located on the southern hillside of Domeyko Bay in front of the Llanquihue´s lake views. These two characteristics are the main issues that defined the order and shape of the house. Given the need to have the most public venues with a frontal view of the lake, the main spaces are arranged in the front.

Likewise, the staggered strategy responds to the topography of the hillside with a volume that descends diagonally through the slope, maximizing the capture of the northern sun to counteract the few hours of sun from southern facades.

Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre

The volume goes down with the ground in four levels, from the most private to the most public areas.

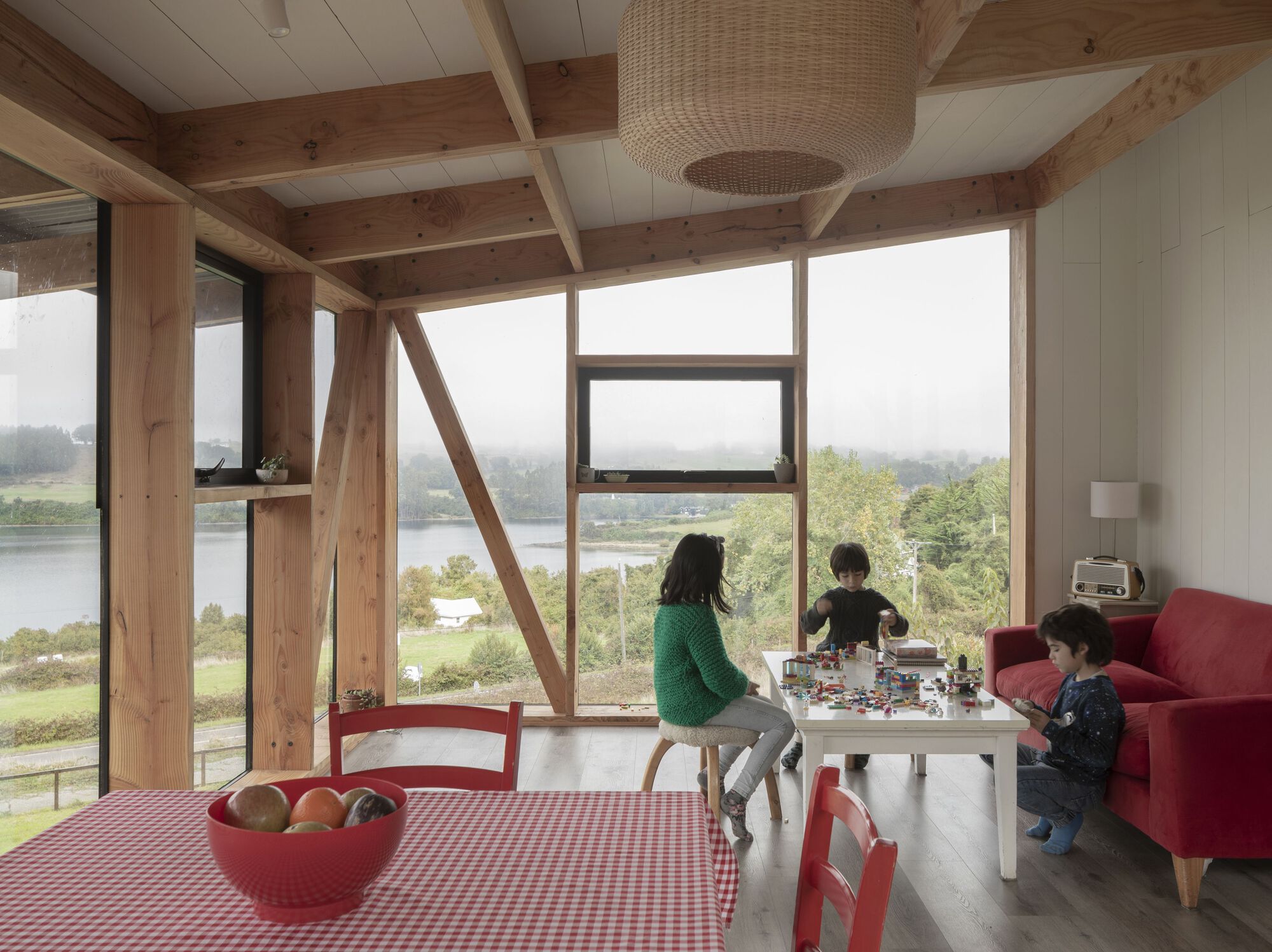

Only half levels separate the first three platforms, the master bedroom in the first, the children's bedrooms and study room in the second, and the kitchen, laundry room, dining, and living room on the third as the most public level, which opens completely to the lake.

On the fourth level, there’s the storage, parking, and main access.

Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre

Spatially, the three interior levels are conceived as a sequence of spaces connected by a side stairway that intermittently descends, resulting in a continuous space on the north façade.

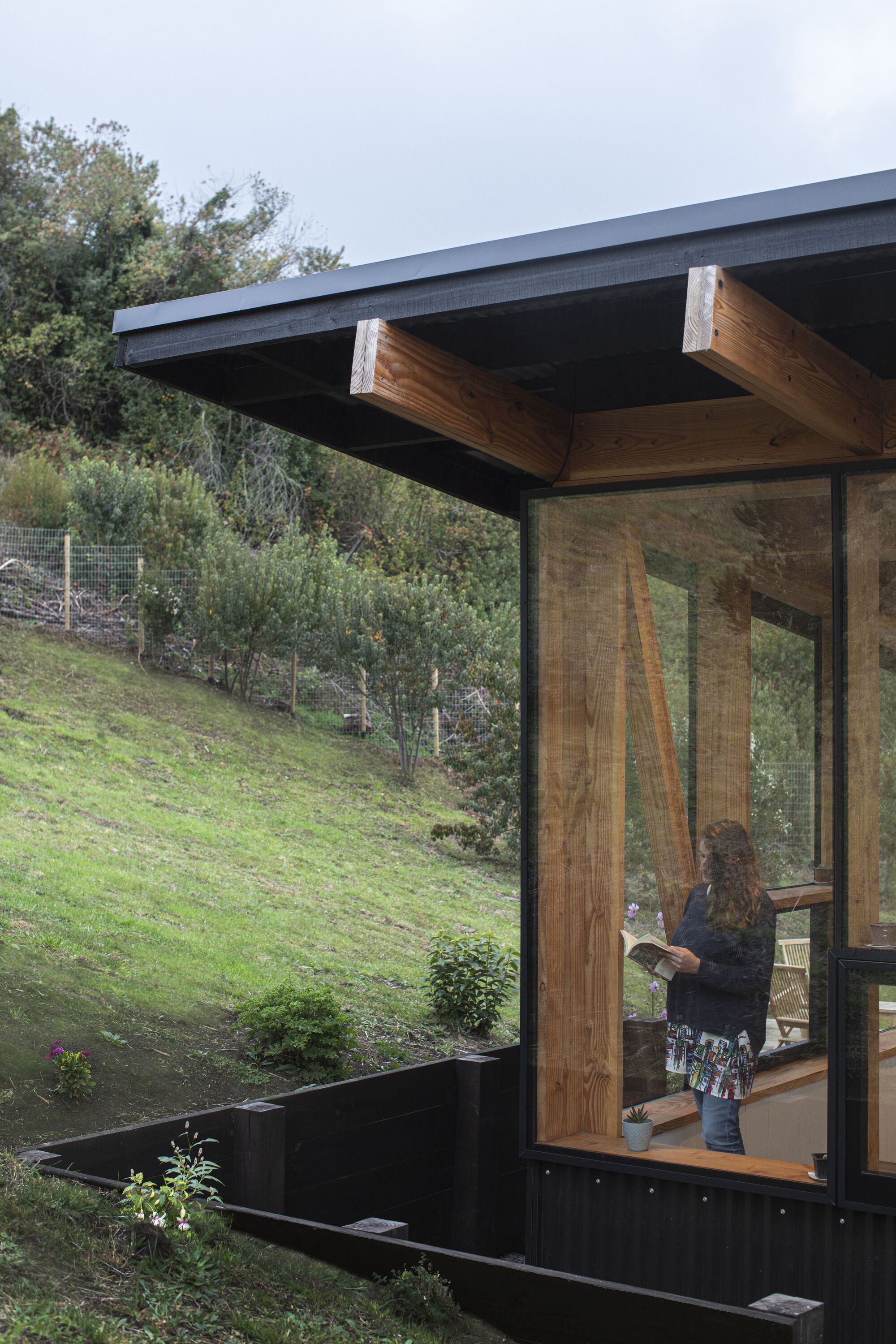

The north, west, and east façades consider greater openings through the exposed timber structure.

In contrast, the south façade was designed with punctual and directed openings. The entire volume is inscribed under an inclined roof according to the slope, which protects the house from rain and wind with perimeter eaves.

Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre

The constructive proposal consists of a mixed prefabricated system based on SIP panels as a thermal envelope of 160mm considering slabs, walls, and roof.

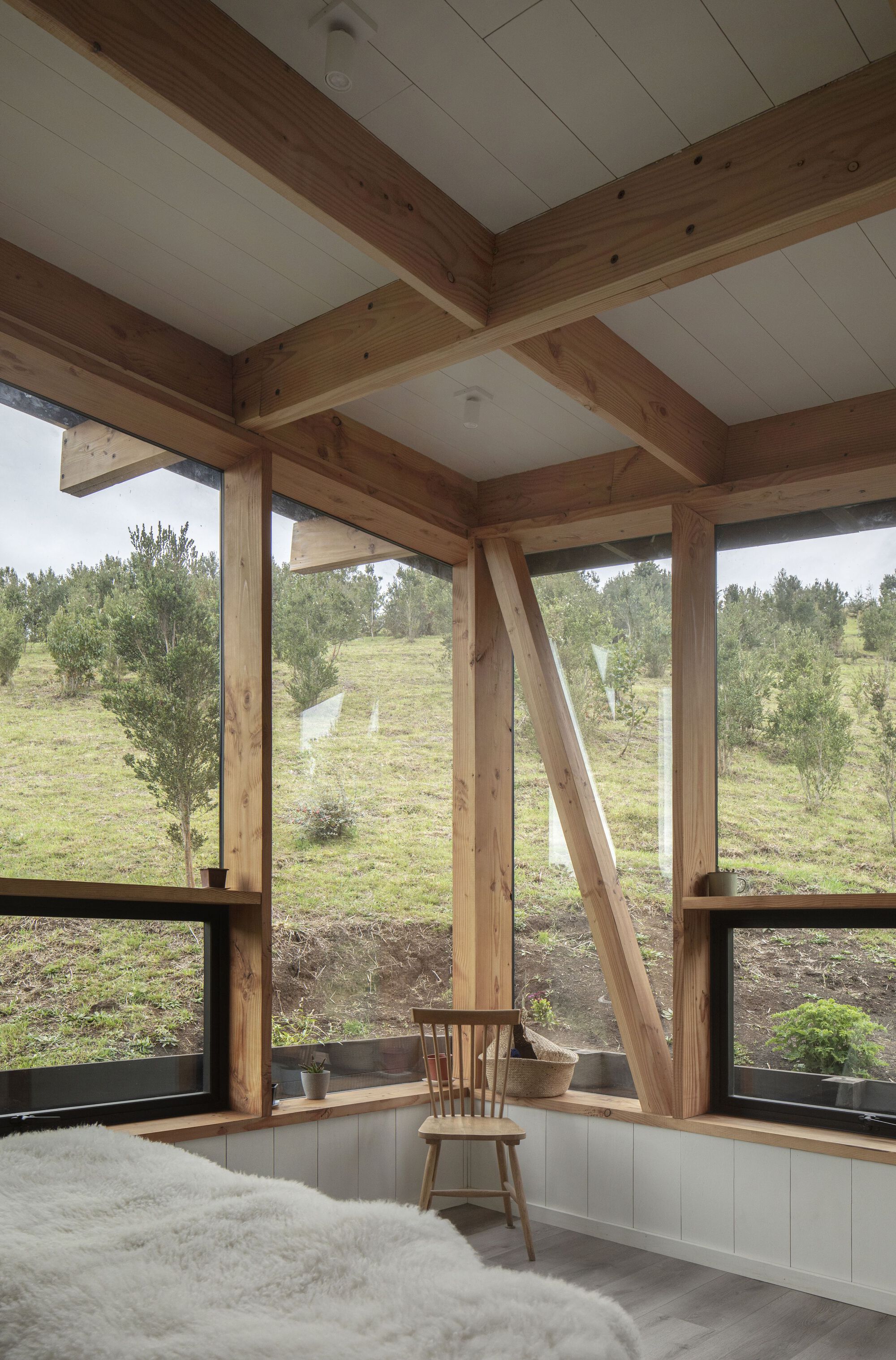

Exposed timber structures were used for pillars, diagonals, beams, and window frames.

Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre

Foundations and containments are made up of a reinforced concrete wall at the base.

The upper platforms are supported by an isolated foundation that supports a mixt structure of steel and timber beams that holds the SIP slab on each platform. In the interiors, timber elements were combined with white finishing walls and ceilings.

Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre

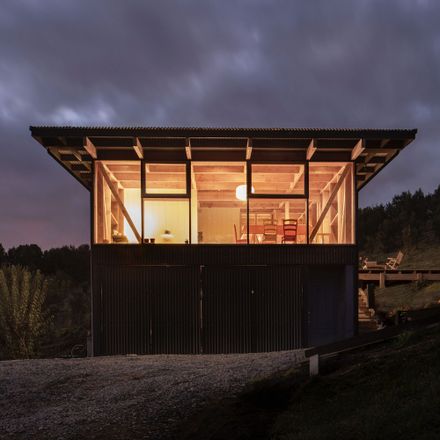

The corrugated zinc exterior cladding, both on the façade and on the roof, provides material continuity on all its opaque faces, combining with exposed timber elements behind the glazed façades.

Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre


© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre
Quebrada Honda House
© Pablo Casals-aguirre


Quebrada Honda House
Section - A
Quebrada Honda House
Section - B
Quebrada Honda House
Section - C
Quebrada Honda House
Section - D
Quebrada Honda House
Section - E
Quebrada Honda House
Section - F
Quebrada Honda House
Section - G
Quebrada Honda House
Elevation - South
Quebrada Honda House
Elevation - East
Quebrada Honda House
Elevation - West


Quebrada Honda House

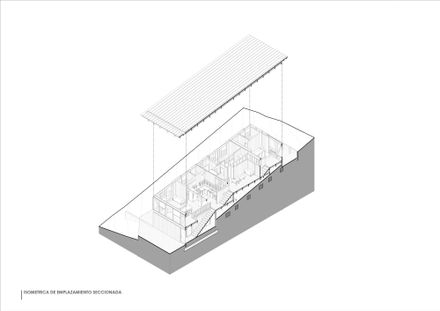

Axo
Quebrada Honda House
Axo
Quebrada Honda House
Axo
Quebrada Honda House
Plan - Site
Quebrada Honda House

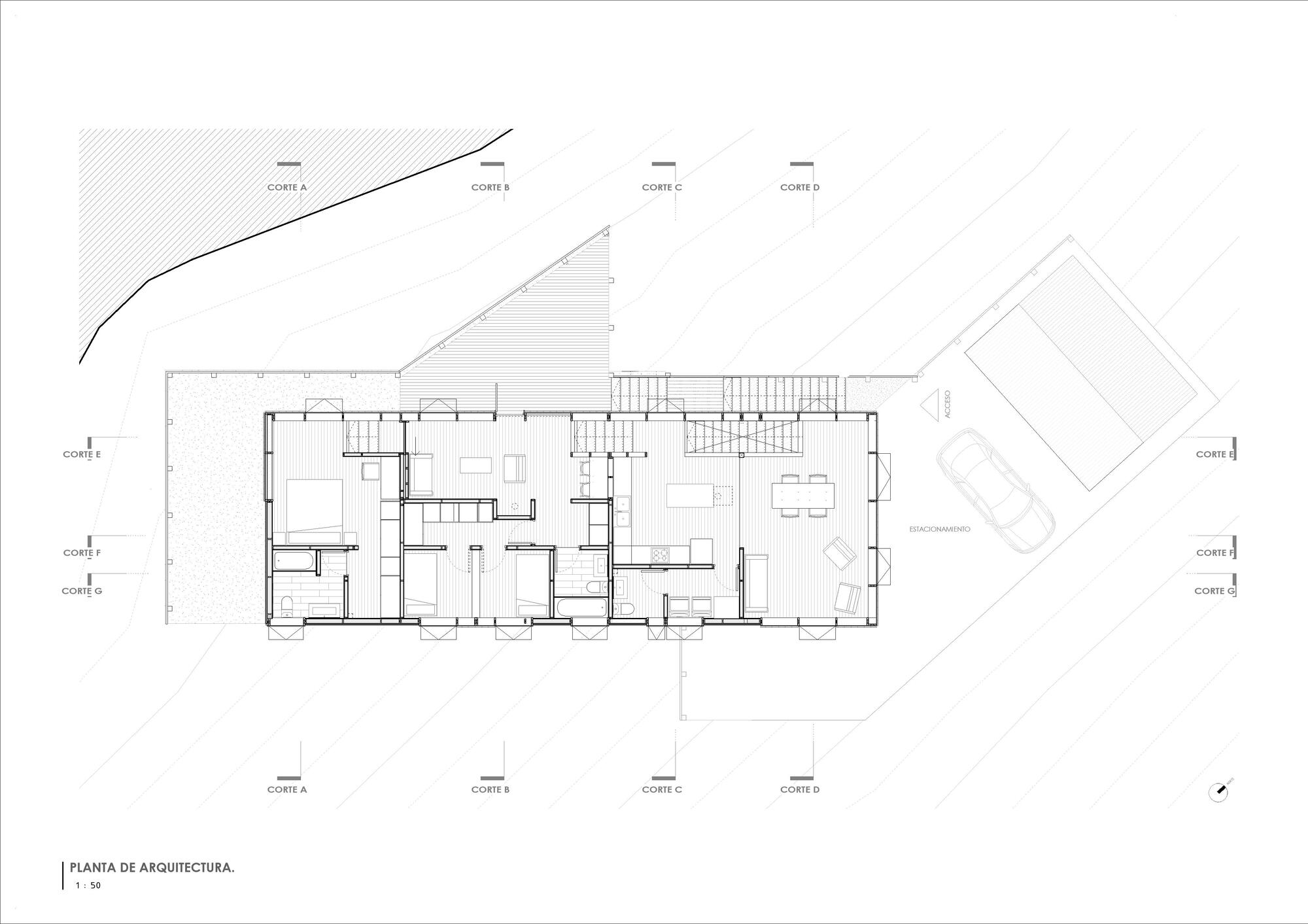

Plan
Quebrada Honda House
Details
