VAST GALLERY & ARTIST RESIDENCY

Persian Garden Studio

LEAD ARCHITECT
Mahsa Majidi

ELECTRICAL ENGINEER
Ashkan Sajadi

MANUFACTURERS
Alborz, Batik, Dimeh, Heidarian, Jotun Paint Vietnam, Kludirak, Lg, Nooraneh Lighting Industry, Tarang Décor, Zeeen

DESIGN TEAM
Pantea Parhami, Anousheh Ahmadi,hooman Nuri Doost, Mina Nabavi, Katayoun Tehrani

GRAPHIC AND PRESENTATION
Niloufar Kaveh

CONSTRUCTION TEAM
Kaveh Maadi, Naeemeh Beigi

STRUCTURE ENGINEER
Masoud Daryooshi

MECHANICAL ENGINEER
Danial Komeilian

AREA
1360 M²

YEAR
2023

LOCATION
Tehran, Iran

CATEGORY
Gallery, Housing

Vast Gallery & Artist Residency, located in the historic center of Tehran with an area of ​​1300 sqm, originally consisted of three residential floors and five retail stores.

Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio

As it was built in the 1930s in the first Pahlavi period, the architecture language was highly influenced by modernist architecture and cultural trends of that era.

Like many other buildings of this period in central Tehran, this building had been abandoned by the owners after the Islamic revolution. The original owners, Armenian musicians who were lead piano players near City Hall, resided in the residential units.

Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio

Their daily interaction with the surrounding neighborhood and the formation of a sense of community within this area that was strengthened by providing a public service through retail stores became the source of inspiration for renovation and the core of the new programming for rehabilitation of this building after 40 years of abandonment.

With the intention of endorsing rehabilitation in the central part of Tehran and expanding on a long-term project of reestablishing urban tissues, new programs were implemented and extensions were added to the building.

Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio

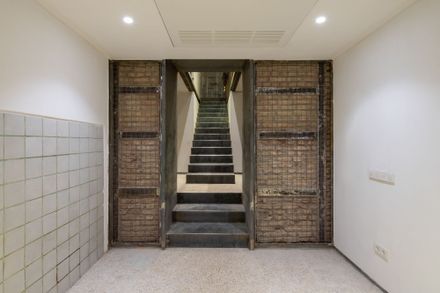

After reinforcing the building by adding metal bracings and steel jackets on existing columns, vaulted ceilings were supported by metal beams, and openings were created between floors.

Two residential units were transformed into six smaller units and an office space was added to the program. Retail stores were converted into a cafe, pastry shops, and gift shops.

Inviting visitors to the complex and highlighting their significant impact on the project's identity thriving from daily communication with the neighborhood residents.

Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Kamyar Minoukadeh

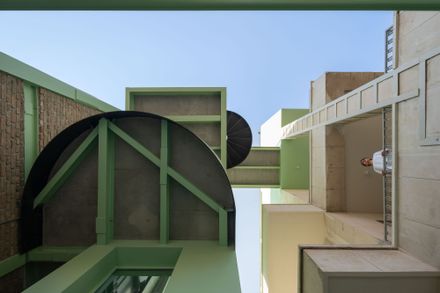

Installing the metal extension structure built in the courtyard, the floor was excavated, and the foundation and guard structure was implemented.

Concrete walls were built around the metal skeleton pit, and the stairs structure was connected. At the roof level, this structure was connected to the building and integrated with the metal structure on the roof.

Vast Gallery & Artist Residency
© Kamyar Minoukadeh
Vast Gallery & Artist Residency
© Kamyar Minoukadeh

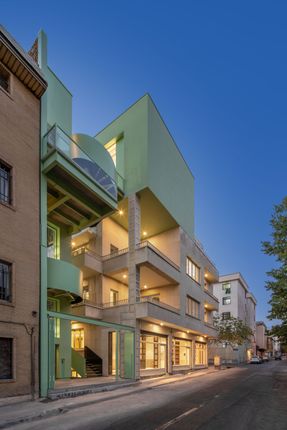

Consistent with the historic and cultural identity of the neighborhood and surrounding buildings, as well as creating an urban node, an extension gallery space was designed as a volume placed on the rooftop of this building.

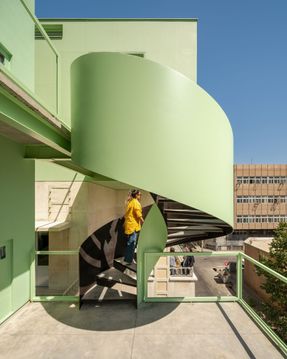

In order to create a unique experience while reaching the rooftop volume and keeping the existing main staircase only for residential access, a vertical path was added as an extension to the courtyard that leads to the rooftop gallery through bridges and staircases.

Vast Gallery & Artist Residency
© Kamyar Minoukadeh
Vast Gallery & Artist Residency
© Deed Studio

The purpose of defining, designing, and executing such projects is to attract a new generation to the center of Tehran.

In recent years, Neighborhoods have lost their identity as residential areas and have taken on commercial or administrative use.

Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Kamyar Minoukadeh

By creating multipurpose projects in which residential use is an essential fragment, part of the population will return to these neighborhoods to live, work, and create.

And in addition to reviving the area, they increase the sense of hope, belonging, and interest in the neighborhood among the old residents.

Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Kamyar Minoukadeh
Vast Gallery & Artist Residency
© Deed Studio


Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Kamyar Minoukadeh
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Kamyar Minoukadeh
Vast Gallery & Artist Residency
© Kamyar Minoukadeh
Vast Gallery & Artist Residency
© Kamyar Minoukadeh
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Kamyar Minoukadeh
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio


Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Kamyar Minoukadeh
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Kamyar Minoukadeh


Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio
Vast Gallery & Artist Residency
© Deed Studio


Vast Gallery & Artist Residency
North Elevation
Vast Gallery & Artist Residency
East Elevation


Vast Gallery & Artist Residency
Section A
Vast Gallery & Artist Residency

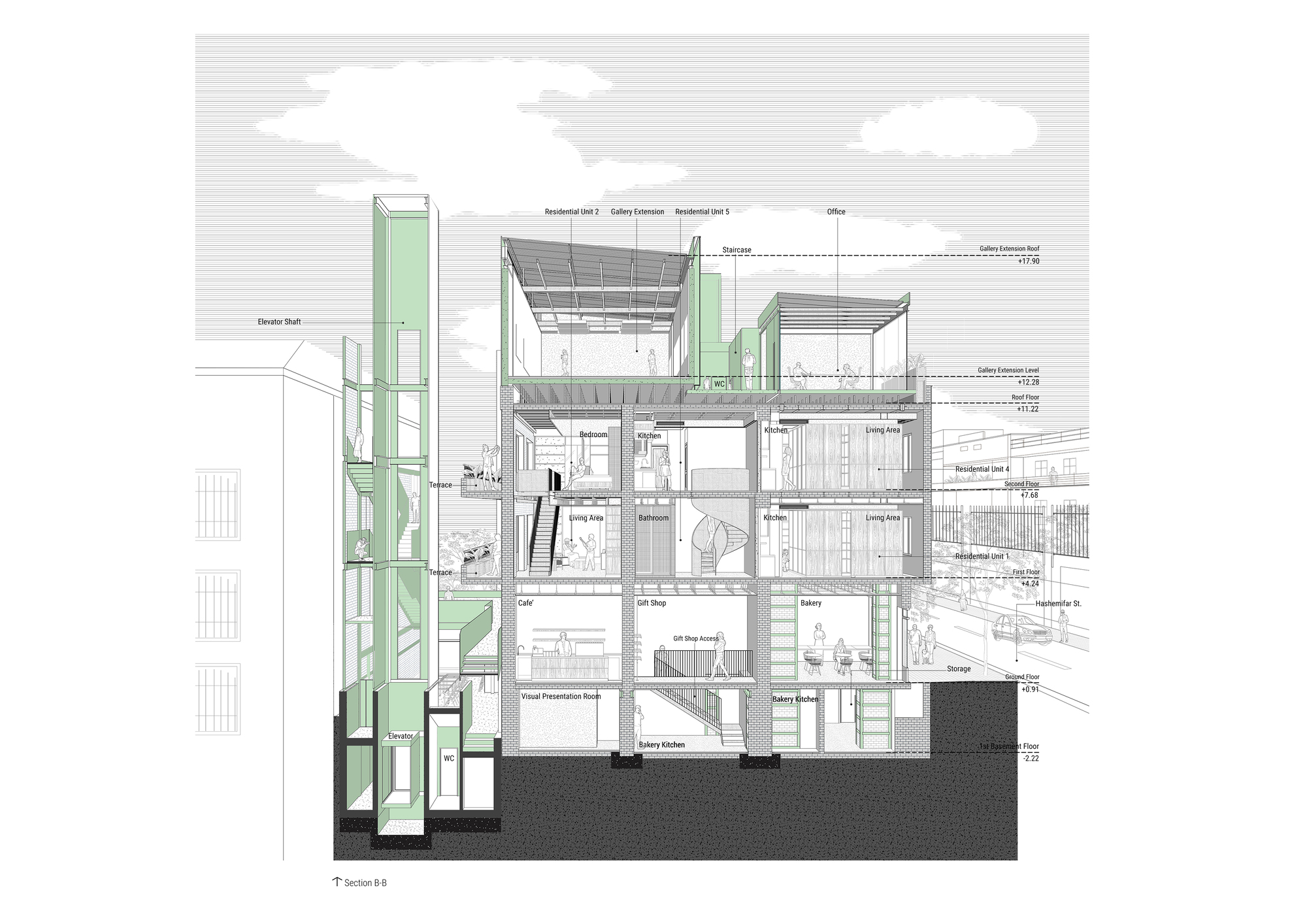

Section B
Vast Gallery & Artist Residency
Section A


Vast Gallery & Artist Residency
1st Basement Floor Plan
Vast Gallery & Artist Residency
Ground Floor Plan
Vast Gallery & Artist Residency

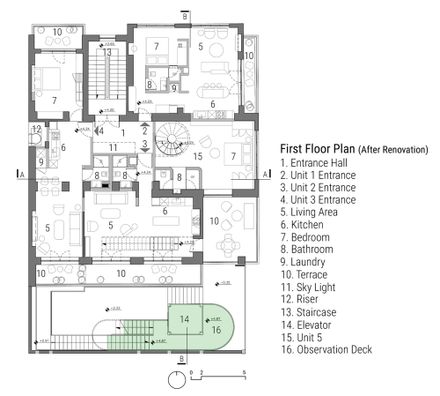

1st Floor Plan
Vast Gallery & Artist Residency

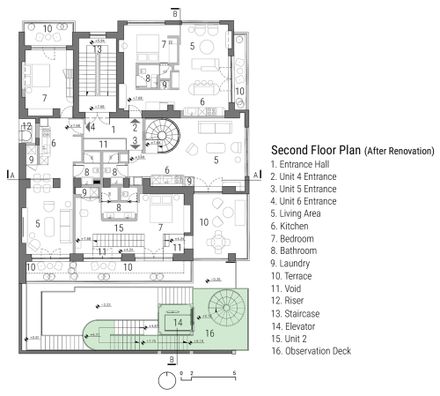

2nd Floor Plan
Vast Gallery & Artist Residency
Roof Plan - Top View
Vast Gallery & Artist Residency
Roof Floor Plan


Vast Gallery & Artist Residency
Section Diagram
Vast Gallery & Artist Residency
Site Plan


Vast Gallery & Artist Residency
Reinforcement Diagram
Vast Gallery & Artist Residency

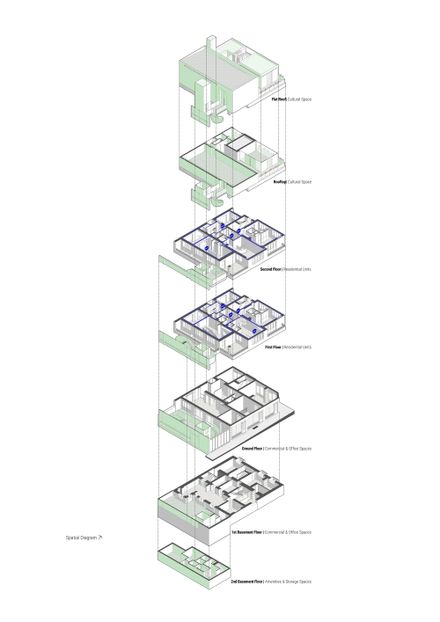

Spatial Diagram
