Aran Residential Building

Aran Residential Building
© Deed Studio

ARAN RESIDENTIAL BUILDING

Pargar Architecture And Design Studio

LEAD ARCHITECTS
Bennext, Global, Schneider, Sinko, Tilo, Vorwerk

ELECTRICAL CONSULTANT
Mehdi Ghandilzadeh

CONSTRUCTION TEAM
Team: Aran Group

STRUCTURE ENGINEER
Hossein Sharif

MECHANICAL CONSULTANT
Majid Bakhtiari

PRESENTATION TEAM  MEMBERS
Maryam Oghbaei, Amirmasoud Tavasoli, Shayan Shayani, Omid Majd Taheri, Afshin Khodabandehloo

DESIGN TEAM
Milad Hasanzadeh, Sepideh Dadjou, Amirfazel Ghahremanpour, Zahra Nourbakhsh, Saloumeh Mohamadi, Nastaran Hadidi

PHOTOGRAPHS
Deed Studio

AREA
14044 M²

YEAR
2021

LOCATION
Tehran, Iran

CATEGORY
Residential Architecture, Residential

The Aran residential building is in the district of Zaferaneih in the north of Tehran which is a green area near the hillside with great views.

Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio

The plot area is 1960 sqm and the total area is about 15,000 sqm on 16 floors with a 40% occupancy rate.

This building consists of 11 residential floors, 8 of which have two 370 sqm units while 3 floors include 4 units of 200 sqm each.

ground floor of the building consists of a lobby, game room, gym, library, management room, and family cinema. On floor (level) -1, there is a swimming pool, spa center, meeting room, and mechanical room.

Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio

The parking lot and storage rooms are located on floors -2 to -4. Two rooftop gardens are designed at the roof of the building which differ in usage and visual design.

The design strategy was to represent the concept of combining nature with human lift. In the cognition research studies, it was found difficult to place two units in an east-west orientation, and the plans did not meet the desired result.

Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio

Therefore, it was decided to place one unit in the northern section and another unit in the southern section. However, considering the orientation of the land which is towards the southeast unlike most lands in Tehran, the northern unit received limited sunlight during the day while it had a better view in comparison with the southern unit.

The Design team decided to create two large openings on the east and west sides of the building in different orientations. Therefore, the unit plans were rotated by 45 degrees to be carefully sited for solar exposure and views of the adjacent mountains and green spaces.

Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio

In addition, by this decision, the floor's foyer was also oriented towards the east of the project. This rotation was not possible on all floors, due to the proximity to the neighbors. The first three floors are aligned with the skyline of the street and have a different geometry.

The lobby on the ground floor is connected to two green courtyards, which are extensions of the eastern and western lobbies. The swimming pool is located on the first floor and overlooks the landscape.

Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio

The natural slope of the ground provides proper daylight for this area and the conference room overlooking the pool. With the glass walls of the pool and conference room, it is possible to use both spaces simultaneously.

The building facade is made up of a combination of two different stones, wood, and aluminum. The 45-degree rotation and axis has become the identity issue that is considered in different parts of the design such as stone cuts in facade or interior wall coverings and unit doors, which has led to the unity of the building’s components and elements.

Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio


Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio
Aran Residential Building
© Deed Studio


Aran Residential Building
Plan - Basement Floor
Aran Residential Building
Plan - Ground Floor
Aran Residential Building

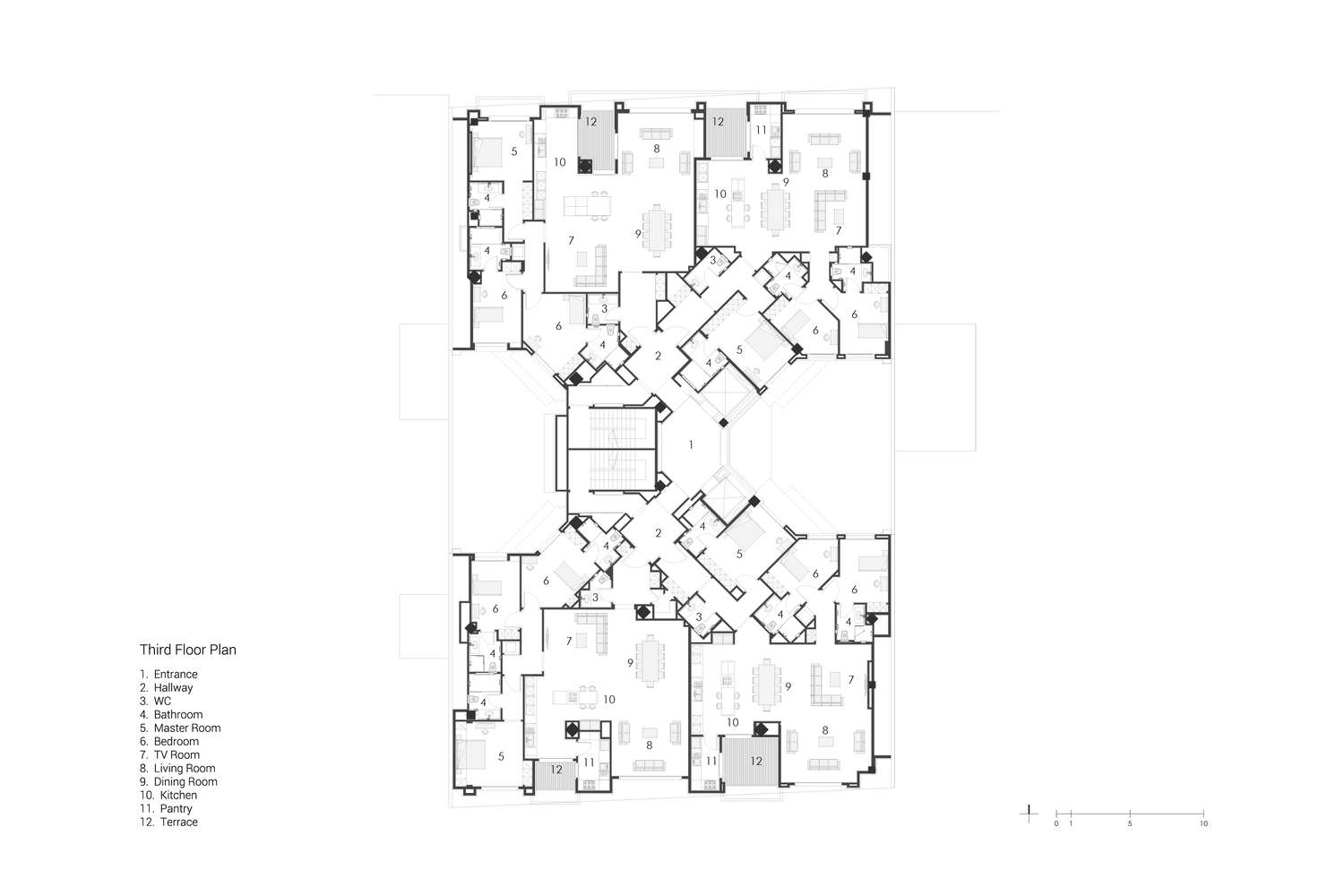

Plan - 3rd Floor
Aran Residential Building
Plan - 4th Floor
Aran Residential Building
Plan - 5th Floor
Aran Residential Building
Plan - 6th Floor
Aran Residential Building
Plan - 7th Floor
Aran Residential Building
Plan - 7th Floor


Aran Residential Building

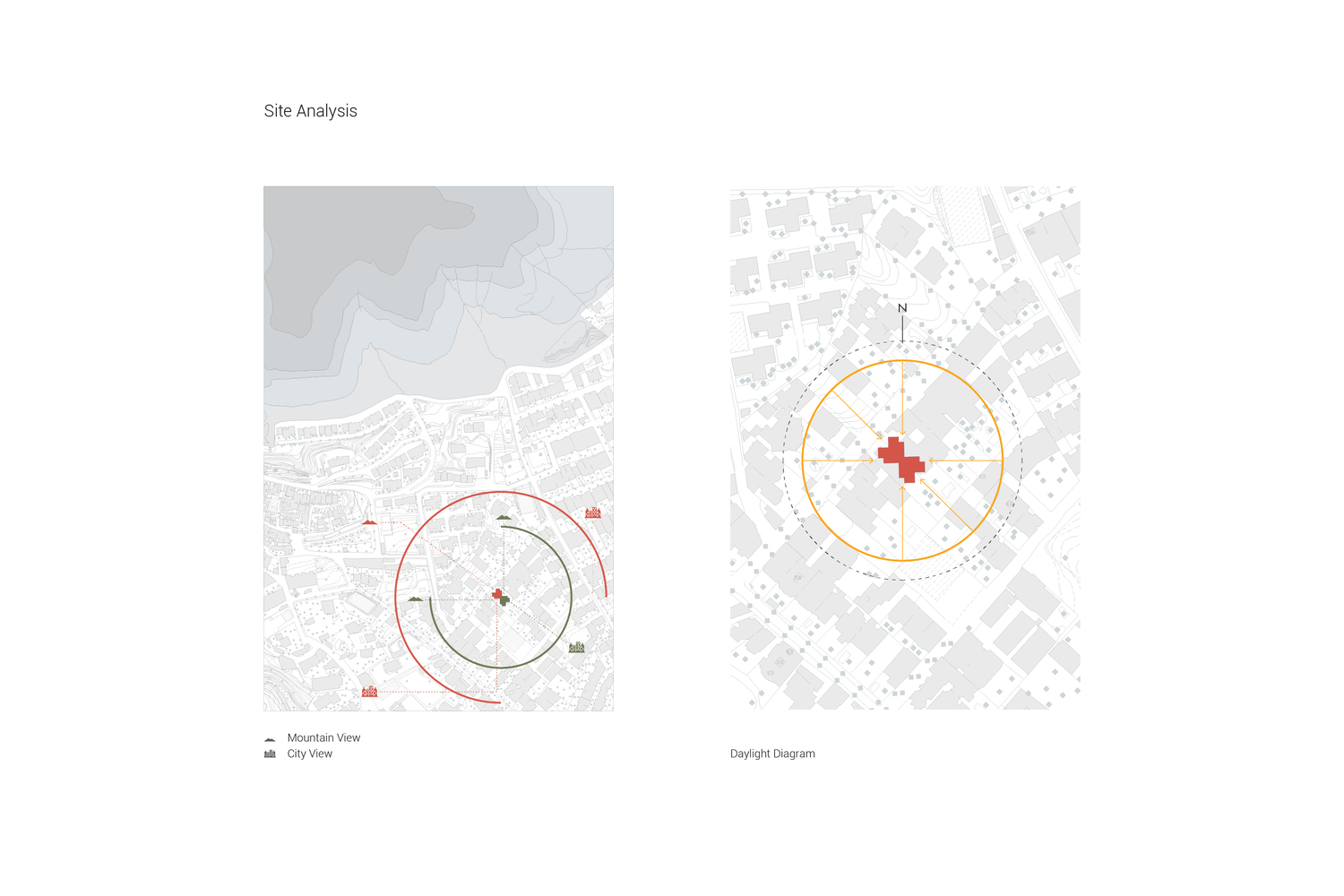

Site Analysis
