Stephane Paumier Architects

DESIGN TEAM
Shaily Gupta Adil Abuzar Nikhil Jain Vaani Sood Imlinoachet Walling

LEAD ARCHITECTS
Stephane Paumier, Shaily Gupta, Adil Abuza

STRUCTURE DESIGN
Melior Structural Solutions

MANUFACTURERS
Hormann, Indo Solutions, Lighting Technologies, Mitsubishi, Pioneer Bricks, Schuco

MEP CONSULTANT
Dbhms

CONSTRUCTION
Survi Projects Private Limited

PROGRAM / USE / BUILDING FUNCTION
School

PHOTOGRAPHS
Amit Pasricha

AREA
41900 m²

YEAR
2019

LOCATION
Faridabad, India

CATEGORY
Schools

The Shiv Nadar School Faridabad (SNSF) is the third school of the group to open after Gurgaon and Noida. The SNSF is the largest campus among the three, built on 13 acres with 2 football fields, a 400 m running track, and a cricket field.

Shiv Nadar School
© Amit Pasricha
Shiv Nadar School
© Amit Pasricha

It is located behind a public green belt 30 to 50 m deep. As a linear plot of 600m long, separated by a middle road, the South side is dedicated to pre-primary pavilions of small scale around a courtyard extending to the primary, middle, and senior school building as an L shape linear building with porous qualities on the north side.

The orientation of the building is like the Hauz Khas complex that faces the dominant winds of North and West from October to June for optimal cross ventilation from the green belt and fields.

Shiv Nadar School
© Amit Pasricha
Shiv Nadar School
© Amit Pasricha

The project is based on 15m long modules creating a built/void chess mat pattern of 2 floors high that can house 4 classrooms, or 2 arts, activities, or laboratories as full modules, otherwise a double height veranda or a terrace garden when a void.

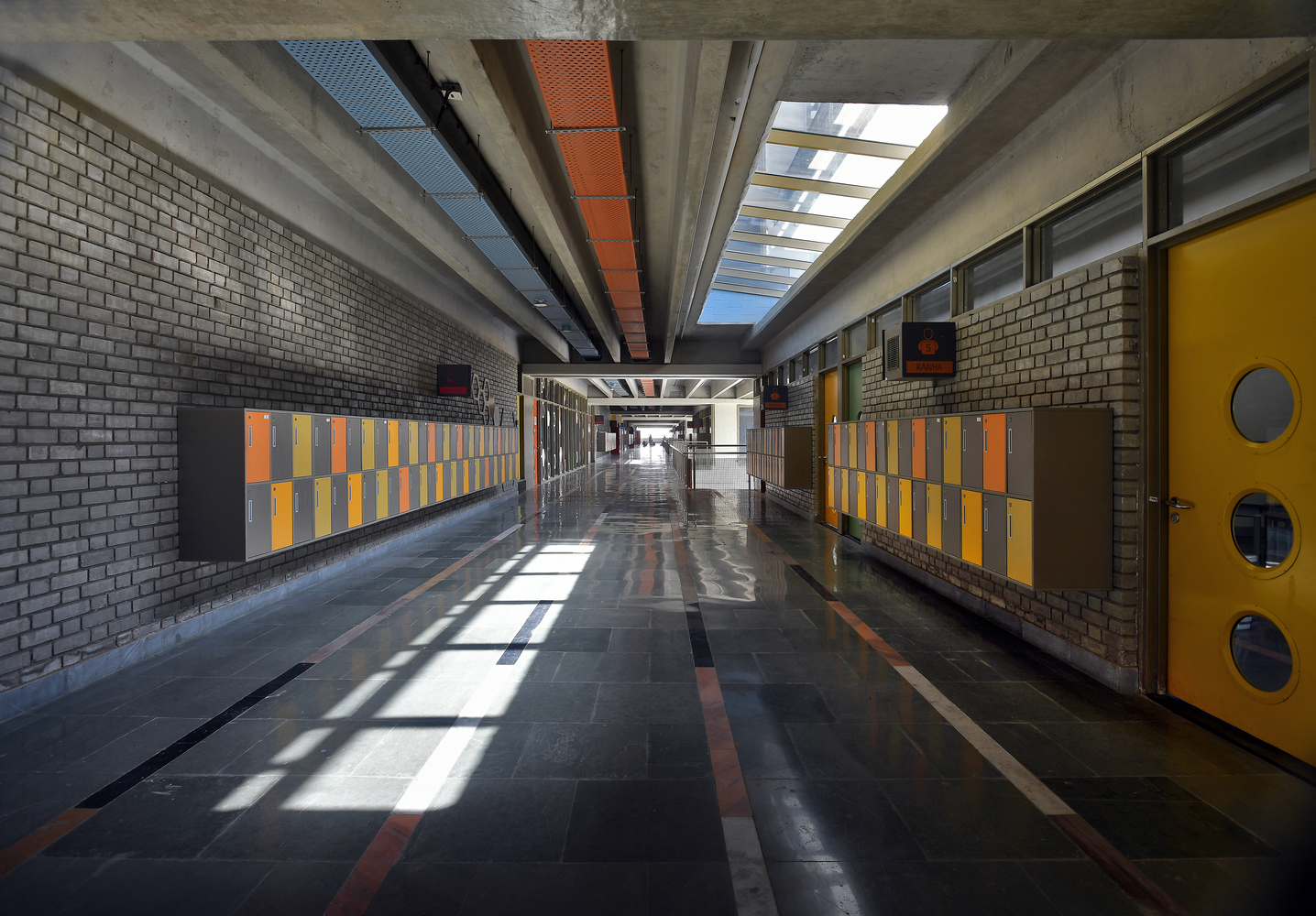

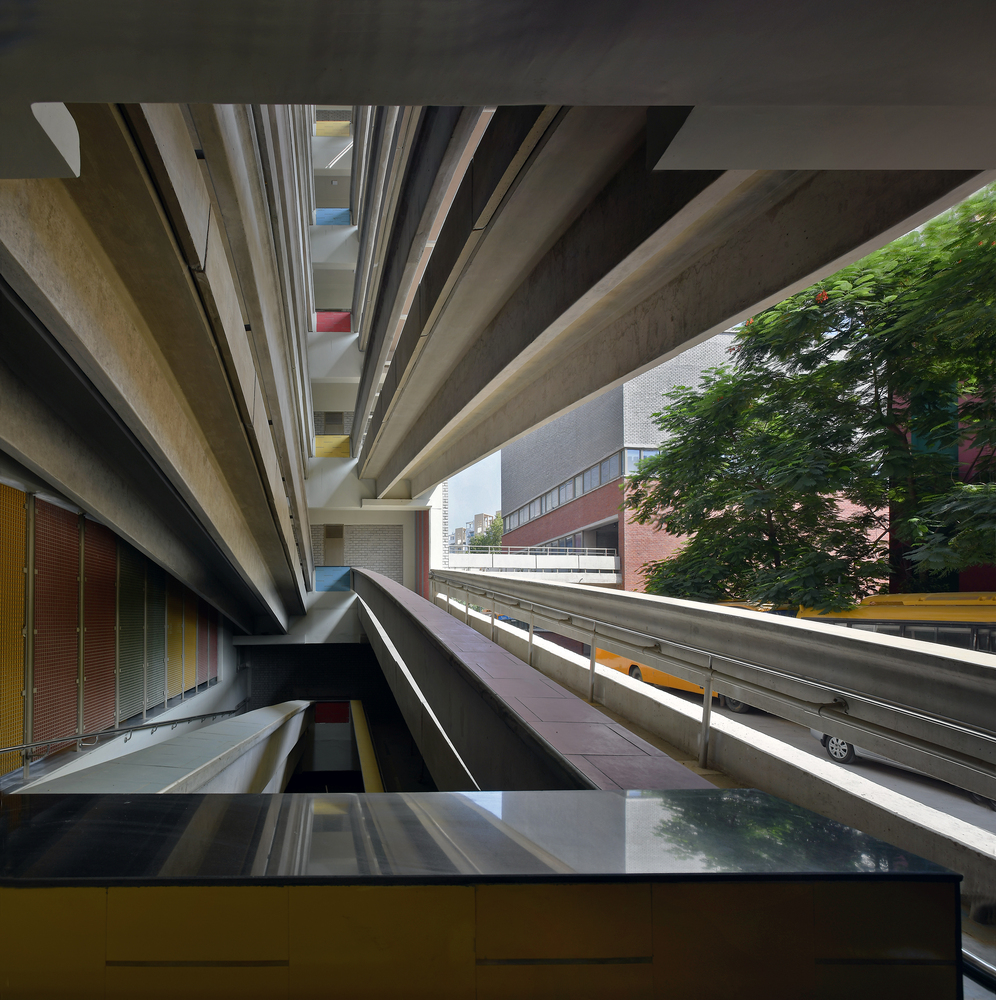

The project is like a long ship with monumental openings on the sports fields, having a 6m wide circulation with horizontal cutouts and skylight to create diagonal views and provide light and ventilation in the heart of a deep building.

The First floor, like a large plinth, offers double height covered playground and verandahs.

Shiv Nadar School
© Amit Pasricha
Shiv Nadar School
© Amit Pasricha

The multipurpose hall, used for sports activities as well as 1000 seat auditorium is in a semi-basement, with a covered pool.

The activity rooms such as theater, painting, arts & crafts, and music benefit from direct access to terrace gardens as these activities can spread outdoors.

Shiv Nadar School
© Amit Pasricha
Shiv Nadar School
© Amit Pasricha

The indoor-outdoor relation is made more intricate and tri-dimensional than just classroom- ground floor courtyard dialectic.

The SNS project relooks at the horizontal typology of schools as courtyard buildings or as doubly loaded dark corridors linear buildings, to offer a porous yet linear building.

Shiv Nadar School
© Amit Pasricha
Shiv Nadar School
© Amit Pasricha

It has all the facilities in a systemic yet flexible modular pattern. This concept was possible using pre-stressed double T slabs 15 m long, 2.4 m wide, and 2 feet deep, cast at the site, and lifted with a heavy-duty mobile crane.

The use of long-span pre-cast technology was path-breaking to challenge the typology of the 600 sqft classroom as the structural grid.

Shiv Nadar School
© Amit Pasricha
Shiv Nadar School
© Amit Pasricha

It is also addressing the recent development of school buildings that are denser, higher than before.

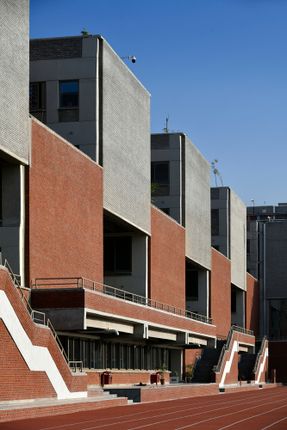

The monochromatic structure is entirely exposed to grey RCC, and clay or concrete bricks are balanced by the colors from secondary industrial elements such as metallic doors, ceramic tiles, and signage.

Shiv Nadar School
© Amit Pasricha


Shiv Nadar School
© Amit Pasricha
Shiv Nadar School
© Amit Pasricha


Shiv Nadar School
Longitudinal Section


Shiv Nadar School
West Elevation
Shiv Nadar School
North Elevation


Shiv Nadar School
Section 02
Shiv Nadar School
Section 01
Shiv Nadar School
Section 03
Shiv Nadar School
Section 04


Shiv Nadar School

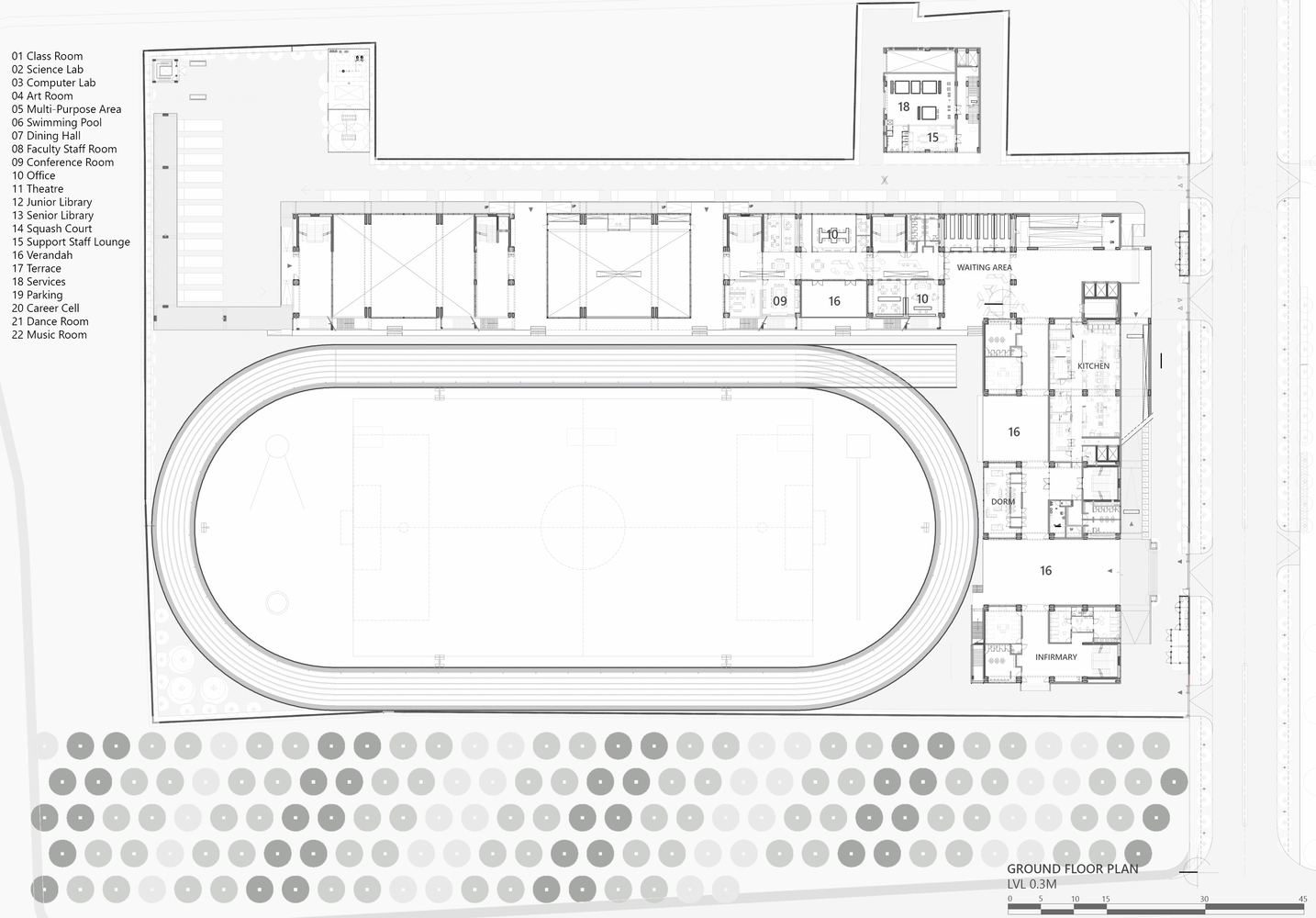

Plan - Ground floor
Shiv Nadar School

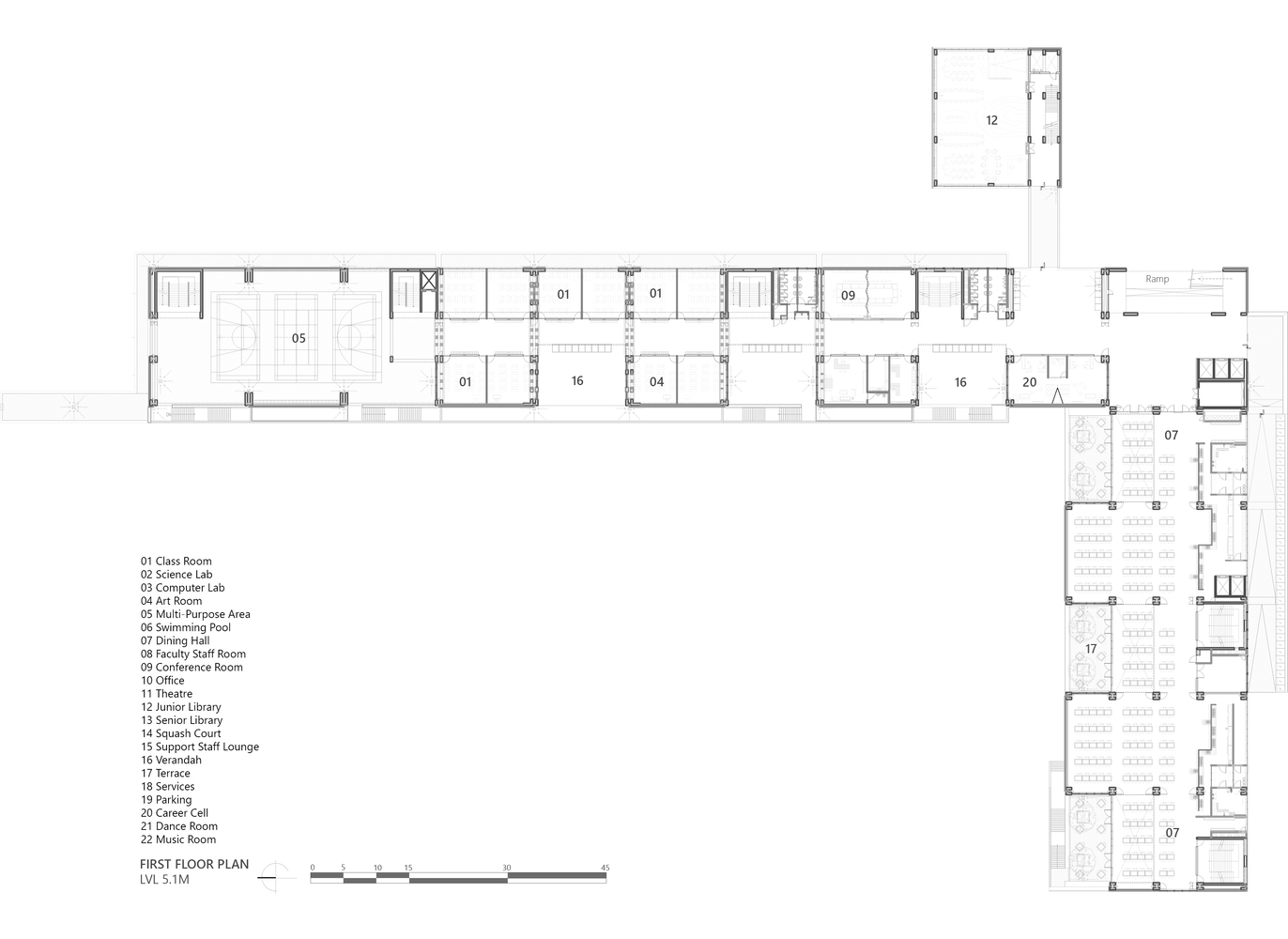

Plan - 1st floor
Shiv Nadar School
Plan - 2nd floor
Shiv Nadar School
Plan - 3rd floor
Shiv Nadar School
Plan - 4th floor
Shiv Nadar School
Plan - Basement floor
Shiv Nadar School
Plan - Terrace floor
Shiv Nadar School
Plan - Site


Shiv Nadar School
Exploded axo
