Kindergartens Treperka and Waldorf Semily

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice

Kindergartens Treperka and Waldorf Semily

MTa

ARCHITECTS
Mta

ENGINEERING
Petra Neumannová

ELECTRICAL INSTALLATIONS
Predrag Laketič

MANUFACTURERS
Fundermax, Hunter Douglas Architectural (Europe), Trespa, Aluprof, Cobap, Deba Bohemia, Dirickkx, Falco Dd, Frajt, Gapa Mb, Intert, Jamas Warmth Of Home, Jasa, Mbq, Polyrey, Ppds Group, Playground Play, Profiflex, Pulsklima, Rust Design, +6

MEP
Techorg, Ondřej Hlaváček, Jiří Beran, Jakub Hažmuka

TRANSPORT ENGINEER
Dopravně Inženýrská Kancelář, Jan Kašpar

ACOUSTICS
Akustika Praha, Tomáš Rozsíval

DESIGN TEAM
Michal Pokorný

GARDEN LANDSCAPING
Lucie Vogelová, Lada Veselá

BUILDING CONTRACTOR
Bak Stavební Společnost, Mbq, Pavel Seeman, Petr Menšík, Filip Balatka, Dušan Mráz

CO AUTHOR, INTERIOR ARCHITECT
Vratislav Ansorge

CHIEF ENGINEERS, PROJECT COORDINATION
Michal Pokorný, Dita Zlámalová, Martin Uher, Jan Roubal

INVESTORS
Lena Mlejnková, Vladimír Bělonohý, Jana Dvořáková

SANITARY INSTALLATIONS
Vodopro, Michal Mošnička, Pavel Jakubů

PHOTOMETRIC STUDY
Martin Stárka

3 D THERMAL ANALYSIS
Michal Čejka

KITCHEN TECHNOLOGY
Oldřich Krejčí

SIGNAGE AND WAY FINDING SYSTEM
David Frank Tenora, Kateřina Pravdová, David Novák, Oskar Koutný, Ana Luisa Hinojosa Torres, Sára Svobodová-míková, Richard Jaroš, Petr Krejzek

FIRE SAFETY
Zdeňka Kubištová, Lucie Soukeníková

STATICS
Pohl Statika, Jan Pohl, Martin Víšek

INVESTOR
Town Of Semily

PHOTOGRAPHS
Boysplaynice

AREA
1300 M²

YEAR
2022

LOCATION
Semily, Czech Republic

CATEGORY
Educational Architecture, Kindergarten

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice

The new building designed for 110 children combines a classic municipal kindergarten and a Waldorf kindergarten in a single building located near the confluence of the Jizera and Oleška rivers on the outskirts of Semily town.

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice

The aim was to create a building with centralized facilities and a kitchen for two independent two-class kindergartens for children aged three to six.

The complex includes the main building (4 classrooms, kitchen, facilities), a shelter for storing bicycles and communal waste, a pavilion with tools and toys storage, and gazebos for the municipal and the Waldorf kindergarten.

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice

The mass of the main building separates the garden area from the parking area, and its curvature minimizes mutual shading with neighboring buildings.

The classrooms and their service areas are arranged in a circular pattern around two gravity centers – atriums. The atriums separate the different parts of the layout, but also serve as a communication center and space for common activities.

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice

From the center, it is also easy to get an overview of what is happening in or around the kindergarten.

The primary role of the service boxes is to articulate the space and to differentiate the rooms intended for the children's stay.

This creates a dichotomy between enclosed service and opens serviced spaces. The color scheme is based on Ostwald's chromatic circle and the seven chosen colors refer to the rainbow (red, orange, yellow, green, blue, indigo/purple, violet/pink).

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice

The layouts of the two kindergartens are identical, but their designs differ in the choice of materials and colors. In the Waldorf part, the floors, furniture, and walls are made of wood (similar to the toys), while the rooms of the Treperka kindergarten are placed between individual colored boxes.

Storage spaces and elements are designed as built-in furniture, with the safety of the children in mind, without any protrusions.

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice

From all the living areas and sanitary facilities, access is provided to the terrace, which is covered throughout by the roof overhang, thus forming a transition zone to the garden.

The added value is a beautiful and spacious garden with various play elements, divided unobtrusively by a circular mound made of compacted earth from the foundation excavations, used by both kindergartens despite their different learning styles.

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice

The wayfinding system was designed by UMPRUM (Academy of Arts, Architecture, and Design in Prague) students and is based on the outline shapes of drawings made by kindergarten children.

Construction and technology - The building is founded on a strip footing with a two-way base slab. The vertical load-bearing construction consists of reinforced concrete monolithic columns and walls, which are supplemented by steel columns around the perimeter.

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice

The ceiling is designed as a reinforced concrete monolithic two-way slab, with a cantilevered awning along its perimeter. The lighting provided by the full perimeter glazed façade is supplemented by 2 large skylights and 41 solar tubes.

The external walls are clad with HPL façade panels. The building meets the parameters of the passive house standard and sustainability.

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice

The heating is provided by an air-to-water heat pump and a gas-condensing boiler (assumed coverage ratio of 75% heat pump, 25% condensing boiler).

Controlled ventilation is provided by two central air handling units with heat recovery. Shading roller blinds reduce unwanted solar heat gains in summer. The building is thermally stabilized by a ceiling cooling and heating system (TABS).

Kindergartens Treperka and Waldorf Semily
© BoysPlayNice
Kindergartens Treperka and Waldorf Semily
© BoysPlayNice


Kindergartens Treperka and Waldorf Semily
Ground Floor Plan
Kindergartens Treperka and Waldorf Semily
Roof Floor Plan
Kindergartens Treperka and Waldorf Semily

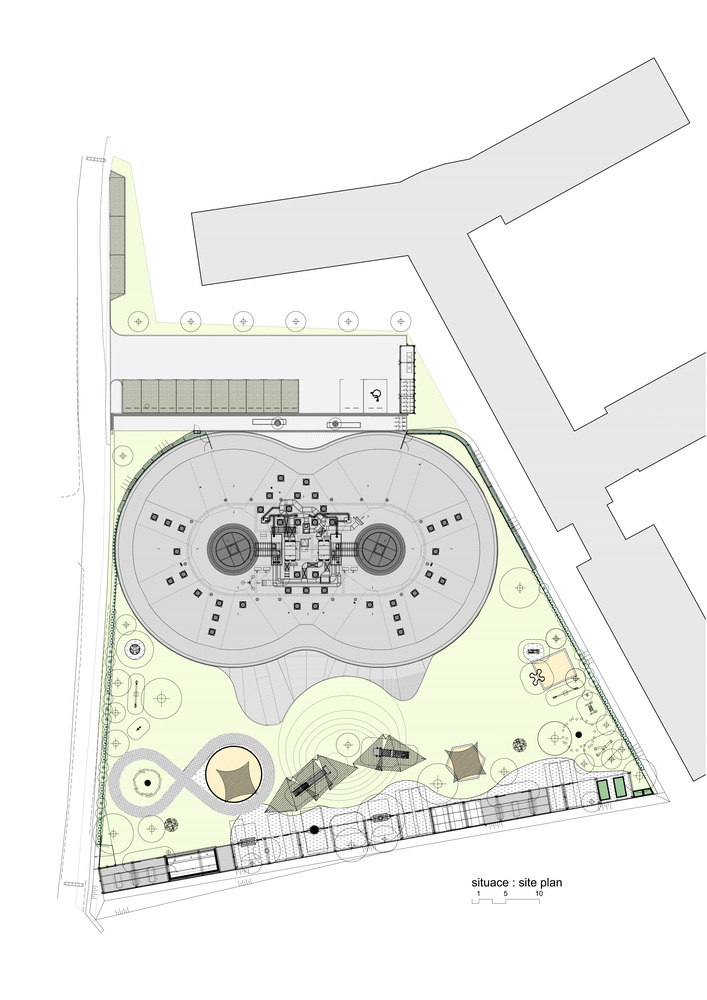

Site Plan


Kindergartens Treperka and Waldorf Semily

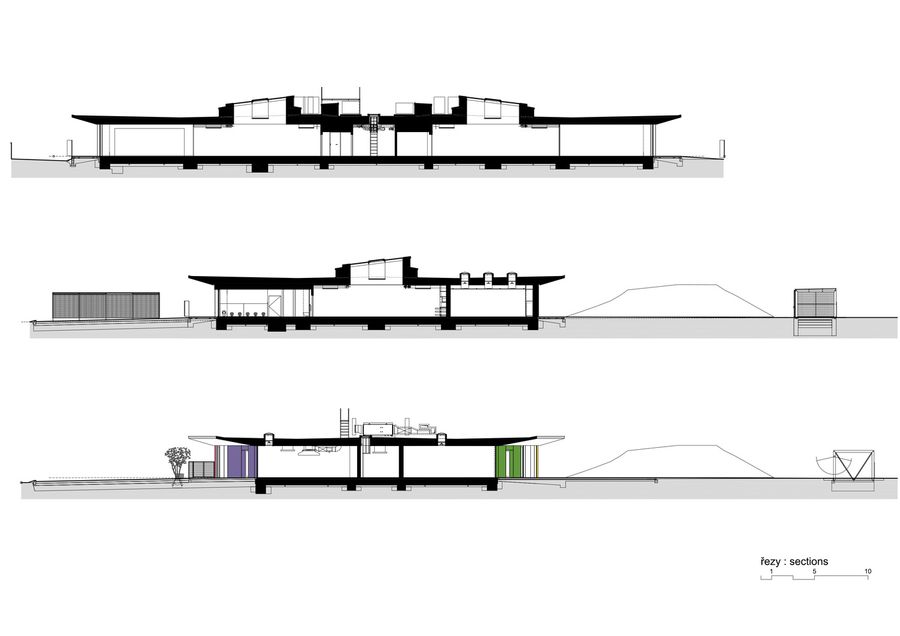

Sections

Kindergartens Treperka and Waldorf Semily
Elevations
