Natrufied Architecture

ARCHITECTS
Boris Zeisser, Anja Verdonk

STRUCTURAL ENGINEER
Pieters Bouw Techniek

MANUFACTURERS
Dakdokters, Laminated Timber Solutions, Van Den Berg, Webo

GENERAL CONTRACTOR
Toekomstgroep

ASSISTANT ARCHITECTS
Sebastiaan Van Kints, Dinand Kruize

MECHANICAL AND ELECTRICAL ENGINEERS
Gwbo, Kodi, J&p, Hig

PHOTOGRAPHS
Jeroen Musch

AREA
3070 M²

YEAR
2023

LOCATION
Amsterdam, The Netherlands

CATEGORY
Housing, Residential

De Warren is a cooperative housing project on Centrumeiland in Amsterdam with 36 apartments for social and affordable rental housing. It is the first self-build housing cooperative in Amsterdam.

Housing Coöperation de Warren
© Jeroen Musch
Housing Coöperation de Warren
© Jeroen Musch

With an ‘EPC’ of -0.16 (energy-positive building), wood construction and reuse, sustainable and low-cost living in the city of Amsterdam is within reach.

COLLECTIVITY AS A CORE VALUE

The core idea of ​​De Warren is collective living. With the help of a series of workshops with the future residents, it has been decided that 30% of the building should consist of collective spaces.

This creates approximately 800m2 of communal functions, such as a large auditorium, a multifunctional room, a children's playroom, a music studio, various co-working places, a meditation room, a greenhouse, a roof terrace, and several communal living rooms and kitchens.

Housing Coöperation de Warren
© Jeroen Musch
Housing Coöperation de Warren
© Jeroen Musch

The collective spaces are arranged along the so-called 'Machu Picchu' staircase that connects all floors. By placing the collective spaces centrally, they become part of everyone's daily route, and contact between residents is maximized.

MATERIAL USE

The facade cladding is made of recycled retaining walls (Azobe) that are untreated (and maintenance-free).

The harvested planks were first doubled before they had the right thickness for use as facade cladding.

The 'mikado' front facade for balconies and a nature-inclusive approach (with planters that use rainwater from the polder roof) is made of recycled bollards (Basralocus).

Housing Coöperation de Warren
© Jeroen Musch
Housing Coöperation de Warren
© Jeroen Musch

For the wooden facade finishes, together with the wooden main supporting structure, the wood-frame facade elements, window frames, and interior walls, a total of 330 m3 of wood was used, which has stored more than 300 tons of CO2 during its lifetime. This is equivalent to approximately 200 years of emissions from the average car in the Netherlands.

SUSTAINABLE GENERATION

It was decided not to connect to the local heat network, but to keep heat generation in-house. Due to the ground conditions, piles of 30 meters had to be used.

Housing Coöperation de Warren
© Jeroen Musch
Housing Coöperation de Warren
© Jeroen Musch

These piles have been transformed into 'energy piles'. By adding hoses through the piles as a heat exchanger and a heat pump, ground heat (or cooling) is extracted and distributed throughout the building. The roof is of course reserved for PV panels.

FLEXIBILITY IN CURRENT AND FUTURE USE

The supporting structure consists of a wooden column and beam structure.

If a different layout is desired in the future, the light inner walls can be removed. At least one shaft is included per grid, to which, among other things, the decentralized ventilation can be connected.

Housing Coöperation de Warren
© Jeroen Musch


Housing Coöperation de Warren

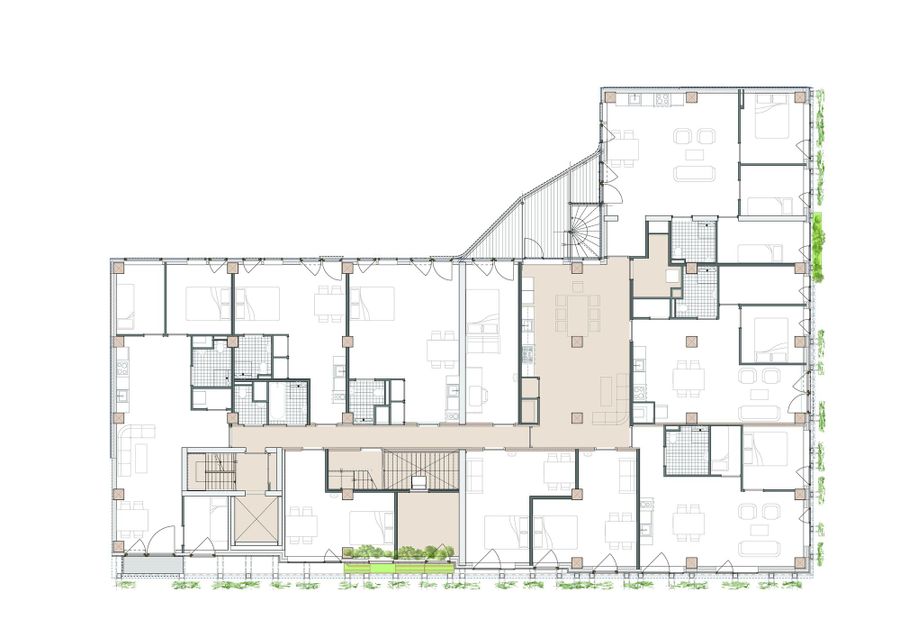

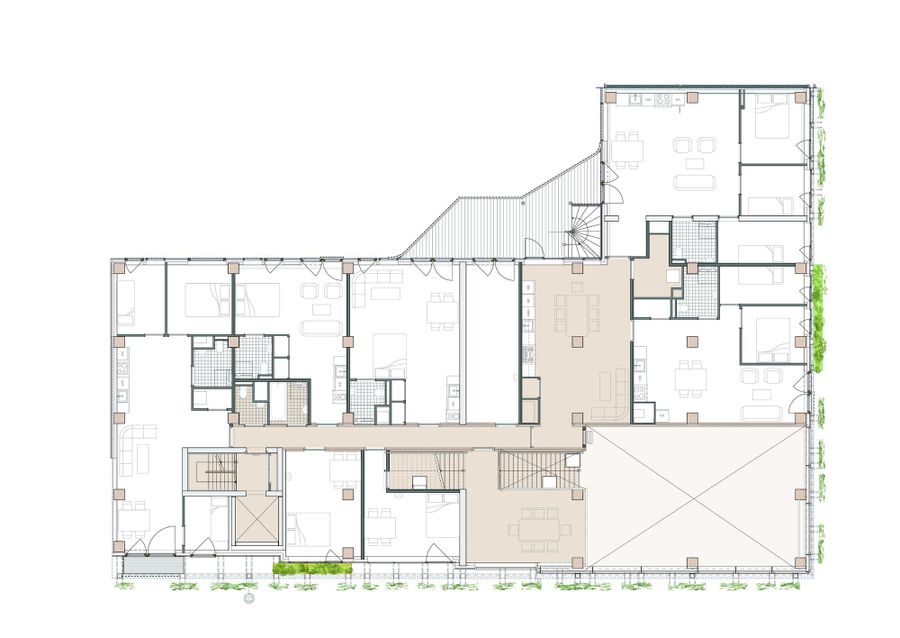

Basement Floor Plan
Housing Coöperation de Warren
Ground Floor Plan
Housing Coöperation de Warren
1st Floor Plan
Housing Coöperation de Warren
2nd Floor Plan
Housing Coöperation de Warren
3rd Floor Plan
Housing Coöperation de Warren
4th Floor Plan


Housing Coöperation de Warren
Section


Housing Coöperation de Warren
Elevation 1
Housing Coöperation de Warren
Elevation 2


Housing Coöperation de Warren
Schematic Drawing
Housing Coöperation de Warren
Mikado Drawings
