Stage In Hayama

Stage In Hayama
© Koichi Torimura

STAGE IN HAYAMA

Takanori Ineyama Architects

STRUCTURAL DESIGN
Building Structure Institute

MANUFACTURERS
Ceramica Globo, Haradasakan, Isamu Noguchi, Lixil , New Light Pottery, Sanwa, Superstudio

LEAD ARCHITECTS
Takanori Ineyama

BUILDER
Sato Kensyo Co., Ltd

PHOTOGRAPHS
Koichi Torimura

AREA
99 M²

YEAR
2022

LOCATION
Hayama, Japan

CATEGORY
Houses

This project is a house for a family who likes interior design, built in Hayama-cho, Kanagawa Prefecture.

Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura

The site has a large garden due to the rebuilding of 2 houses existing and has a topography difference due to a gentle slope leading from a cliff on the neighboring site on the south.

Considering lighting, the building was placed on the north side of the site, away from the cliff on the south side, with a garden on the south side, and the trees on the neighboring nature and tree were used as a borrowed landscape.

Therefore, I arranged living-ding space 1m upper from the 1st floor and the terrace that is called “Stage” that is connecting inside to the garden area seamlessly.

Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura

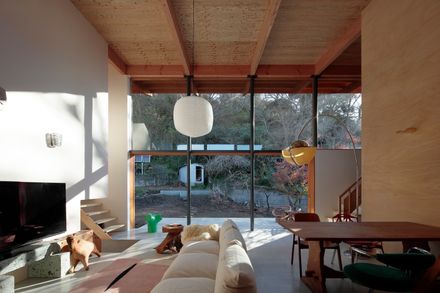

Living-Dining has a high ceiling and also a 4.5m high window, which is maximum provided nature from the garden and neighboring site and takes sunlight into the inside.

I arranged the bedroom and sanitary space which has the minimum necessary on both sides along the living-dining space which is 1m upper from the 1st floor, there is a skip floor arrangement.

Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura

The main structure is made of wood. However, steel columns are used on the window side to support the large volume.

8.2m beam is connected to the divided wooden beam by using a steel plate and bolt. The Huge window has huge eaves that have long depth, which can block the sunlight in summer.

Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura

On the other hand, sunlight reaches deep into the room through the windows and stores heat on the concrete floor in winter.

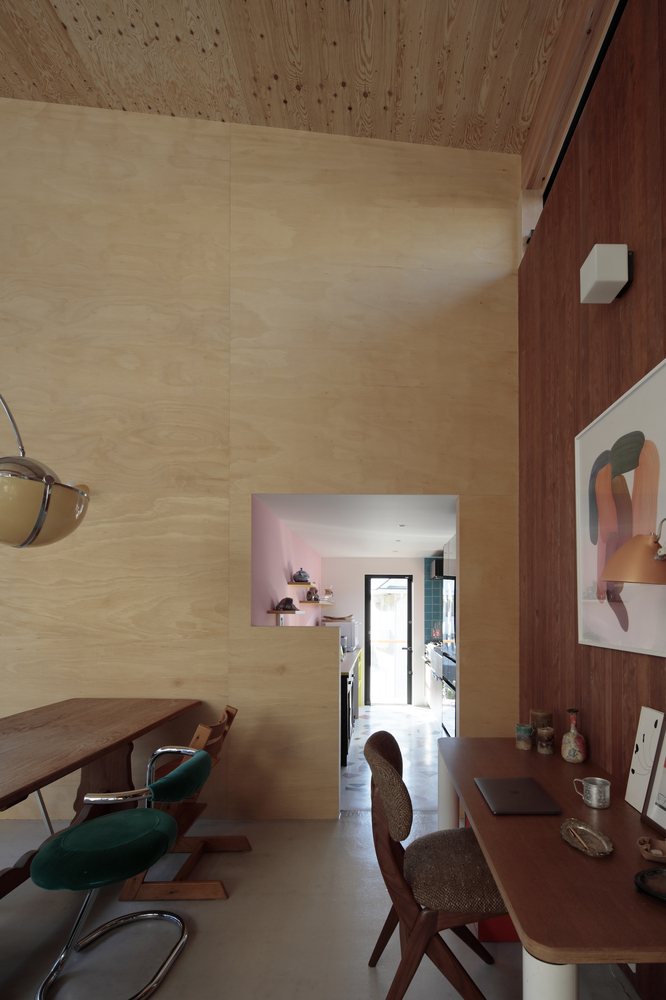

The walls of the living-dining space are finished in different materials to create different impressions depending on the direction of the furniture.

The "stage" and the living-dining area are separated from the kitchen, where the furniture can be freely arranged.

Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura

And there are the owner’s furniture and ornament and fittings, and the owner's many pieces of furniture and ornaments, repurposed fixtures, and lighting scattered throughout.

I look forward to the life the owners will develop as they renovate to fit their family's lifestyle.


Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura
Stage In Hayama
Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura
Stage In Hayama
© Koichi Torimura


Stage In Hayama
Plan - Ground Floor
Stage In Hayama
Plan - 1st Floor


Stage In Hayama

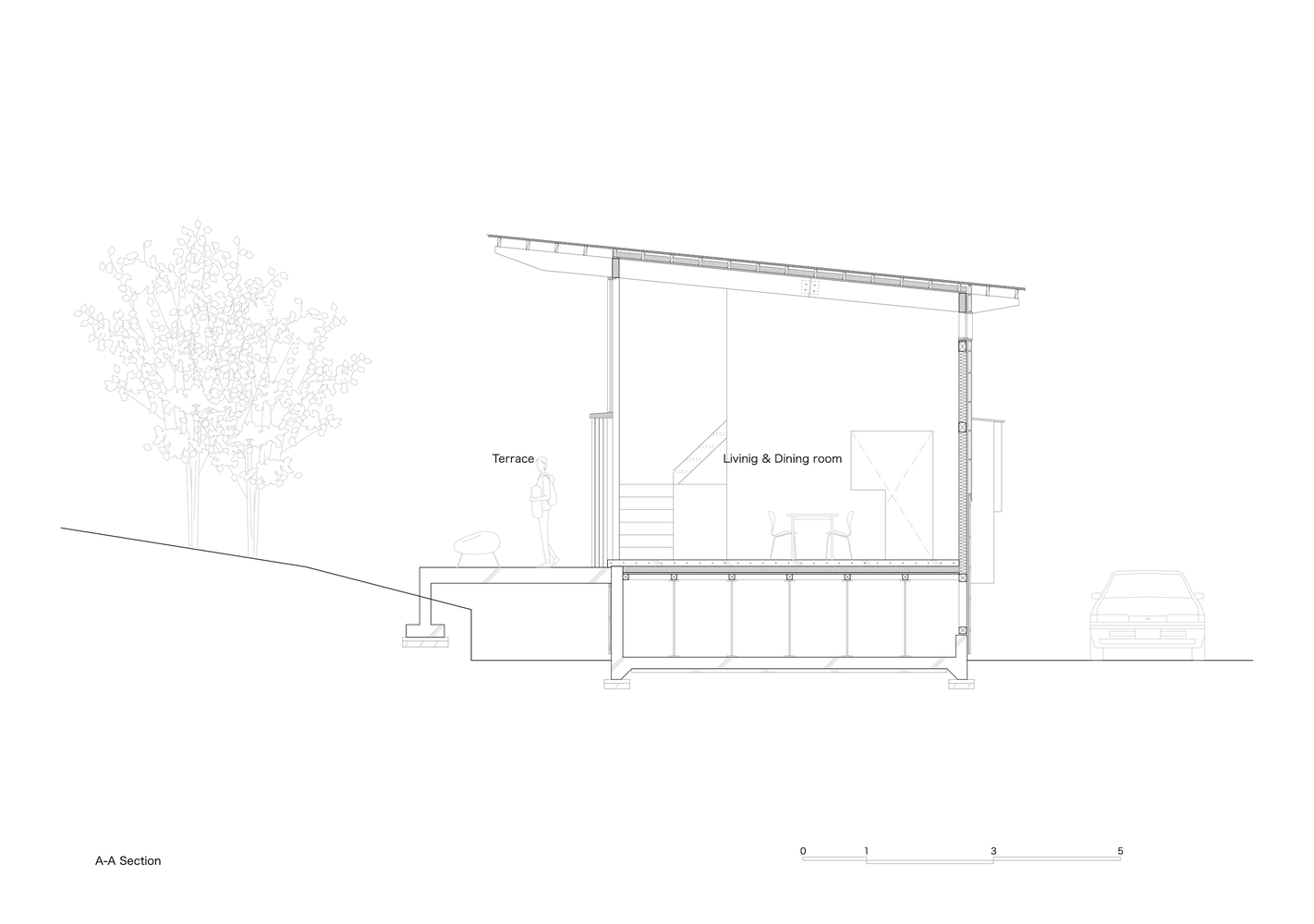

Section AA
Stage In Hayama
Section BB
Stage In Hayama
Elevation
Stage In Hayama

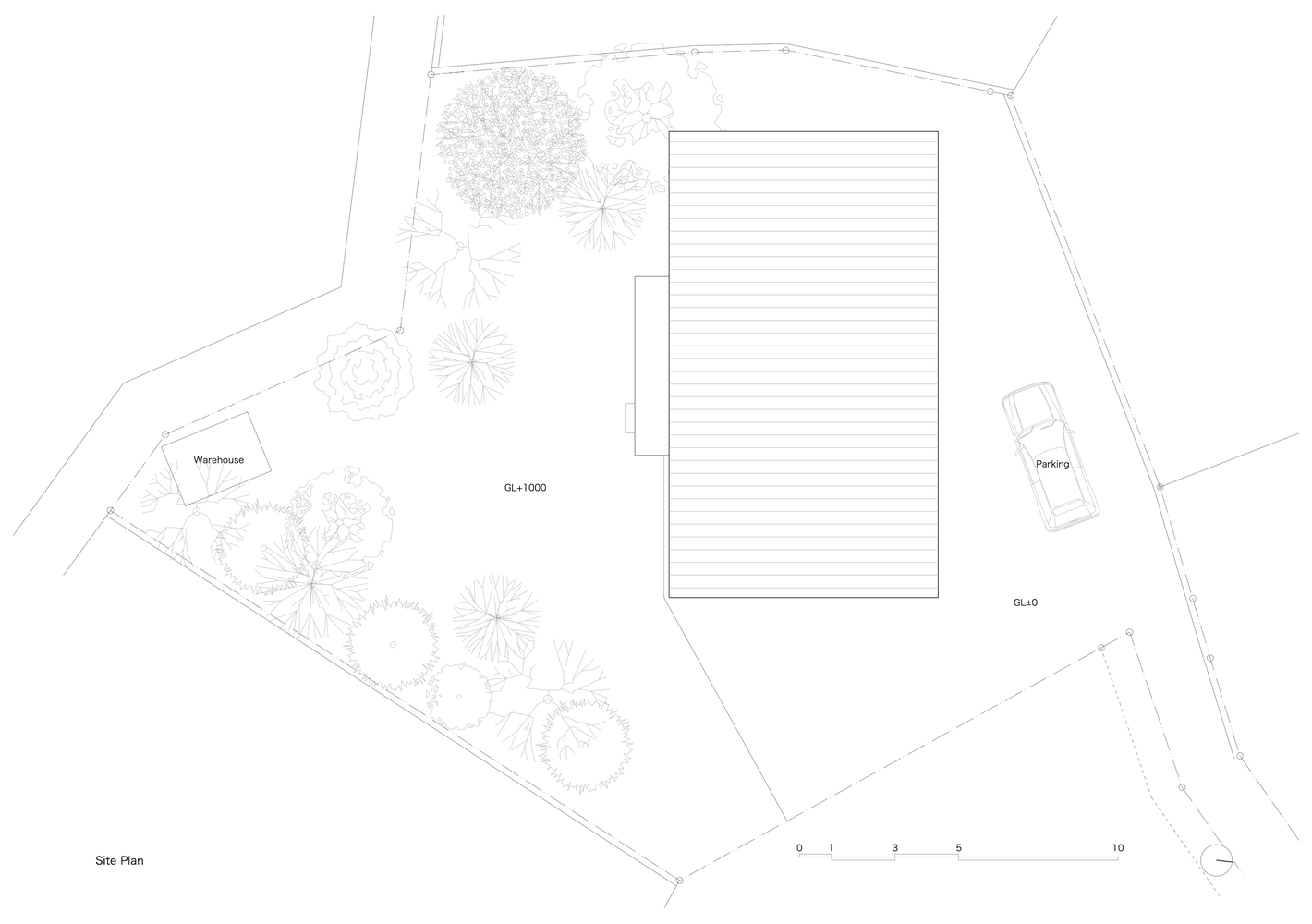

Plan - Site
