Plan Architect Co., Ltd.

The Treasury Museum Khonkaen

The Treasury Museum Khonkaen
© Panoramic Studio

The Treasury Museum Khonkaen

Plan Architect

ARCHITECTS
Plan Architect

MANUFACTURERS
American Standard, Toa, Thaisoung, Willy

PHOTOGRAPHS
Panoramic Studio

LEAD ARCHITECTS
Wara Jithpratuck

LANDSCAPE
Gla Desgin Studio

STRUCTURAL DESIGN
Ppl

EXHIBITION
Plan Motif

DESIGN TEAM
Tearnchit Soontornsaraton, Jittinun Jithpratuck, Sitthinon Chanchaiworawit

YEAR
2022

LOCATION
Thailand

CATEGORY
Museum, Renovation

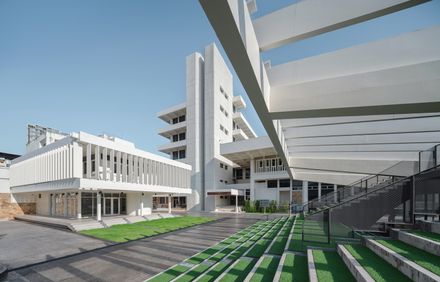

The former Bank of Thailand Northeastern region office, built in the modern age, is in the Khonkaen city center which is surrounded by the school, market, community area, and residential area.

The Treasury Museum Khonkaen
© Panoramic Studio
The Treasury Museum Khonkaen
© Panoramic Studio

The building has its unique characteristic with a waffle slab roof and cantilever floor the grid modular is obviously shown in this building.

The existing consist of an office building, staff residence, and demolished banknote department. After The Bank had been moved to the new place, this building is intended to transform its function to serve people in the city.

The Treasury Museum Khonkaen
© Panoramic Studio
The Treasury Museum Khonkaen
© Panoramic Studio

The renovation intends to turn to be The Treasury Museum Khonkaen which consists of a museum building, gallery space, multi-purpose pavilion, public park, and office that can support many activities for people.

The design keeps the unique character of the modern era while adjusting some elements to make it match the new function.

The Treasury Museum Khonkaen
© Panoramic Studio
The Treasury Museum Khonkaen
© Panoramic Studio

In the main building, on the first floor, the high opaque walls which are required for high-security purposes for the previous function are removed to allow more natural light to get into the building to serve the common area and library function and provide a visual link between indoor and outdoor.

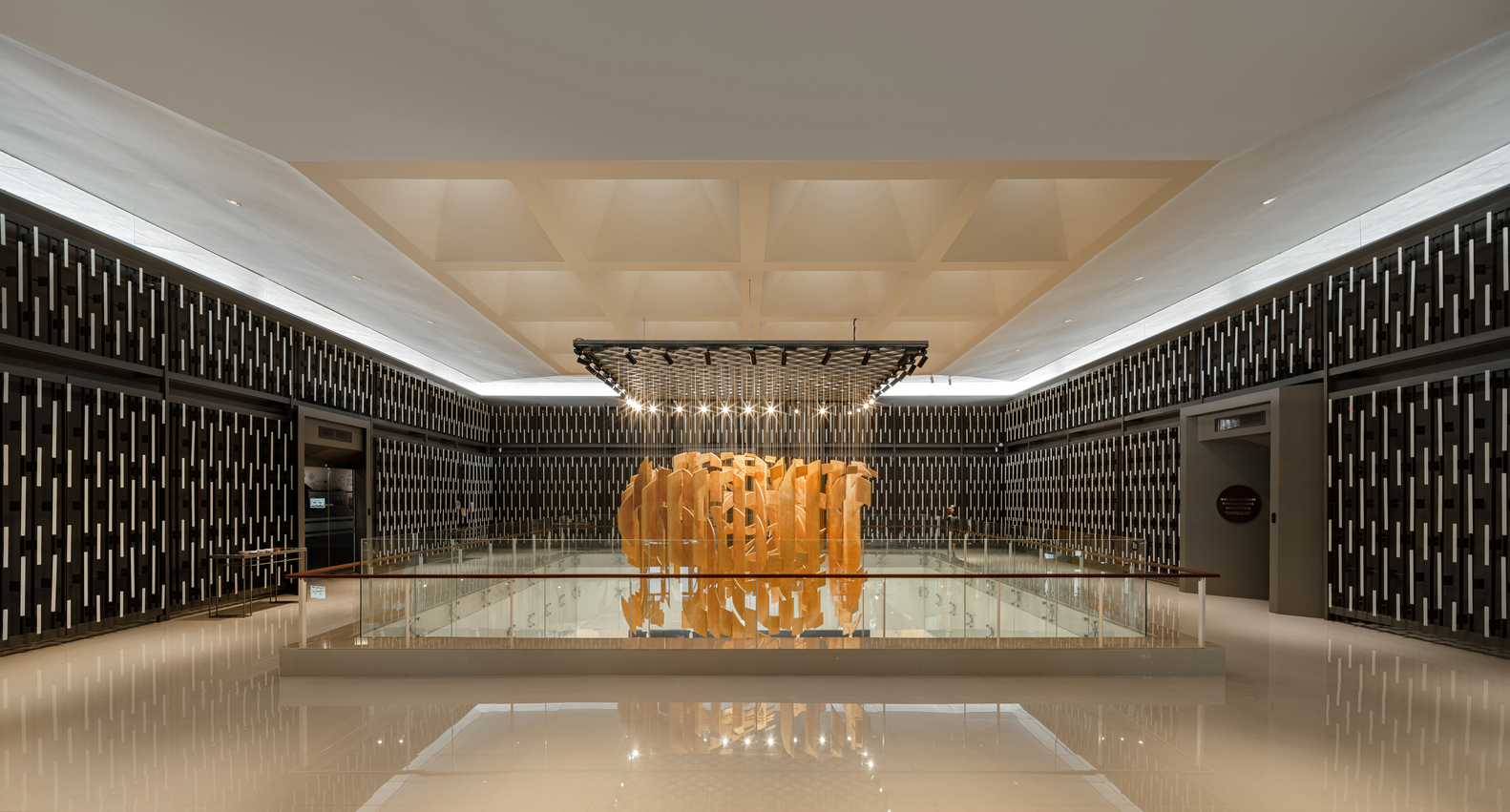

Meanwhile, on the second floor, the previous roof garden in the middle of the building is turned to be the main hall for exhibition with the new roof on top of it. The big new roof still allows the indirect natural light to get in the building as well as creates a well for double volume space to have a visual link with the first floor.

The Treasury Museum Khonkaen
© Panoramic Studio
The Treasury Museum Khonkaen
© Panoramic Studio

The museum function is on the second floor around the main hall. The steel bars element which used to be elements for security propose is a part of the existing as well as the curved steel.

Both are reused in this project for many places such as the main hall, cover the new lift shaft, or even drop-off canopy ceiling in the office part. The new gallery space used to be the staff residence.

The Treasury Museum Khonkaen
© Panoramic Studio
The Treasury Museum Khonkaen
© Panoramic Studio

The small house renovation exposed the structure to show its charming characteristic making it serve a café on the 1st floor and a gallery on the 2nd floor.

Vertical fins create a conceptual form to express the floating effect from the previous architect’s intention.

The Treasury Museum Khonkaen
© Panoramic Studio
The Treasury Museum Khonkaen
© Panoramic Studio

The multi-purpose pavilion has a very beautiful cantilever roof structure and sits next to the parking area, the new design is intended to turn the parking area to be a public park and blend new functions and landscape space together.

The weaving loom concept together with ‘Pha-Khao-Mah’ (the random grid with colorful pattern fabric) the famous fabric in local is chosen to be the main concept in the landscape work with the weaving process intention between architecture and people, bringing the lively dynamic landscape creates new effects with new horizon perspective for those who are weaving in.

The Treasury Museum Khonkaen
© Panoramic Studio
The Treasury Museum Khonkaen
© Panoramic Studio

It provides lively activities on the fabric landscape. The design of this project uses the local characteristic together with the unique charming modern-age character to create space for public use not only just reviving the building back to life but also gaining historic value while providing a versatile useful place for many new activities in town.


The Treasury Museum Khonkaen
Plan - Second floor
The Treasury Museum Khonkaen
Plan


The Treasury Museum Khonkaen

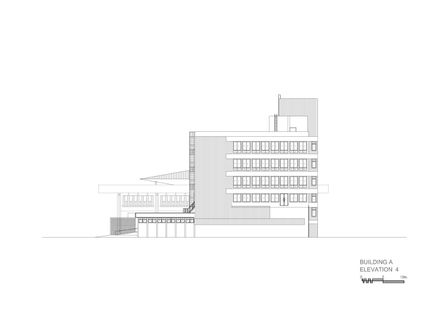

Elevation - Building A
The Treasury Museum Khonkaen
Elevation - Building A
The Treasury Museum Khonkaen
Elevation - Building A
The Treasury Museum Khonkaen
Elevation - Building B
The Treasury Museum Khonkaen
Elevation - Building C
The Treasury Museum Khonkaen
Elevation - Building C


The Treasury Museum Khonkaen
Section - Building A
The Treasury Museum Khonkaen
Section - Building A
The Treasury Museum Khonkaen
Section - Building B
The Treasury Museum Khonkaen
Elevation - Building C
The Treasury Museum Khonkaen

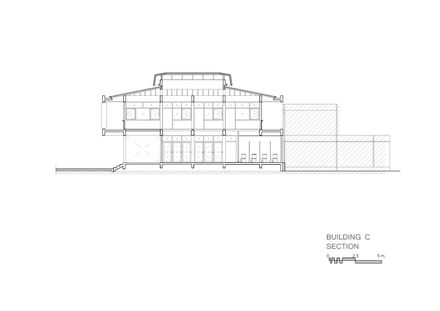

Section - Building C
