Querkraft Architekten ZT GmbH

O6A LOT Housing

O6A LOT Housing

 SAM architecture + Querkraft

O6A LOT Housing
© Schnepp Renou

MANUFACTURERS
Jakob, Forbo Flooring Systems, Cbs-cbt, Digitex, Lifteam, Nora

LEAD ARCHITECTS
Querkraft

CLIENTS
City Of Paris + I3f

LANDSCAPE
Atelier Roberta

CONSTRUCTION MANAGEMENT
Karawitz

DESIGN TEAM
Querkraft + Sam Architecture

ENGINEERING
Gec + Rfr Éléments

PHOTOGRAPHS
Schnepp Renou

AREA
9554 M²

YEAR
2019

LOCATION
Paris, France

CATEGORY
Mixed Use Architecture, Housing, Kindergarten

O6A LOT Housing
© Schnepp Renou

The urban regeneration zone of Clichy-Batignolles covers over 133 acres of land (54 hectares). Located in the 17th Parisian precinct, it is one of the most ambitious urban projects currently led by the city.

The site bears the historical signs of transportation and logistics activities, facilitated by the train lines leading to Saint Lazare train station and the close beltway.

Therefore, the stakes of the project can be summarized by the single idea of designing a dense built environment for this neighborhood. Hence creating the possibility to include this isolated railway site into a very much needed urban continuity.

O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou

The area is constructed around the Martin Luther King parc, crossing its whole length and leading to the symbolic Paris Courthouse, overlooking the northern part of the site.

In this urban operation, the 6A parcel plays an essential role, located between the urbanized road Mstislav Rostropovitch to the West and the park to the East.

The question of porosities and views created between the two spaces is vital to the project definition.

O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou

The final volumetric design is the direct result of the rational understanding of the programmatical and site’s constraints.

The main goal for the project is to obtain as much space and sun as possible for the outdoor playgrounds of the school and daycare center.

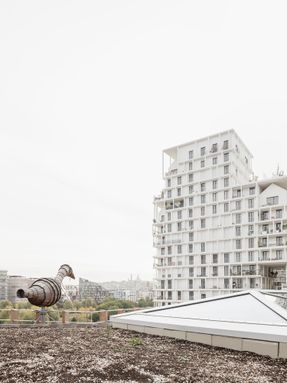

The choice has hence been made to densify the housing areas and to exploit the legal possibilities of the site: grouping apartments into two buildings going up to 50 meters high.

O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou

These two towers are on the North to South diagonal of the site, allowing a maximum amount of sun for both playgrounds. At noon, the shadow from the tower will only cover the roof of the kindergarten.

The choice has been made for noble structural materials, avoiding the need for a decorative layer.

O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou

From the savings obtained by removing inside decoration, the structure can appear in the most noble way as possible.

The beauty of materials is naturally enhanced, and their function can easily be recognized. The technical components are left visible in order to show how the building is made.

O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou

For example, the choice to showcase raw concrete walls is a way to draw attention to their structural impact for the building.

The main concept at work here is to aim for truth in construction. Showcasing the simplicity and transparency of the structure and technical elements of the building.

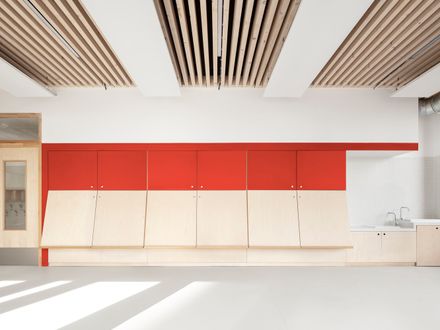

The same idea is at work when it comes to the wooden structure of the kindergarten and the school.

O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou

Both the school and the kindergarten were conceived with a common goal for the team: create as much use value as possible for spaces that could have been overlooked as secondary.

A corridor can become an extra room, the antechamber of a classroom during small group activities for example.

O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou
O6A LOT Housing
© Schnepp Renou

We aim to offer as much use as we can for one space, so that every room can enjoy multiple functions. This architecture aims to be adaptive and flexible on the long term.


O6A LOT Housing

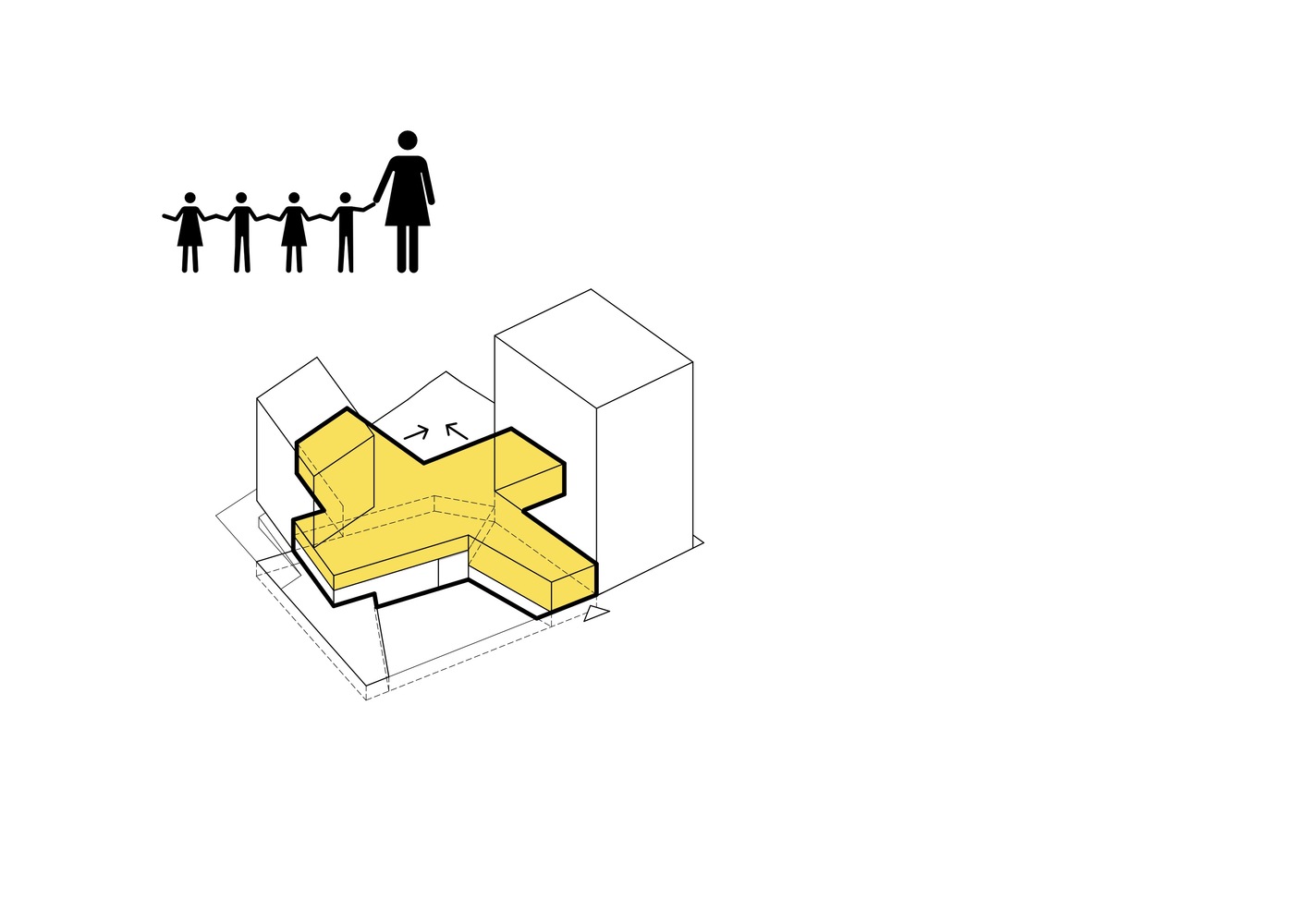

Scheme proposition 01
O6A LOT Housing
Scheme proposition 02
O6A LOT Housing
Scheme proposition 03
O6A LOT Housing
Scheme proposition 04
O6A LOT Housing
Scheme proposition 05
O6A LOT Housing
Scheme proposition 06
O6A LOT Housing
Scheme proposition 07
O6A LOT Housing
Scheme proposition 08
O6A LOT Housing
Scheme proposition 09
O6A LOT Housing
Scheme proposition 10
O6A LOT Housing
Scheme proposition 11
O6A LOT Housing
Scheme proposition 12
O6A LOT Housing
Scheme proposition 13
O6A LOT Housing
Scheme proposition 14
O6A LOT Housing
Scheme proposition 15
O6A LOT Housing
Scheme proposition 16
O6A LOT Housing
Scheme proposition 17
O6A LOT Housing
Scheme proposition 18


O6A LOT Housing
Scheme - environment
O6A LOT Housing

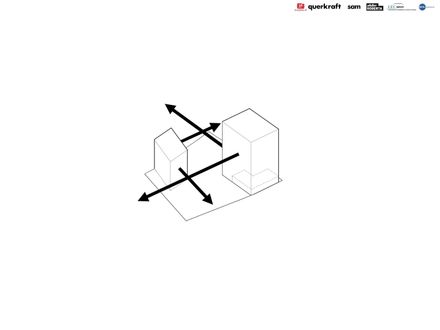

Scheme
O6A LOT Housing
Scheme - acces
O6A LOT Housing
Perspective section


O6A LOT Housing
Bird detail
O6A LOT Housing
Facade detail
O6A LOT Housing
Ground floor & 4th floor plan (housing)
O6A LOT Housing
Plan masse situation
