Edificio Morelli

Edificio Morelli
© Sebastián Aguilar Aloy

Edificio Morelli

Arcieri Arquitectura

LOCATION
Montevideo, Uruguay

CATEGORY
Apartments

MANUFACTURERS
Maderas Gabycar, Rozen

LEAD ARCHITECT
Germán Arcieri

COLLABORATING ARCHITECTS
Melisa Quesada, Lucia Bogliaccini

AREA
1335 m²

YEAR
2020

Located in a central area of Montevideo, the Morelli residential building is located on a 10-meter wide and 46-meter deep site between party walls.

Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy

Taking as a reference the R2B1 zoning of Buenos Aires - our neighboring city - to make the most of the characteristics of the land, the project is articulated in two blocks of 4 levels around a large central patio 11 meters long.

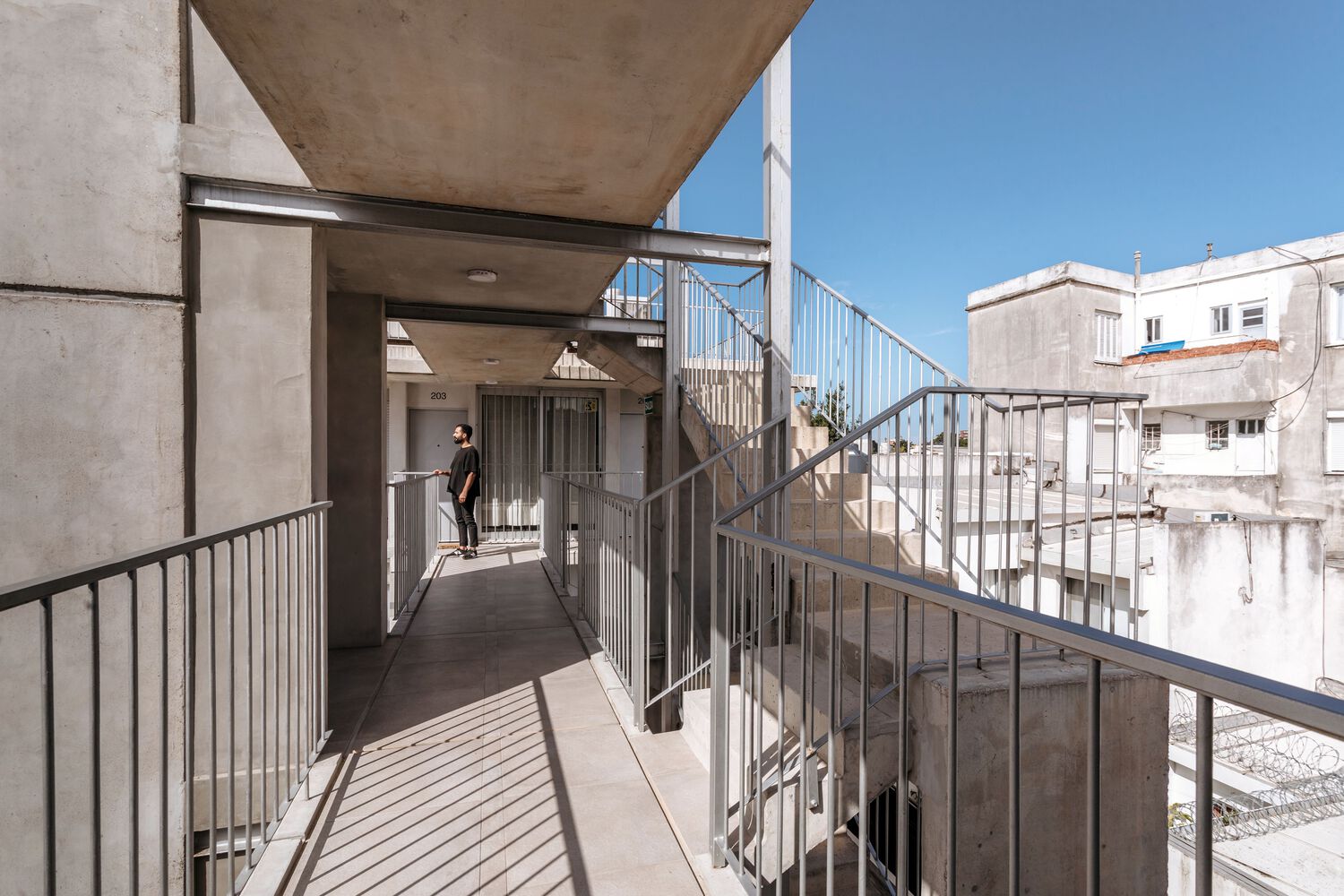

The two volumes reach the 9 meters of height allowed by the regulations of the city, plus a walkable rooftop for the recreation of the users, and are linked to each other by an exterior circulation of concrete walkways.

Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy

Access to the complex is through a landscaped semi-basement where the nine garages are located, and there it is linked to the vertical circulation that leads to the three upper levels, where the fifteen bi-oriented housing units are located.

The typologies vary between 1 and 2 bedrooms and a studio apartment; all have terraces or patios for individual use.

The arrangement of the two blocks around the open central space allows all units to have a double orientation to the northwest and southeast, ensuring adequate sun exposure and cross ventilation.

Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy

Continuing the tour through the central circulation, access is gained to the walkable rooftop, which houses a recreational area with two common-use barbecues, and a space for drying clothes and water tanks.

For the project, a contemporary aesthetic of clean lines and simple volumetry was sought.

Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy

The construction was carried out with prefabricated concrete pieces and assembled on-site with the help of cranes, a solution that provided speed and simplicity in the execution.

Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy


Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy
Edificio Morelli
© Sebastián Aguilar Aloy


Edificio Morelli
Axonométrica
Edificio Morelli
Axonométrica


Edificio Morelli
Planta
Edificio Morelli
Planta
Edificio Morelli
Planta
Edificio Morelli
Planta
Edificio Morelli
Planta
Edificio Morelli
Esquema


Edificio Morelli
Corte
Edificio Morelli
Corte
Edificio Morelli
Corte
