ENNE Arquitectura

Prefabricated House Yvyra

ARCHITECTS
ENNE Arquitectura

MANUFACTURERS
ACINDAR, Cetol, Herrajes Kunstler, Isover, Sinteplast, Ternium, VASA

LEAD ARCHITECTS
Marcela Gadea, Matías Taborda

CATEGORY
Houses

YEAR
2019

COLLABORATORS
Rocío Danchuk, Adrián Méndez, Alan Kruk

ENGINEERIN
Luis Francisconi

LOCATION
Posadas, Argentina

ASSOCIATED ARCHITECTS
Gerardo Esteche

Prefabricated House Yvyra

Given that the production of industrialized housing made from wood is the activity that adds the most value to the local forest industry, the business sector has tasked us with reflecting on how the offer for our region could be updated.

The houses will be commercialized and located in suburban and rural areas. So for us, the reflection was on how using the resources available in the industry, we could approach a more appropriate design for our territory that responds to contemporary domestic uses. Thus, the problem is not about an essay on the image but on how the form is conceived.

Prefabricated House Yvyra
Prefabricated House Yvyra

Understanding the latter as the way in which space is materialized, seeking to synthesize the internal and external complexities of the project, and enabling contemporary living from a sense of place.

Here, living is under the eaves. Most domestic activities take place in the semi-covered area. The proposed architecture aims to allow this. Its "transparent middle" houses a single room flanked by side galleries.

The opening mechanisms make it possible for the entire "middle" to transform into a large gallery, a large semi-covered space. Adjacent to this, the "opaque middle" contains the more private and service uses.

Prefabricated House Yvyra
Prefabricated House Yvyra

The materialization of this idea consists of a mixed system of panels and post-beams. The former, widely developed in the local industry, is used for enclosures: floor, ceiling, and verticals of the "opaque middle." For the "transparent middle," the latter is used as it allows for greater transparency.

Both are manufactured in an industrial plant and transported to the destination on a truck with a semi-trailer. Transport, predominantly manual assembly (only supported by a small crane), and the commercial dimensions of the wood are the variables that condition the dimensions of the parts.

For the panels, the modulation is 2440 x 3050mm, and for the post-beam, the maximum length is 3050mm.

Prefabricated House Yvyra
Prefabricated House Yvyra
Prefabricated House Yvyra

The panel joints are made by interlocking their uprights, which are then covered with joint covers.

The pieces of the other system are composite sections of planks, which are linked to the panels and between them, using interlocking or industrialized metal connectors.

Thus, prefabrication allows for the acceleration of construction times: fifteen days of manufacturing and fifteen days of assembly; minimizing unwanted environmental impacts, which exist in any construction.

Understanding how we live here, we could say that architects should know how to do two things well: roofs and doors.

Prefabricated House Yvyra
Prefabricated House Yvyra

Faced with such spatial friction with the outside, the rest of the components could be dispensed with.

Perhaps this is what we inherited from vernacular archetypes such as the culata jovai, and not its repeated tripartite composition of the plan.

Without a doubt, understanding the relationships of these architectures with the context helps us understand and grasp the local landscape, to put contemporary domestic production in all its dimensions.

And thus, arrive at a product-house that synthesizes in its spaces the variables: technique, uses, and belonging to a landscape.

Prefabricated House Yvyra


Prefabricated House Yvyra

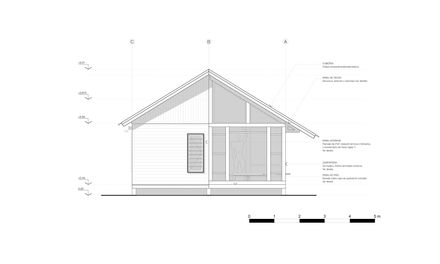

Elevation
Prefabricated House Yvyra
Section
Prefabricated House Yvyra
Elevation


Prefabricated House Yvyra
Panles - plan
Prefabricated House Yvyra
Constructive details
Prefabricated House Yvyra
Constructive details
Prefabricated House Yvyra
Constructive details


Prefabricated House Yvyra
Exploded axo
Prefabricated House Yvyra
Axo - complex


Prefabricated House Yvyra
Axo - site
Prefabricated House Yvyra

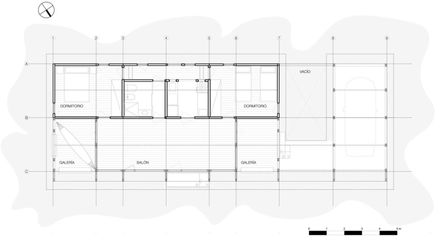

Ground floor plan
Prefabricated House Yvyra
Site plan
