Feliciana Cabin

Feliciana Cabin
© Victoria Castría

Feliciana Cabin

Taller Macaa

ARCHITECT IN CHARGE
Rafael Ortiz Santos

PHOTOGRAPHS
Victoria Castría

LOCATION
Taray, Peru

ARCHITECTS
Taller Macaa

AREA
35 m²

CATEGORY
Houses

YEAR
2022

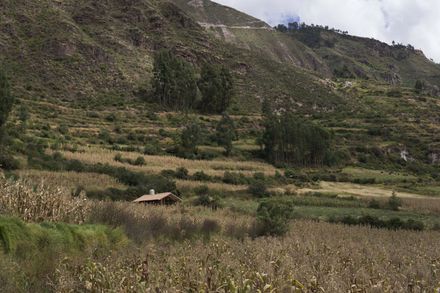

La Cabaña Feliciana is located near Taray, in the heart of the Sacred Valley, 30 km from Cusco, at an altitude of 3150 meters where the Incas built buildings with remarkable architectural qualities.

Feliciana Cabin
© Victoria Castría
Feliciana Cabin
© Victoria Castría
Feliciana Cabin
© Victoria Castría

La Cabaña Feliciana, like all traditional Andean buildings, is named after a woman. It was the subject of two ceremonial stages: the Tink'a at the time of the initiation of the foundations and the placement of the first stone, then La Techada, when the tile roof was completed and two clay bulls were installed on it.

These stages are a ritual of gratitude to Pachamama (Mother Earth) to whom offerings such as chicha de jora and coca leaves are made.

Adobe provides the building with all its thermal regulation qualities. A noble, robust, ultra-simple material (a mixture of earth, water, and straw) reveals all its richness here.

Feliciana Cabin
© Victoria Castría
Feliciana Cabin
© Victoria Castría

Supported by stone foundations, these 40cm walls offer a beautiful height to the cabin. The roof, on the other hand, is made up of a simple structure of a ridge and eucalyptus beams, covered with carefully placed reeds and themselves covered with earth on which the tiles rest.

Facing north, Cabaña Feliciana offers a panoramic view of the Andes. It is characterized by its fully glazed façade, designed by its light and geometric wooden structure. Light is invited into the interior of the building from sunrise and therefore throughout the day.

Feliciana Cabin
© Victoria Castría
Feliciana Cabin
© Victoria Castría
Feliciana Cabin
© Victoria Castría

This creates complicity between materials; during the day, the light is absorbed by the façade, and the heat is stored for the night thanks to the adobe walls.

We find the use of the arch in different places in the construction: at the entrance that separates the main room from the bathroom, but also in small niches that mark the east wall of the house.

These openings, in addition to their practical storage function, offer volume and musicality to the wall.

Feliciana Cabin
© Victoria Castría
Feliciana Cabin
© Victoria Castría
Feliciana Cabin
© Victoria Castría

The use of adobe is fully experienced, so the bed, nightstands, and storage spaces in the bathroom and kitchenette are made of this material, generating in Feliciana a compact unity between the living space and the storage space. The bathroom is divided into two blocks. The toilet is mainly a dry bathroom.

And on the other hand, the shower with the sink, which is complemented by an interior garden that gives the space an intense vegetal presence, this tray receives the drops of water that splash from the shower. The bathroom sink is made of carved stone, made by a local craftsman.

Feliciana Cabin
© Victoria Castría
Feliciana Cabin
© Victoria Castría

Between the toilet and the shower, in the wall that separates them, there are some glass bricks providing a dim and colorful light. Following a recycling and recovery approach.

With the same spirit, the stove that heats the house was built from an old gas cylinder. The central door and ventilation hatch provide ideal conditions for combustion in times of low temperature.

Feliciana Cabin
© Victoria Castría


Feliciana Cabin
Section A-A
Feliciana Cabin
Section B-B
Feliciana Cabin
Section C-C
Feliciana Cabin
Section D-D


Feliciana Cabin
South elevation
Feliciana Cabin
West elevation
Feliciana Cabin
North elevation
Feliciana Cabin
Axo
Feliciana Cabin
