Sarvestan Villa

SARVESTAN VILLA

Mado Architects

Sarvestan Villa

ARCHITECTS
Mado Architects

STATUS
Built

AREA
5000sqft - 10,000sqft

YEAR
2022

LOCATION
Mazandaran Province, Iran

TYPE
Residential › private house

Sarvestan Villa

The subject of this project is the design of a villa on a land with an area of 500 square meters.

This site is located in Sarvestan suburb in Royan region. The suburb has a classic rules with a gable roof and brick, cement and wood materials.

Sarvestan Villa
Sarvestan Villa

Among the existing classical structures in architecture, many studies have been done on the geometric of nine squares.

An excuse was given to us to practice and introduce this arche-type with the rules defined by the suburb, so in the programming phase, we chose the 9-square arche-type to design the project.

Sarvestan Villa
Sarvestan Villa
Sarvestan Villa

In the initial stage of the program, we allocated the center of nine squares to an inner courtyard, which is connected to the outer courtyard by the middle semi-enclosed open space.

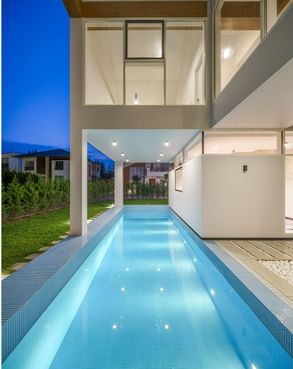

The two southern squares were dedicated to the pool zone, which is associated with the interior and exterior courtyard space as well as the central pergola.

Sarvestan Villa
Sarvestan Villa
Sarvestan Villa

In fact, the decision made at the programming phase was organized by a 9-square grid, and each space was defined in a section of 9 squares.

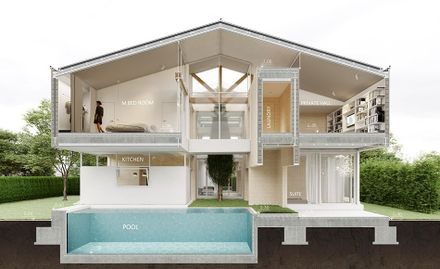

ground floor allocated to the public space and an independent guest suite in a transparent connection with the courtyards and first floor allocated to the private spaces, which included a private hall and three master bedrooms, the project plan was thus defined in three levels.

Sarvestan Villa
Sarvestan Villa

Thus, by allocating each space to a square and activating two vertical axes of the servicing zone, the project is formed according to the Mondrian aesthetic.

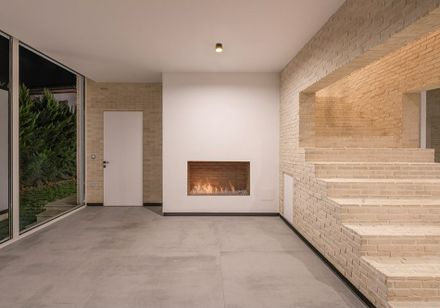

Brick tiles proposed for the two services zone, and also act as a three-dimensional organizing element, separating the spaces.

On the roof level of this axis, it is dedicated to the path and the roof garden, and also the Jacuzzi, which is located on the same level of this axis under the sloping roof, stands out inside the inner valley.
