Shohel Residence

Shohel Residence
© Asif Salman

Shohel Residence

Archfield Bangladesh

ARCHITECTS
Archfield Bangladesh

LEAD ARCHITECTS
Nitee Mahbub, Wares Ul Ambia

MANUFACTURERS
Autodesk, Trimble Navigation

PHOTOGRAPHS
Asif Salman

AREA
1900 Ft²

YEAR
2019

LOCATION
Dhaka, Bangladesh

CATEGORY
Houses

The project brief emphasized mental and physical well-being rather than spatial requirements. The client invested his resources in his and his family’s future when the surrounding would inevitably fill up mercilessly with brutal concrete structures.

Shohel Residence
© Asif Salman
Shohel Residence
© Asif Salman

The design focused on providing breathing space within the compound in contrast to the existing trend and surrounding environment, not only for the owners but for the neighbors who are forced to be packed in matchbox houses due to the ever-increasing demands of urban living.

Creating an example of an IDEAL HOME in the present rapidly growing URBAN CONTEXT OF DHAKA CITY which incorporates a simple shift in the typical thought process:

Shohel Residence
© Asif Salman
Shohel Residence
© Asif Salman

- COST REDUCTION can be equivalent to INCOME GENERATION - The value of PHYSICAL AND MENTAL WELL-BEING is much greater than Economic prosperity in the long run. The design is minimal and simple, fully intending to preserve the original natural state as much as possible.

The structure is a mere backdrop of busy homesteading, healthy living, and memory crafting. The balance is achieved through the crafted relationship between

Shohel Residence
© Asif Salman
Shohel Residence
© Asif Salman

Open space: This project adds to the urban landscape by providing substantial open space. The client wanted a home for his family thus the footprint was deliberately kept tight to encourage a sense of togetherness while the tropical breeze soaks up the stress.

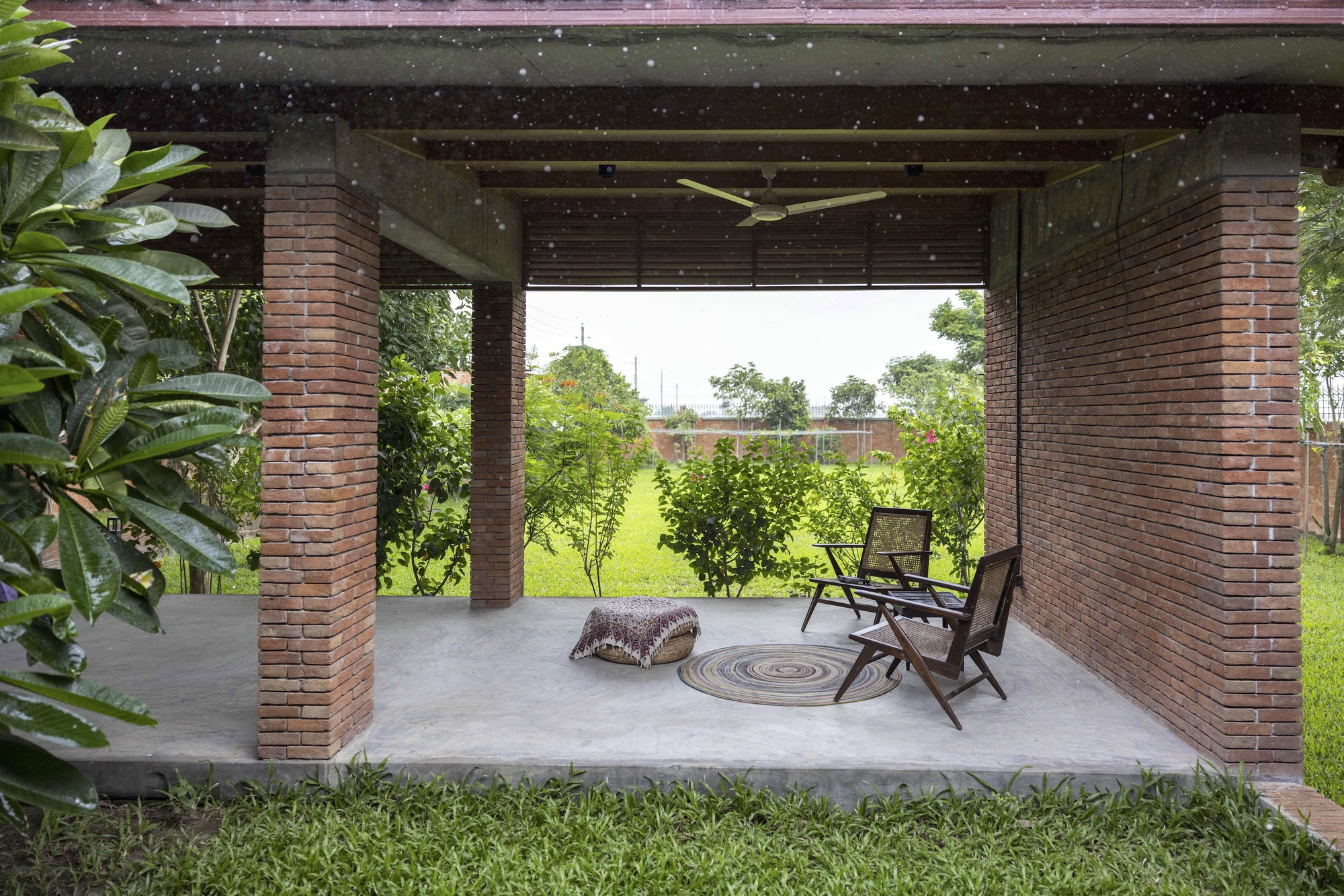

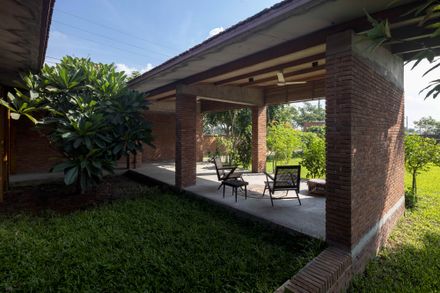

Pavilion: A pavilion kind of space flows always maintains the airflow of the house and brings the overall temperature of the entire space down; it also works as a multipurpose space for family interaction.

Shohel Residence
© Asif Salman
Shohel Residence
© Asif Salman

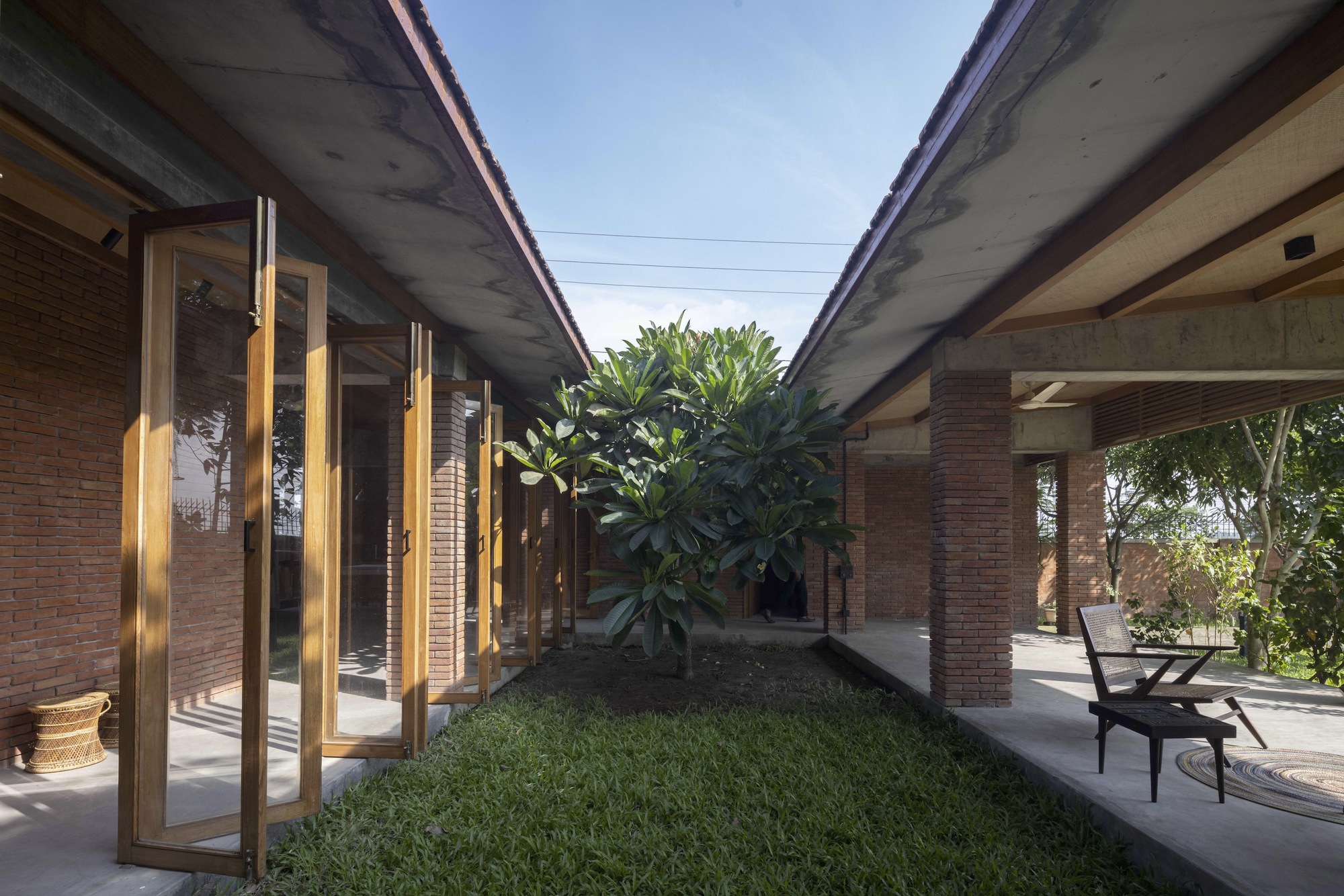

Courtyard: Courtyards can play an important role in regulating the microclimate of the tropics. It works a transition between the large open space and the house. The house is of brick Structure with a focus on locally common techniques and available resources.

MATERIALS

- Traditional clay roof tile for insulation sloped roof to enhance views, draw in wind flow, and create variation in floor height. -Concrete slab on I section bars [used] for permanence. -Sloped METAL beams to support the sloped roof.

Shohel Residence
© Asif Salman
Shohel Residence
© Asif Salman

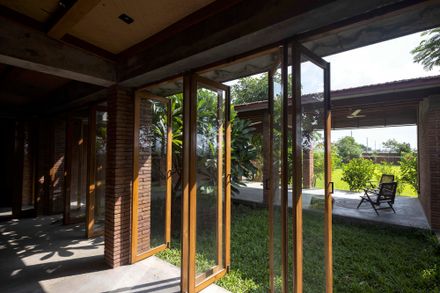

 -Sheetal Pati” (A traditional mat made with cane-like material from plants) to clad the false ceiling.  -Louvered panel to lower the scale and to let the wind flow and prevent rain

-Brick walls are made with 2 rows of brick with cement concrete in between. -Wood and glass on windows and doors.

Shohel Residence
© Asif Salman
Shohel Residence
© Asif Salman

When it comes to Dhaka, the best architecture is the one that is not built at all as the open green spaces are rapidly disappearing causing serious degradation of the living environment.

Moreover, the challenge of balancing aspiration and affordability poses to be even greater when it merges with the future concerns of a family.

The design tried to find a balance between these complexities and make a statement against the trend.

Shohel Residence
© Asif Salman


Shohel Residence
Sections


Shohel Residence
Plan - Ground Floor
Shohel Residence
Plan - Roof
Shohel Residence
Plans


Shohel Residence
Sectional Perspective
